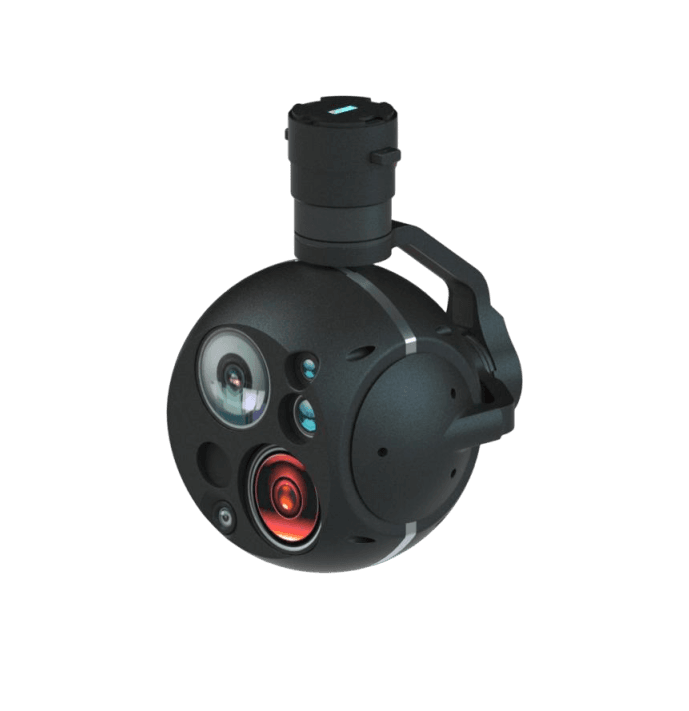

At the heart of the DT30Bpro lies a sophisticated triple‑sensor architecture that merges visible‑light detail, infrared heat mapping, and laser precision into a single gimbal. The EO camera streams full 1920×1080 video at 60 fps, while the 640×512 thermal imaging payload operates at the same fluid frame rate, ensuring no motion blur even during fast‑paced tracking. The 30× optical zoom on the visible channel reaches 135 mm telephoto, and the 8.7°×7° field of view of the 50 mm infrared lens extends humane detection beyond 1.5 km. Operators can rapidly switch between wide‑area scanning and detailed close‑ups, with the dual‑lens design eliminating the need for separate hardware. In addition, the AI target tracking system runs directly on the payload, performing object identification and continuous tracking of vehicles or humans. This on‑board intelligence reduces the drone’s computational load and provides a stable tracking overlay that stays locked even when the platform banks or pitches. The high‑accuracy laser rangefinder, effective from 30 m to 3000 m, feeds precise distance data to the flight controller, enabling real‑time target position calculation. Coupled with the gyro‑stabilized platform that maintains angular position accuracy within 0.1 mrad, operators can place targets on a map with survey‑grade confidence. Moreover, the gimbal supports picture‑in‑picture mode, where the zoomed view is inset into the wide‑angle stream, and the Rich OSD overlays heading, GPS coordinates, range, and system status. These features, backed by 12–28 V DC input and RS232 control, make the DT30Bpro a truly integrated intelligence node for any UAV thermal gimbal application.

Public safety drone teams gain a decisive edge with the DT30Bpro’s ability to maintain situational awareness in smoke, darkness, and adverse weather. The thermal imaging payload, with its six‑to‑fifteen color palette options and adjustable temperature bar overlay, lets first responders pinpoint hotspots in structure fires or locate missing persons in overgrown terrain. Because the gimbal offers both standard MP4 recording and network streaming with H.265 compression, evidence collection and real‑time command‑center sharing become effortless. Furthermore, law enforcement agencies use the laser rangefinder for precise distance measurement during surveillance, while the AI target tracking automatically follows a suspect’s vehicle or a person of interest, freeing the officer to coordinate ground units. Environmental monitoring projects benefit from the same multi‑sensor flexibility: the wide‑angle EO lens documents shoreline erosion or wildlife populations by day, and the infrared channel reveals thermal anomalies in water outflows or vegetation stress at night. The DT30Bpro’s lightweight 1100‑gram build and quick‑disassembly structure simplify transport between remote field sites, and the −20 °C to +50 °C operating range guarantees reliability from desert heat to alpine cold. Consequently, a single payload can serve as a year‑round tool for forest fire detection, disaster assessment, and industrial inspection. The inclusion of rich OSD, such as target coordinates and gimbal attitude, allows automatic geo‑referencing of all data, while the RS232 protocol permits straightforward integration with existing drone autopilots. For any organization seeking a robust, all‑in‑one surveillance solution, the DT30Bpro UAV thermal gimbal delivers unmatched versatility in high‑stakes environments.
