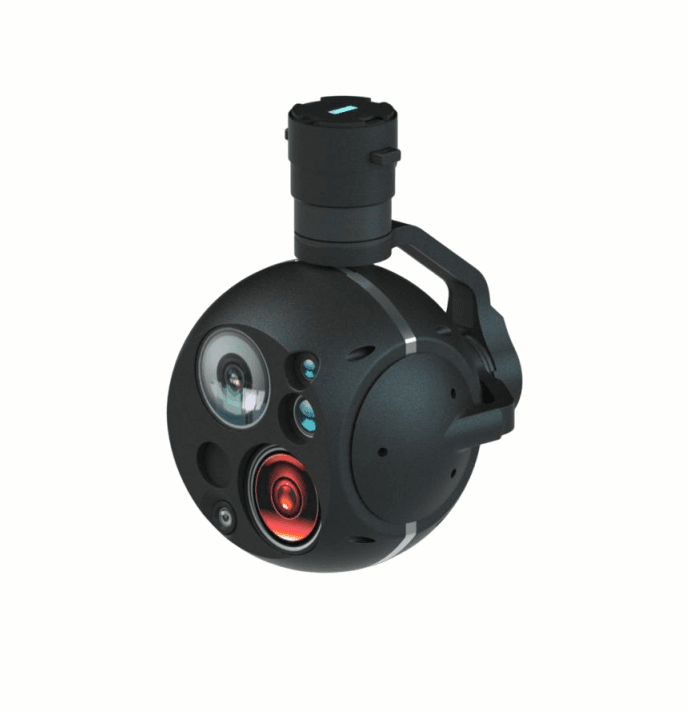

DT30Bpro EO/IR/Laser Pod | 4.5–135 mm Zoom, 640×512 IR at 60 fps
DT30Bpro combines 1920×1080/60 fps visible video, 640×512/60 fps thermal imaging and 30–3,000 m laser ranging on a three-axis platform. A 4.5–135 mm lens provides 30× continuous optical zoom, complemented by a 2.8 mm fixed EO view and 50 mm thermal lens. AI recognition and tracking work with 0.1 mrad published stabilization; network H.264/H.265 video and MP4 recording support payload integration.
- 4.5~135mm
- 2.8mm
- 30× continuous optical zoom
- ≥40°/s
- 0.1 mrad (1°/2Hz, 1 sigma)
- ≤0.3°
- 640×512 @ 60fps
- 8.7°×7° (50mm)
- 30m~3000m
- Network
- RS232
- ≥100°/s
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data
| Parameter | Specification |
|---|---|
| Product - Product name | DT30Bpro |
| Product - Type | Triple-mode micro-pod |
| Product - Weight | ≤1100 g |

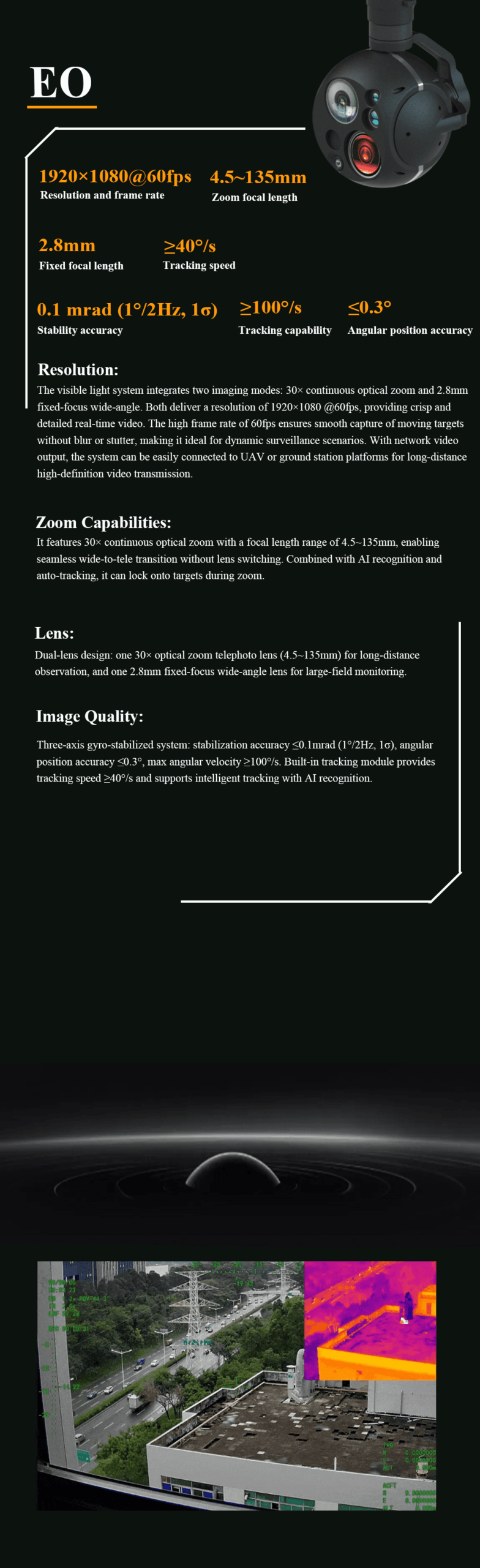

| EO - Resolution and frame rate | 1920×1080 @ 60fps |
| EO - Zoom focal length | 4.5~135mm |
| EO - Fixed focal length | 2.8mm |
| EO - Zoom capability | 30× continuous optical zoom |
| EO - Tracking speed | ≥40°/s |
| EO / Stabilization - Stability accuracy | 0.1 mrad (1°/2Hz, 1 sigma) |
| EO / Stabilization - Angular position accuracy | ≤0.3° |

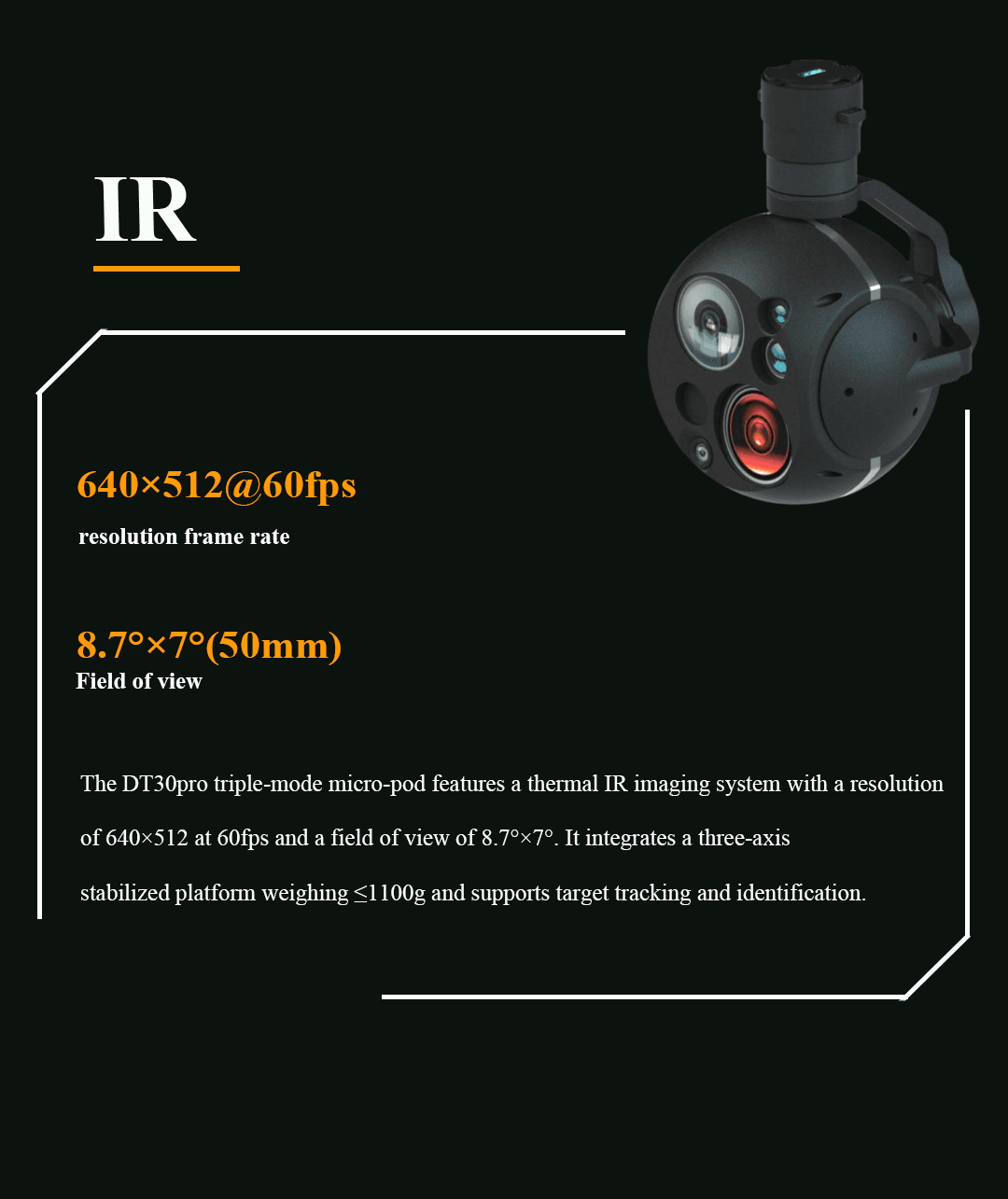

| IR - Resolution frame rate | 640×512 @ 60fps |
| IR - Field of view | 8.7°×7° (50mm) |
| IR - Color palettes | White hot, Black hot, Iron red, Rainbow, Fusion |
| IR - Palette options | 6-15 options available |
| Laser rangefinder - Measuring distance | 30m~3000m |
| Video / OSD - Picture in Picture | Supported |
| Video / OSD - Rich OSD | Camera information, Target information, Robot information |

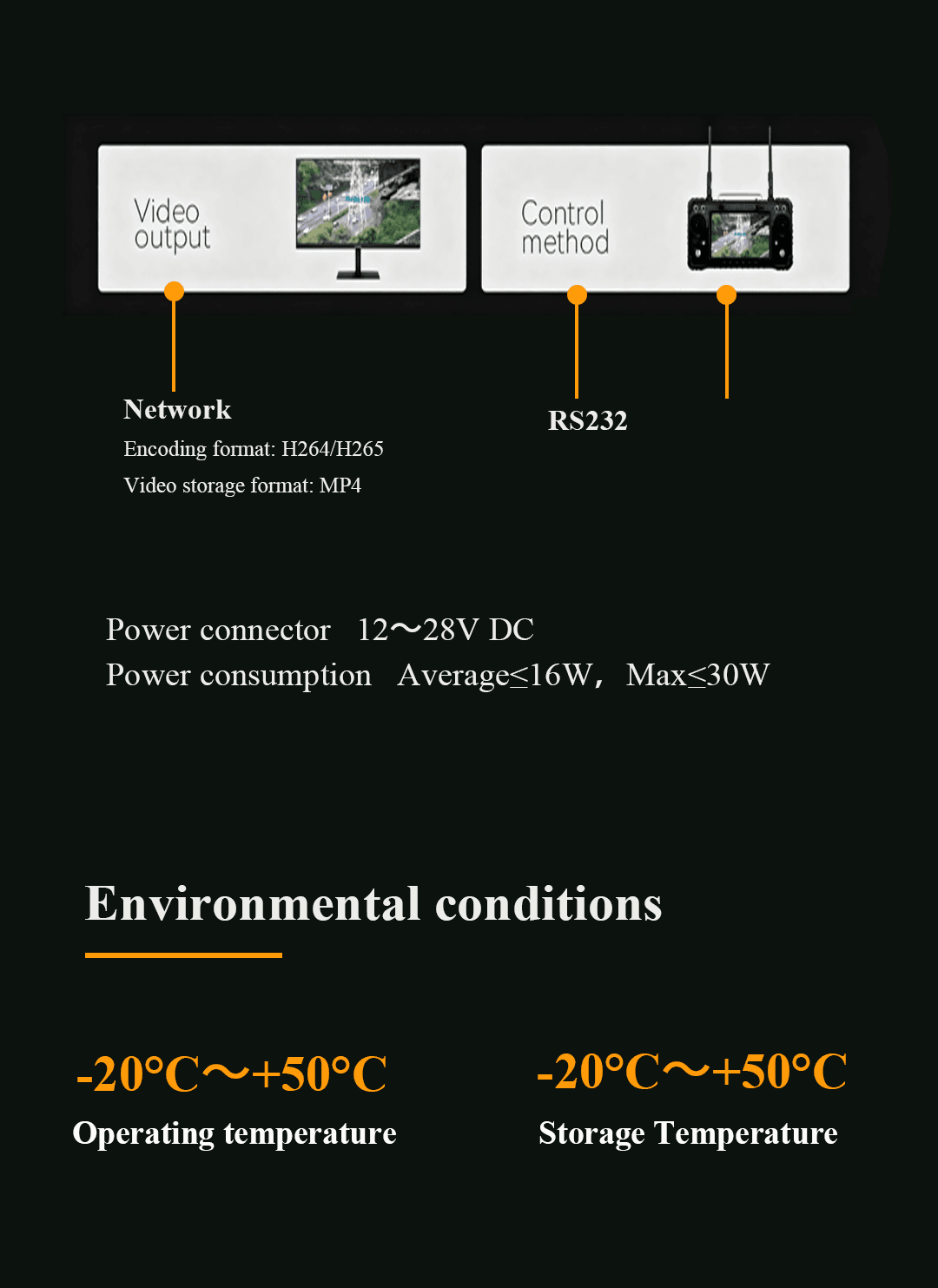

| Video output - Output mode | Network |
| Control method - Interface | RS232 |
| Power - Power connector | 12~28V DC |
| Power - Power consumption | Average ≤16 W; maximum ≤30 W |
| Environmental conditions - Operating temperature | -20°C~+50°C |
| Environmental conditions - Storage Temperature | -20°C~+50°C |

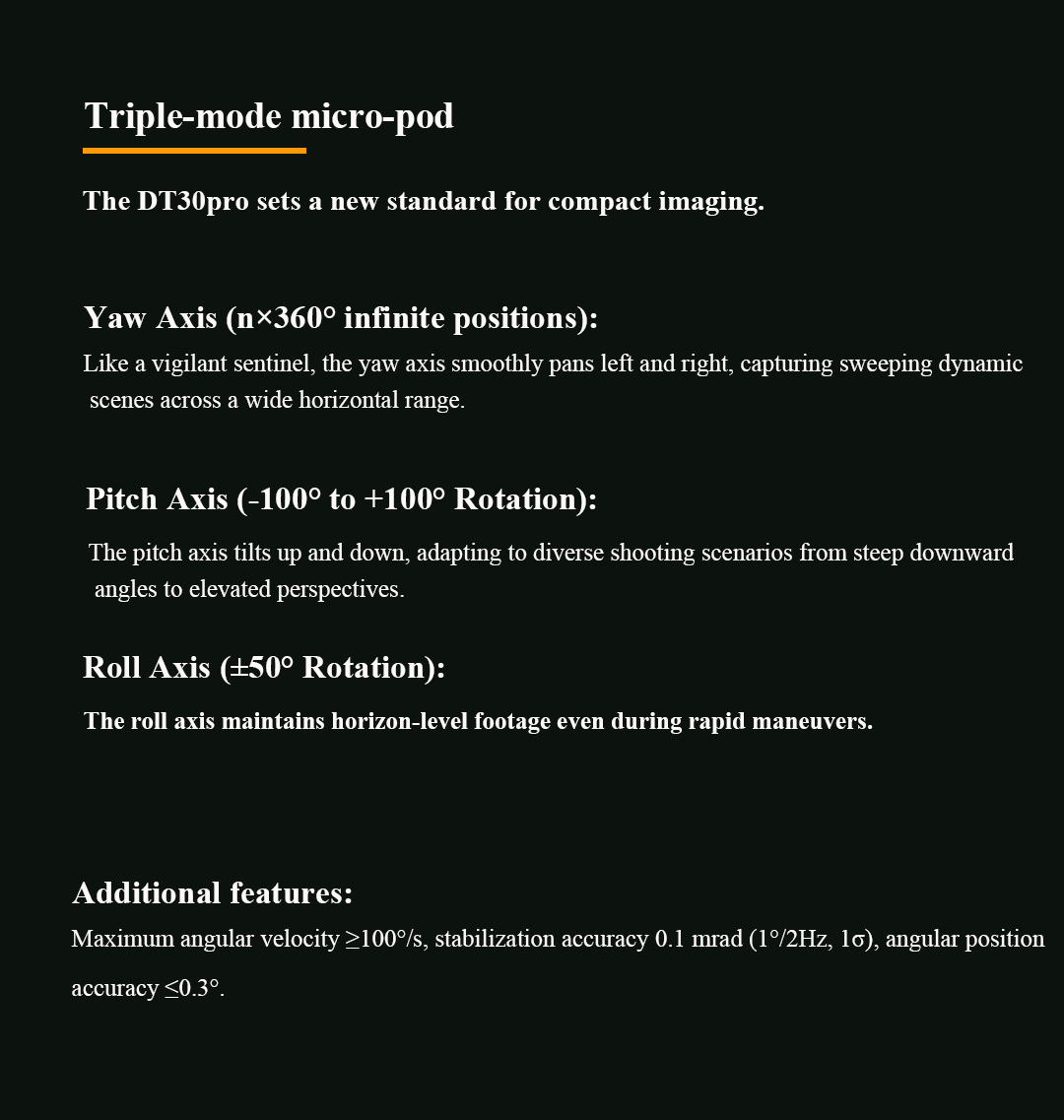

| Gimbal - Yaw Axis | n×360° infinite positions |
| Gimbal - Pitch Axis | -100° to +100° Rotation |
| Gimbal - Roll Axis | ±50° Rotation |
| Gimbal - Maximum angular velocity | ≥100°/s |

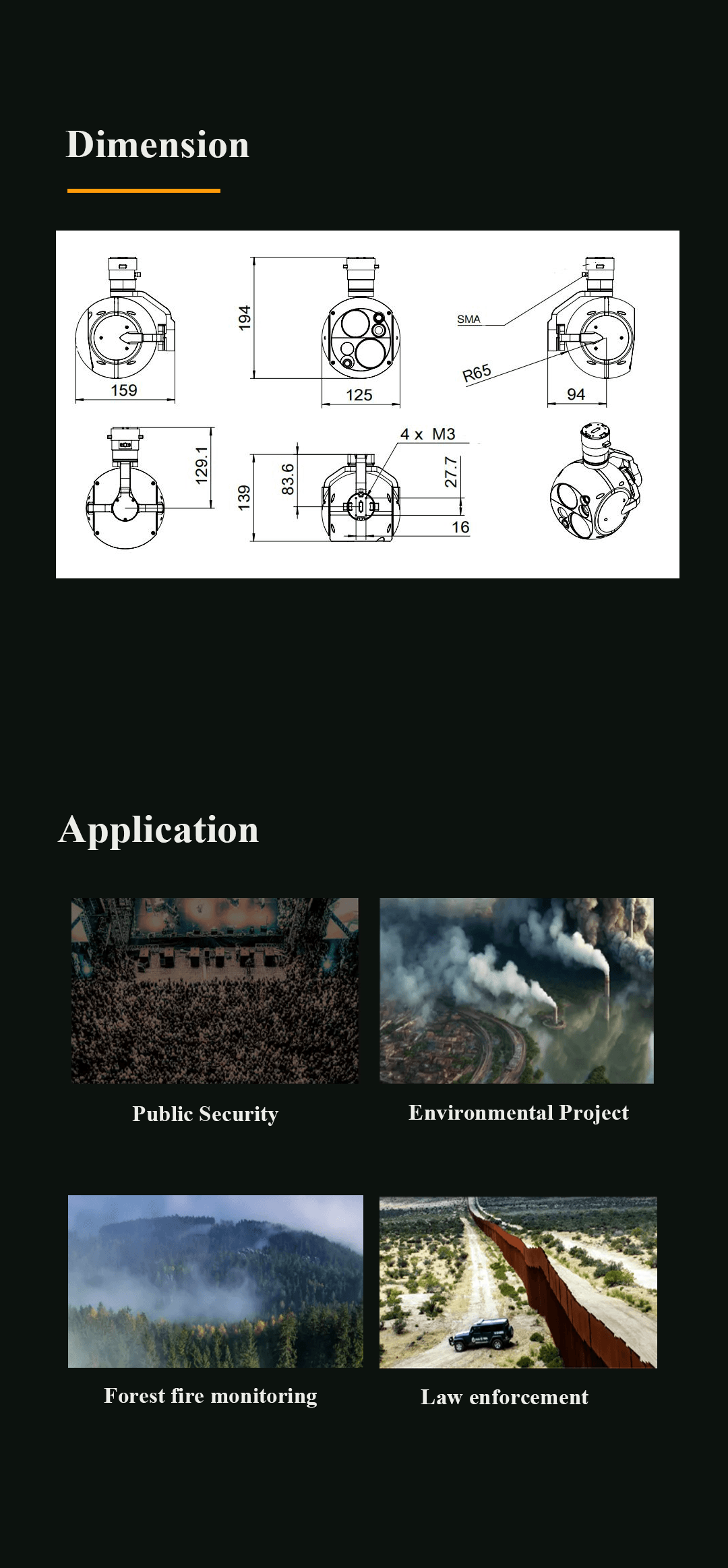

| Dimension - Main dimensions shown | 159, 194, 125, 94, R65, 129.1, 139, 83.6, 27.7, 16 |
| Dimension - Mounting | 4×M3 |
1. Features & applications

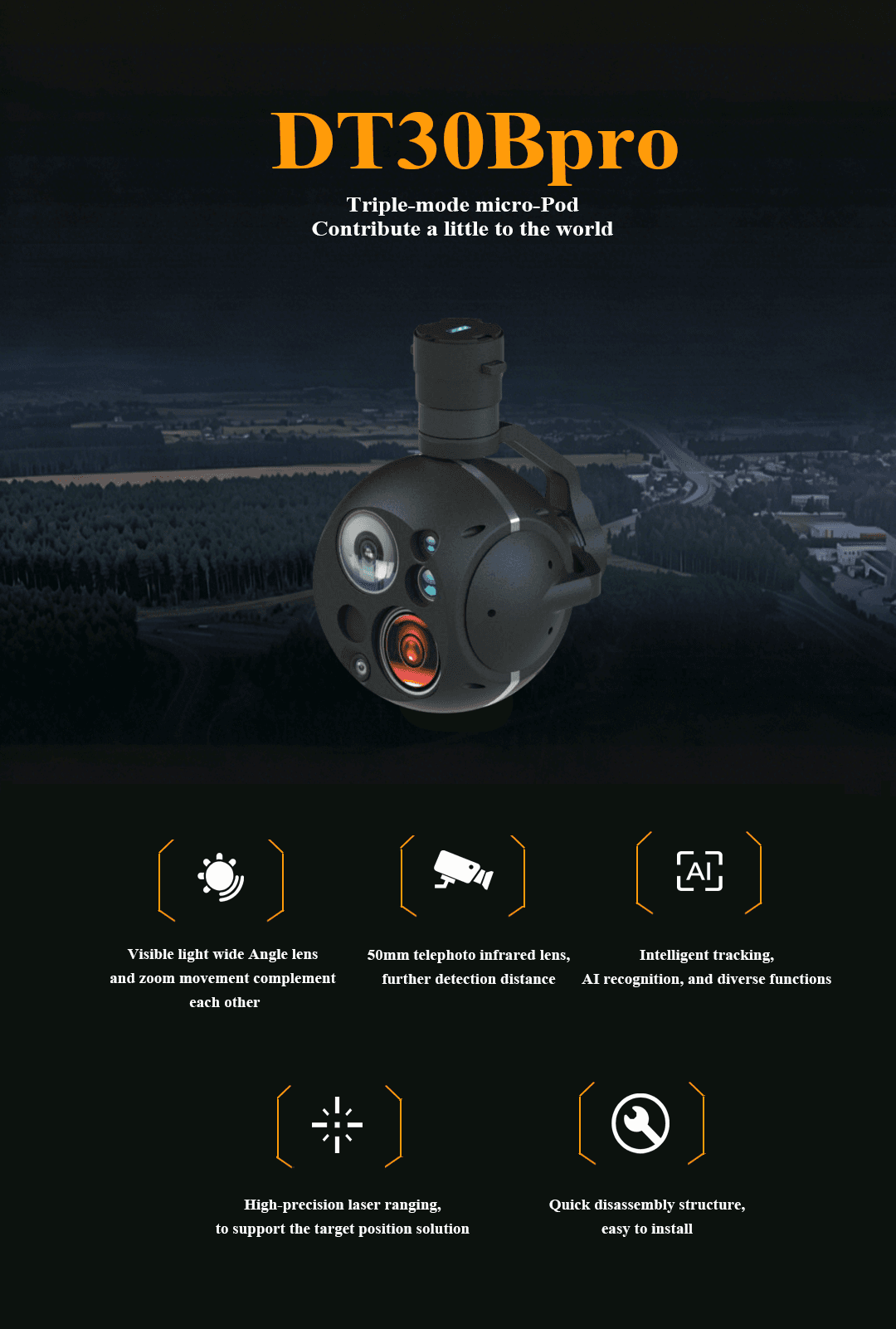

DT30Bpro FHD EO IR Thermal Laser Rangefinder 3-Axis UAV Gimbal with AI Target Tracking is a triple-mode micro-pod designed for compact airborne and ground surveillance missions. It integrates FHD EO camera imaging, IR thermal imaging, a laser rangefinder, three-axis stabilization, AI object identification, target tracking, network video output, and quick-disassembly installation. With a lightweight payload of about 1100g, DT30Bpro supports day and night surveillance, target recognition, and target tracking for UAV gimbal and robotic observation applications.
2. Product Features

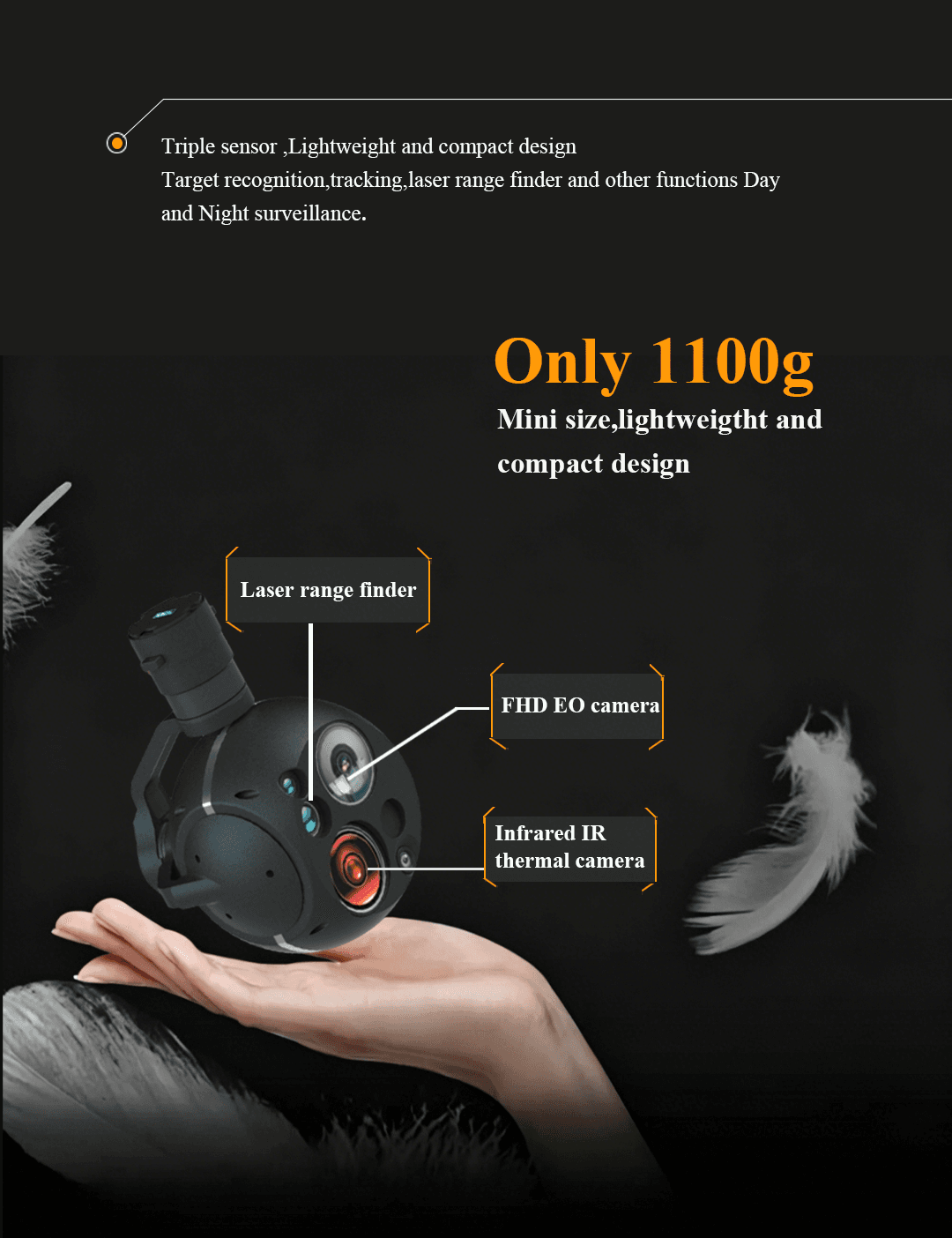

- Triple Sensor Payload: Integrates an FHD EO camera, infrared thermal camera, and laser rangefinder for day and night observation.
- Dual EO Lens Design: A visible-light wide-angle lens and zoom lens complement each other for wide-area search and longer-distance observation.
- Long-Range Thermal Imaging: The 50mm telephoto infrared lens supports longer thermal detection distance.

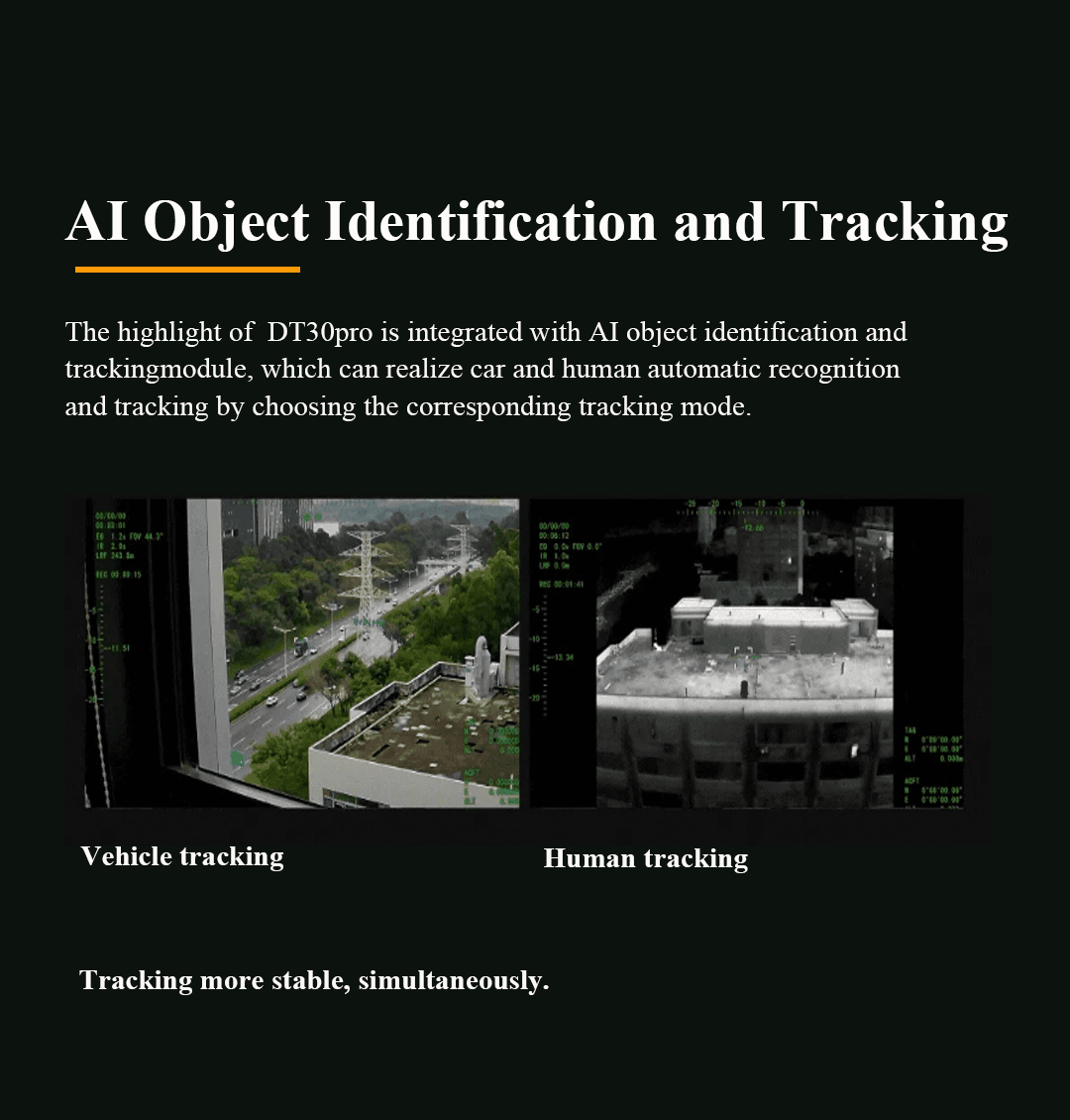

- AI Target Tracking: Object identification and tracking support vehicle tracking and human tracking.
- Laser Ranging: High-precision laser ranging supports target position solution.
- Enhanced Video Display: Picture in Picture and Rich OSD display camera information, target information, and robot information.

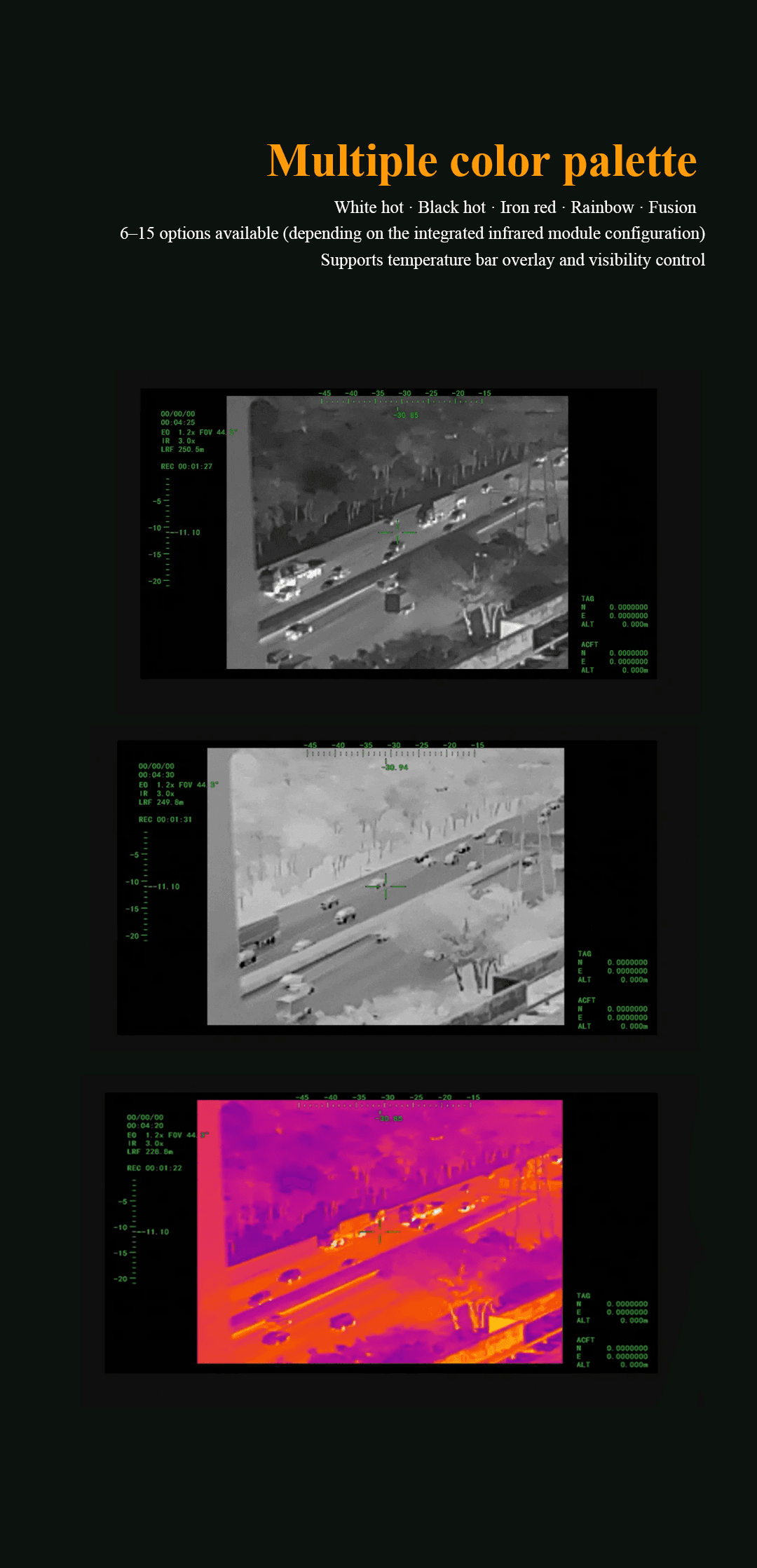

- Thermal Palette Options: White hot, Black hot, Iron red, Rainbow, and Fusion palettes are available, with 6-15 options depending on infrared module configuration.
- Temperature Overlay: Temperature bar overlay and visibility control are supported for thermal viewing.
- Quick Installation: The quick-disassembly structure makes the payload easy to install and maintain.
3. Application Scenarios
- Public Security: Supports aerial or ground surveillance, target recognition, and target tracking for security operations.
- Environmental Projects: Provides EO and IR imaging for environmental inspection and monitoring tasks.
- Forest Fire Monitoring: Uses IR thermal imaging and stabilized observation to help detect and monitor fire risks.
- Law Enforcement: Combines video output, OSD data, laser rangefinding, and tracking for evidence-oriented field observation.
