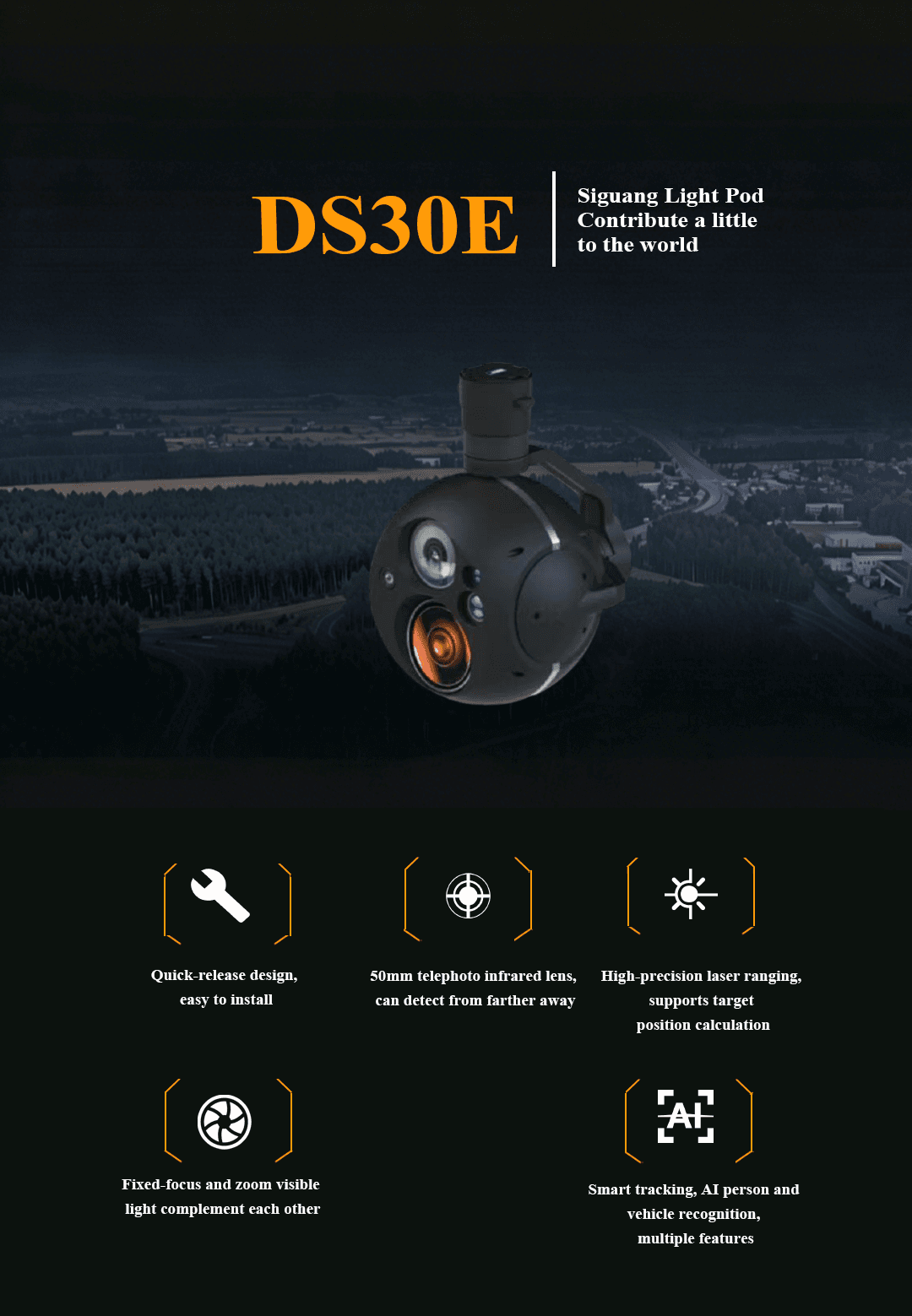

DS30E Triple-Sensor EO/IR Laser Rangefinder Gimbal

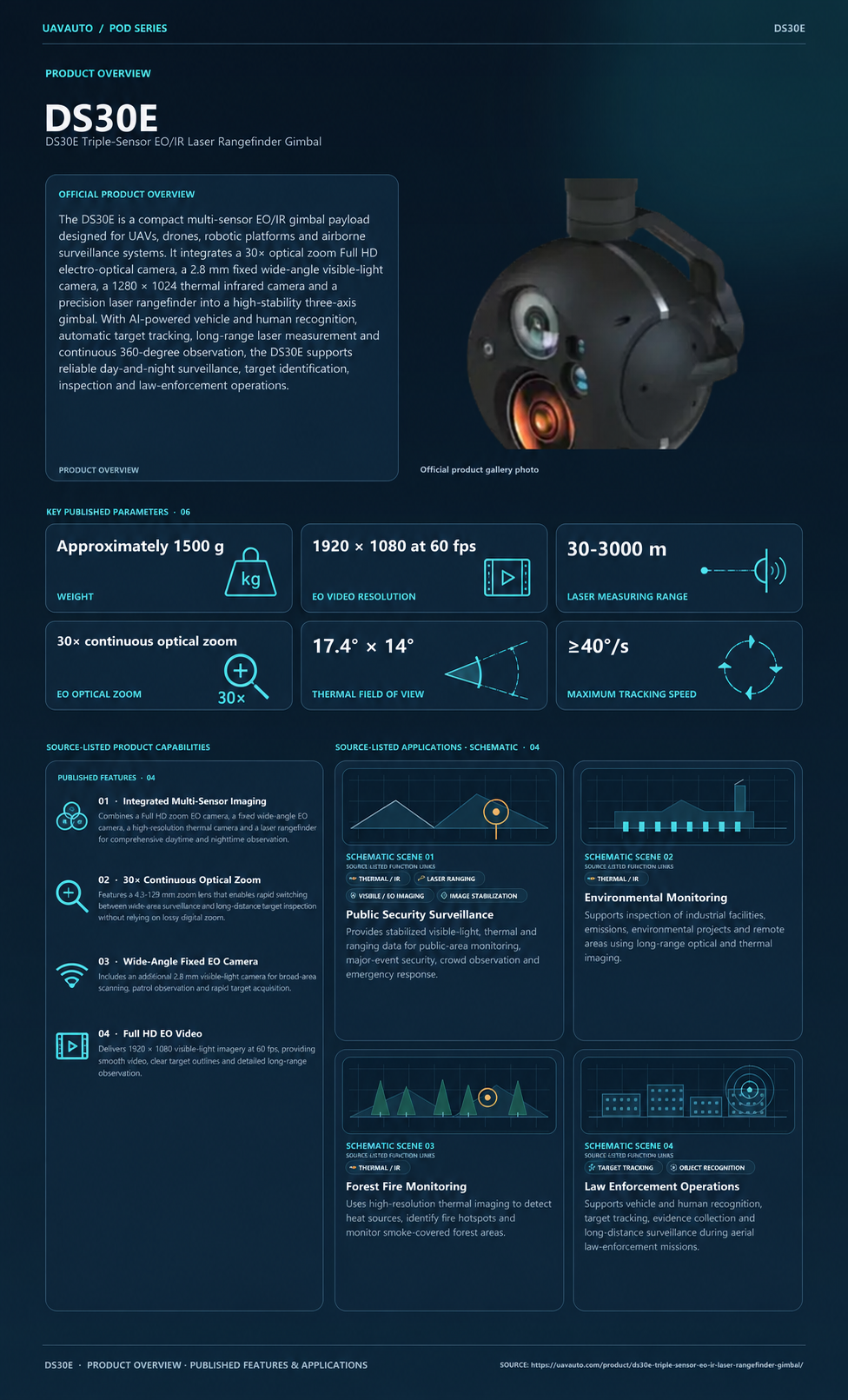

1. DS30E Triple-Sensor EO/IR Laser Rangefinder Gimbal Overview

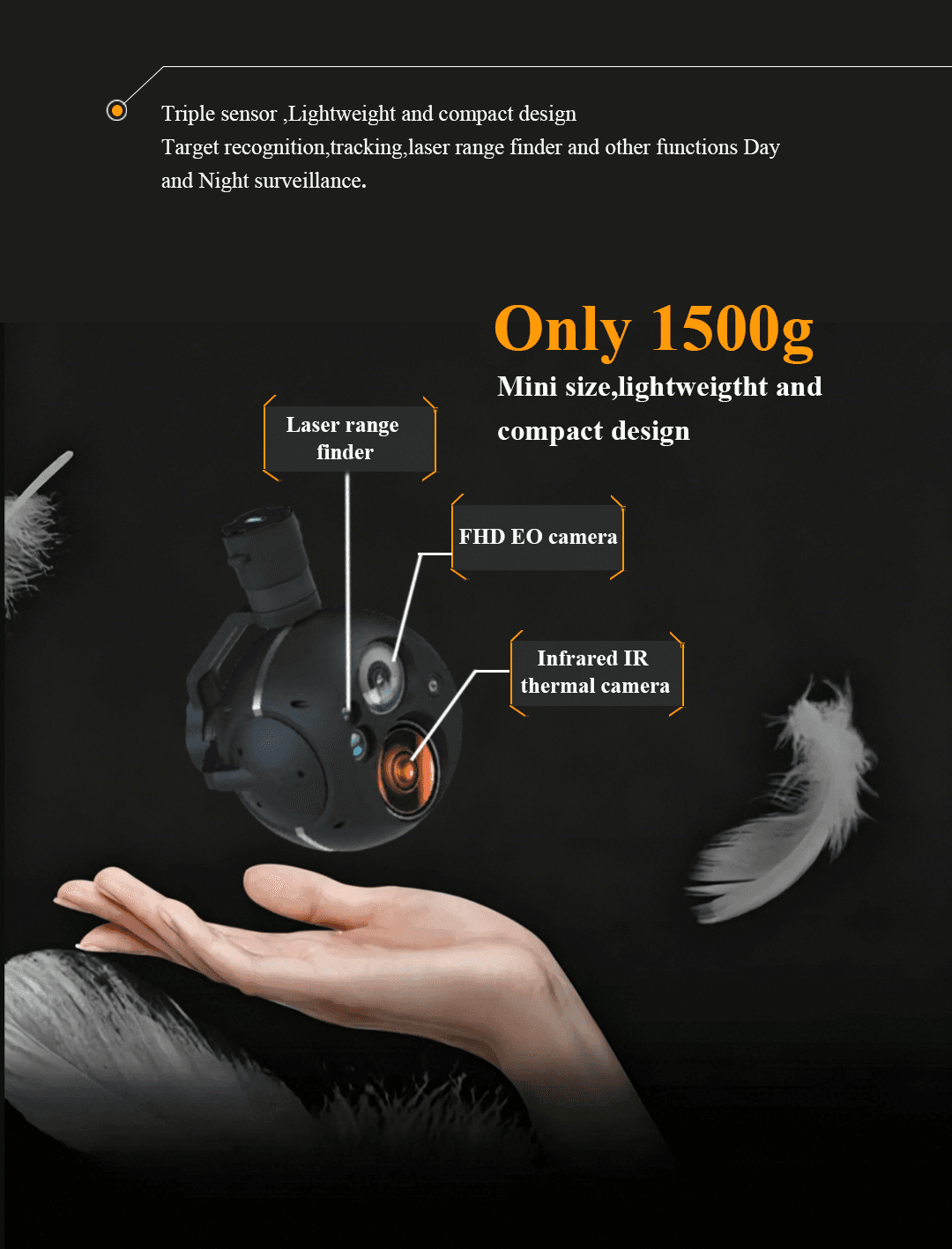

The DS30E is a compact multi-sensor EO/IR gimbal payload designed for UAVs, drones, robotic platforms and airborne surveillance systems. It integrates a 30× optical zoom Full HD electro-optical camera, a 2.8 mm fixed wide-angle visible-light camera, a 1280 × 1024 thermal infrared camera and a precision laser rangefinder into a high-stability three-axis gimbal. With AI-powered vehicle and human recognition, automatic target tracking, long-range laser measurement and continuous 360-degree observation, the DS30E supports reliable day-and-night surveillance, target identification, inspection and law-enforcement operations.

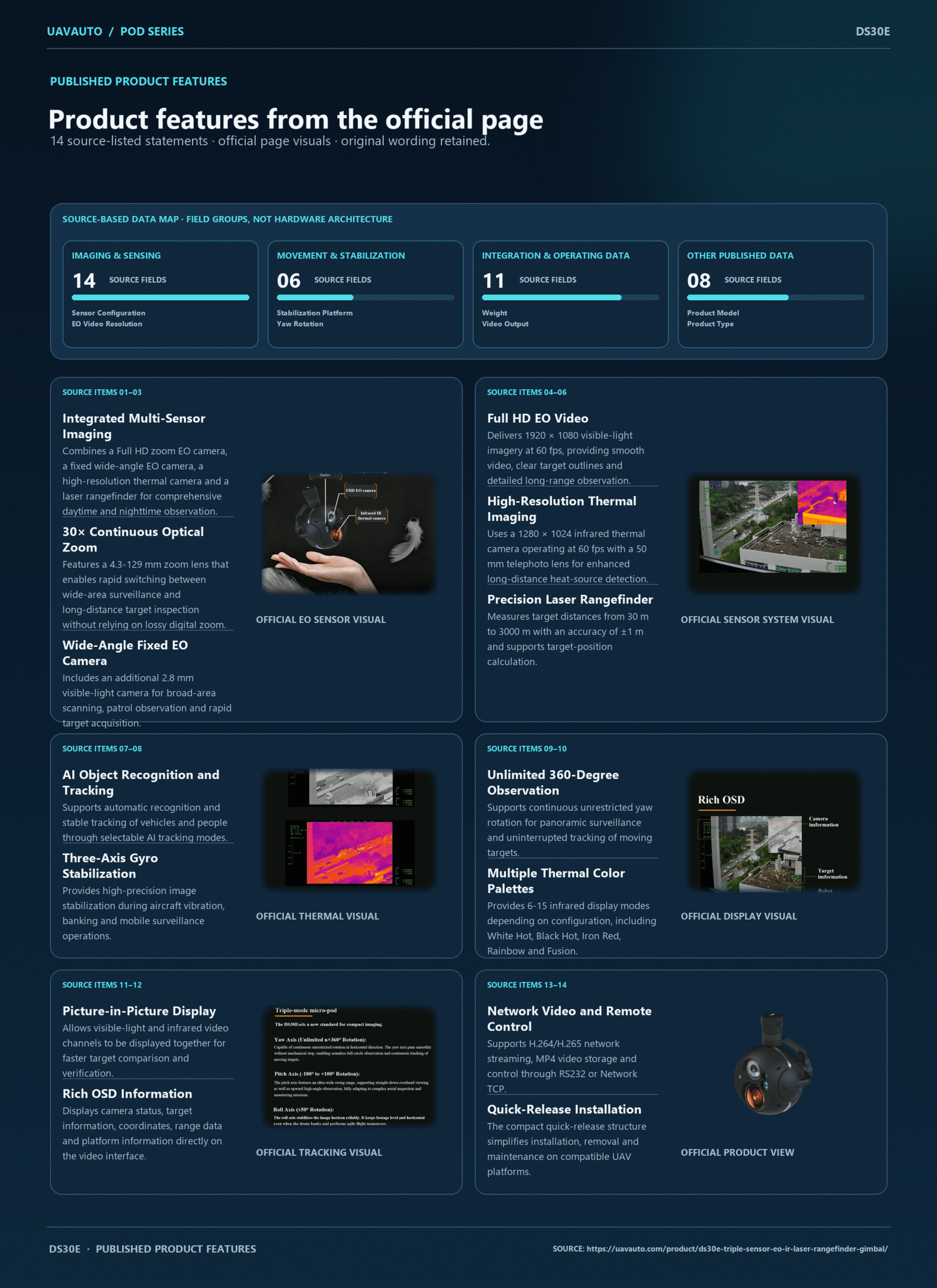

2. Product Features

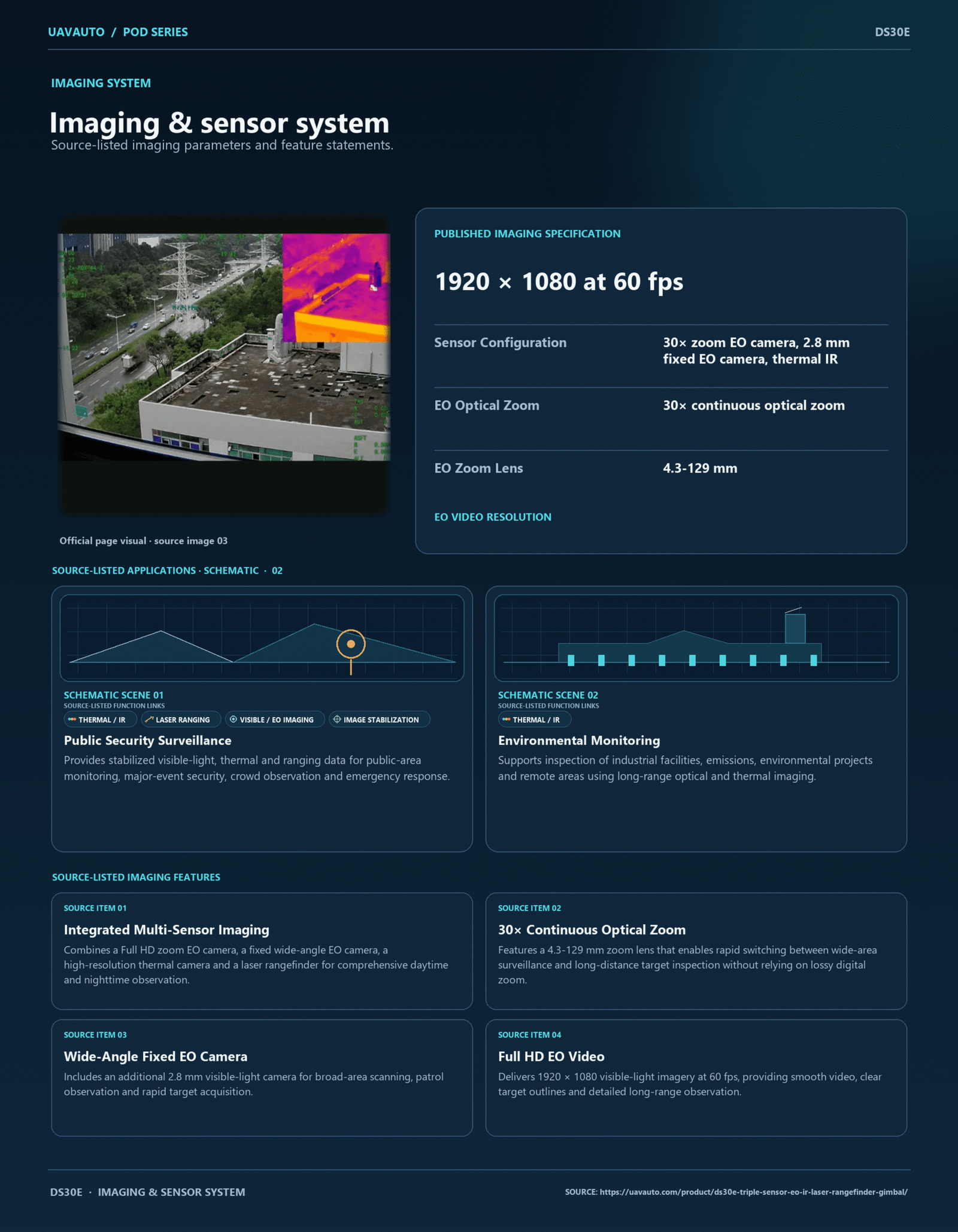

• Integrated Multi-Sensor Imaging:
  Combines a Full HD zoom EO camera, a fixed wide-angle EO camera, a high-resolution thermal camera and a laser rangefinder for comprehensive daytime and nighttime observation.

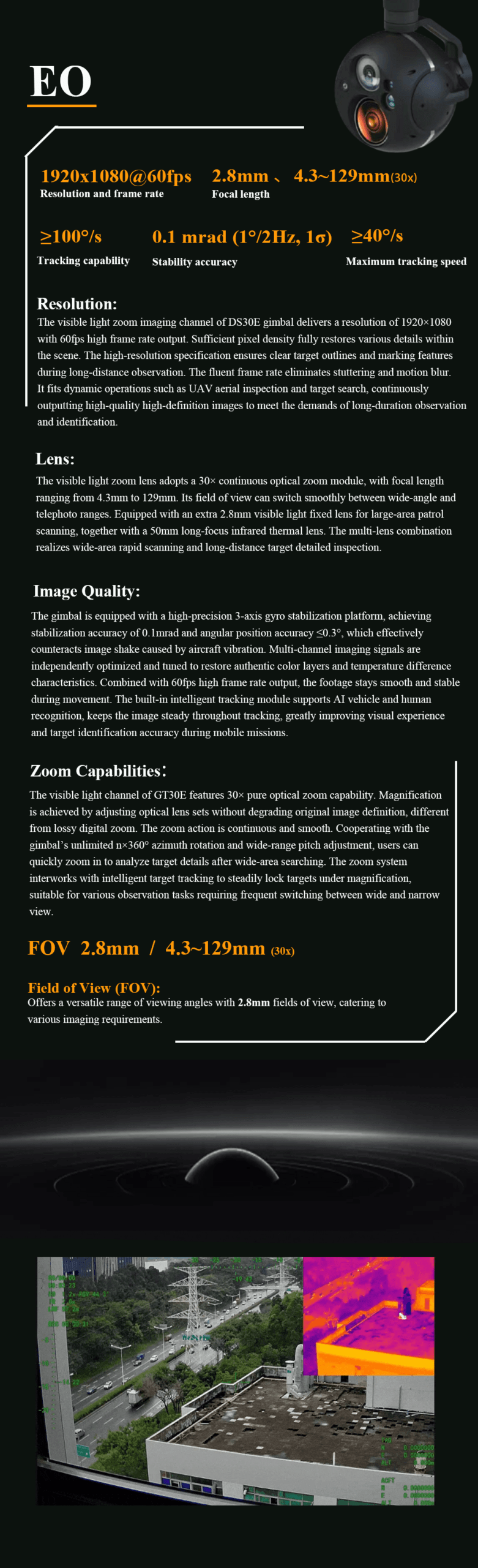

• 30× Continuous Optical Zoom:
  Features a 4.3-129 mm zoom lens that enables rapid switching between wide-area surveillance and long-distance target inspection without relying on lossy digital zoom.
• Wide-Angle Fixed EO Camera:
  Includes an additional 2.8 mm visible-light camera for broad-area scanning, patrol observation and rapid target acquisition.
• Full HD EO Video:
  Delivers 1920 × 1080 visible-light imagery at 60 fps, providing smooth video, clear target outlines and detailed long-range observation.

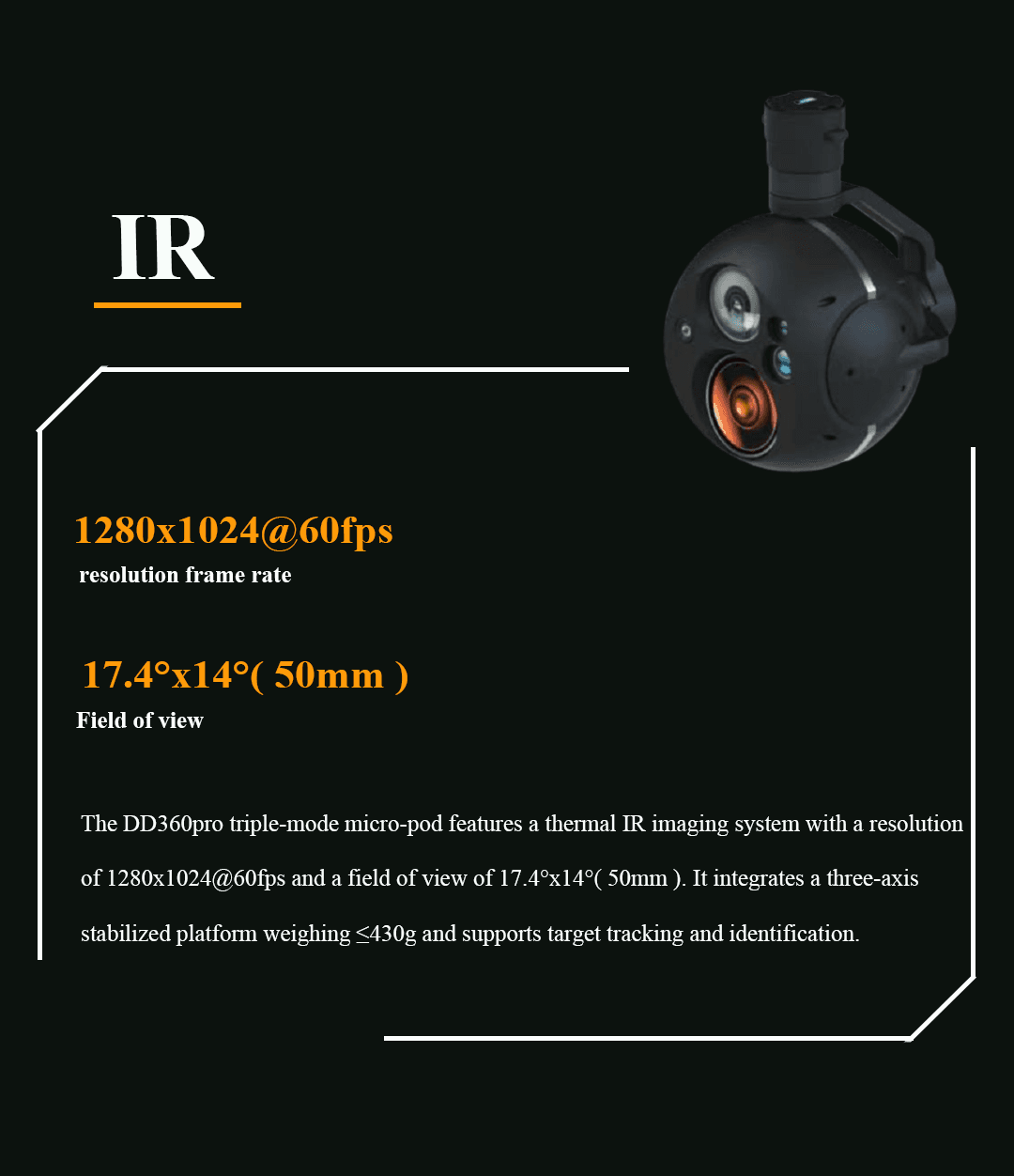

• High-Resolution Thermal Imaging:
  Uses a 1280 × 1024 infrared thermal camera operating at 60 fps with a 50 mm telephoto lens for enhanced long-distance heat-source detection.
• Precision Laser Rangefinder:
  Measures target distances from 30 m to 3000 m with an accuracy of ±1 m and supports target-position calculation.
• AI Object Recognition and Tracking:
  Supports automatic recognition and stable tracking of vehicles and people through selectable AI tracking modes.

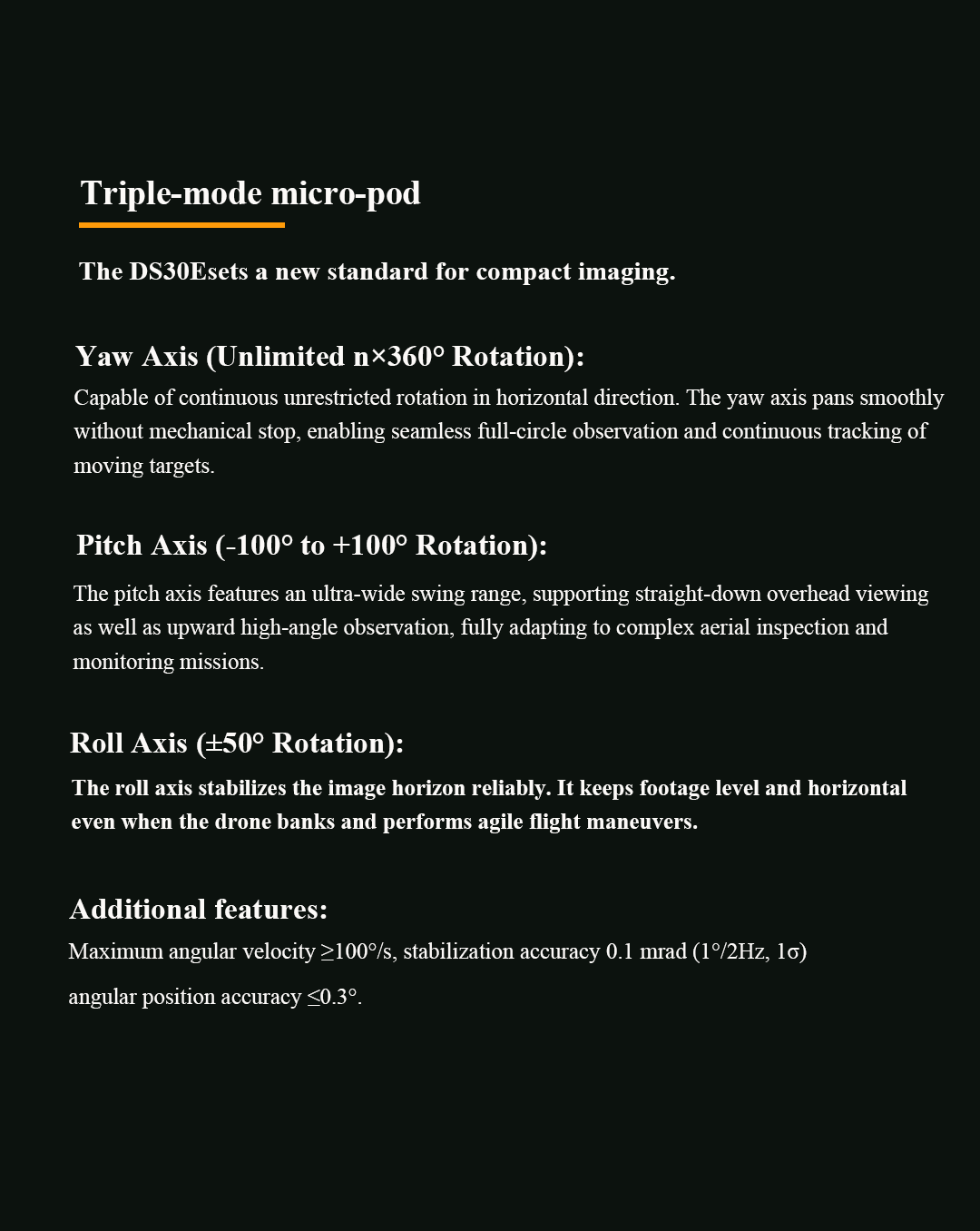

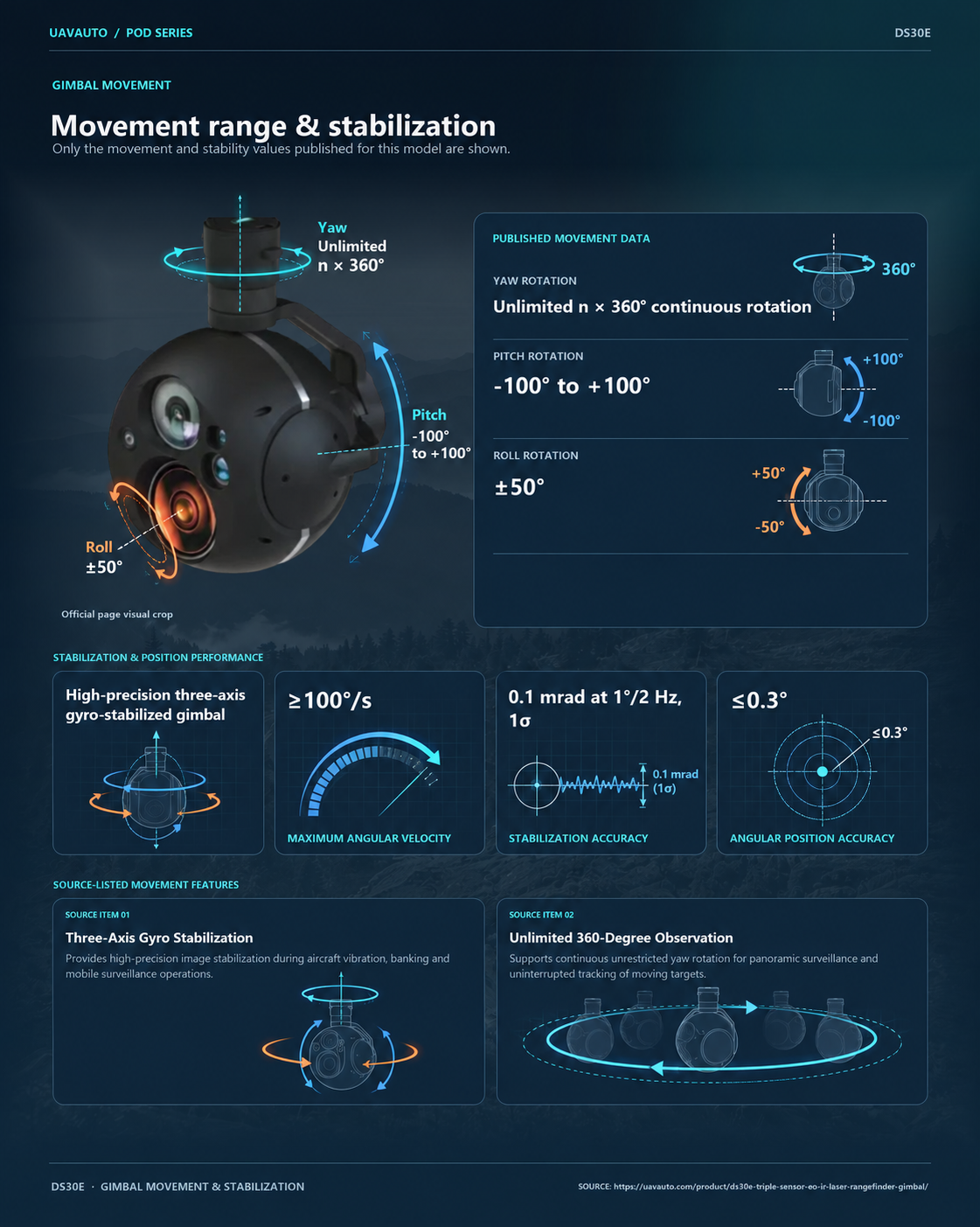

• Three-Axis Gyro Stabilization:
  Provides high-precision image stabilization during aircraft vibration, banking and mobile surveillance operations.
• Unlimited 360-Degree Observation:
  Supports continuous unrestricted yaw rotation for panoramic surveillance and uninterrupted tracking of moving targets.

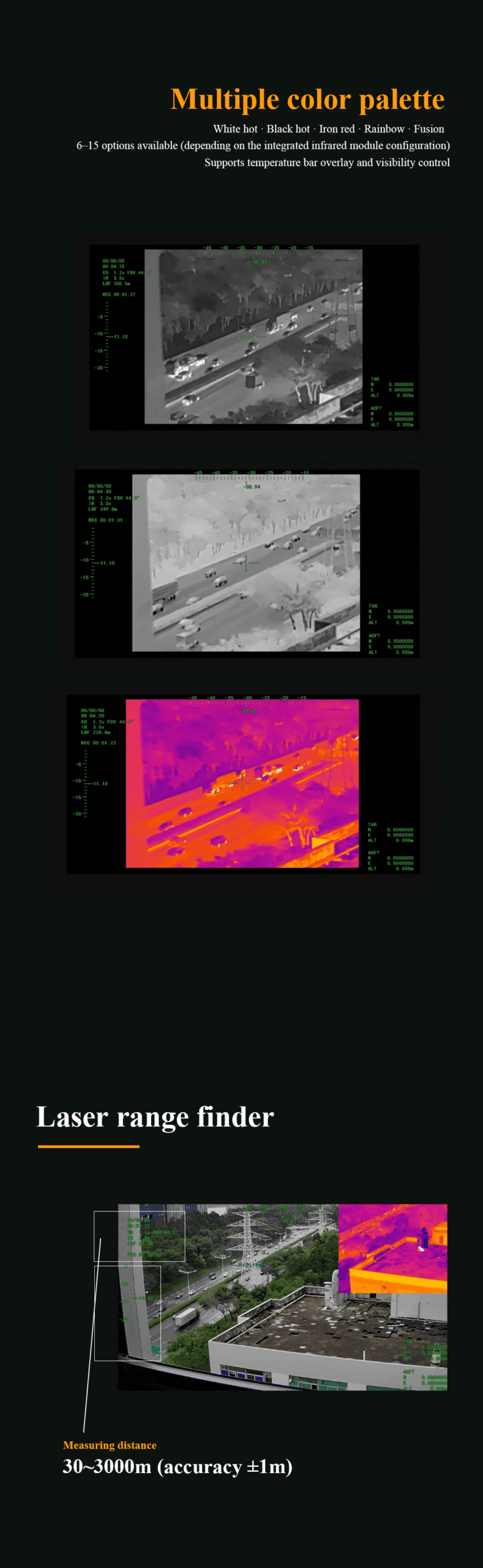

• Multiple Thermal Color Palettes:
  Provides 6-15 infrared display modes depending on configuration, including White Hot, Black Hot, Iron Red, Rainbow and Fusion.

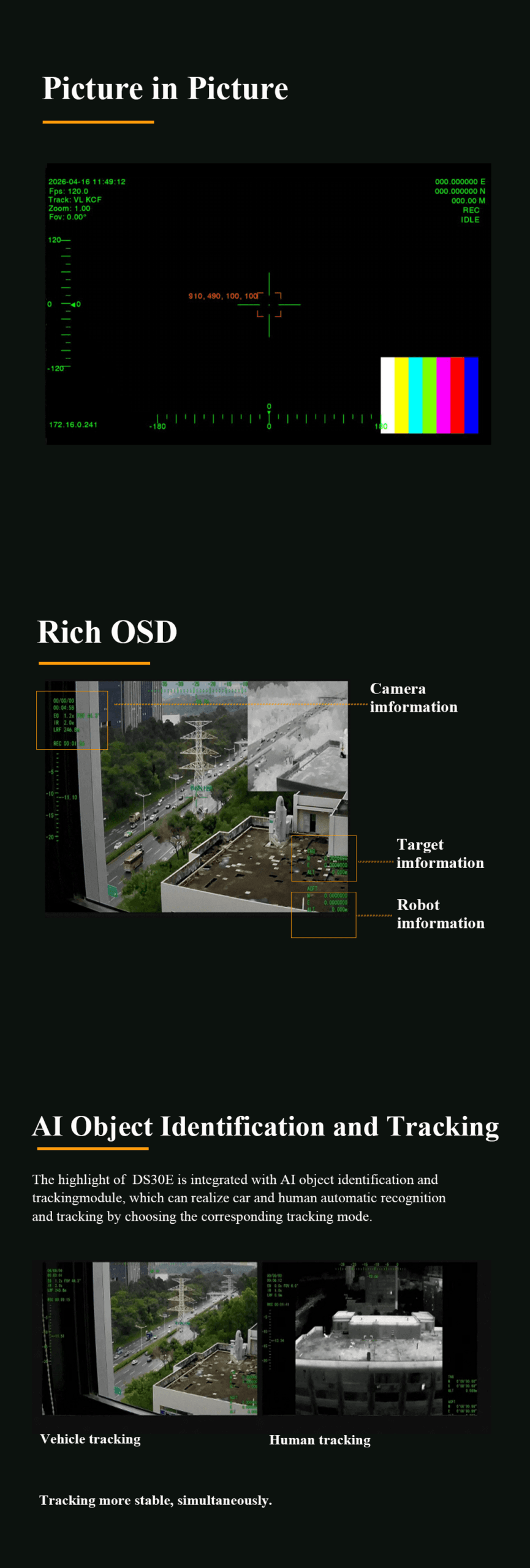

• Picture-in-Picture Display:
  Allows visible-light and infrared video channels to be displayed together for faster target comparison and verification.
• Rich OSD Information:
  Displays camera status, target information, coordinates, range data and platform information directly on the video interface.

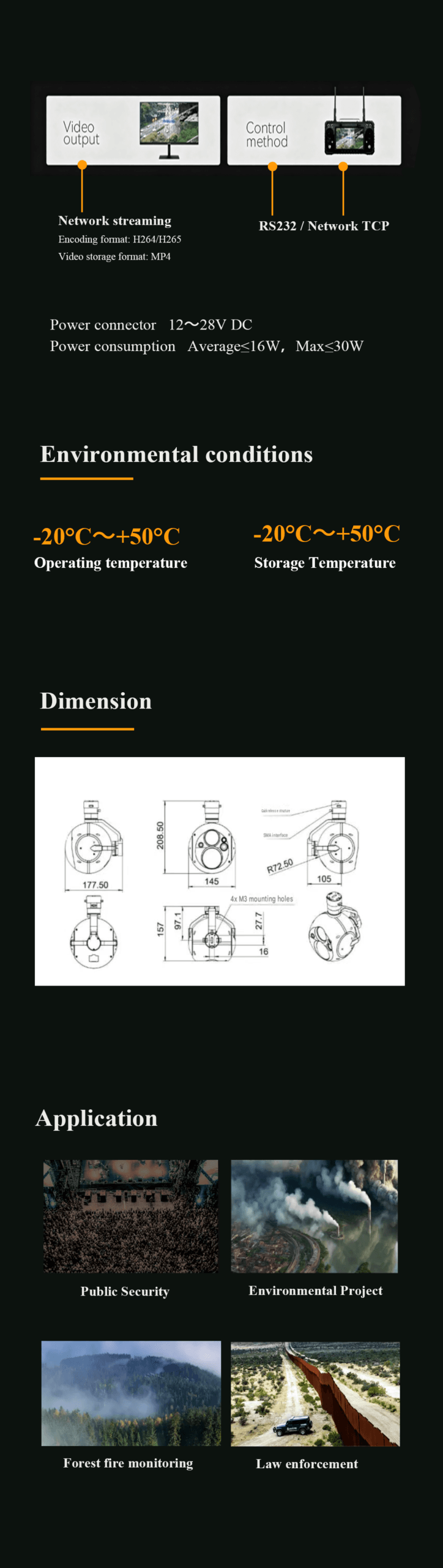

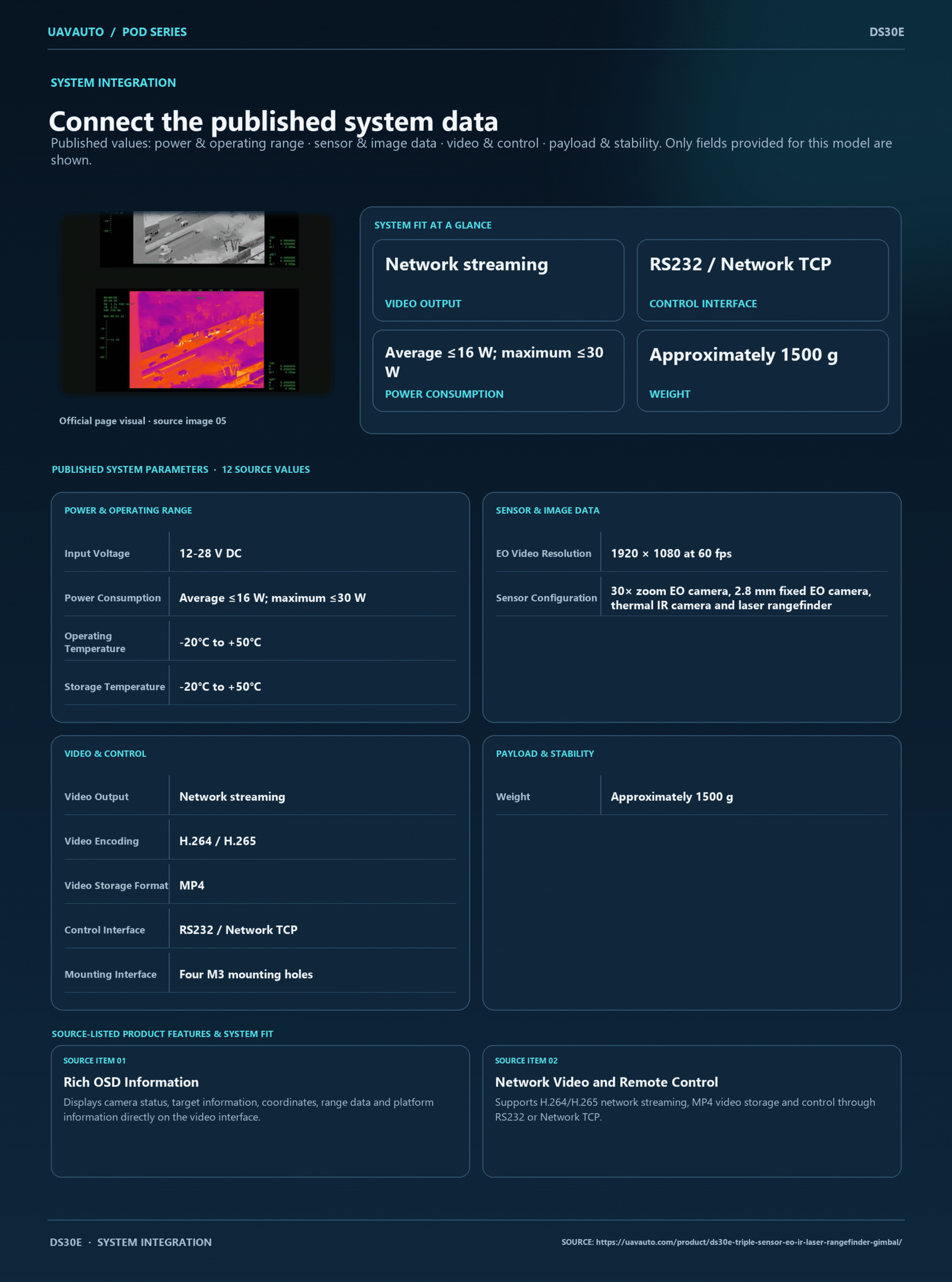

• Network Video and Remote Control:
  Supports H.264/H.265 network streaming, MP4 video storage and control through RS232 or Network TCP.

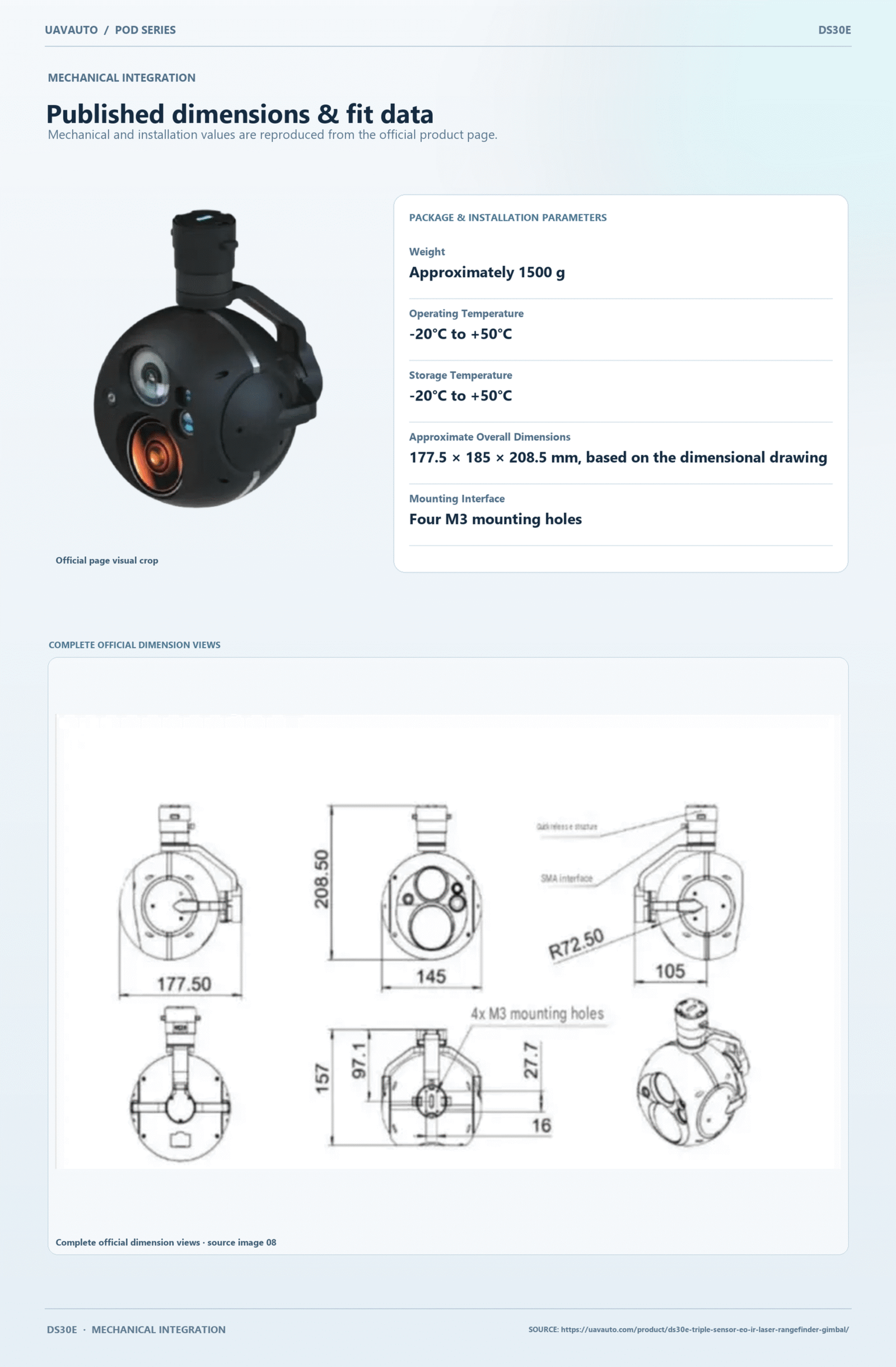

• Quick-Release Installation:
  The compact quick-release structure simplifies installation, removal and maintenance on compatible UAV platforms.

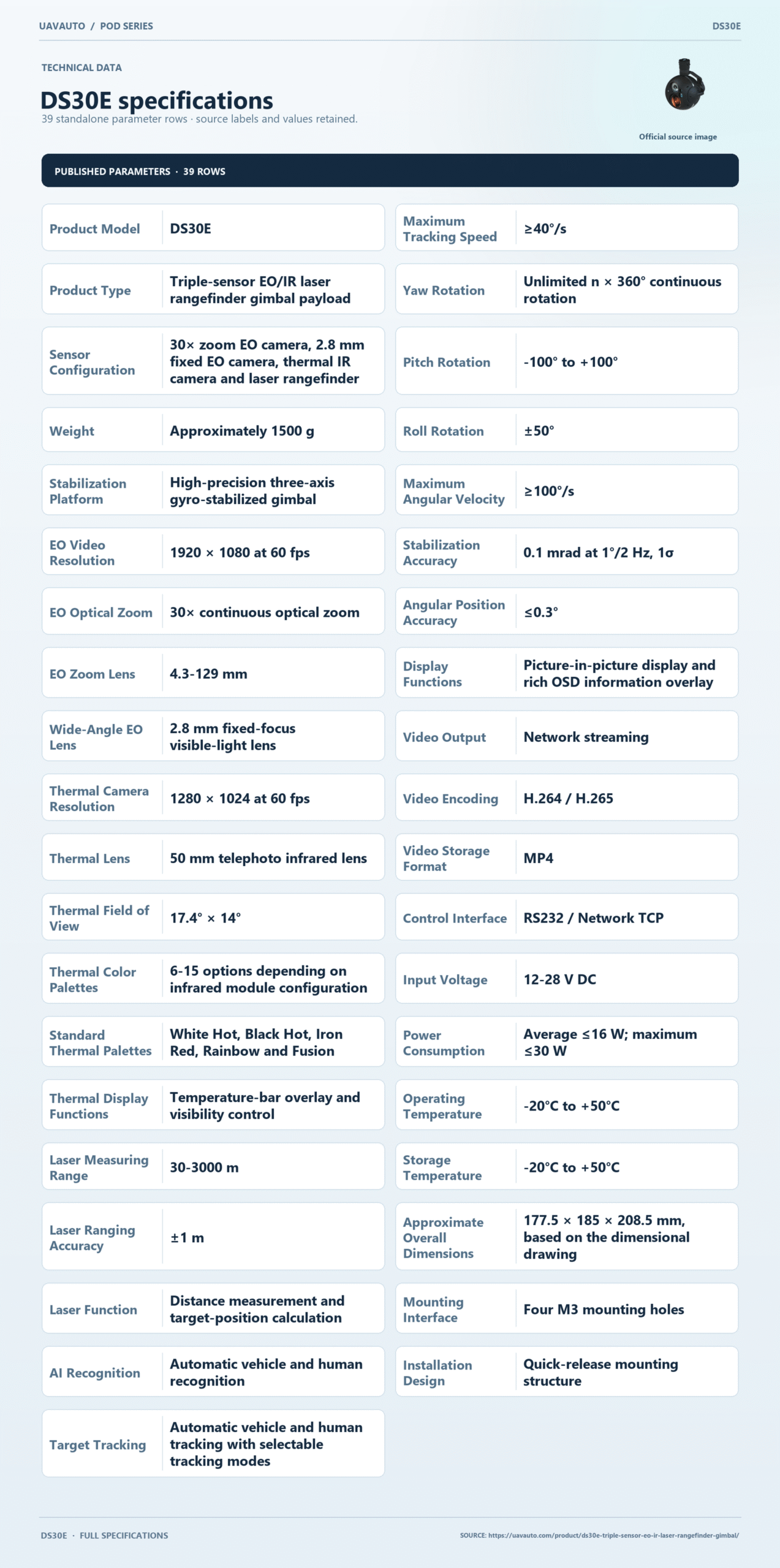

3. Detailed Technical Parameters

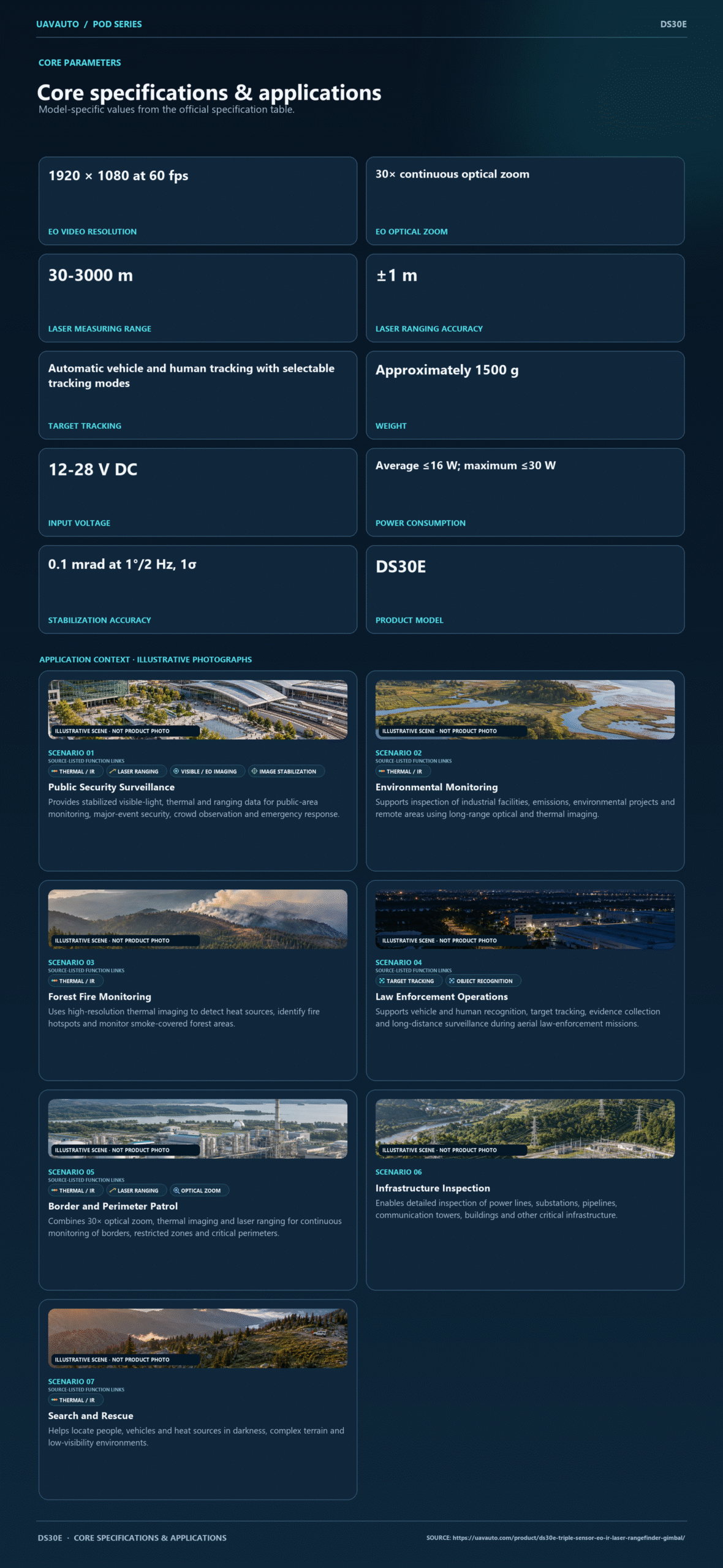

4. Application Scenarios

• Public Security Surveillance:
  Provides stabilized visible-light, thermal and ranging data for public-area monitoring, major-event security, crowd observation and emergency response.
• Environmental Monitoring:
  Supports inspection of industrial facilities, emissions, environmental projects and remote areas using long-range optical and thermal imaging.
• Forest Fire Monitoring:
  Uses high-resolution thermal imaging to detect heat sources, identify fire hotspots and monitor smoke-covered forest areas.
• Law Enforcement Operations:
  Supports vehicle and human recognition, target tracking, evidence collection and long-distance surveillance during aerial law-enforcement missions.
• Border and Perimeter Patrol:
  Combines 30× optical zoom, thermal imaging and laser ranging for continuous monitoring of borders, restricted zones and critical perimeters.
• Infrastructure Inspection:
  Enables detailed inspection of power lines, substations, pipelines, communication towers, buildings and other critical infrastructure.
• Search and Rescue:
  Helps locate people, vehicles and heat sources in darkness, complex terrain and low-visibility environments.
