DD360Pro EO/IR UAV Gimbal | 10× Optical Zoom, ≤430 g

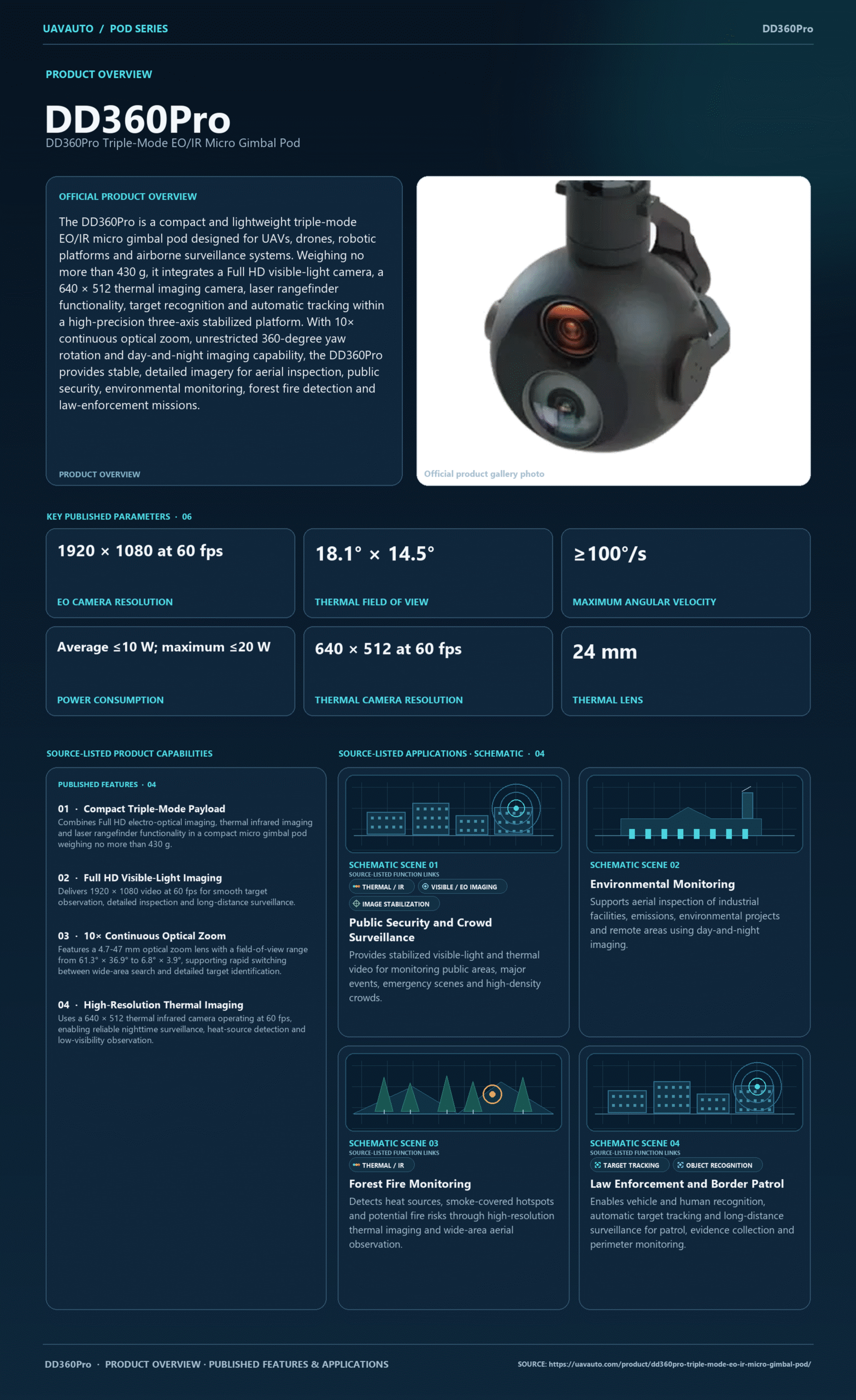

The DD360Pro is a compact and lightweight triple-mode EO/IR micro gimbal pod designed for UAVs, drones, robotic platforms and airborne surveillance systems. Weighing no more than 430 g, it integrates a Full HD visible-light camera, a 640 × 512 thermal imaging camera, laser rangefinder functionality, target recognition and automatic tracking within a high-precision three-axis stabilized platform. With 10× continuous optical zoom, unrestricted 360-degree yaw rotation and day-and-night imaging capability, the DD360Pro provides stable, detailed imagery for aerial inspection, public security, environmental monitoring, forest fire detection and law-enforcement missions.

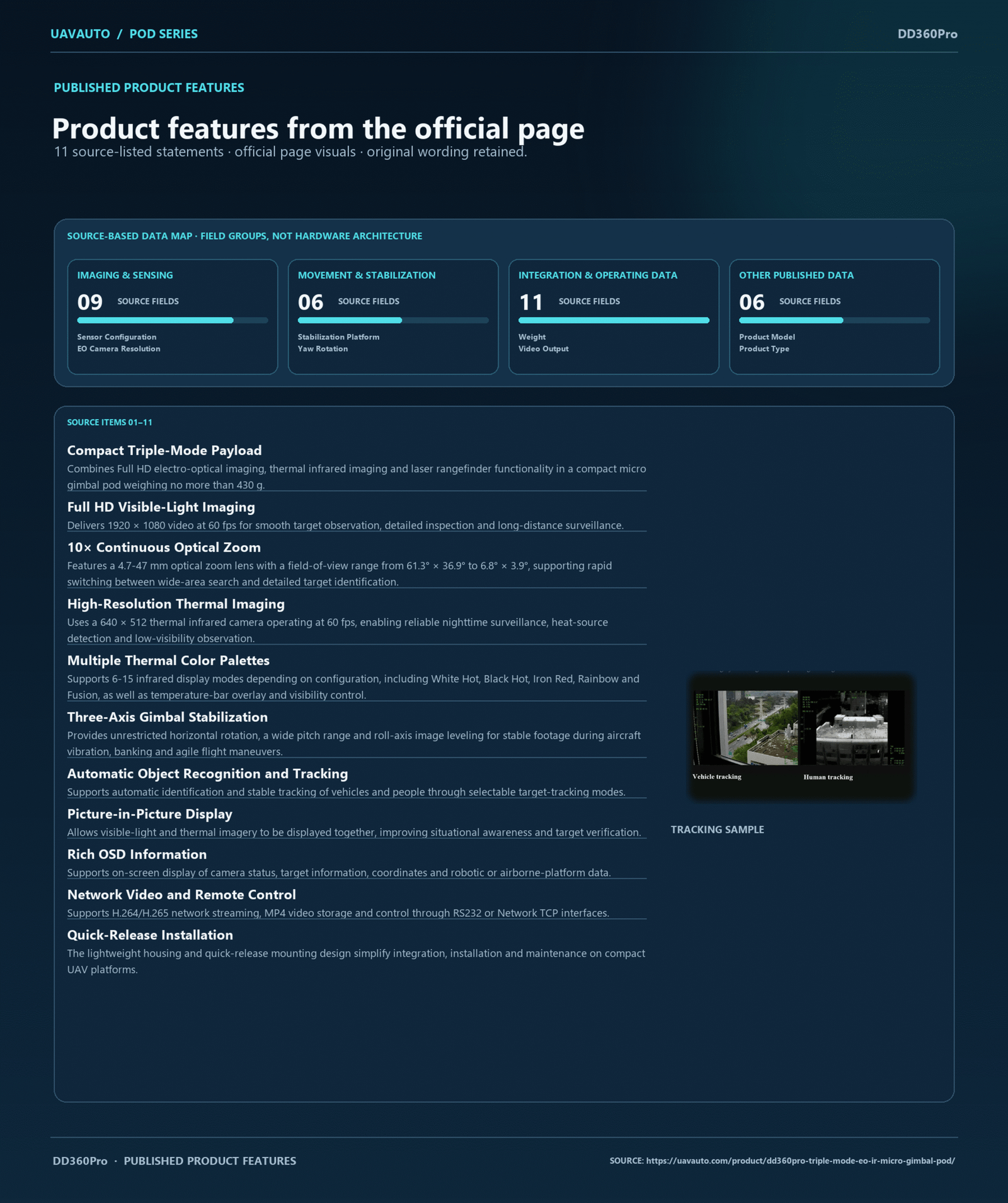

2. Product Features

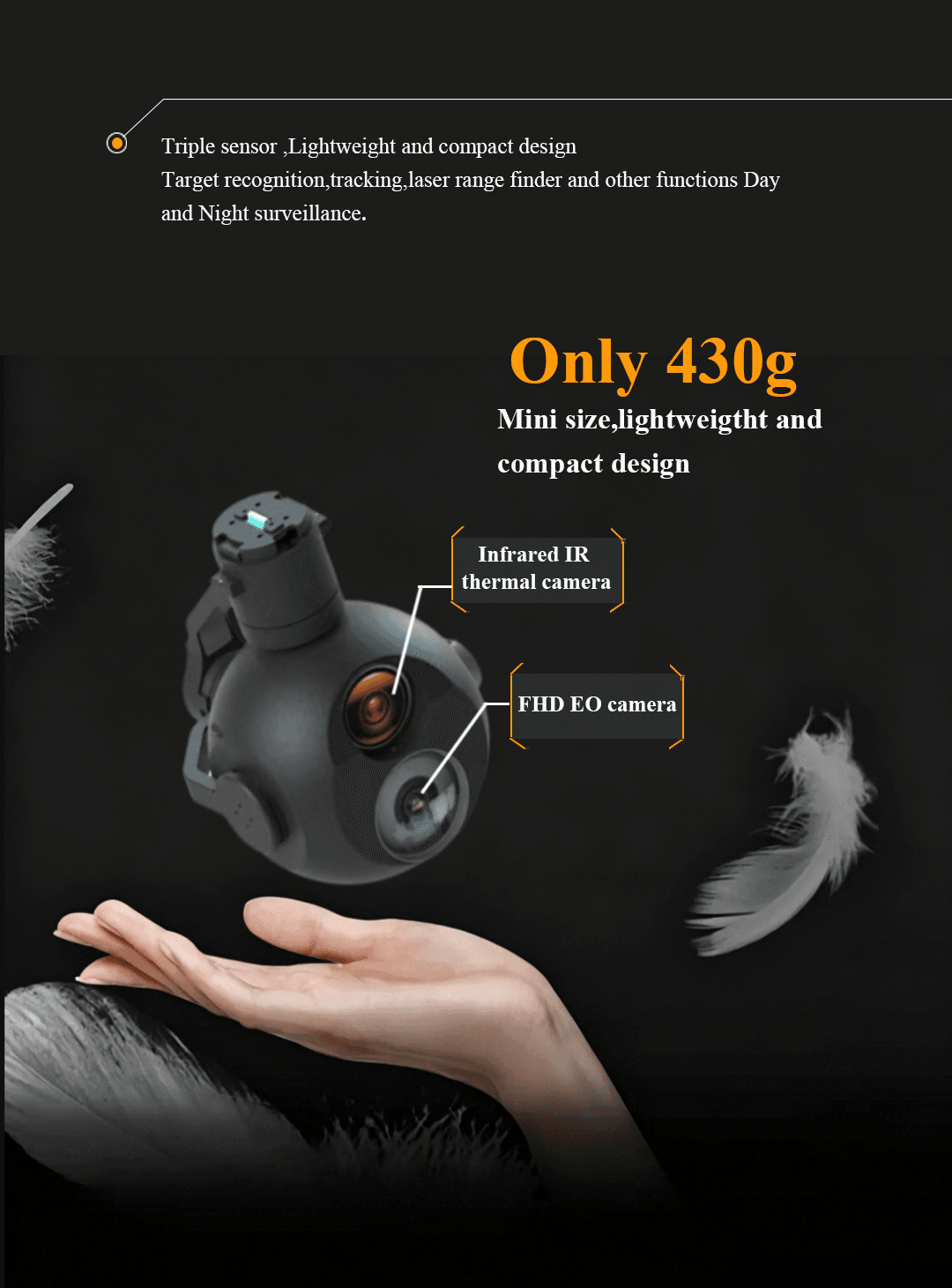

• Compact Triple-Mode Payload:
  Combines Full HD electro-optical imaging, thermal infrared imaging and laser rangefinder functionality in a compact micro gimbal pod weighing no more than 430 g.

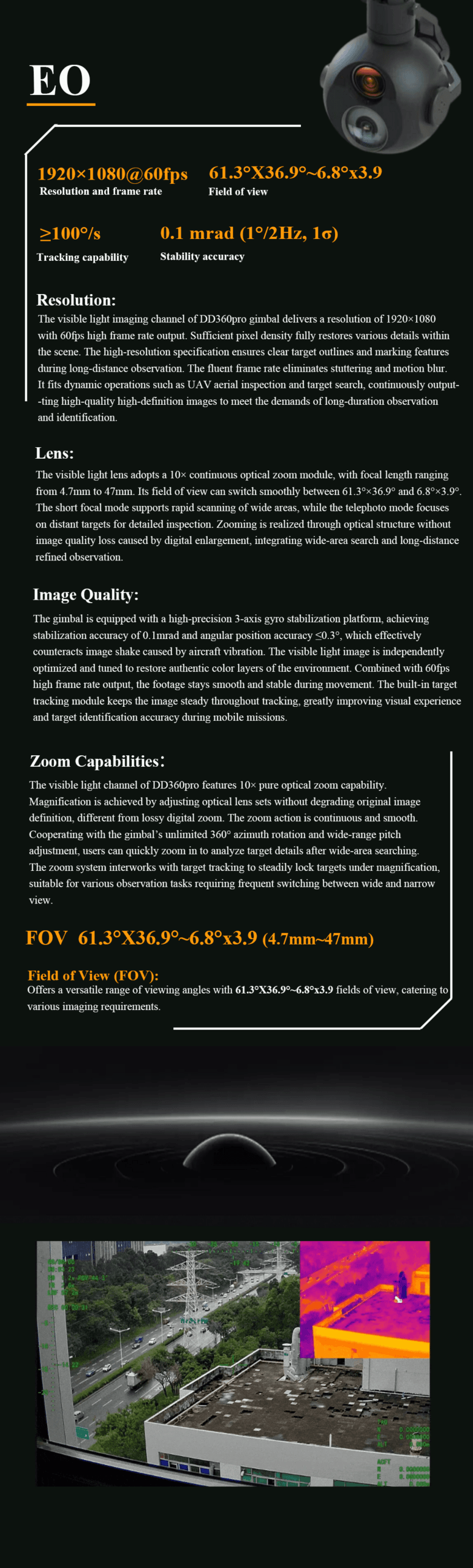

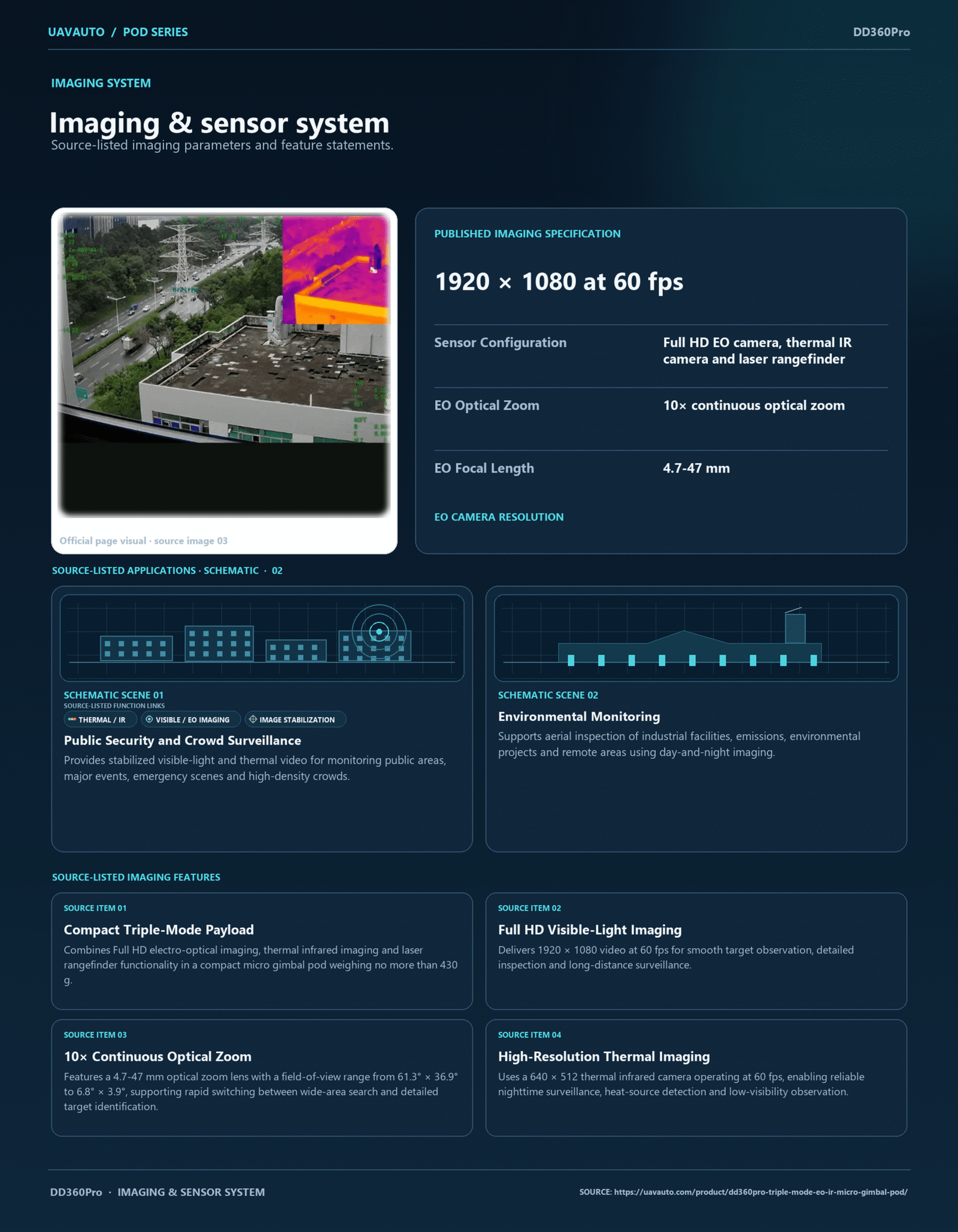

• Full HD Visible-Light Imaging:
  Delivers 1920 × 1080 video at 60 fps for smooth target observation, detailed inspection and long-distance surveillance.
• 10× Continuous Optical Zoom:
  Features a 4.7-47 mm optical zoom lens with a field-of-view range from 61.3° × 36.9° to 6.8° × 3.9°, supporting rapid switching between wide-area search and detailed target identification.

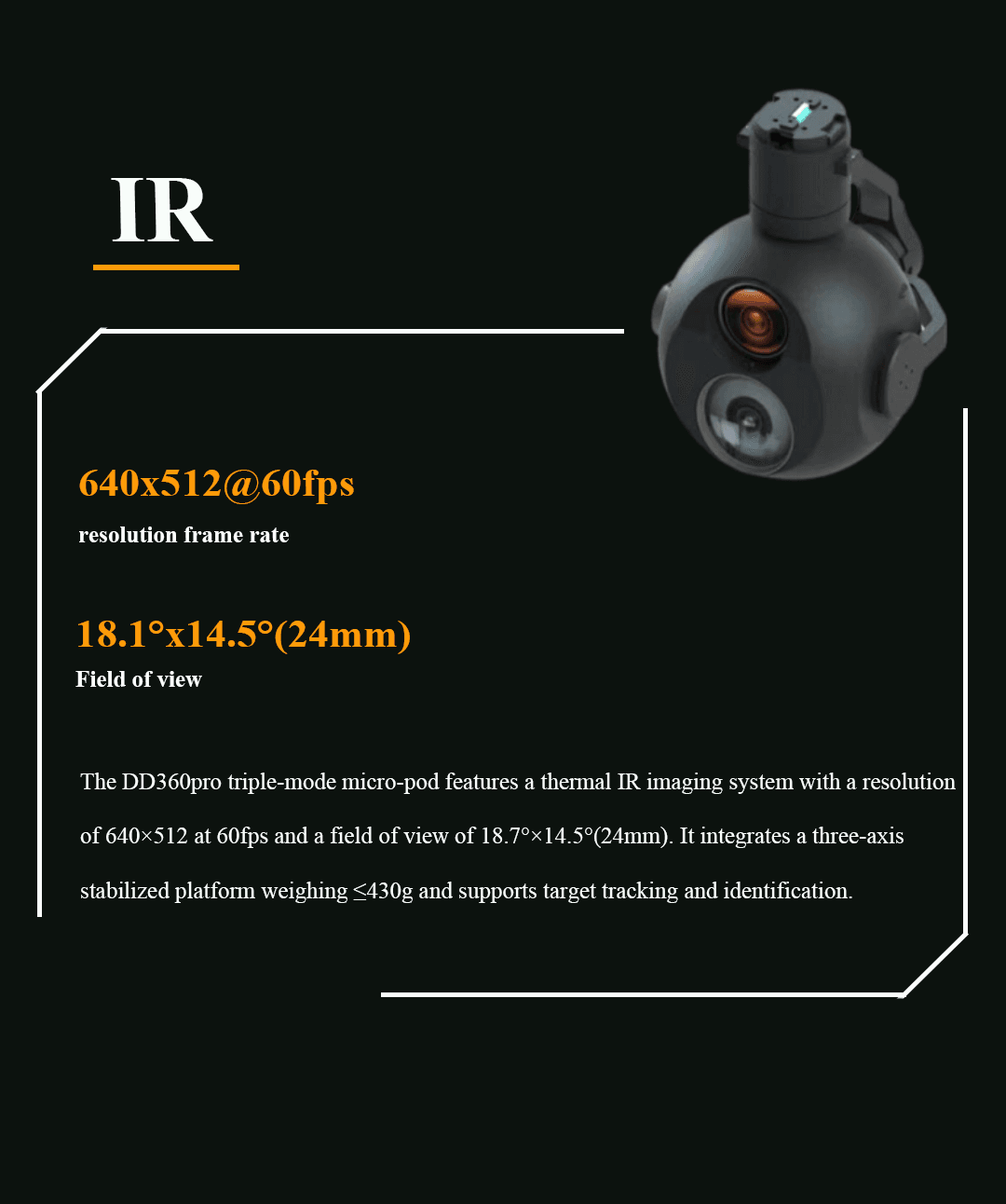

• High-Resolution Thermal Imaging:
  Uses a 640 × 512 thermal infrared camera operating at 60 fps, enabling reliable nighttime surveillance, heat-source detection and low-visibility observation.

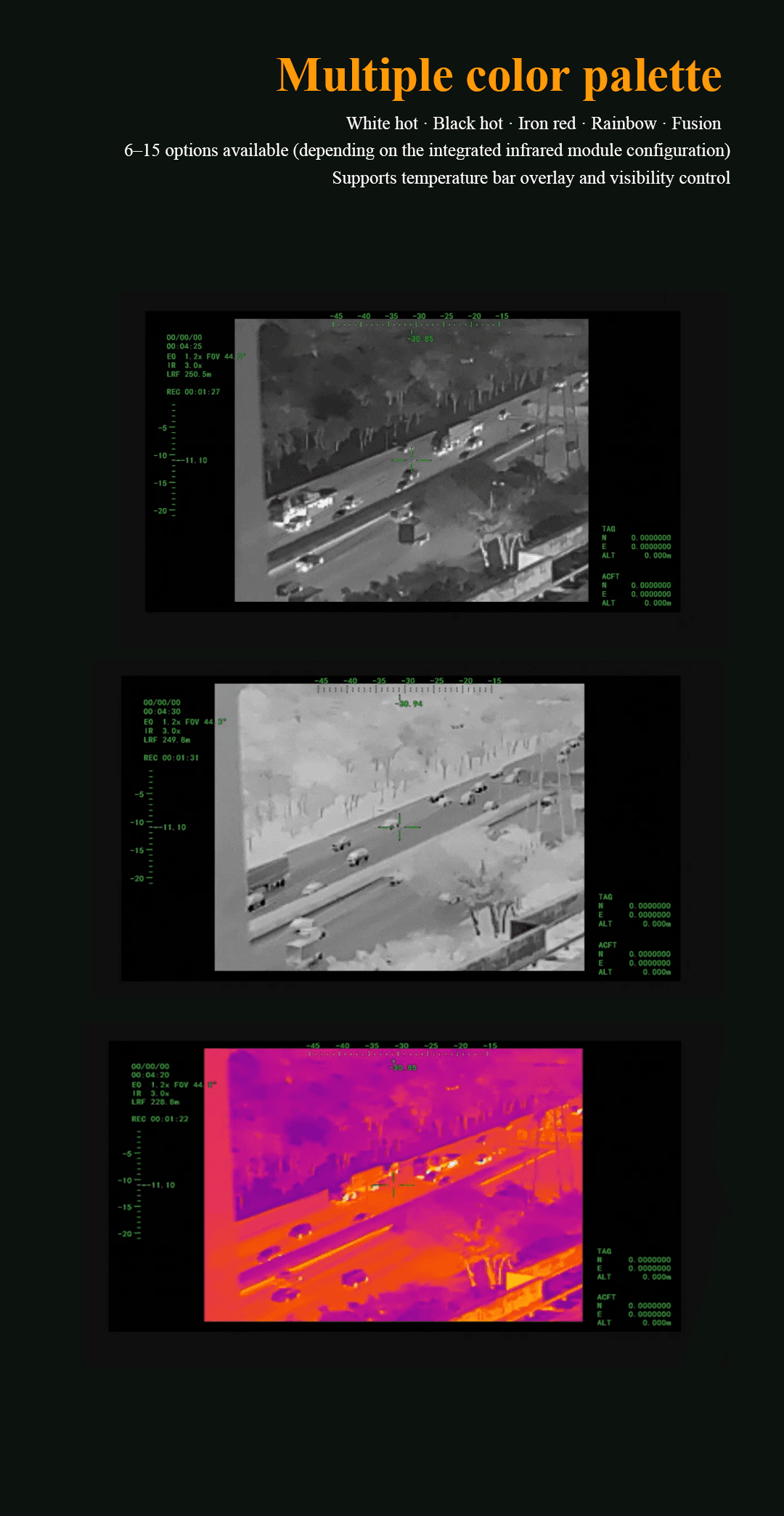

• Multiple Thermal Color Palettes:
  Supports 6-15 infrared display modes depending on configuration, including White Hot, Black Hot, Iron Red, Rainbow and Fusion, as well as temperature-bar overlay and visibility control.

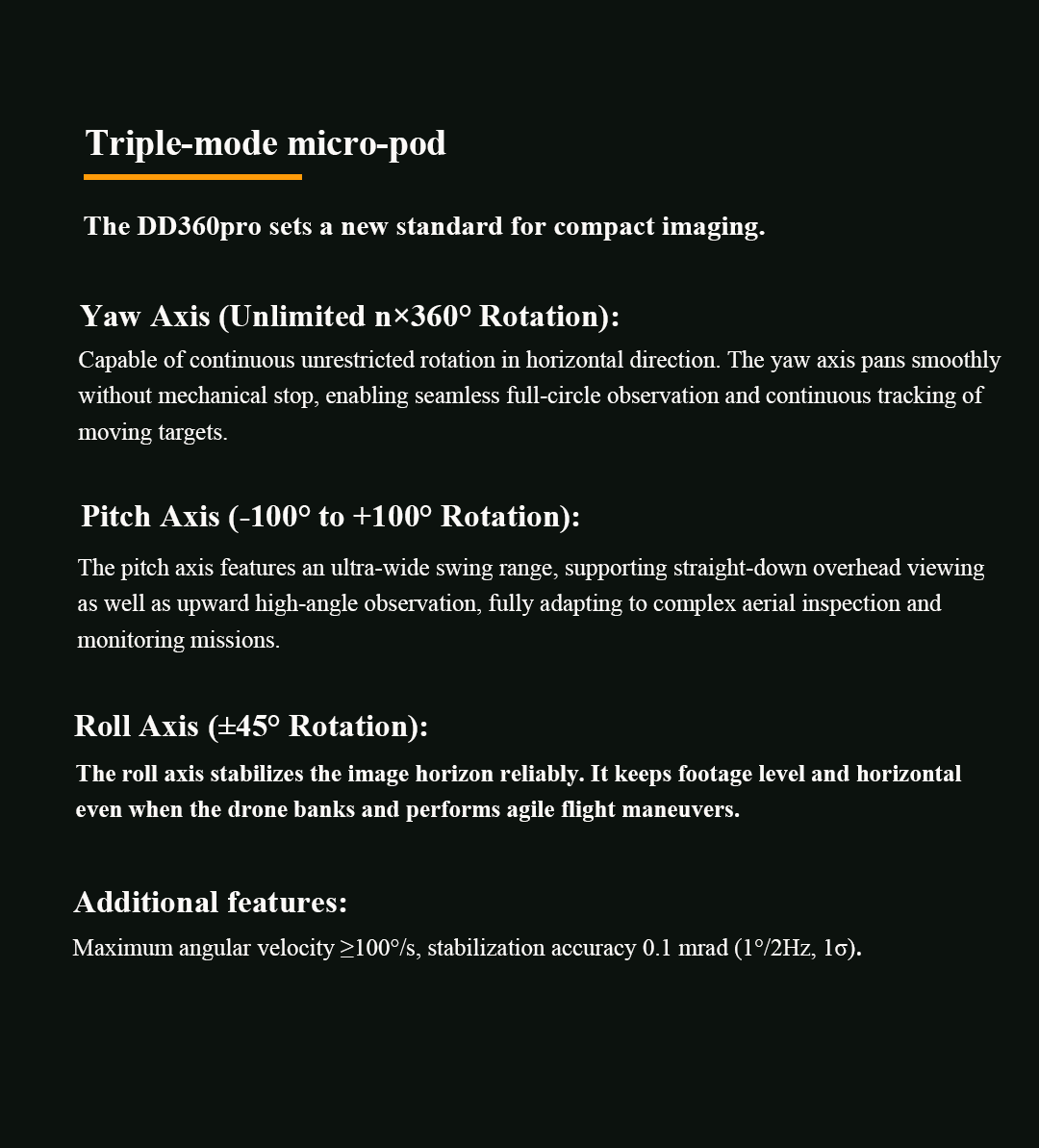

• Three-Axis Gimbal Stabilization:
  Provides unrestricted horizontal rotation, a wide pitch range and roll-axis image leveling for stable footage during aircraft vibration, banking and agile flight maneuvers.

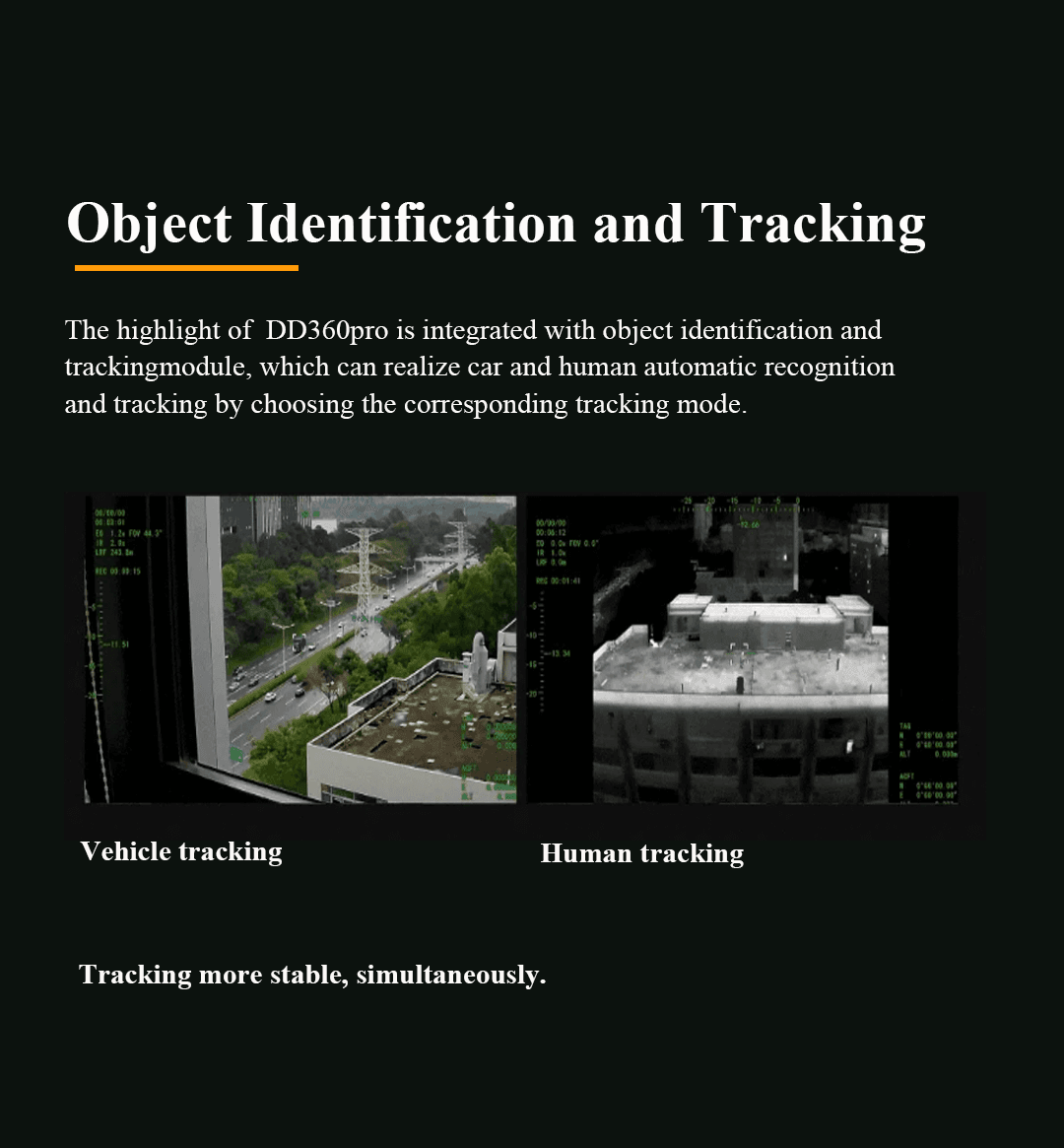

• Automatic Object Recognition and Tracking:
  Supports automatic identification and stable tracking of vehicles and people through selectable target-tracking modes.

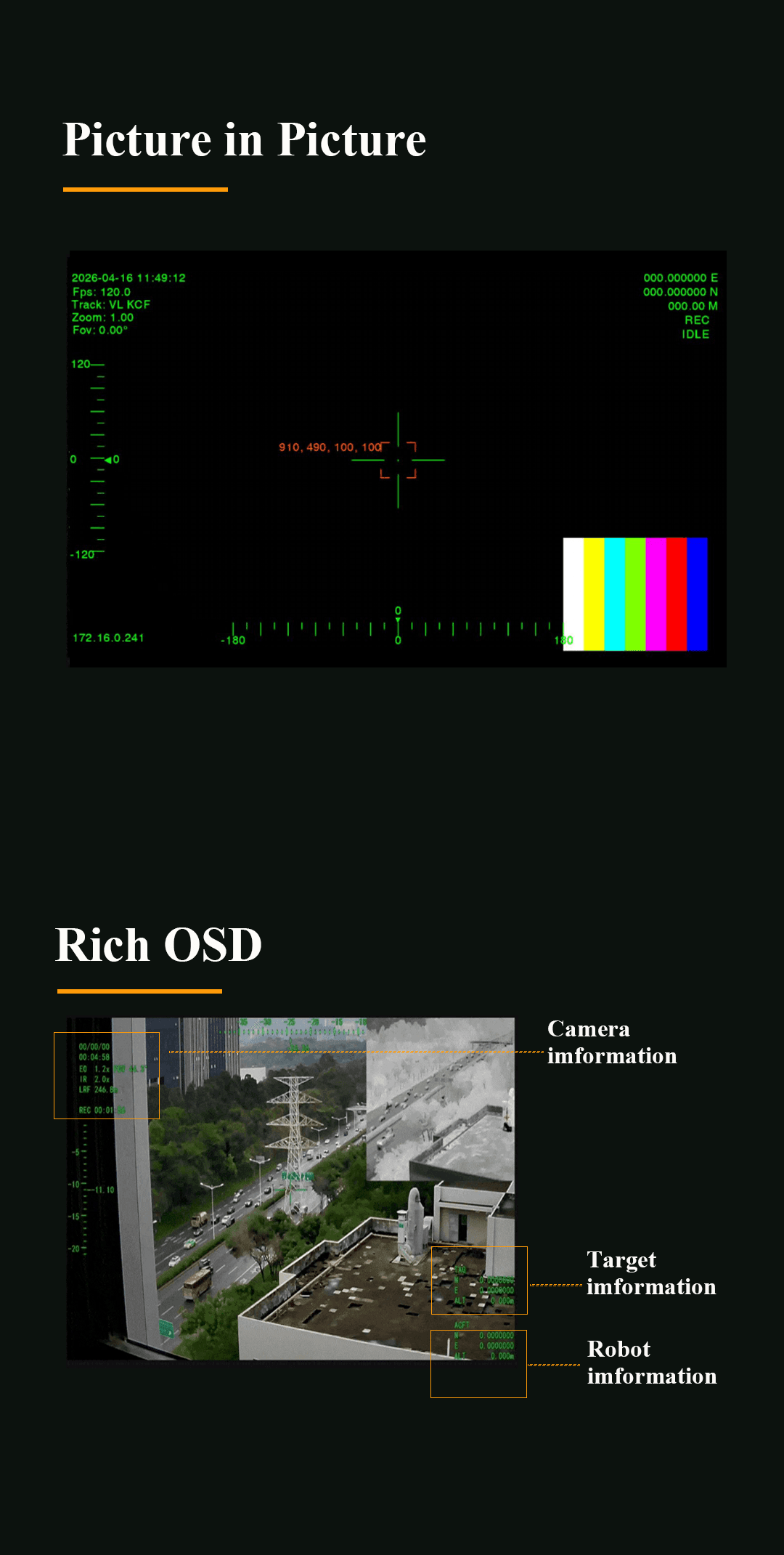

• Picture-in-Picture Display:
  Allows visible-light and thermal imagery to be displayed together, improving situational awareness and target verification.
• Rich OSD Information:
  Supports on-screen display of camera status, target information, coordinates and robotic or airborne-platform data.

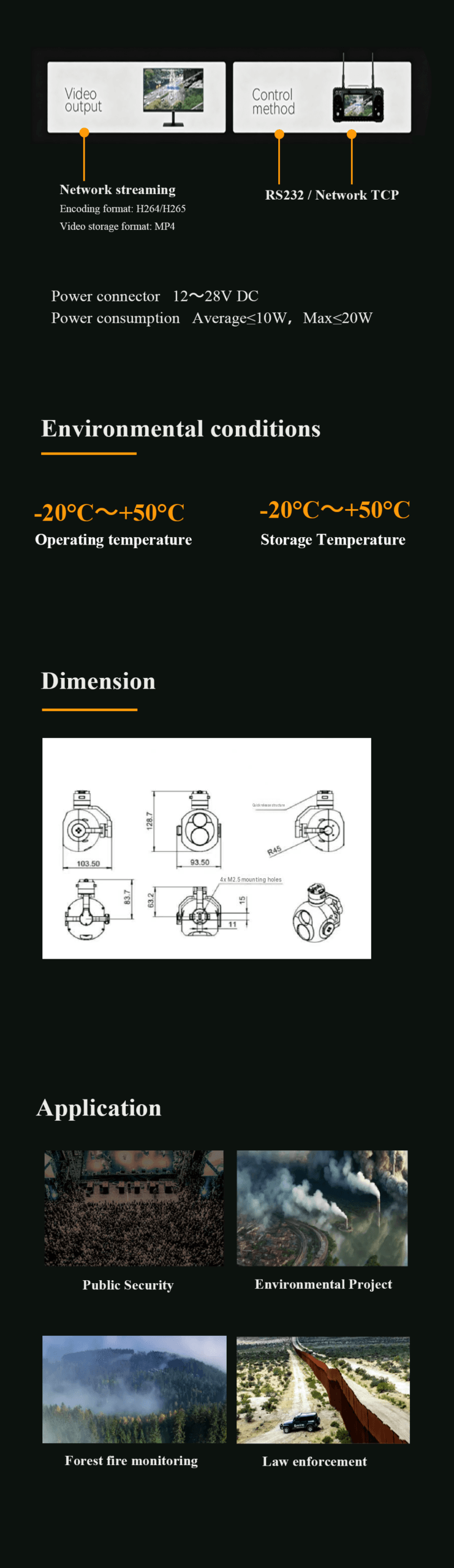

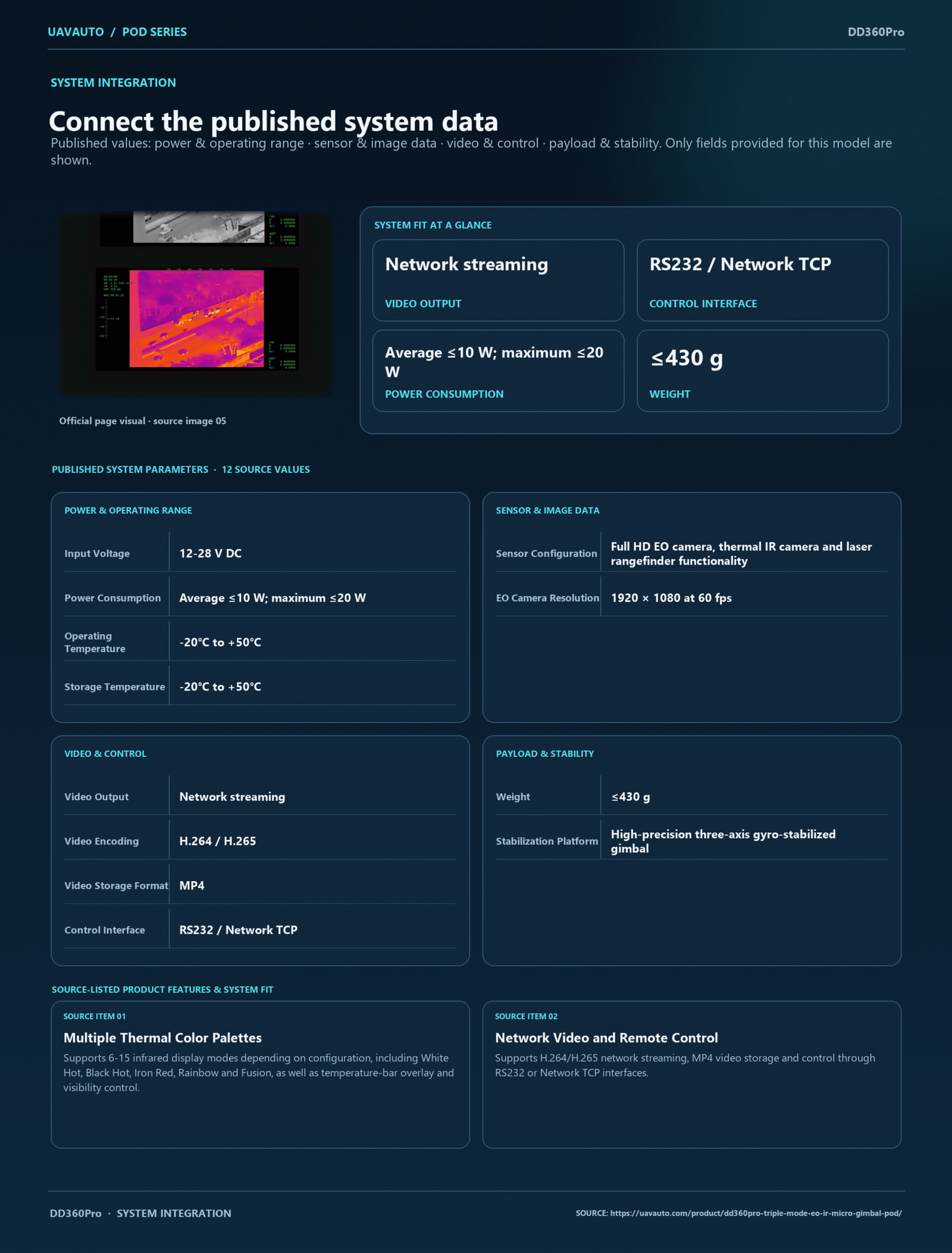

• Network Video and Remote Control:
  Supports H.264/H.265 network streaming, MP4 video storage and control through RS232 or Network TCP interfaces.
• Quick-Release Installation:

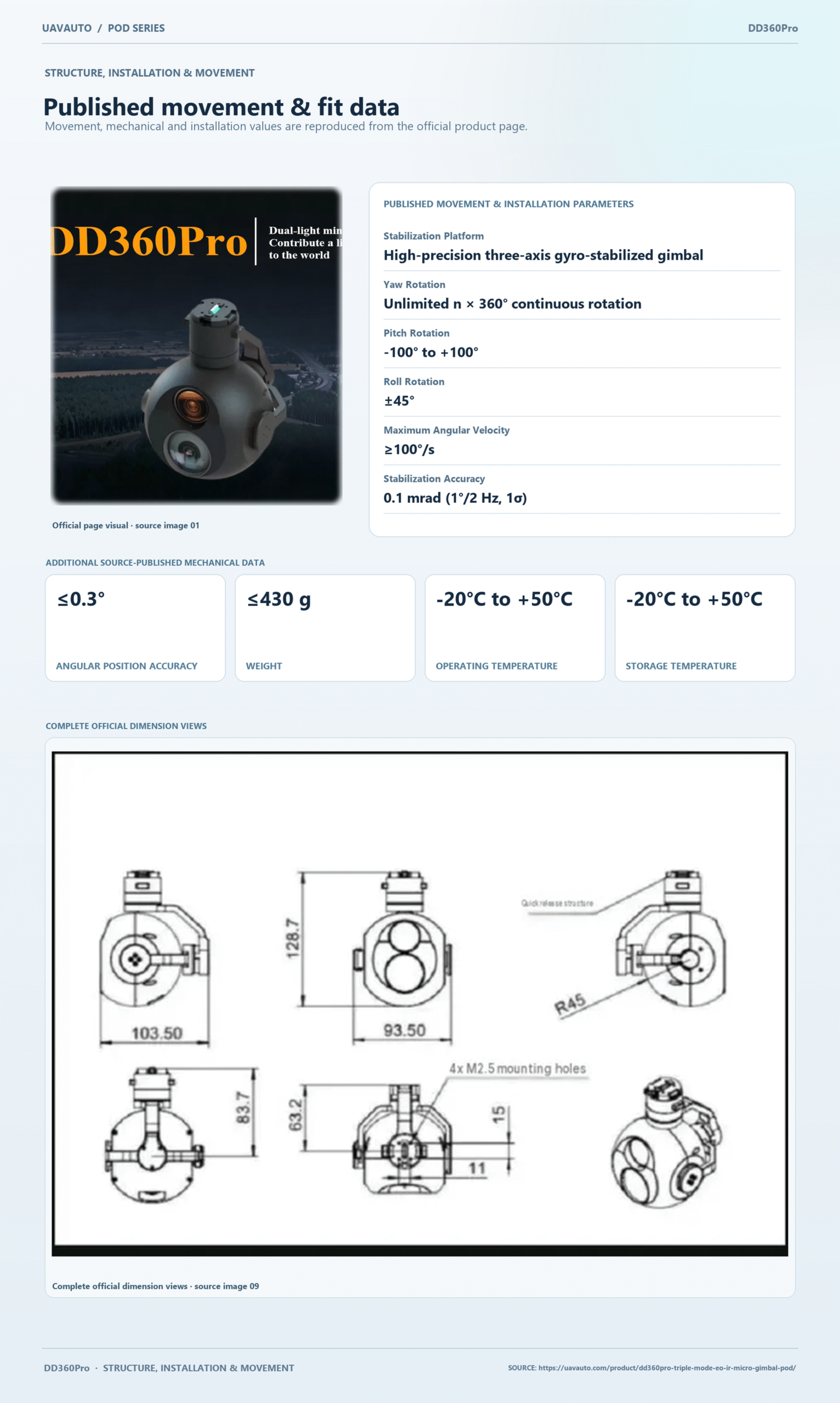

  The lightweight housing and quick-release mounting design simplify integration, installation and maintenance on compact UAV platforms.

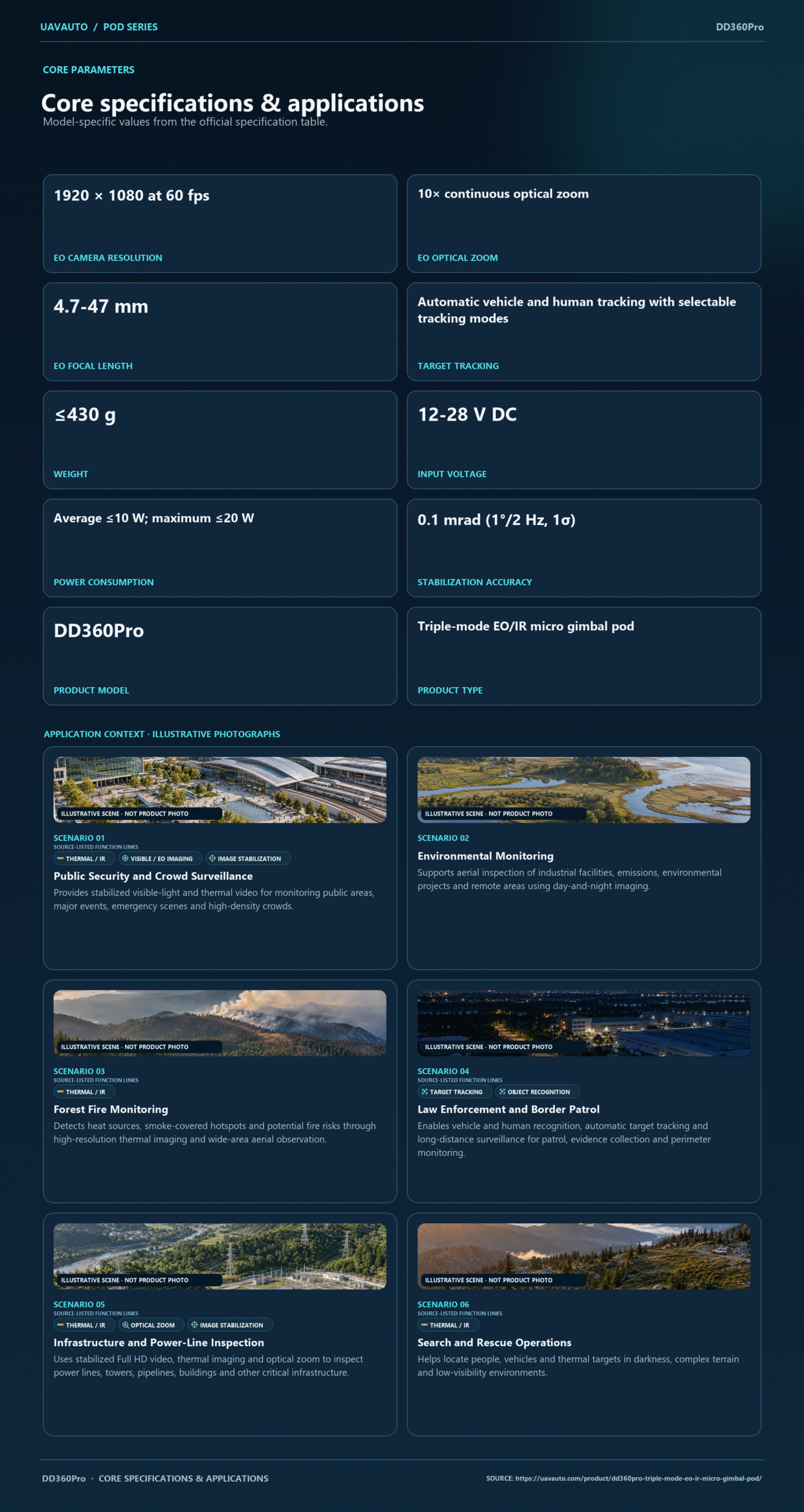

3. Application Scenarios

• Public Security and Crowd Surveillance:
  Provides stabilized visible-light and thermal video for monitoring public areas, major events, emergency scenes and high-density crowds.
• Environmental Monitoring:
  Supports aerial inspection of industrial facilities, emissions, environmental projects and remote areas using day-and-night imaging.
• Forest Fire Monitoring:
  Detects heat sources, smoke-covered hotspots and potential fire risks through high-resolution thermal imaging and wide-area aerial observation.
• Law Enforcement and Border Patrol:
  Enables vehicle and human recognition, automatic target tracking and long-distance surveillance for patrol, evidence collection and perimeter monitoring.
• Infrastructure and Power-Line Inspection:
  Uses stabilized Full HD video, thermal imaging and optical zoom to inspect power lines, towers, pipelines, buildings and other critical infrastructure.
• Search and Rescue Operations:
  Helps locate people, vehicles and thermal targets in darkness, complex terrain and low-visibility environments.
