DX5A 4K EO/Dual-IR UAV Gimbal | 40× Optical Zoom, Tracking
850 g EO/dual-IR UAV gimbal combining three visible-light channels and two infrared modules for multi-band observation. Dual 4K EO sensors deliver 3840×2160/30 fps video, while thermal output is 640×512/30 fps. Offers 40× optical/120× hybrid zoom, maximum angular velocity ≥60°/s and 0.1 mrad stabilization accuracy. Three-axis control and Ethernet RTSP video support stabilized imaging integration. Uses 12–24 V DC, average ≤15 W.
- 40x optical zoom
- 120x hybrid zoom
- 100 deg x 68 deg
- 2.5 deg x 1.4 deg
- <=0.3 deg
- 0.1 mrad (1 deg/2Hz, 1 sigma)
- ≥60°/s
- 640x512@30fps
- 33 deg x 26.6 deg (13mm)
- 8.5 deg x 6.8 deg (52mm)
- 232 serial port (TTL)
- Ethernet
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

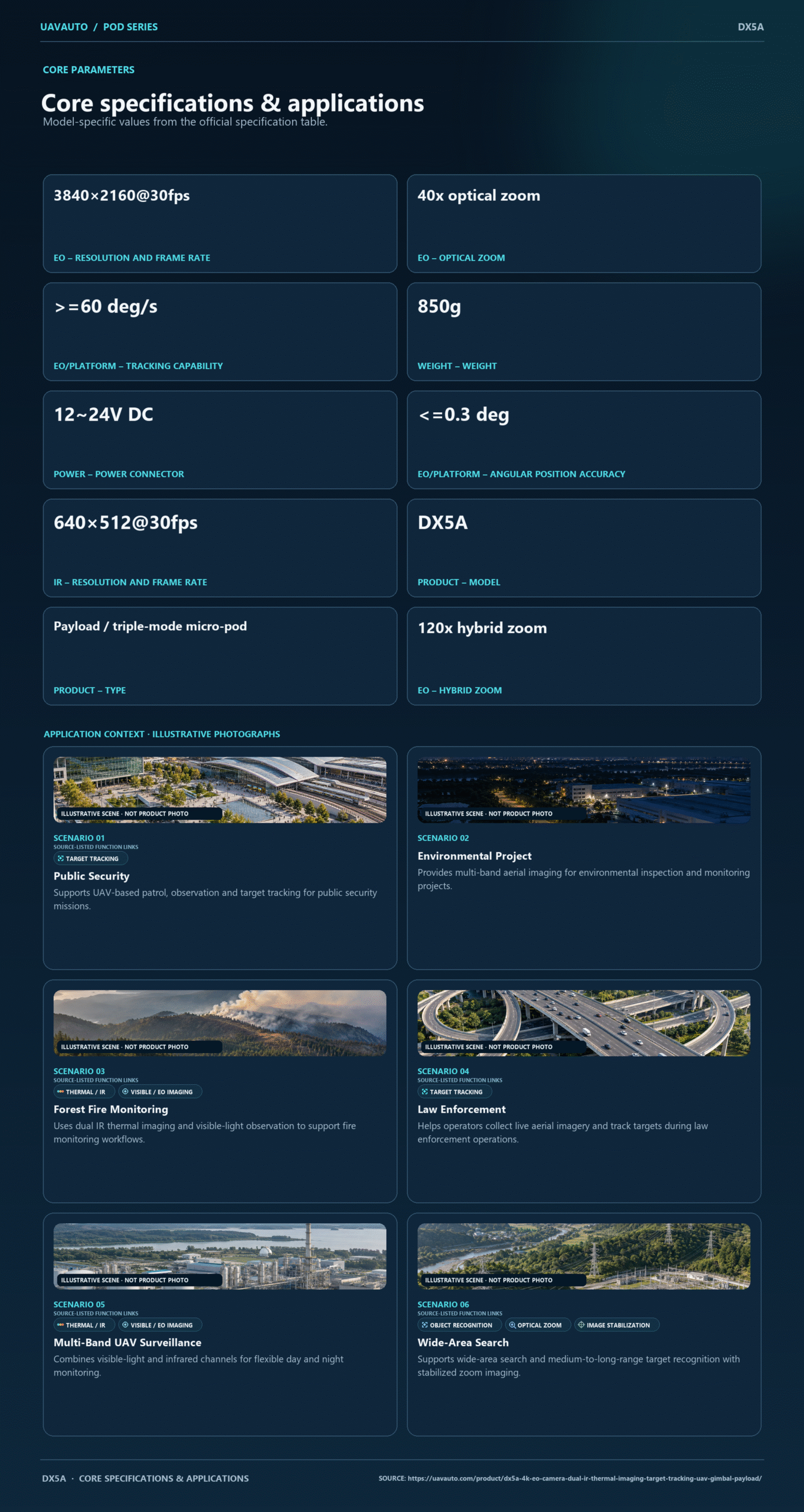

Core specifications
Technical data

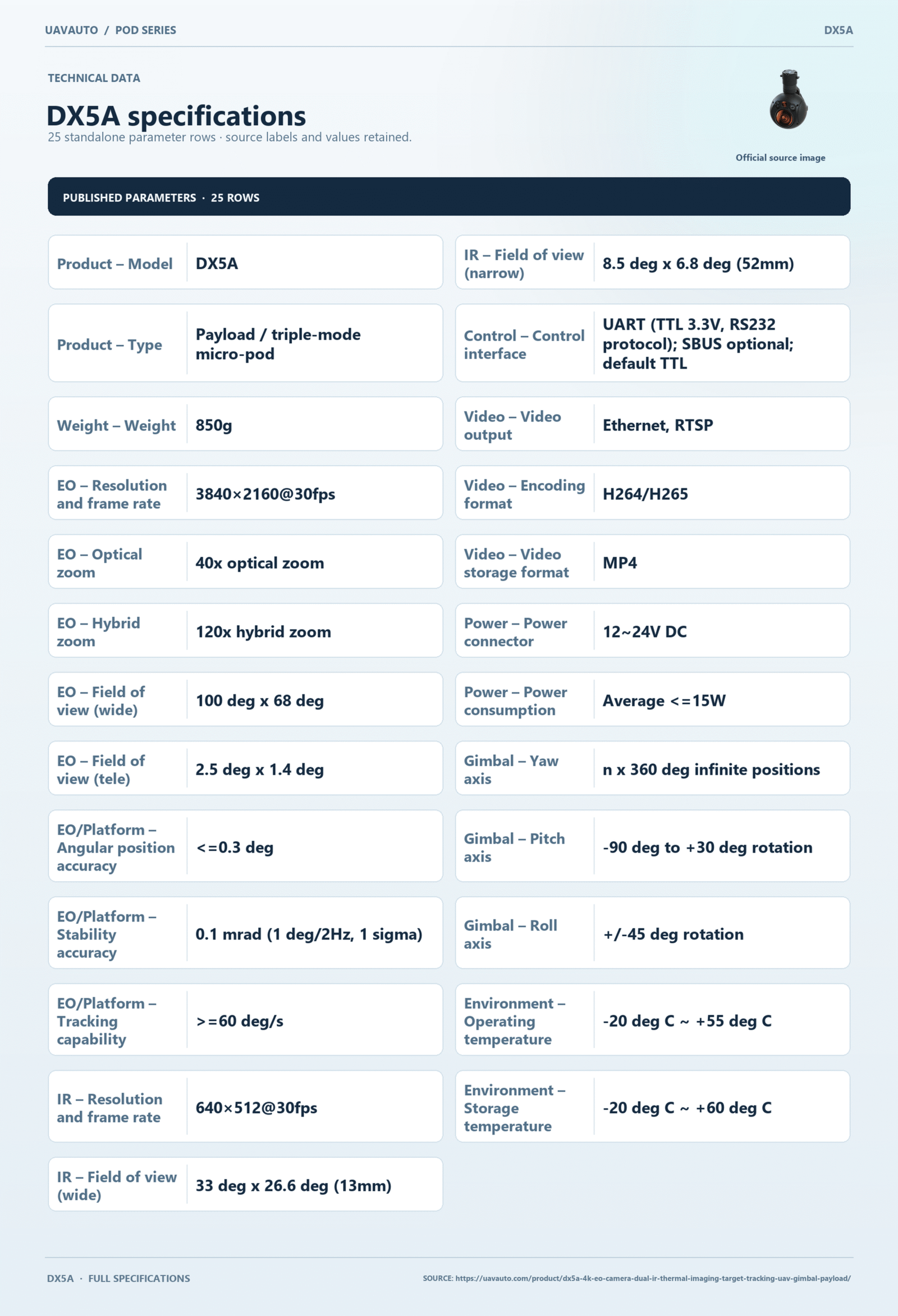

| Parameter | Specification |
|---|---|
| Product - Model | DX5A |
| Product - Type | Payload / triple-mode micro-pod |
| Weight - Weight | 850g |

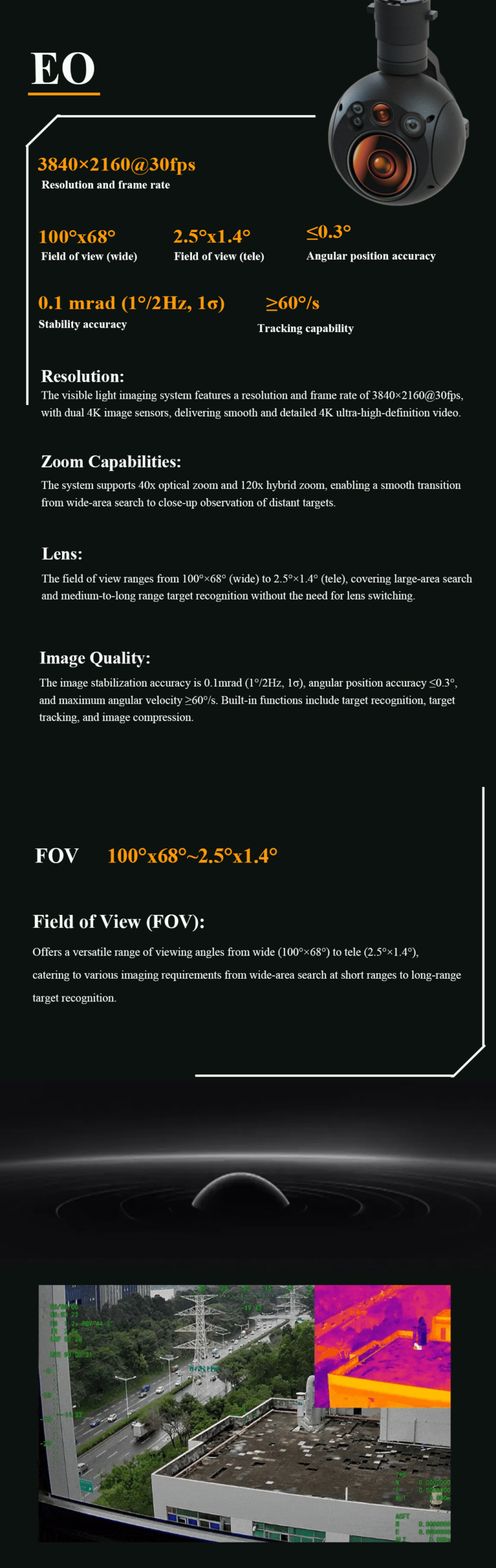

| EO - Resolution and frame rate | 3840x2160@30fps |
| EO - Optical zoom | 40x optical zoom |
| EO - Hybrid zoom | 120x hybrid zoom |
| EO - Field of view (wide) | 100 deg x 68 deg |
| EO - Field of view (tele) | 2.5 deg x 1.4 deg |
| EO/Platform - Angular position accuracy | <=0.3 deg |
| EO/Platform - Stability accuracy | 0.1 mrad (1 deg/2Hz, 1 sigma) |
| Maximum angular velocity | ≥60°/s |

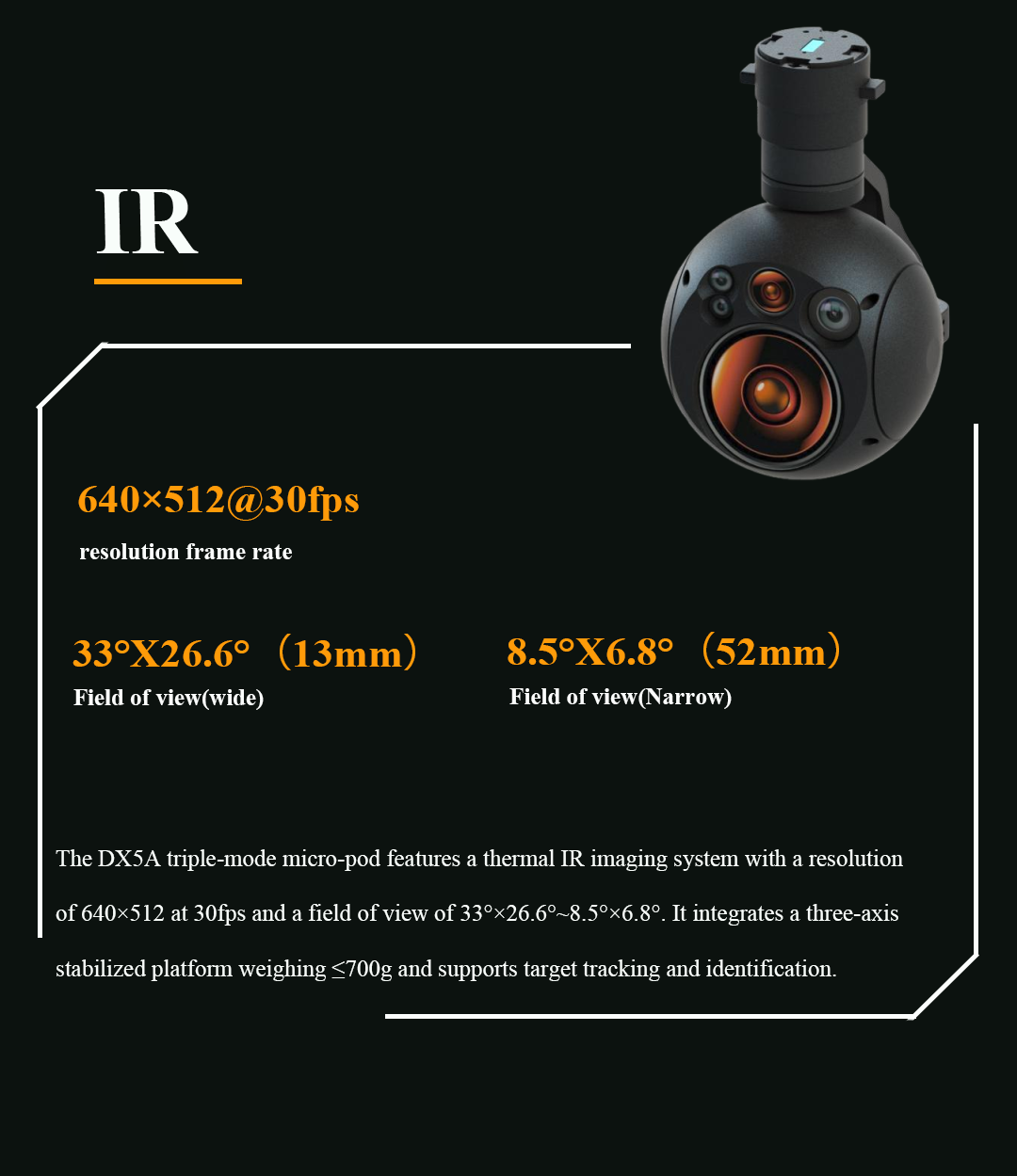

| IR - Resolution and frame rate | 640x512@30fps |
| IR - Field of view (wide) | 33 deg x 26.6 deg (13mm) |
| IR - Field of view (narrow) | 8.5 deg x 6.8 deg (52mm) |

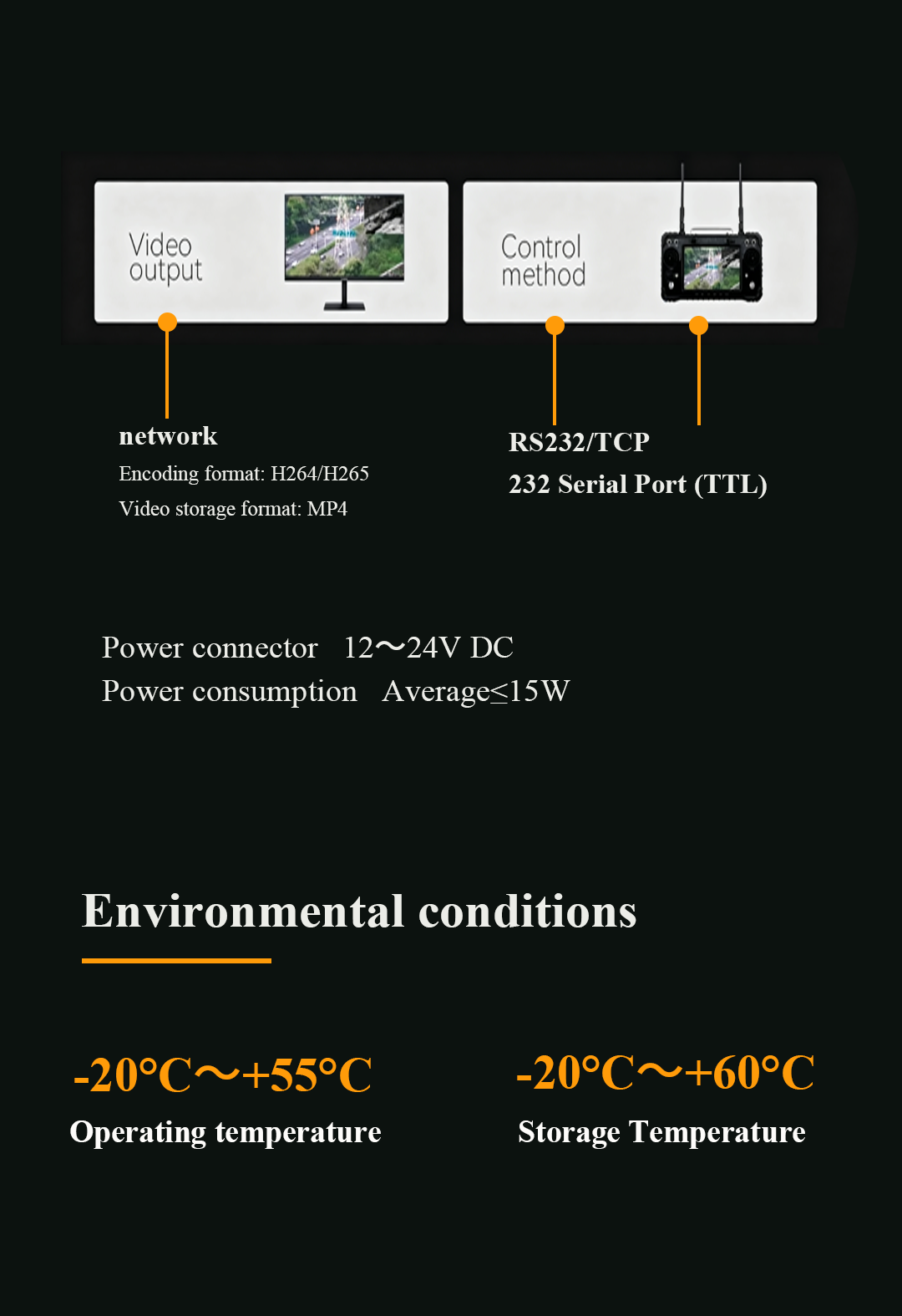

| Control - Control interface | 232 serial port (TTL) |
| Video - Video output | Ethernet |
| Power - Power connector | 12~24V DC |
| Power - Power consumption | Average <=15W |

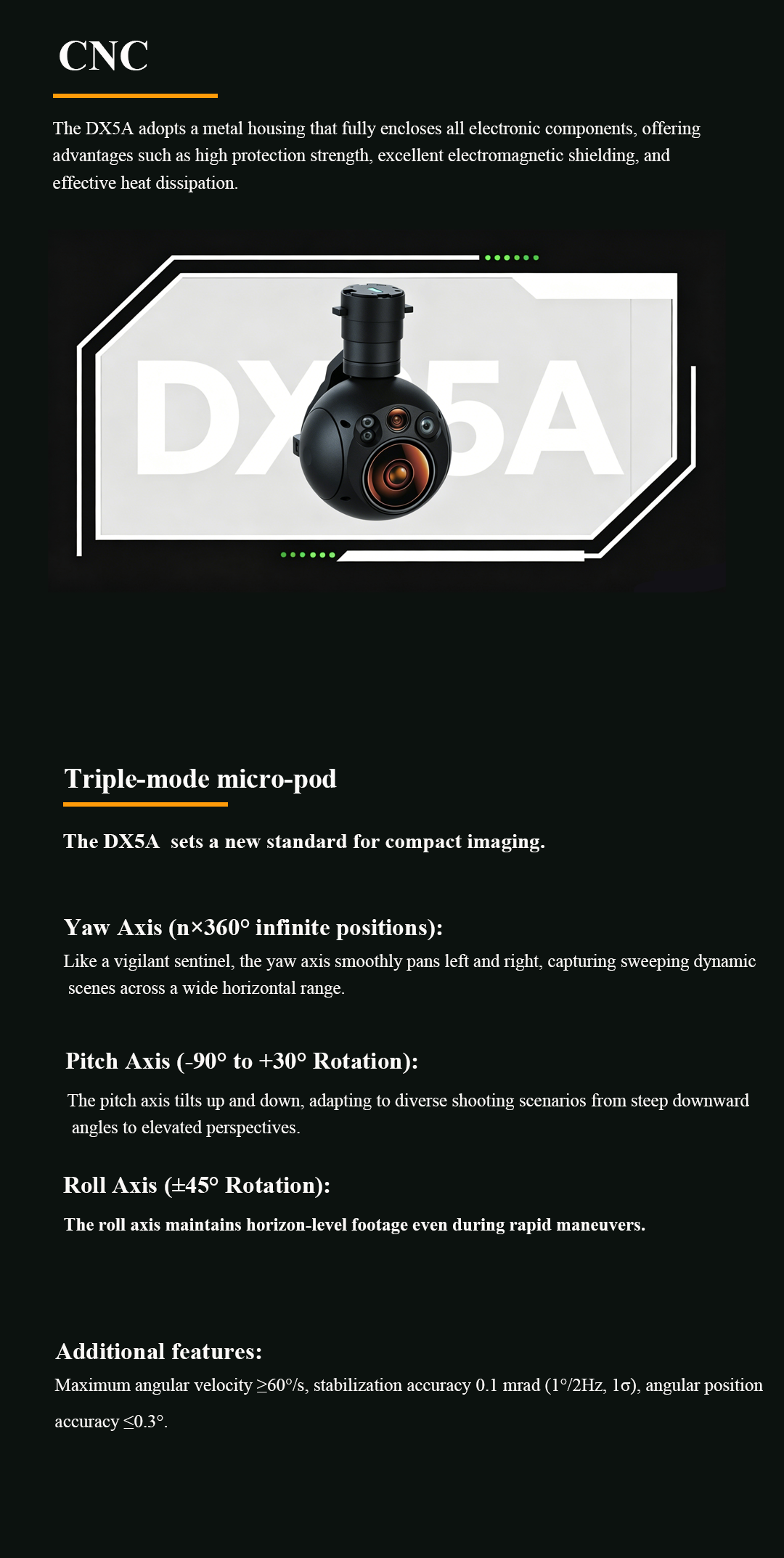

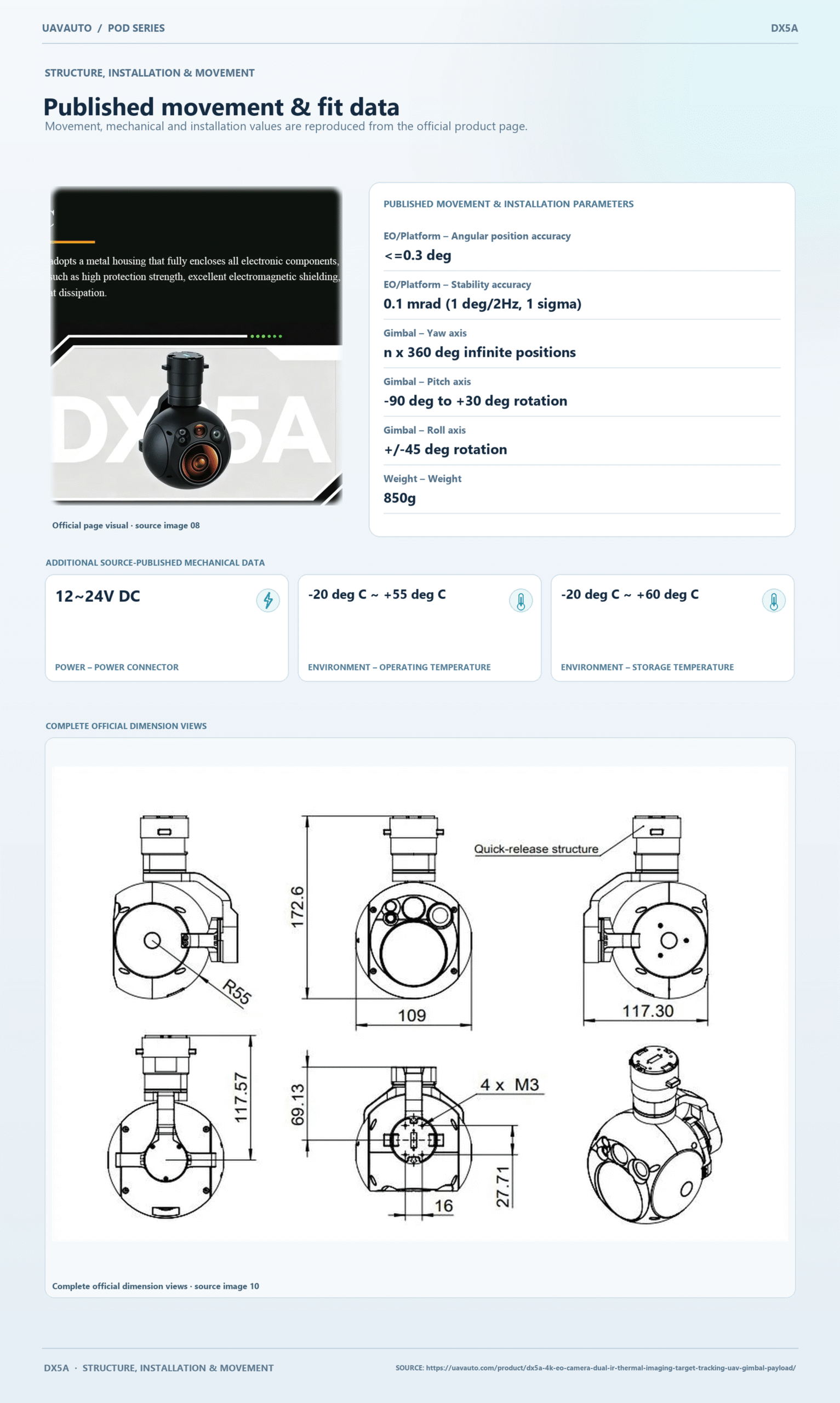

| Gimbal - Yaw axis | n x 360 deg infinite positions |
| Gimbal - Pitch axis | -90 deg to +30 deg rotation |
| Gimbal - Roll axis | +/-45 deg rotation |
| Environment - Operating temperature | -20 deg C ~ +55 deg C |
| Environment - Storage temperature | -20 deg C ~ +60 deg C |
1. Features & applications

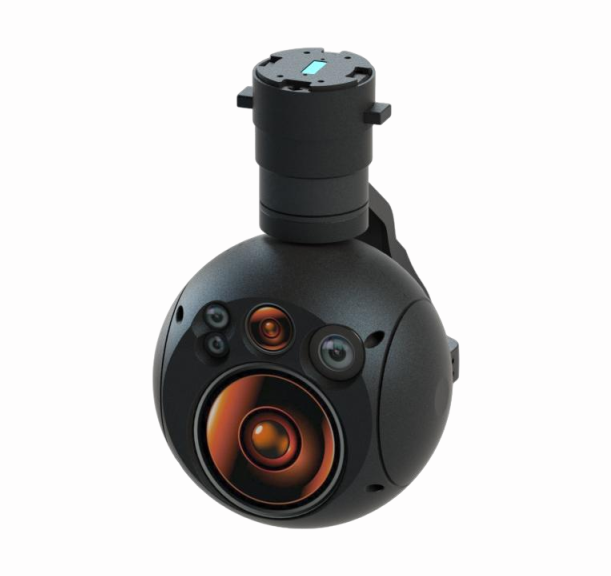

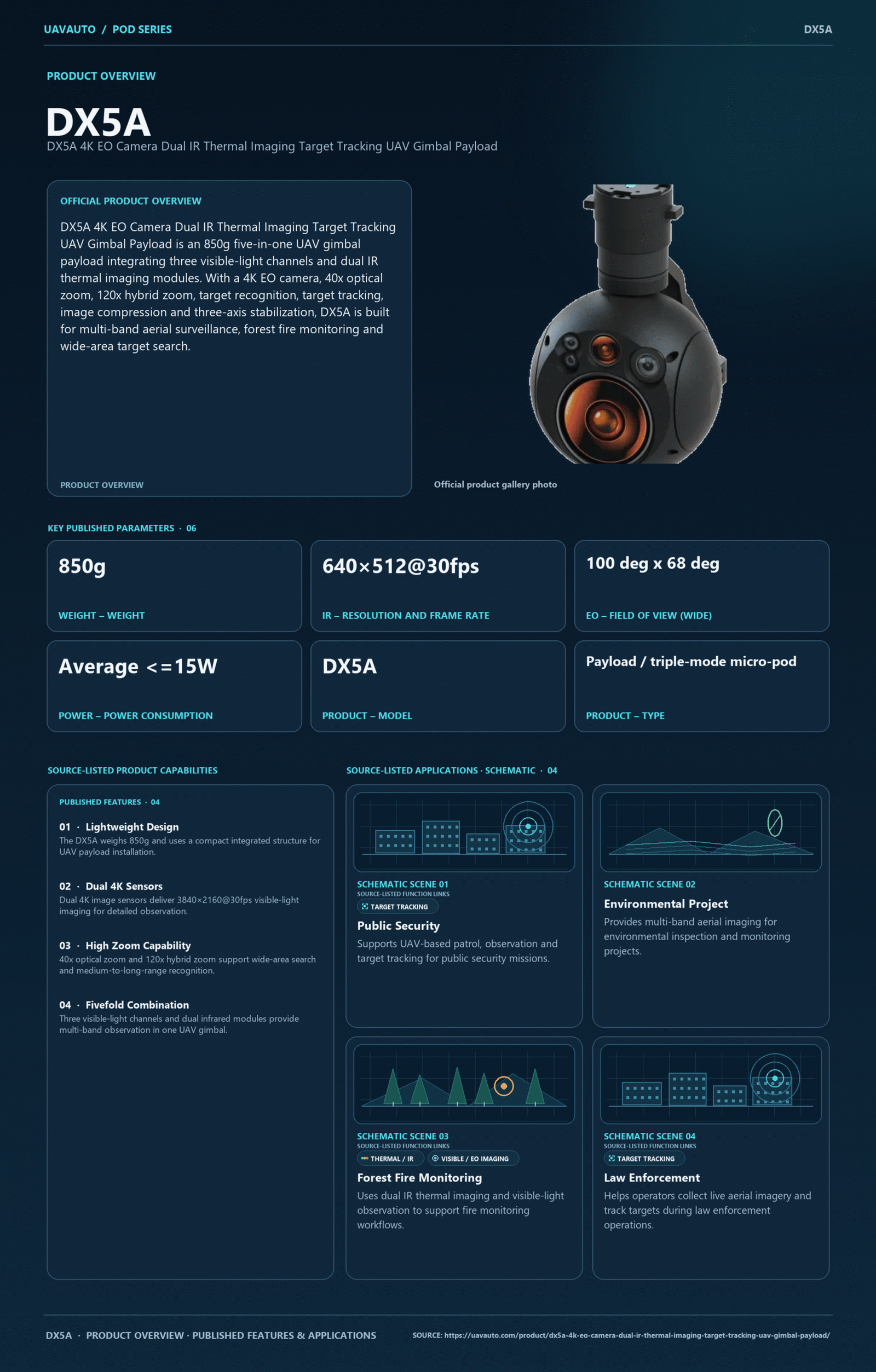

DX5A 4K EO Camera Dual IR Thermal Imaging Target Tracking UAV Gimbal Payload is an 850g five-in-one UAV gimbal payload integrating three visible-light channels and dual IR thermal imaging modules. With a 4K EO camera, 40x optical zoom, 120x hybrid zoom, target recognition, target tracking, image compression and three-axis stabilization, DX5A is built for multi-band aerial surveillance, forest fire monitoring and wide-area target search.

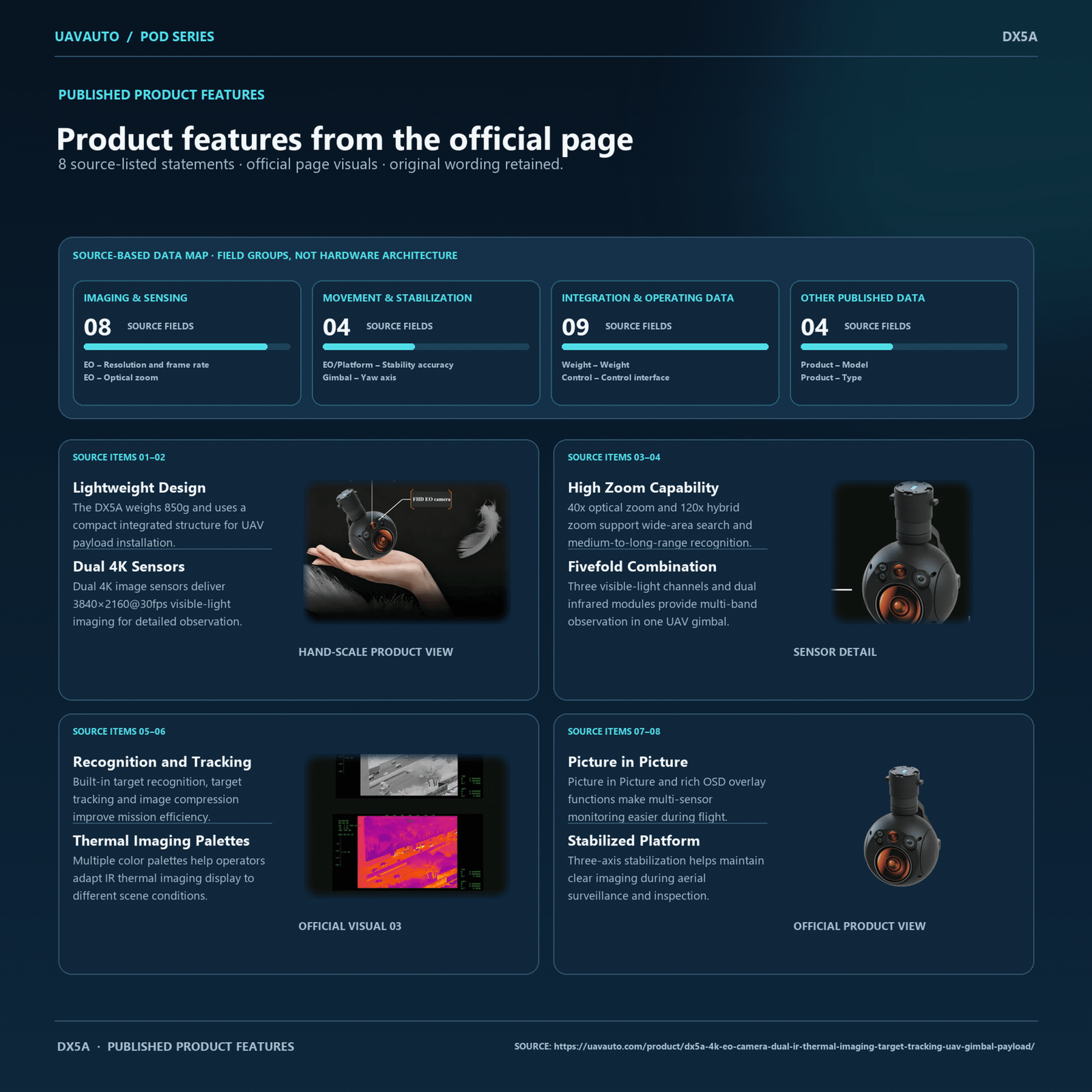

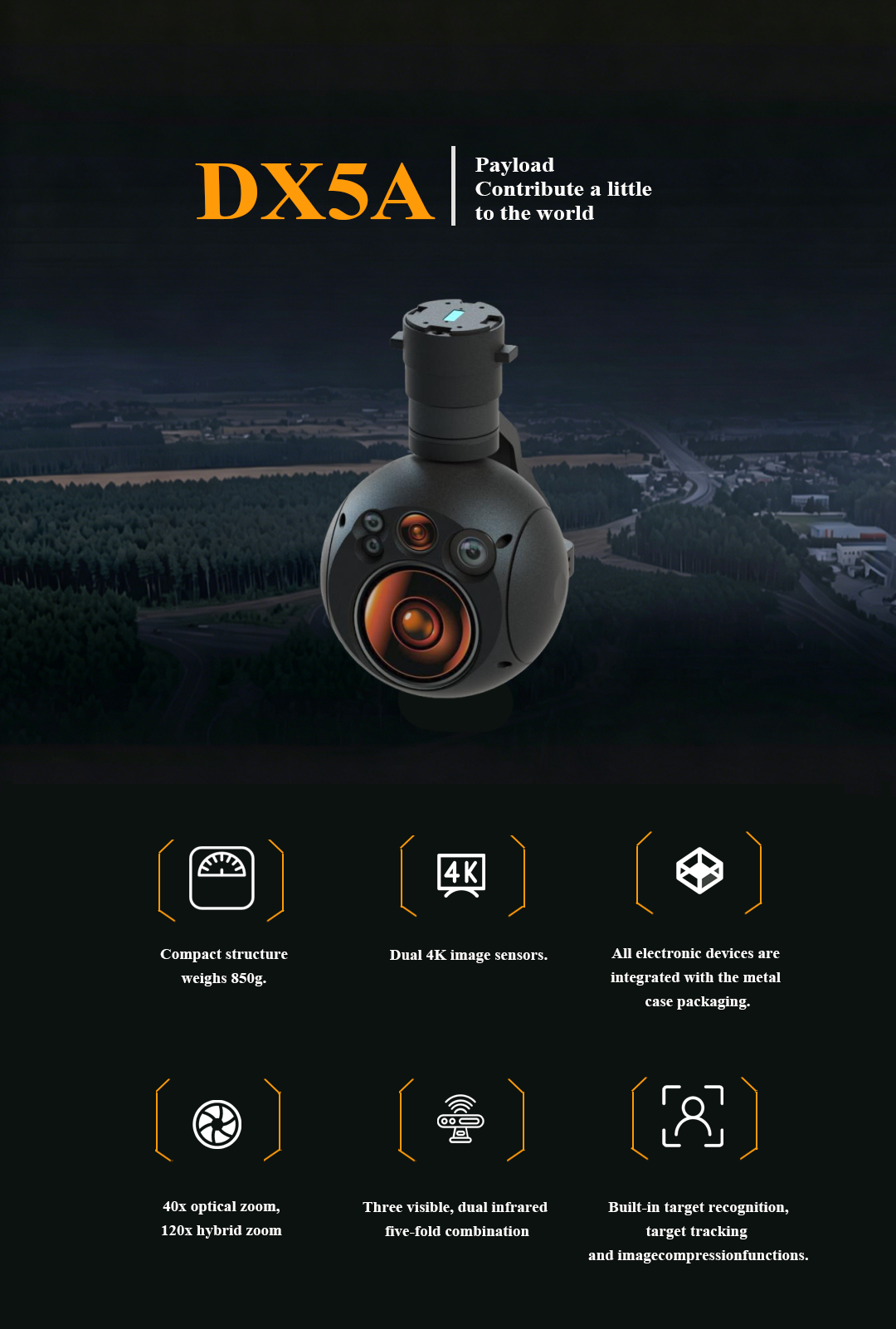

2. Product Features

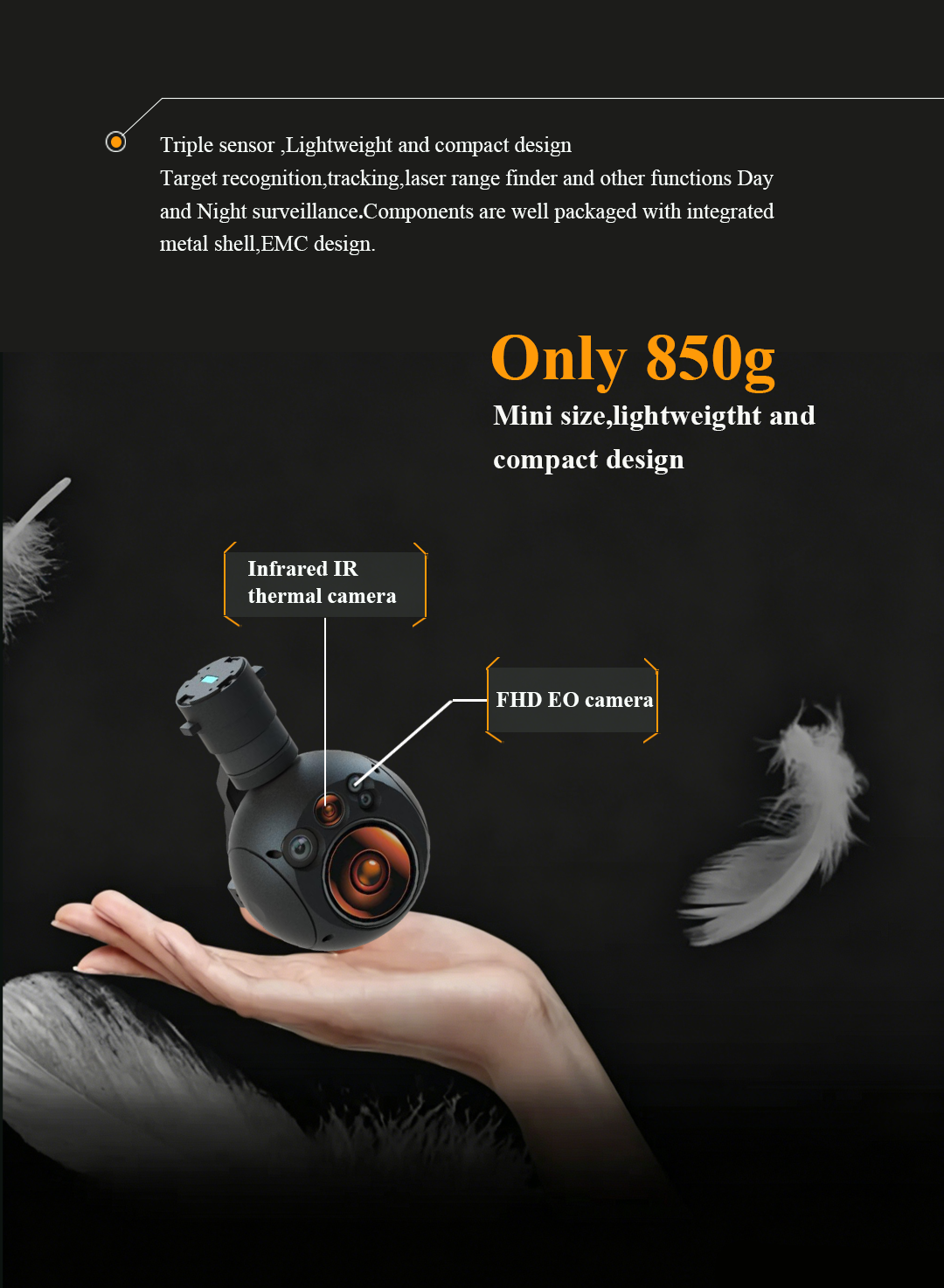

- Lightweight Design: The DX5A weighs 850g and uses a compact integrated structure for UAV payload installation.

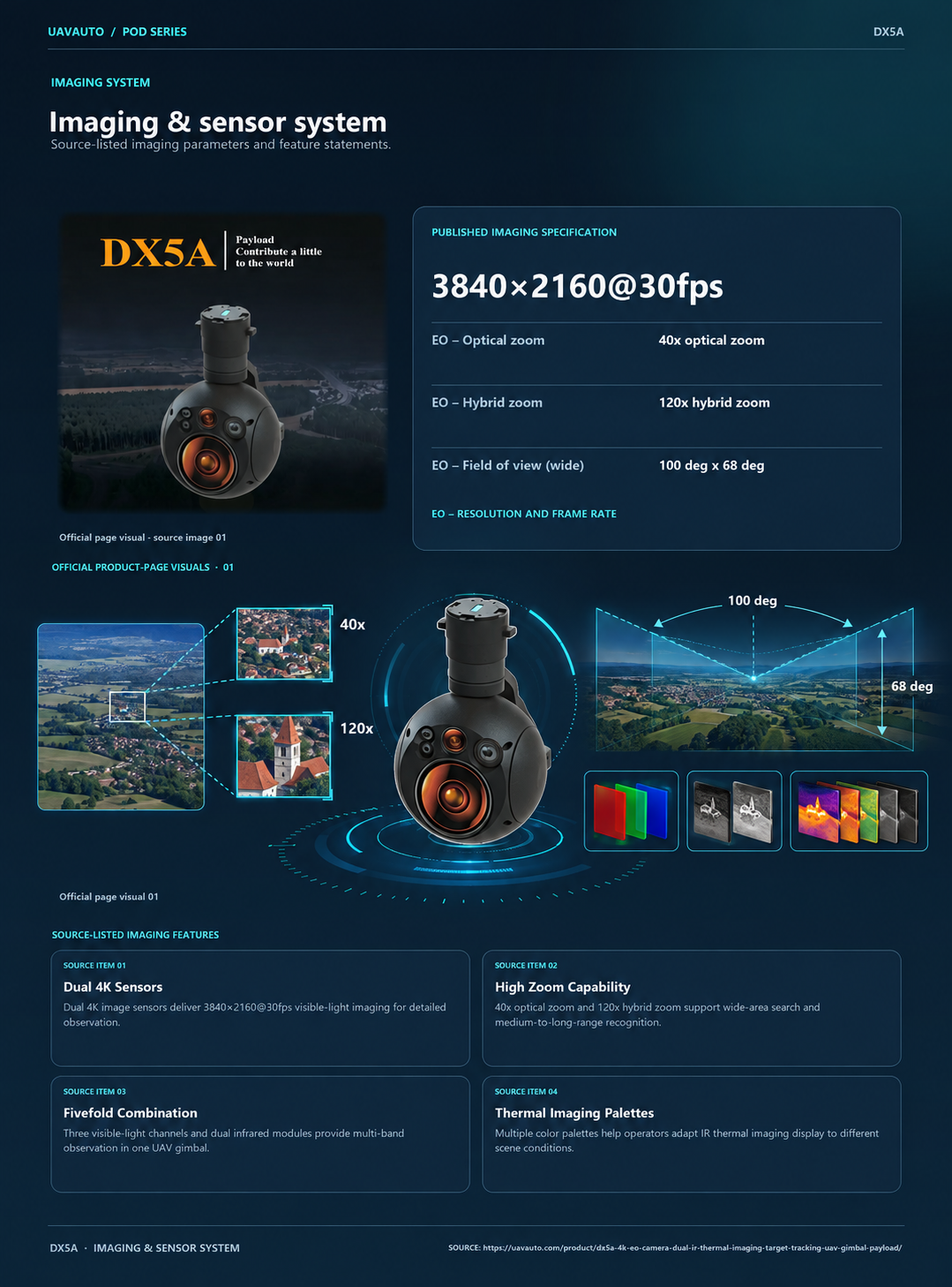

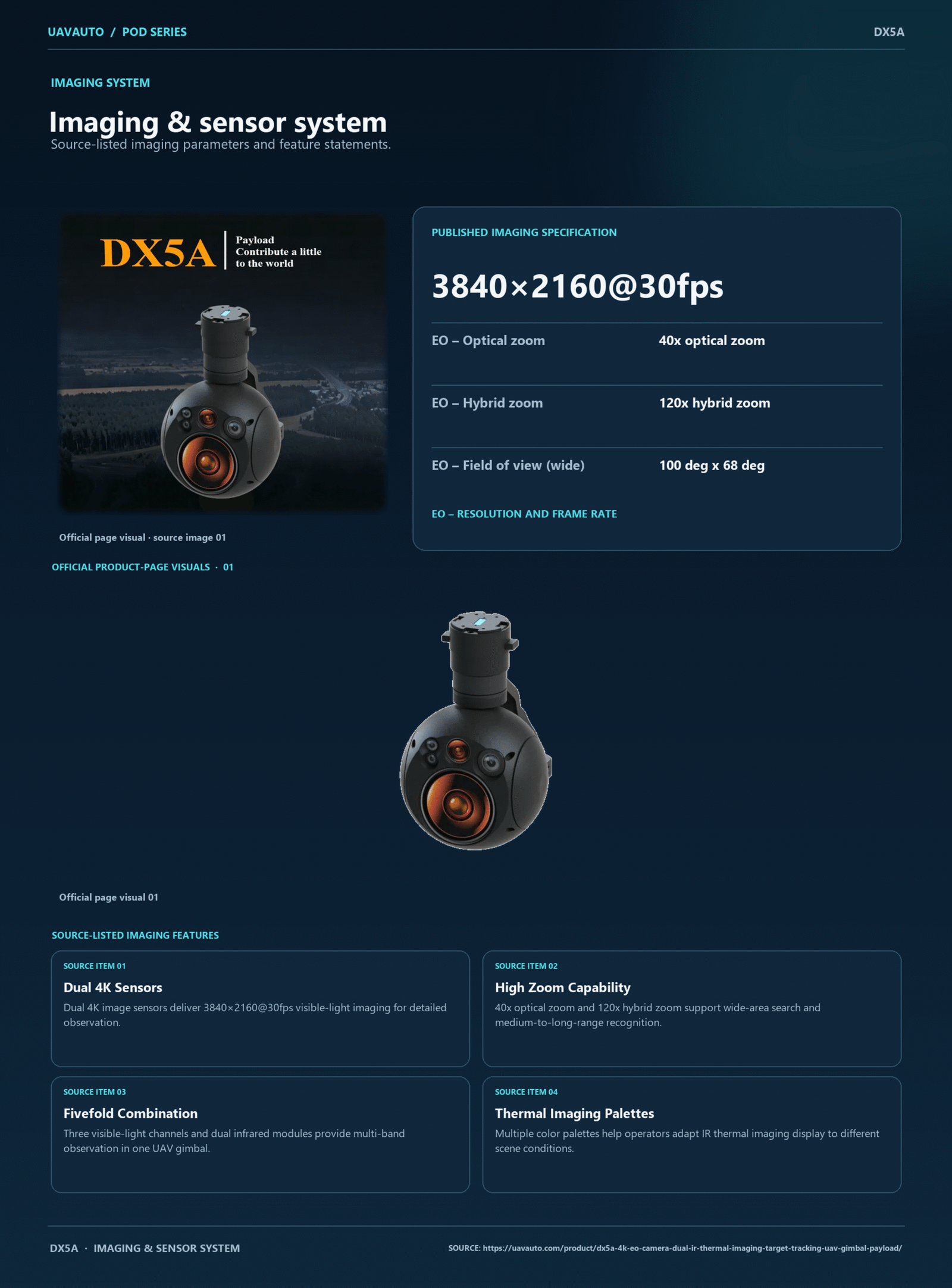

- Dual 4K Sensors: Dual 4K image sensors deliver 3840x2160@30fps visible-light imaging for detailed observation.
- High Zoom Capability: 40x optical zoom and 120x hybrid zoom support wide-area search and medium-to-long-range recognition.
- Fivefold Combination: Three visible-light channels and dual infrared modules provide multi-band observation in one UAV gimbal.

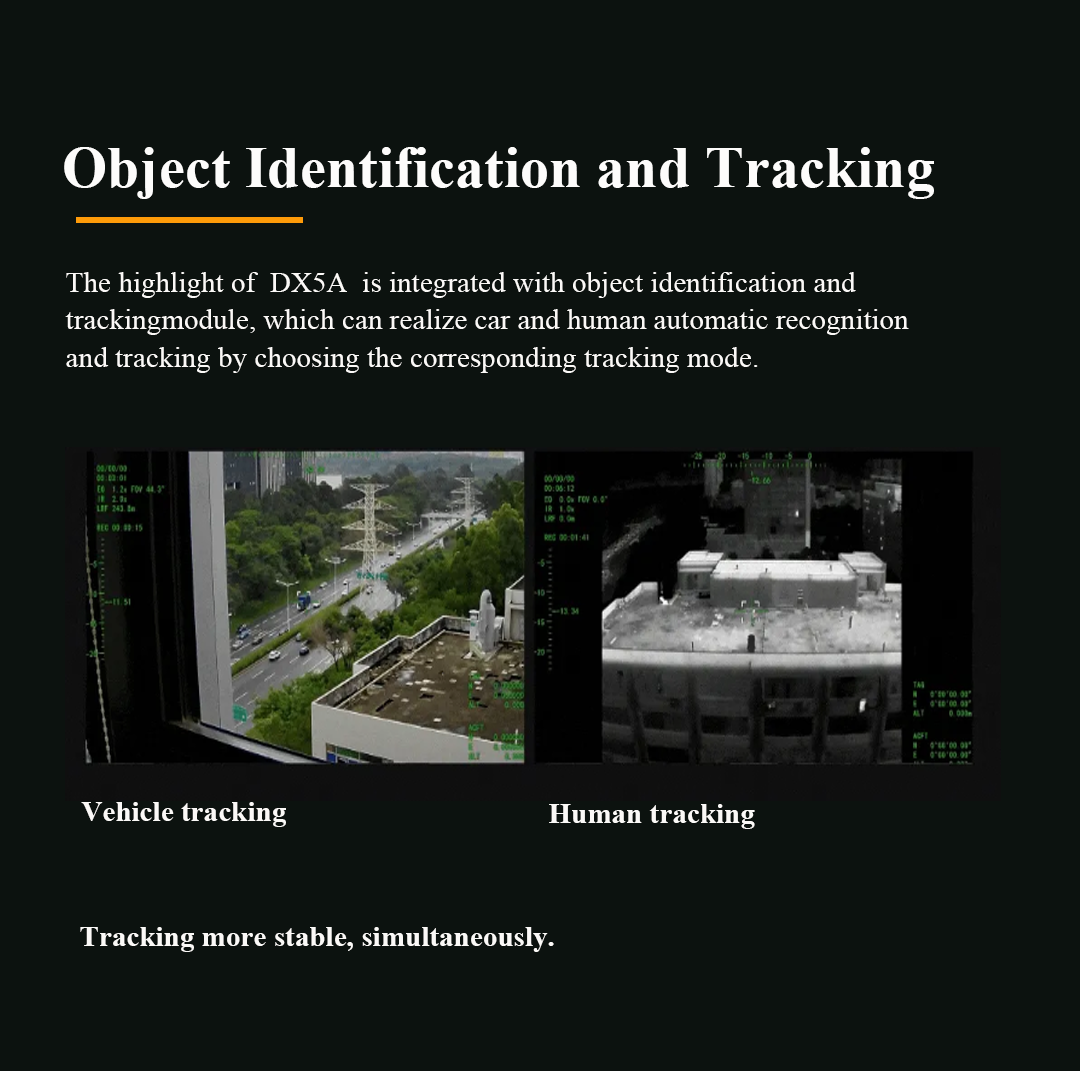

- Recognition and Tracking: Built-in target recognition, target tracking and image compression improve mission efficiency.

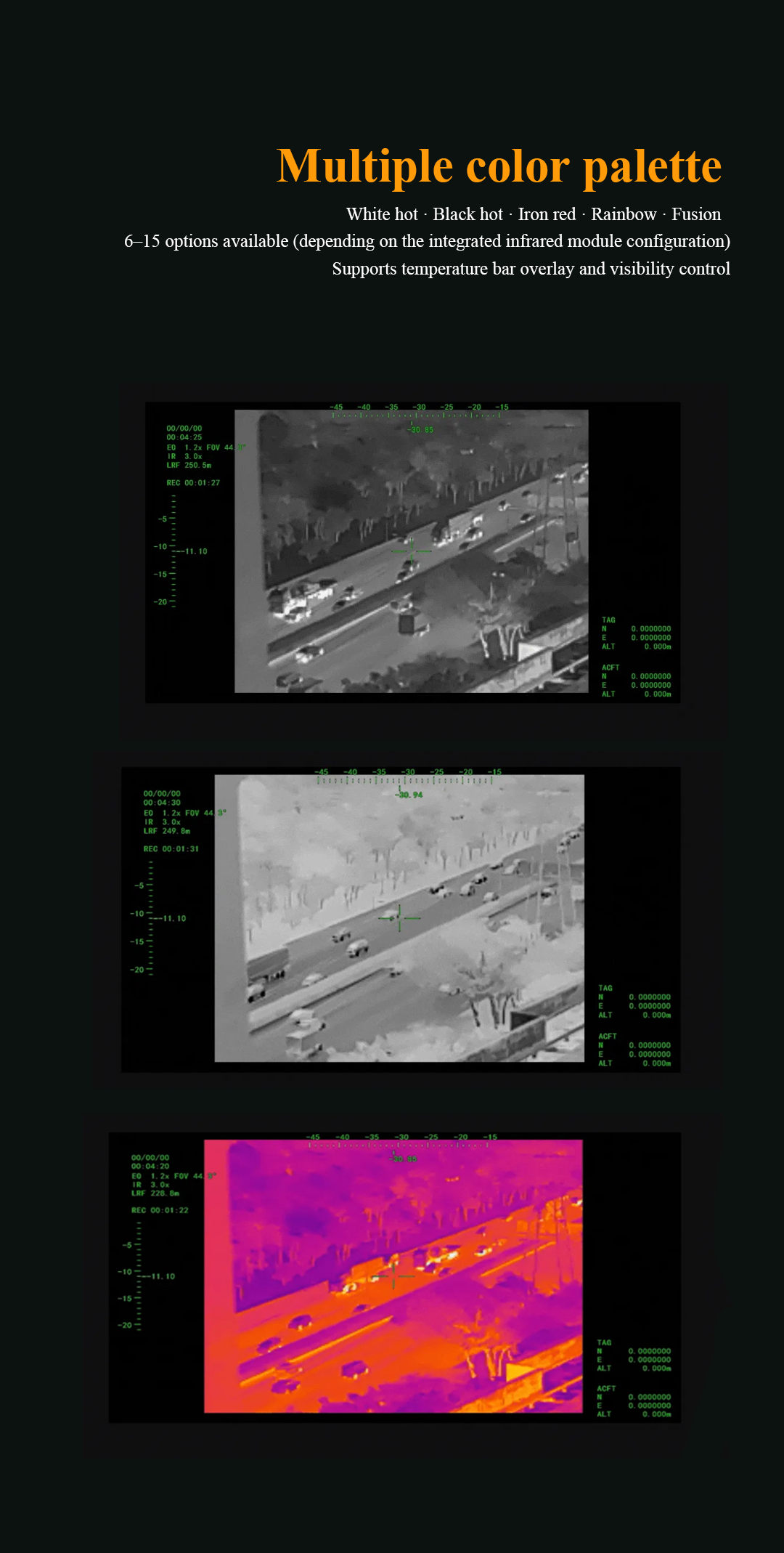

- Thermal Imaging Palettes: Multiple color palettes help operators adapt IR thermal imaging display to different scene conditions.

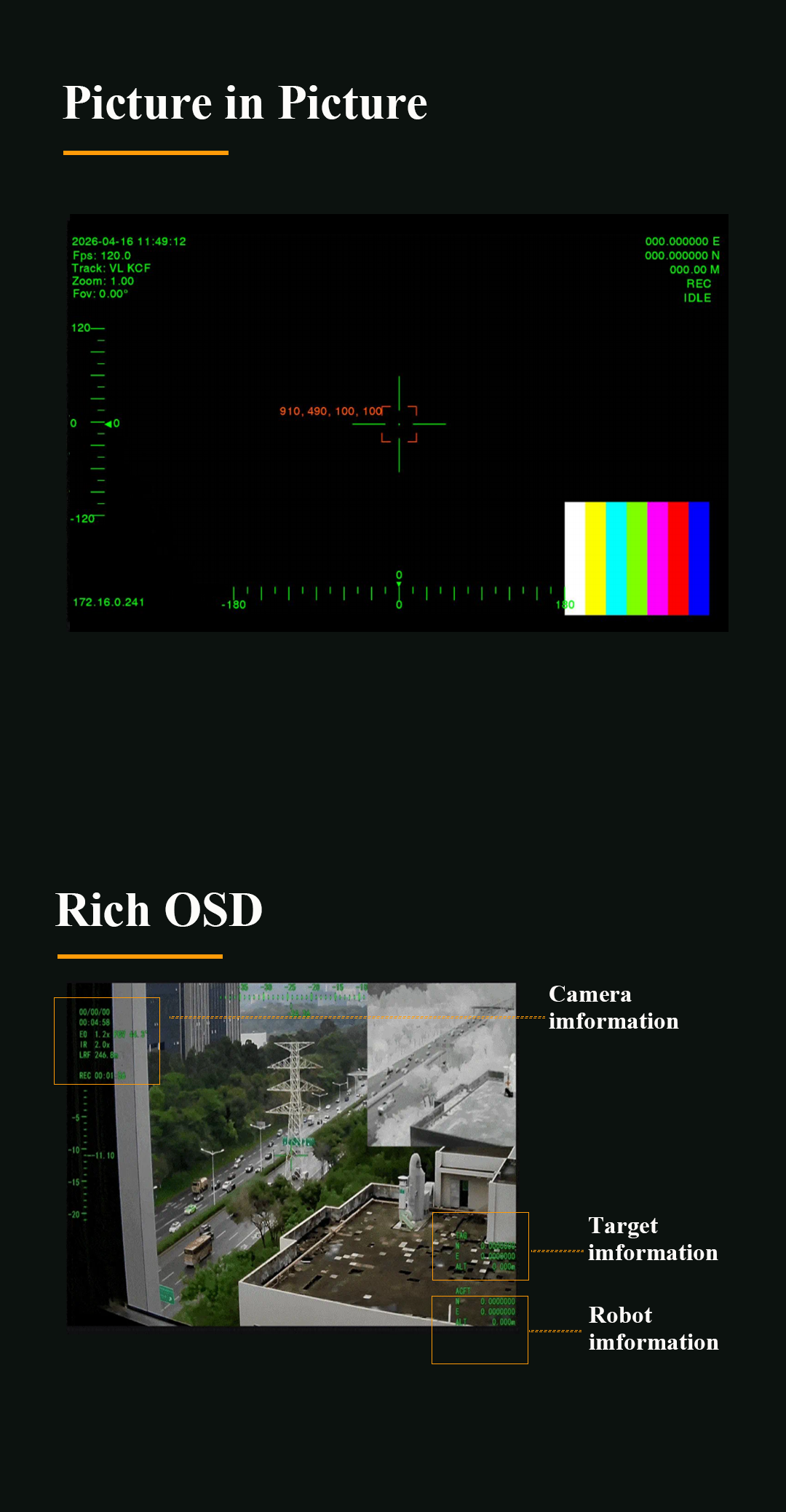

- Picture in Picture: Picture in Picture and rich OSD overlay functions make multi-sensor monitoring easier during flight.
- Stabilized Platform: Three-axis stabilization helps maintain clear imaging during aerial surveillance and inspection.

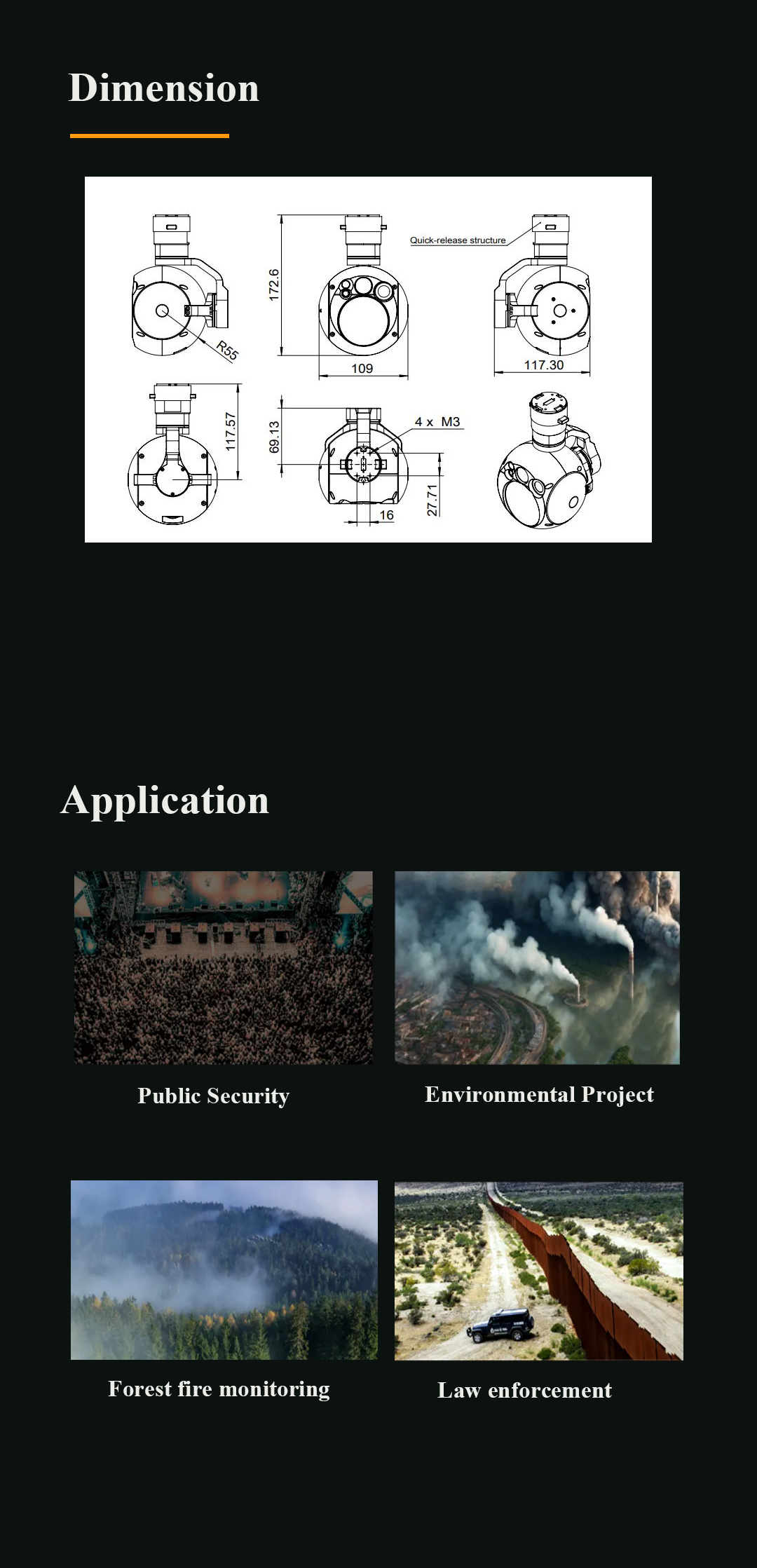

3. Application Scenarios
- Public Security: Supports UAV-based patrol, observation and target tracking for public security missions.
- Environmental Project: Provides multi-band aerial imaging for environmental inspection and monitoring projects.
- Forest Fire Monitoring: Uses dual IR thermal imaging and visible-light observation to support fire monitoring workflows.
- Law Enforcement: Helps operators collect live aerial imagery and track targets during law enforcement operations.
- Multi-Band UAV Surveillance: Combines visible-light and infrared channels for flexible day and night monitoring.
- Wide-Area Search: Supports wide-area search and medium-to-long-range target recognition with stabilized zoom imaging.
Related Products
-
DA60NDA60N Mini Infrared UAV Pod Overview
Gimbal Pod -
DA0T1DA0T1 High-Frame-Rate High-Speed Seeker
Gimbal Pod -
DT30DLDT30DL Multi-Sensor Dual-Field EO/IR Laser Rangefinder Gimbal
Gimbal Pod -
DS30EDS30E Triple-Sensor EO/IR Laser Rangefinder Gimbal
Gimbal Pod -
DD360ProDD360Pro Triple-Mode EO/IR Micro Gimbal Pod
Gimbal Pod -
DX5BDX5B 4K EO Camera IR Thermal Imaging Laser Rangefinder Target Tracking UAV Gimbal Payload
Gimbal Pod -
DX5DX5 4K EO Camera IR Thermal Imaging Laser Rangefinder 3-Axis UAV Gimbal Payload
Gimbal Pod -

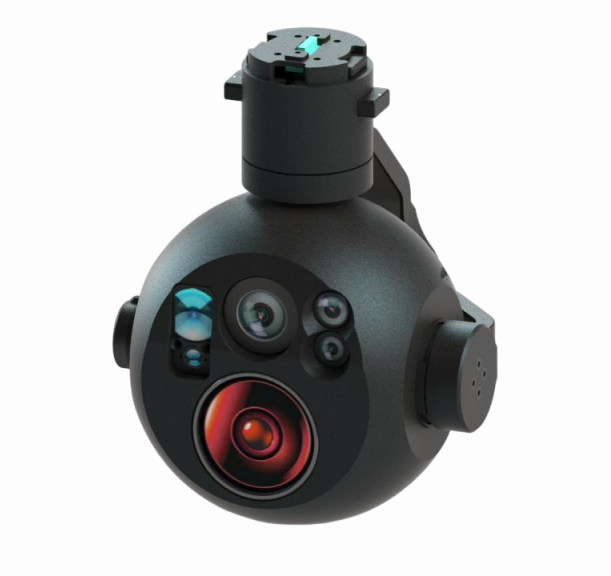

DX4DX4 Dual 4K EO IR Thermal Laser Rangefinder 3-Axis UAV Gimbal with Target Tracking
