DX5 4K EO/IR UAV Gimbal | 1280×1024 IR, 40× Optical Zoom
SKU:DX5
870 g three-axis EO/IR UAV gimbal combining multiple EO channels, dual 4K sensors, 1280×1024/30 fps thermal imaging and 20–3,000 m laser ranging with ±1 m accuracy. Delivers 3840×2160/30 fps visible video with 40× optical/120× hybrid zoom. Provides 0.1 mrad stabilization accuracy for detailed observation and tracking. Ethernet RTSP output supports system integration. Uses 12–24 V DC with average consumption ≤15 W.
- 40x optical zoom
- 120x hybrid zoom
- 100 deg x 68 deg
- 3.3 deg x 1.9 deg
- <=0.3 deg
- 0.1 mrad (1 deg/2Hz, 1 sigma)
- ≥60°/s
- 1280×1024@30fps
- 17.5°~14° (50 mm)
- 20m~3000m
- +/-1m
- 232 serial port (TTL)
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights

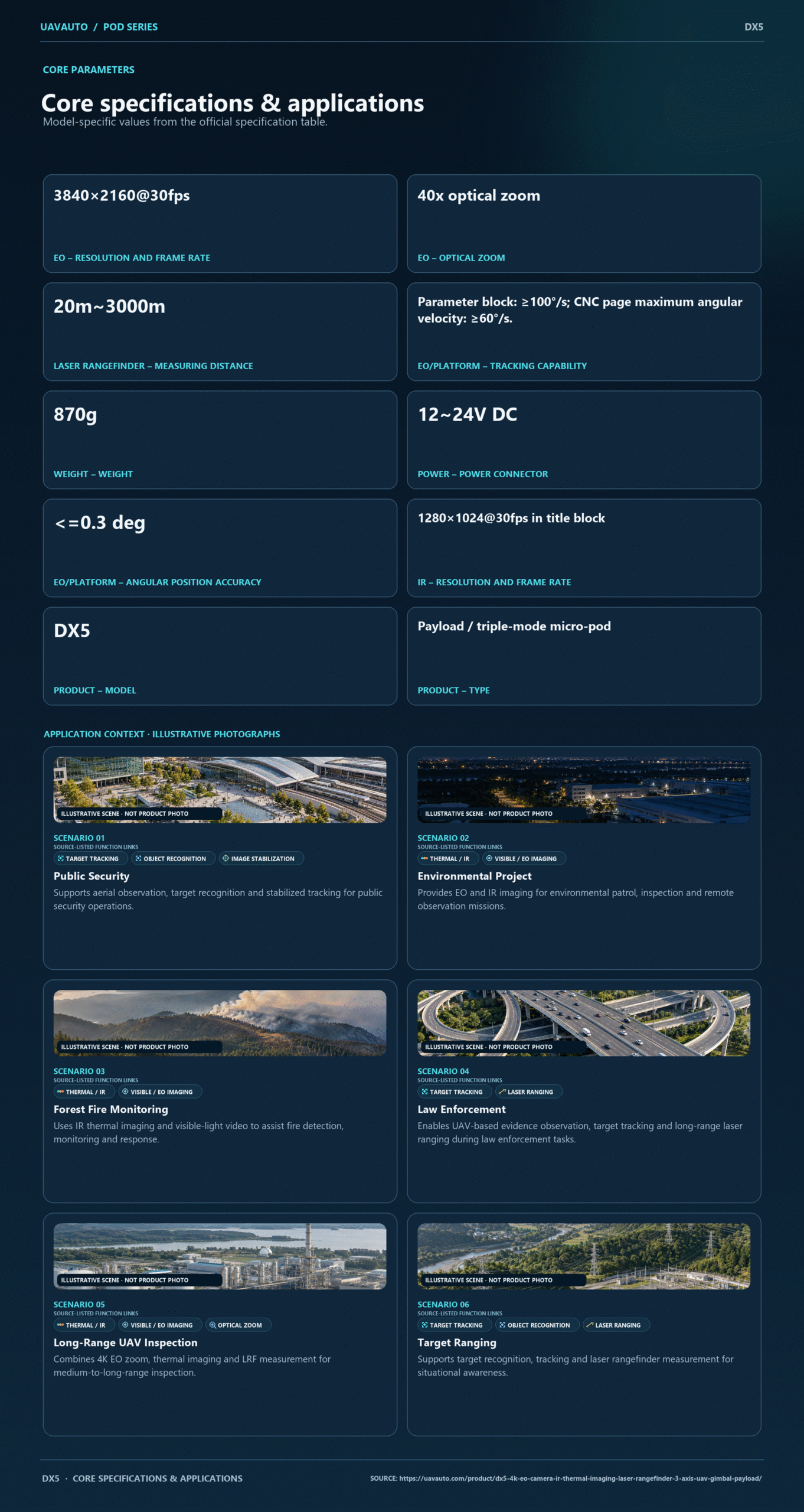

Core specifications
3840x2160@30fpsEO - Resolution and frame rate
870gWeight - Weight
Average <=15WPower - Power consumption

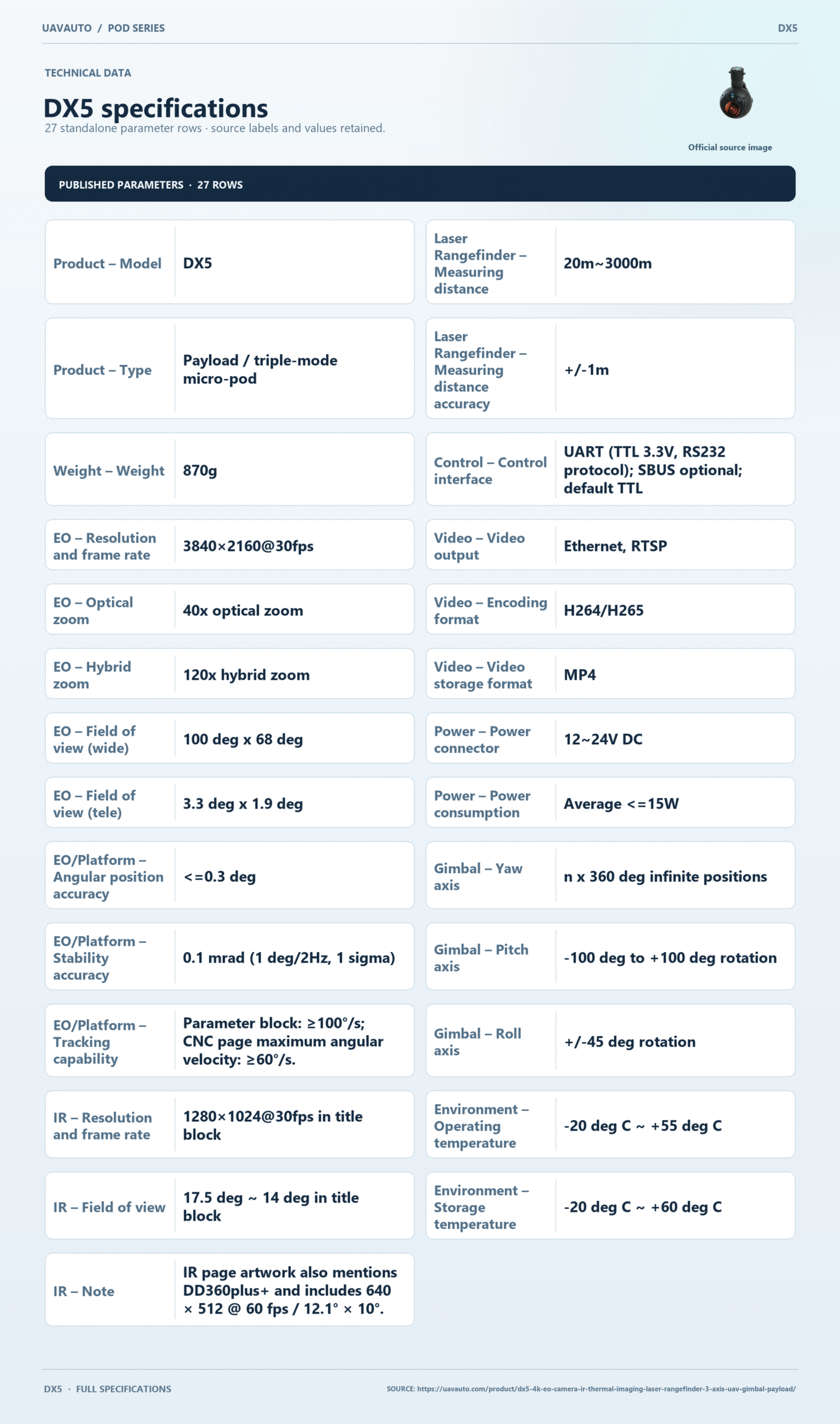

Technical data
| Parameter | Specification |
|---|---|
| Product - Model | DX5 |
| Product - Type | Payload / triple-mode micro-pod |
| Weight - Weight | 870g |

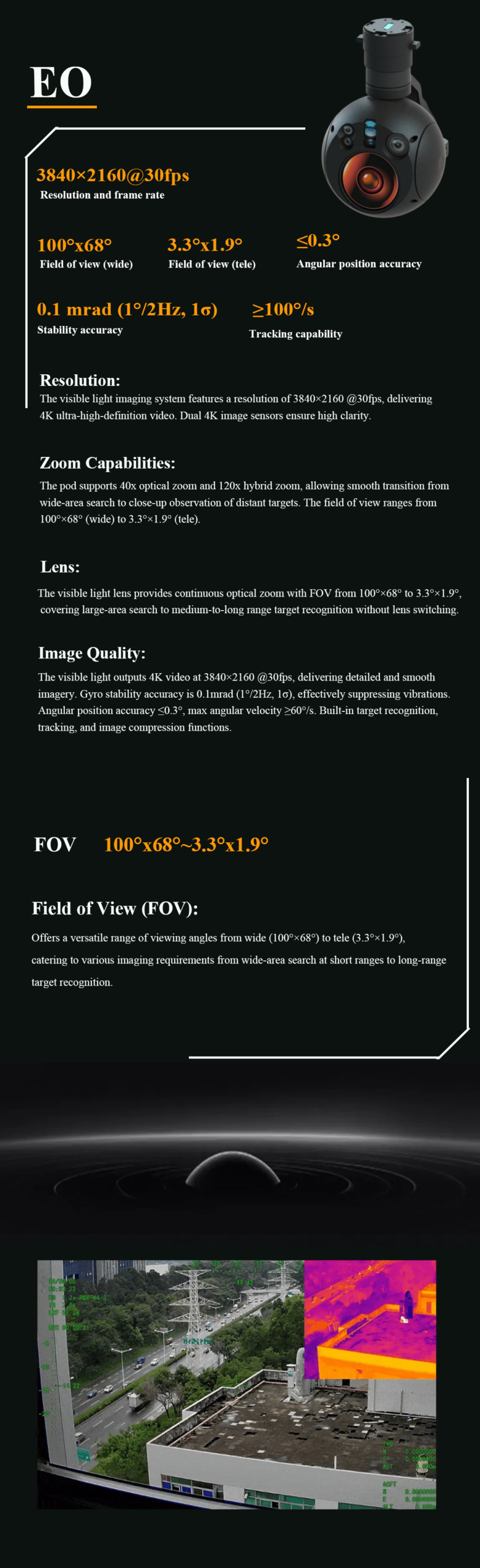

| EO - Resolution and frame rate | 3840x2160@30fps |
| EO - Optical zoom | 40x optical zoom |
| EO - Hybrid zoom | 120x hybrid zoom |
| EO - Field of view (wide) | 100 deg x 68 deg |
| EO - Field of view (tele) | 3.3 deg x 1.9 deg |
| EO/Platform - Angular position accuracy | <=0.3 deg |
| EO/Platform - Stability accuracy | 0.1 mrad (1 deg/2Hz, 1 sigma) |
| Maximum angular velocity | ≥60°/s |

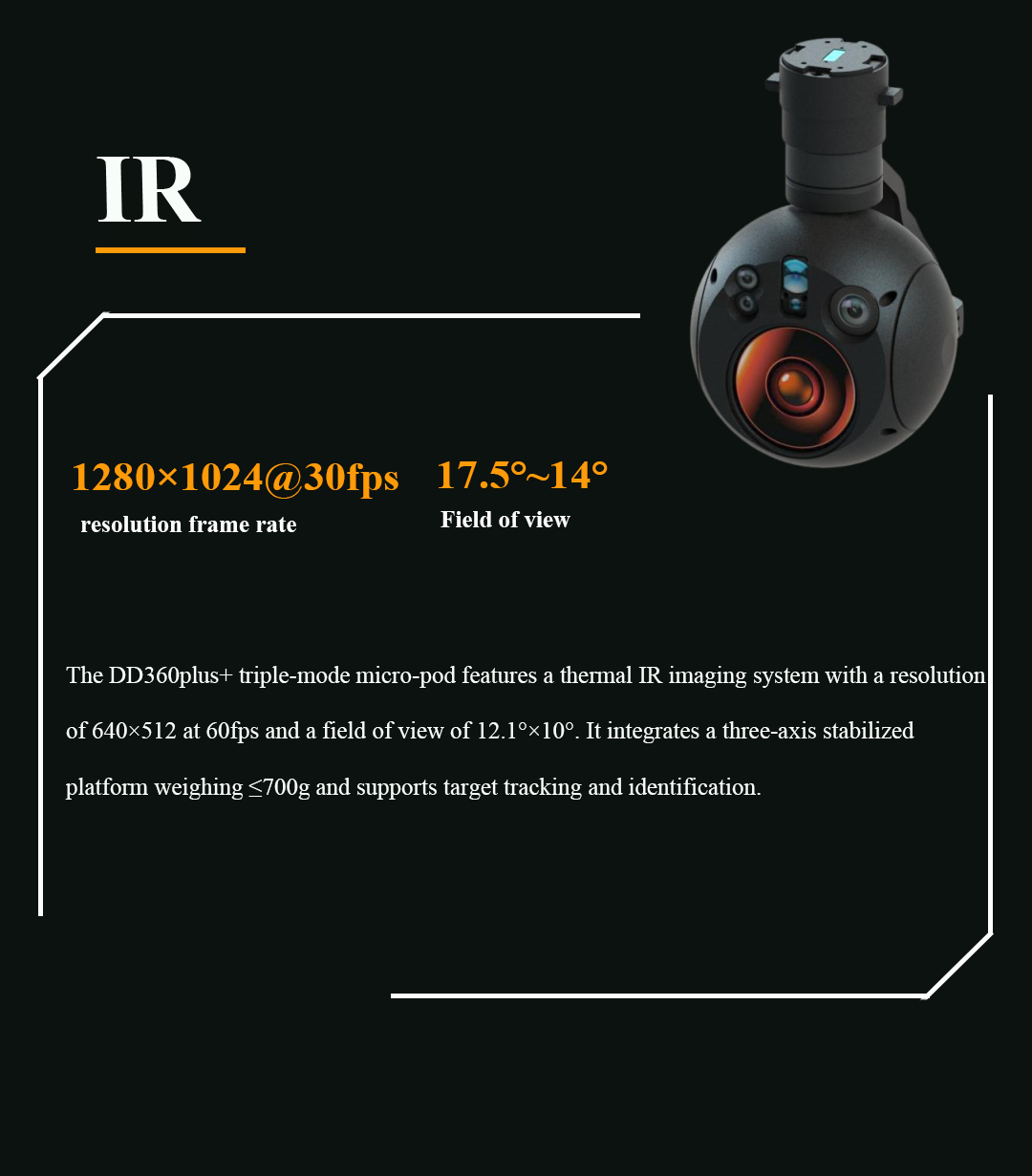

| IR - Resolution and frame rate | 1280×1024@30fps |
| IR - Field of view | 17.5°~14° (50 mm) |

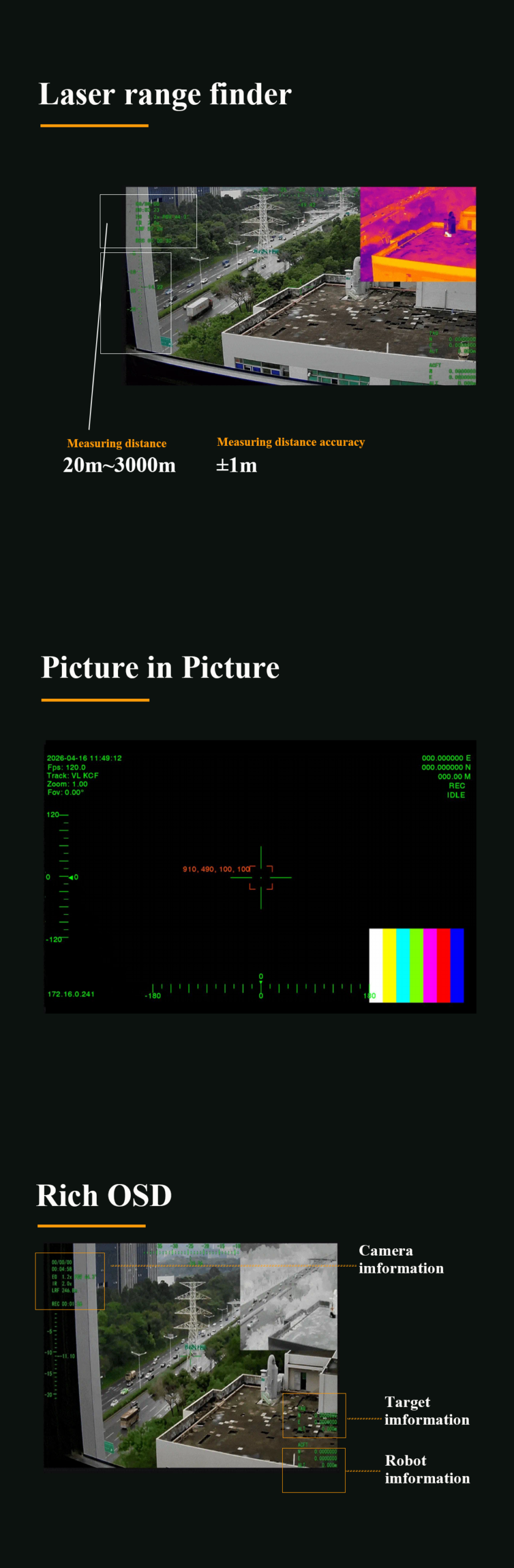

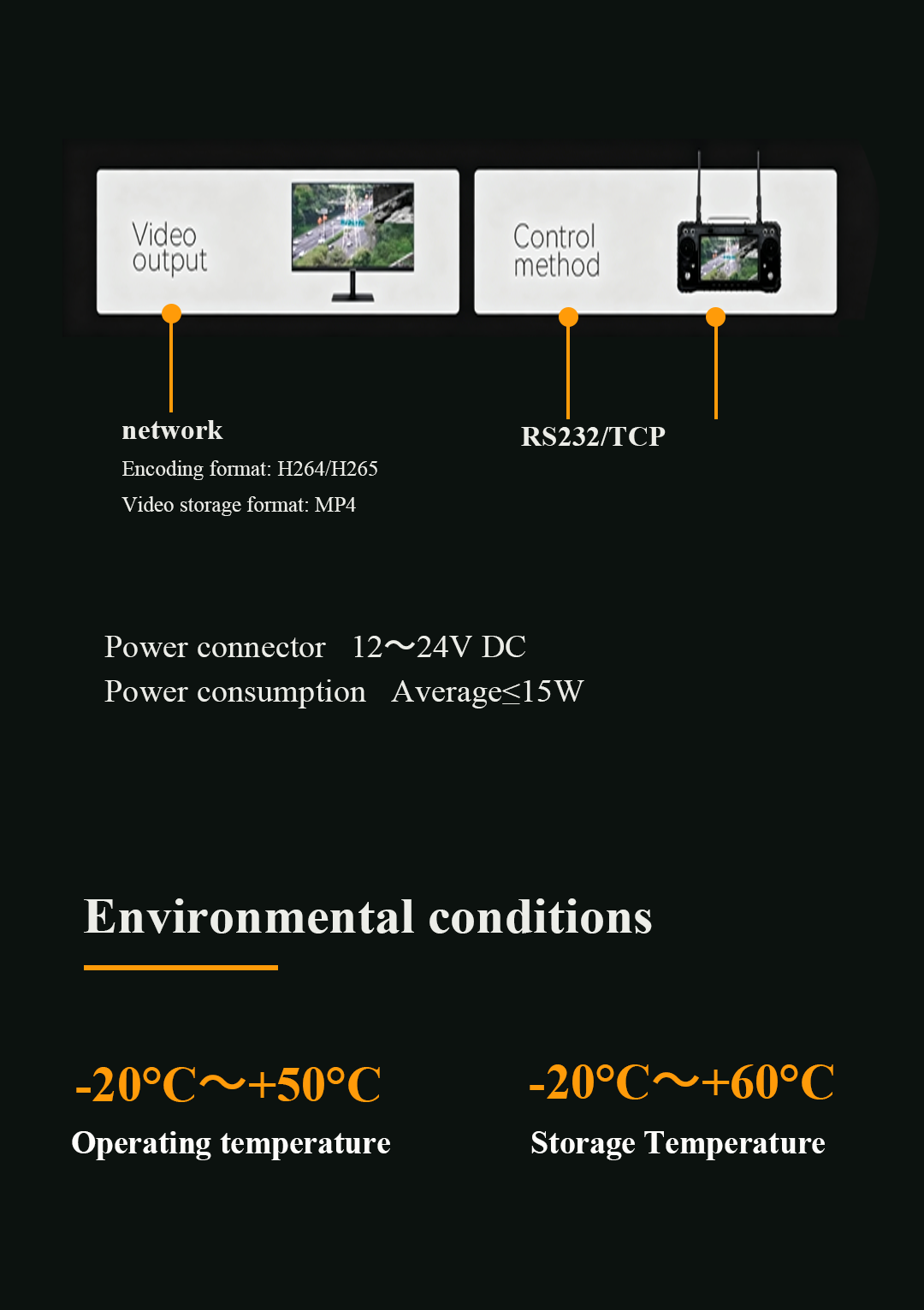

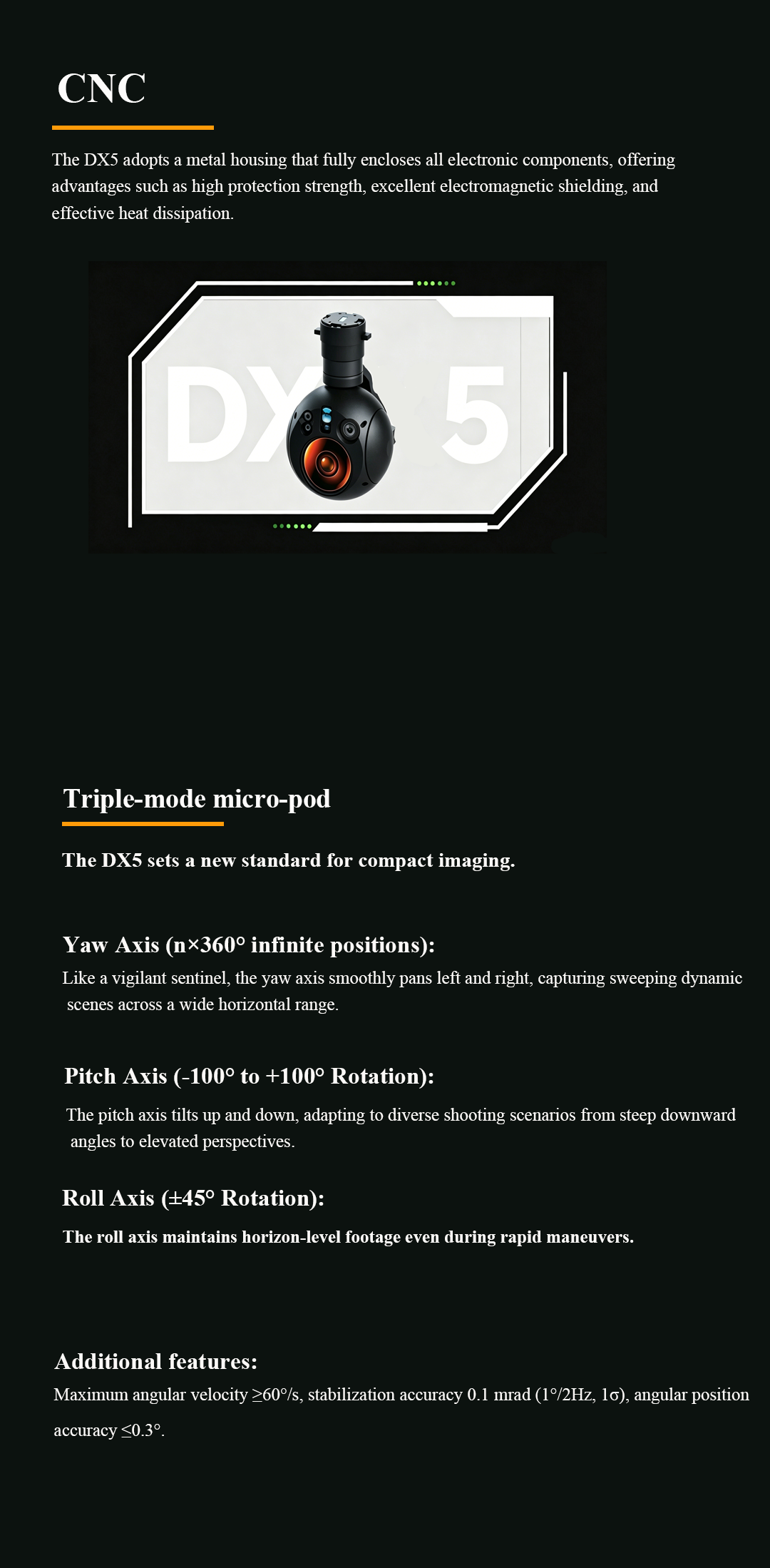

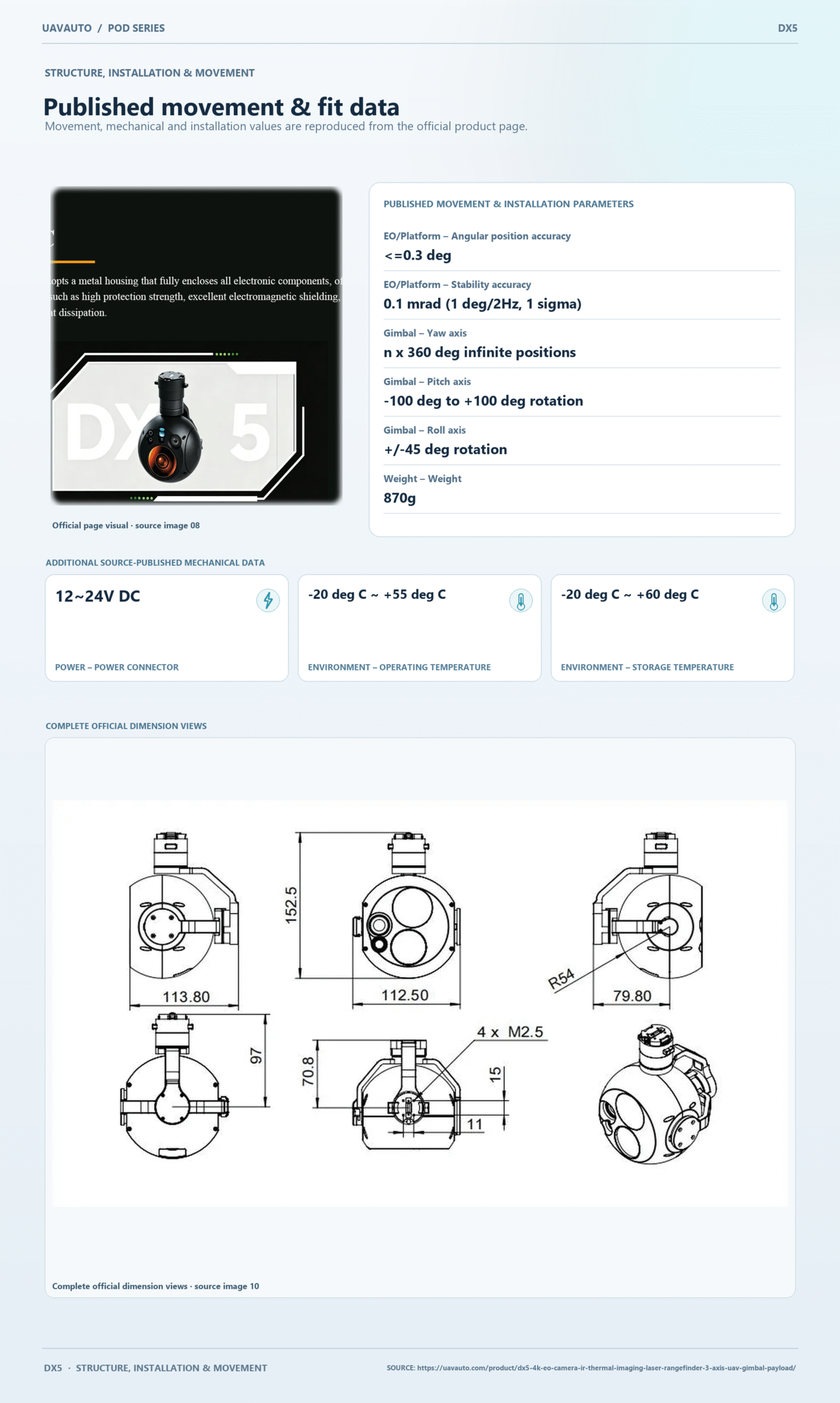

| Laser Rangefinder - Measuring distance | 20m~3000m |
| Laser Rangefinder - Measuring distance accuracy | +/-1m |
| Control - Control interface | 232 serial port (TTL) |
| Video - Video output | Ethernet |
| Power - Power connector | 12~24V DC |
| Power - Power consumption | Average <=15W |
| Gimbal - Yaw axis | n x 360 deg infinite positions |
| Gimbal - Pitch axis | -90° to +30° |
| Gimbal - Roll axis | +/-45 deg rotation |
| Environment - Operating temperature | -20 deg C ~ +55 deg C |
| Environment - Storage temperature | -20 deg C ~ +60 deg C |

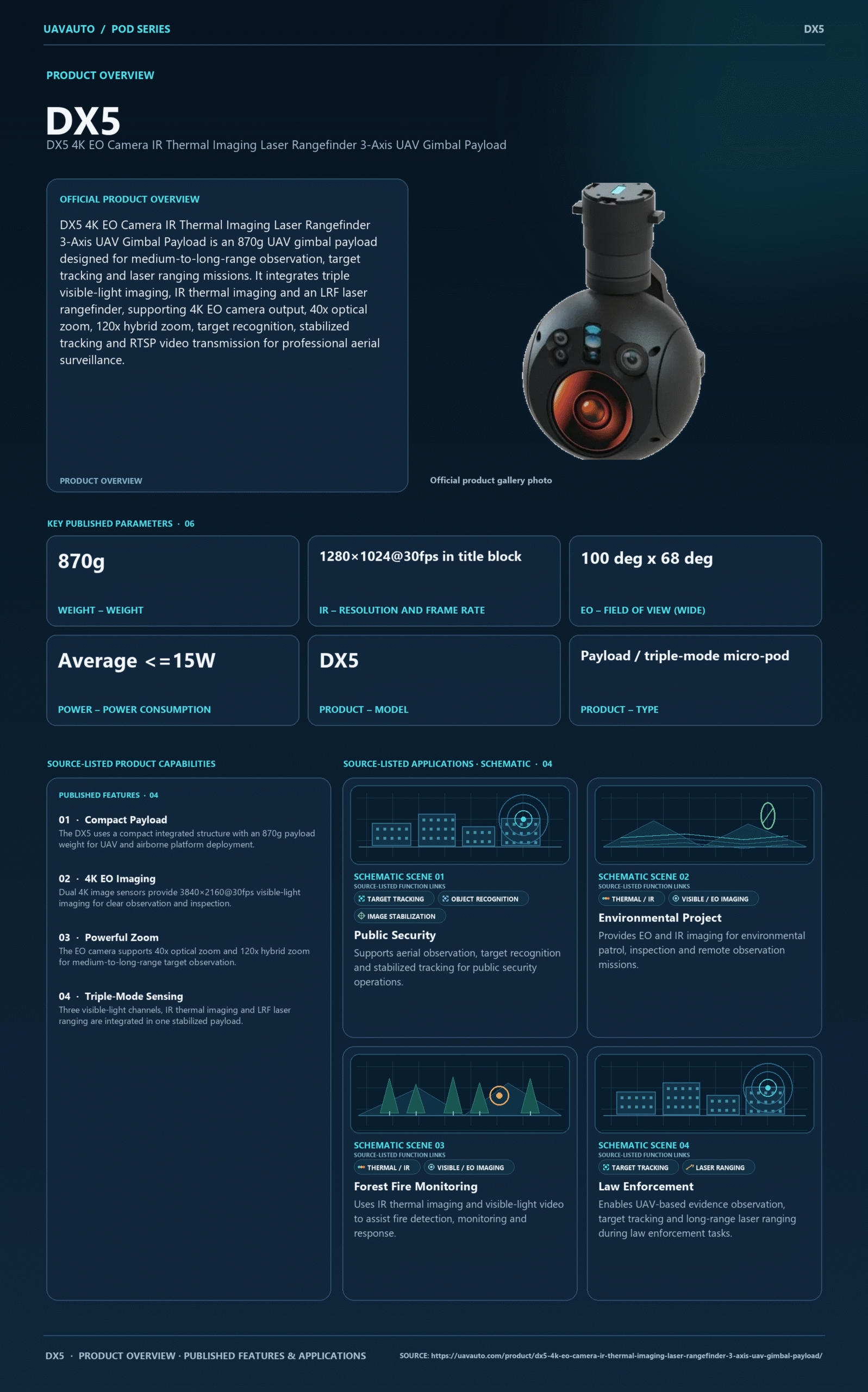

1. Features & applications
DX5 4K EO Camera IR Thermal Imaging Laser Rangefinder 3-Axis UAV Gimbal Payload is an 870g UAV gimbal payload designed for medium-to-long-range observation, target tracking and laser ranging missions. It integrates triple visible-light imaging, IR thermal imaging and an LRF laser rangefinder, supporting 4K EO camera output, 40x optical zoom, 120x hybrid zoom, target recognition, stabilized tracking and RTSP video transmission for professional aerial surveillance.

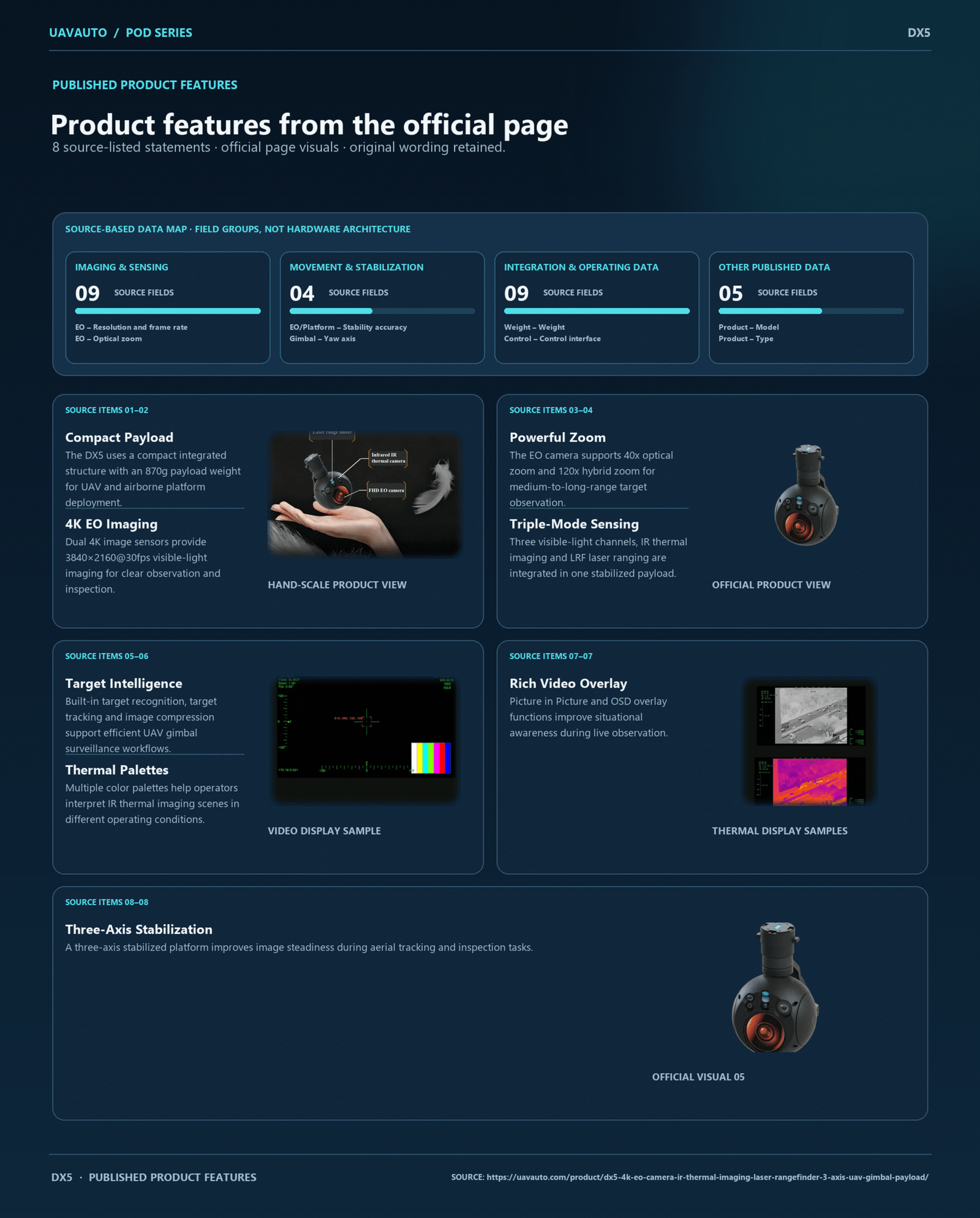

2. Product Features

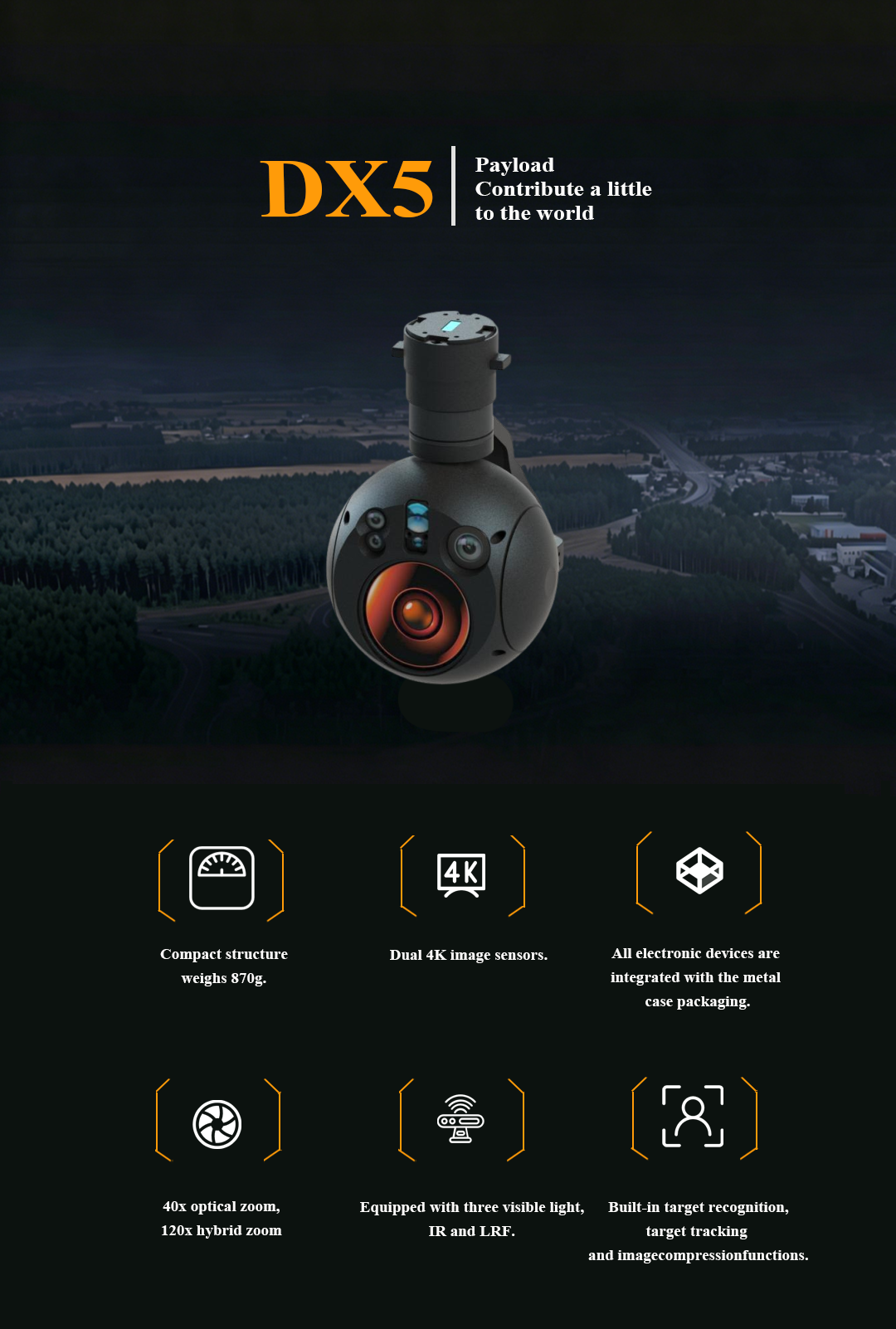

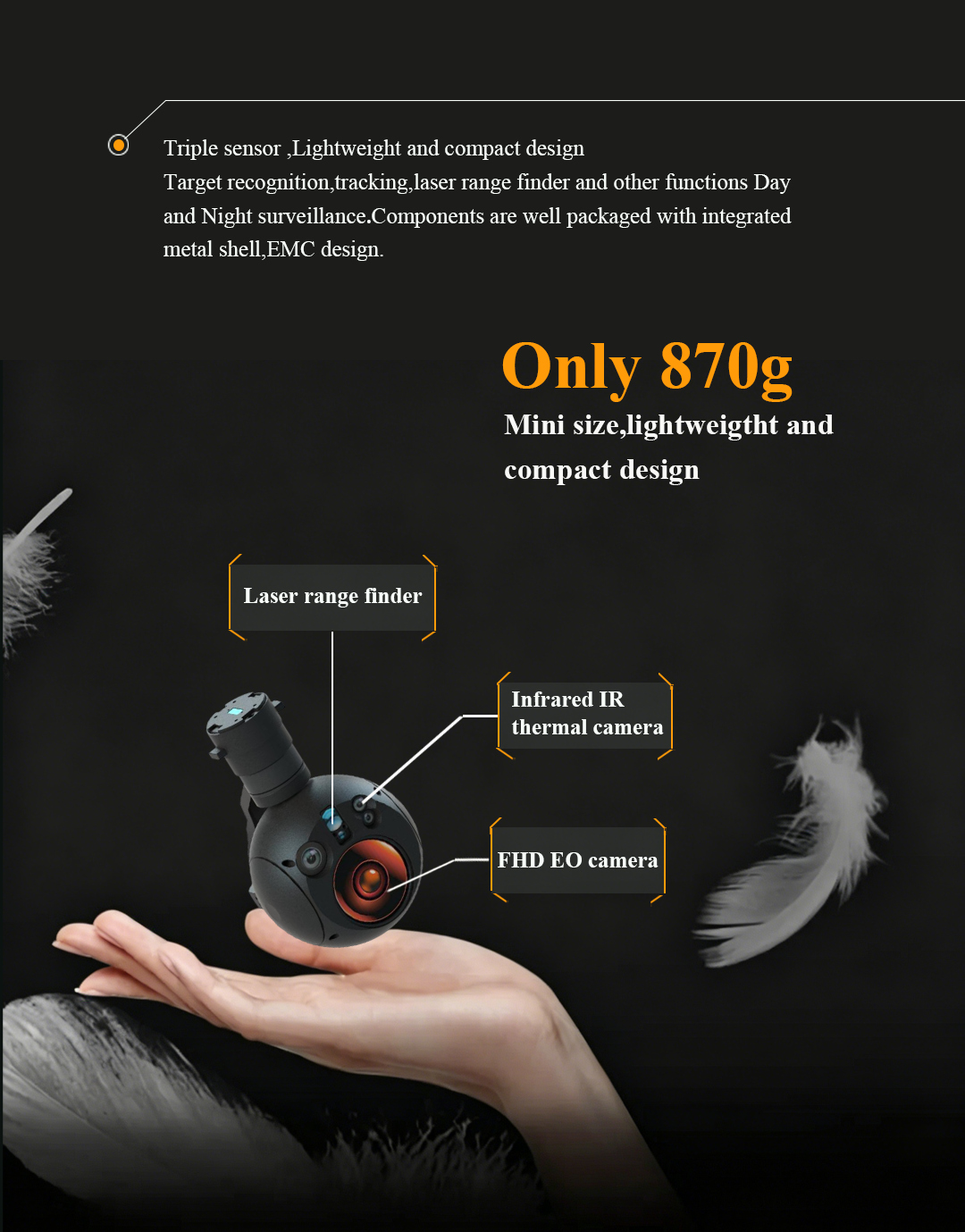

- Compact Payload: The DX5 uses a compact integrated structure with an 870g payload weight for UAV and airborne platform deployment.

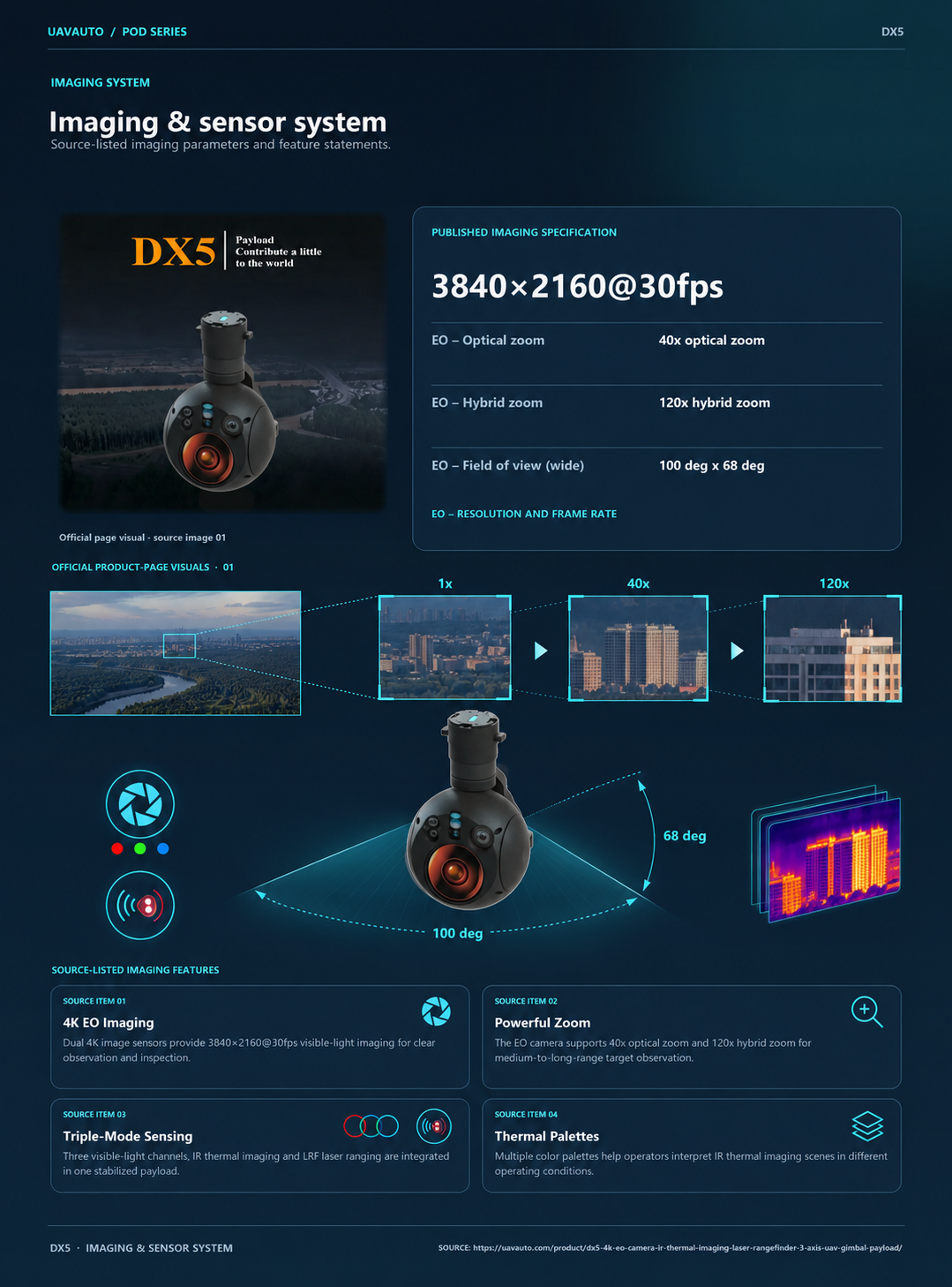

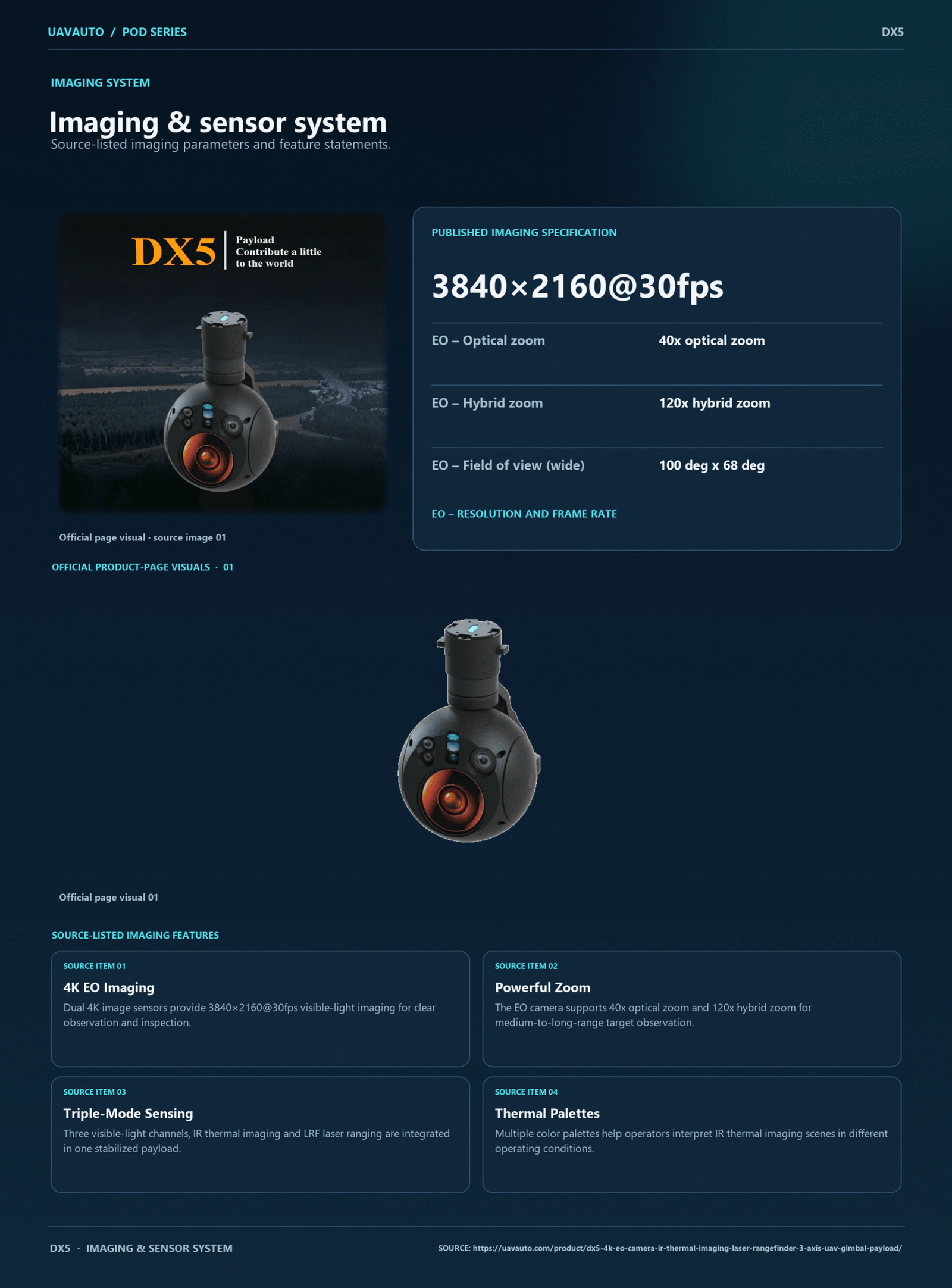

- 4K EO Imaging: Dual 4K image sensors provide 3840x2160@30fps visible-light imaging for clear observation and inspection.
- Powerful Zoom: The EO camera supports 40x optical zoom and 120x hybrid zoom for medium-to-long-range target observation.
- Triple-Mode Sensing: Three visible-light channels, IR thermal imaging and LRF laser ranging are integrated in one stabilized payload.

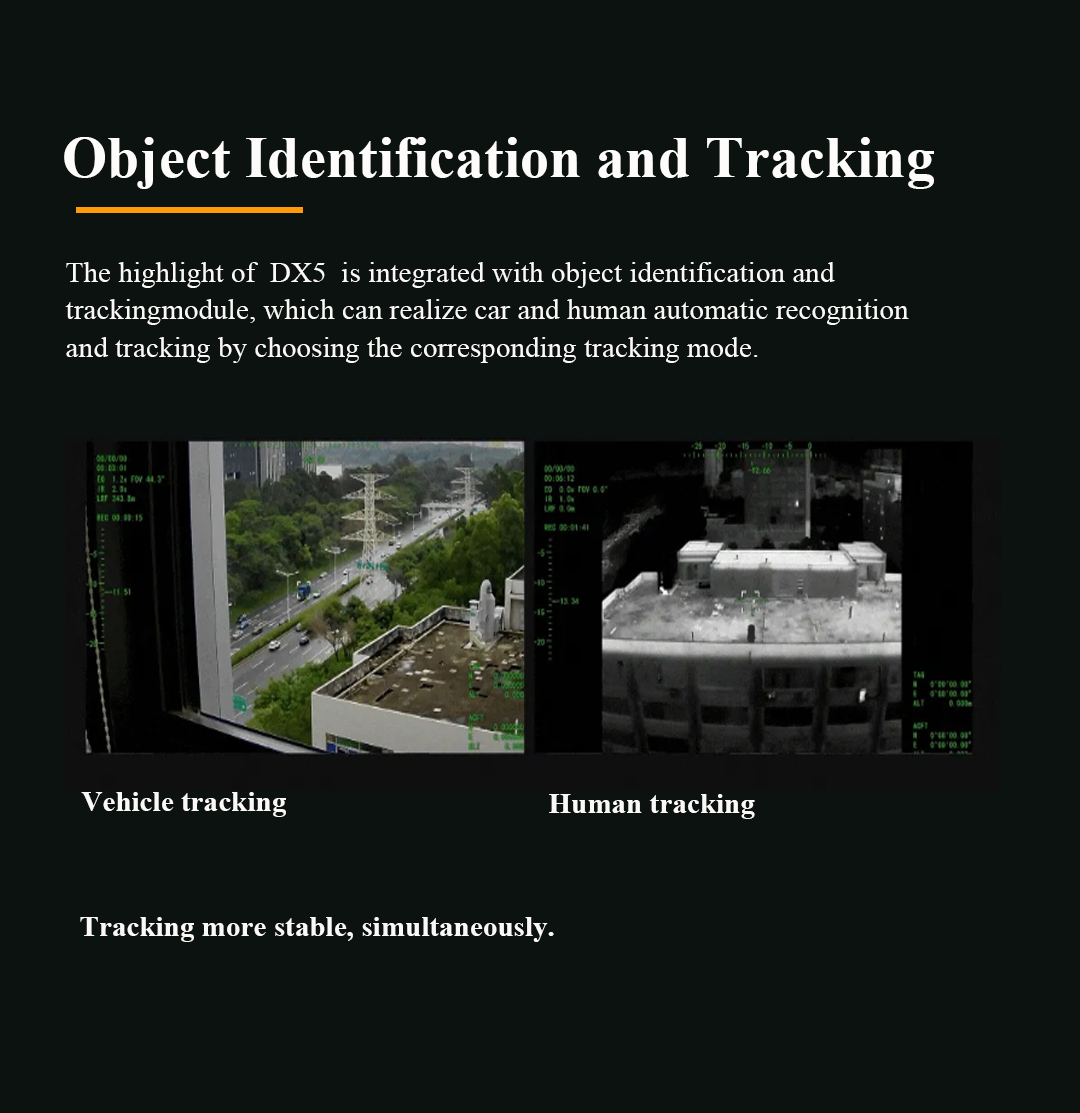

- Target Intelligence: Built-in target recognition, target tracking and image compression support efficient UAV gimbal surveillance workflows.

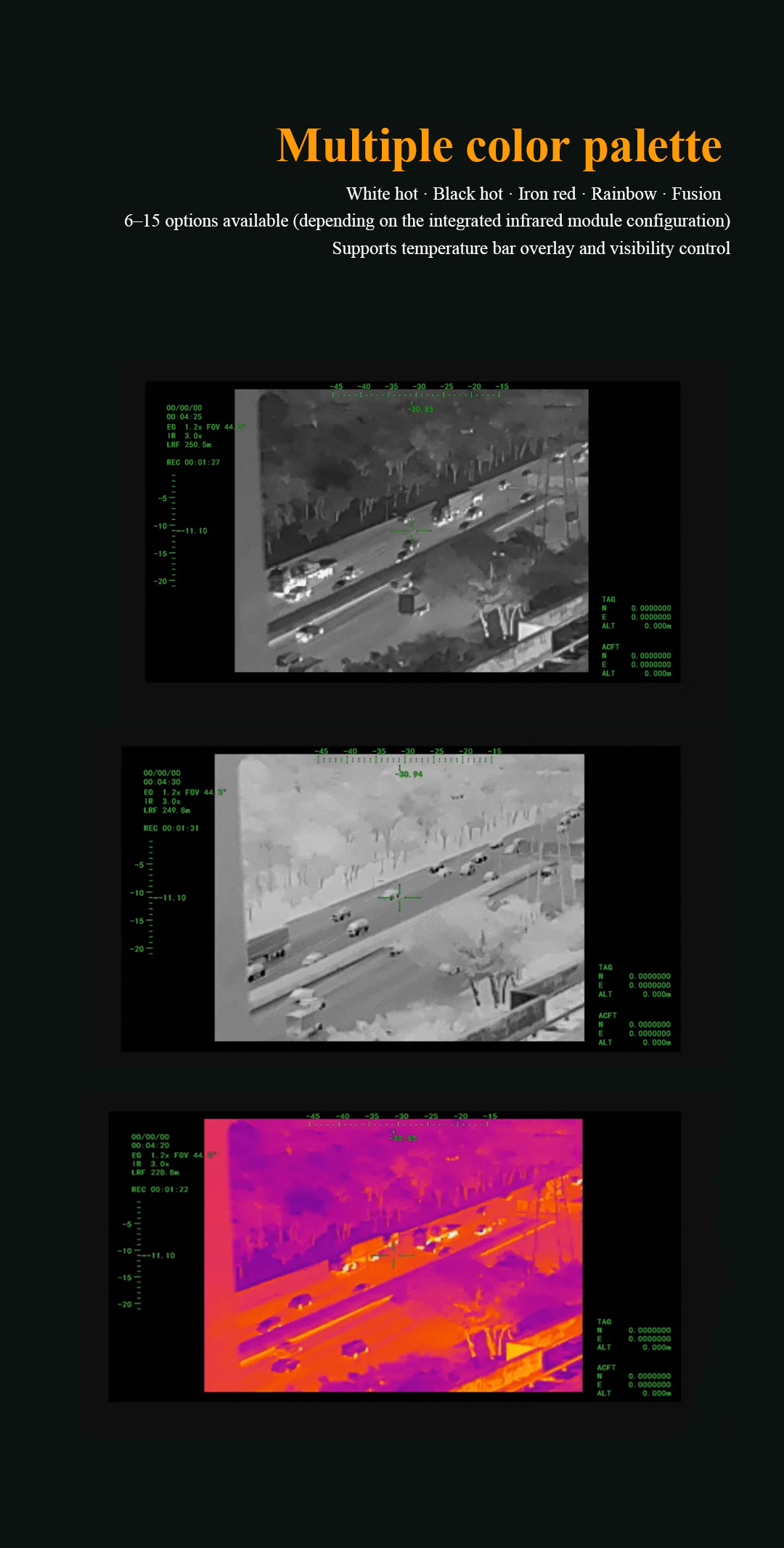

- Thermal Palettes: Multiple color palettes help operators interpret IR thermal imaging scenes in different operating conditions.
- Rich Video Overlay: Picture in Picture and OSD overlay functions improve situational awareness during live observation.
- Three-Axis Stabilization: A three-axis stabilized platform improves image steadiness during aerial tracking and inspection tasks.

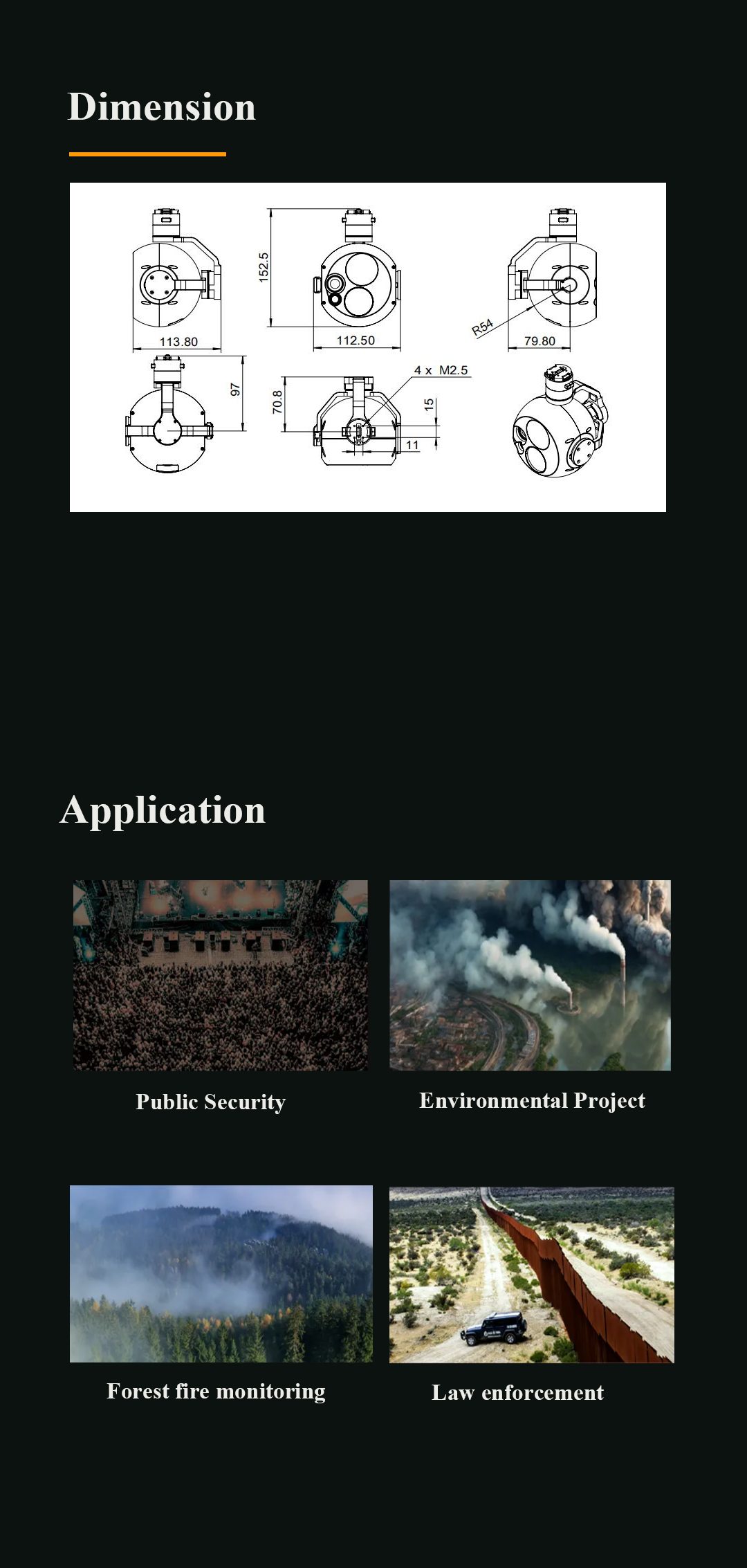

3. Application Scenarios
- Public Security: Supports aerial observation, target recognition and stabilized tracking for public security operations.
- Environmental Project: Provides EO and IR imaging for environmental patrol, inspection and remote observation missions.
- Forest Fire Monitoring: Uses IR thermal imaging and visible-light video to assist fire detection, monitoring and response.
- Law Enforcement: Enables UAV-based evidence observation, target tracking and long-range laser ranging during law enforcement tasks.
- Long-Range UAV Inspection: Combines 4K EO zoom, thermal imaging and LRF measurement for medium-to-long-range inspection.
- Target Ranging: Supports target recognition, tracking and laser rangefinder measurement for situational awareness.
