DX3A Dual 4K EO Laser Rangefinder 3-Axis UAV Gimbal Camera with Target Tracking

SKU:DX3A

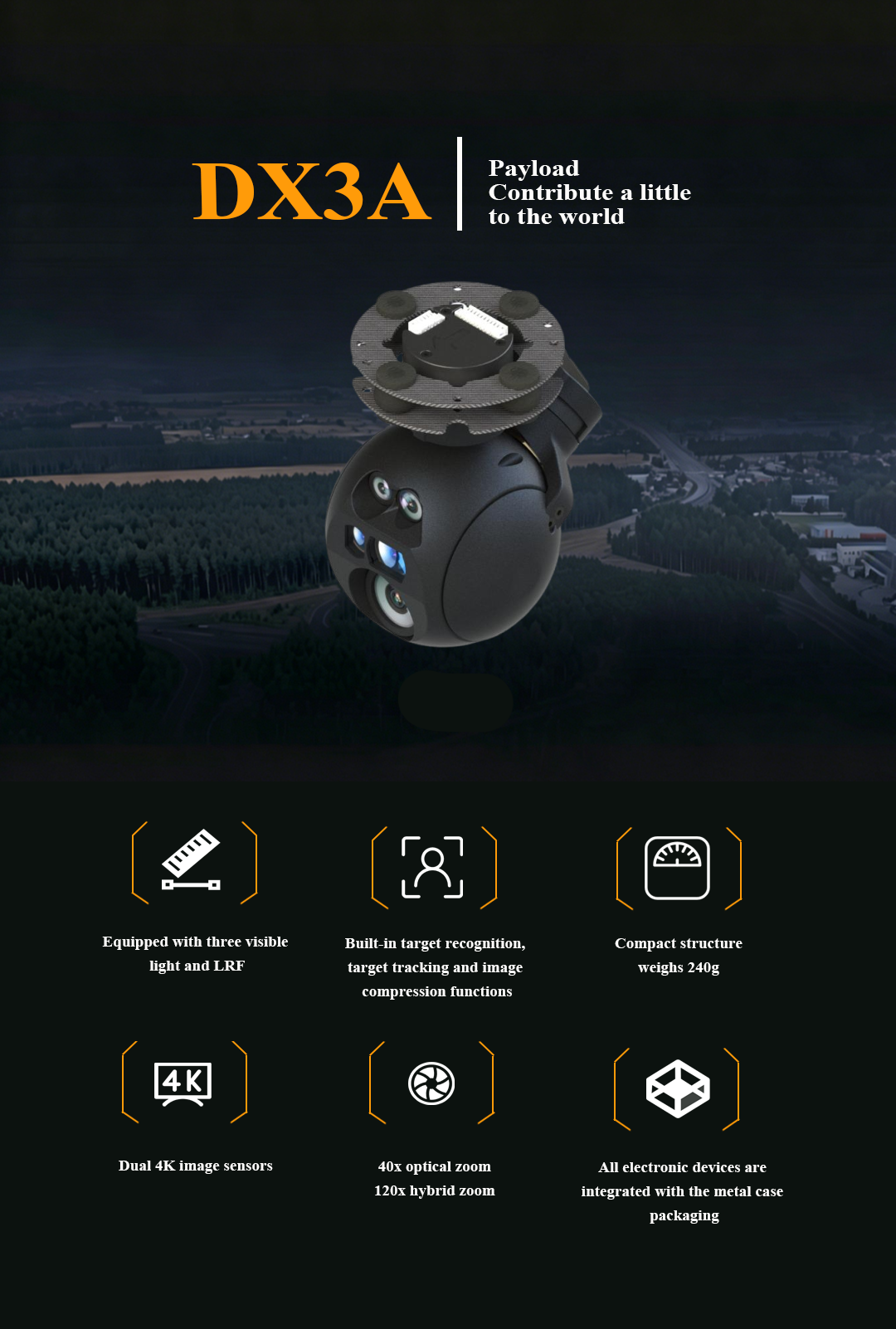

DX3A Dual 4K EO Laser Rangefinder 3-Axis UAV Gimbal Camera with Target Tracking is a 240g compact payload and 3-axis gimbal camera for visible-light imaging, target recognition, target tracking, image compression and laser range finding. With dual 4K EO camera sensors, 40x optical zoom, 120x hybrid zoom, coordinate output support and network video output, DX3A is suited to UAV gimbal surveillance, long-range target search and day-and-night monitoring tasks.
Add To Quote

Share on:

1. DX3A Dual 4K EO Laser Rangefinder 3-Axis UAV Gimbal Camera with Target Tracking Overview

DX3A Dual 4K EO Laser Rangefinder 3-Axis UAV Gimbal Camera with Target Tracking is a 240g compact payload and 3-axis gimbal camera for visible-light imaging, target recognition, target tracking, image compression and laser range finding. With dual 4K EO camera sensors, 40x optical zoom, 120x hybrid zoom, coordinate output support and network video output, DX3A is suited to UAV gimbal surveillance, long-range target search and day-and-night monitoring tasks.

2. Product Features

  • Compact Payload:The 240g structure is designed for lightweight UAV, robotic and portable platform integration.

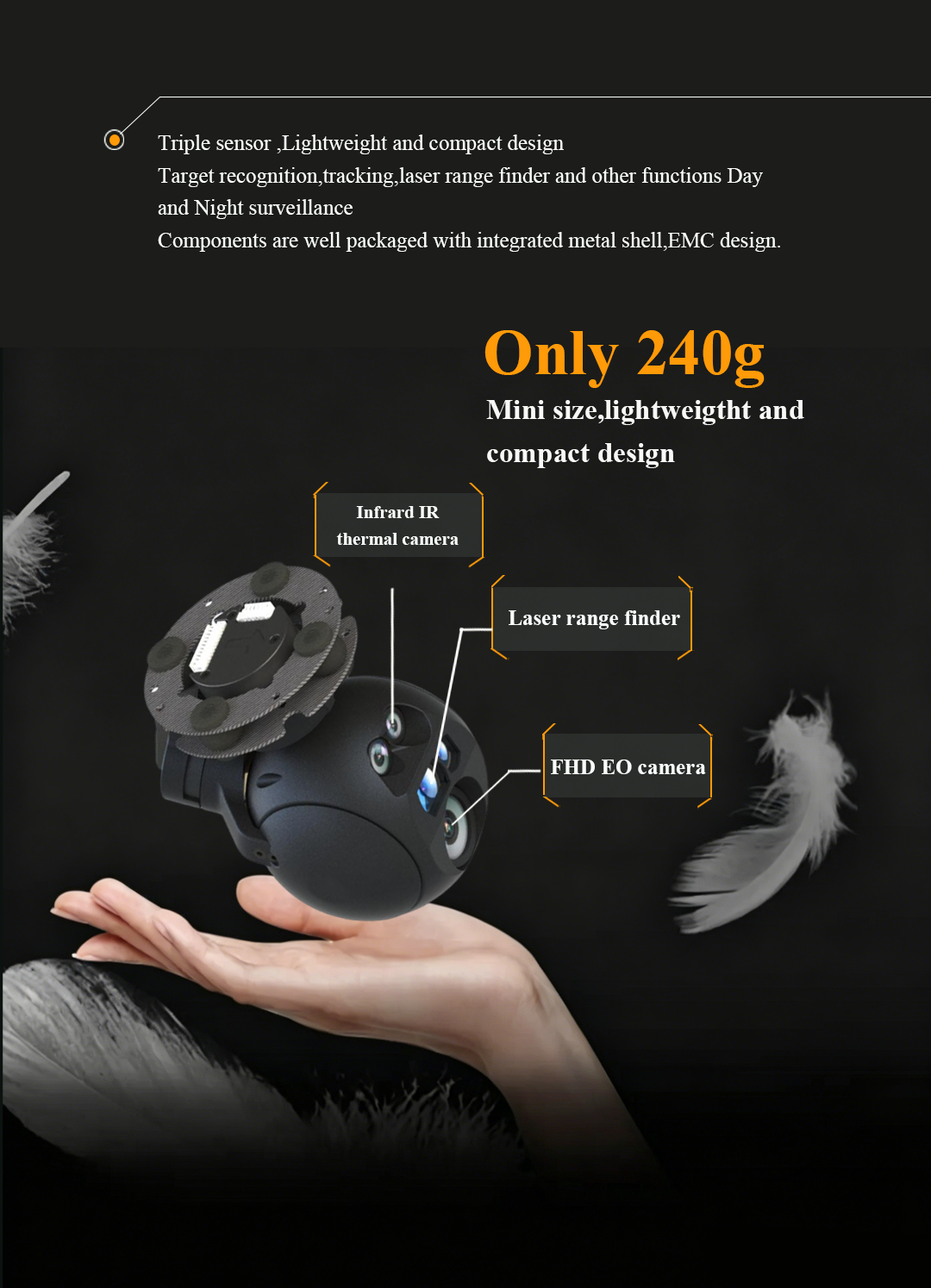

  • Multi-Sensor Configuration:The product is described as visible light and LRF equipped, while the detail image also labels Infrared IR thermal camera, Laser range finder and FHD EO camera.
  • Dual 4K Output:Dual 4K image sensors deliver 3840×2160@30fps visible-light imaging.
  • Long-Range Zoom:40x optical zoom and 120x hybrid zoom support wide-area search and tele-end target recognition.
  • Laser Rangefinder:The laser range finder supports a 5-1200m range and +/-1m distance measurement accuracy.
  • Location Resolving:The system can output target latitude and longitude coordinates based on onboard inertial navigation data.

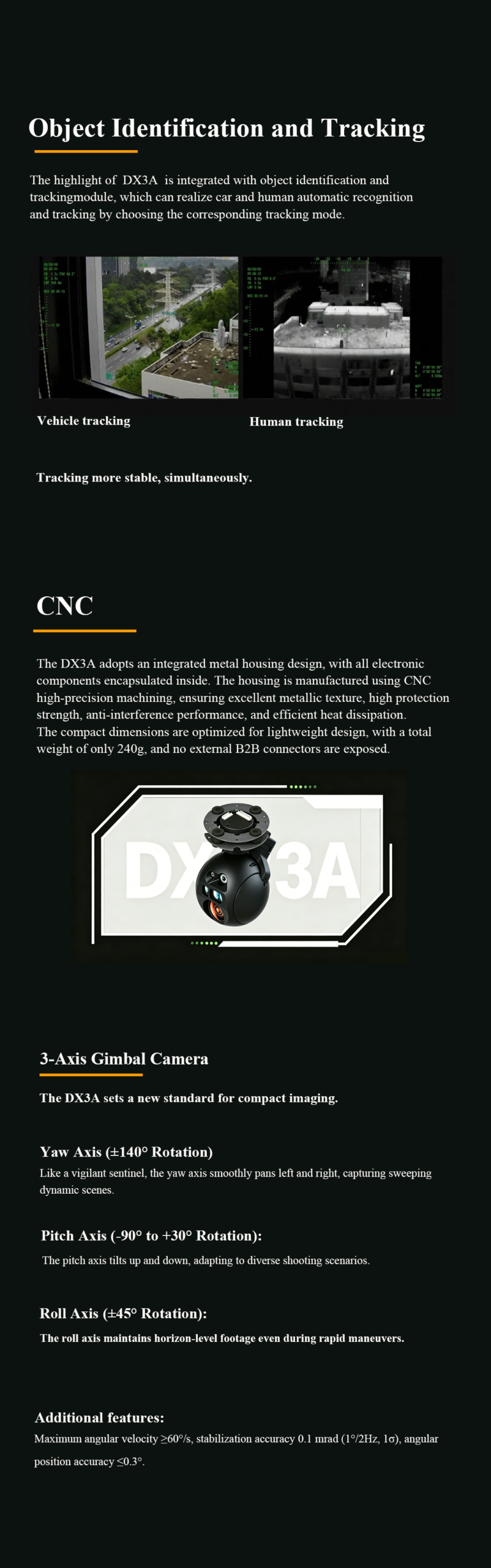

  • Tracking and OSD:Vehicle tracking, human tracking, Picture in Picture and Rich OSD are supported for mission awareness.

3. Detailed Technical Parameters

Parameter Specification
Product – Product name DX3A
Product – Product type Payload / 3-Axis Gimbal Camera
Product – Weight 240g
Sensor – Image sensor Dual 4K
Sensor – Sensor combination Equipped with three visible light and LRF; image also labels Infrared IR thermal camera, Laser range finder and FHD EO camera

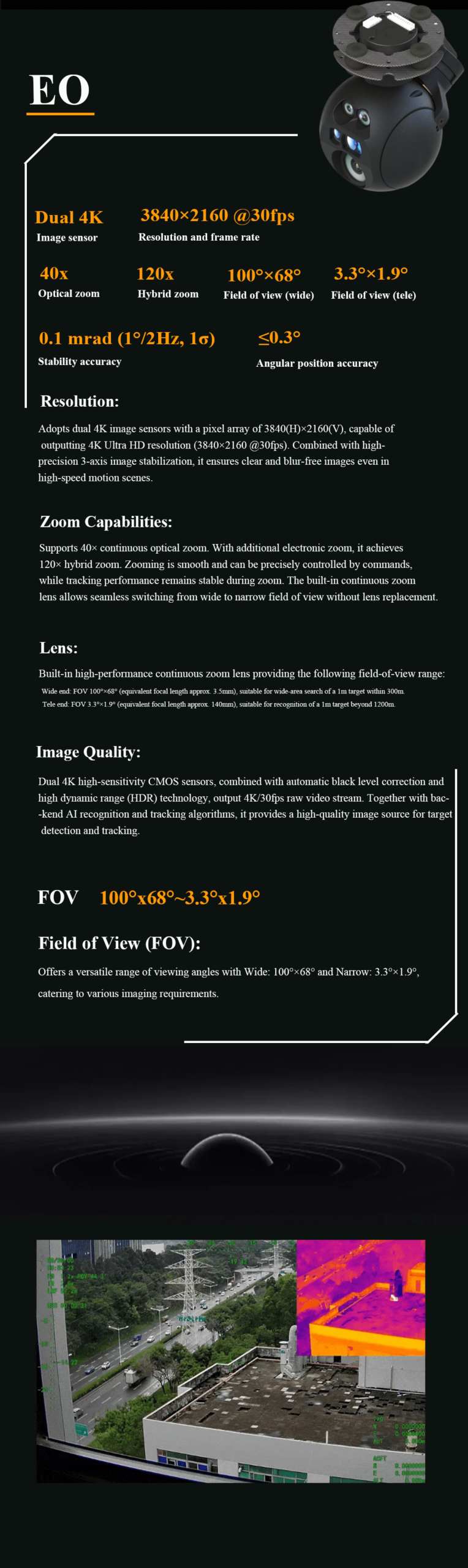

EO – Resolution and frame rate 3840×2160@30fps
EO – Pixel array 3840(H)x2160(V)
EO – Optical zoom 40x
EO – Hybrid zoom 120x
EO – Field of view (wide) 100 deg x 68 deg
EO – Field of view (tele) 3.3 deg x 1.9 deg
EO – Stability accuracy 0.1 mrad (1 deg/2Hz, 1 sigma)
EO – Angular position accuracy <=0.3 deg
EO – Wide end FOV 100 deg x 68 deg, equivalent focal length approx. 3.5mm
EO – Tele end FOV 3.3 deg x 1.9 deg, equivalent focal length approx. 140mm
EO – Wide-end target description Suitable for wide-area search of a 1m target within 300m
EO – Tele-end target description Suitable for recognition of a 1m target beyond 1200m
EO – Image Quality Dual 4K high-sensitivity CMOS sensors, automatic black level correction, HDR technology
IR – Infrared IR thermal camera 未清晰识别 (only the module label is clear in numbered images)

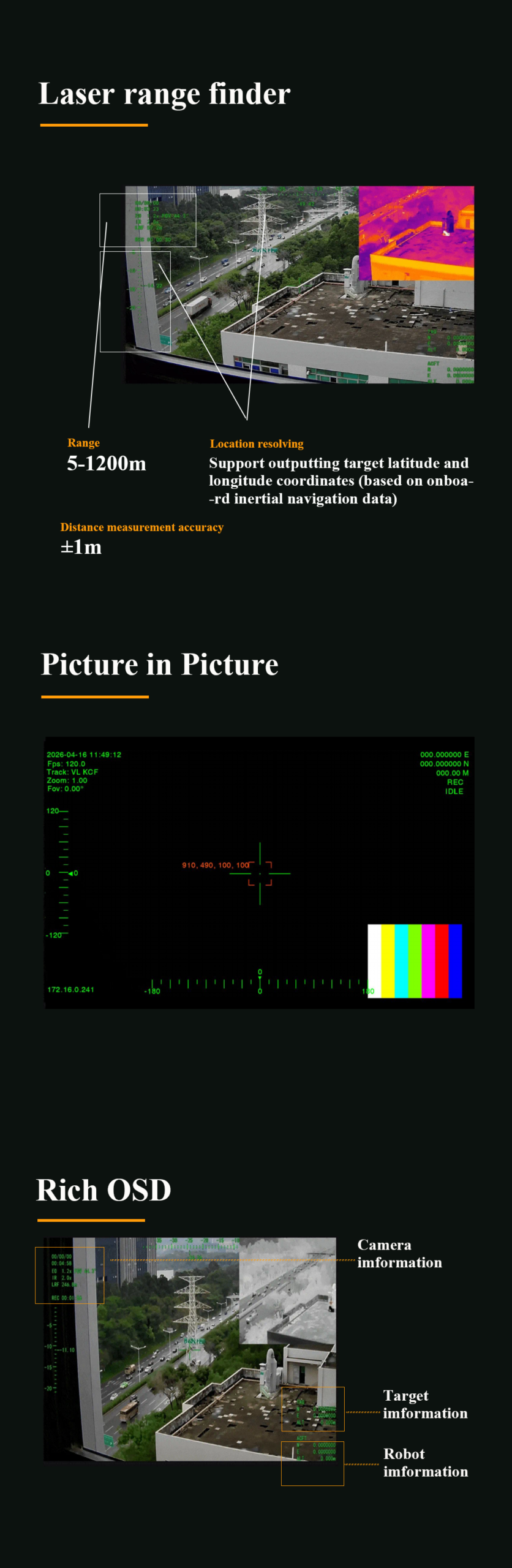

Laser range finder – Range 5-1200m
Laser range finder – Distance measurement accuracy +/-1m
Laser range finder – Location resolving Support outputting target latitude and longitude coordinates based on onboard inertial navigation data
Display – Picture in Picture Supported
Display – Rich OSD Camera information / Target information / Robot information
Tracking – Object Identification and Tracking Vehicle tracking / Human tracking
Housing – CNC Integrated metal housing, electronic components encapsulated inside
Housing – Connector exposure No external B2B connectors are exposed
Gimbal – Yaw Axis +/-140 deg Rotation
Gimbal – Pitch Axis -90 deg to +30 deg Rotation
Gimbal – Roll Axis +/-45 deg Rotation
Gimbal – Maximum angular velocity >=60 deg/s
Gimbal – Stabilization accuracy 0.1 mrad (1 deg/2Hz, 1 sigma)
Gimbal – Angular position accuracy <=0.3 deg
Video output – IP (RTSP, Ethernet) Supported
Video output – Encoding format H264/H265
Video output – Video storage format MP4
Control method – UART TTL 3.3V, 232 protocol
Control method – RS422 Optional
Control method – Default TTL by default
Power – Power connector 12~24V DC
Power – Power consumption Average <=15W
Environmental conditions – Operating temperature -20 deg C~+55 deg C
Environmental conditions – Storage Temperature -20 deg C~+60 deg C

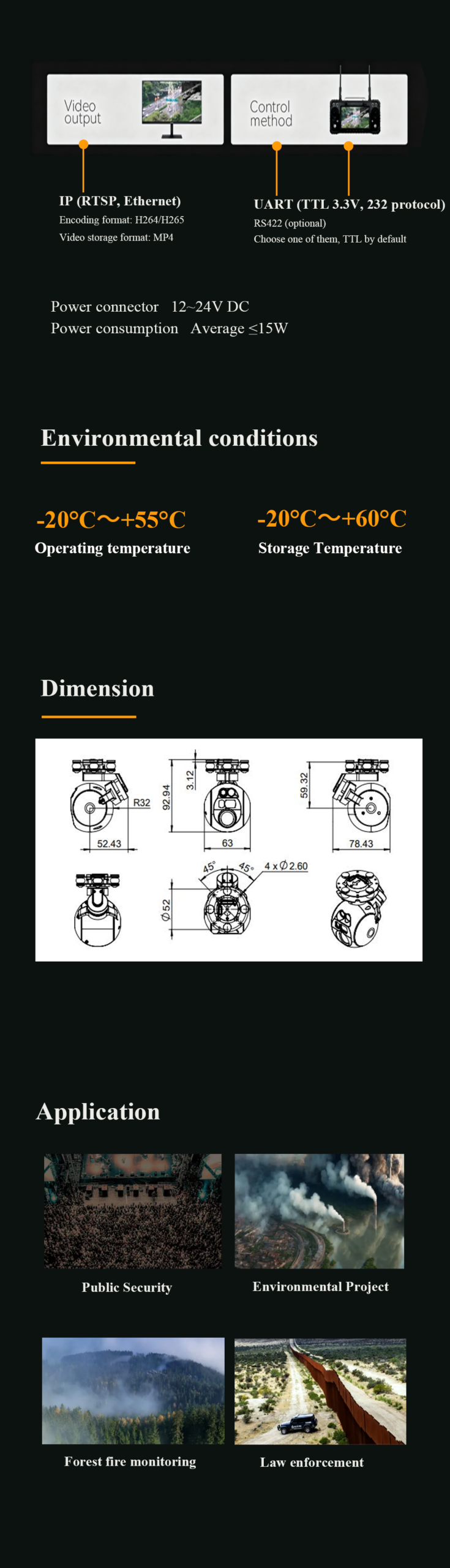

Dimension – Drawing labels R32, 52.43, 92.94, 3.12, 63, 59.32, 78.43, diameter 52, 4 x diameter 2.60

4. Application Scenarios

  • Public Security:Supports stabilized EO imaging, target recognition and tracking for public security patrols.
  • Environmental Projects:Provides visible-light imaging and ranging support for environmental inspection tasks.
  • Forest Fire Monitoring:Helps operators search wide areas and observe potential fire-risk locations from mobile platforms.
  • Law Enforcement:Enables law enforcement teams to monitor, zoom and track targets with compact UAV gimbal equipment.
  • Day-and-Night Surveillance:Combines the labeled EO, IR and laser ranging modules for continuous surveillance applications.
  • Long-Range Target Search:40x optical zoom, 120x hybrid zoom and location resolving support long-range target search, recognition and tracking.
