DA60N Mini Infrared UAV Pod | 640×512 Thermal Imaging

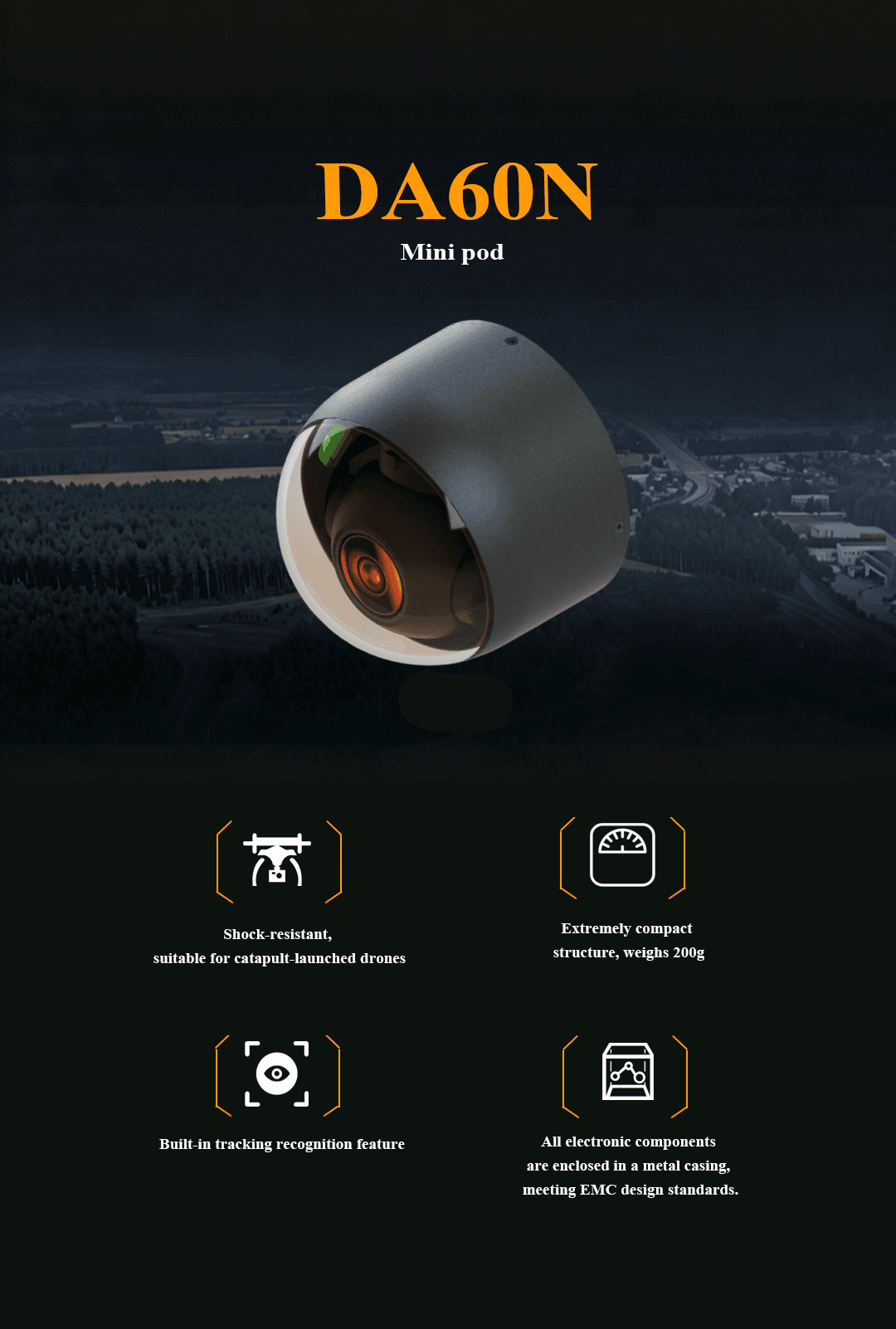

The DA60N is an ultra-lightweight mini infrared UAV pod designed for thermal imaging, target recognition, and high-speed tracking applications. Weighing approximately 200 g, the compact payload integrates a 640×512 infrared imaging sensor, a 19 mm thermal lens, and a high-speed tracking module capable of tracking at ≥40°/s. The DA60N also supports multiple thermal color palettes, digital zoom, picture-in-picture display, and target information overlays. With a ≥400 g launch impact rating and compact metal enclosure, it is particularly suitable for small UAVs, catapult-launched drones, night surveillance, public security, and airborne inspection missions.

2. Product Features

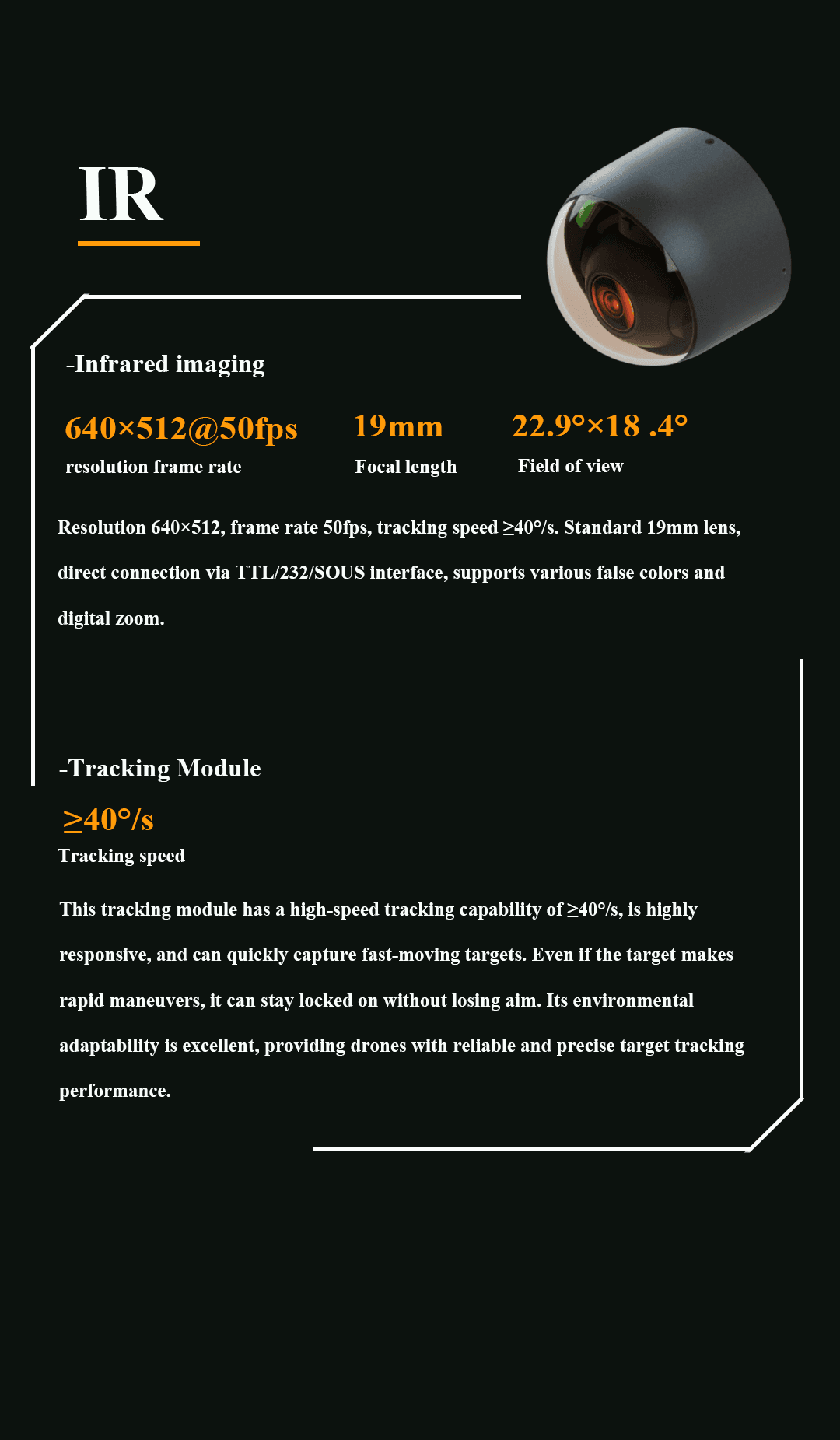

• 640×512 Infrared Thermal Imaging:
  Delivers 640×512 thermal imaging at 50 fps for day and night observation and target detection.
• 19 mm Infrared Lens:
  Uses a standard 19 mm thermal imaging lens with a 22.9° × 18.4° field of view.
• High-Speed Target Tracking:
  The integrated tracking module provides ≥40°/s tracking speed for responsive tracking of moving targets.

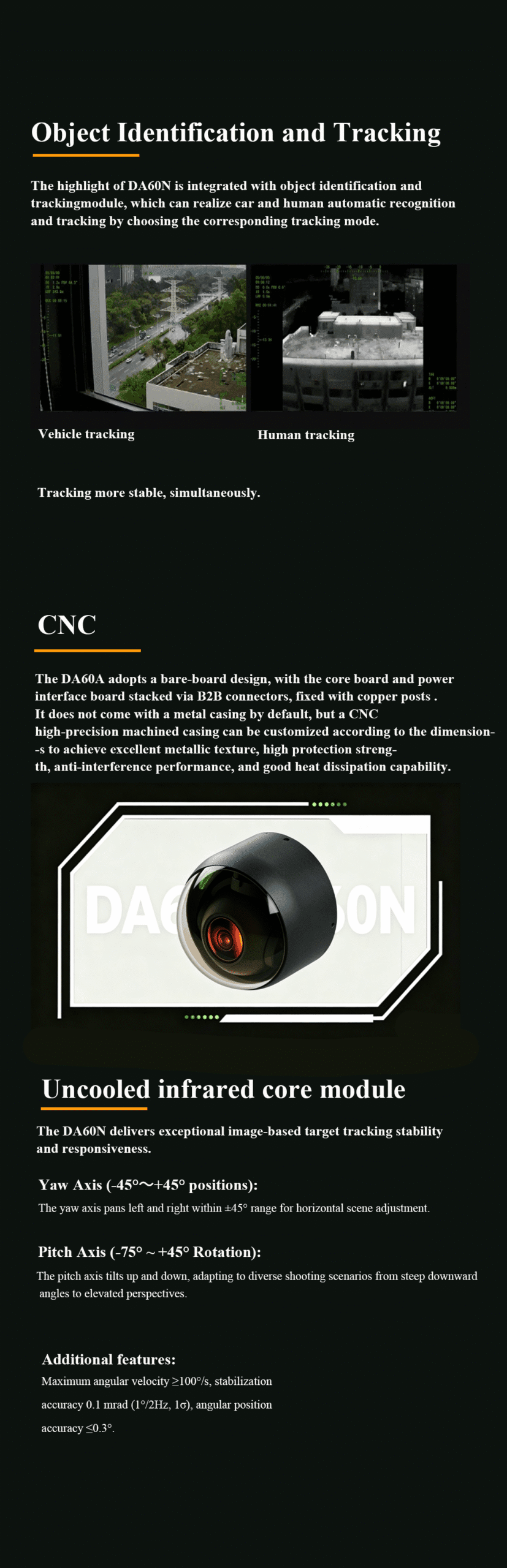

• Automatic Object Recognition and Tracking:
  Supports automatic recognition and tracking of vehicles and people through selectable tracking modes.

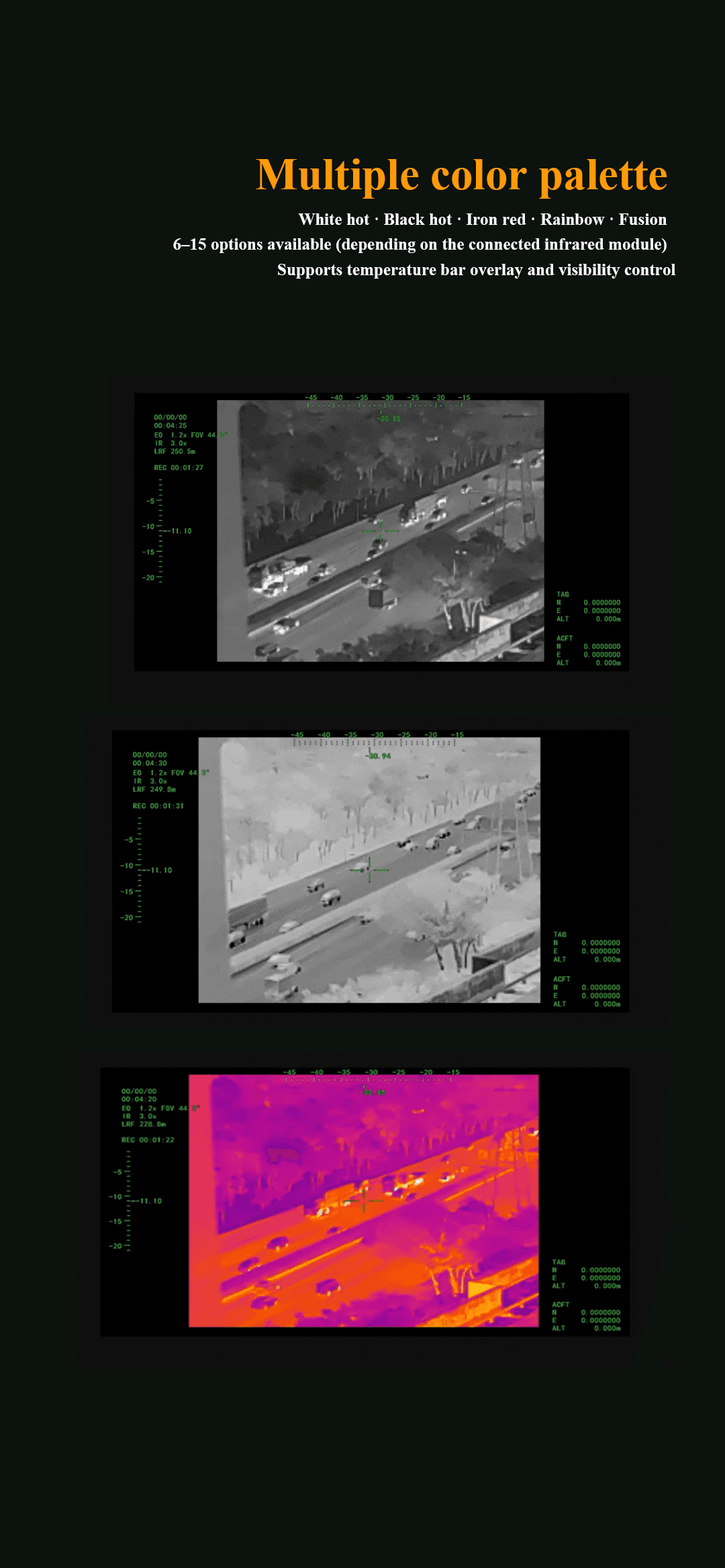

• Multiple Thermal Color Palettes:
  Supports White Hot, Black Hot, Iron Red, Rainbow, Fusion, and additional palette options depending on the connected infrared module.
• Digital Zoom:
  Supports digital magnification for improved observation of distant thermal targets.

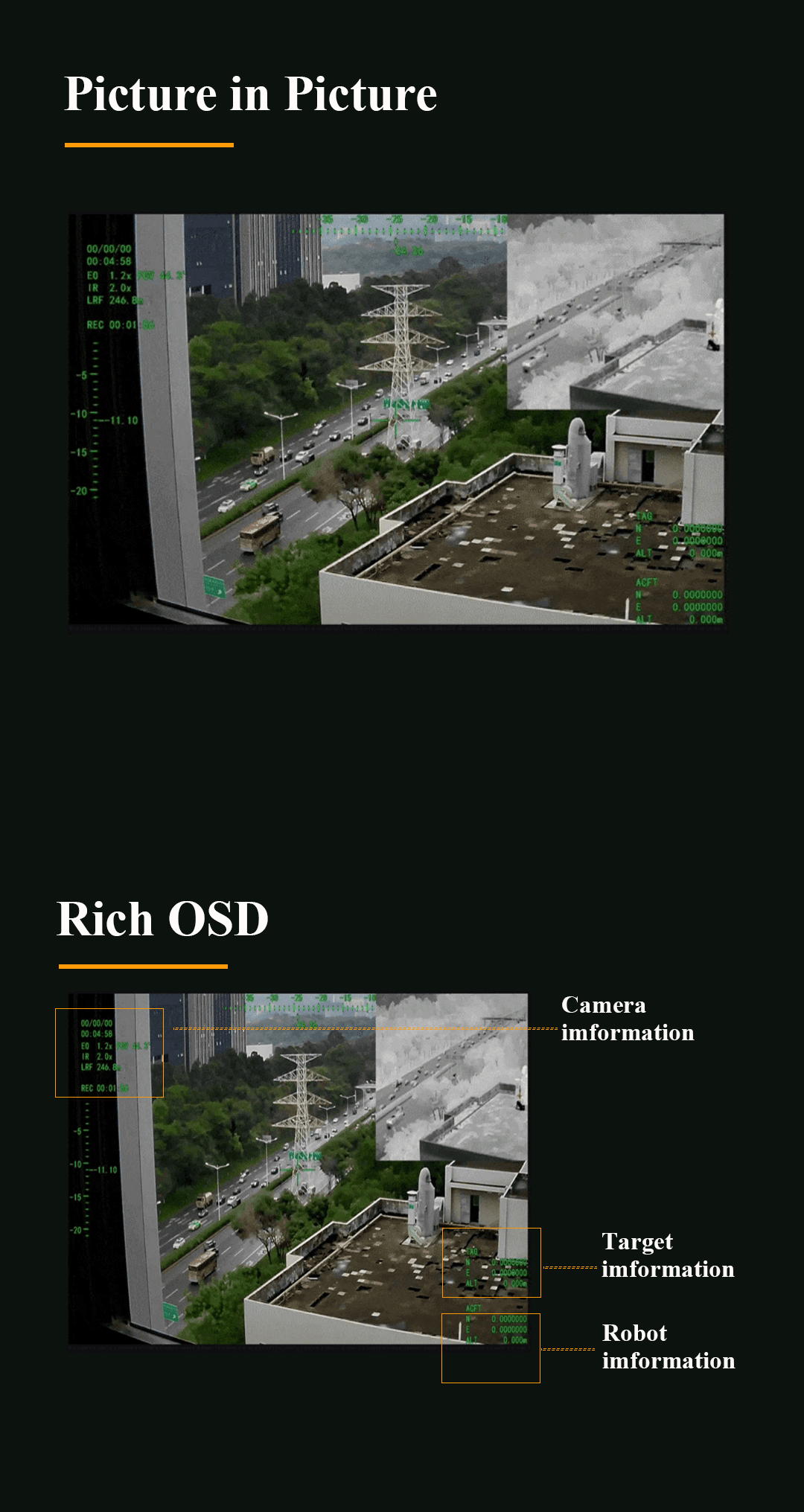

• Picture-in-Picture Display:
  Supports picture-in-picture visualization for improved situational awareness.
• Rich OSD Information:
  Supports overlays for camera information, target information, and UAV or platform status.
• Wide Gimbal Movement:
  Provides a yaw range of -45° to +45° and pitch movement from -75° to +45°.
• High Stabilization Performance:
  Features maximum angular velocity of ≥100°/s, stabilization accuracy of 0.1 mrad, and angular position accuracy of ≤0.3°.

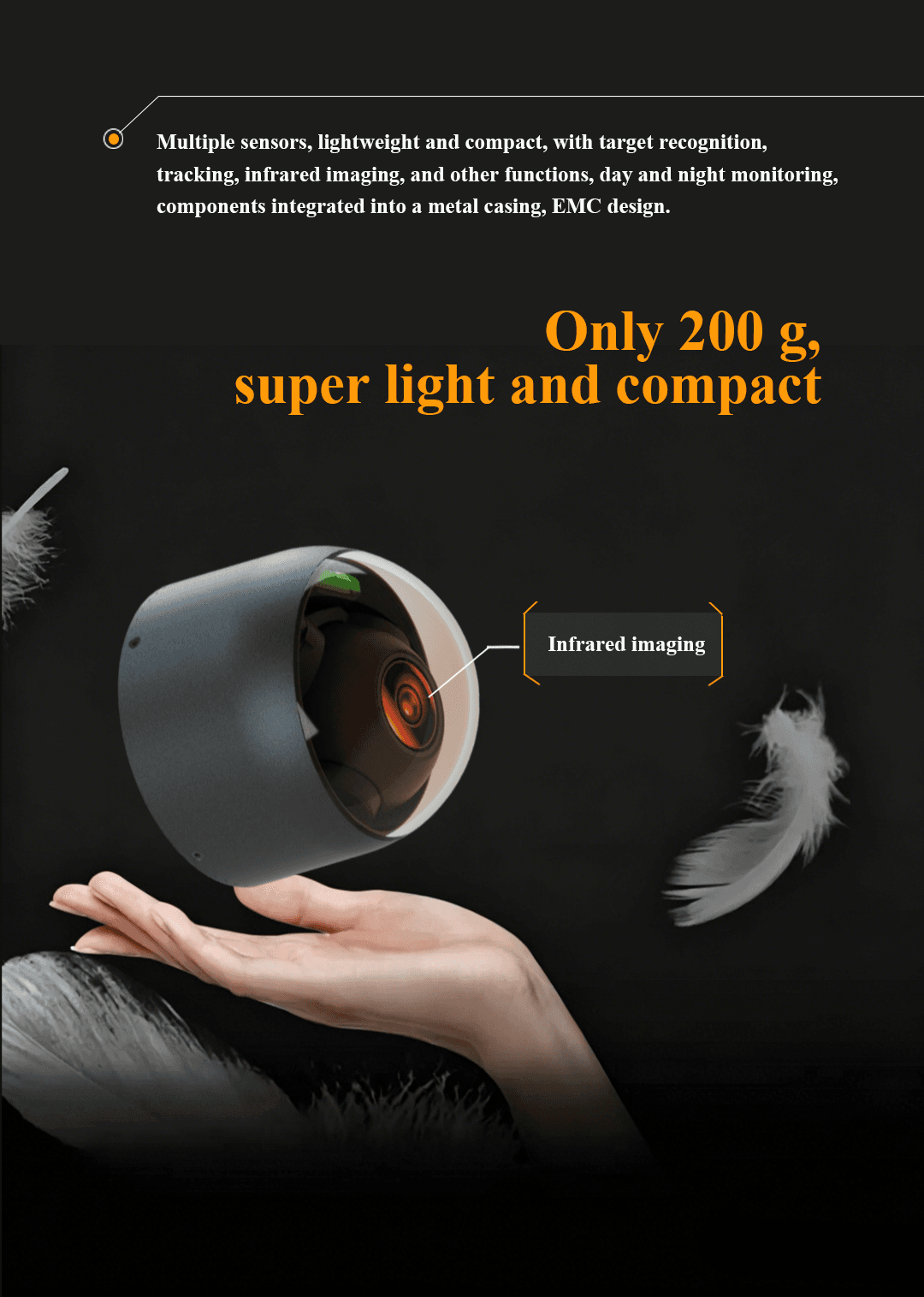

• Ultra-Lightweight Mini Pod:
  Weighing approximately 200 g, the DA60N minimizes payload impact on compact UAV platforms.
• High Shock Resistance:
  Withstands ≥400 g launch impact, making it suitable for catapult-launched drone systems.

3. Application Scenarios

• Catapult-Launched UAVs:
  The ≥400 g launch impact resistance and lightweight 200 g design make the DA60N suitable for catapult-launched drones and compact UAV platforms.
• Night-Time UAV Surveillance:
  Thermal imaging enables target observation and detection in darkness and low-light environments.
• Vehicle and Human Tracking:
  Integrated recognition and tracking functions enable UAV platforms to automatically detect and follow moving vehicles and people.
• Public Security:
  Suitable for aerial security patrols, event monitoring, and surveillance of sensitive areas.
• Environmental Monitoring:
  Can be used for aerial inspection, environmental observation, and thermal anomaly detection.
• Forest Fire Monitoring:
  Infrared thermal imaging can support the observation of heat sources and potential forest fire areas.
• Law Enforcement:
  Suitable for UAV patrol, remote inspection, and target tracking during law enforcement operations.
