DA0T1 High-Speed AI Seeker | 720p/120 fps, 6T Edge AI

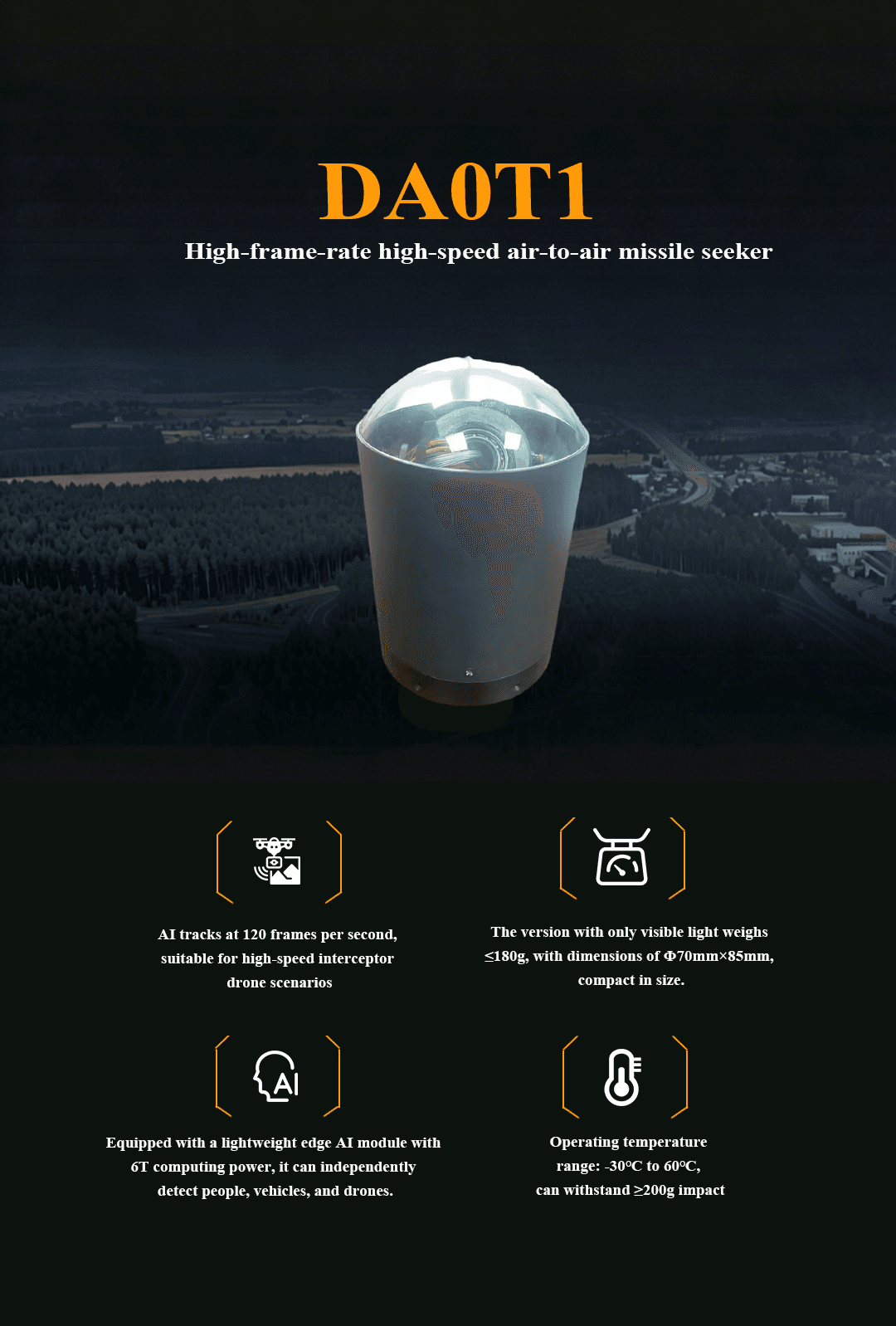

The DA0T1 is a lightweight high-frame-rate electro-optical seeker designed for high-speed target detection, AI object recognition, and real-time tracking on UAV and high-speed airborne platforms. Featuring a 1280×720 monochrome CMOS sensor with a 120 fps frame rate, the DA0T1 provides smooth imaging for fast-moving targets. Its integrated 6T edge AI computing module supports automatic detection and tracking of people, vehicles, and drones. With a compact body weighing no more than 180 g, a wide operating temperature range, and strong shock resistance, the DA0T1 is suitable for high-speed interceptor drones, UAV surveillance, target tracking, and other demanding airborne applications.

2. Product Features

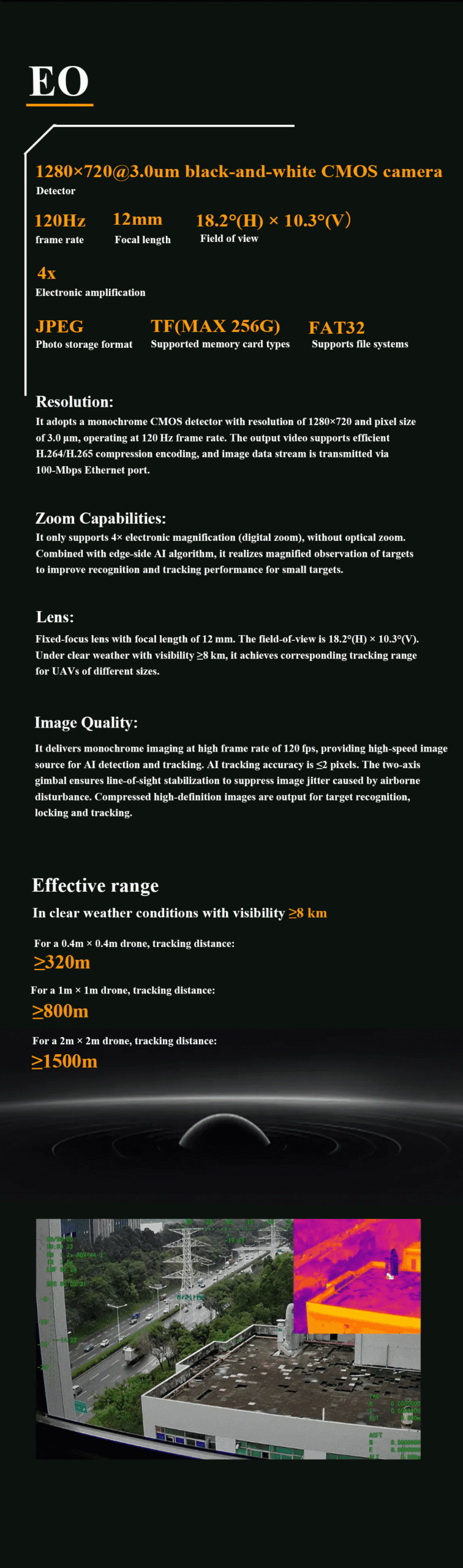

• 120 fps High-Frame-Rate Imaging:
  Equipped with a 1280×720 monochrome CMOS sensor capable of capturing images at 120 frames per second for reliable observation and tracking of fast-moving targets.

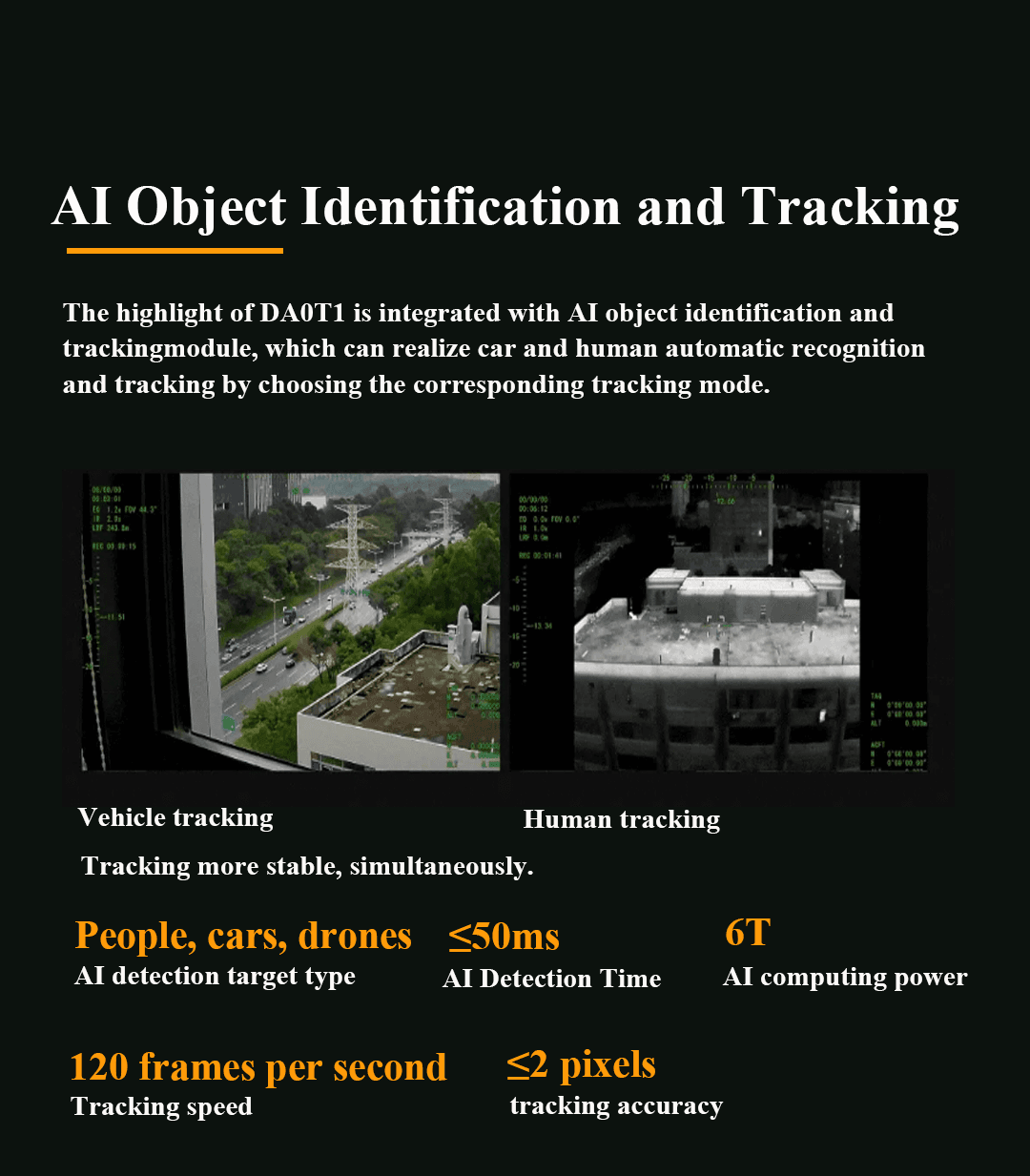

• 6T Edge AI Computing:
  Integrated lightweight edge AI computing enables onboard detection and recognition of people, vehicles, and drones without relying entirely on external computing devices.
• Fast AI Target Detection:
  Supports AI target detection in ≤50 ms for rapid response in high-speed tracking scenarios.
• High-Precision Target Tracking:
  Provides tracking at up to 120 frames per second with tracking accuracy of ≤2 pixels.
• 4× Digital Zoom:
  Supports up to 4× electronic zoom for enhanced observation of small or distant targets.
• Long-Range Drone Tracking:
  Under clear weather conditions with visibility of at least 8 km, the system can track 0.4×0.4 m drones at ≥320 m, 1×1 m drones at ≥800 m, and 2×2 m drones at ≥1500 m.

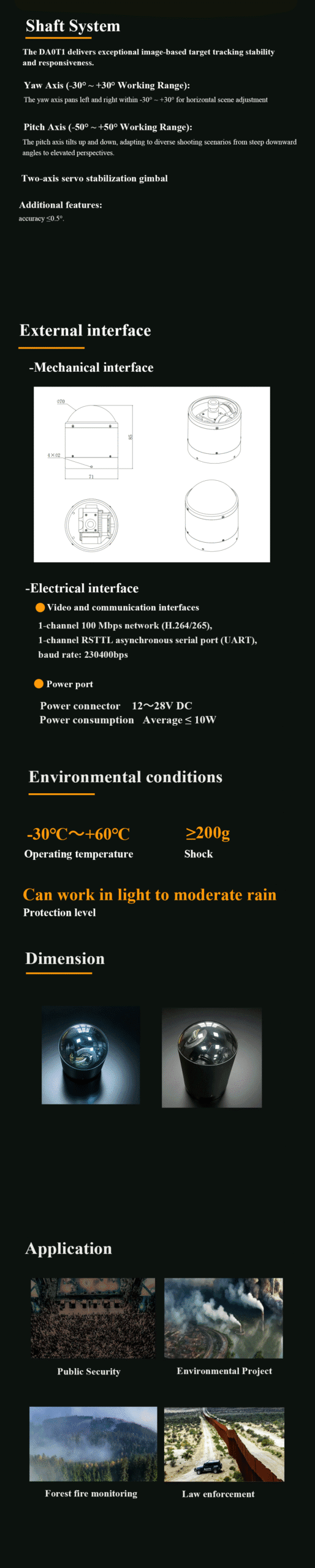

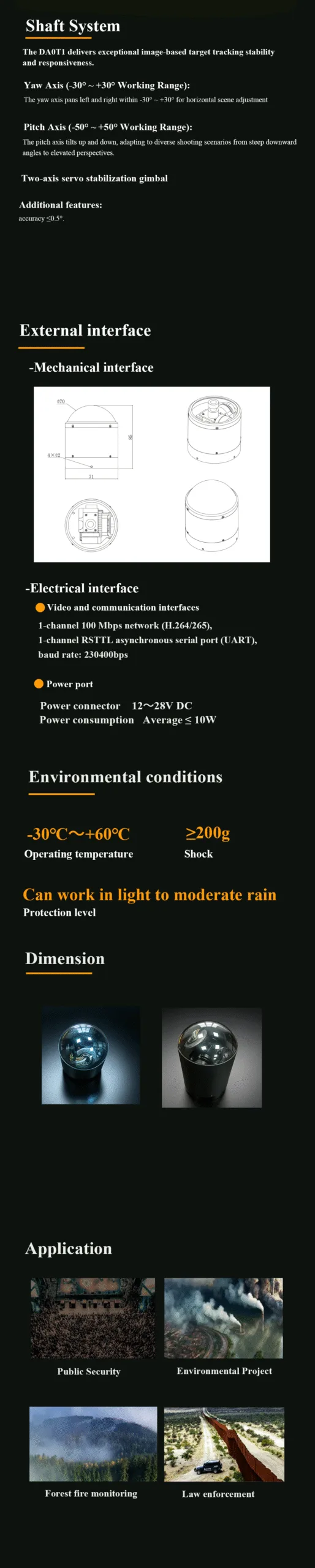

• Two-Axis Servo Stabilization:
  The two-axis servo stabilization system improves image stability and target tracking performance during airborne movement.

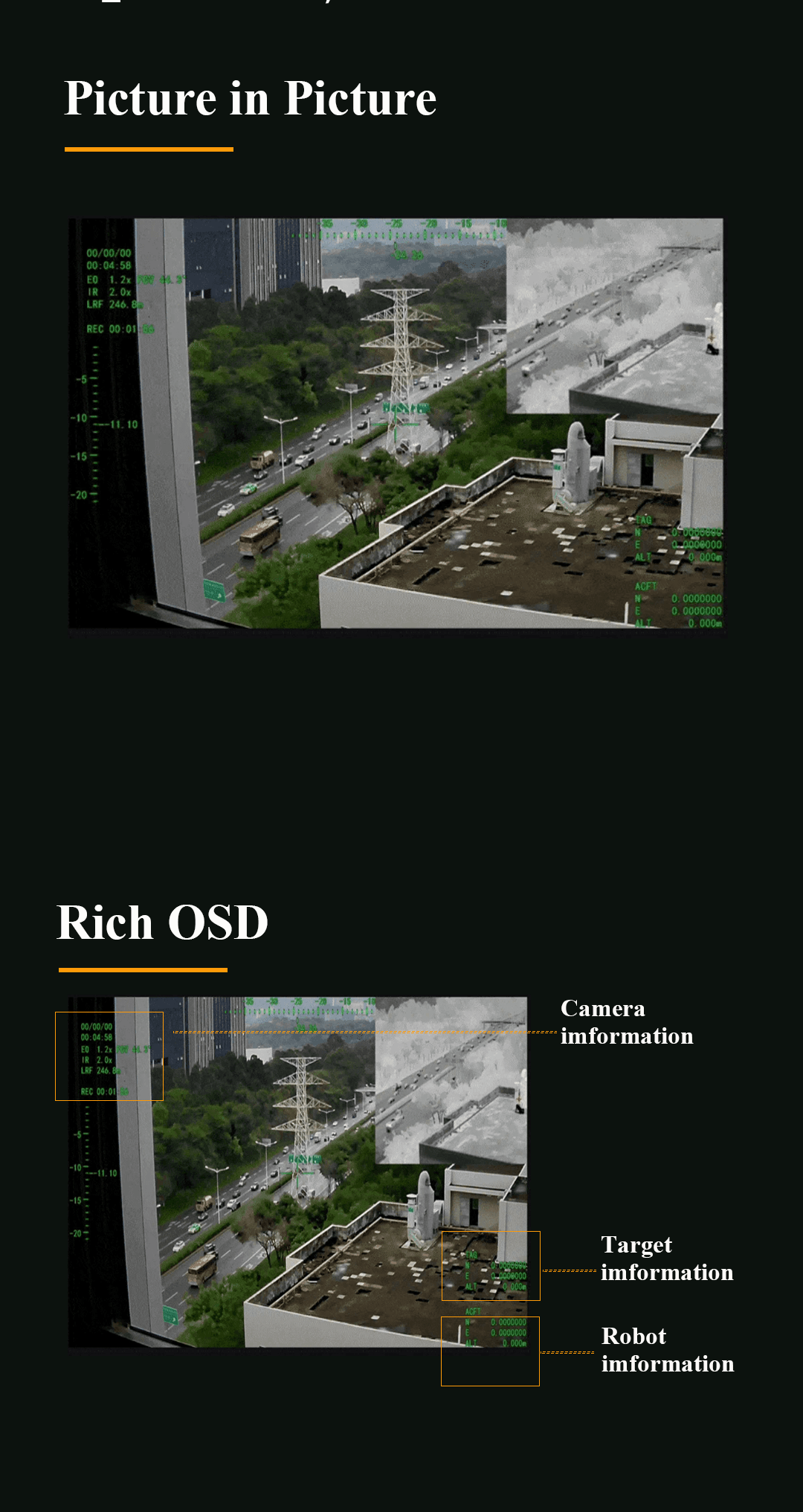

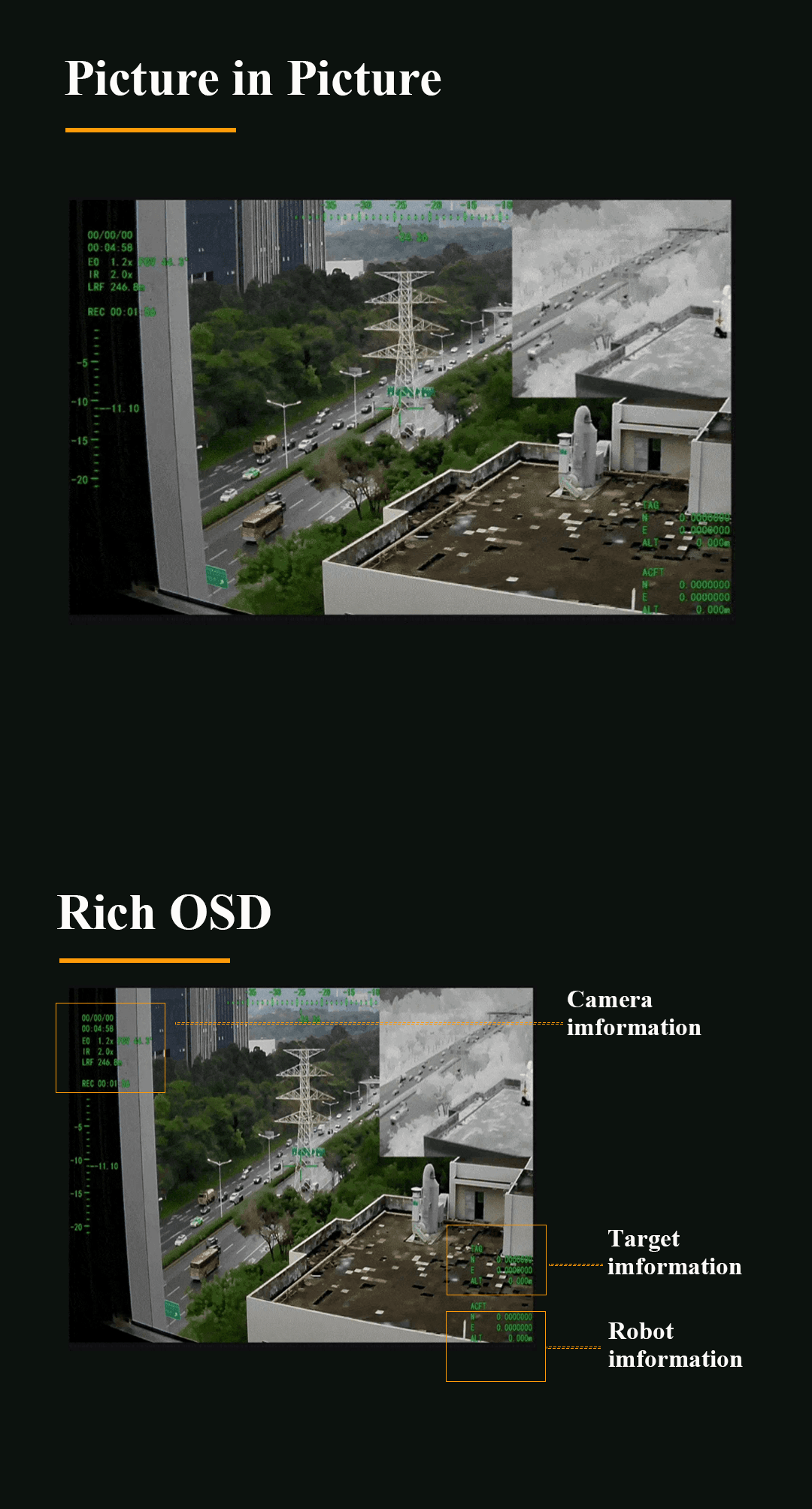

• Picture-in-Picture and Rich OSD:
  Supports picture-in-picture display and OSD overlays for camera information, target information, and platform data.

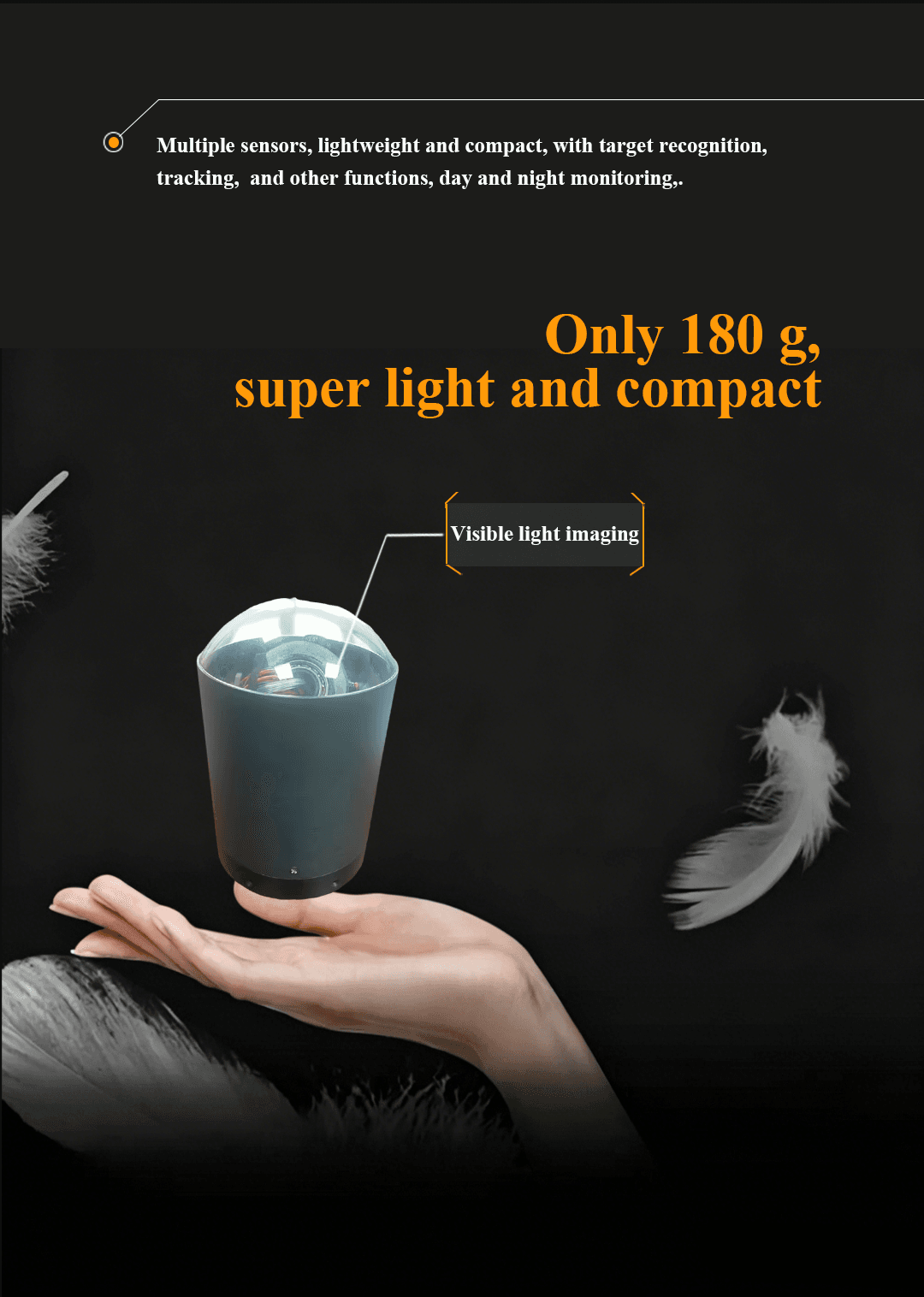

• Lightweight and Compact Design:
  The visible-light version weighs ≤180 g with compact dimensions of approximately Φ70×85 mm, helping reduce UAV payload requirements.
• Environmental Durability:
  Designed to operate from -30°C to +60°C, withstand ≥200 g shock, and work in light to moderate rain.

3. Application Scenarios

• High-Speed UAV Target Tracking:
  The 120 fps imaging system and AI tracking module make the DA0T1 suitable for detecting and continuously tracking fast-moving aerial targets.
• Interceptor Drone Applications:
  Its lightweight structure, high frame rate, and rapid AI response make it suitable for high-speed interceptor drone platforms.
• Low-Altitude Drone Surveillance:
  Supports long-range observation, recognition, and tracking of small and medium-sized UAV targets.
• Public Security:
  Can be integrated into UAV systems for aerial security monitoring, patrol, and target observation.
• Environmental Monitoring:
  Suitable for airborne environmental inspection and remote observation tasks.
• Forest Fire Monitoring:
  Can support aerial patrol and visual monitoring of forest areas.
• Law Enforcement:
  Suitable for UAV-based patrol, remote monitoring, and target tracking applications.
