DX4 Dual-4K EO/IR UAV Gimbal | 1280×1024 IR, 3 km Laser
450 g three-axis EO/IR UAV gimbal combining dual 4K visible sensors, 1280×1024/30 fps thermal imaging and 20–3,000 m laser ranging with ±1 m accuracy. EO output is 3840×2160/30 fps with 40× optical/120× hybrid zoom. Provides maximum angular velocity ≥60°/s, 0.1 mrad stabilization accuracy and Ethernet RTSP video. Uses 12–24 V DC with average consumption ≤15 W, coordinating visible, thermal and distance information in one payload.
- CMOS sensor, 4K ultra-high-definition output
- 40x optical zoom
- 120x hybrid zoom
- 100 deg x 68 deg
- 10 deg x 6 deg
- <=0.3 deg
- 0.1 mrad (1 deg/2Hz, 1 sigma)
- ≥60°/s
- 1280x1024@30fps
- 28.8 deg x 23.2 deg
- 20m~3000m
- +/-1m
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

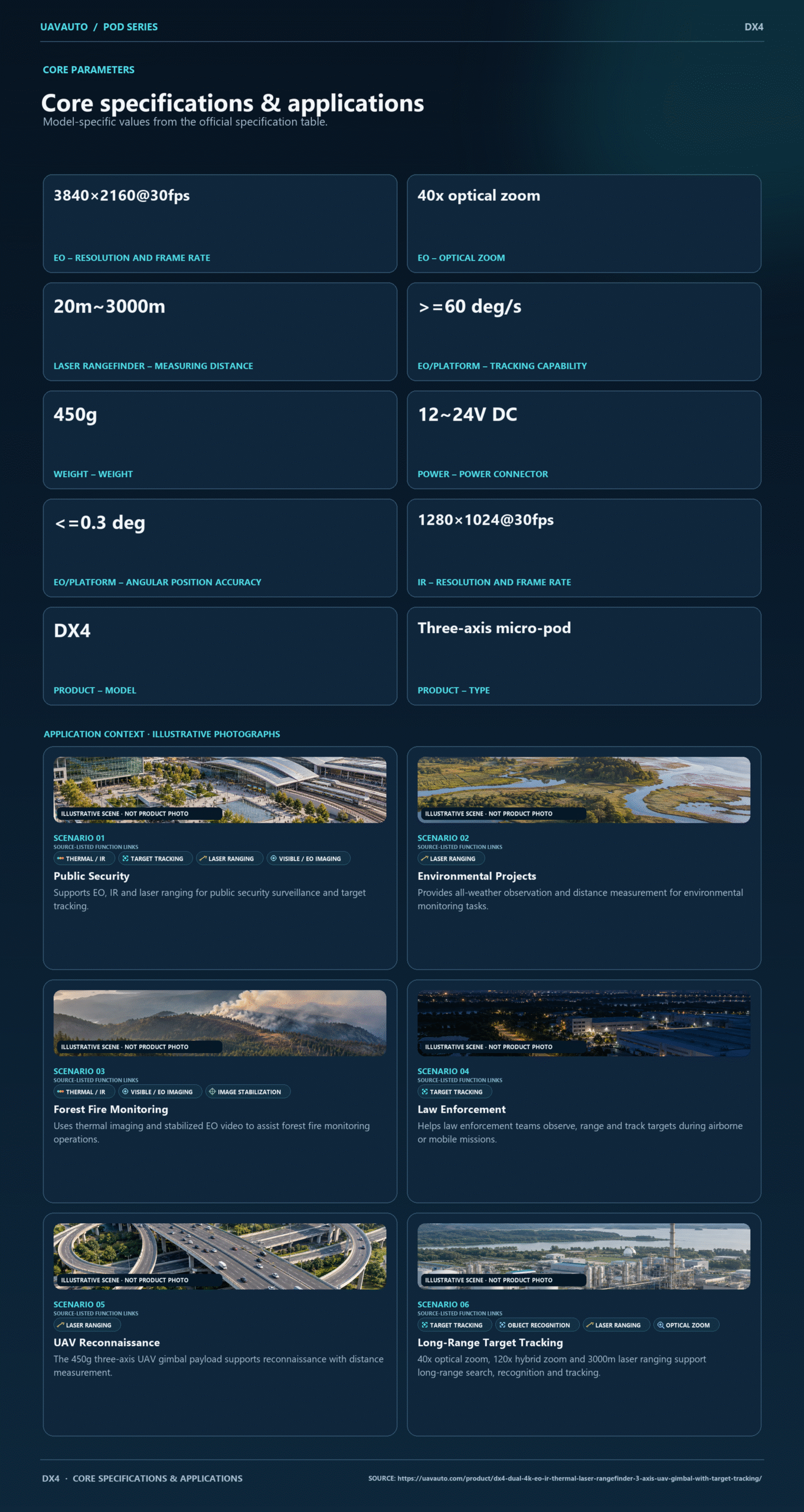

Core specifications
Technical data

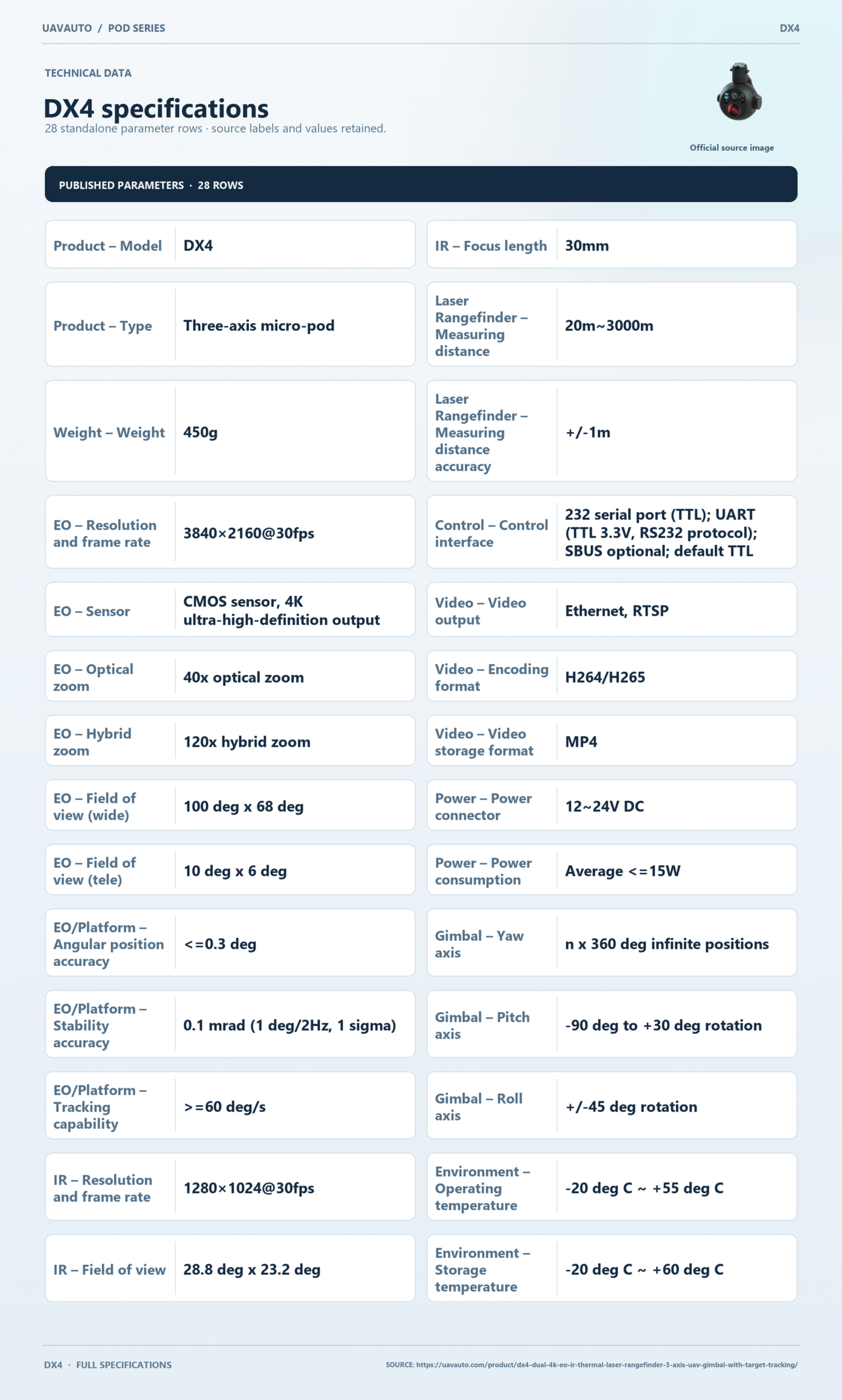

| Parameter | Specification |
|---|---|
| Product - Model | DX4 |
| Product - Type | Three-axis micro-pod |
| Weight - Weight | 450g |

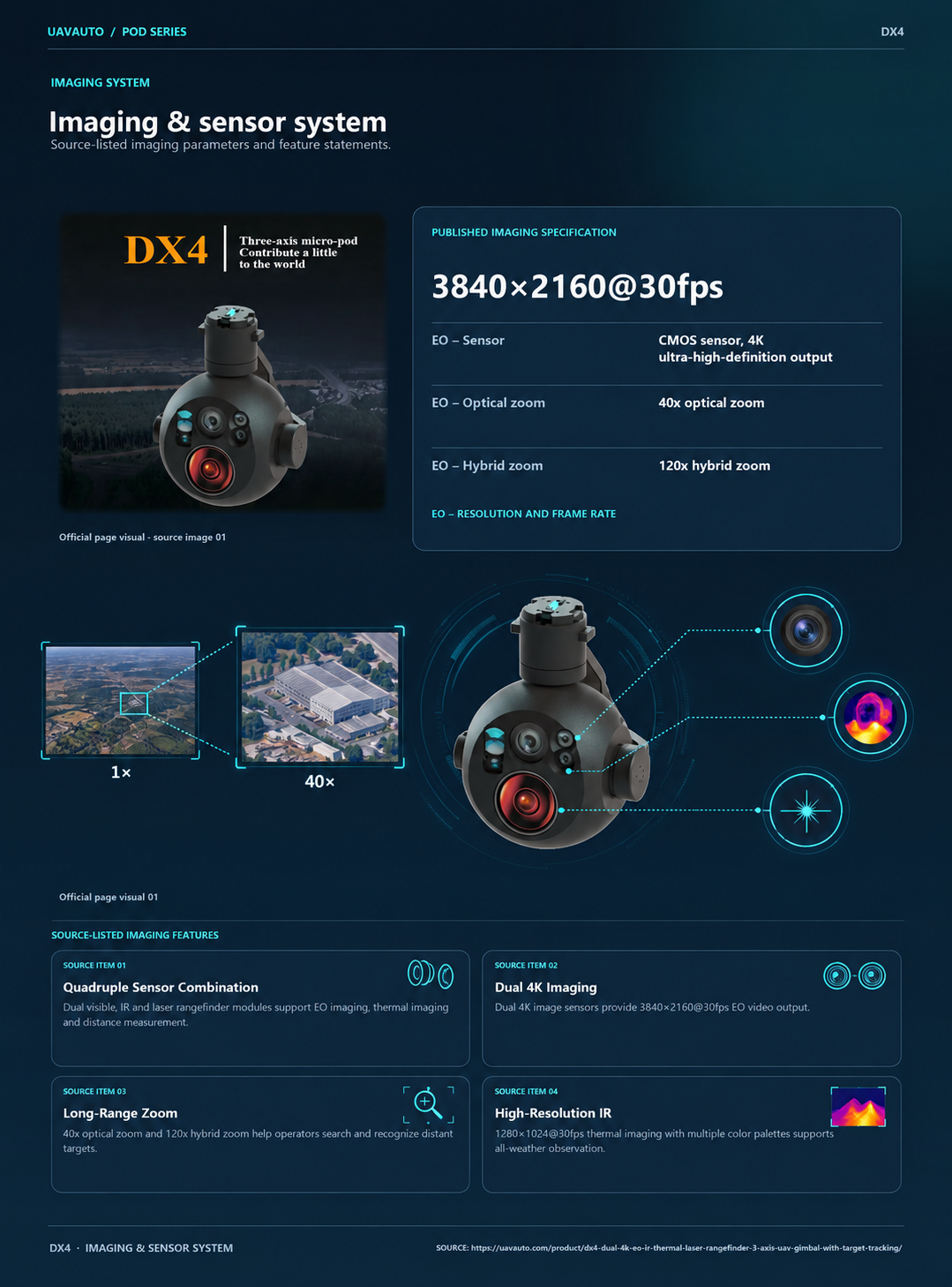

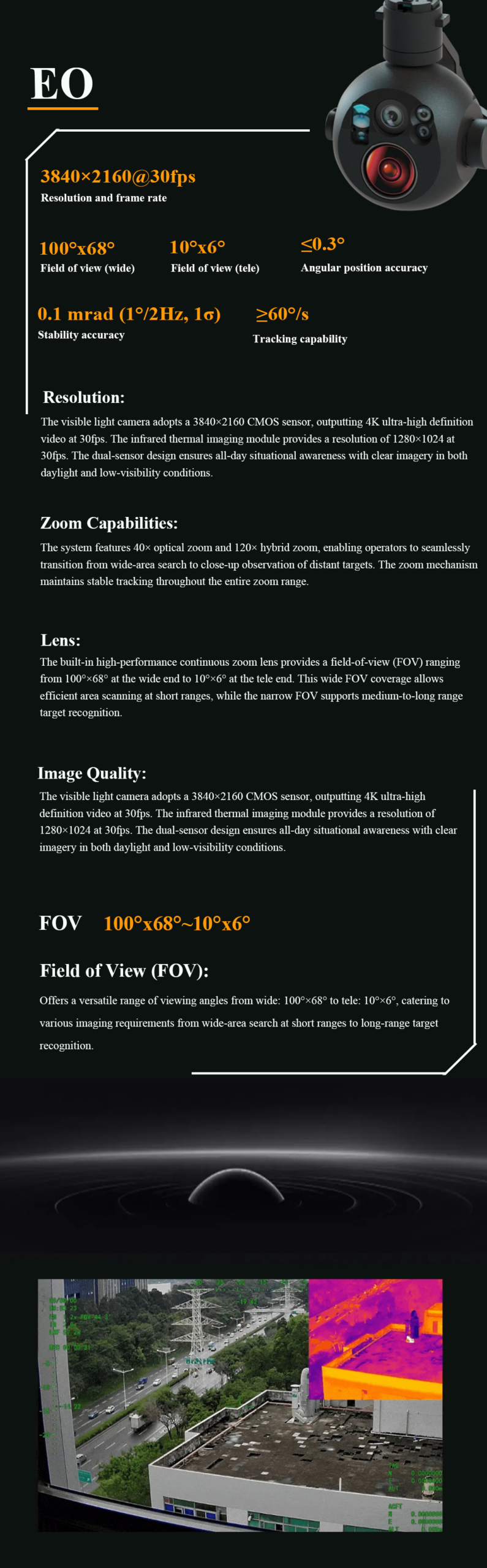

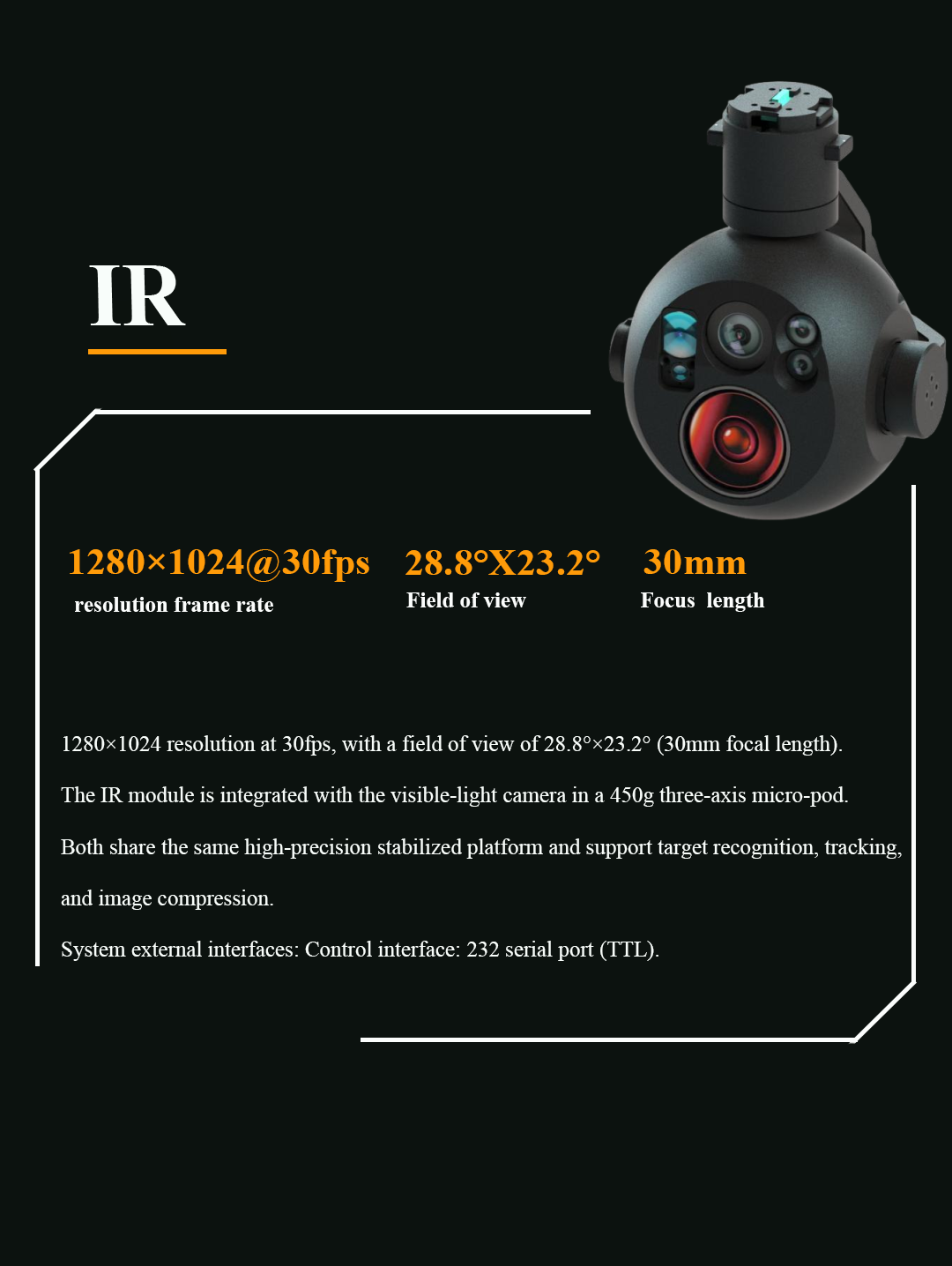

| EO - Resolution and frame rate | 3840x2160@30fps |
| EO - Sensor | CMOS sensor, 4K ultra-high-definition output |
| EO - Optical zoom | 40x optical zoom |
| EO - Hybrid zoom | 120x hybrid zoom |
| EO - Field of view (wide) | 100 deg x 68 deg |
| EO - Field of view (tele) | 10 deg x 6 deg |
| EO/Platform - Angular position accuracy | <=0.3 deg |
| EO/Platform - Stability accuracy | 0.1 mrad (1 deg/2Hz, 1 sigma) |
| Maximum angular velocity | ≥60°/s |
| IR - Resolution and frame rate | 1280x1024@30fps |
| IR - Field of view | 28.8 deg x 23.2 deg |
| IR - Focus length | 30mm |
| Laser Rangefinder - Measuring distance | 20m~3000m |
| Laser Rangefinder - Measuring distance accuracy | +/-1m |

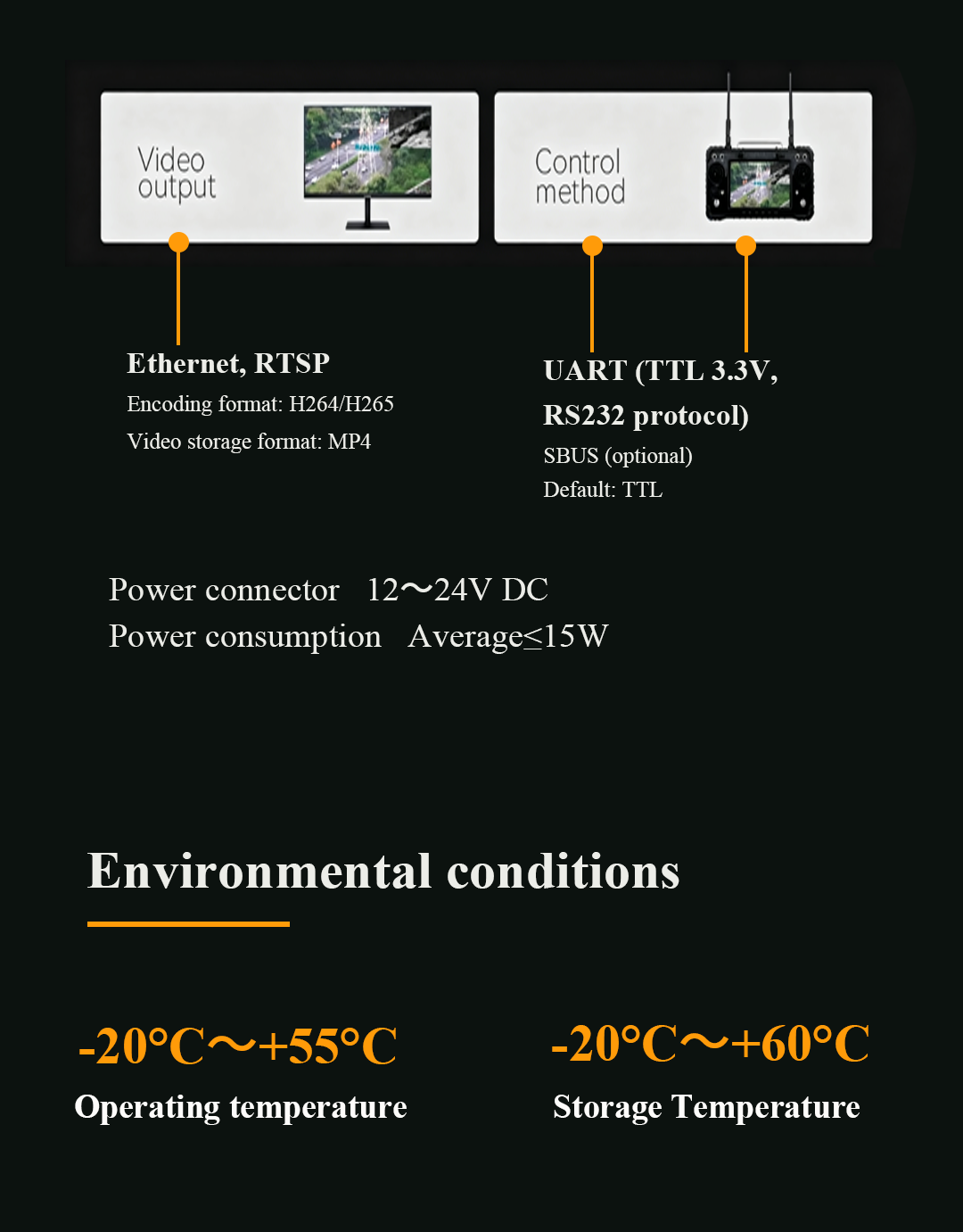

| Control - Control interface | 232 serial port (TTL) |
| Video - Video output | Ethernet |
| Power - Power connector | 12~24V DC |
| Power - Power consumption | Average <=15W |

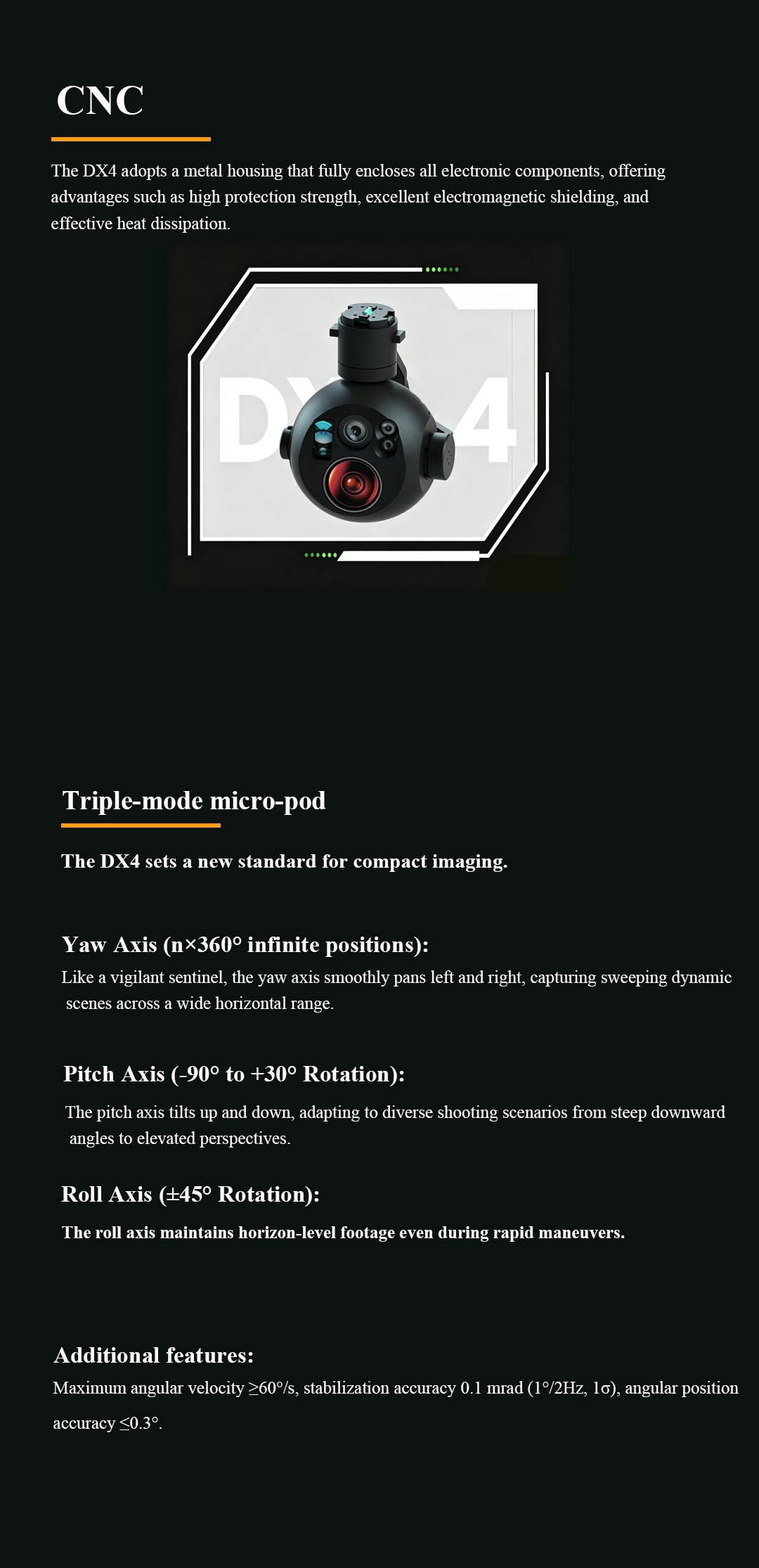

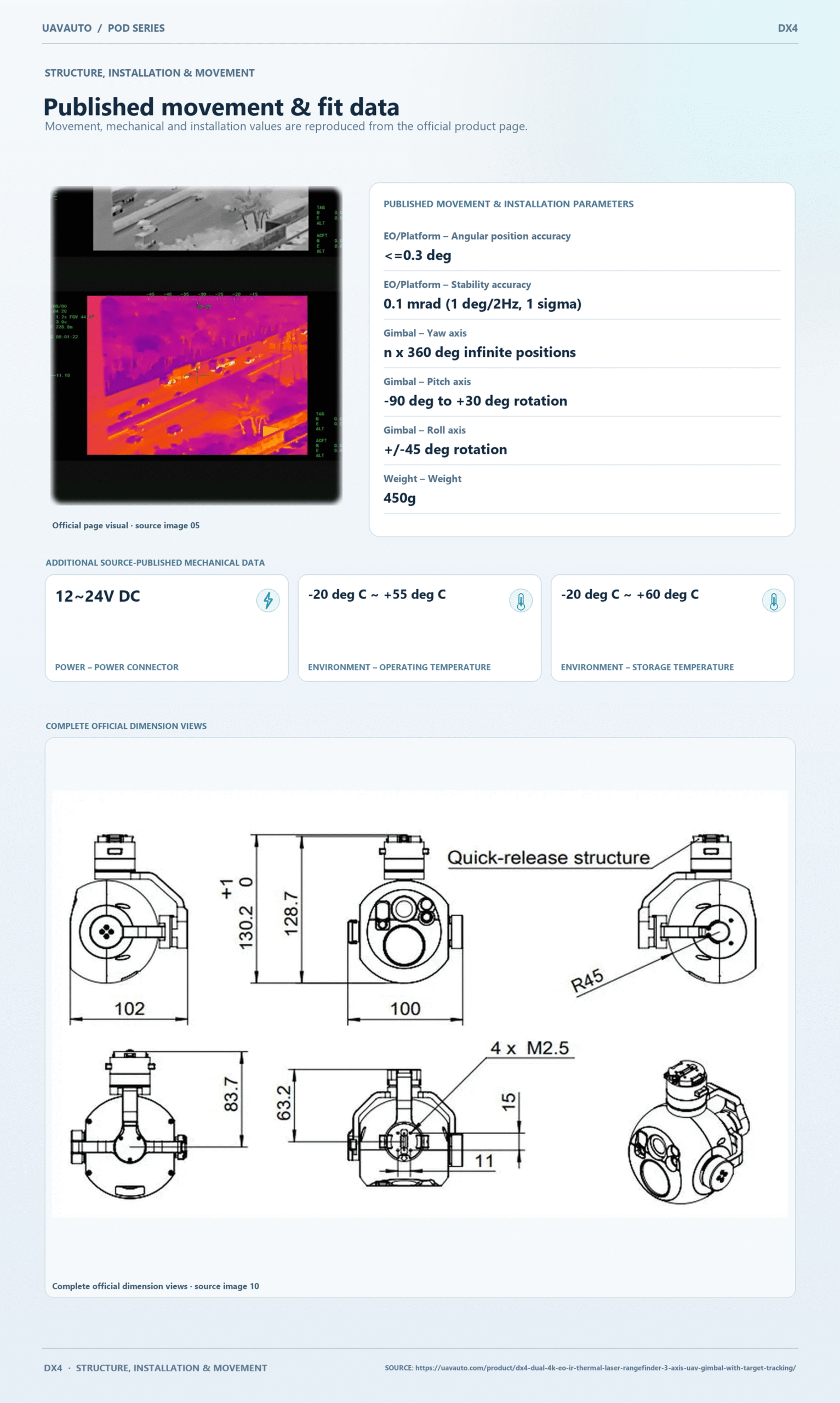

| Gimbal - Yaw axis | n x 360 deg infinite positions |
| Gimbal - Pitch axis | -90 deg to +30 deg rotation |
| Gimbal - Roll axis | +/-45 deg rotation |
| Environment - Operating temperature | -20 deg C ~ +55 deg C |
| Environment - Storage temperature | -20 deg C ~ +60 deg C |
1. Features & applications

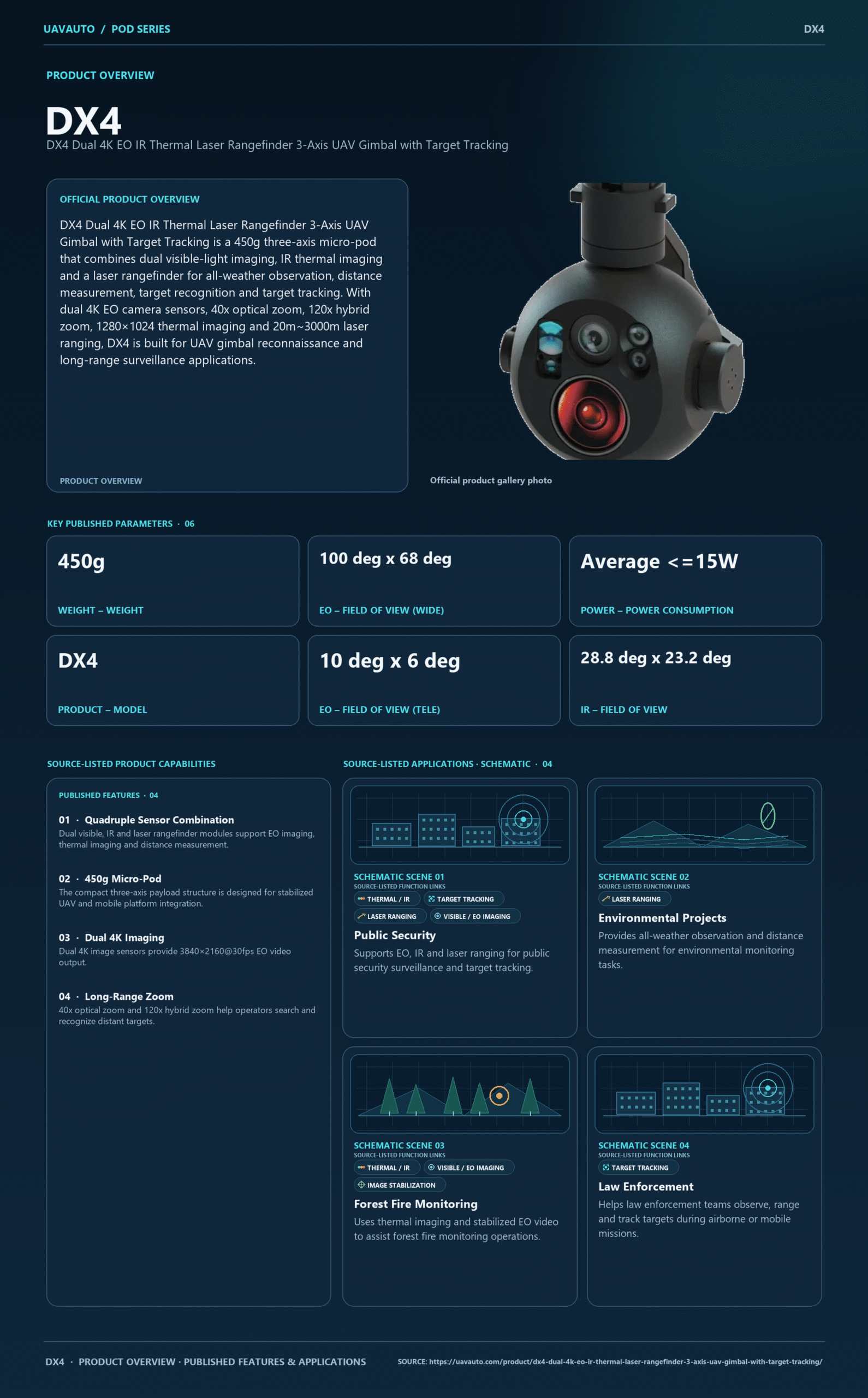

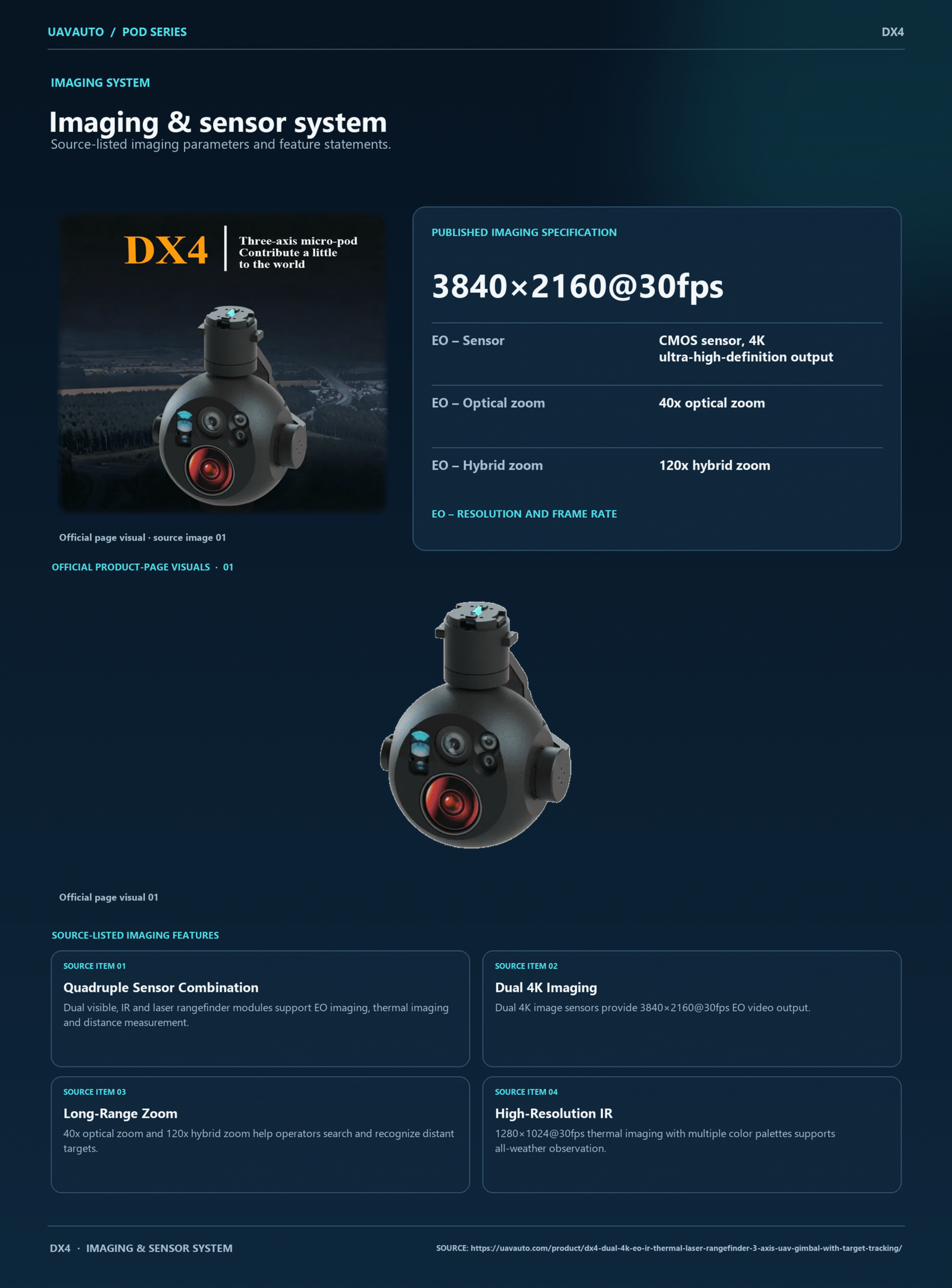

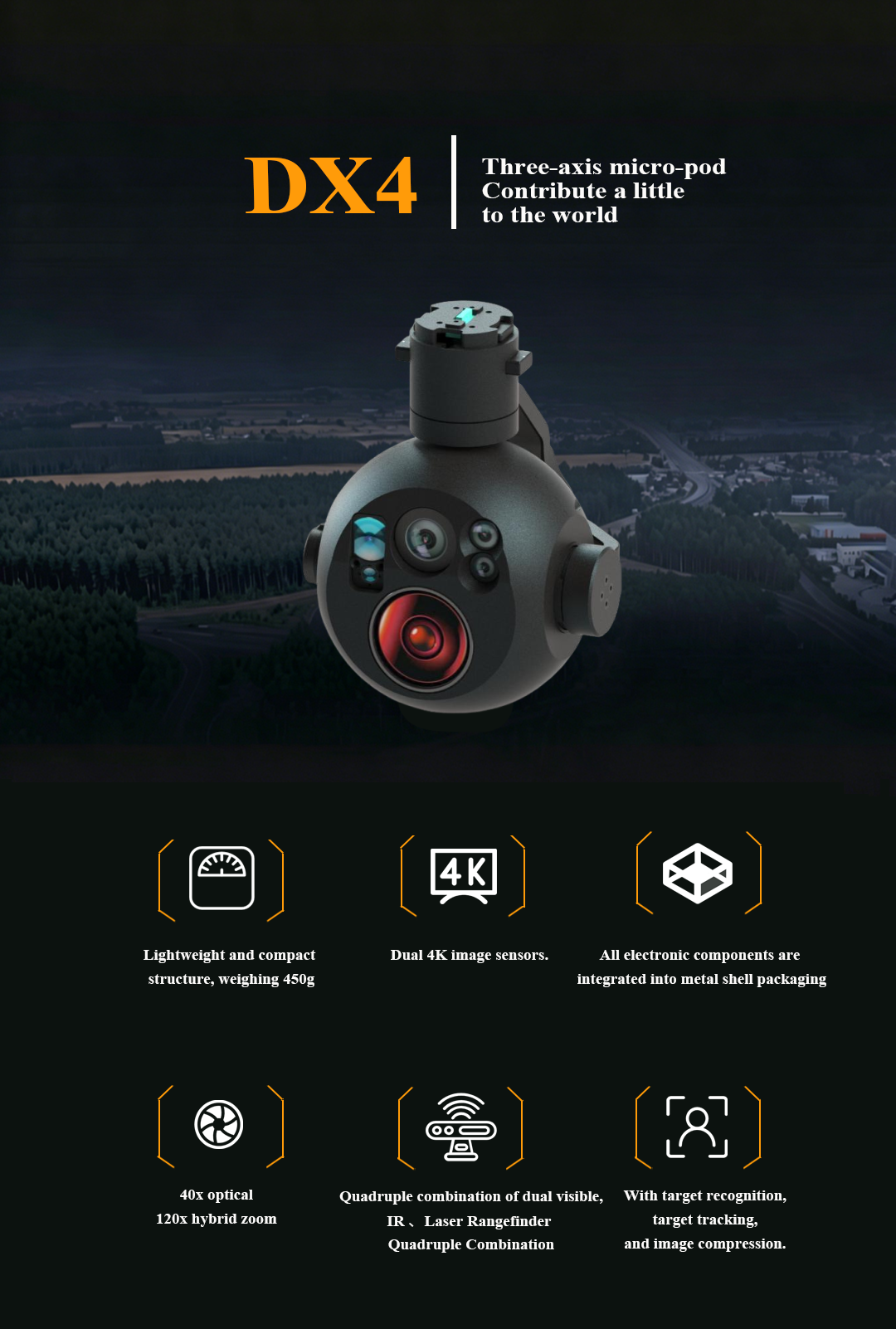

DX4 Dual 4K EO IR Thermal Laser Rangefinder 3-Axis UAV Gimbal with Target Tracking is a 450g three-axis micro-pod that combines dual visible-light imaging, IR thermal imaging and a laser rangefinder for all-weather observation, distance measurement, target recognition and target tracking. With dual 4K EO camera sensors, 40x optical zoom, 120x hybrid zoom, 1280x1024 thermal imaging and 20m~3000m laser ranging, DX4 is built for UAV gimbal reconnaissance and long-range surveillance applications.

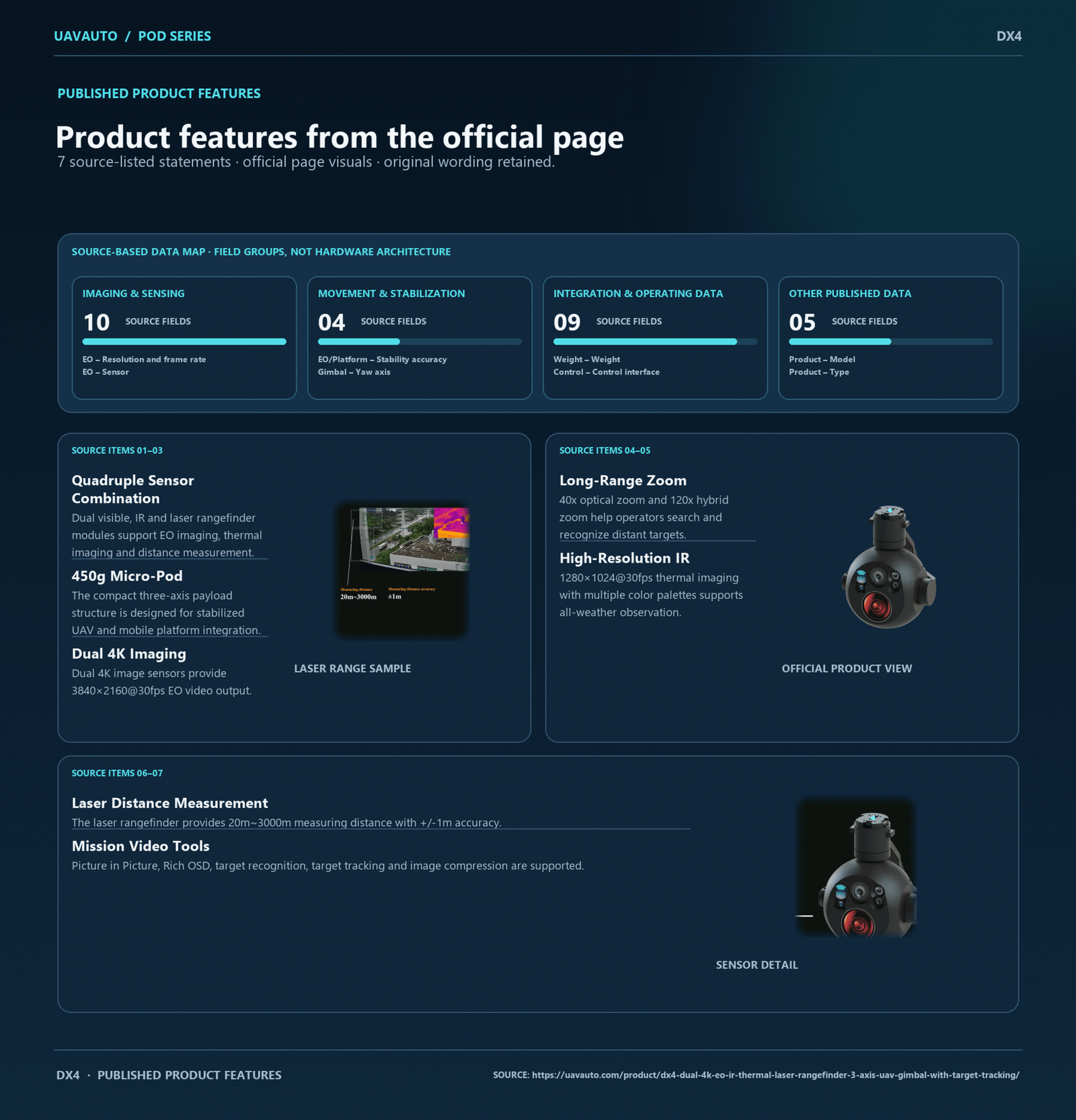

2. Product Features

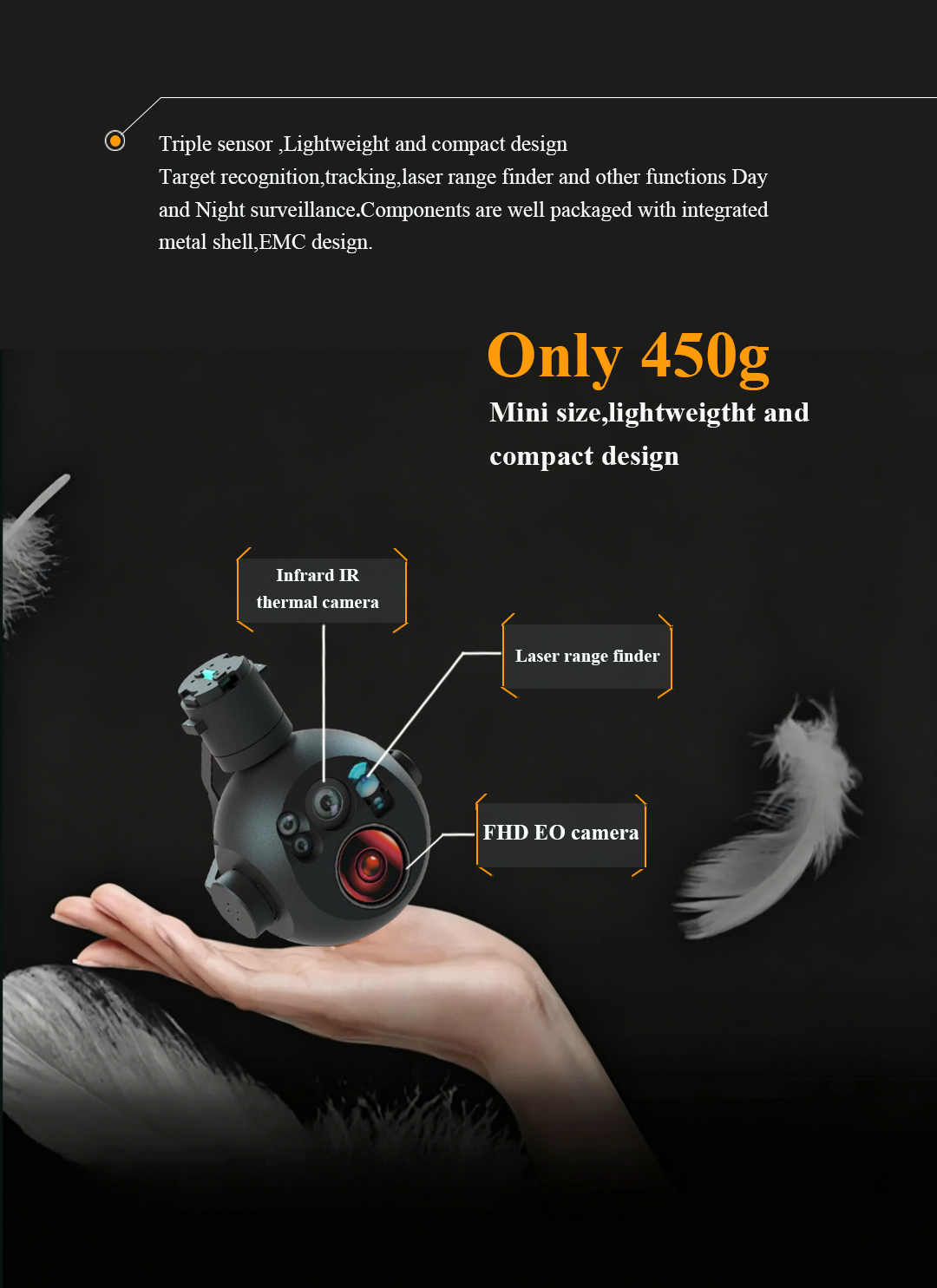

- Quadruple Sensor Combination:Dual visible, IR and laser rangefinder modules support EO imaging, thermal imaging and distance measurement.
- 450g Micro-Pod:The compact three-axis payload structure is designed for stabilized UAV and mobile platform integration.
- Dual 4K Imaging:Dual 4K image sensors provide 3840x2160@30fps EO video output.
- Long-Range Zoom:40x optical zoom and 120x hybrid zoom help operators search and recognize distant targets.

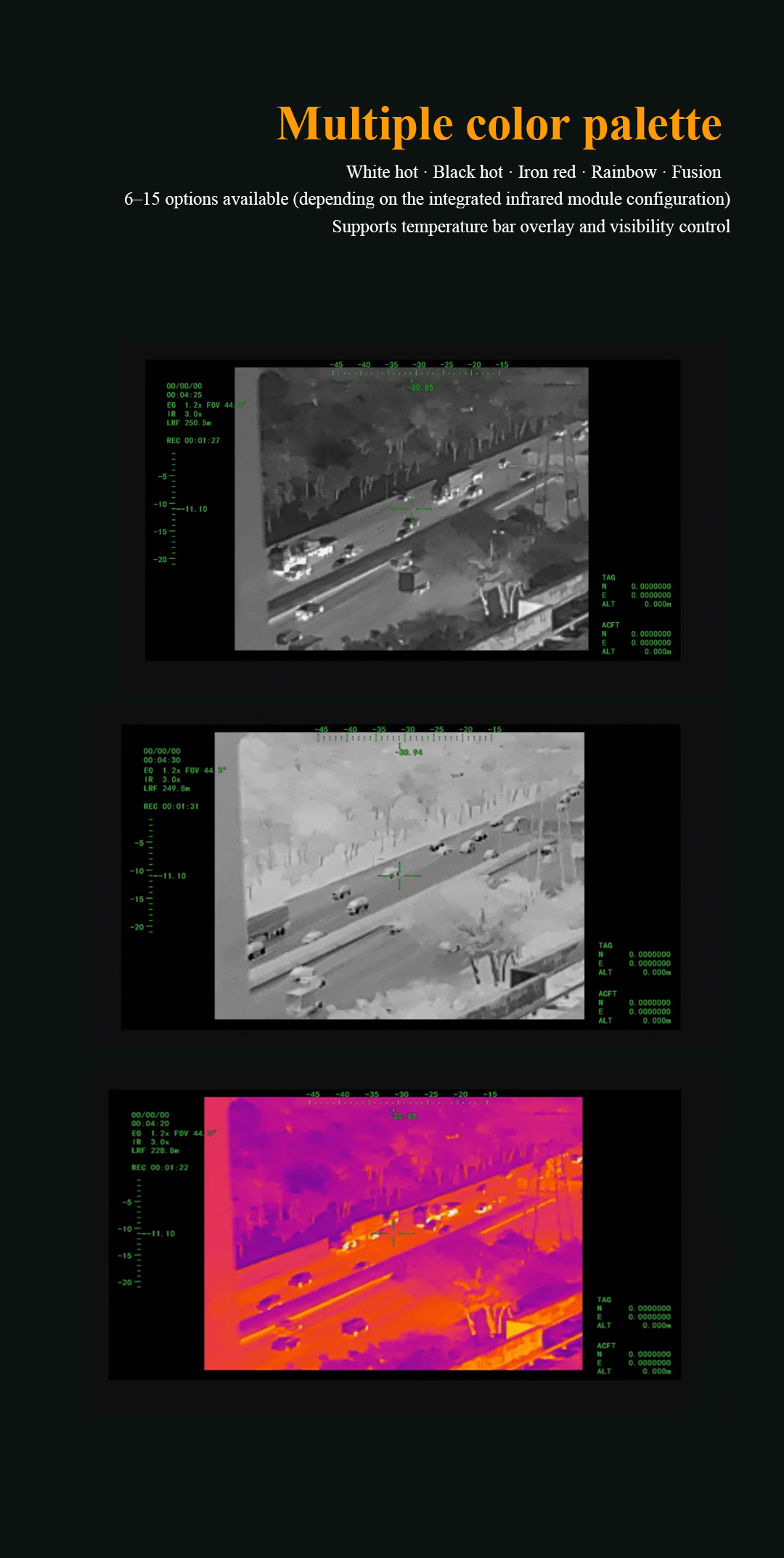

- High-Resolution IR:1280x1024@30fps thermal imaging with multiple color palettes supports all-weather observation.

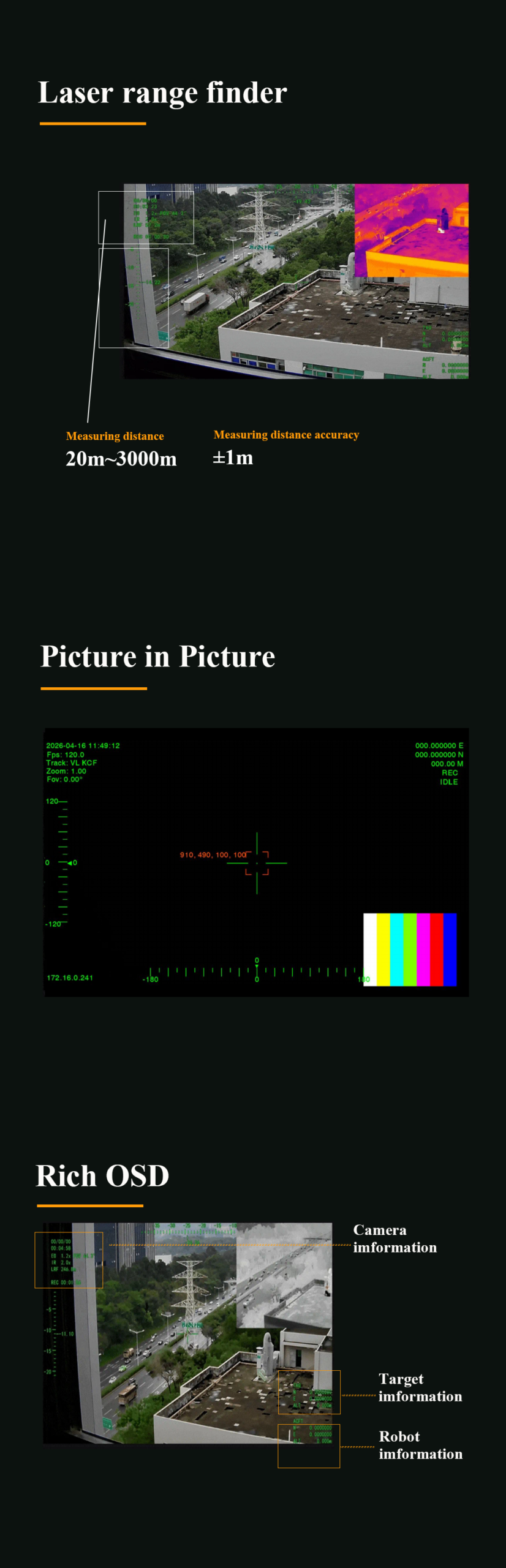

- Laser Distance Measurement:The laser rangefinder provides 20m~3000m measuring distance with +/-1m accuracy.

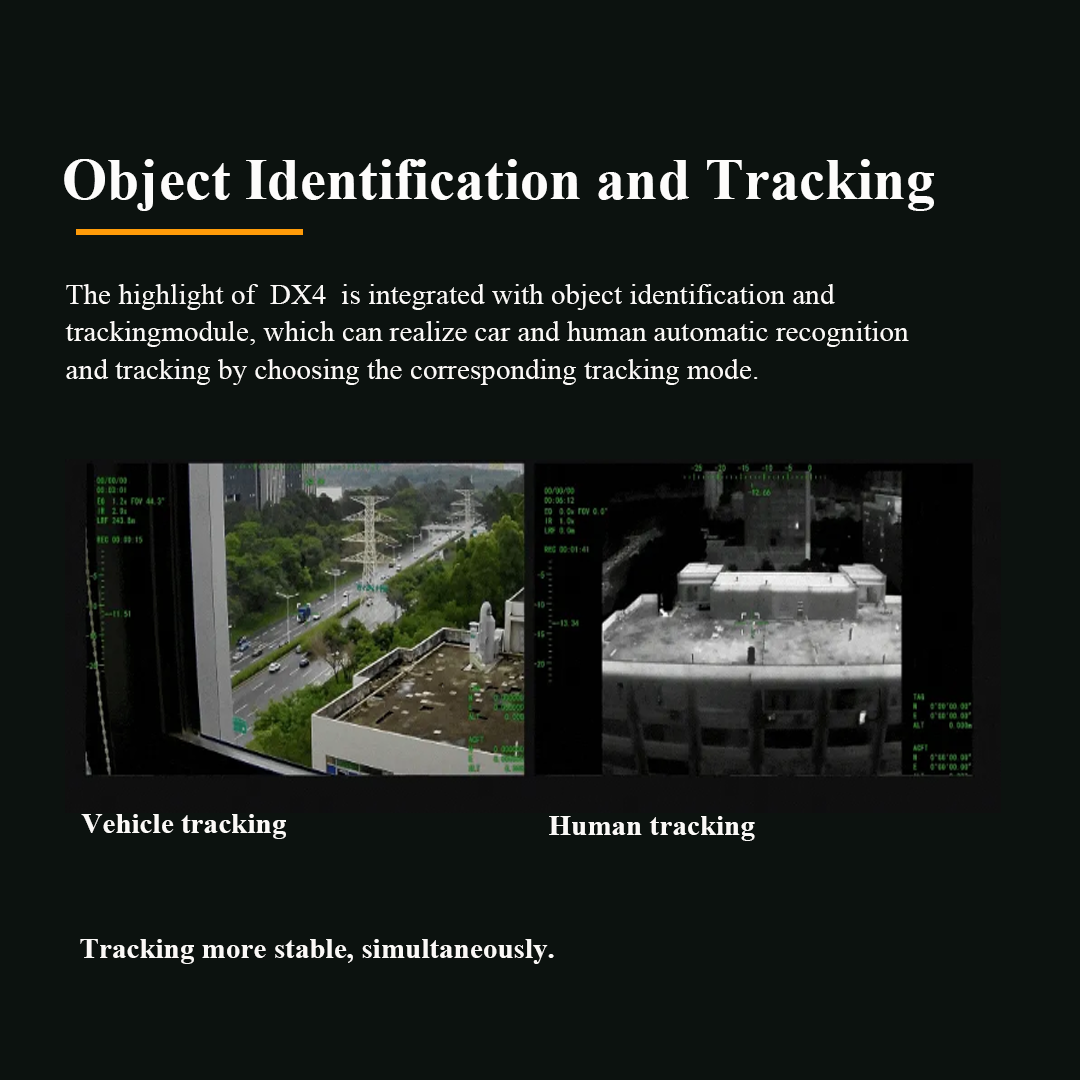

- Mission Video Tools:Picture in Picture, Rich OSD, target recognition, target tracking and image compression are supported.

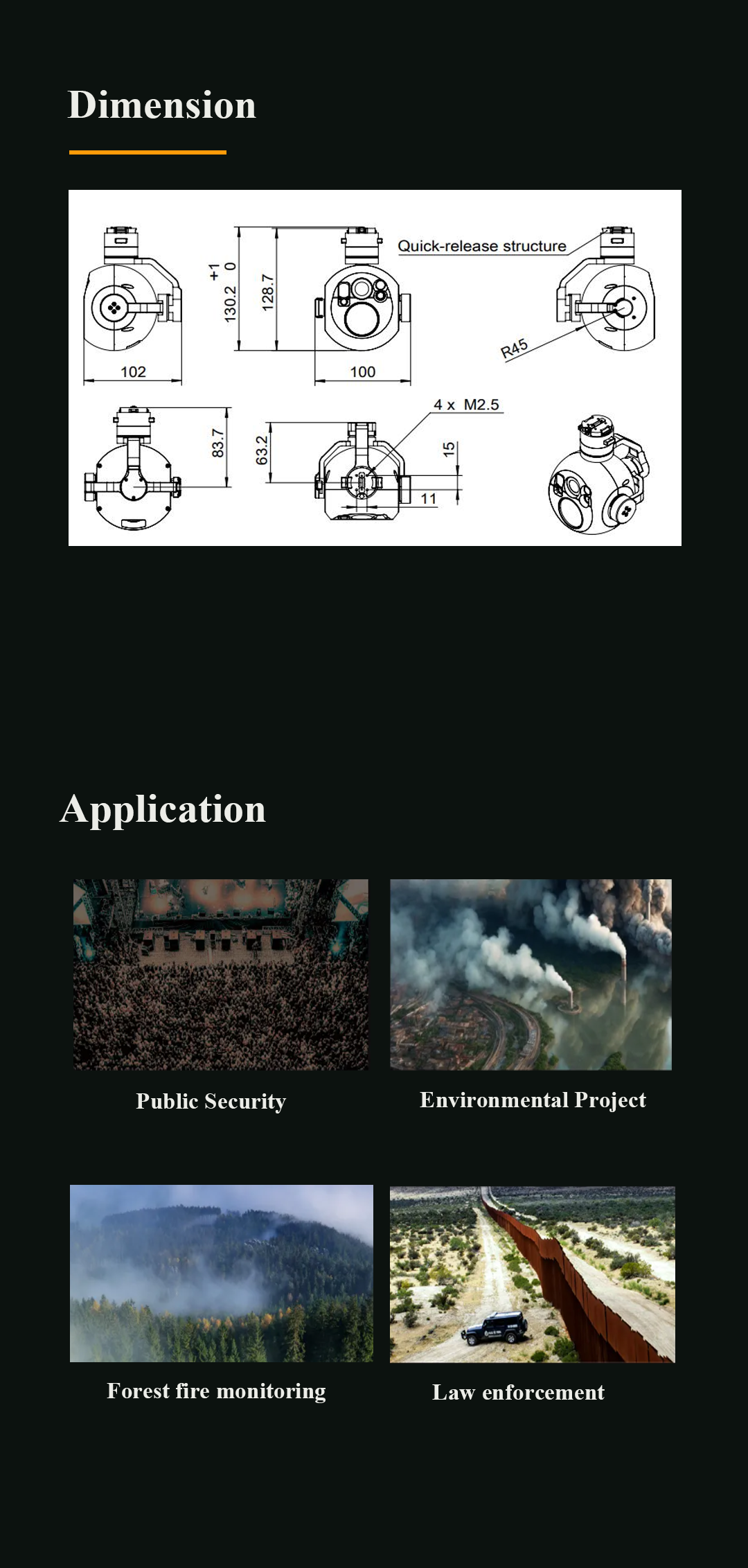

3. Application Scenarios
- Public Security:Supports EO, IR and laser ranging for public security surveillance and target tracking.
- Environmental Projects:Provides all-weather observation and distance measurement for environmental monitoring tasks.
- Forest Fire Monitoring:Uses thermal imaging and stabilized EO video to assist forest fire monitoring operations.
- Law Enforcement:Helps law enforcement teams observe, range and track targets during airborne or mobile missions.
- UAV Reconnaissance:The 450g three-axis UAV gimbal payload supports reconnaissance with distance measurement.
- Long-Range Target Tracking:40x optical zoom, 120x hybrid zoom and 3000m laser ranging support long-range search, recognition and tracking.
