DX2B 4K EO IR Thermal Laser Rangefinder 3-Axis Micro UAV Gimbal with Target Tracking

Name: DX2B 4K EO IR Thermal Laser Rangefinder 3-Axis Micro UAV Gimbal with Target Tracking
Brand: UAVAUTO
SKU: DX2B
Price: 999 USD
Availability: InStock

SKU:DX2B

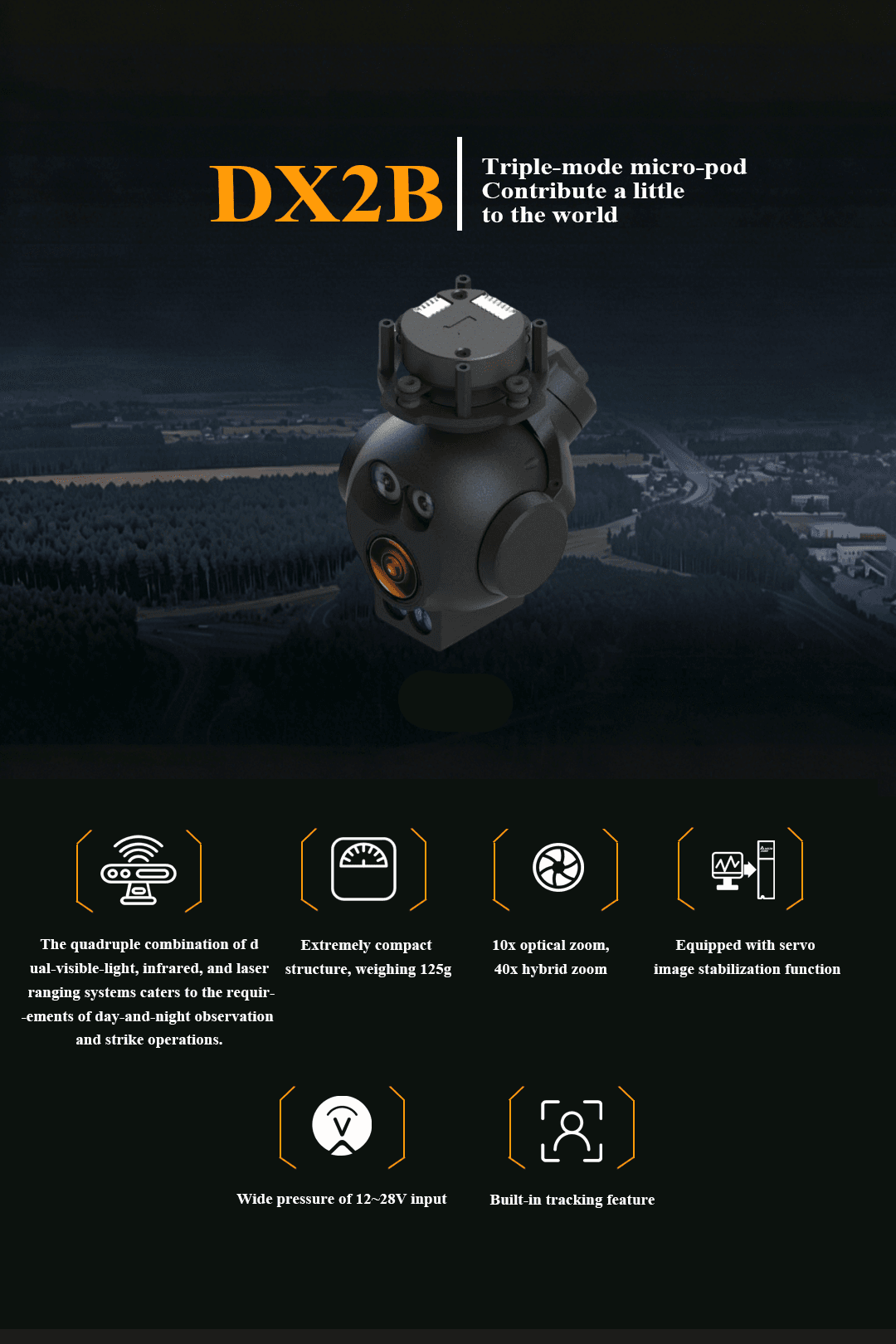

DX2B 4K EO IR Thermal Laser Rangefinder 3-Axis Micro UAV Gimbal with Target Tracking is a triple-mode micro-pod designed for compact airborne imaging and day-and-night surveillance. It integrates visible-light EO imaging, IR thermal imaging, a laser rangefinder, target recognition and target tracking, network video output, and a CNC metal housing with internal electronic encapsulation. With a lightweight 125g body and 3-axis stabilized platform, DX2B is suitable for UAV gimbal payloads, robotic observation, and compact strike-support imaging tasks described in the source material.

Share on:

1. DX2B 4K EO IR Thermal Laser Rangefinder 3-Axis Micro UAV Gimbal with Target Tracking Overview

2. Product Features

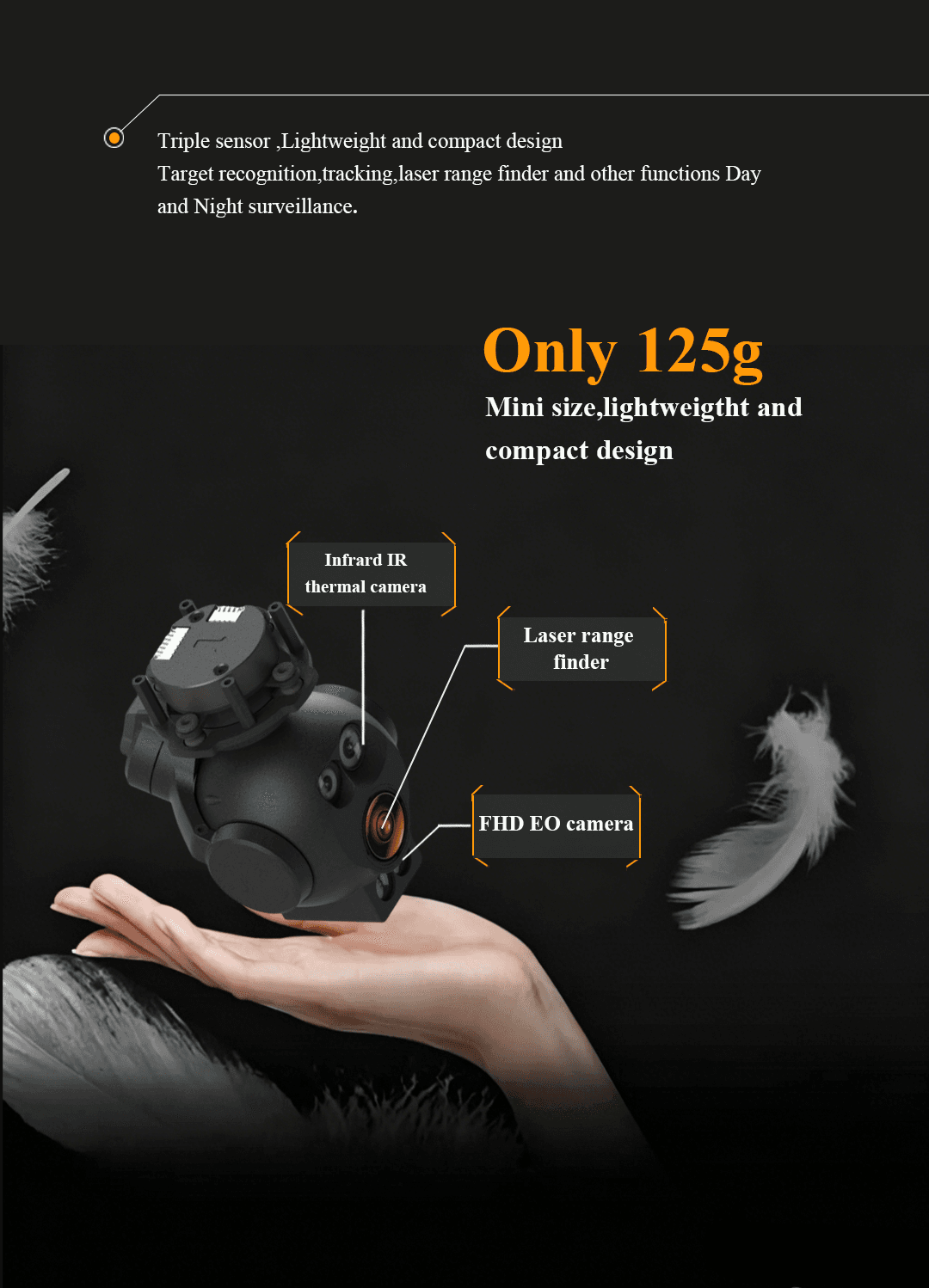

Triple-Mode Payload: Combines FHD EO camera imaging, infrared thermal imaging, and laser rangefinding in one compact micro-pod.
Lightweight Design: The product weighs 125g for compact airborne and robotic integration.
4K EO Imaging: EO imaging supports 3840×2160 @ 30fps, 10× optical zoom, and 40× hybrid zoom.
Thermal Palette Options: IR thermal imaging supports White hot, Black hot, Iron red, Rainbow, and Fusion palettes, with 6-15 options depending on infrared module configuration.
Laser Ranging: The laser rangefinder supports range >=1000m.
Target Tracking: Built-in target recognition and tracking support vehicle tracking and human tracking.
Video Overlay: Picture in Picture and Rich OSD display camera information, target information, and robot information.
CNC Metal Housing: High-precision metal housing provides high protection strength, anti-interference performance, and efficient heat dissipation.
3-Axis Stabilization: The gimbal platform supports yaw, pitch, and roll movement ranges for stabilized observation.

3. Detailed Technical Parameters

Parameter	Specification
Product – Product name	DX2B
Product – Product type	Triple-mode micro-pod
Product – Weight	125g
Sensor – Sensor combination	Dual-visible-light, infrared, and laser ranging systems / FHD EO camera + Infrared IR thermal camera + Laser rangefinder

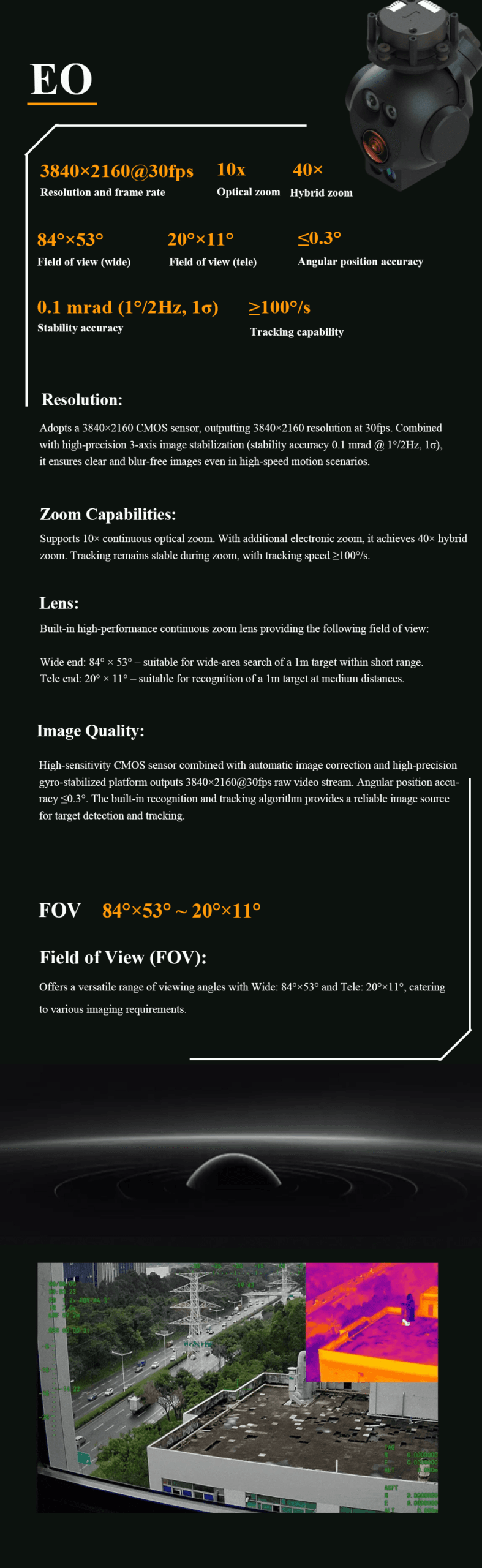

EO – Resolution and frame rate	3840×2160 @ 30fps
EO – Optical zoom	10×
EO – Hybrid zoom	40×
EO – Field of view (wide)	84°×53°
EO – Field of view (tele)	20°×11°
EO – Angular position accuracy	<=0.3°
EO – Stability accuracy	0.1 mrad (1°/2Hz, 1 sigma)
EO – Tracking capability	>=100°/s
EO – CMOS sensor	3840×2160 CMOS sensor

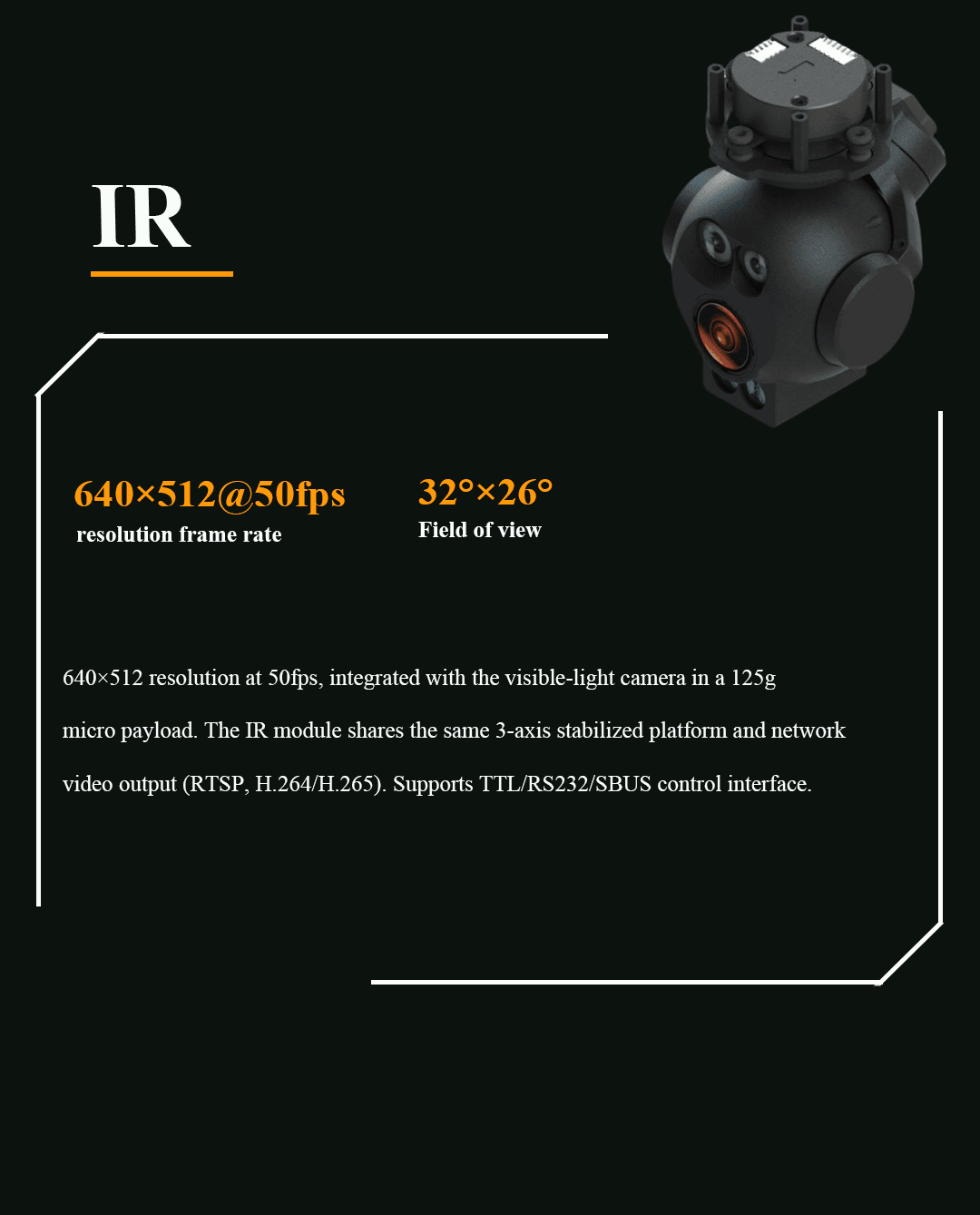

IR – Resolution frame rate	640×512 @ 50fps
IR – Field of view	32°×26°
IR – Video output	RTSP, H.264/H.265
IR – Control interface	TTL/RS232/SBUS

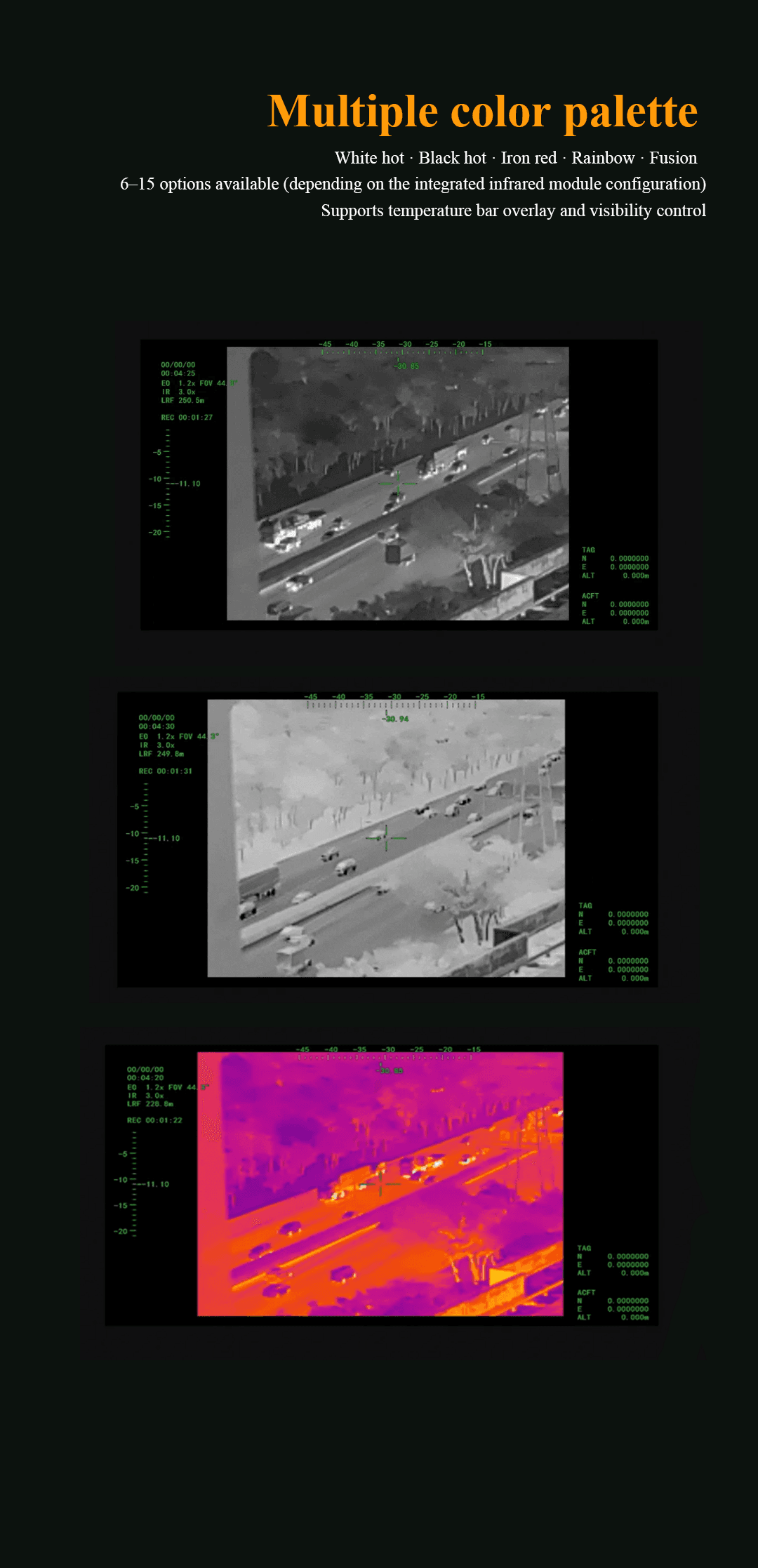

IR – Multiple color palette	White hot / Black hot / Iron red / Rainbow / Fusion; 6-15 options available
IR – Temperature bar overlay	Supported

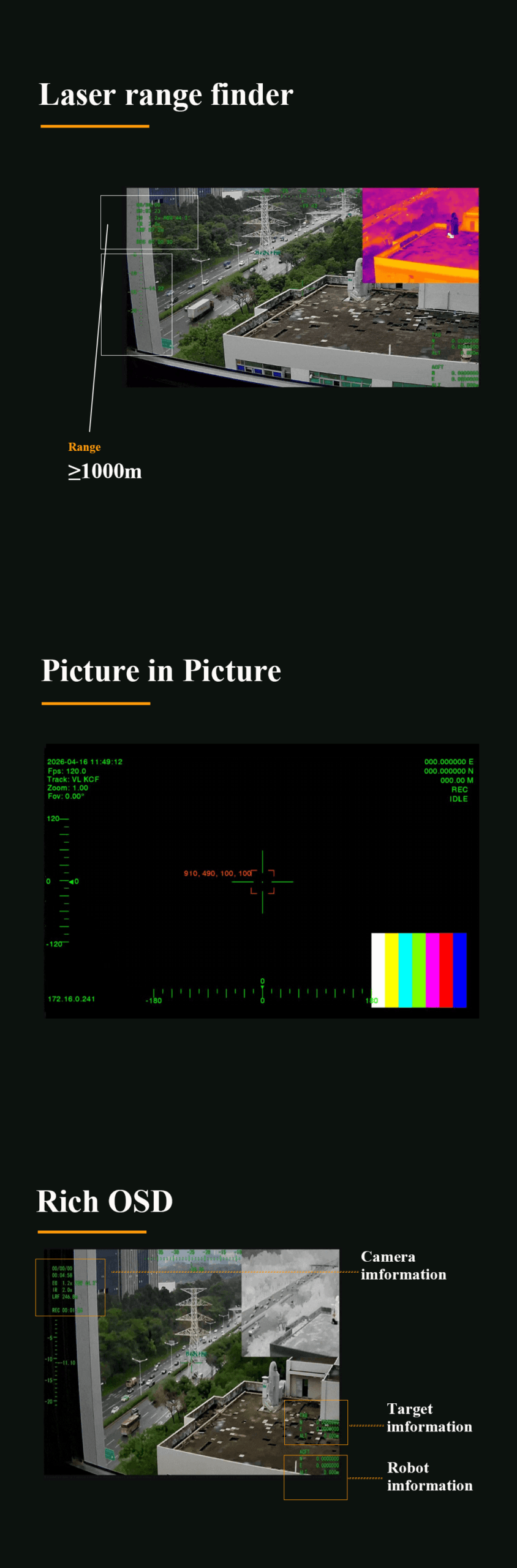

Laser rangefinder – Range	>=1000m
Display – Picture in Picture	Supported
Display – Rich OSD	Camera information / Target information / Robot information

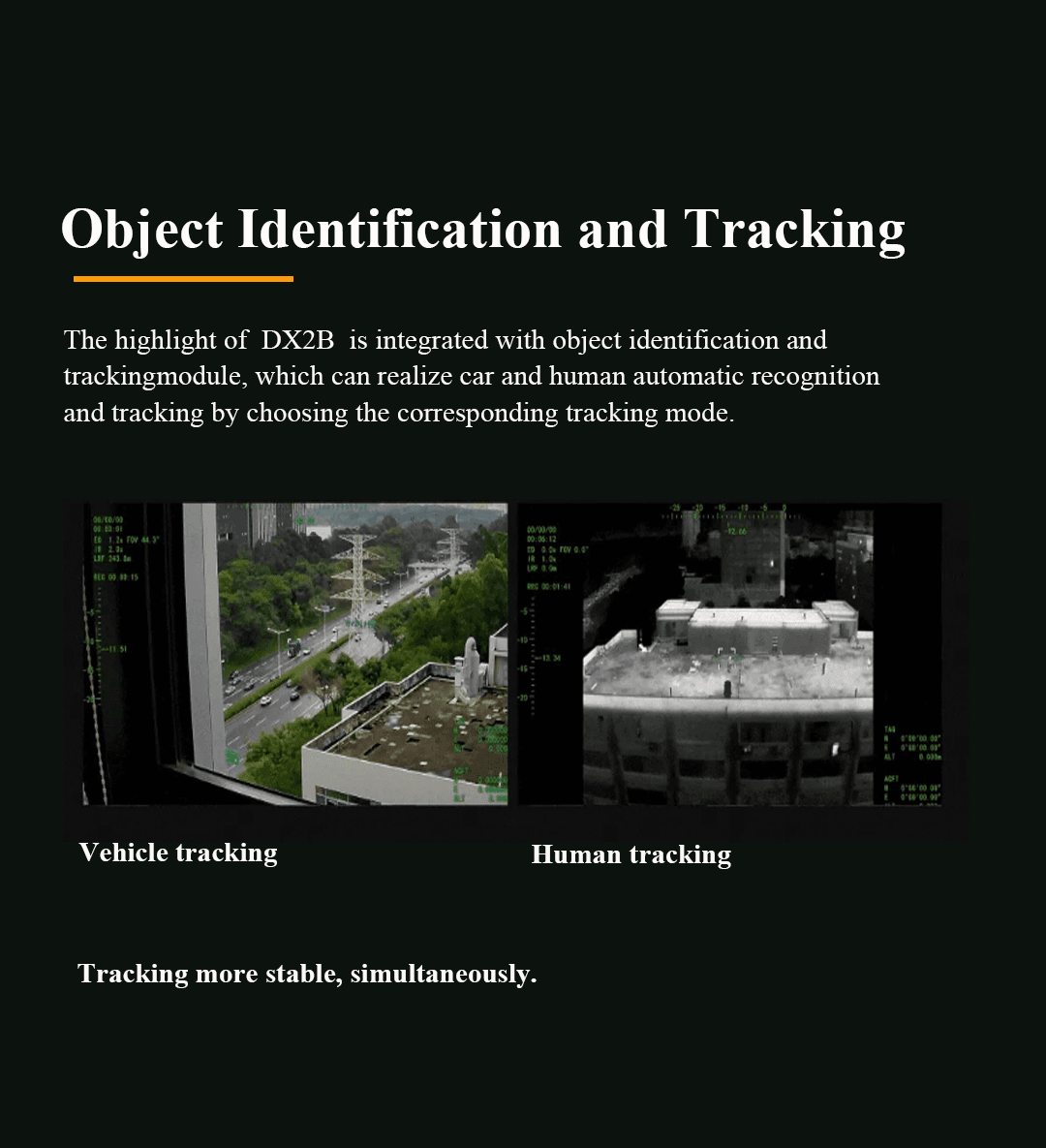

Tracking – Object Identification and Tracking	Vehicle tracking / Human tracking

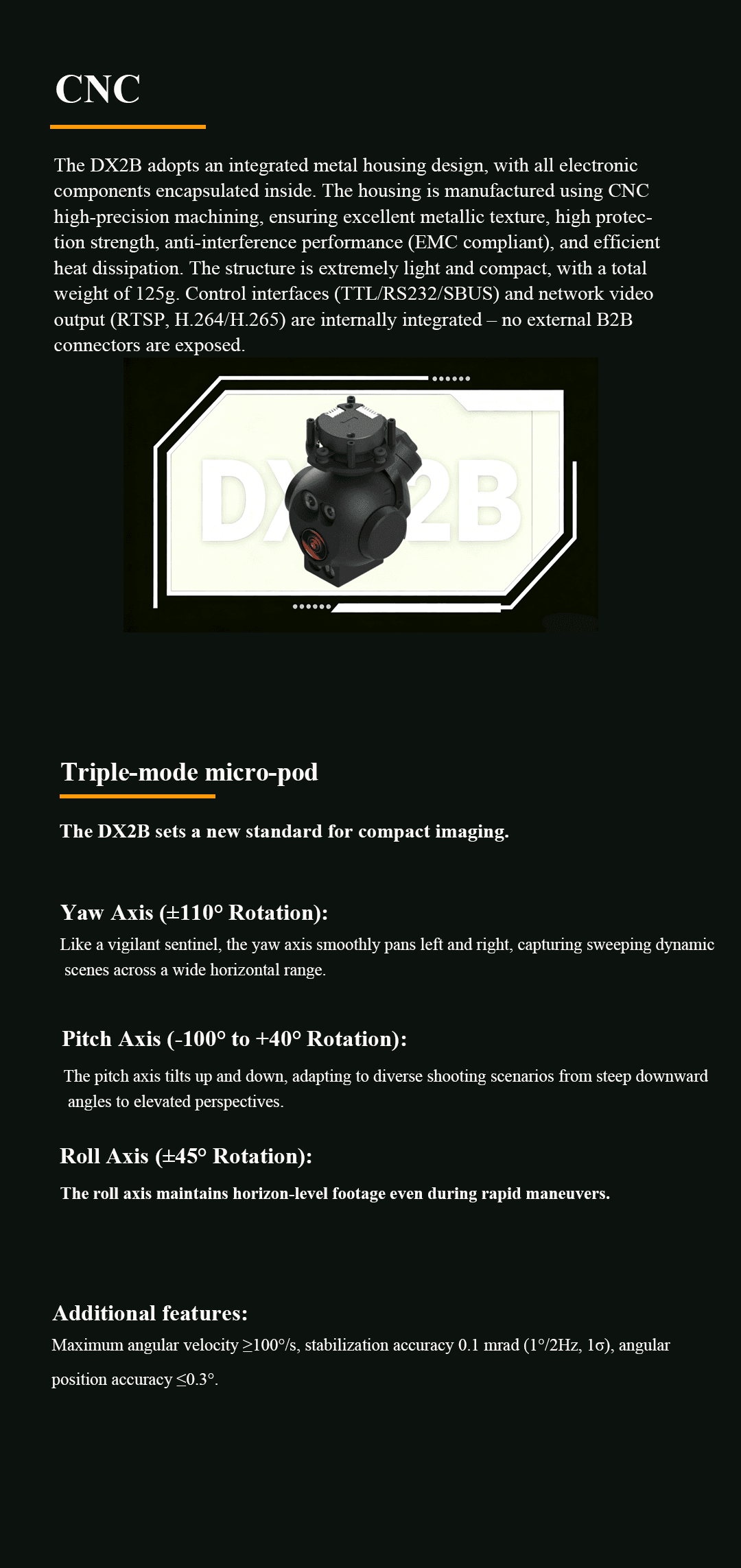

Housing – CNC	Integrated metal housing, electronic components encapsulated inside
Housing – EMC	EMC compliant anti-interference design
Gimbal – Yaw Axis	±110° Rotation
Gimbal – Pitch Axis	-100° to +40° Rotation
Gimbal – Roll Axis	±45° Rotation
Gimbal – Maximum angular velocity	>=100°/s
Gimbal – Stabilization accuracy	0.1 mrad (1°/2Hz, 1 sigma)
Gimbal – Angular position accuracy	<=0.3°

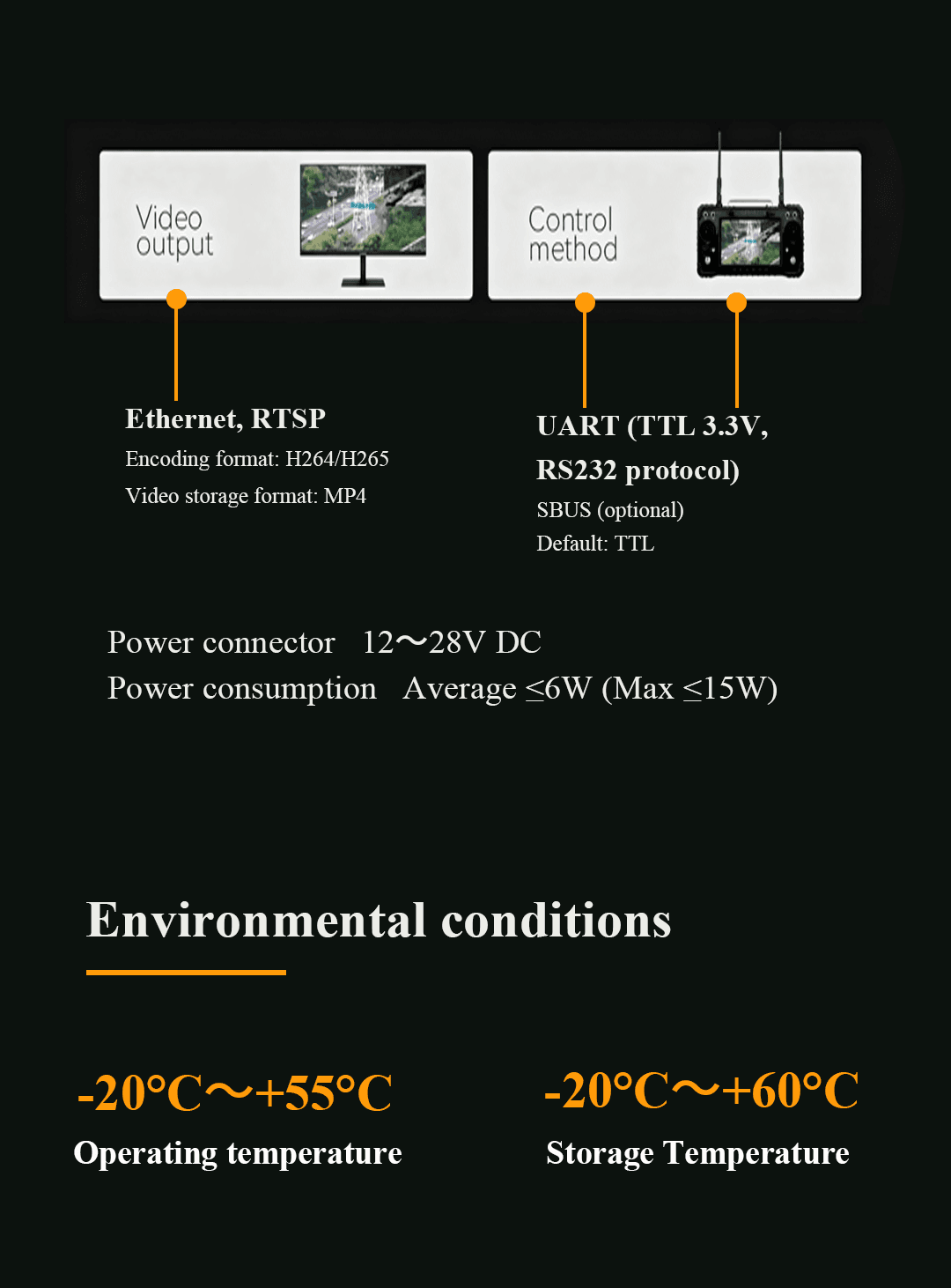

Video output – Ethernet, RTSP	Supported
Video output – Encoding format	H264/H265
Video output – Video storage format	MP4
Control method – UART	TTL 3.3V, RS232 protocol
Control method – SBUS	Optional
Control method – Default	TTL
Power – Power connector	12~28V DC
Power – Power consumption	Average <=6W (Max <=15W)
Environmental conditions – Operating temperature	-20°C~+55°C
Environmental conditions – Storage Temperature	-20°C~+60°C

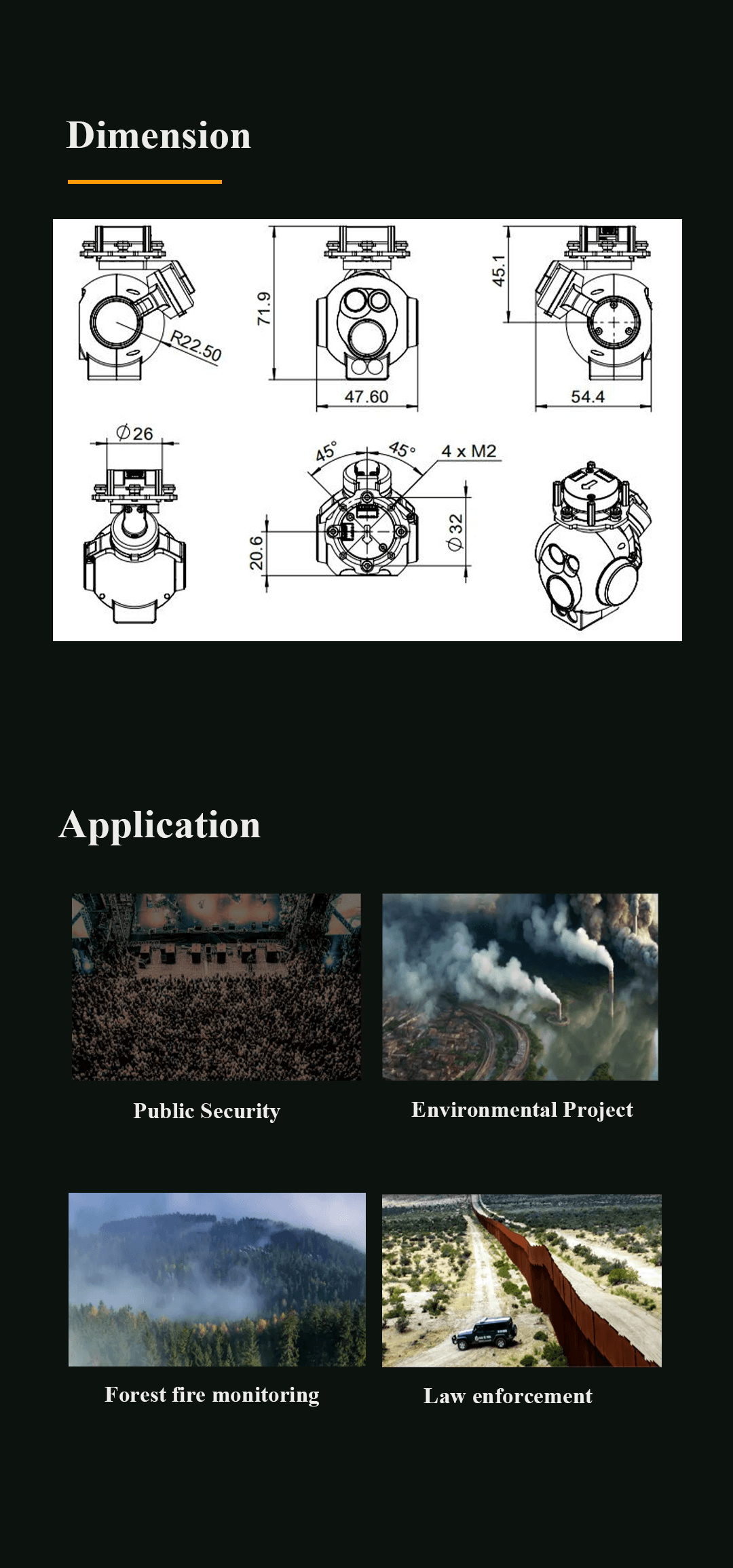

Dimension – Drawing labels	71.9, 47.60, 54.4, 45.1, R22.50, diameter 26, 20.6, diameter 32, 4×M2

4. Application Scenarios

Public Security: Supports compact airborne surveillance, target recognition, and vehicle or human tracking.
Environmental Projects: Provides EO and IR imaging for inspection, monitoring, and situational awareness tasks.
Forest Fire Monitoring: Uses IR thermal imaging and palette options to observe heat signatures and fire conditions.
Law Enforcement: Combines day/night imaging, laser rangefinding, target tracking, and OSD data for field operations.
Day-and-Night Observation: Supports continuous visible-light and thermal surveillance across changing light conditions.
Target Detection and Tracking: Helps detect, recognize, and track targets using stabilized imaging and built-in tracking functions.
