DS30A 3-Axis Dual-Light UAV Gimbal with EO/IR Thermal Imaging, Laser Ranging and Target Tracking is a three-axis dual-light pod and triple-mode micro-pod with visible-light EO imaging, IR thermal imaging, AI pedestrian and vehicle identification, target tracking, and laser ranging support. Designed for compact day/night surveillance and UAV gimbal applications, DS30A features a metal housing, n x 360deg yaw rotation, 30x continuous optical zoom, picture-in-picture display, rich OSD, and target position solution support.

Share on:

1. DS30A 3-Axis EO/IR Thermal Laser Ranging UAV Gimbal Camera Overview

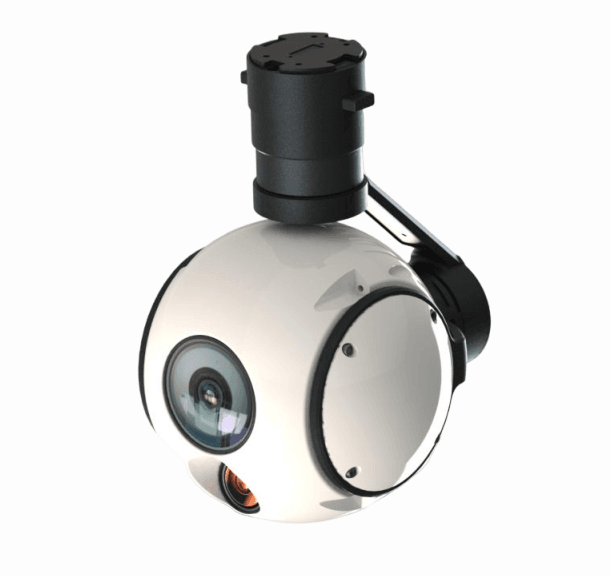

DS30A 3-Axis EO/IR Thermal Laser Ranging UAV Gimbal Camera is a compact dual-light UAV gimbal pod integrating an FHD EO visible-light camera, infrared thermal imaging, AI vehicle and human target tracking, laser ranging support, picture-in-picture display, and rich OSD overlays. Designed for day/night surveillance, public safety, inspection, and law enforcement payloads, DS30A features a 990g lightweight body, 30x continuous optical zoom, n x 360deg yaw rotation, metal CNC housing, and target position solution support.

2. Product Features

Dual-Light EO/IR Imaging:Combines an FHD EO camera and infrared IR thermal camera for day/night surveillance.
AI Target Tracking:Supports AI pedestrian and vehicle identification with automatic tracking modes.
Laser Ranging Support:Provides laser ranging support for target position solution; exact range and accuracy are not clearly shown in the numbered images.
30x Optical Zoom:Delivers 30x continuous optical zoom for smooth wide-to-tele observation without lens switching.
High-Frame-Rate EO Video:Outputs 1920×1080@60fps visible-light video with a 1/2.8-inch CMOS sensor.
Thermal Imaging:Provides 640×512@60fps infrared imaging with 24deg x 18.1deg FOV at 18mm focal length.

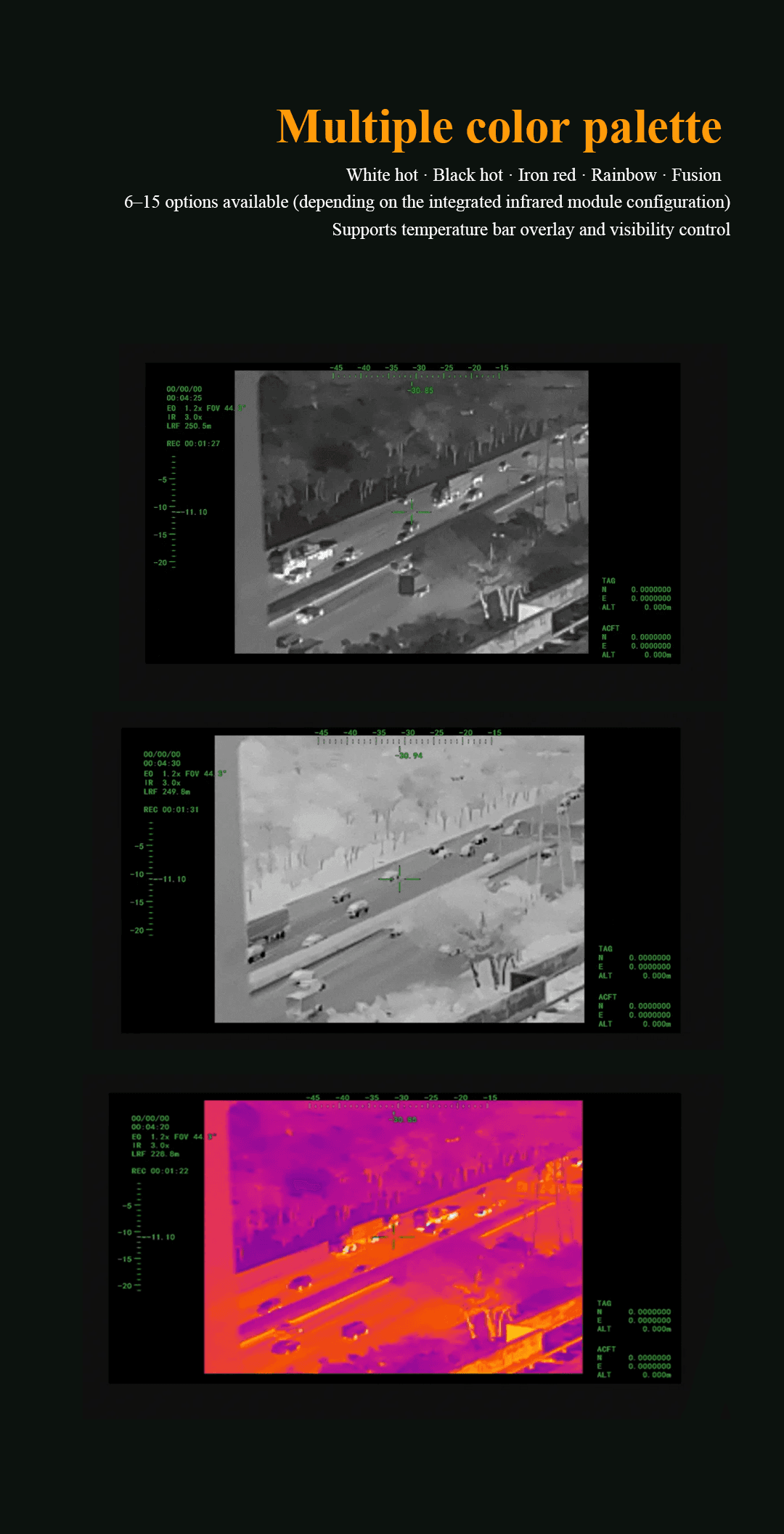

Multiple Color Palettes:Supports White hot, Black hot, Iron red, Rainbow, Fusion, and 6-15 palette options depending on the IR module.
Rich OSD and PIP:Displays camera information, target information, robot information, zoom, FOV, LRF readout, and recording state.
Three-Axis Stabilization:Supports n x 360deg yaw, -90deg to +30deg pitch, +/-45deg roll, and 0.1 mrad stabilization accuracy.
Protected Metal Housing:Fully enclosed metal housing improves protection strength, electromagnetic shielding, and heat dissipation.

3. Detailed Technical Parameters

Parameter	Specification
Product – Model	DS30A
Product – Type	Three-axis dual-light pod / Triple-mode micro-pod

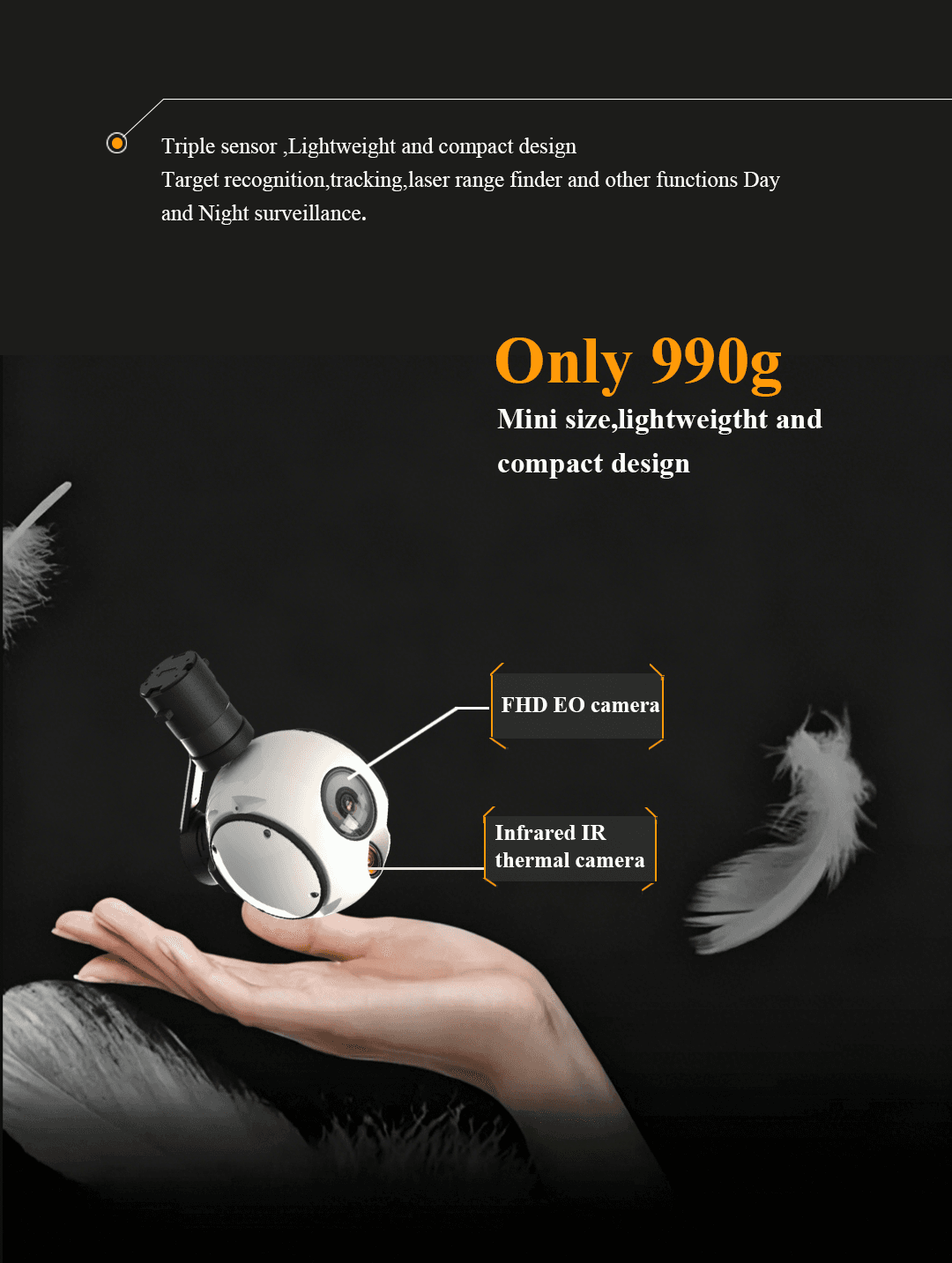

Product – Weight	Only 990g / <=990g; image text shows both expressions
Sensor Combination – EO / IR / Laser	FHD EO camera + Infrared IR thermal camera + laser ranging support

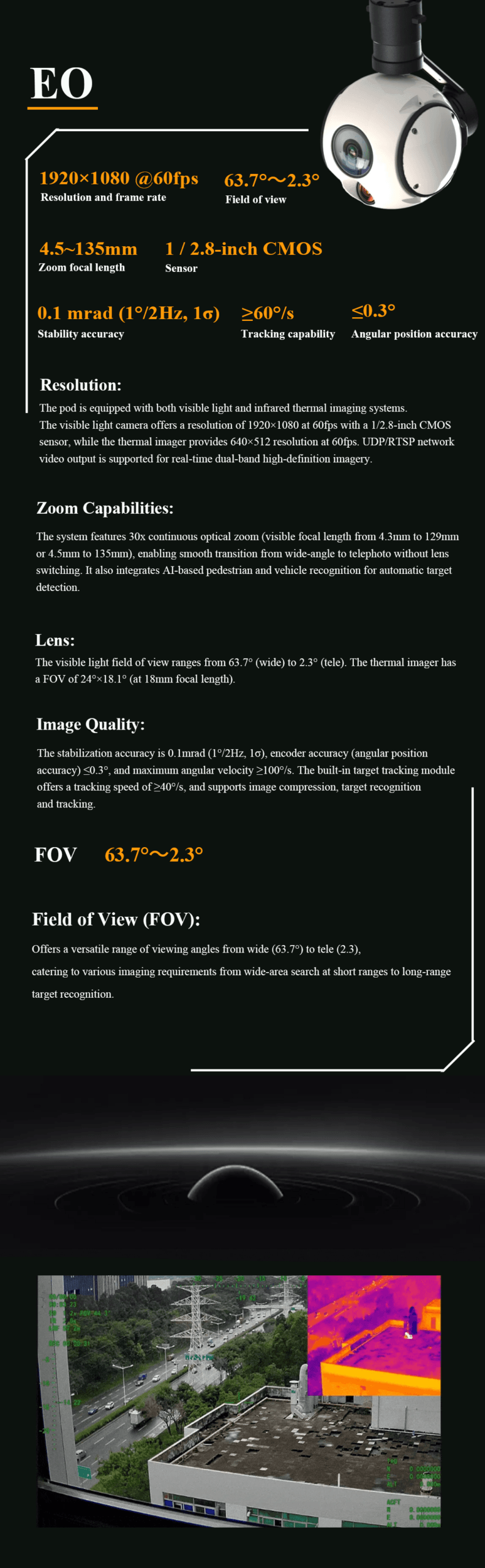

EO – Resolution and frame rate	1920×1080@60fps
EO – Field of view	63.7deg ~ 2.3deg
EO – Zoom focal length	4.5~135mm; body text also mentions 4.3mm to 129mm or 4.5mm to 135mm, so the image text is inconsistent
EO – Sensor	1/2.8-inch CMOS
EO – Zoom capability	30x continuous optical zoom
EO / Platform – Stability accuracy	0.1 mrad (1deg/2Hz, 1 sigma)
EO / Platform – Tracking capability	>=60deg/s
EO / Platform – Tracking speed	>=40deg/s built-in tracking speed mentioned in image body text
EO / Platform – Angular position accuracy	<=0.3deg
EO / Platform – Maximum angular velocity	>=100deg/s
Video – Network video output	UDP/RTSP

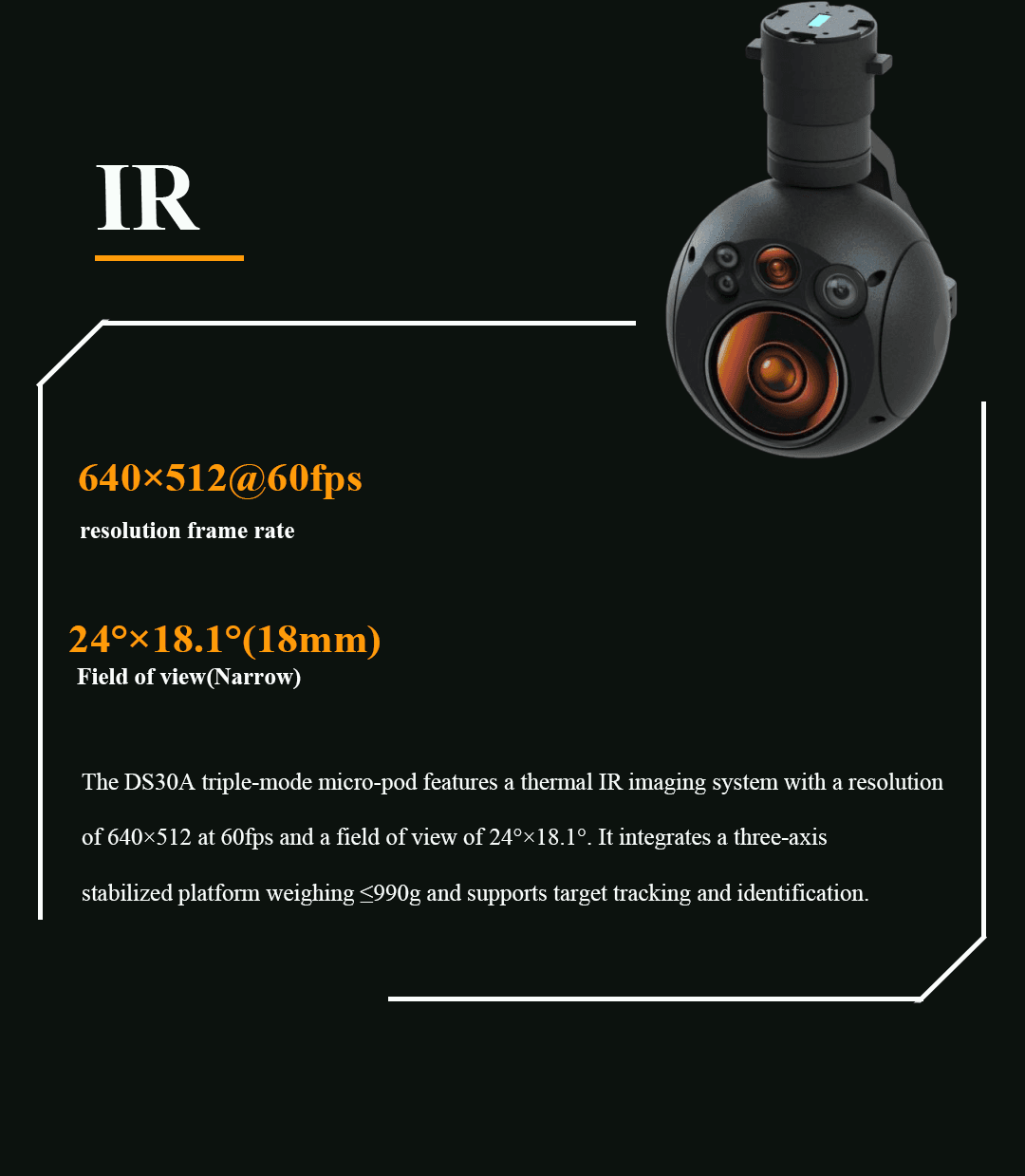

IR – Resolution and frame rate	640×512@60fps
IR – Field of view	24deg x 18.1deg
IR – Focal length	18mm
IR – Color palettes	White hot, Black hot, Iron red, Rainbow, Fusion
IR – Palette options	6-15 options depending on integrated infrared module configuration
IR – Temperature display	Supports temperature bar overlay and visibility control

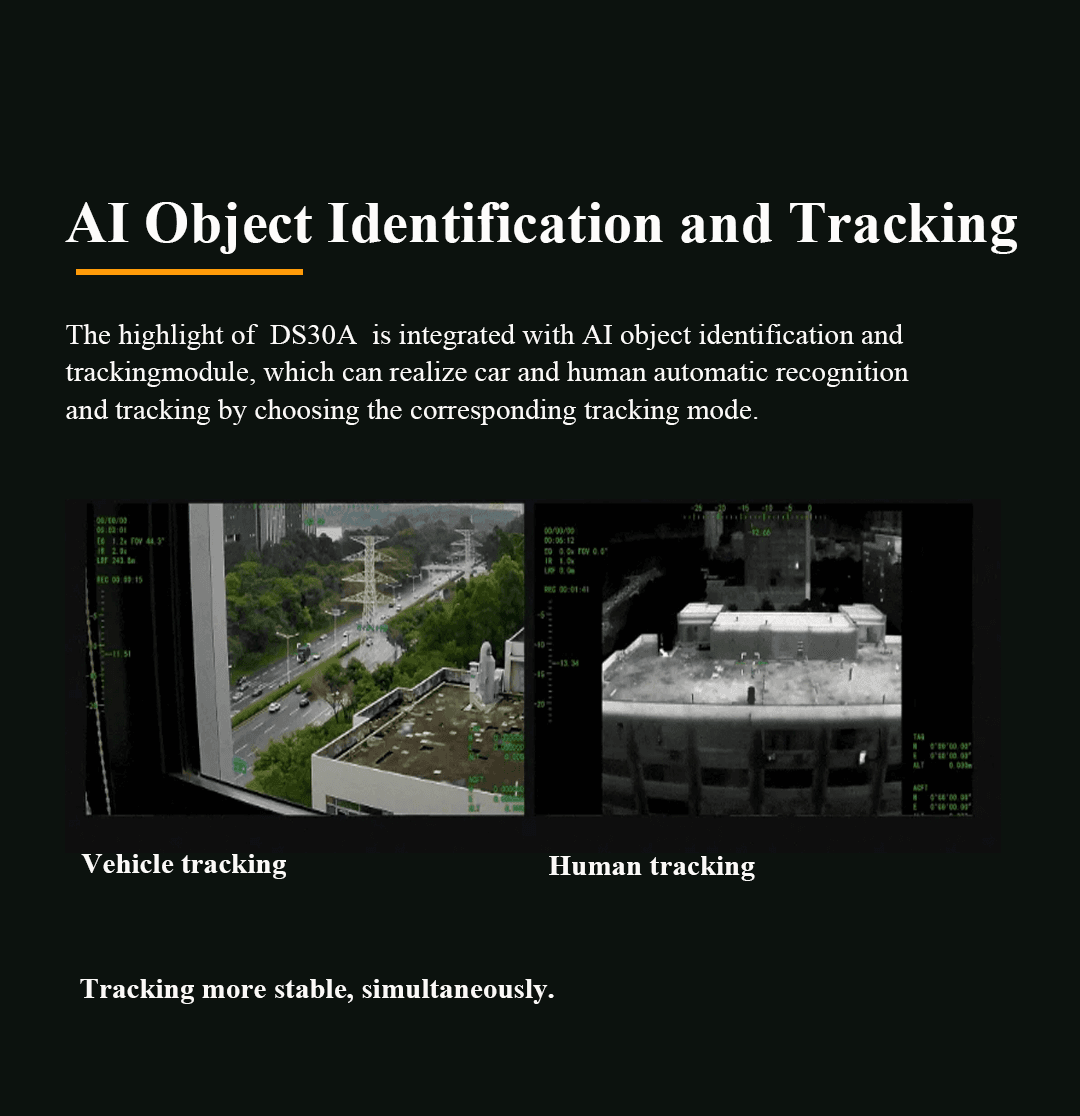

AI Tracking – Object identification	Vehicle tracking; Human tracking
AI Tracking – Tracking mode	Car and human automatic recognition/tracking by selecting the corresponding tracking mode

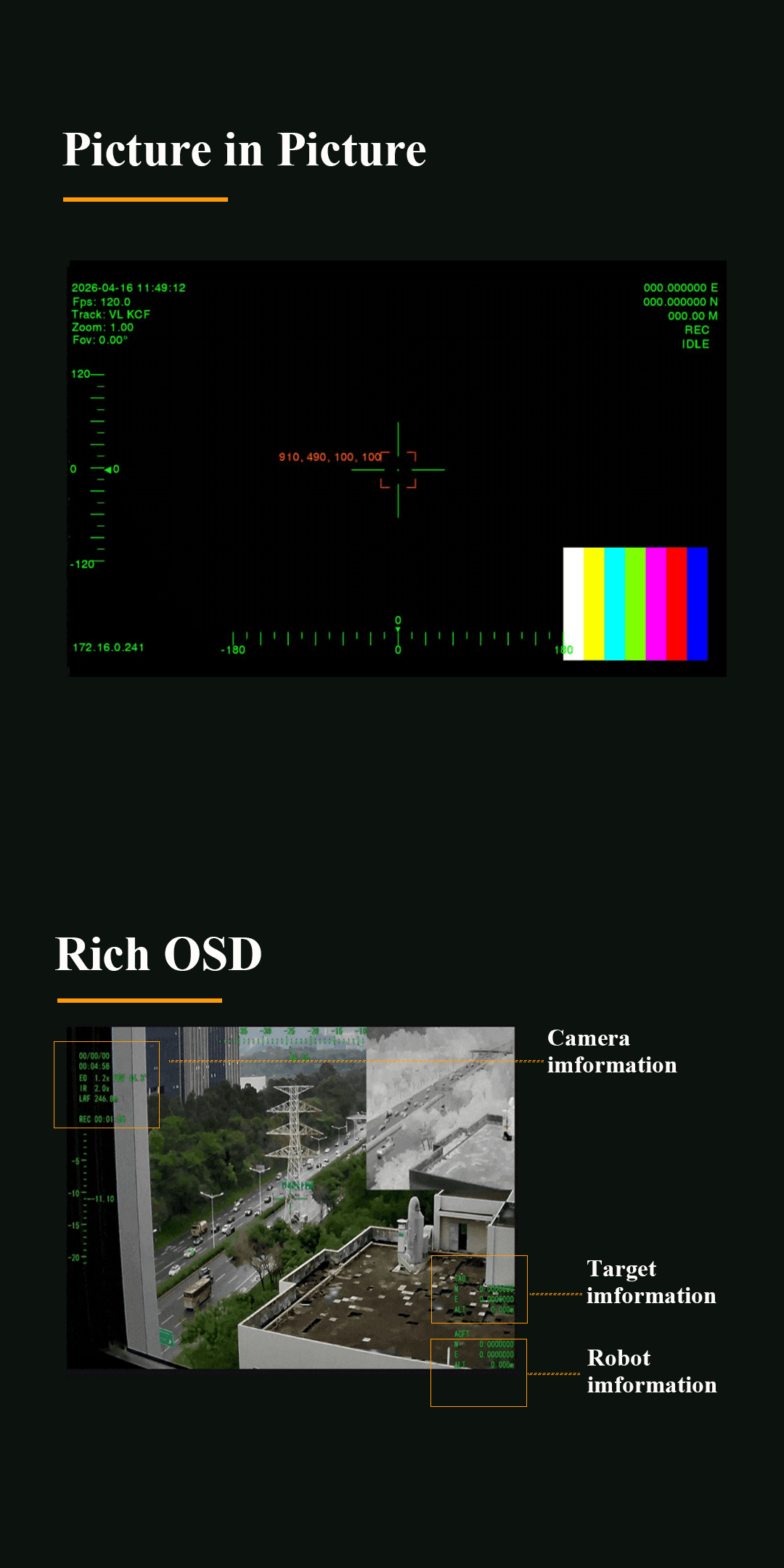

Display – Picture in Picture	Supported
Display – Rich OSD	Camera information; Target information; Robot information

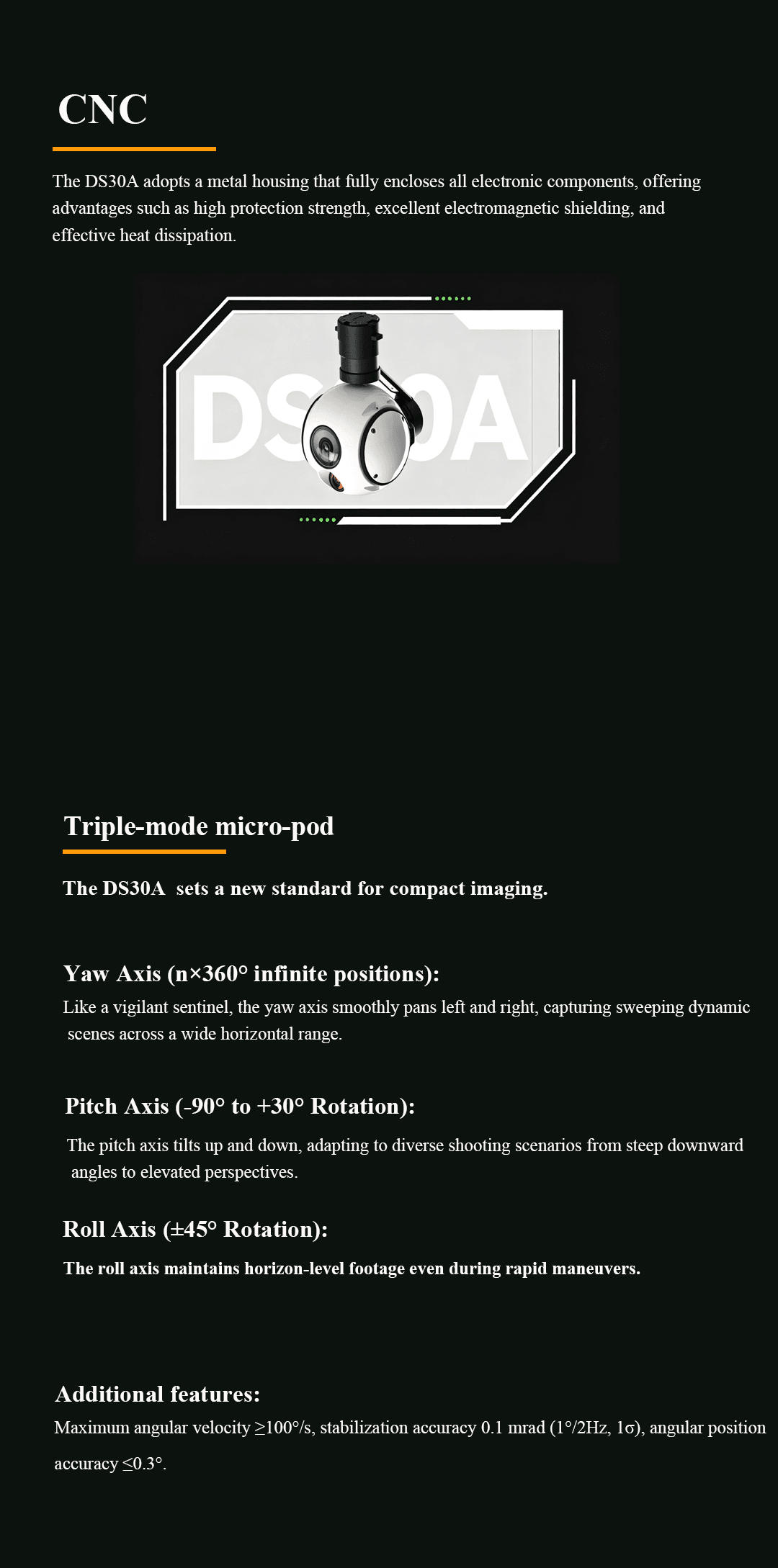

Structure – Housing	Metal housing fully encloses all electronic components
Gimbal – Yaw axis	n x 360deg infinite positions
Gimbal – Pitch axis	-90deg to +30deg rotation
Gimbal – Roll axis	+/-45deg rotation

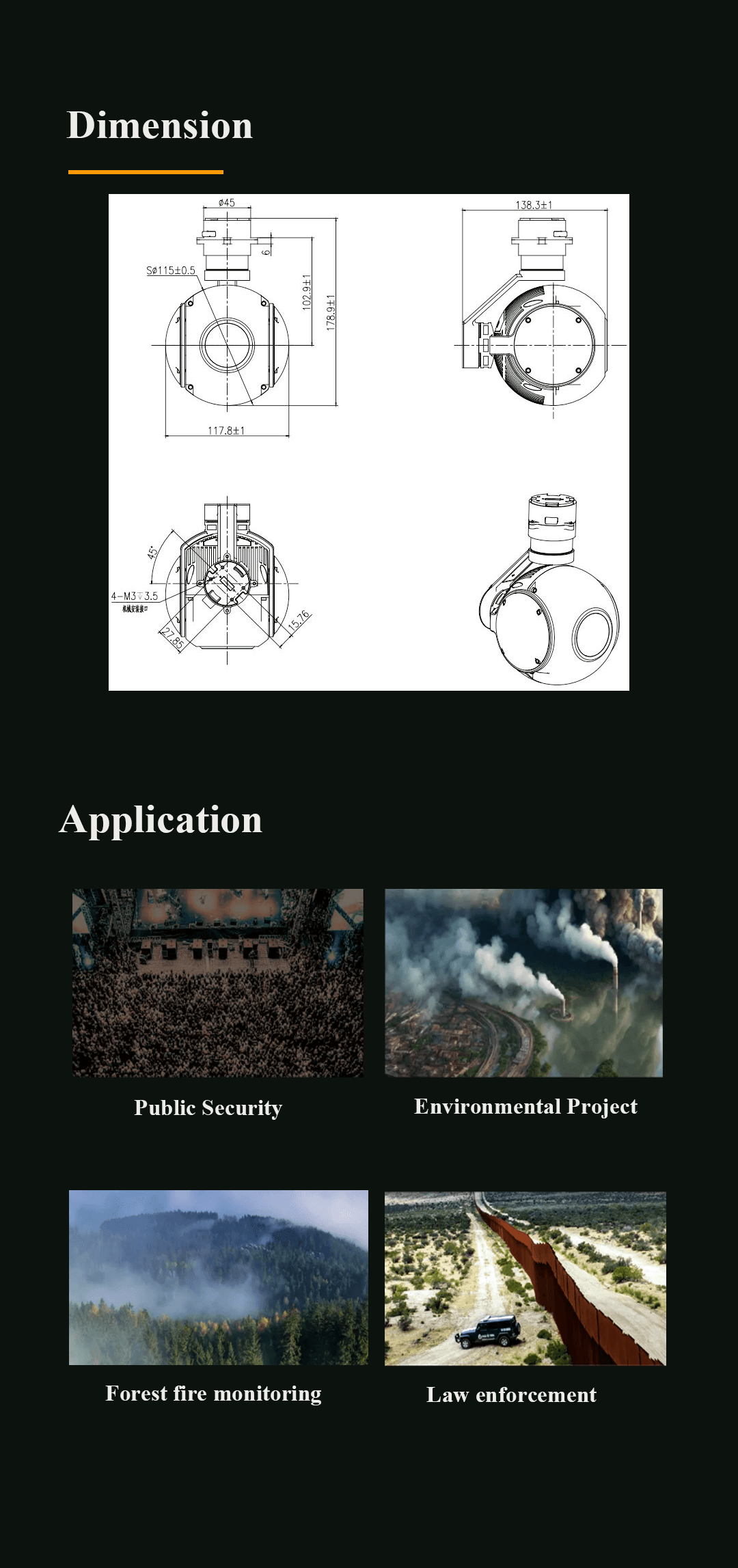

Dimension – Main drawing markings	Phi45; S Phi115+/-0.5; 102.9+/-1; 178.9+/-1; 117.8+/-1; 138.3+/-1; 4-M3 x 3.5; 45deg; 22.85; 15.76; 6; drawing units are not explicitly stated, likely mm

4. Application Scenarios

Public Security:Supports day/night monitoring with EO video, IR thermal imaging, AI recognition, target tracking, and OSD target data.
Environmental Project:Provides stabilized dual-light observation for field monitoring, heat-source inspection, and situational awareness.
Forest Fire Monitoring:Uses thermal imaging and visible-light zoom to monitor smoke, heat sources, terrain, and moving targets.
Law Enforcement:Helps patrol and inspection teams with stabilized imaging, target identification, tracking, and laser ranging support.
UAV Payload Integration:Fits UAV and robotic platforms requiring a 990g three-axis EO/IR gimbal with 30x optical zoom and AI tracking.
