DD360plus FHD EO Camera IR Thermal Imaging Laser Rangefinder UAV Gimbal Overview</h3> <p>DD360plus FHD EO Camera IR Thermal Imaging Laser Rangefinder UAV Gimbal is a triple-mode micro-pod integrating an FHD EO camera, IR thermal imaging camera and laser rangefinder in a compact UAV gimbal payload. Weighing about 450g, it supports 360 deg heading rotation, quick disassembly, 10x visible-light optical zoom, object identification and target tracking for day and night aerial or robotic surveillance.

Share on:

1. DD360plus FHD EO Camera IR Thermal Imaging Laser Rangefinder UAV Gimbal Overview

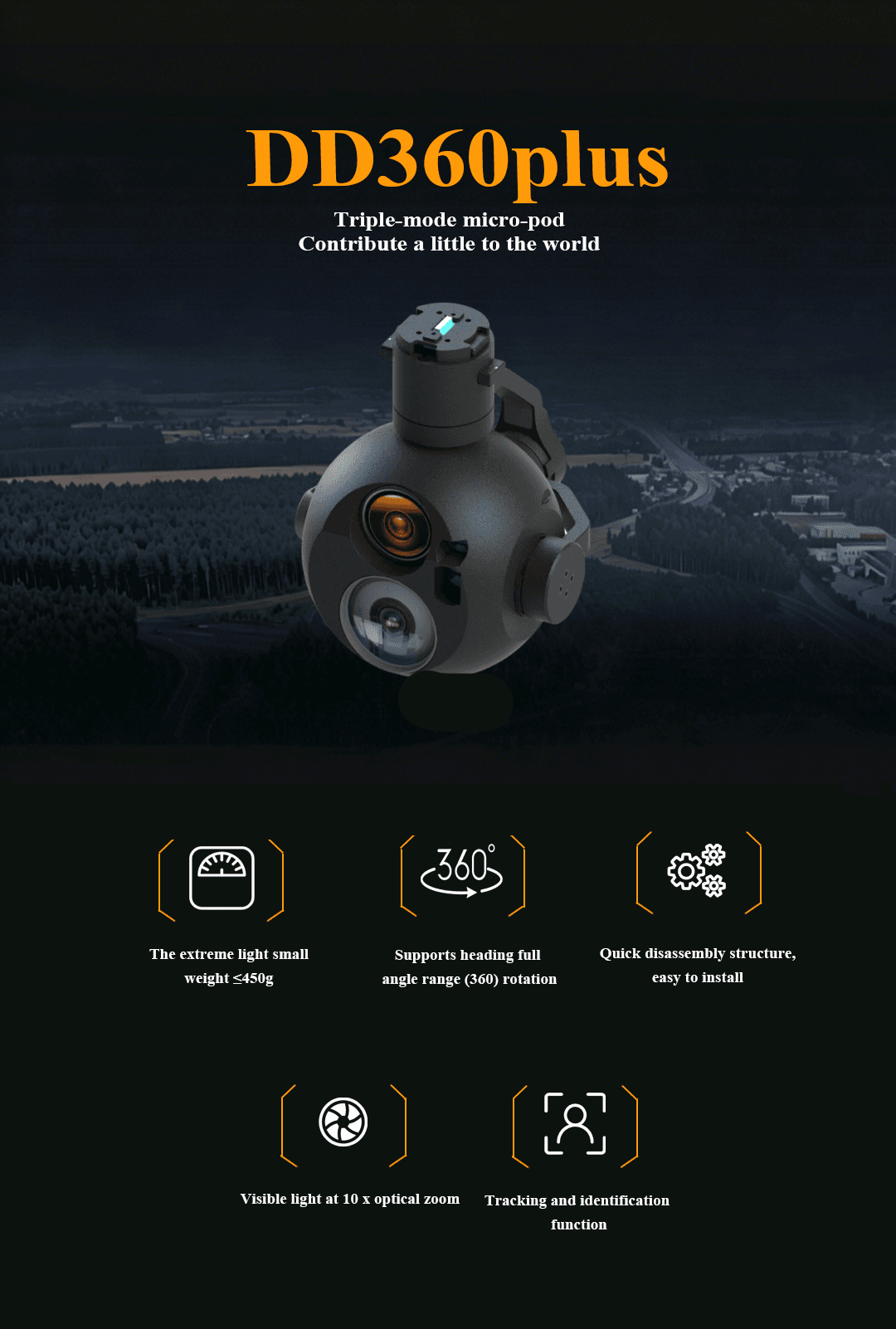

DD360plus FHD EO Camera IR Thermal Imaging Laser Rangefinder UAV Gimbal is a triple-mode micro-pod integrating an FHD EO camera, IR thermal imaging camera and laser rangefinder in a compact UAV gimbal payload. Weighing about 450g, it supports 360 deg heading rotation, quick disassembly, 10x visible-light optical zoom, object identification and target tracking for day and night aerial or robotic surveillance.

2. Product Features

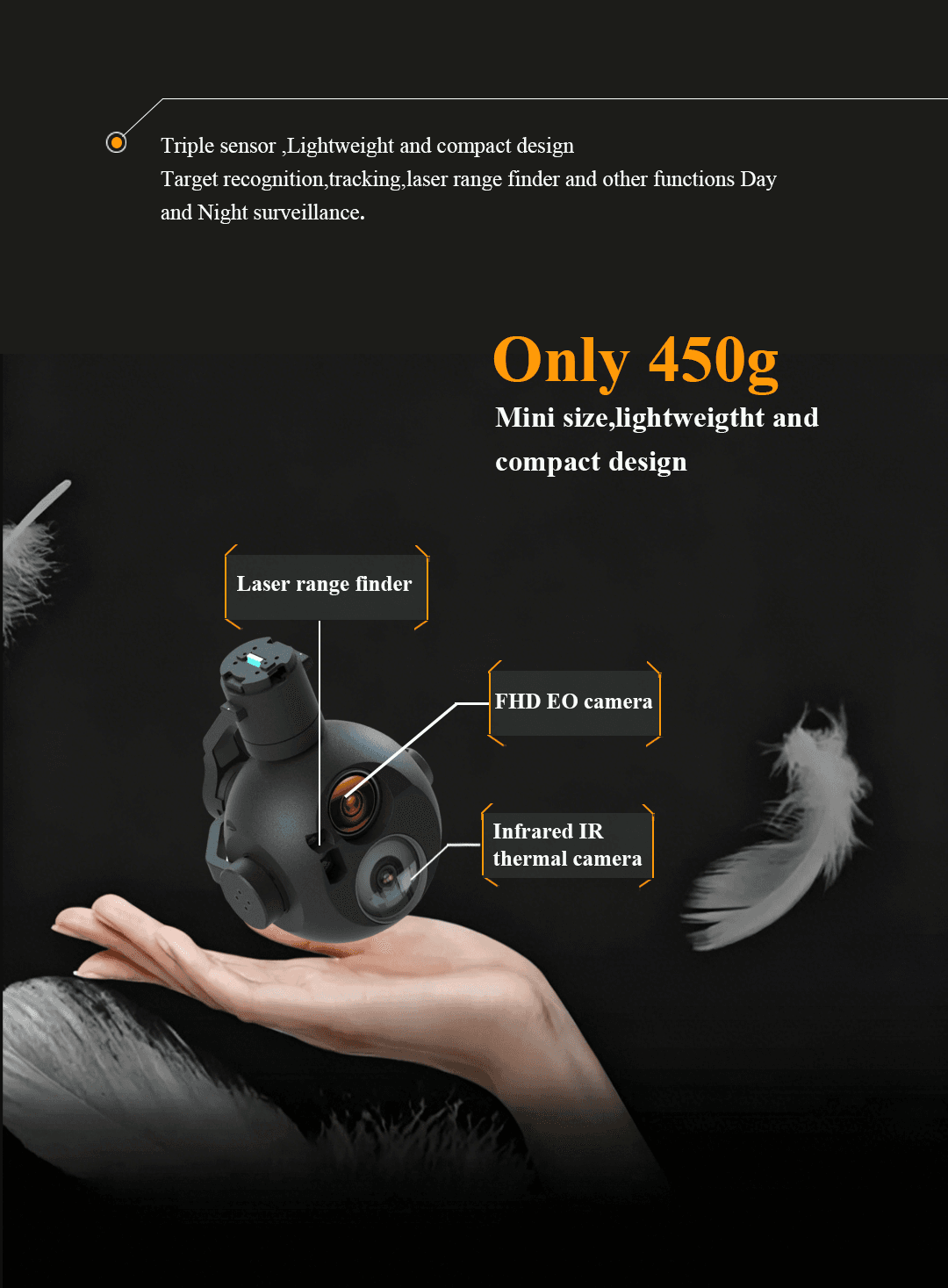

Triple Sensor Payload:Laser range finder, FHD EO camera and infrared IR thermal camera are integrated in one compact micro-pod.
Lightweight Design:The product is described as an extreme light small weight payload at <=450g / only 450g.
Full Heading Rotation:Heading full angle range 360 deg rotation supports flexible observation from UAV and robotic platforms.
Quick Installation:Quick disassembly structure makes the gimbal easy to install and remove.
Visible-Light Zoom:10x optical zoom helps capture detailed FHD EO camera imagery of distant targets.

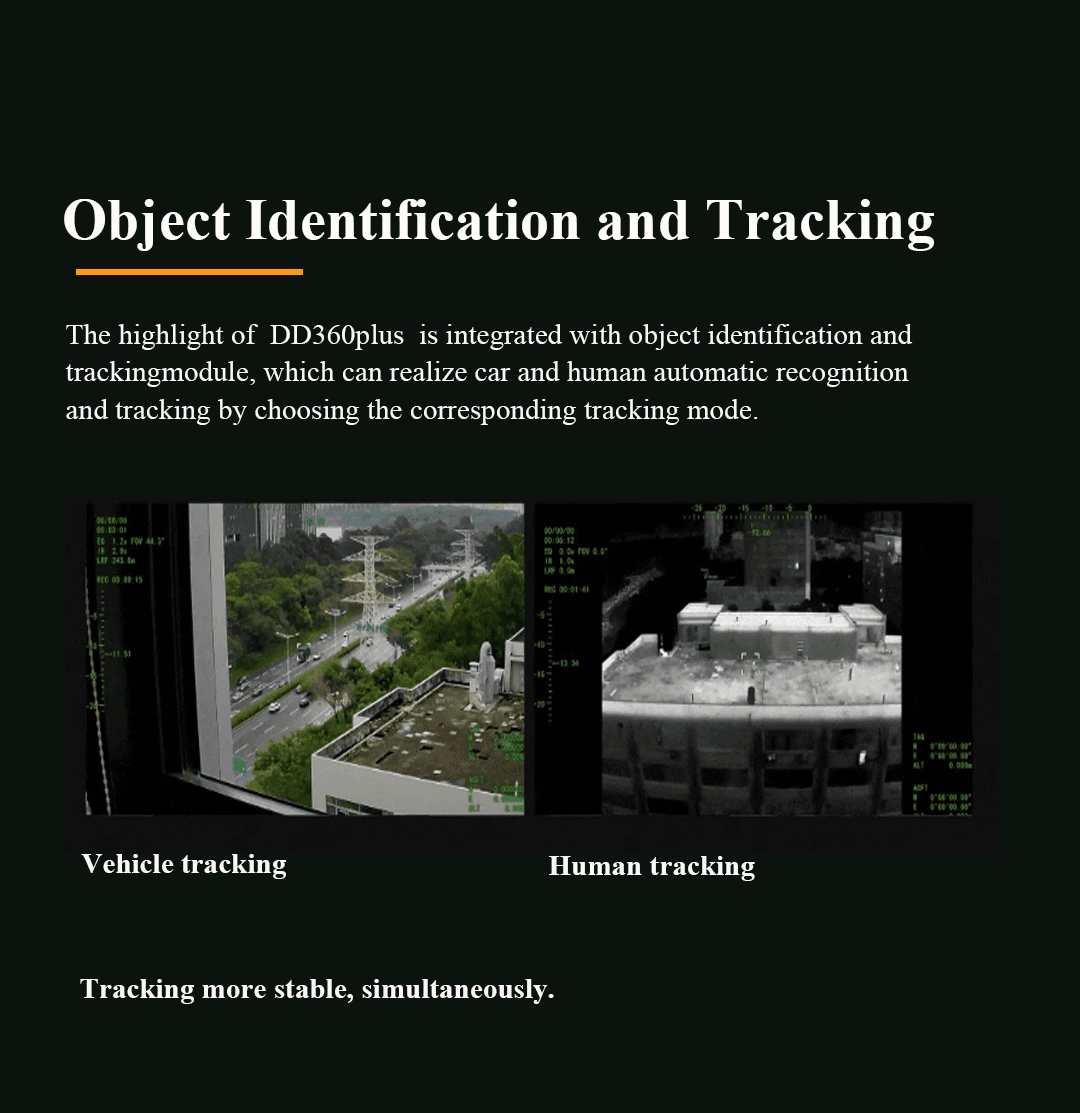

Object Tracking:Tracking and identification functions support vehicle tracking and human tracking.

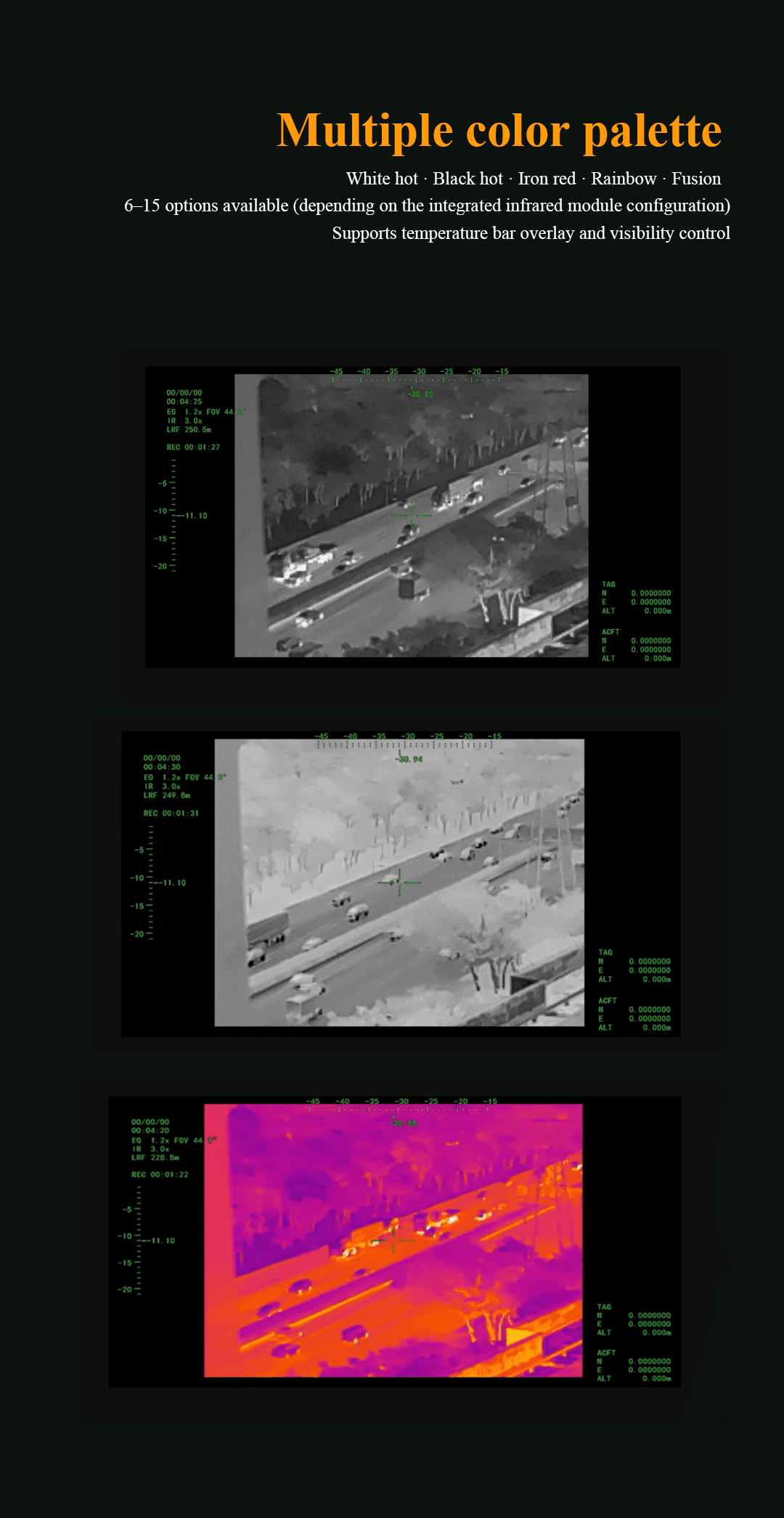

Thermal Display:Multiple IR color palettes, temperature bar overlay and visibility control improve thermal imaging usability.

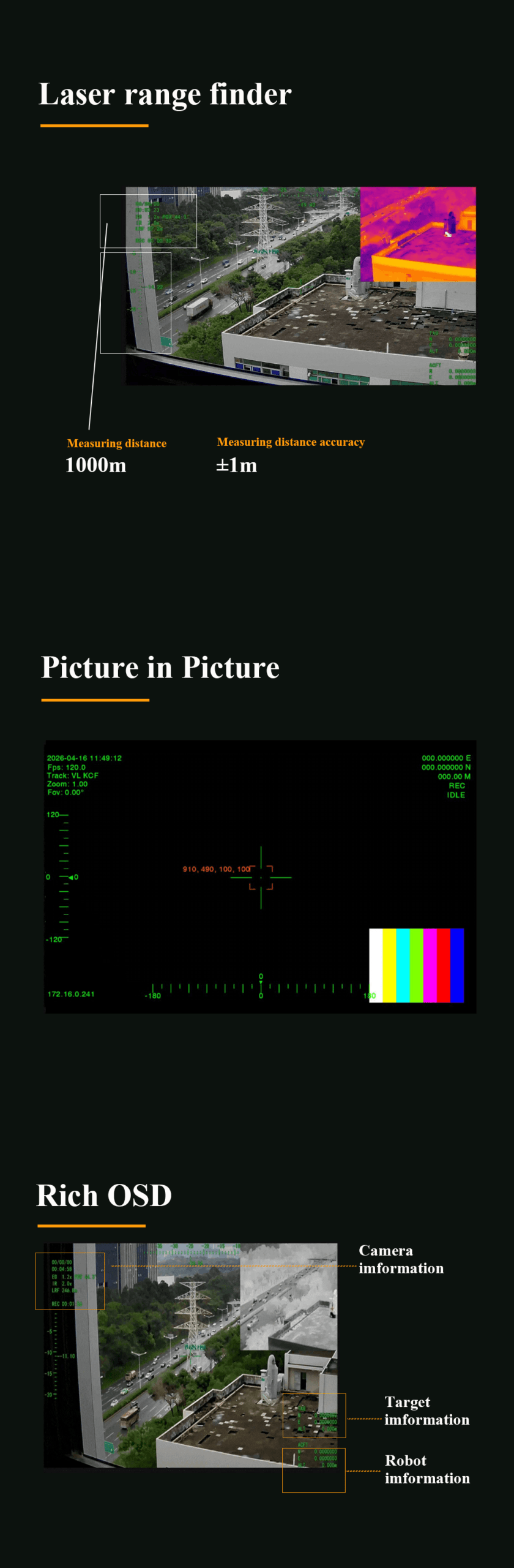

Mission OSD:Picture in Picture and rich OSD display camera information, target information and robot information.

3. Detailed Technical Parameters

Parameter	Specification
Product model	DD360plus
Product type	Triple-mode micro-pod
Sensor configuration	Laser range finder + FHD EO camera + Infrared IR thermal camera
Weight	<=450g / Only 450g
EO Resolution and frame rate	1920×1080@60fps
EO Field of view (wide)	61.3 deg x 36.9 deg
EO Field of view (tele)	6.8 deg x 3.9 deg
Visible light optical zoom	10x

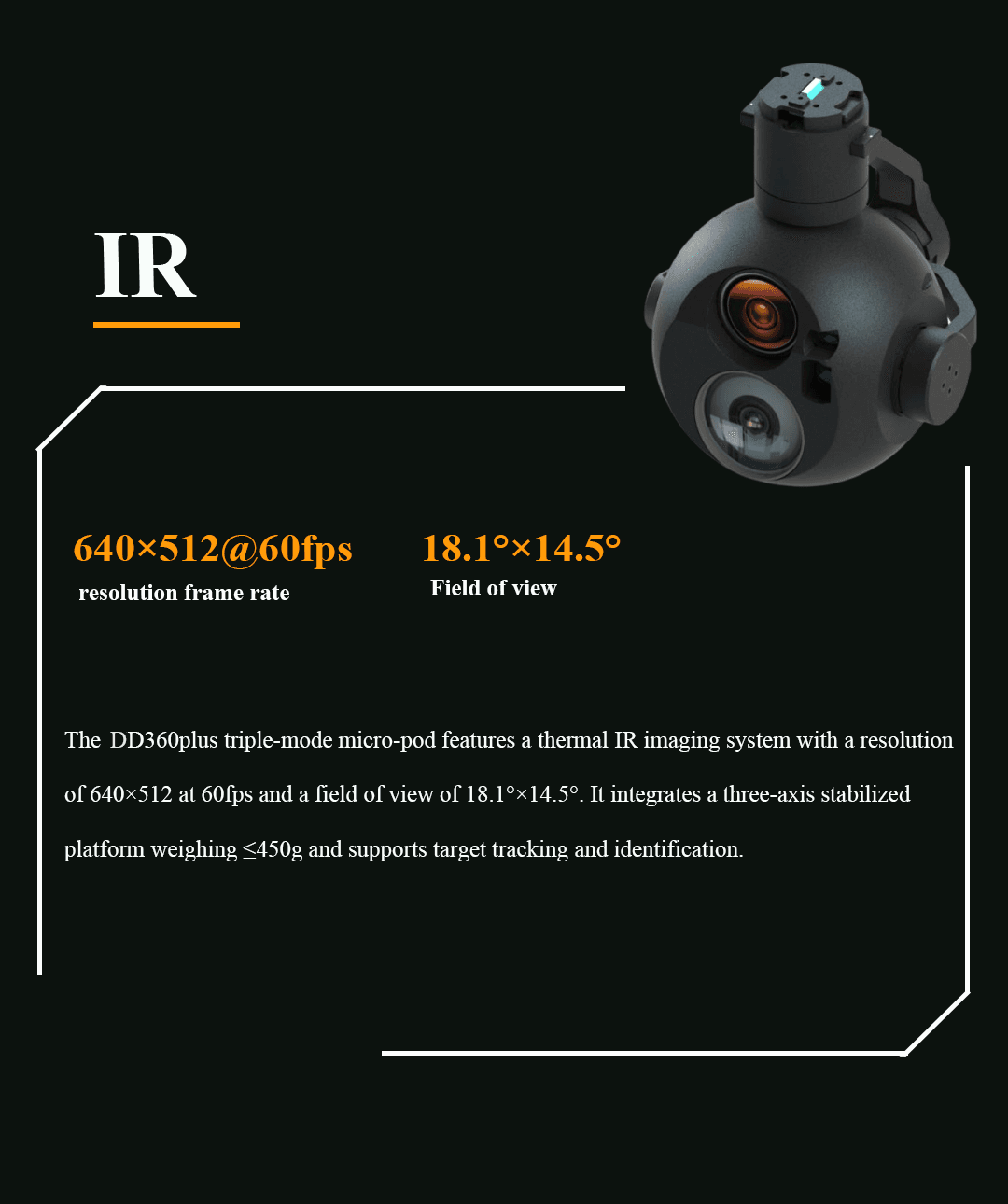

IR resolution frame rate	640×512@60fps
IR Field of view	18.1 deg x 14.5 deg
Laser range finder Measuring distance	1000m
Laser range finder Measuring distance accuracy	+/-1m
Tracking capability	>=100 deg/s; paragraph text also mentions tracking speed >=40 deg/s, 图片文字不一致
Stability accuracy	0.1 mrad (1 deg/2Hz, 1 sigma)
Angular position accuracy	<=0.3 deg
Yaw Axis	n x 360 deg infinite positions
Pitch Axis	-100 deg to +100 deg Rotation
Roll Axis	+/-45 deg Rotation
Maximum angular velocity	>=100 deg/s
Video output	network
Encoding format	H264/H265
Video storage format	MP4
Control method	RS232/TCP
Power connector	12~28V DC
Power consumption	Average<=10W, Max<=20W
Operating temperature	-20 deg C~+50 deg C
Storage Temperature	-20 deg C~+50 deg C

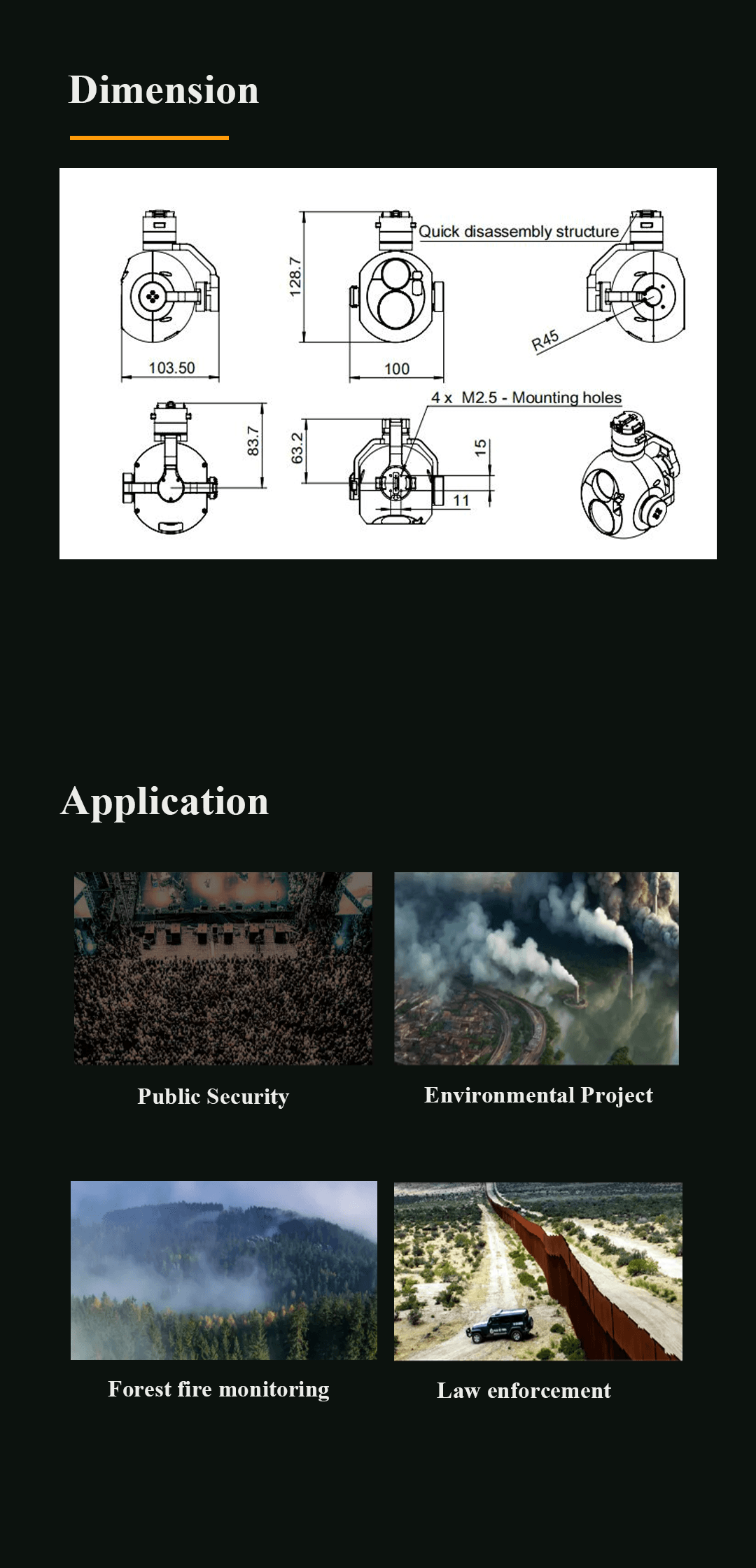

Dimension drawing values	103.50, 100, 128.7, 83.7, 63.2, 15, 11, R45; drawing unit not shown
Mounting holes	4 x M2.5 – Mounting holes
Structure	Quick disassembly structure

4. Application Scenarios

Public Security:Combines EO camera, IR thermal imaging and laser rangefinder functions for security patrol and target observation.
Environmental Projects:Supports visible and infrared monitoring for environmental inspection from compact aerial or robotic systems.
Forest Fire Monitoring:Uses thermal imaging and stabilized gimbal observation to support forest fire monitoring tasks.
Law Enforcement:Provides object identification, vehicle tracking and human tracking for law enforcement surveillance scenarios.
