DAH16 Drone Controller: 1080P HD Transmission for Long-Range UAV Missions
Built for Clearer Control in Demanding UAV Operations
The DAH16 drone controller is designed for professional operators who need dependable control, clear video, and flexible connectivity in the field. This long-range drone controller combines a 7-inch IPS high-brightness display with 1080P digital video transmission, data transmission, and telemetry in one data link. As a result, pilots can monitor maps, camera views, and flight information from a single ground station. The H16 version supports a stated transmission range of 5–10 km, while the H16 PRO version extends that range to 20–30 km. Actual results depend on the selected model, environment, antenna position, and operating conditions. Moreover, the system supports multirotors, helicopters, fixed-wing aircraft, unmanned vehicles, and unmanned boats. It is therefore suitable for aerial photography, mapping, inspection, surveillance, and other industrial missions.
The controller also addresses common field problems, including sunlight glare, limited battery life, weak connectivity, and difficult environmental conditions. Its 7-inch screen is promoted for visibility in direct sunlight, while dual adjustable antennas support signal coverage and stable communication. In addition, an integrated 20,000mAh high-energy-density lithium-ion battery supports 36W fast charging. Product graphics state approximately two hours of charging for 10–15 hours of operation, while the technical specification lists a broader 6–20-hour endurance range. Therefore, users should confirm the exact configuration and expected runtime before deployment. Built with silica gel, frosted rubber, stainless steel, and aviation aluminum alloy, the DAH16 is presented as dustproof, splash-resistant, waterproof, and drop-resistant. No numerical IP rating is shown in the available specifications.
DAH16 Drone Controller Specifications at a Glance
First, the core specifications show how the DAH16 supports demanding remote-control work. The system uses an Android embedded platform and advanced SDR technology. Additionally, the newest FHSS frequency-hopping technology is promoted to improve weak-signal communication and resistance to interference.
| Specification | Details |
|---|---|
| Model | DAH16 / H16 PRO |
| Display | 7-inch IPS high-brightness display |
| Video transmission | 1080P HD digital video transmission |
| Channels | 16 |
| Operating frequency | 2.400–2.483 GHz |
| RF power | 20 dB @ CE / 23 dB @ FCC |
| Controller voltage | 4.2 V |
| Weight and dimensions | 1034 g; 272 × 183 × 94 mm |
| Battery | 20,000 mAh integrated lithium-ion battery |
| Charging | USB Type-C; 36 W fast charging |
| Transmission distance | H16: 5–10 km; H16 PRO: 20–30 km |
Why the DAH16 Drone Controller Improves Mission Visibility
The central 7-inch display gives operators more room to review live information. It is shown displaying satellite maps, telemetry, and camera-preview panels. Consequently, pilots can make decisions without relying on a small external screen. The high-brightness panel is intended to remain readable outdoors, including conditions with direct sunlight.

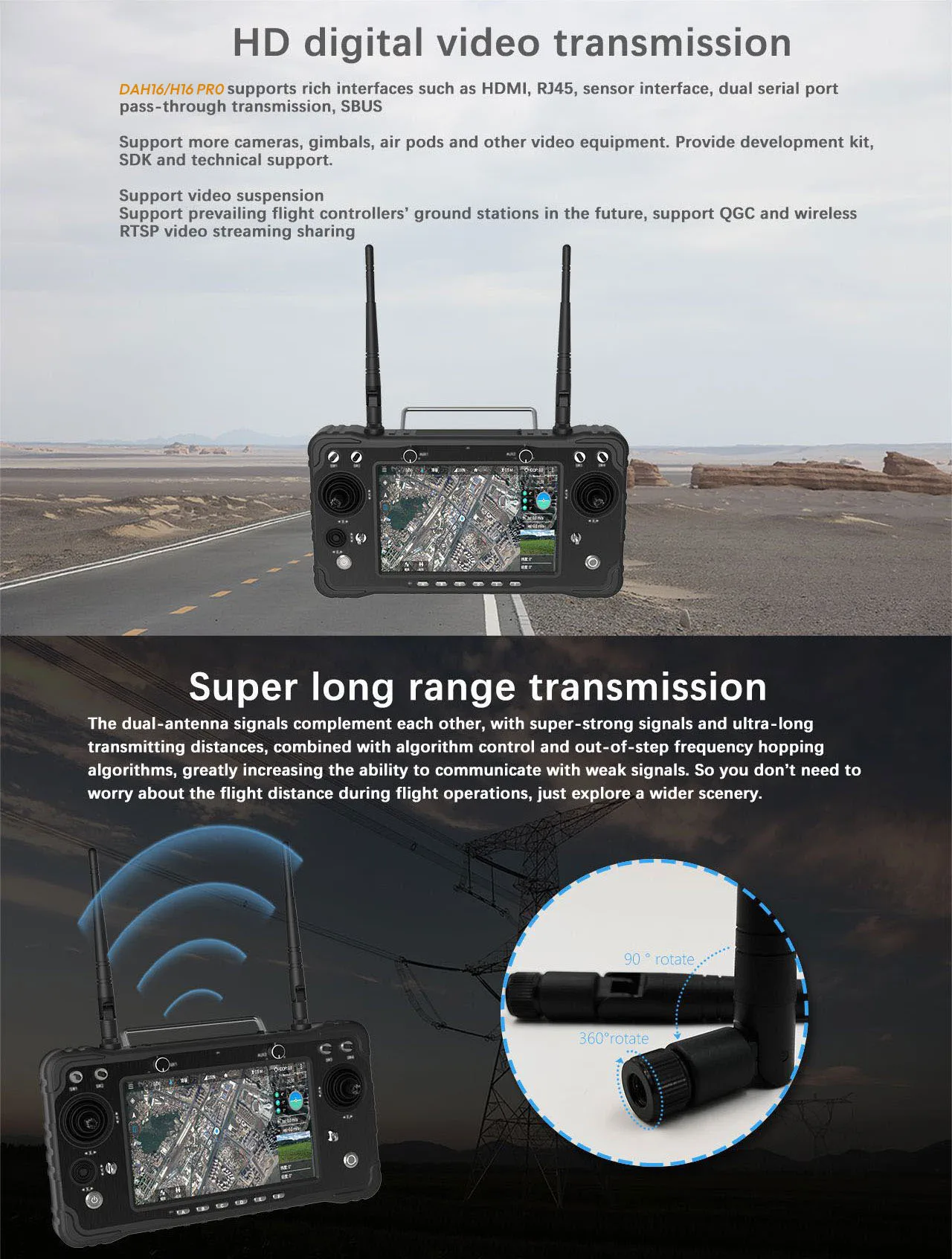

The DAH16 also combines video, data, and telemetry through one digital link. This arrangement helps reduce the need for separate monitoring equipment. Furthermore, the controller supports cameras, gimbals, air pods, and other video devices. An independent two-dimensional gimbal joystick provides separate, smooth gimbal control, which is useful when the aircraft and camera need different adjustments.
Flexible Interfaces for Professional UAV Systems

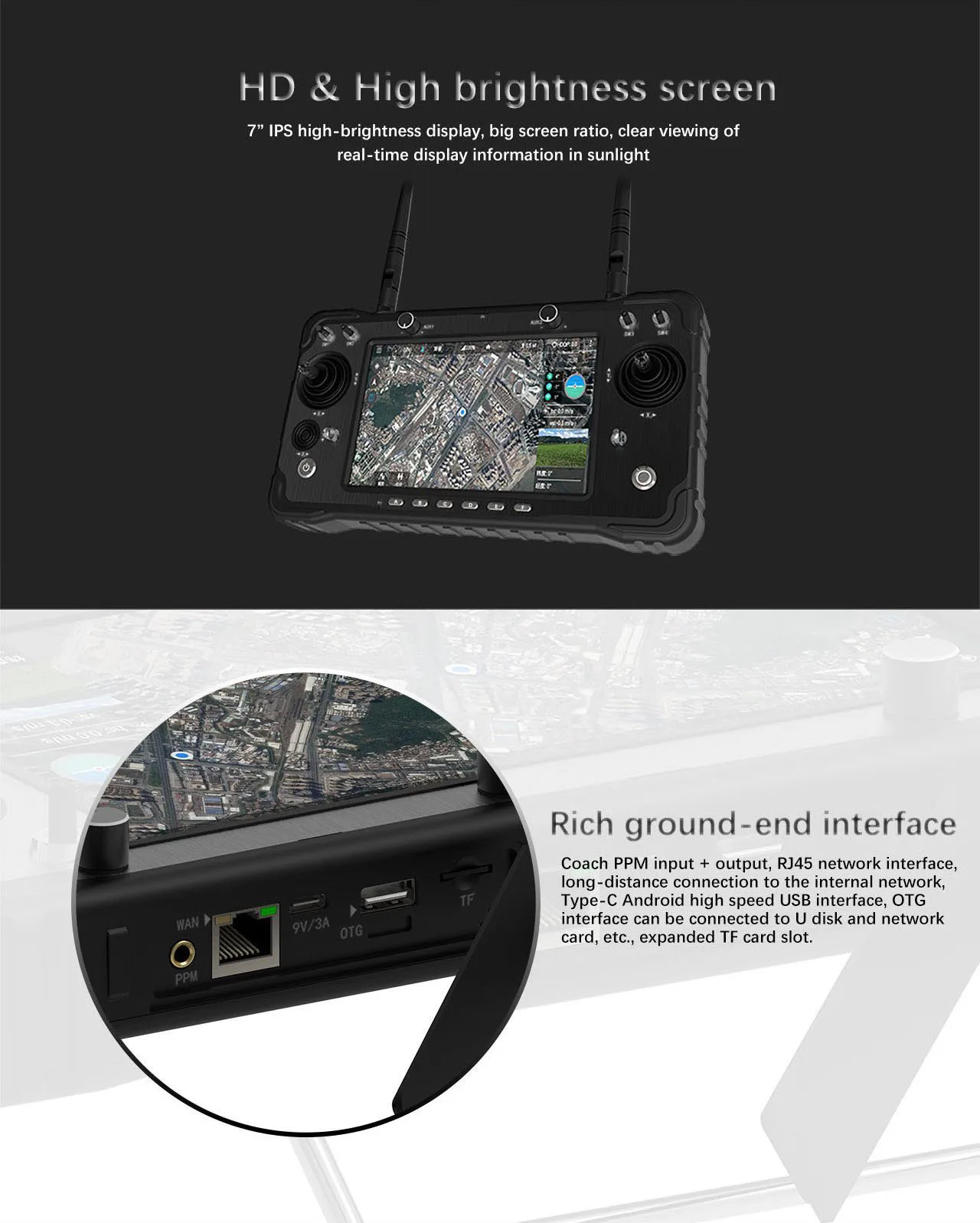

Connectivity is another major strength. The ground-end interfaces include HDMI, PPM input and output, RJ45 network, Type-C, Android high-speed USB/OTG, USB, and a TF card slot. In addition, the system supports sensor connections, dual serial-port pass-through, and SBUS. HDMI and RJ45 inputs are identified for both the H16 and H16 PRO configurations.
- HDMI supports external video and display equipment.
- RJ45 enables long-distance connection to an internal network.
- USB and OTG can connect devices such as flash drives and network cards.
- TF card storage provides additional space for supported data.
- An open SDK and development support can help with system integration.
The separate DAR16 receiver has 16 channels, a 7.2–72 V working-voltage range, 20 dB @ CE / 23 dB @ FCC RF power, and dimensions of 76 × 59 × 11 mm. Its listed weight is 90 g. Meanwhile, the air-unit data-link graphic identifies MIPI, HDMI, antenna, internet, BAT+SBUS, Type-C, TF card, SET button, two serial ports, and an LED indicator.
Long-Range Control for Industrial Applications
The DAH16 is suited to missions where operators must work across broad or difficult terrain. For example, mapping and surveying teams can use the extended transmission range to cover larger areas before repositioning the ground station. Similarly, inspection crews can monitor power infrastructure, towers, and other assets while maintaining real-time video and telemetry.

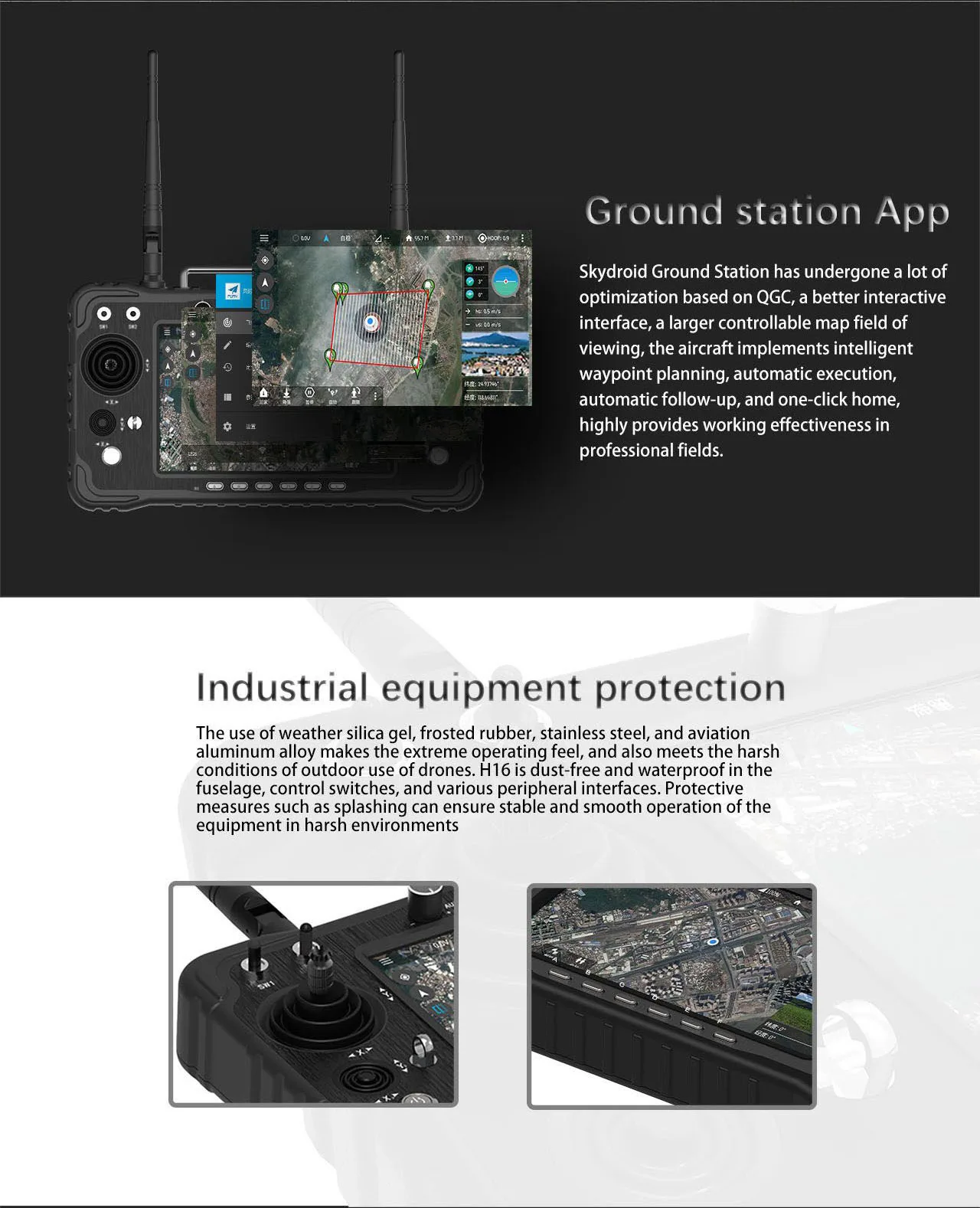

Search and rescue, security, fire-protection, border-control, and robotic operations can also benefit from the system’s control and monitoring functions. The Skydroid Ground Station app is shown with intelligent waypoint planning, automatic execution, automatic follow-up, and one-click return-home functions. However, users should verify software compatibility with their aircraft and flight controller before purchase. Online app updates are supported, and future graphics reference compatibility with common ground stations, QGC, and wireless RTSP video sharing.
Who Should Consider the DAH16?
The DAH16 is a strong fit for professional teams that need more than basic manual flight control. It brings together a sunlight-readable display, long-range communication, multiple interfaces, and industrial protection in one platform. Therefore, it may suit operators working in aerial photography, FPV, surveying, mapping, infrastructure inspection, surveillance, emergency response, and robotics.
- Choose the H16 for stated 5–10 km transmission requirements.
- Choose the H16 PRO for stated 20–30 km transmission requirements.
- Consider the system when live 1080P video and telemetry are essential.
- Review the interface list when integrating cameras, gimbals, sensors, or networks.
Overall, the DAH16 drone controller focuses on visibility, integration, and endurance. Its rugged construction supports outdoor work, while its display and data link help operators stay informed. For the best result, match the controller configuration to the aircraft, mission distance, local regulations, and required accessories.
