10-Inch Drone Frame: D-RACK-10 FPV Build Review
A Closer Look at the D-RACK-10 FPV Platform

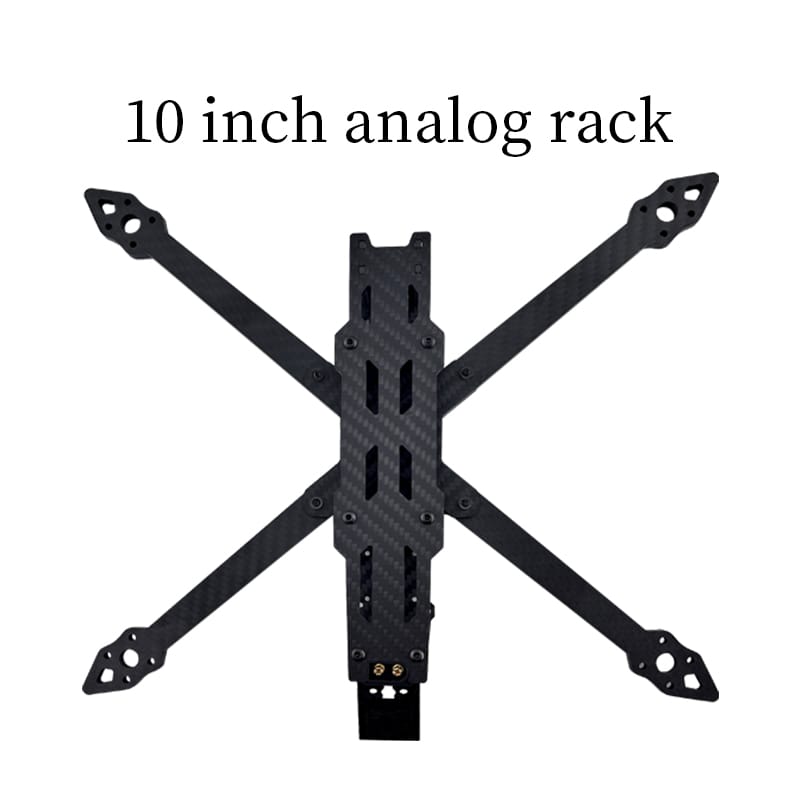

The D-RACK-10 10-inch drone frame gives FPV builders a strong and adaptable foundation. Its X-shaped layout supports stable, flexible flight attitudes, while the 195 g rack weight helps control overall build mass. In addition, the frame is designed for 10-inch propellers, 31–32 series motors, and 4S–6S batteries. Therefore, pilots can configure the aircraft around their preferred balance of power, endurance, and equipment. The 3K carbon-fiber construction has a matte-black finish and a visible woven texture. Meanwhile, stacked upper, middle, and lower plates create organized equipment space. The middle plate measures 2.5 mm, and both the upper and lower plates measure 3 mm. As a result, the central body offers a rigid mounting area for the flight controller and other onboard components. The 20 mm equipment layer height also makes installation more manageable. Furthermore, quick-detachable arms are presented as a practical advantage for field maintenance and repairs. The frame includes a dedicated front camera and equipment area, multiple mounting points, and motor-mounting holes at each arm end. Consequently, this FPV drone frame suits custom builds, field projects, and pilots who value serviceability. It is supplied as a frame or rack only, so motors, propellers, batteries, cameras, flight controllers, and other electronics must be selected separately.
10-Inch Drone Frame Specifications at a Glance
First, the specifications make the D-RACK-10 easy to evaluate before selecting electronics. The rack uses an X-shaped structure with a 420 mm diagonal wheelbase. The product-size graphic also shows a 320 mm secondary dimension. Additionally, its 19 mm camera spacing and 30.5 × 30.5 mm M3 flight-controller pattern support a straightforward installation process.
The specification graphic identifies the 420 mm diagonal measurement and the additional 320 mm dimension. It also supports the listed plate, arm, motor, camera, and flight-controller measurements. Therefore, builders can compare the frame with their planned components before assembly.
| Specification | D-RACK-10 Detail |
|---|---|
| Product type | 10-inch drone rack/frame |
| Rack type | X-shaped |
| Diagonal wheelbase | 420 mm |
| Secondary displayed dimension | 320 mm |
| Net rack weight | 195 g |
| Plate thickness | 2.5 mm middle; 3 mm upper and lower |
| Arm dimensions | 16 mm wide; 7 mm thick |
| Motor mounting | 19 mm, M3 |
| Flight-controller mounting | 30.5 × 30.5 mm, M3 |
| Compatible setup | 31–32 series motors, 10-inch propellers, 4S–6S batteries |
How the FPV Drone Frame Supports Easier Builds
The D-RACK-10 uses a layered central body with visible standoffs and multiple slots. Consequently, builders have practical locations for mounting the flight controller and other equipment. The 20 mm equipment layer height provides additional room for arranging components. In contrast to a crowded single-layer design, this separated structure can make wiring and inspection more convenient.
At the front, a dedicated camera and equipment area supports the needs of an FPV installation. Meanwhile, the frame’s multiple mounting points give builders more flexibility when positioning hardware. The 19 mm camera spacing is particularly useful when checking camera fit before final assembly. However, component compatibility should always be confirmed against the dimensions of the electronics selected.
Quick-Detachable Arms for Field Maintenance
One notable feature is the quick-detachable arm design shown in the product imagery. As a result, the frame is suited to pilots who perform maintenance away from the workshop. Faster access can simplify inspections, repairs, and component changes during field use. The 7 mm arm thickness and 16 mm arm width also provide a substantial mounting surface for the motors.
Furthermore, multiple motor-mounting holes appear at each arm end. The frame supports 31–32 series motors and maximum propeller sizes up to 10 inches. Therefore, it offers a clear starting point for a custom power system. Keep in mind that the rack itself does not include motors, propellers, batteries, or electronics.
- Quick-detachable arms support convenient field servicing.
- 7 mm arm thickness adds structural support.
- 19 mm M3 motor-hole spacing supports compatible motor installations.
- The X-shaped layout is designed for stable and flexible flight attitudes.
Who Should Choose the D-RACK-10?
This 10-inch drone frame is intended for builders assembling a custom FPV or multirotor aircraft. For example, it can suit hobby pilots, aerial imaging builders, and users preparing a larger platform for inspection or monitoring work. Its 4S–6S battery recommendation gives builders room to choose an appropriate power configuration. Nevertheless, the final flight characteristics depend on the selected motors, propellers, electronics, battery, and payload.
Moreover, the frame’s organized mounting structure benefits pilots who want a cleaner installation. The black carbon-fiber appearance also gives the completed build a purposeful technical look. In addition, the serviceable arm design can be valuable for frequent flyers. Before purchasing, verify that your planned components match the listed hole patterns and available equipment space.
- Custom FPV and 10-inch multirotor builds
- Aerial photography and videography platforms
- Agricultural monitoring projects
- Industrial inspection and field-service applications
- Builders who prefer replaceable, quick-detachable arms
Start Your Custom FPV Build
Overall, the D-RACK-10 provides a capable foundation for a 10-inch custom aircraft. It combines a lightweight 195 g rack, durable 3K carbon-fiber construction, layered equipment mounting, and quick-detachable arms. Additionally, the 420 mm wheelbase and 4S–6S support give builders a practical basis for component selection. If the dimensions match your electronics, this FPV drone frame can help you create a serviceable and well-organized build.
