10-inch Drone Rack

SKU:D-RACK-10

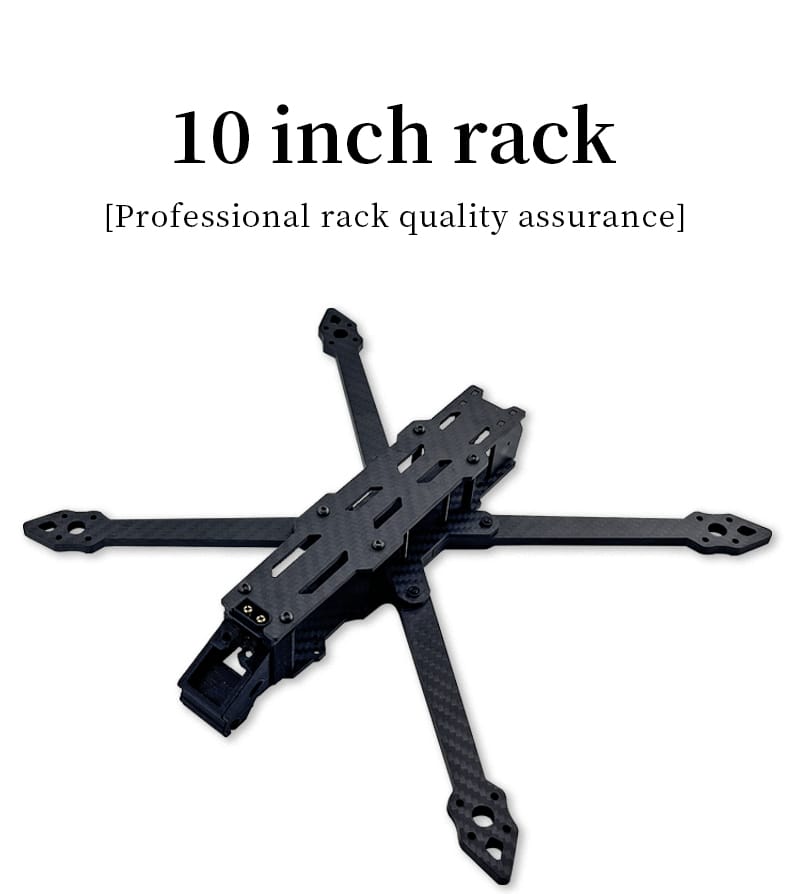

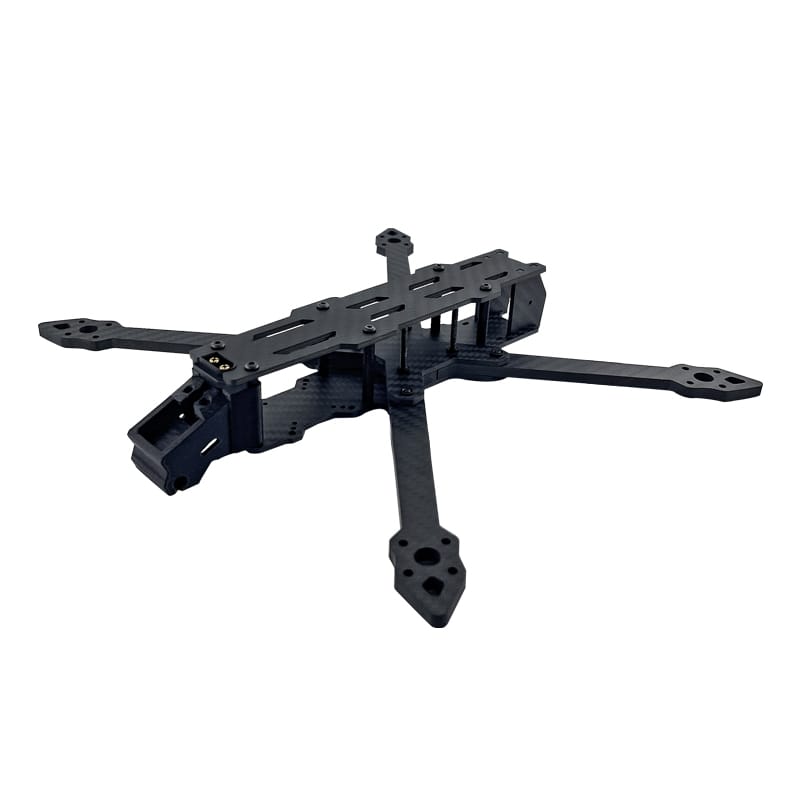

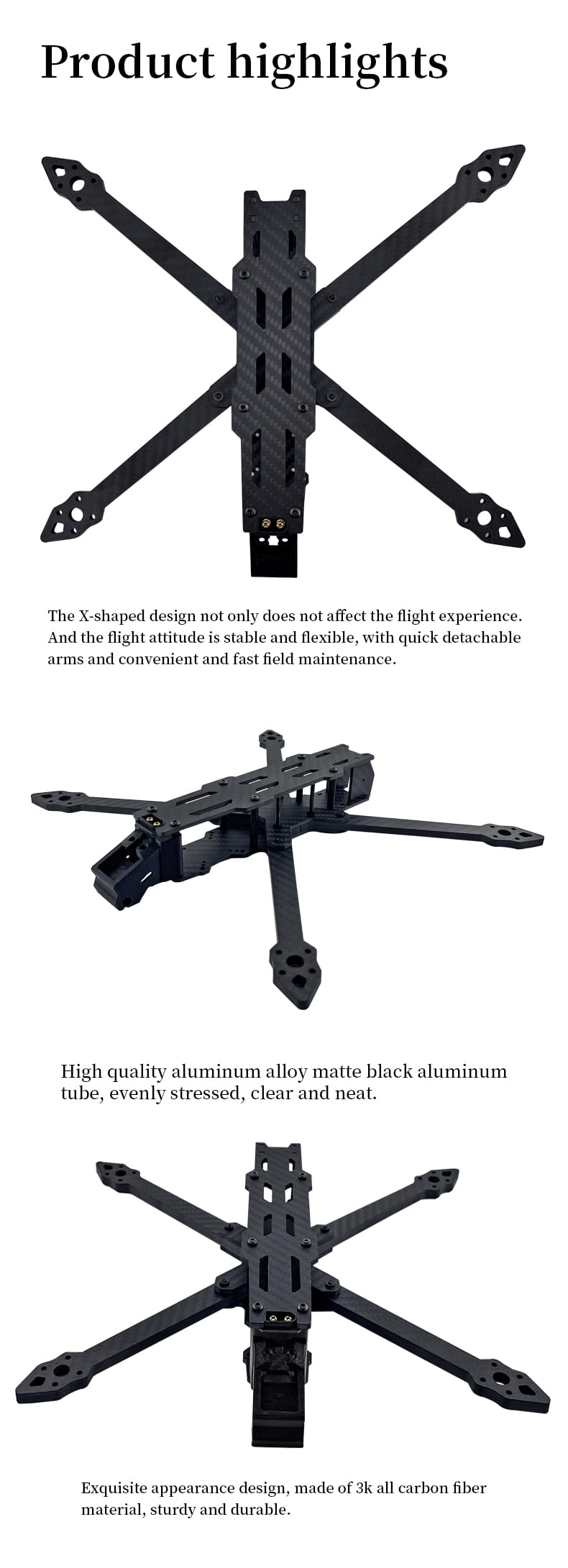

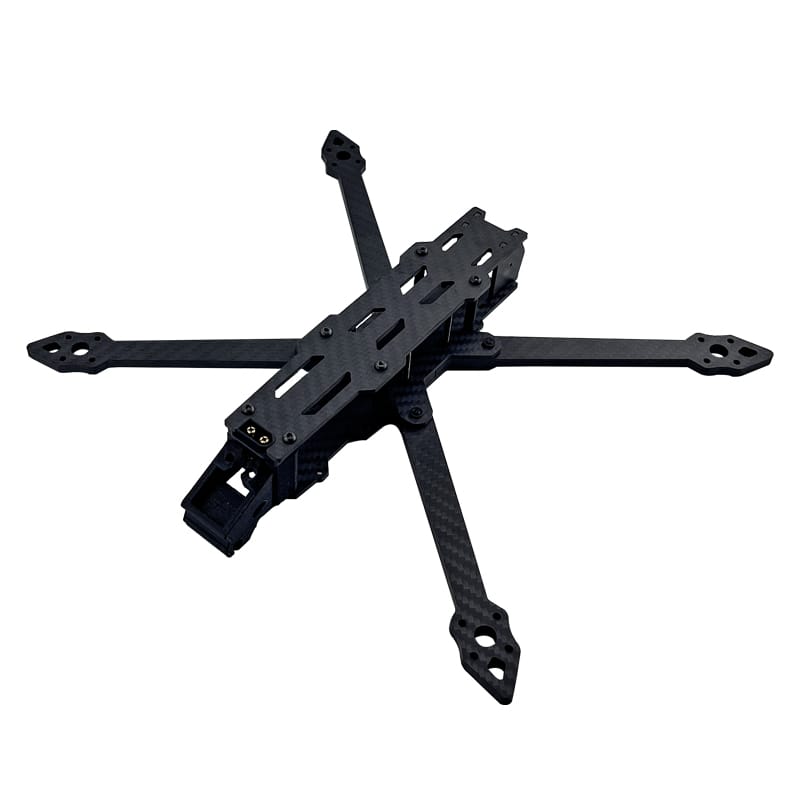

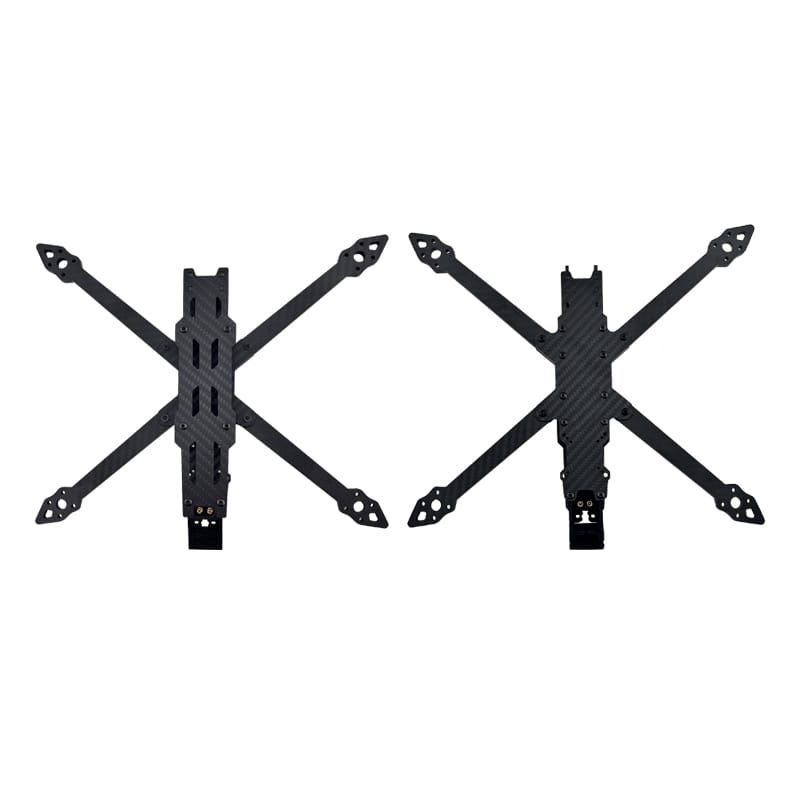

10-inch drone rack features an X-shape design with quick detachable arms and a stable and flexible flight attitude, made of high-quality aluminum alloy and 3K full carbon fiber material for durability, supports up to 10-inch paddles, recommended 31-32 series motors, suitable for 4S to 6S batteries, with a compact size of 320mm and a lightweight design of 195g.
Add To Quote

Share on:

D-RACK-10 10-inch Drone Rack

D-RACK-10 10-inch Drone Rack

D-RACK-10 10-inch Drone Rack

D-RACK-10 10-inch Drone Rack

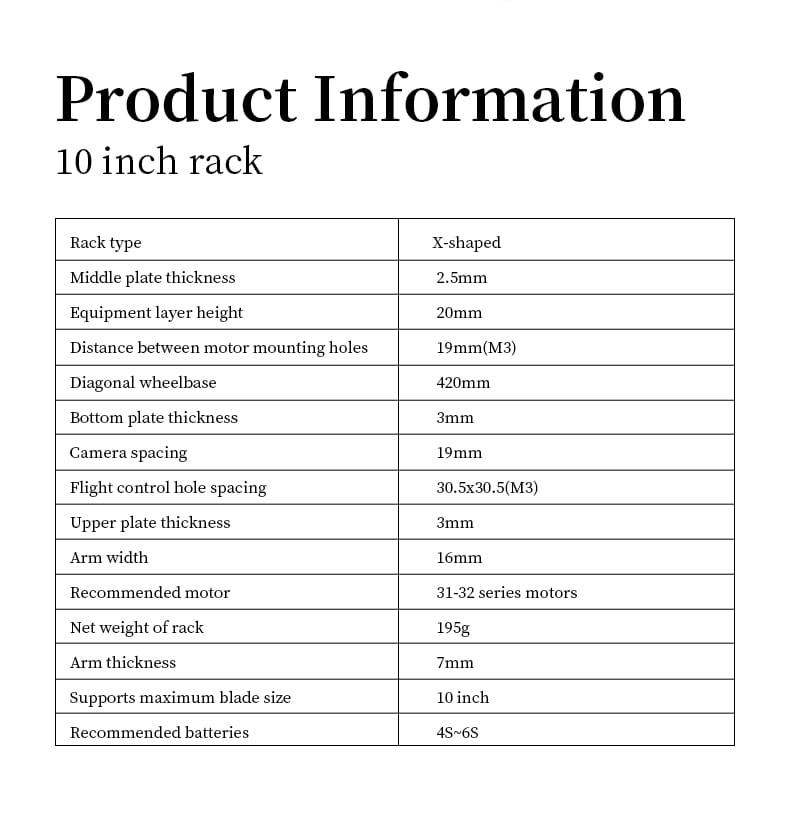

Product Parameter Information

Rack TypeX-shaped
Middle Plate Thickness2.5mm
Equipment Layer Height20mm
Distance Between Motor Mounting Holes19mm (M3)

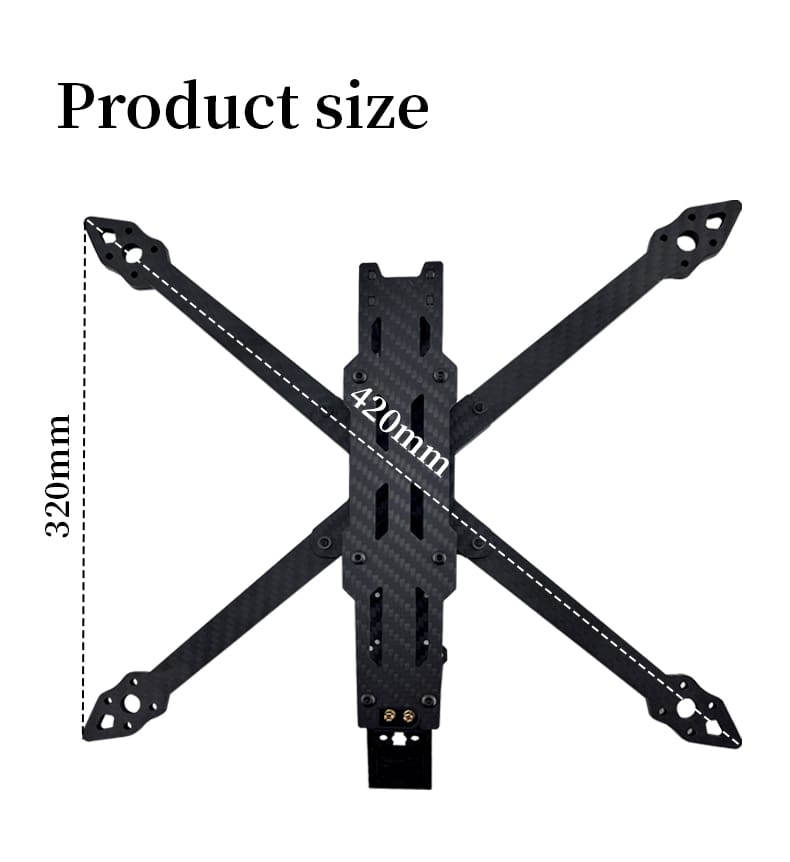

Diagonal Wheelbase420mm
Bottom Plate Thickness3mm
Camera Spacing19mm
Flight Control Hole Spacing30.5×30.5 (M3)
Upper Plate Thickness3mm
Arm Width16mm
Recommended Motor31-32 series motors
Net Weight of Rack195g
Arm Thickness7mm
Supports Maximum Blade Size10 inch
Recommended Batteries4S~6S
