7-inch Drone Rack

SKU:D-RACK-7

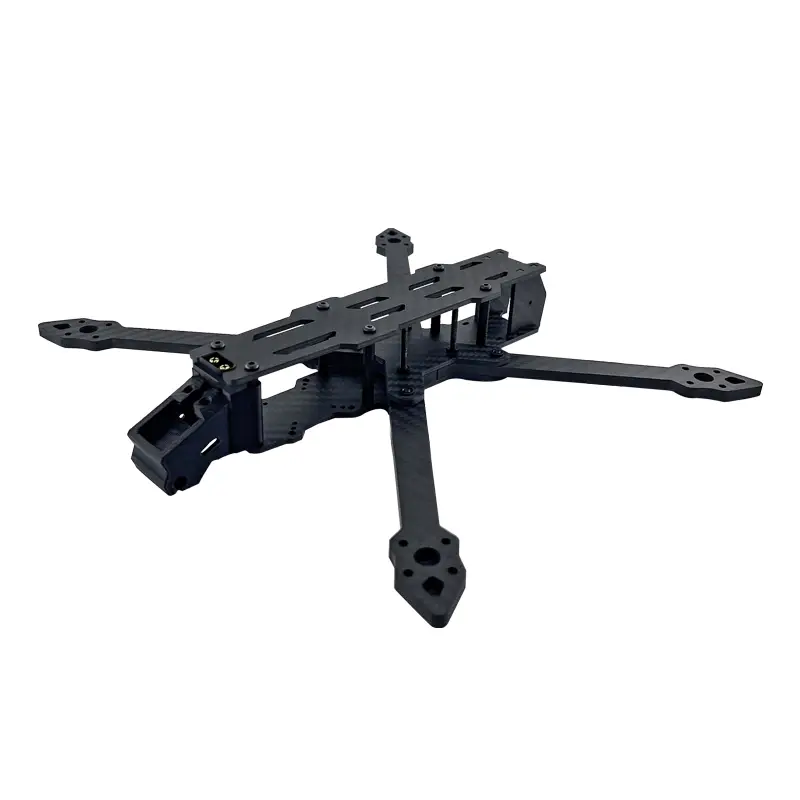

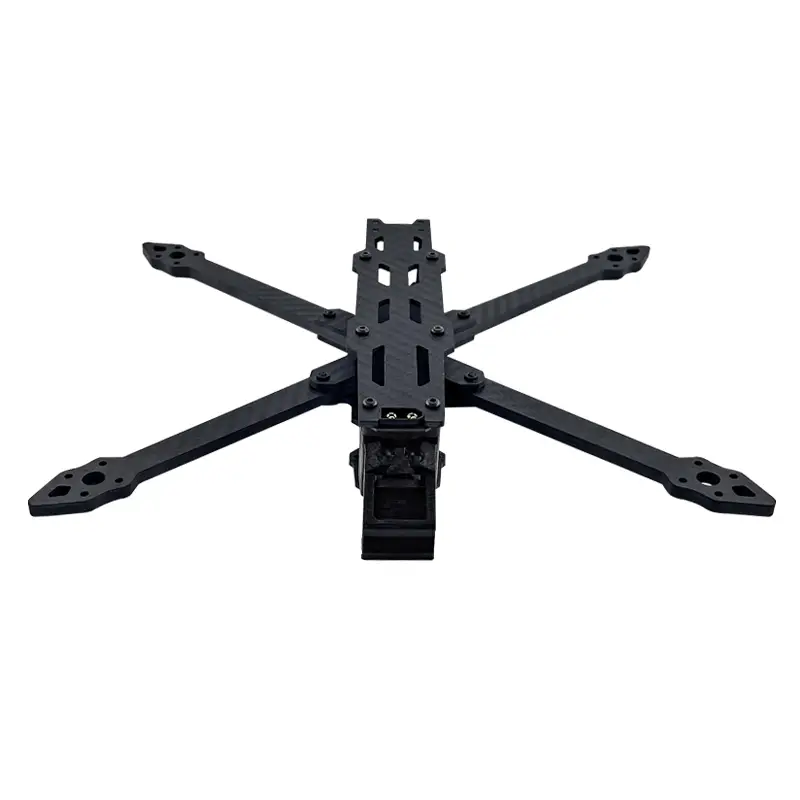

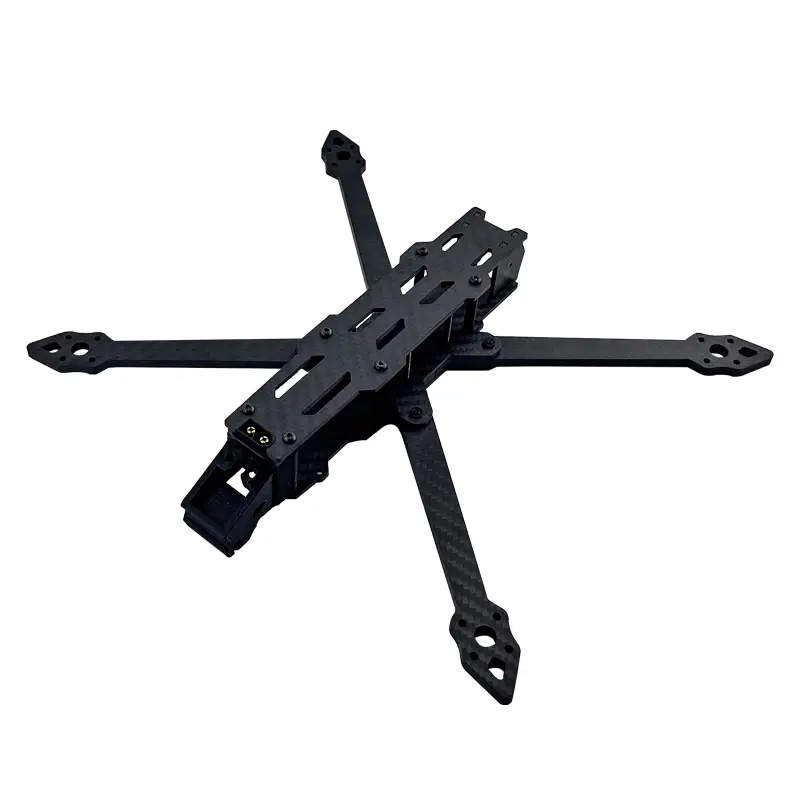

This 7-inch drone frame features an X-shaped design with quick detachable arms and a stable and flexible flight attitude, made of high-quality aluminum alloy and 3K full carbon fiber material for durability, supports up to 7-inch paddles, recommended 28-series motors, suitable for 4S to 6S batteries, and features a compact size of 225mm and a lightweight design of 165g.
Add To Quote

Share on:

D-RACK-7 7-inch Drone Rack
D-RACK-7 7 英寸无人机架
D-RACK-7 7 英寸无人机架
D-RACK-7 7 英寸无人机架

Product Parameter Information

Rack TypeX-shaped
Middle Plate Thickness2.5mm
Circlip ApertureΦ8.5mm
Recommended Batteries4S~6S

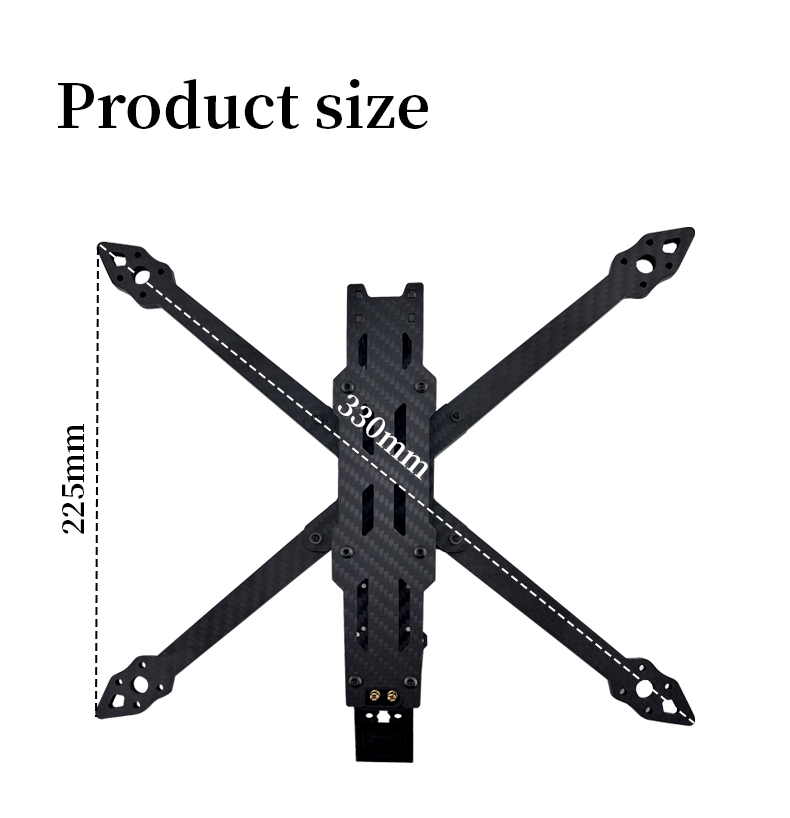

Diagonal Wheelbase330mm
Bottom Plate Thickness2.5mm
Equipment Layer Height20mm
Distance Between Motor Mounting Holes19mm (M3)
Upper Plate Thickness2.5mm
Arm Width15mm
Camera Spacing19mm
Flight Control Hole Spacing30.5×30.5 (M3)
Arm Thickness5mm
Supports Maximum Blade Size7inch
Recommended Motor28 series motors
Net Weight of Rack165g
