DX2A 4K EO IR Thermal Imaging 3-Axis Micro UAV Gimbal with Target Tracking

SKU:DX2A

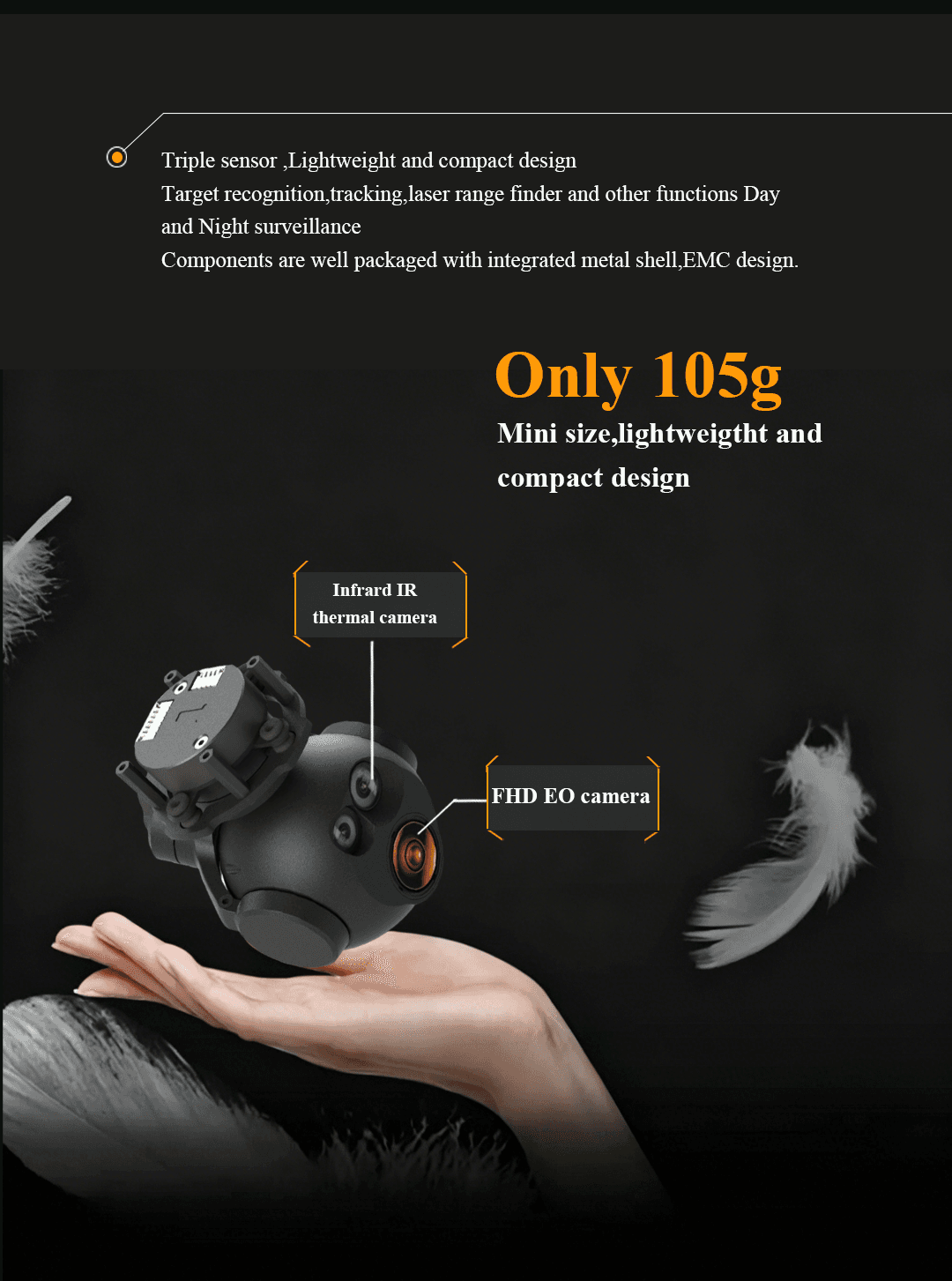

DX2A 4K EO IR Thermal Imaging 3-Axis Micro UAV Gimbal with Target Tracking is a compact triple-mode micro-pod for day and night imaging, target recognition, and target tracking. It integrates a 4K EO camera, IR thermal imaging, servo stabilization, network video output, and built-in tracking features in an EMC-compliant CNC metal shell. The payload weighs 105g without a shock absorber and 120g with a shock absorber, making DX2A suitable for lightweight UAV gimbal and robotic surveillance applications.
Add To Quote

Share on:

1. DX2A 4K EO IR Thermal Imaging 3-Axis Micro UAV Gimbal with Target Tracking Overview

DX2A 4K EO IR Thermal Imaging 3-Axis Micro UAV Gimbal with Target Tracking is a compact triple-mode micro-pod for day and night imaging, target recognition, and target tracking. It integrates a 4K EO camera, IR thermal imaging, servo stabilization, network video output, and built-in tracking features in an EMC-compliant CNC metal shell. The payload weighs 105g without a shock absorber and 120g with a shock absorber, making DX2A suitable for lightweight UAV gimbal and robotic surveillance applications.

2. Product Features

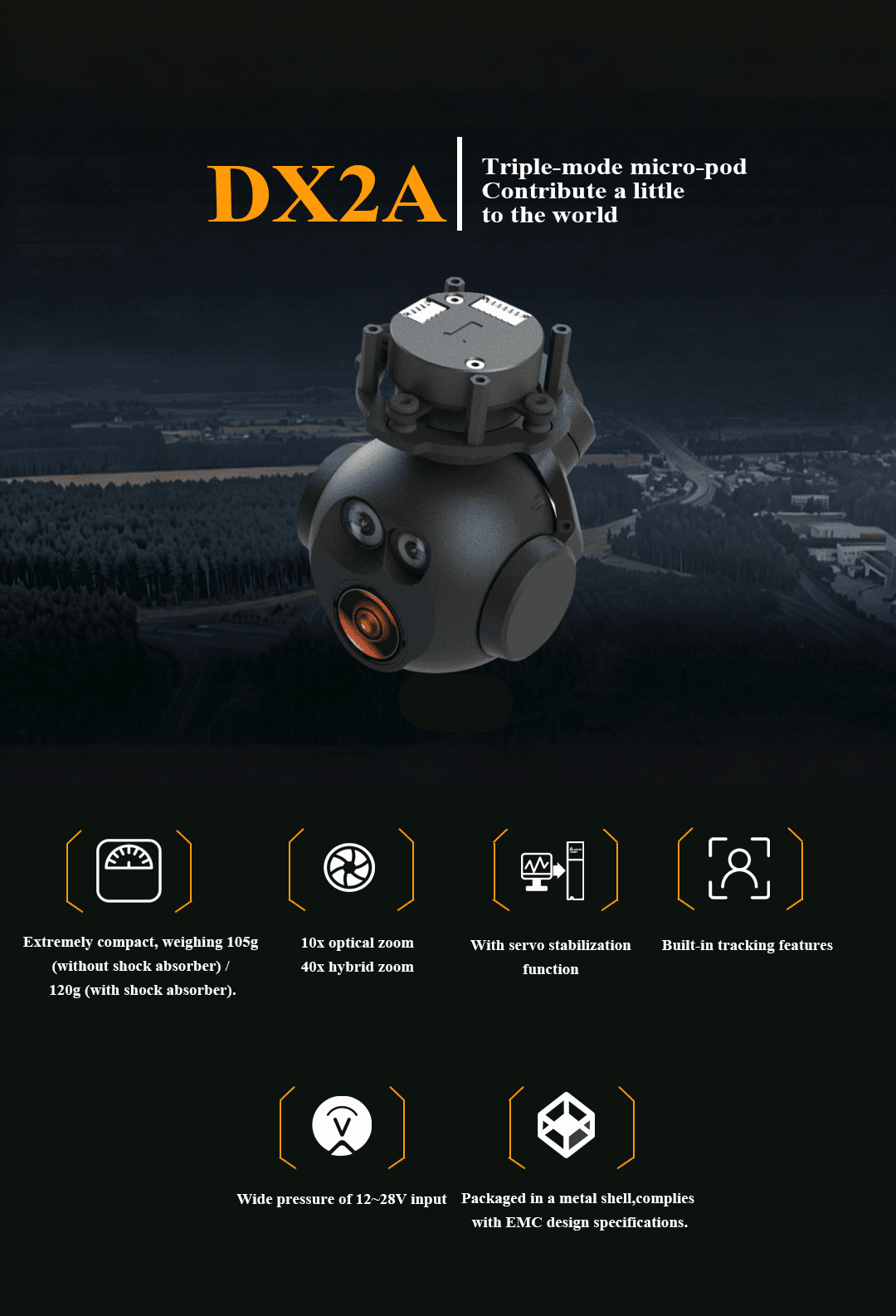

  • Lightweight Payload: The product weighs 105g without a shock absorber and 120g with a shock absorber.
  • 4K Zoom Imaging: The EO camera supports 10× optical zoom and 40× hybrid zoom with a 4K/30fps raw video stream.
  • Servo Stabilization: Servo stabilization and built-in tracking features support stable target observation.
  • Wide Voltage Input: The payload supports 12~28V input for flexible power integration.
  • EMC Metal Shell: The metal shell complies with EMC design specifications for anti-interference performance.
  • Object Tracking: Object identification and tracking support vehicle tracking and human tracking.
  • CNC Integrated Housing: CNC high-precision machining provides an integrated metal housing with efficient heat dissipation.
  • OSD Display: Picture in Picture and Rich OSD display camera information, target information, and robot information.

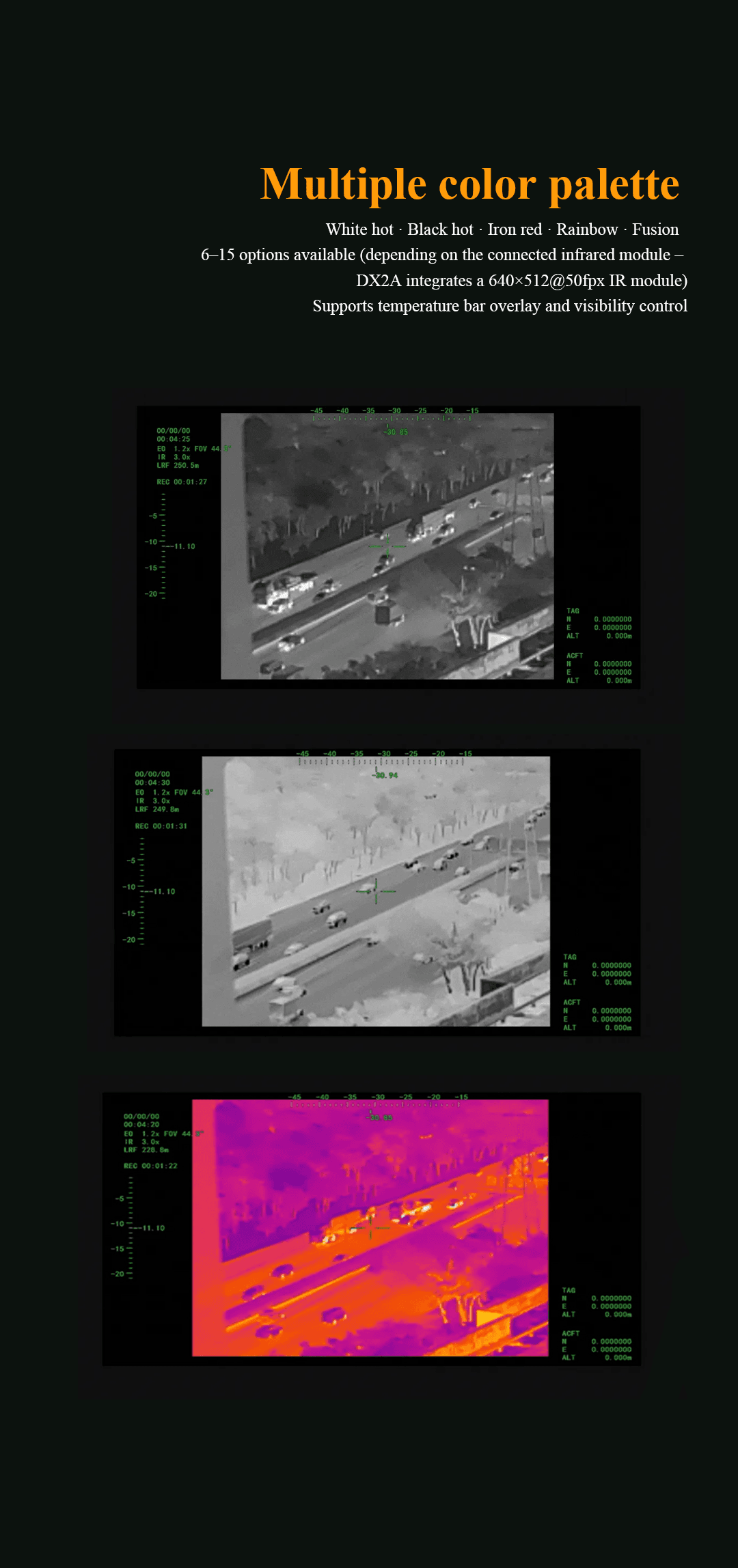

  • Thermal Palettes: White hot, Black hot, Iron red, Rainbow, and Fusion palettes are available, with 6-15 options.

3. Detailed Technical Parameters

Parameter Specification
Product – Product name DX2A
Product – Type Triple-mode micro-pod
Product – Weight 105g (without shock absorber) / 120g (with shock absorber)

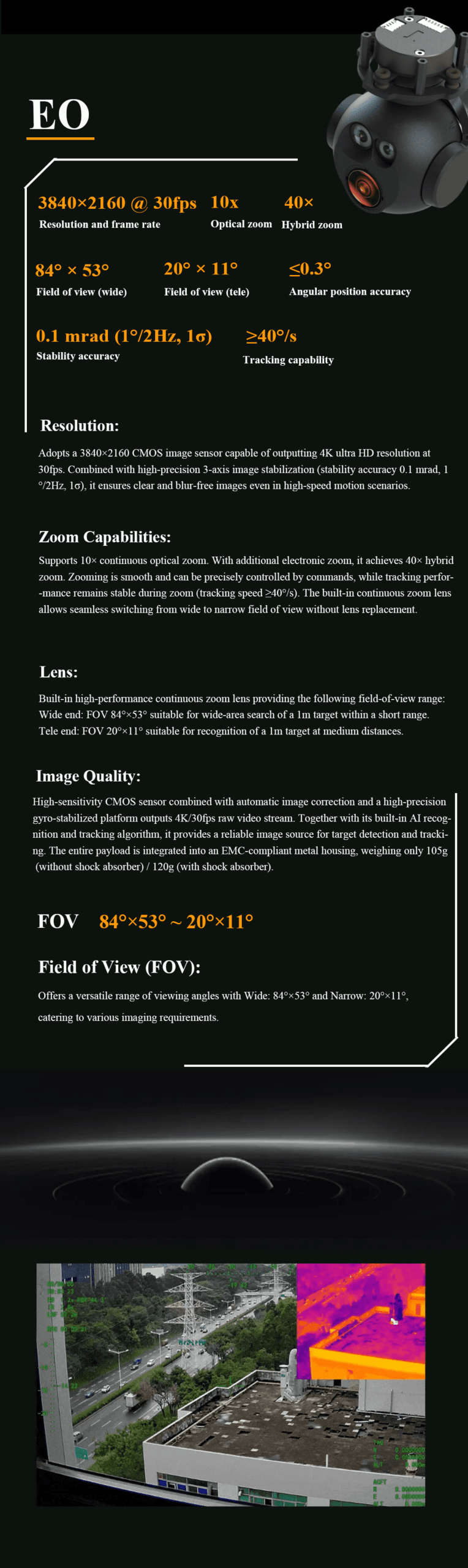

EO – Resolution and frame rate 3840×2160 @ 30fps
EO – Optical zoom 10×
EO – Hybrid zoom 40×
EO – Field of view (wide) 84°×53°
EO – Field of view (tele) 20°×11°
EO / Stabilization – Angular position accuracy Unclearly recognized in source, likely threshold value
EO / Stabilization – Stability accuracy 0.1 mrad (1°/2Hz, 1 sigma)
EO – Tracking capability Unclearly recognized in source
EO – Video stream 4K/30fps raw video stream

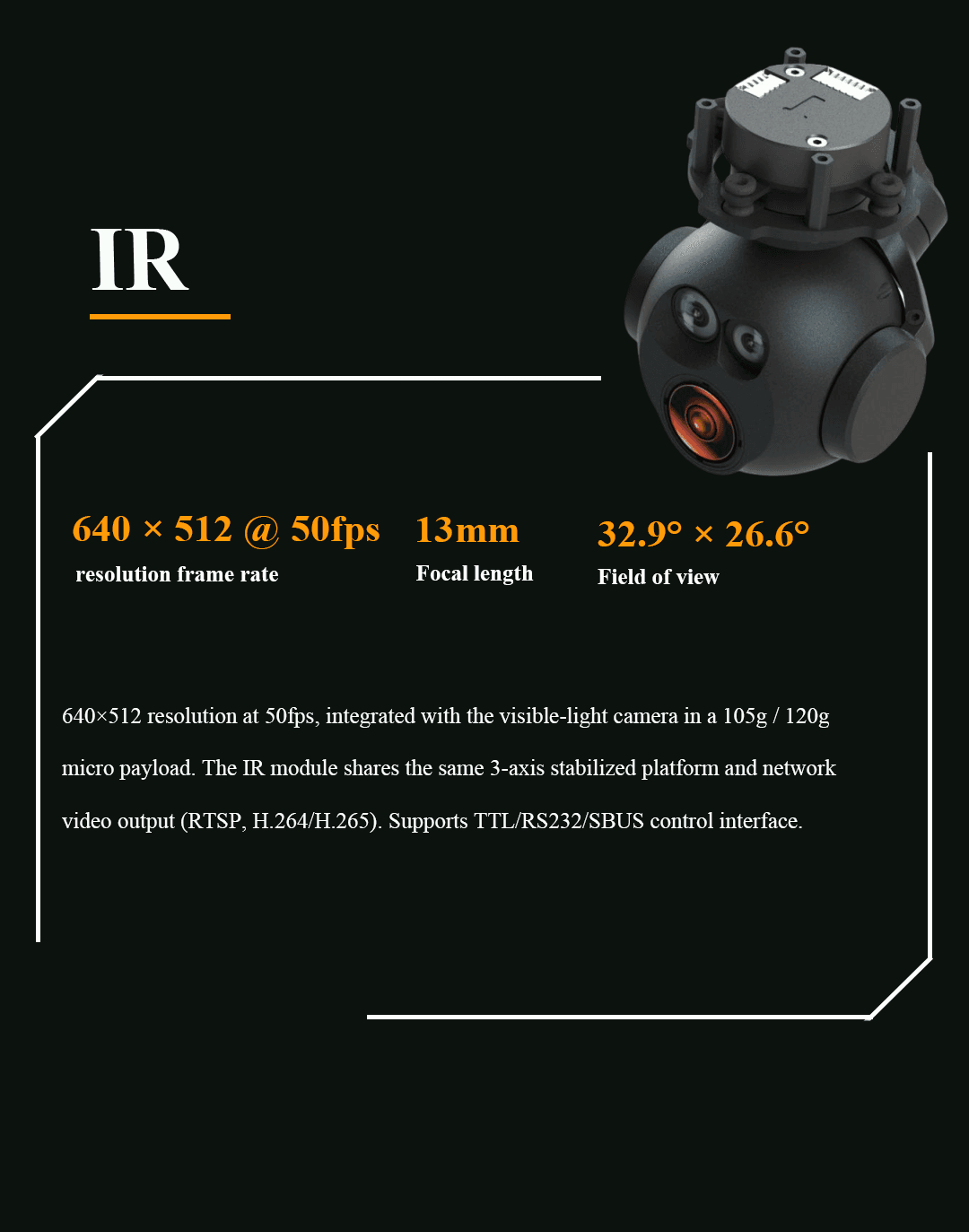

IR – Resolution frame rate 640×512 @ 50fps
IR – Focal length 13mm
IR – Field of view 32.9°×26.6°
IR – Color palettes White hot, Black hot, Iron red, Rainbow, Fusion
IR – Palette options 6-15 options available
Laser rangefinder – Detailed range / accuracy 未清晰识别

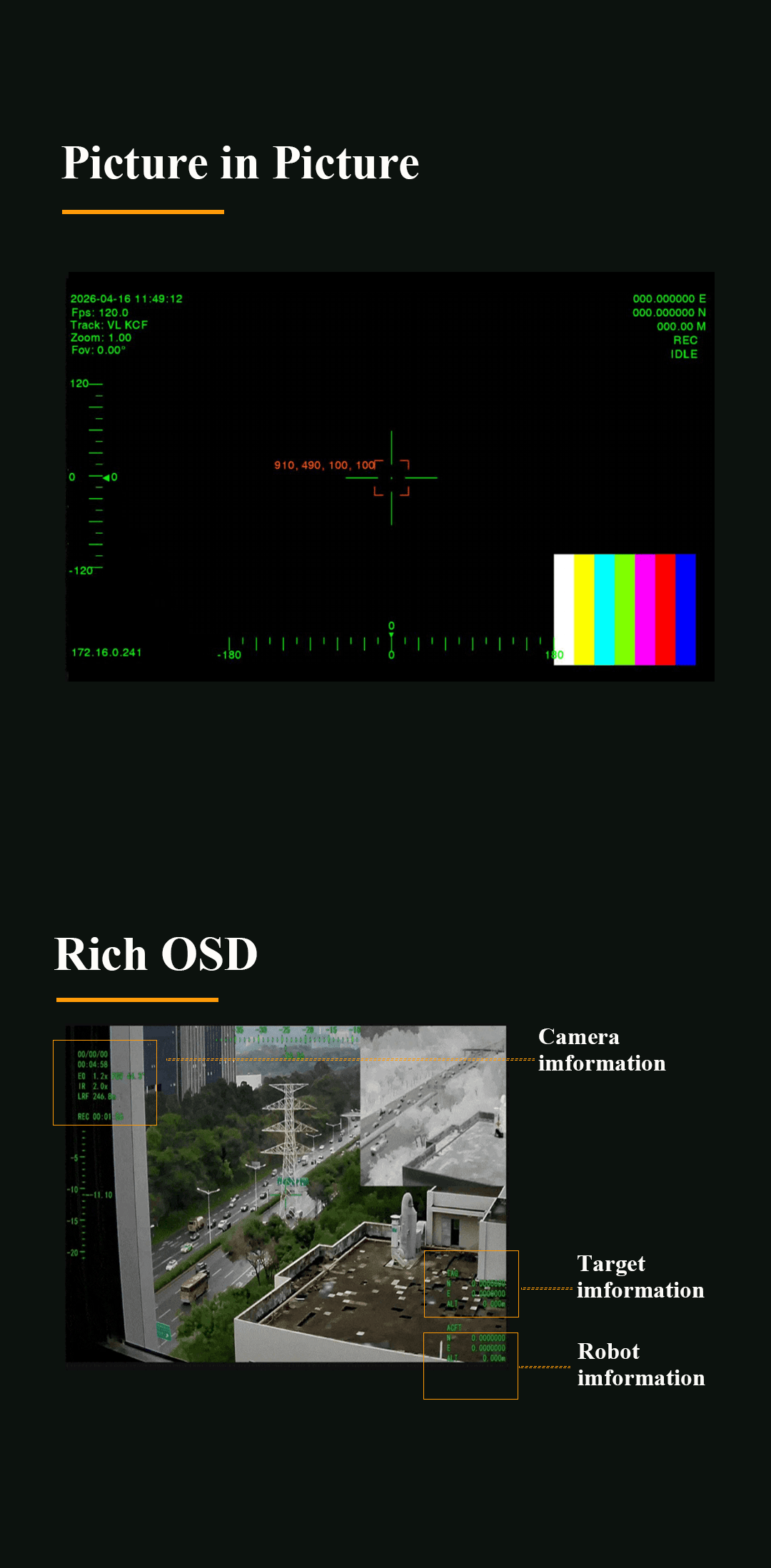

Video / OSD – Picture in Picture Supported
Video / OSD – Rich OSD Camera information, Target information, Robot information

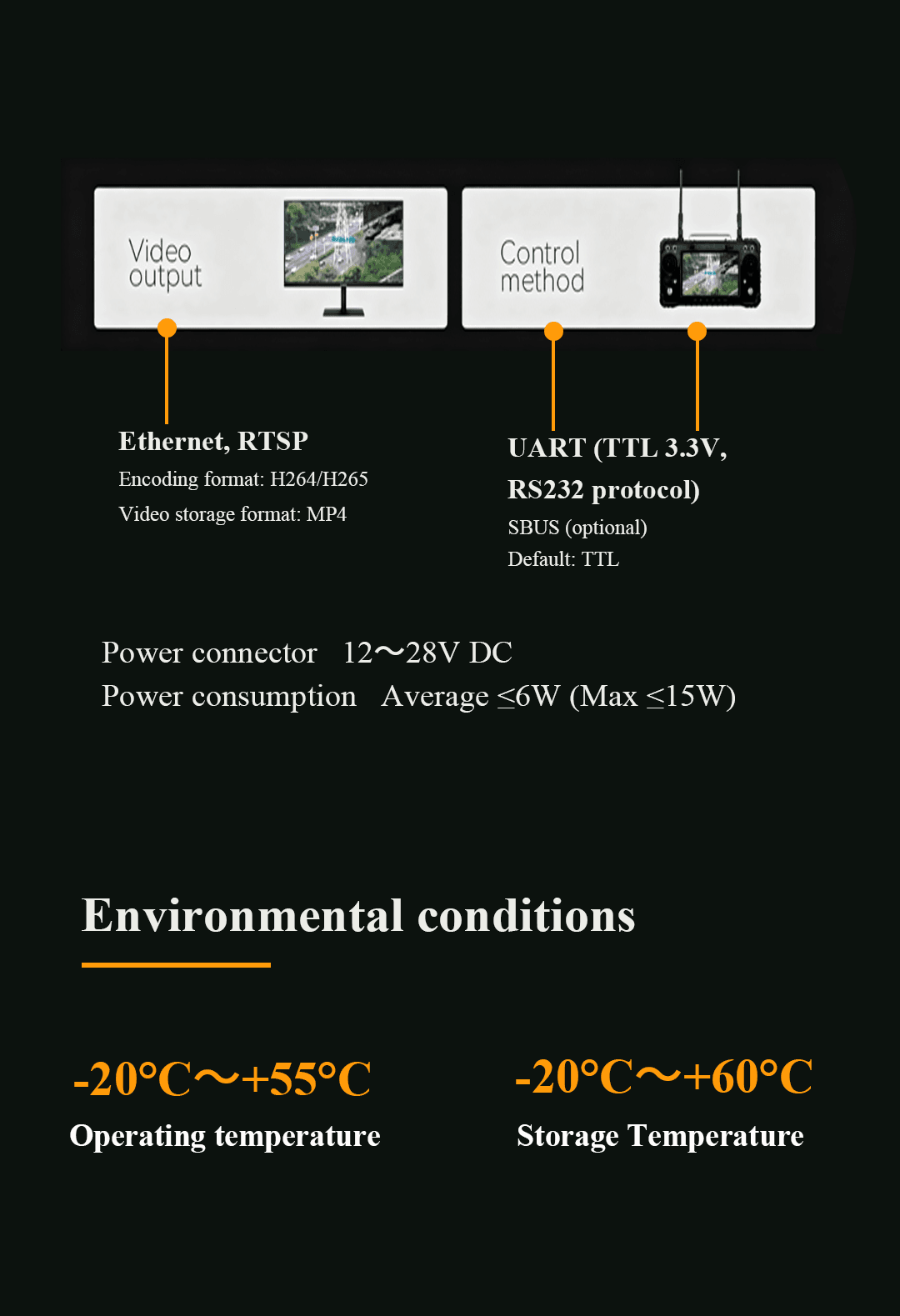

Video output – Output mode Ethernet, RTSP
Video output – Encoding format H264/H265
Video output – Video storage format MP4
Control method – UART TTL 3.3V, RS232 protocol
Control method – SBUS Optional
Control method – Default TTL
Power – Power connector 12~28V DC
Power – Power consumption Average and maximum values are unclearly recognized in source
Environmental conditions – Operating temperature -20°C~+55°C
Environmental conditions – Storage Temperature -20°C~+60°C
Gimbal – Yaw Axis ±110° Rotation
Gimbal – Pitch Axis -100° to +40° Rotation
Gimbal – Roll Axis ±45° Rotation
Gimbal – Maximum angular velocity Unclearly recognized in source
Gimbal – Stabilization accuracy 0.1 mrad (1°/2Hz, 1 sigma)
Gimbal – Angular position accuracy Unclearly recognized in source, likely threshold value

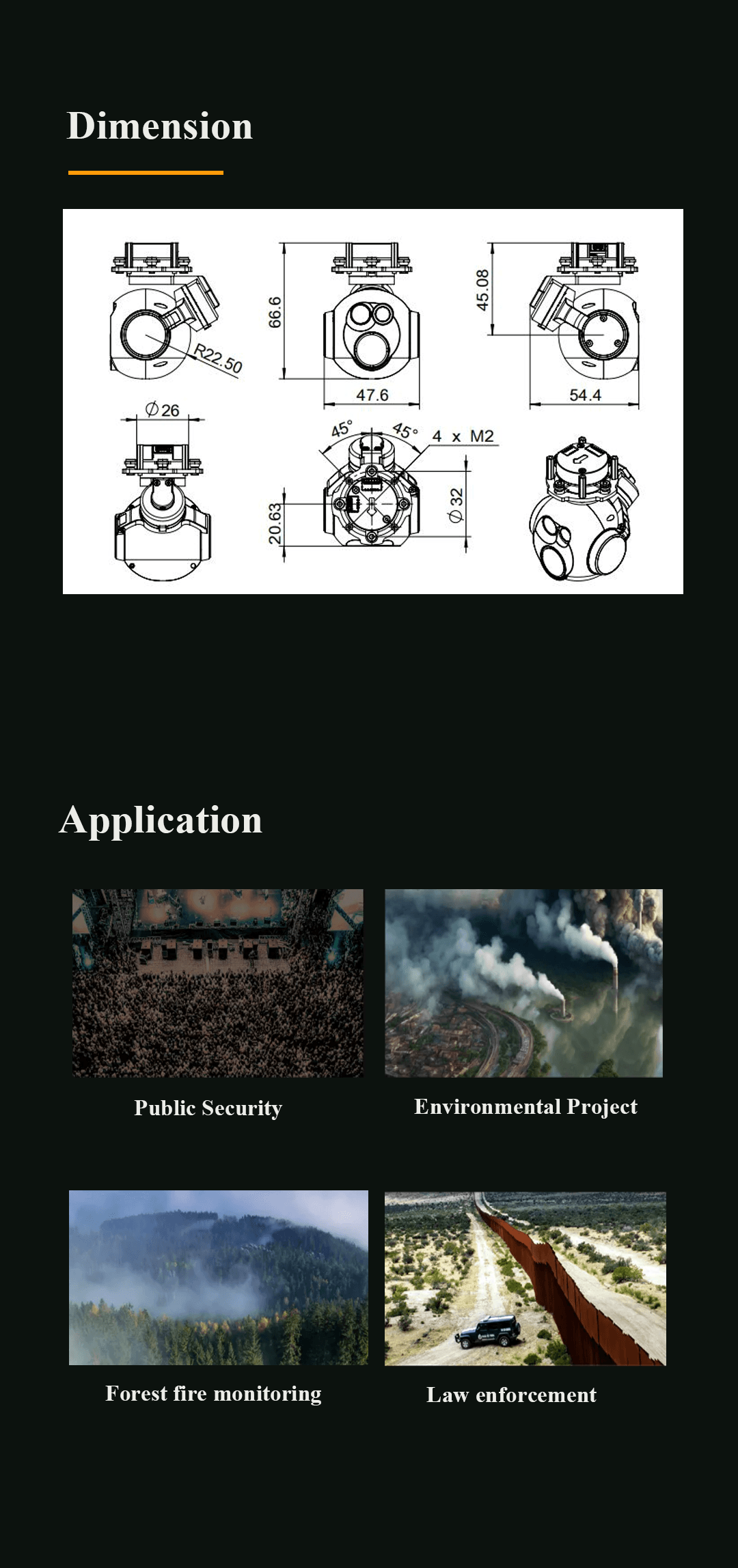

Dimension – Main dimensions shown 66.6, 45.08, 47.6, 54.4, R22.50, diameter 26, 20.63, diameter 32
Dimension – Mounting 4×M2
Dimension – Angle marking 45° / 45°
Dimension – Unit 未清晰识别

4. Application Scenarios

  • Public Security: Supports target recognition and tracking for compact surveillance operations.
  • Environmental Projects: Provides 4K EO imaging and IR thermal imaging for inspection and monitoring payloads.
  • Forest Fire Monitoring: Uses thermal imaging palettes and stabilized viewing to observe heat sources and fire conditions.
  • Law Enforcement: Supports day/night observation, video output, and tracking for field enforcement tasks.
