DX2 FHD/256×192 EO-IR Payload | 5× EO Zoom, 1.2 km Laser Range
SKU:DX2
DX2 fits FHD visible imaging, 256×192 thermal video and a laser rangefinder into a 100 g three-axis UAV gimbal. The EO channel delivers 1920×1080 at 50 fps with 5× optical and 20× hybrid zoom; the 7 mm IR channel also runs at 50 fps. Published ranging covers 3–1,200 m at ±1 m. Human and vehicle tracking, 0.1 mrad stabilization and Ethernet RTSP output support compact multi-sensor payload integration.
- 5×
- 20×
- 2.7mm to 13.5mm
- 91.8°×60.2°
- 23.3°×13.2°
- ≤0.3°
- 0.1 mrad (1°/2Hz, 1 sigma)
- ≥40°/s
- 256×192 @ 50fps
- 7mm
- 24.8°×18.7°
- 3-1200m
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
1920×1080 @ 50fpsEO - Resolution and frame rate
Only 100gProduct - Weight
Average ≤6 W; maximum ≤15 WPower - Power consumption
Technical data

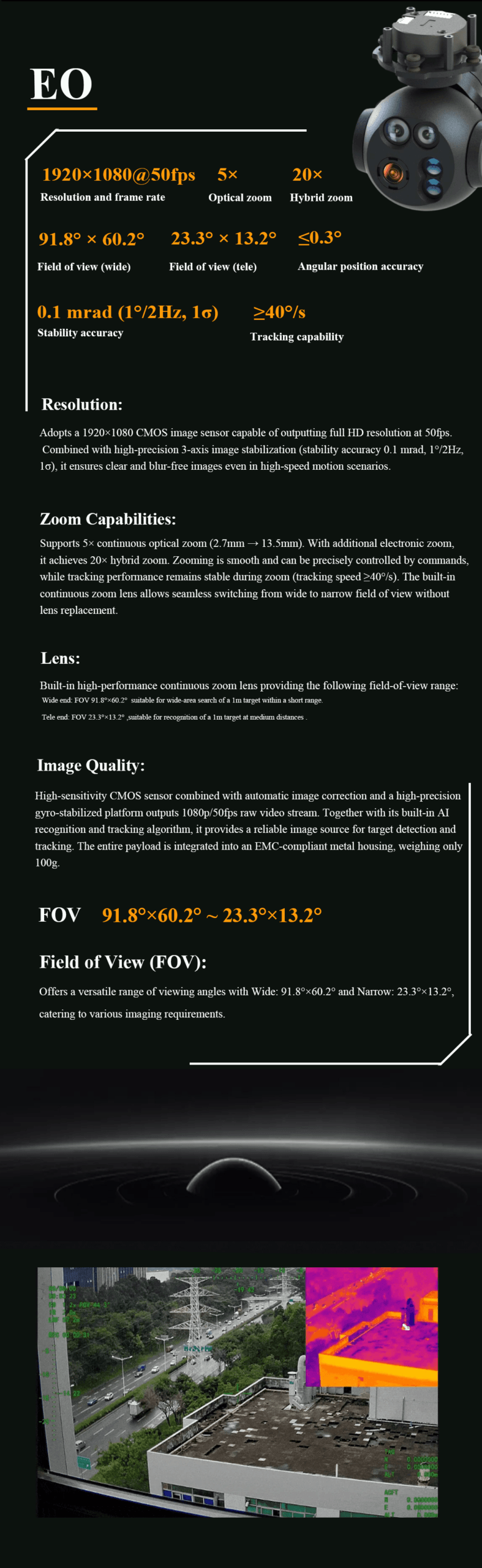

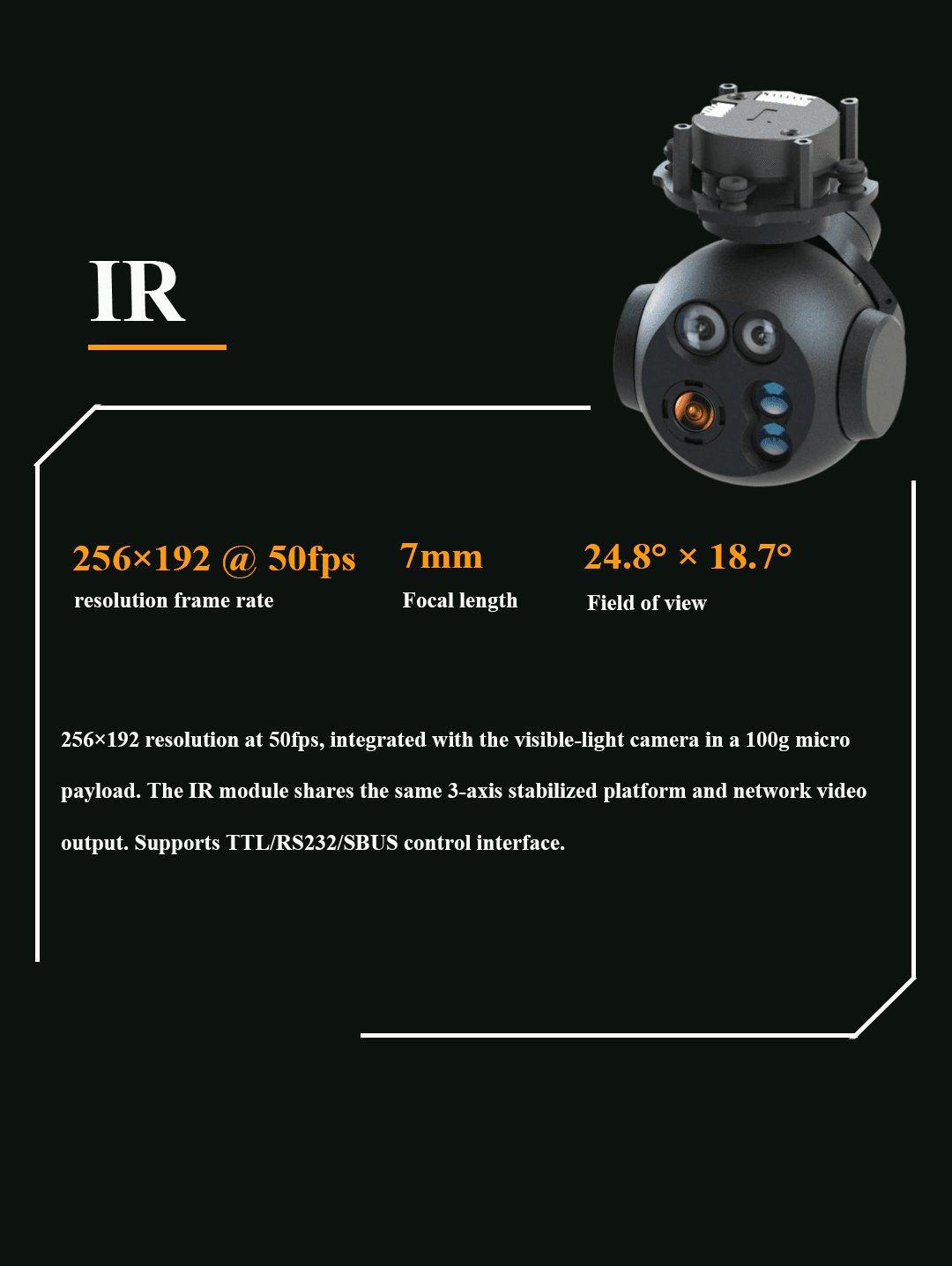

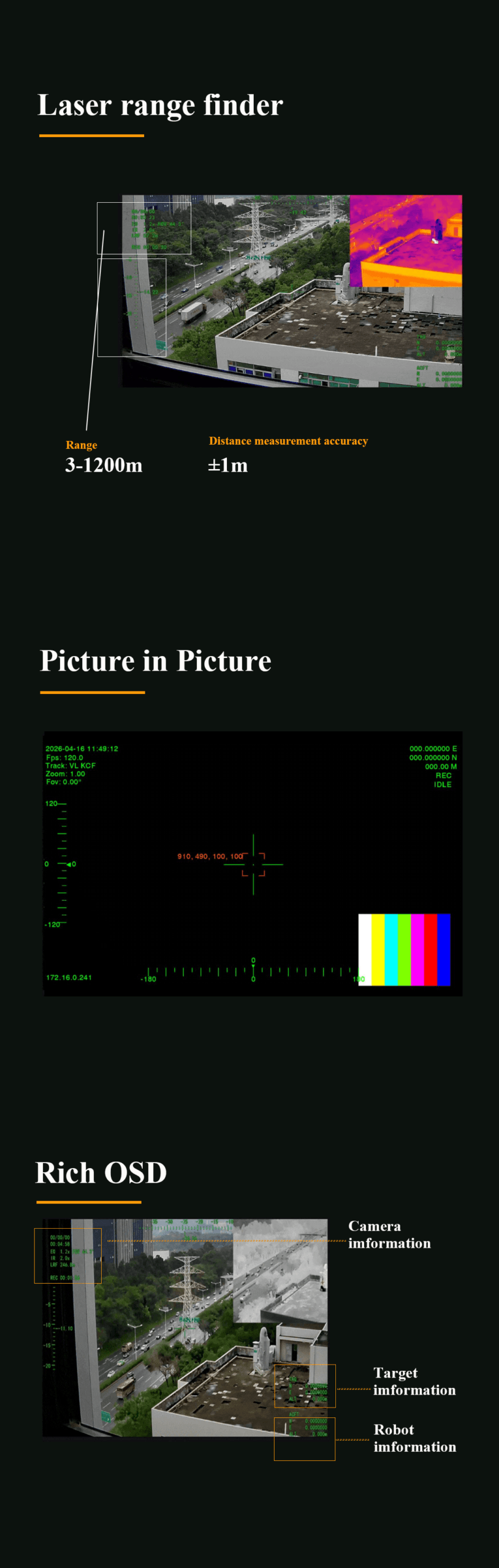

| Parameter | Specification |
|---|---|
| Product - Product name | DX2 |
| Product - Type | Payload / 3-Axis Gimbal Camera |
| Product - Weight | Only 100g |
| EO - Resolution and frame rate | 1920×1080 @ 50fps |
| EO - Optical zoom | 5× |
| EO - Hybrid zoom | 20× |
| EO - Focal length range | 2.7mm to 13.5mm |
| EO - Field of view (wide) | 91.8°×60.2° |
| EO - Field of view (tele) | 23.3°×13.2° |
| EO / Stabilization - Angular position accuracy | ≤0.3° |
| EO / Stabilization - Stability accuracy | 0.1 mrad (1°/2Hz, 1 sigma) |
| EO - Tracking speed | ≥40°/s |
| IR - Resolution frame rate | 256×192 @ 50fps |
| IR - Focal length | 7mm |
| IR - Field of view | 24.8°×18.7° |
| Laser rangefinder - Range | 3-1200m |
| Laser rangefinder - Distance measurement accuracy | ±1m |
| Video / OSD - Picture in Picture | Supported |
| Video / OSD - Rich OSD | Camera information, Target information, Robot information |

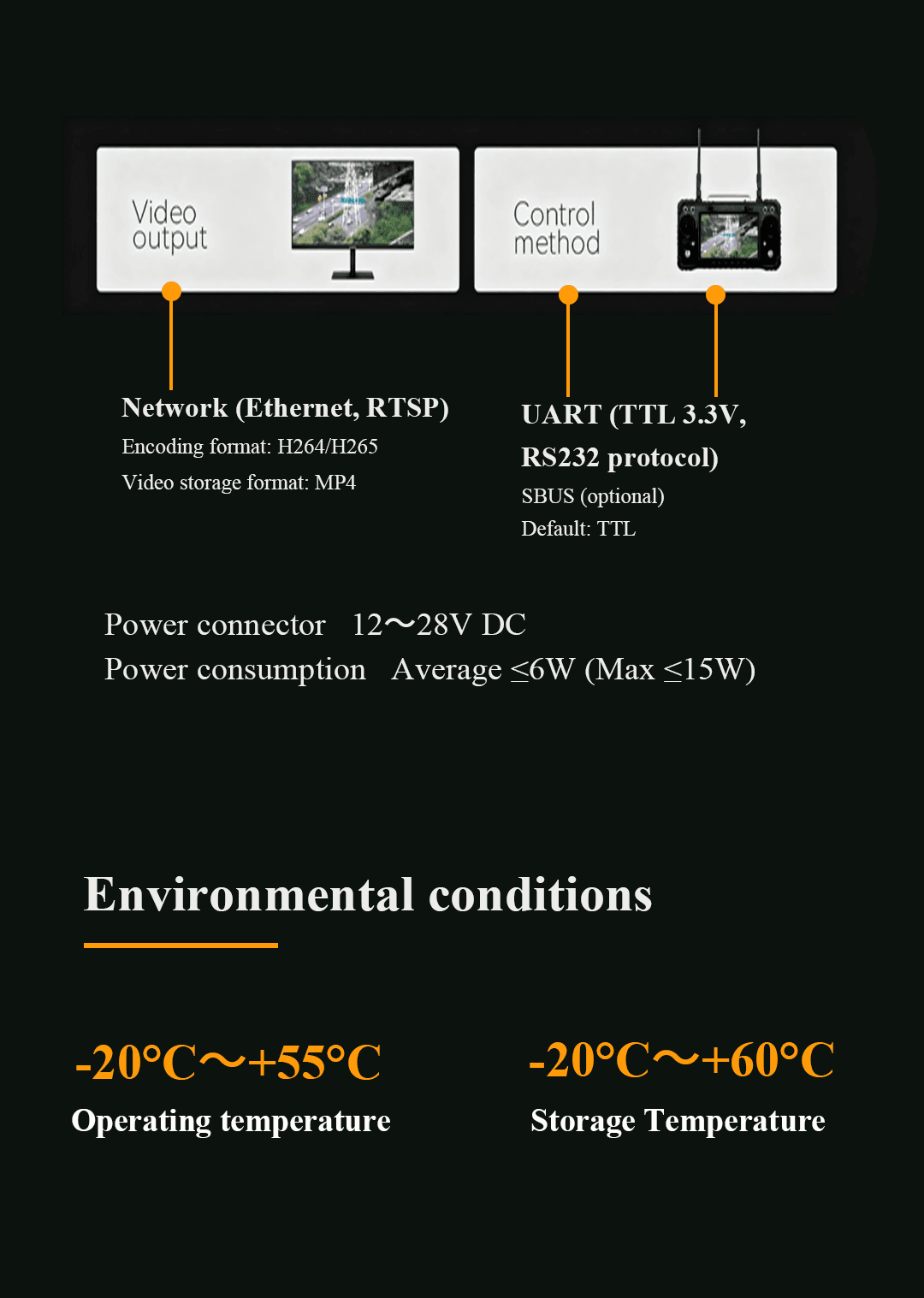

| Video output - Output mode | Network (Ethernet, RTSP) |
| Video output - Encoding format | H264/H265 |
| Video output - Video storage format | MP4 |
| Control method - UART | TTL 3.3V, RS232 protocol |
| Control method - SBUS | Optional |
| Control method - Default | TTL |
| Power - Power connector | 12~28V DC |
| Power - Power consumption | Average ≤6 W; maximum ≤15 W |
| Environmental conditions - Operating temperature | -20°C~+55°C |
| Environmental conditions - Storage Temperature | -20°C~+60°C |
| Gimbal - Yaw Axis | ±110° Rotation |
| Gimbal - Pitch Axis | -100° to +40° Rotation |
| Gimbal - Roll Axis | ±45° Rotation |
| Gimbal - Maximum angular velocity | ≥100°/s |
| Gimbal - Stabilization accuracy | 0.1 mrad (1°/2Hz, 1 sigma) |
| Gimbal - Angular position accuracy | ≤0.3° |

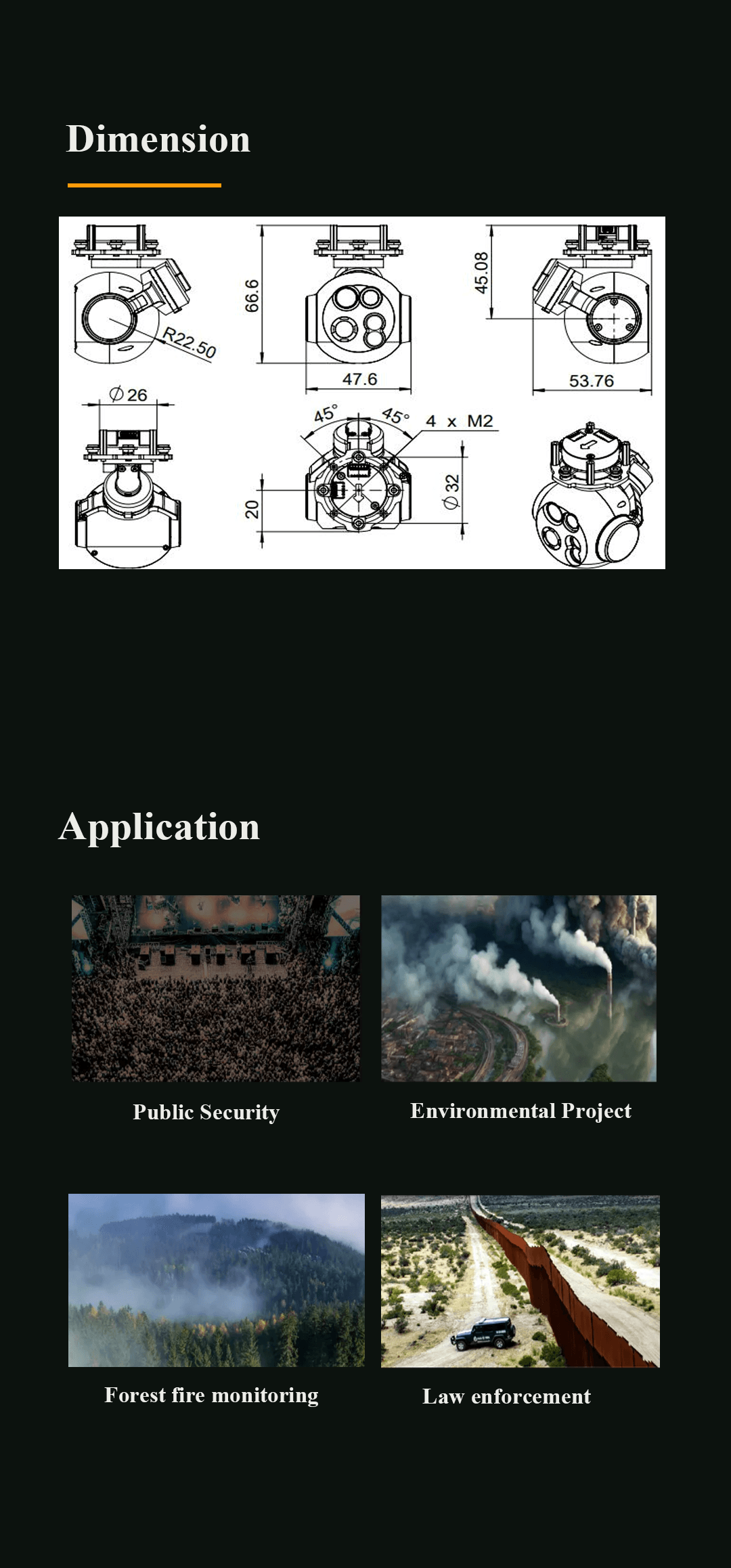

| Dimension - Main dimensions shown | 66.6, 45.08, 47.6, 53.76, R22.50, diameter 26, 20, diameter 32 |
| Dimension - Mounting | 4×M2 |
| Dimension - Angle marking | 45° / 45° |
1. Features & applications

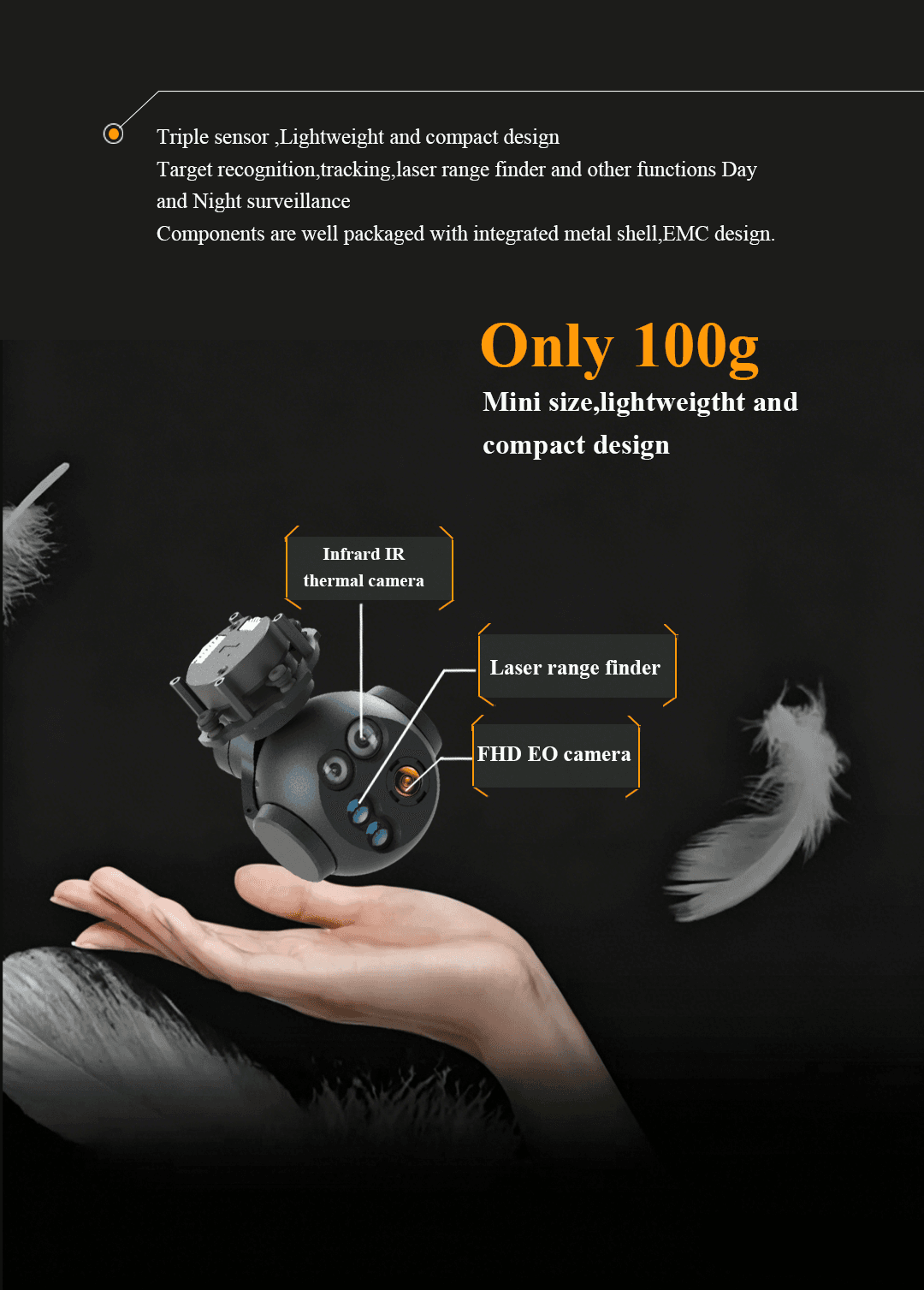

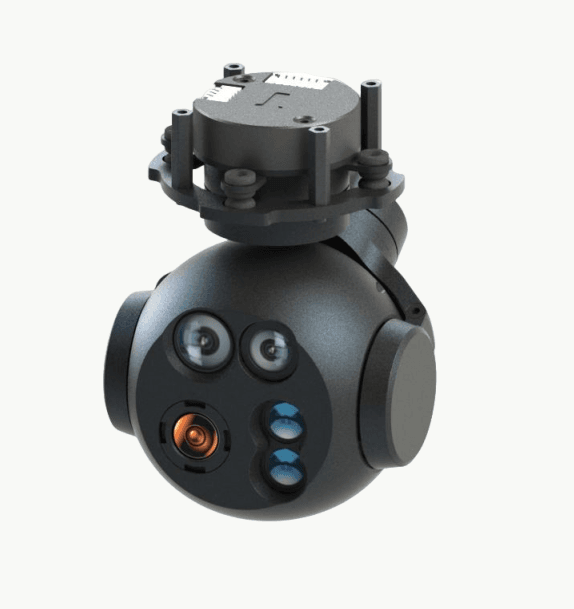

DX2 FHD EO IR Thermal Laser Rangefinder 3-Axis Micro UAV Gimbal with Target Tracking is a compact triple-sensor payload and 3-axis gimbal camera for day and night surveillance. It combines an FHD EO camera, IR thermal imaging, a laser rangefinder, object identification and target tracking, network video output, and a lightweight CNC metal housing. With a total weight of only 100g and EMC-compliant integrated packaging, DX2 is suited for compact UAV gimbal payloads and robotic inspection systems.
2. Product Features

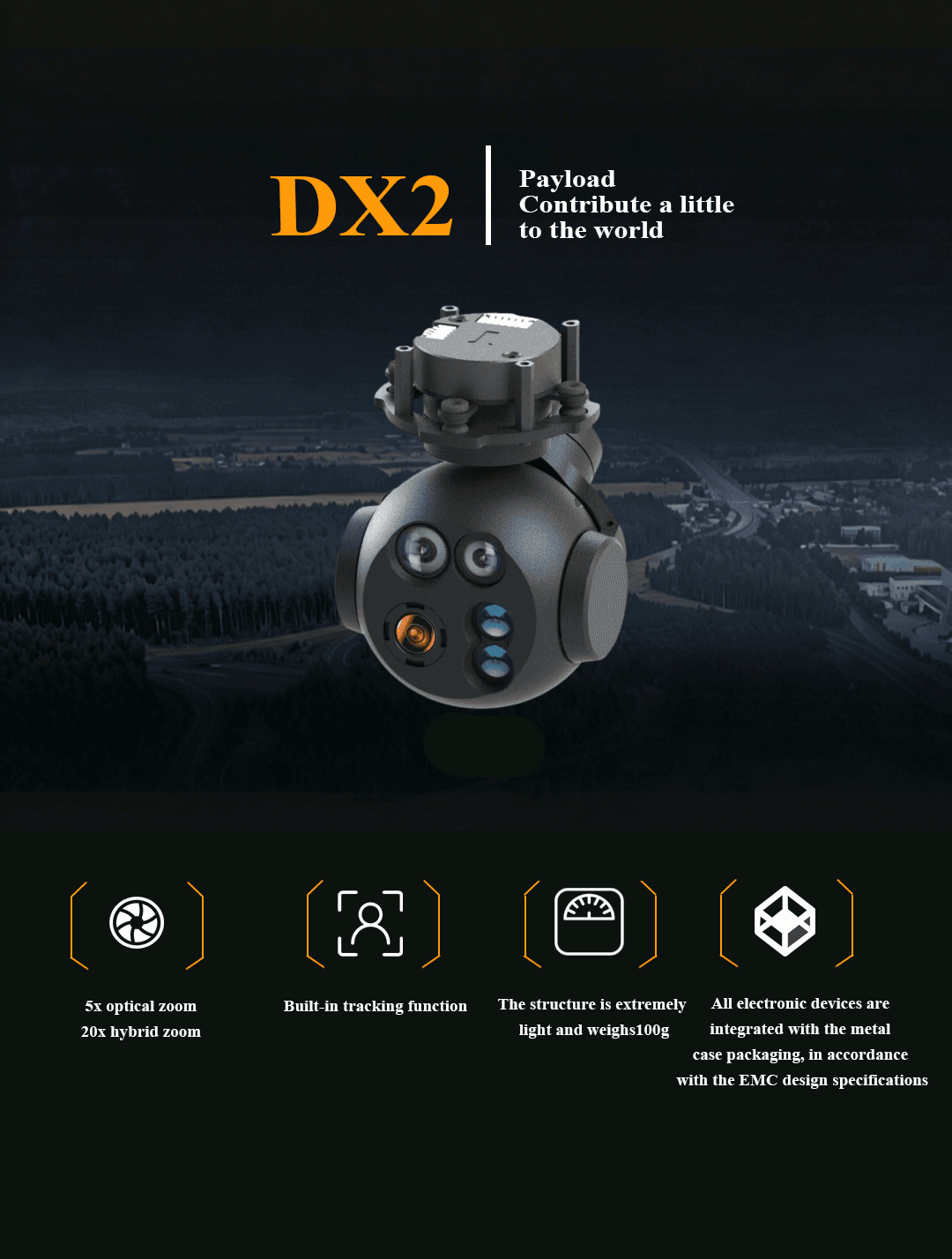

- Compact Triple Sensor: Integrates visible-light imaging, infrared thermal imaging, and laser rangefinding in a lightweight payload.
- Zoom Imaging: The EO camera supports 5× optical zoom and 20× hybrid zoom for flexible observation.

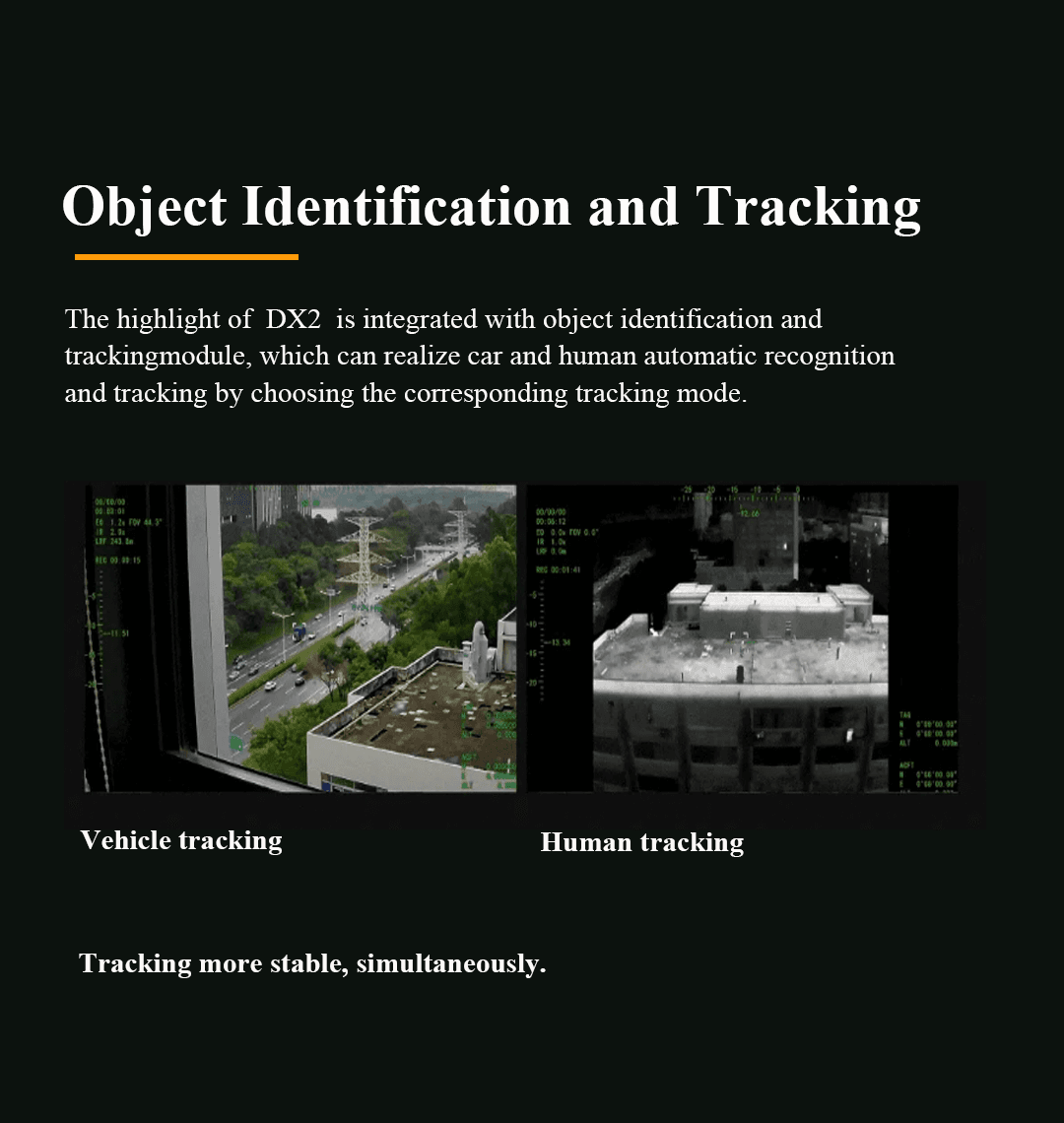

- Built-In Tracking: Vehicle tracking and human tracking are supported for target monitoring.
- Day/Night Surveillance: Target recognition, tracking, laser rangefinder support, and thermal imaging enable around-the-clock use.

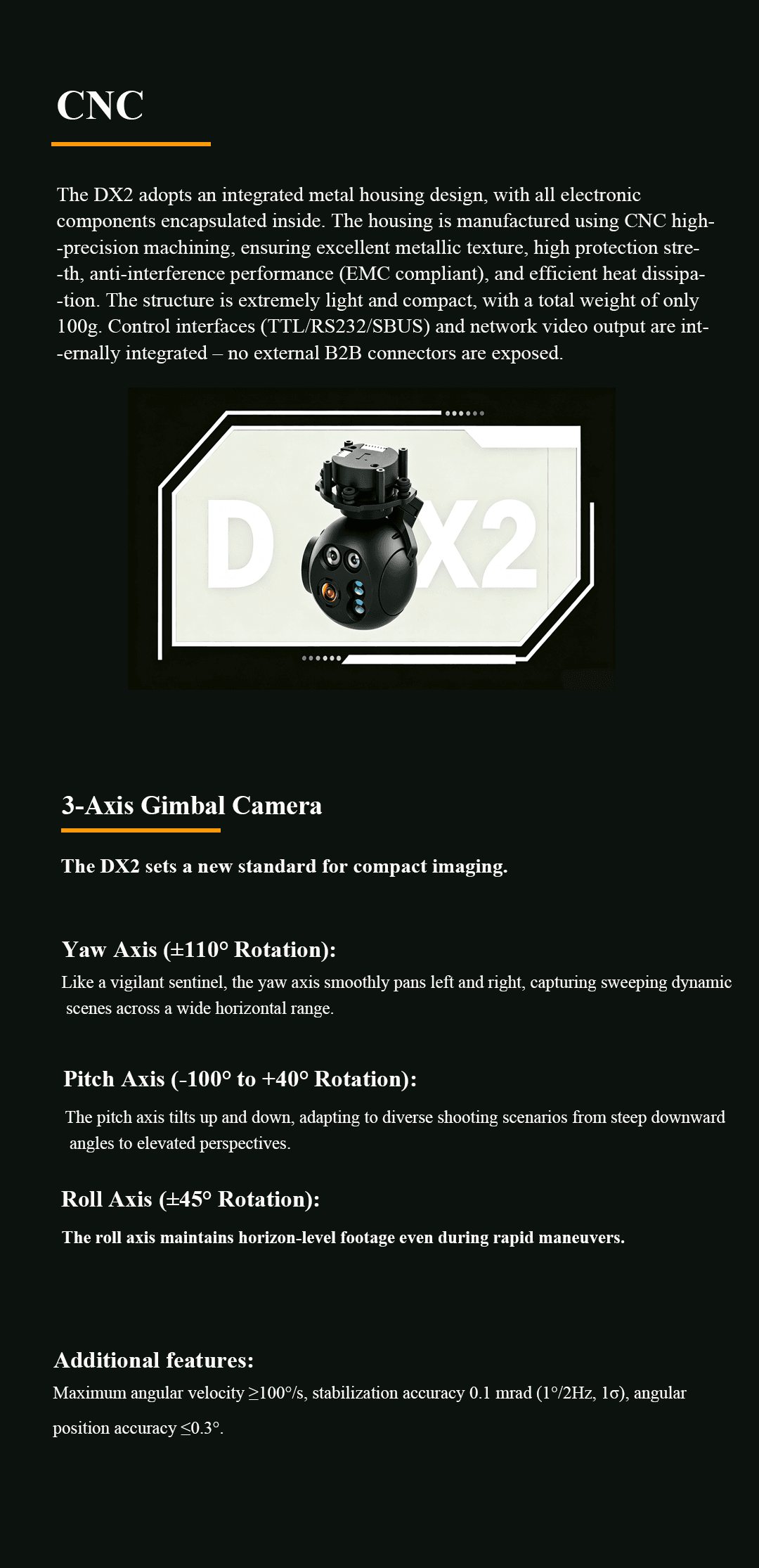

- CNC Metal Housing: The integrated housing is manufactured using CNC high-precision machining.
- EMC Design: The metal shell supports anti-interference performance and efficient heat dissipation.
- Integrated Interfaces: Control interfaces and network video output are internally integrated without exposed external B2B connectors.
- OSD Display: Picture in Picture and Rich OSD display camera information, target information, and robot information.
3. Application Scenarios
- Public Security: Supports compact UAV surveillance, target recognition, and target tracking in public safety missions.
- Environmental Projects: Provides EO and IR imaging for lightweight environmental inspection payloads.
- Forest Fire Monitoring: Uses thermal imaging and stabilized observation to help identify fire and heat signatures.
- Law Enforcement: Combines day/night video, laser rangefinding, and OSD information for field observation and documentation.
