DS80 Dual-Axis EO/IR Gimbal | 640×512, ≥100°/s Angular Rate
DS80 is a ≤280 g two-axis pod combining 1920×1080/60 fps visible imaging with 640×512/60 fps thermal video. Dynamic target tracking and gyro stabilization support day and night observation; yaw covers ±110° and pitch -100° to +40°. Published maximum angular velocity is ≥100°/s. The payload uses 12–28 V, with average consumption ≤10 W, and operates from -40 to +60°C for aerial integration.
- -110° ~ +110°
- -100° ~ +40°
- ≥100°/s
- <240 g
- Av≤10W, Max≤20W
- 12~28V
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

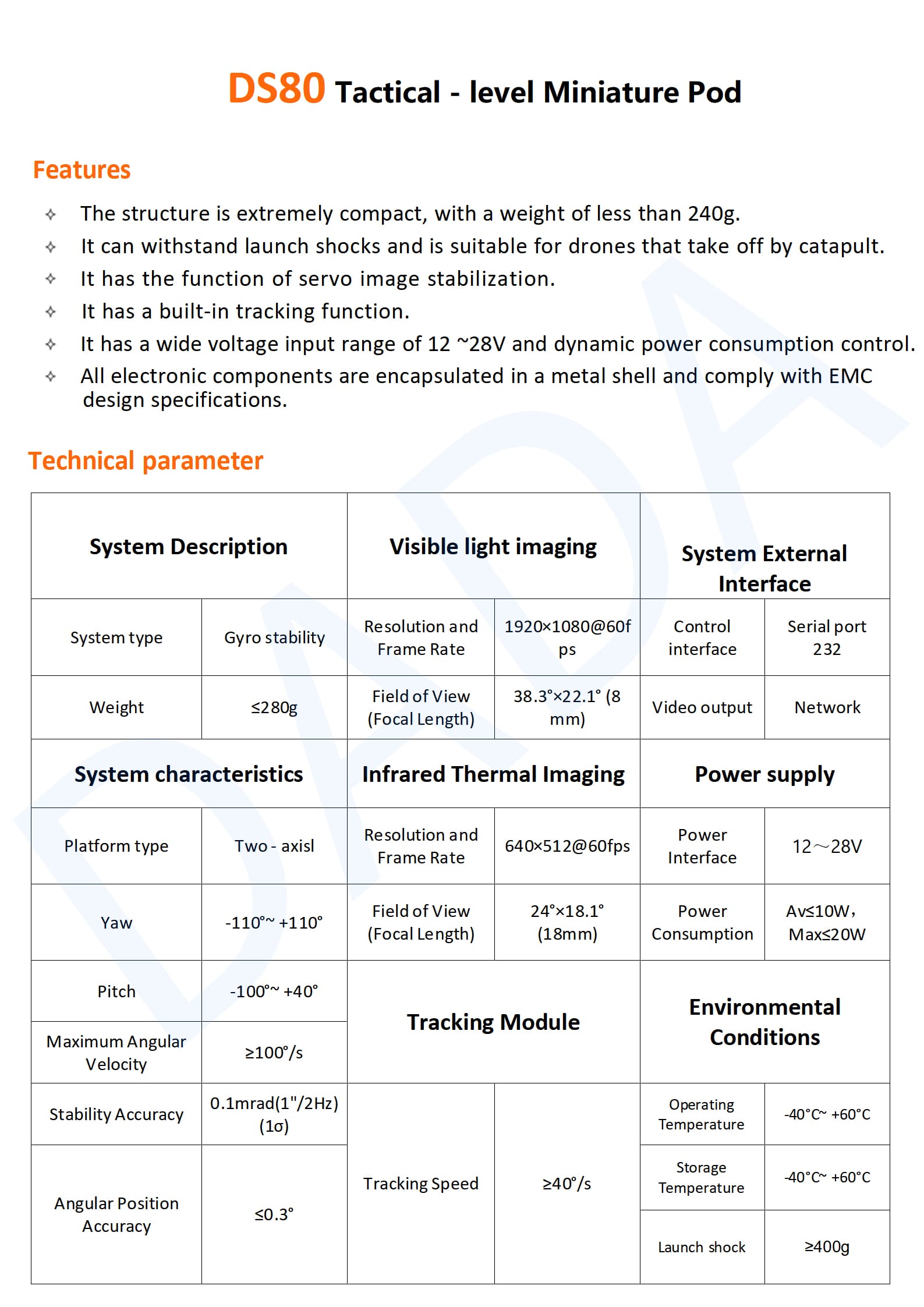

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro Stability |
| Weight | <240 g |
| Visible Light Imaging | 1920×1080@60fps |
| Infrared Thermal Imaging | 640×512@60fps |
| Yaw Range | -110° ~ +110° |
| Pitch Range | -100° ~ +40° |
| Maximum Angular Velocity | ≥100°/s |
| Power Supply | 12~28V |
| Power Consumption | Av≤10W, Max≤20W |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +60°C |
1. Features & applications

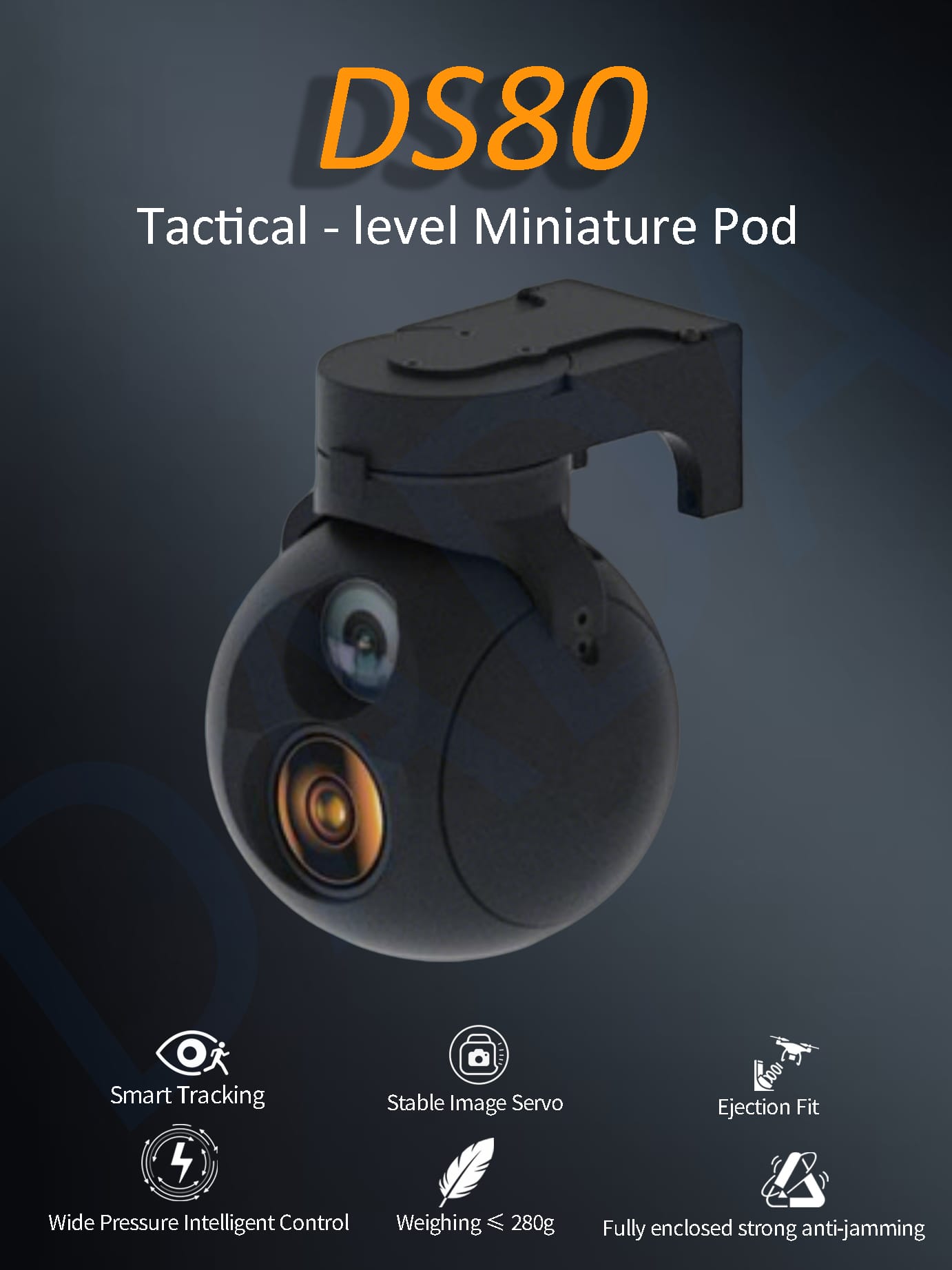

The DS80 Tactical-level Miniature Pod is a compact, lightweight surveillance solution designed for high-performance operations. With its advanced features including dual-light thermal capture, dynamic tracking, and dual-axis precision stabilization, it excels in various challenging environments. Whether deployed on drones or other vehicles, the DS80 offers intelligent tracking and superior image quality for real-time target recognition and monitoring.
2. Product Features

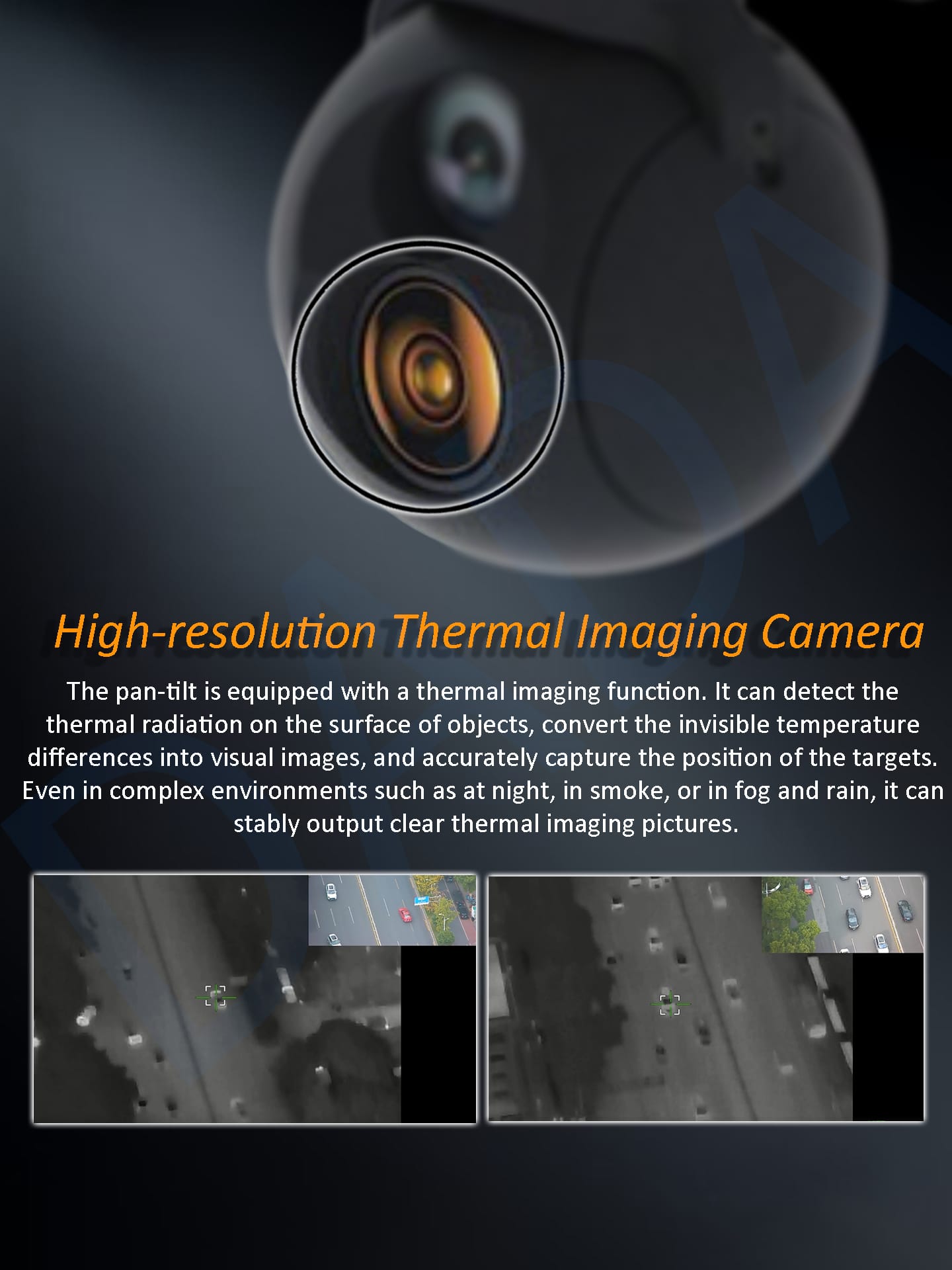

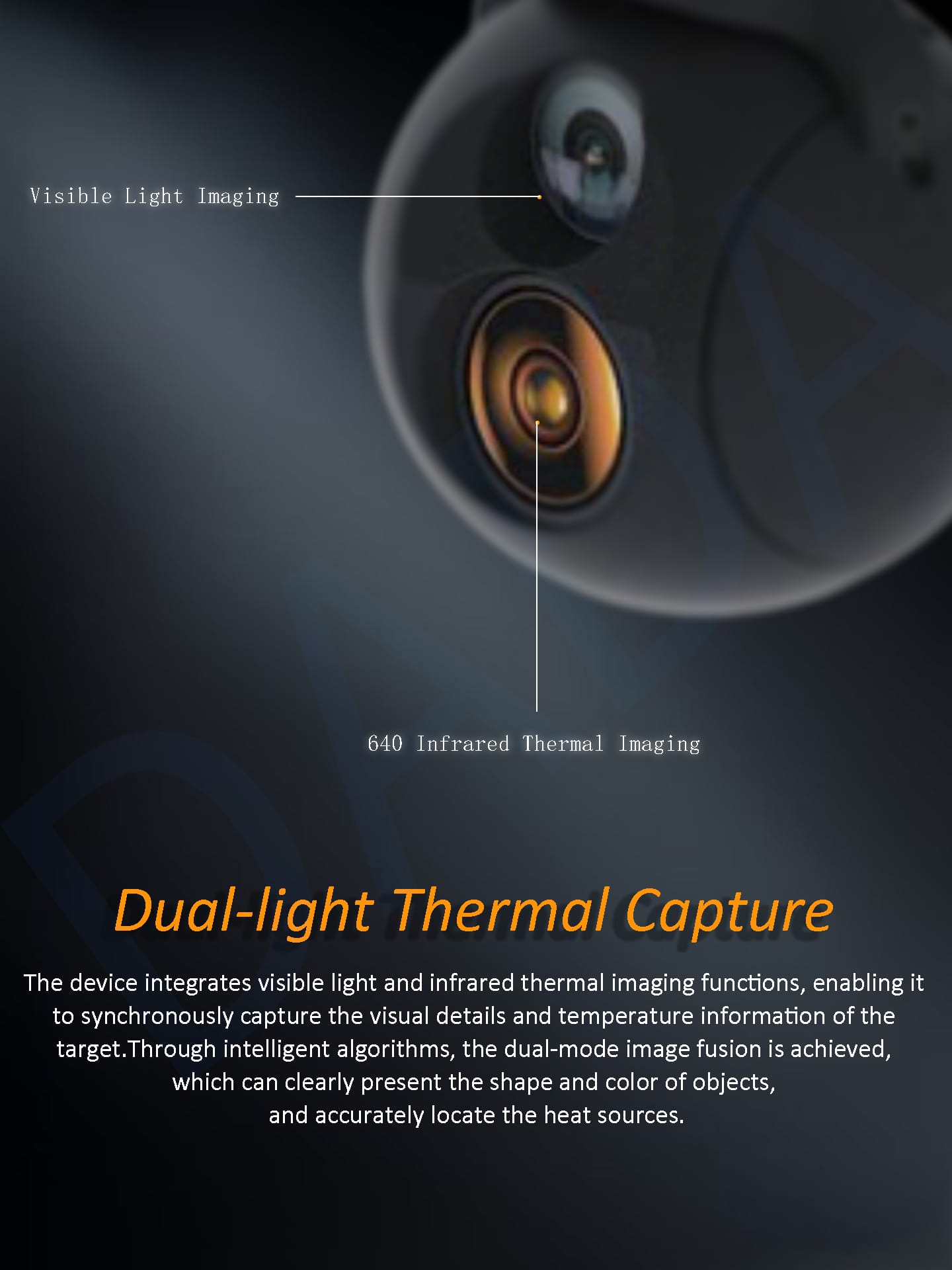

- Dual-light Thermal Capture: Integrates visible light and infrared thermal imaging to provide clear visual and thermal details of the target, ensuring accurate identification in diverse conditions.

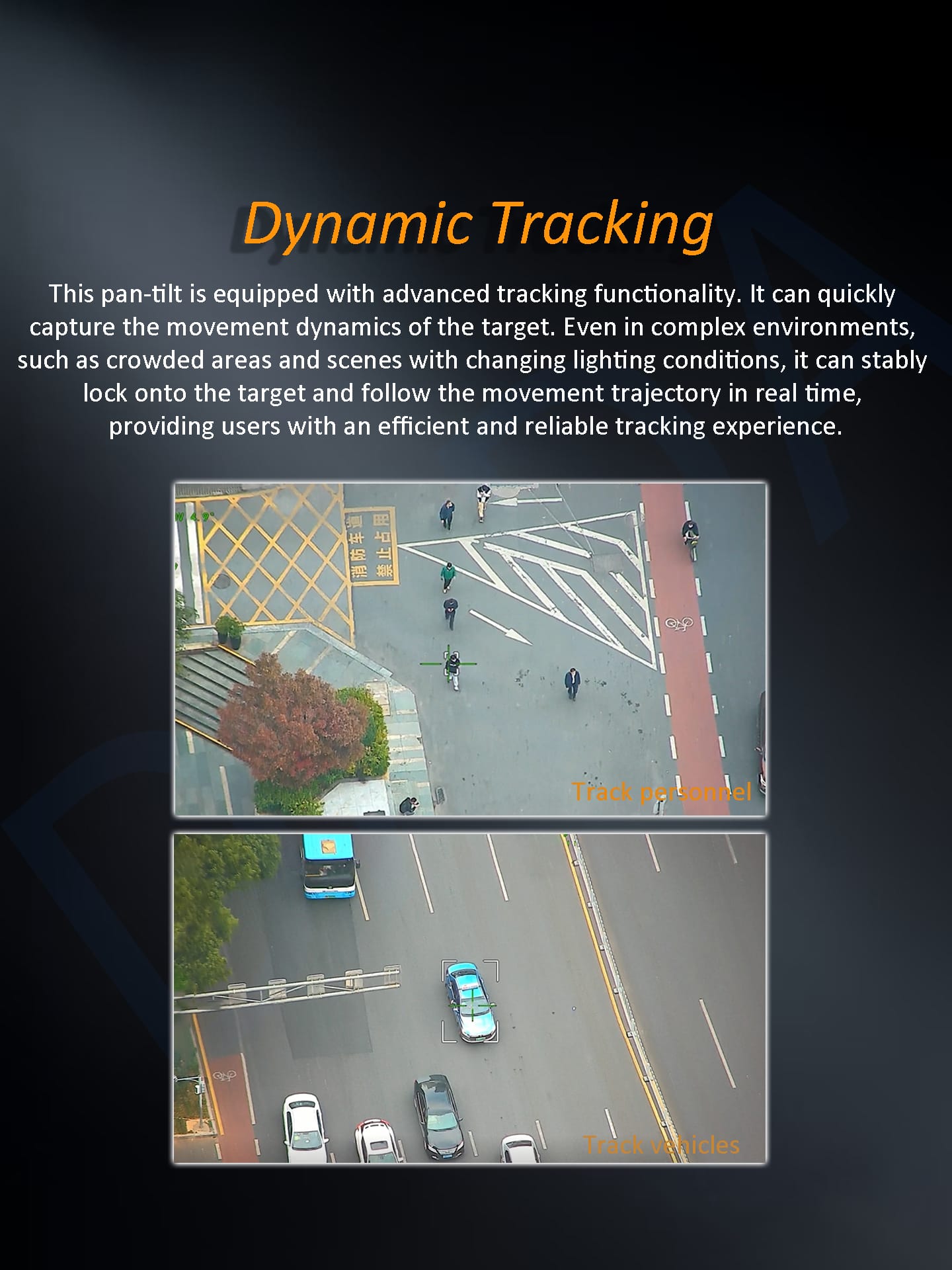

- Dynamic Tracking: The pod features advanced tracking functionality, capable of locking onto and following moving targets in crowded or complex environments, even under changing lighting conditions.

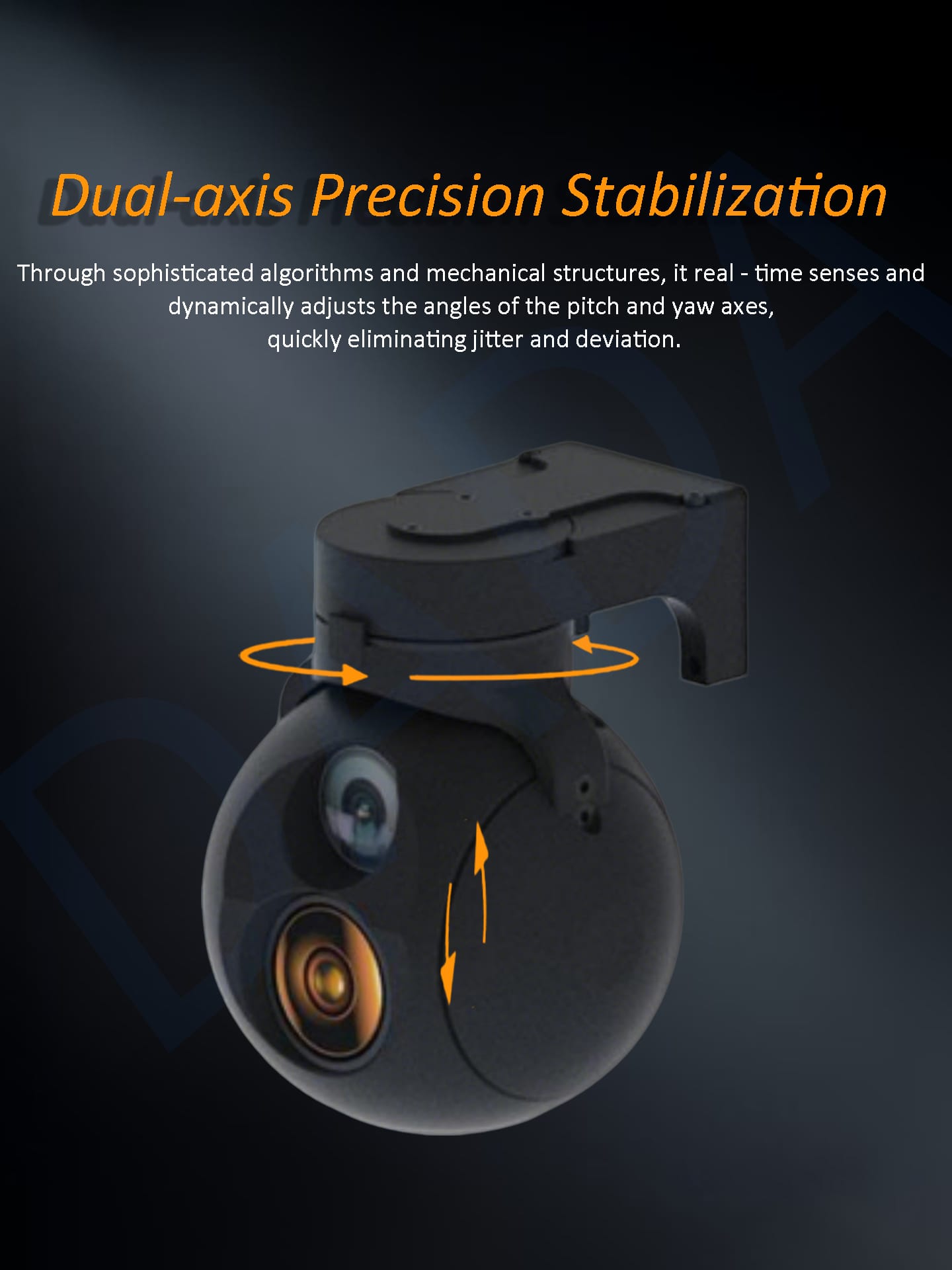

- Dual-axis Precision Stabilization: Employs sophisticated algorithms to dynamically adjust the pitch and yaw axes, ensuring smooth and stable footage during high-speed movements.
- Lightweight Design: Weighing less than 240g, the DS80 is easily portable and can be effortlessly deployed on various platforms such as drones or vehicles.
- Smart Tracking: Automatically adjusts to keep the target in view, ensuring continuous and accurate tracking without manual intervention.
- Durability: Designed to withstand shocks, the DS80 is suitable for use in harsh tactical environments, including those requiring ejection from drones.
3. Application Scenarios
- Surveillance and Security: Ideal for monitoring critical infrastructure, urban areas, and high-risk environments to ensure comprehensive security coverage.
- Search and Rescue: Equipped with thermal imaging, the DS80 can locate heat signatures in search and rescue operations, making it invaluable in low-visibility or dangerous conditions.
- Autonomous Systems: The pod can be integrated into autonomous vehicles or drones to enhance their situational awareness, providing real-time visual and thermal feedback for navigation.
- Tactical Operations: Perfect for military and law enforcement use, the DS80 provides the high mobility, durability, and advanced features necessary for effective operations in hostile environments.
