DS360 ≤385 g Three-Light Gimbal | 54.5° EO View, 24 mm IR, 3 km Laser
DS360 combines 1920×1080/60 fps visible video, 640×512/60 fps thermal imaging and 3 km laser ranging in a ≤385 g three-light pod. Its EO camera uses a 5.4 mm lens; the 24 mm thermal channel offers an 18.1°×14.5° view. AI recognition, real-time tracking and full heading rotation support target observation. The gimbal accepts 12–28 V and has published average consumption of ≤10 W.
- ≥100°/s
- ≤385g
- Av≤10W, Max≤20W
- n×360°
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

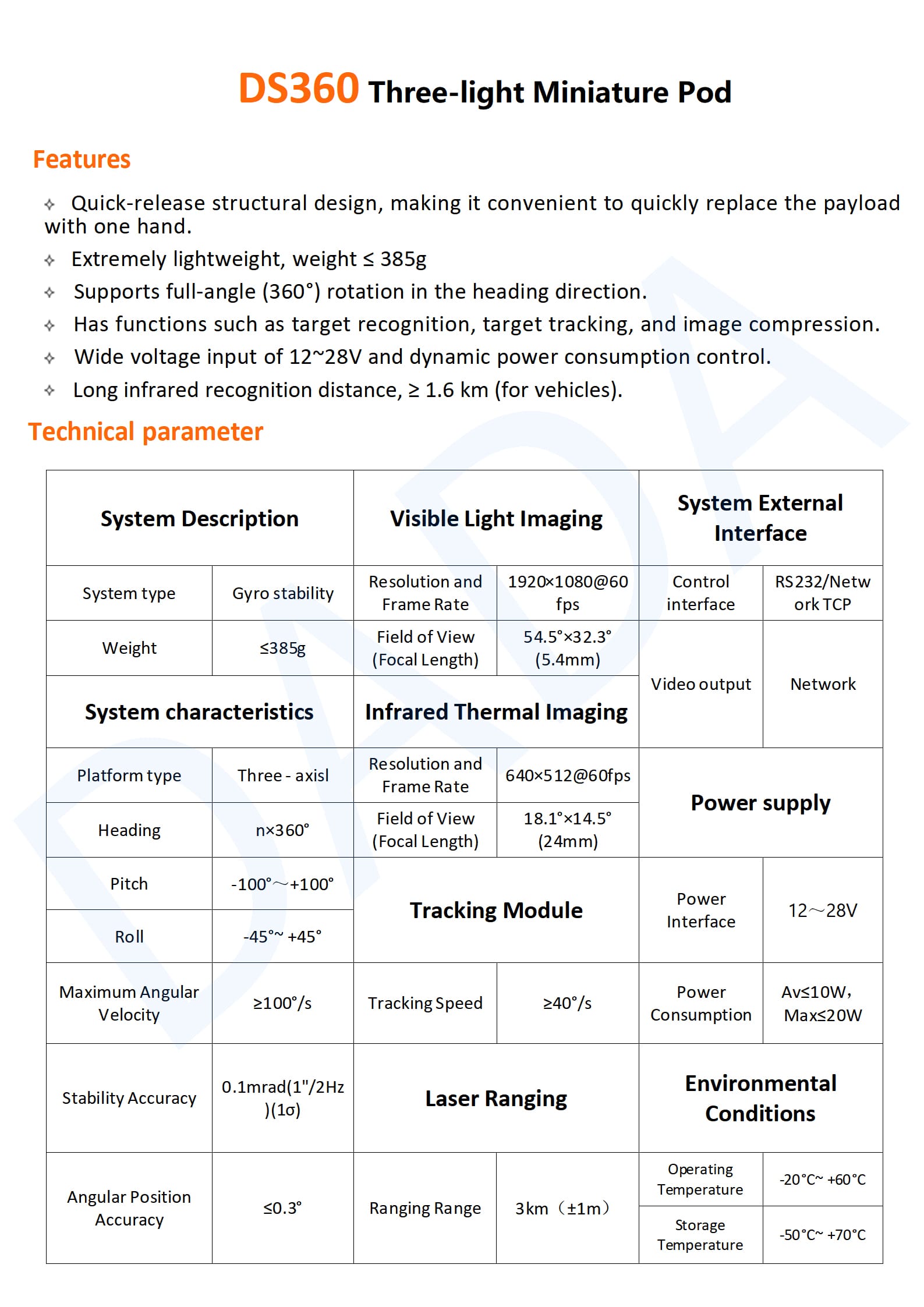

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro stability |
| Weight | ≤385g |
| Visible Light Imaging | 1920×1080@60fps, FOV: 54.5°×32.3° (5.4mm focal length) |

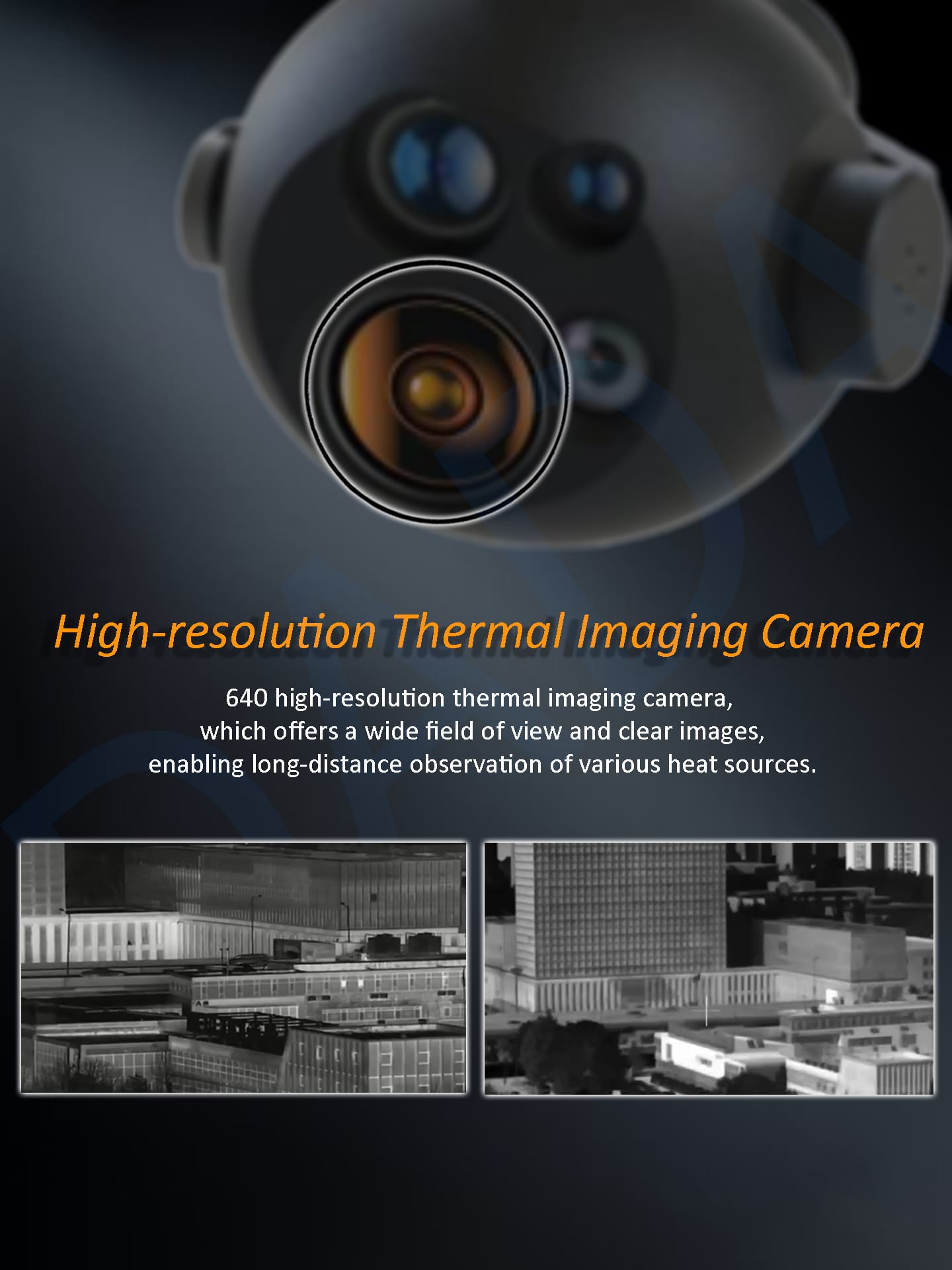

| Infrared Thermal Imaging | 640×512@60fps, FOV: 18.1°×14.5° (24mm focal length) |
| Laser Ranging | 3km (±1m) |
| Heading | n×360° |
| Pitch | -100° ~ +100° |
| Roll | -45° ~ +45° |
| Maximum Angular Velocity | ≥100°/s |
| Power Supply | 12~28V |
| Power Consumption | Av≤10W, Max≤20W |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -50°C ~ +70°C |
1. Features & applications

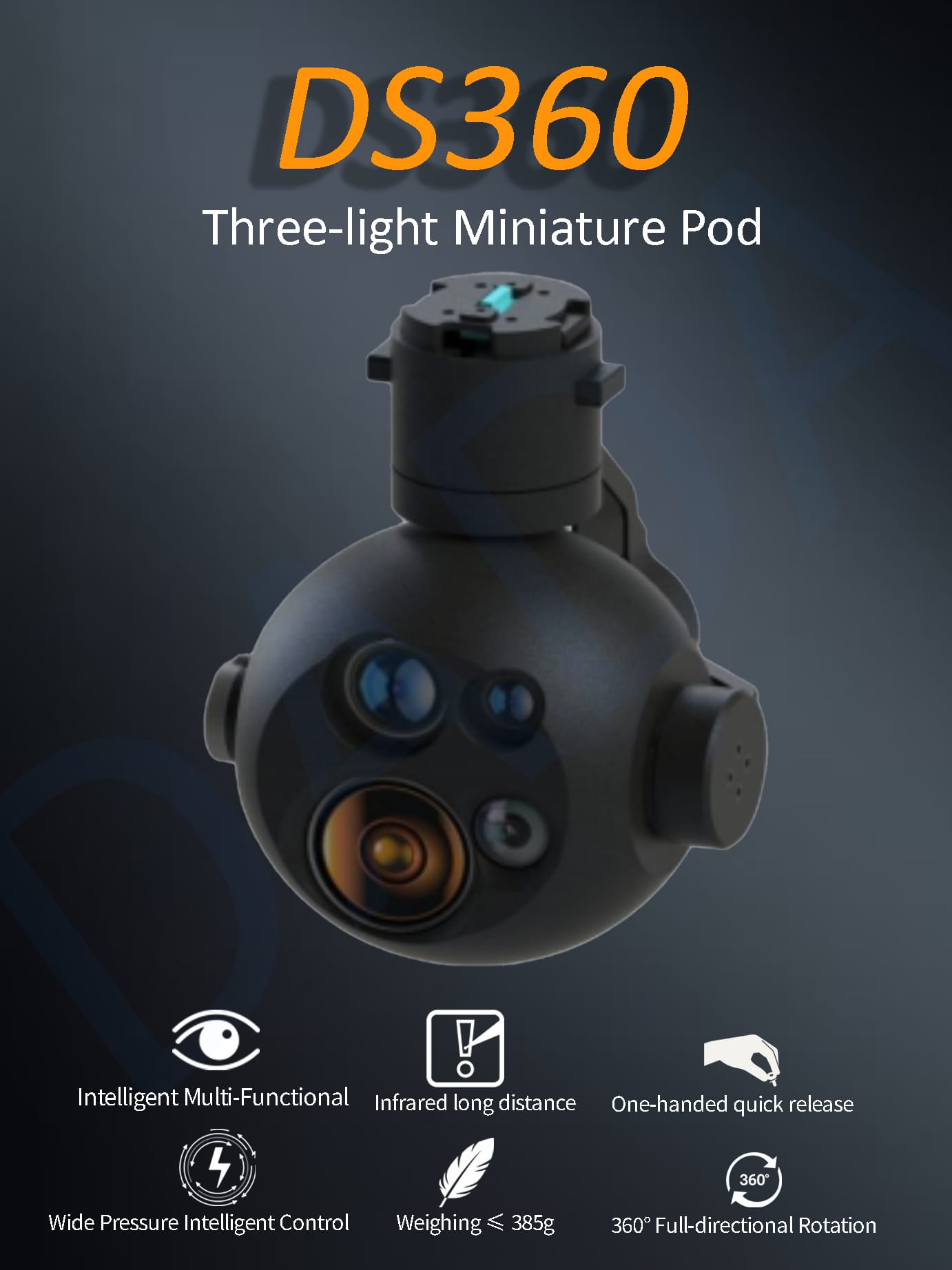

The DS360 Three-light Miniature Pod is a versatile and compact surveillance system designed for both tactical and industrial applications. Featuring three integrated light modes, it combines visible light, infrared thermal imaging, and laser ranging for comprehensive monitoring. With 360° full-directional rotation, long-distance infrared detection, and real-time AI tracking, the DS360 excels in dynamic environments where rapid decision-making and precise data are critical. This compact device is lightweight, weighing only 385g, and supports a wide input voltage range of 12~28V for flexible use.
2. Product Features

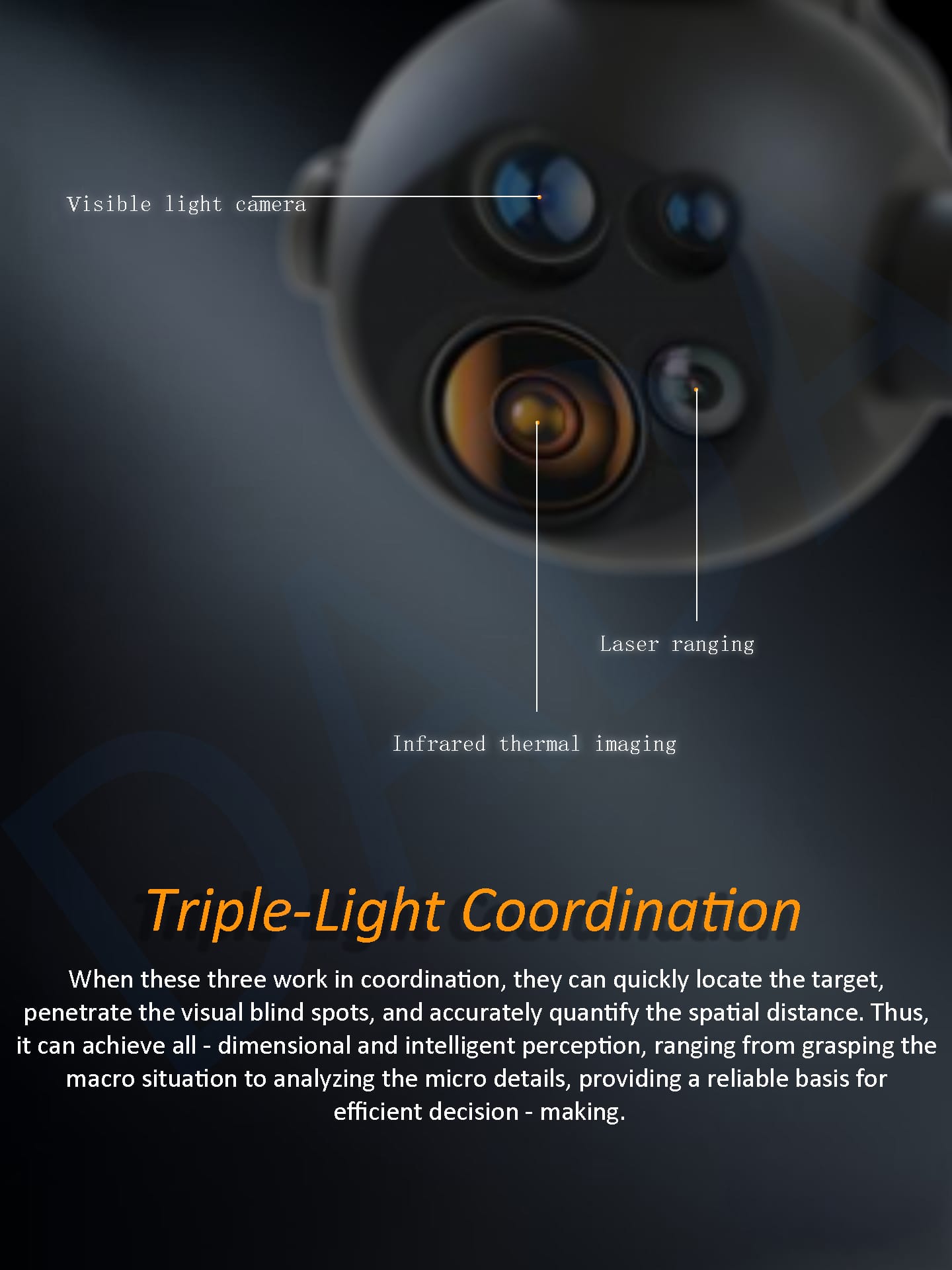

- Triple-light Coordination: Integrates visible light, infrared thermal imaging, and laser ranging for efficient decision-making and target recognition in all lighting conditions.

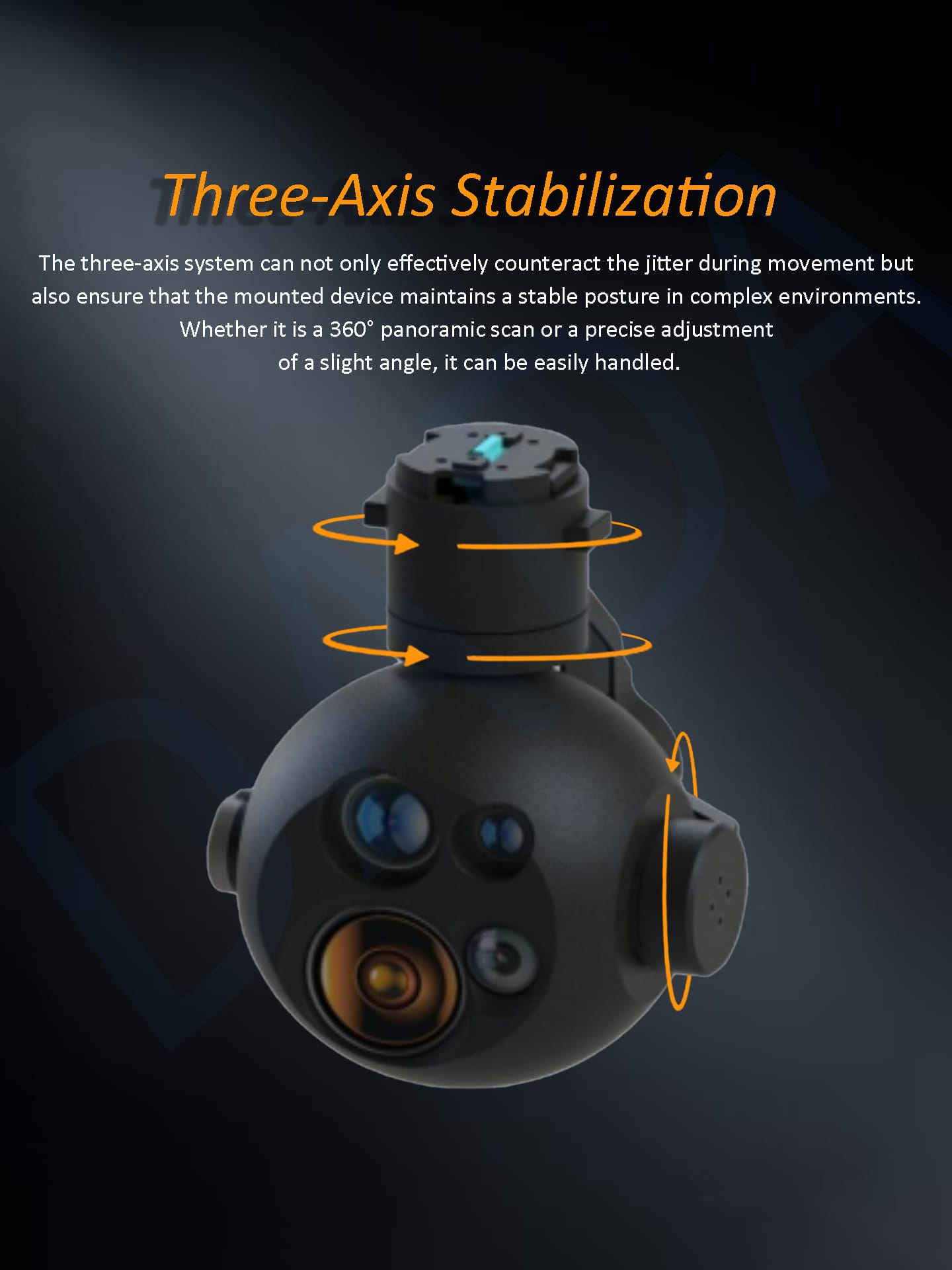

- 360° Full-directional Rotation: Provides comprehensive surveillance with the ability to rotate in all directions, offering maximum coverage.
- Laser Precision: Features highly accurate laser ranging with real-time feedback, providing precise distance measurements with minimal error.

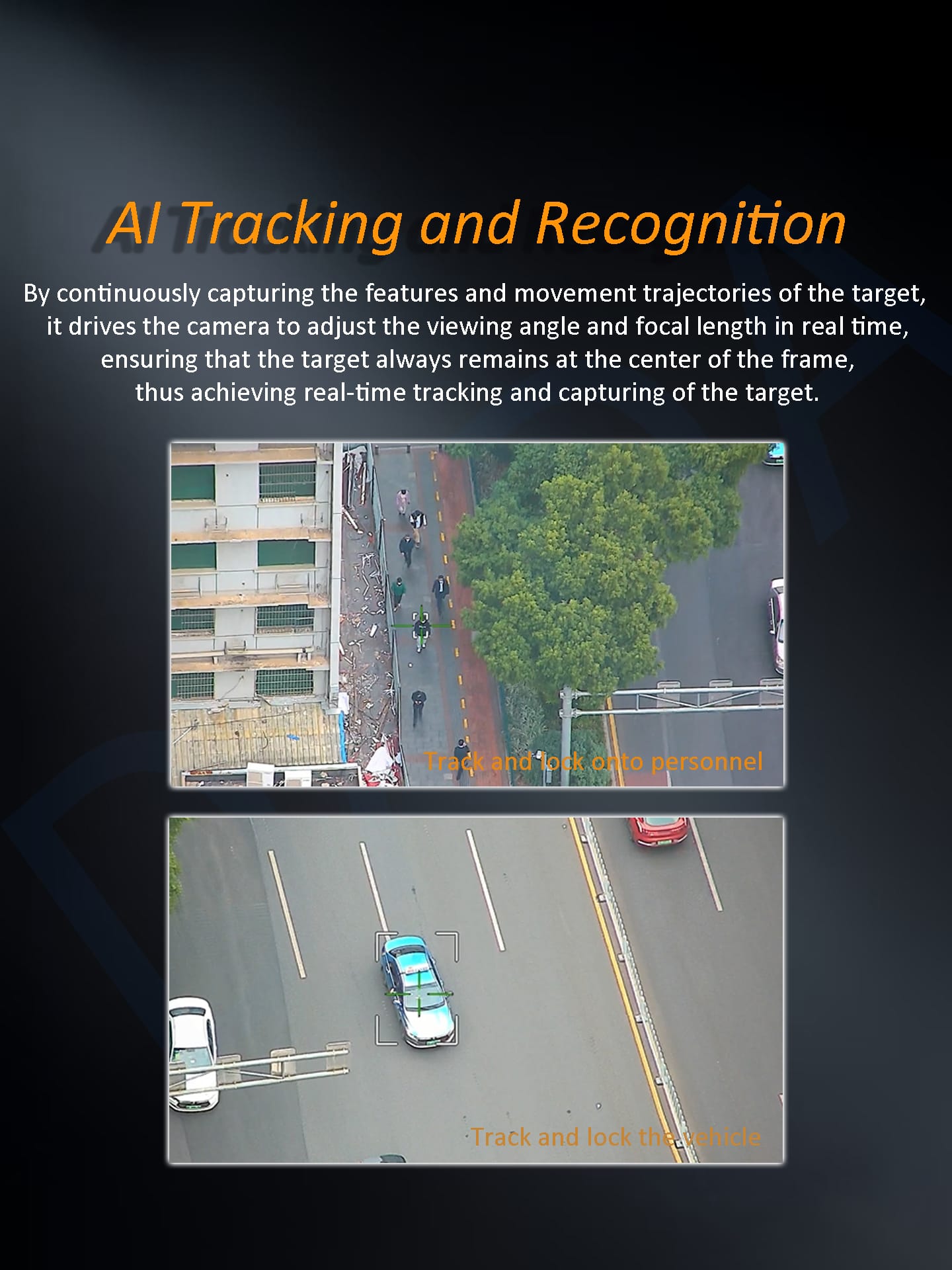

- AI Tracking and Recognition: Advanced AI technology for real-time tracking and target recognition, ensuring targets stay in the center of the frame.

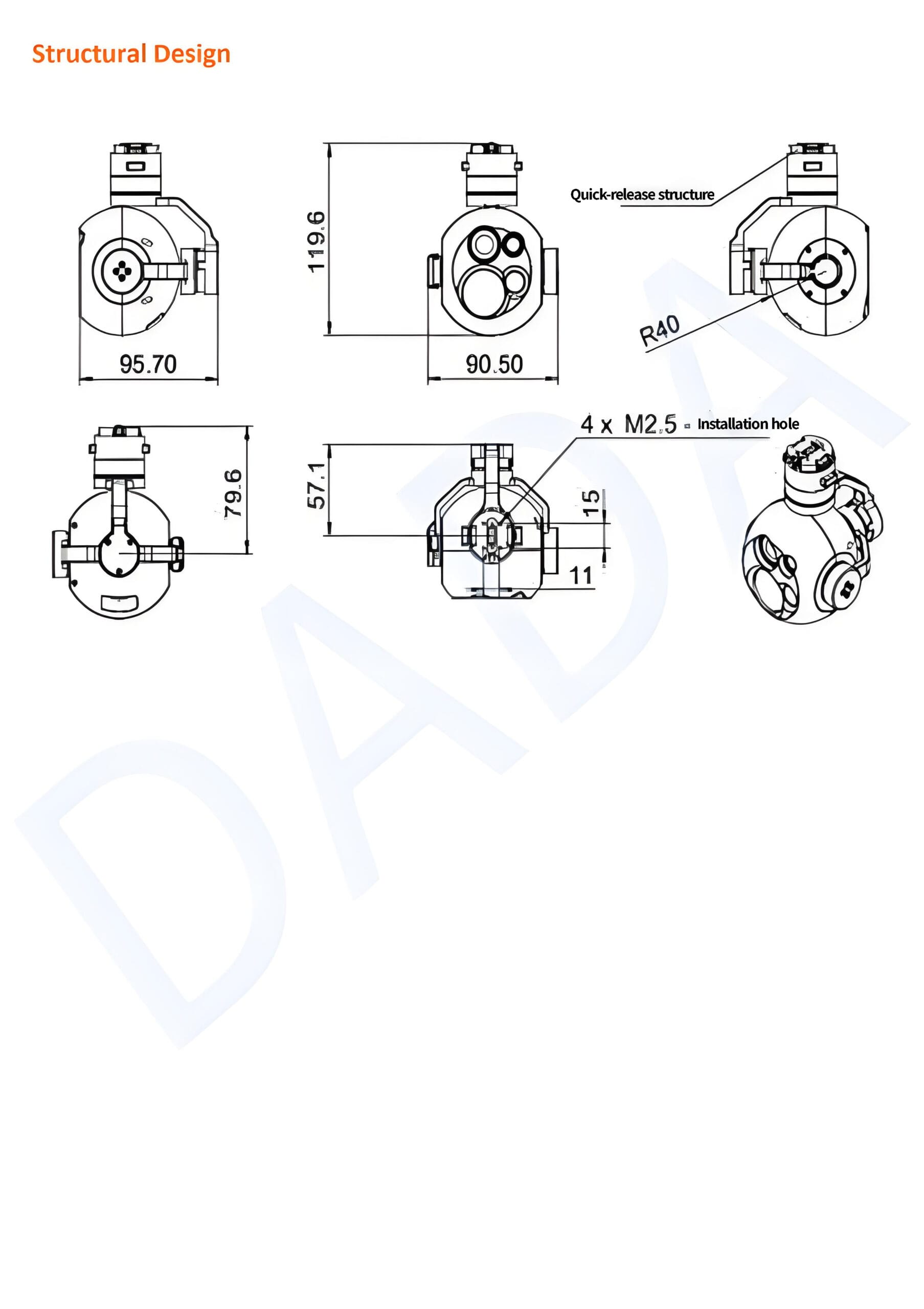

- Quick-release Structural Design: Easily replaceable with one hand, providing quick setup and minimal downtime.

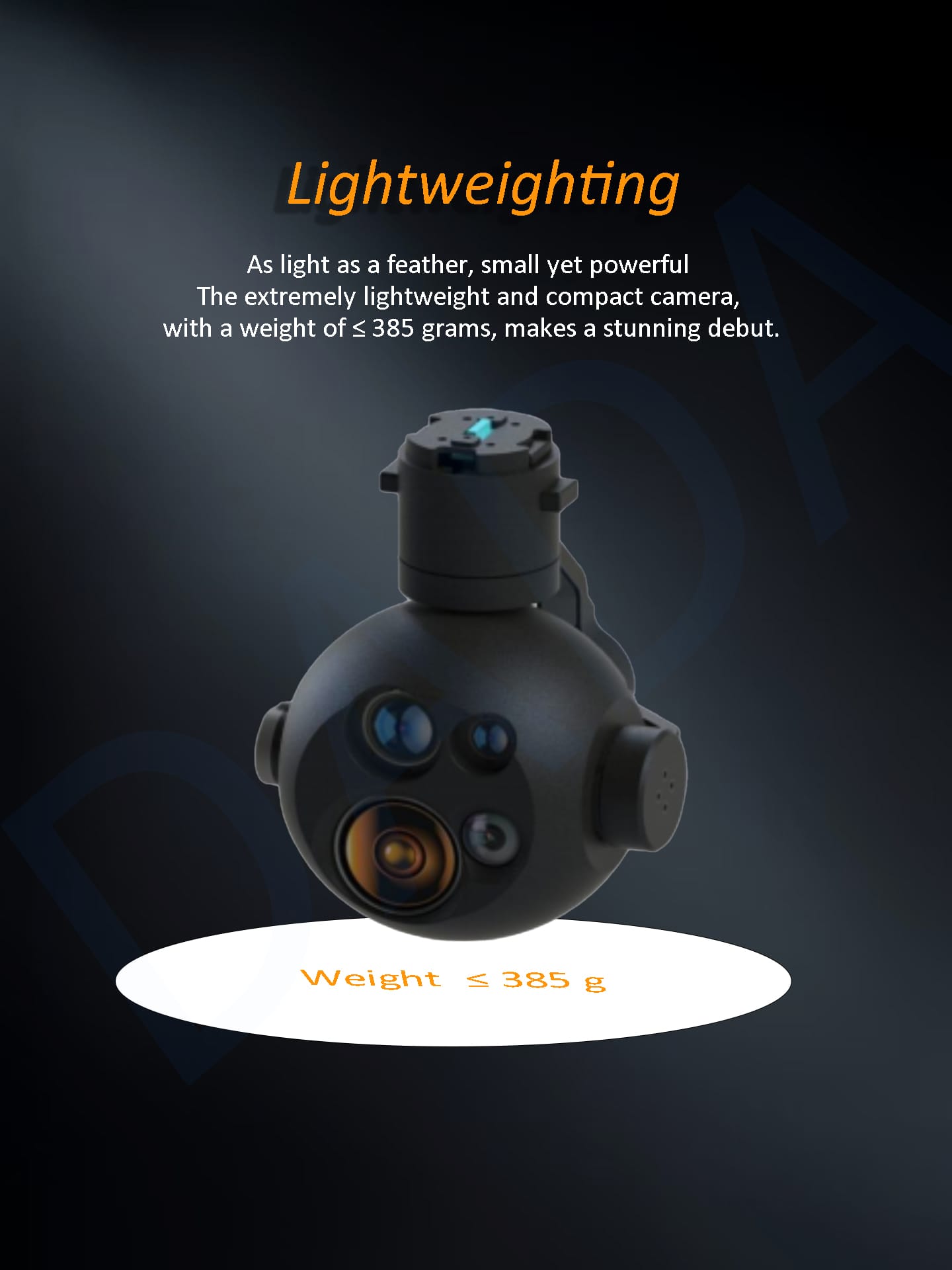

- Lightweight and Compact: Weighs just 385g, ensuring easy portability and compatibility with various platforms like drones and vehicles.
3. Application Scenarios
- Surveillance and Security: Perfect for monitoring critical infrastructure, city-wide security, and sensitive areas where 360° coverage and precise tracking are needed.
- Autonomous Systems: Ideal for integration with autonomous vehicles, drones, and robots that require detailed environmental sensing and accurate tracking capabilities.
- Search and Rescue: The pod’s thermal imaging and laser ranging features make it invaluable for locating individuals in distress, especially in low-visibility environments.
- Traffic Monitoring: The system’s ability to track vehicles and people over long distances with high accuracy makes it ideal for use in managing traffic or monitoring large events.
