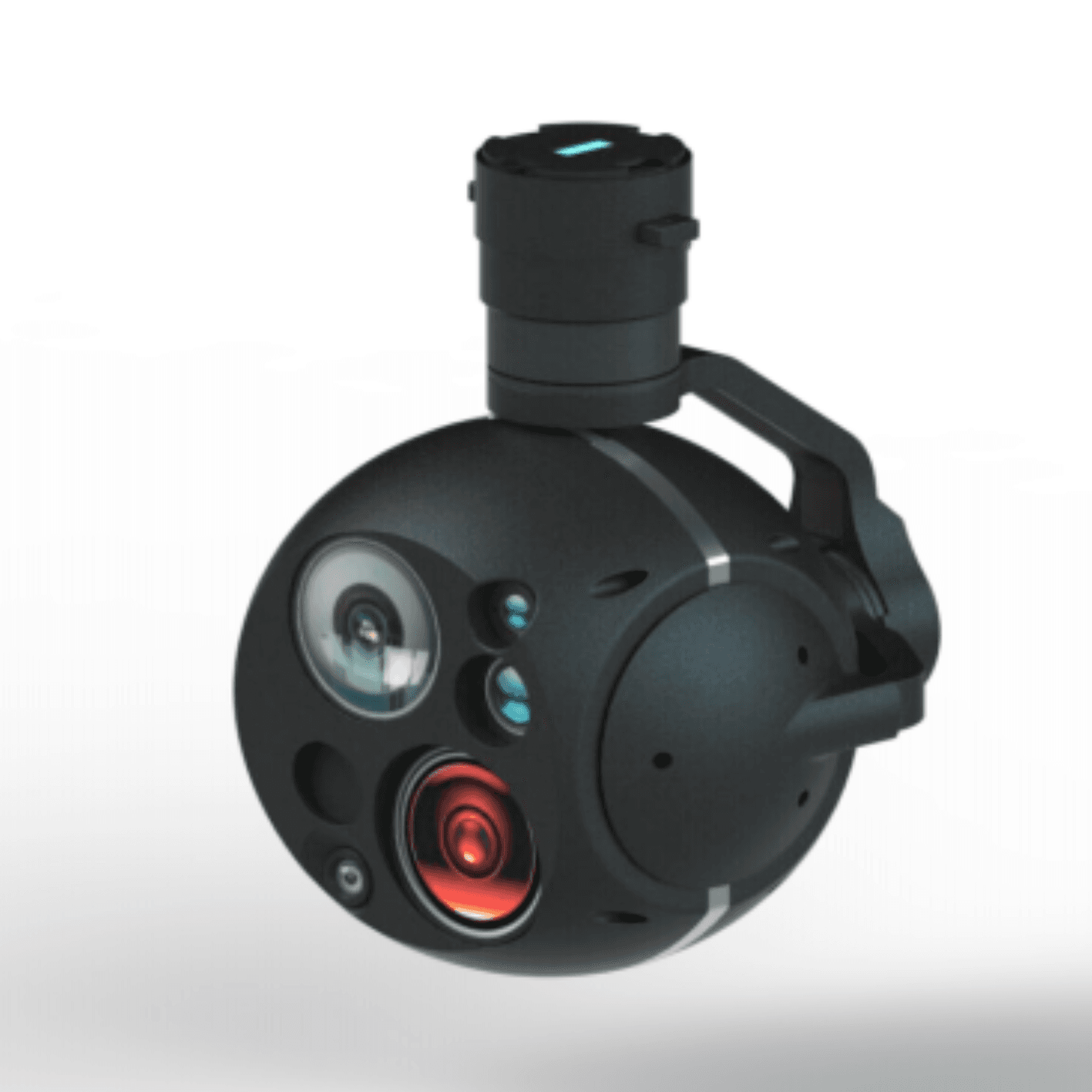

DS30BPRO 30–3,000 m EO/IR Laser Gimbal | 4.5–135 mm Visible Zoom
The DS30BPRO three-light version joins 1920×1080/60 fps EO video, 640×512/60 fps thermal imaging and 30–3,000 m laser ranging. Its visible zoom lens covers 4.5–135 mm, while the 50 mm infrared lens supplies an 8.7°×7° thermal view. AI recognition and automatic tracking coordinate the sensing channels for moving-target observation. Published average and maximum power are ≤16 W and ≤30 W.
- 30 ~ 3000m
- 640×512 @60fps
- 8.7° x 7° (50mm)
- ≥100°/s
- 1920×1080 @ 60fps
- Av≤16W, Max≤30W
- 4.5 ~ 135mm
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

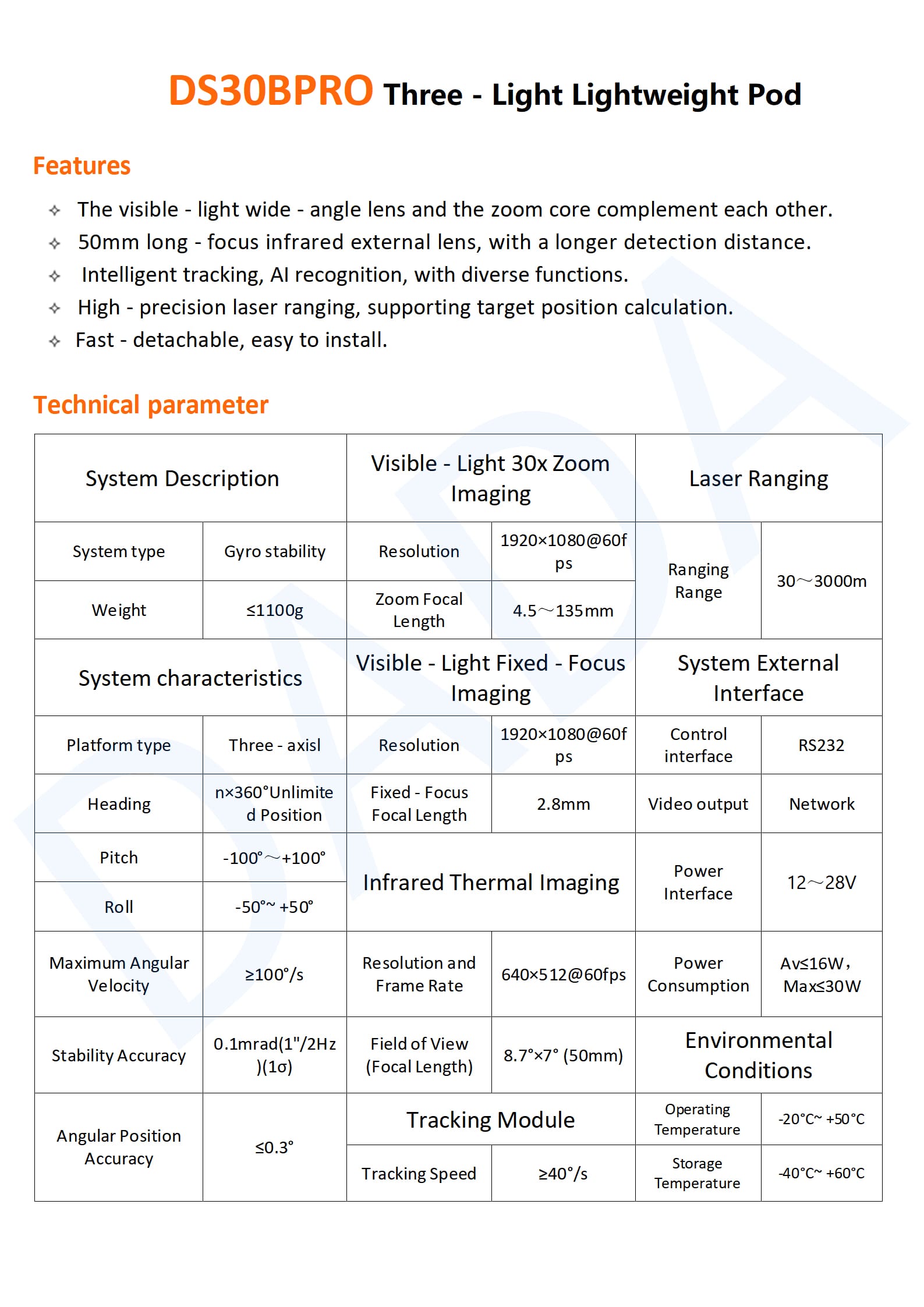

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro stability |
| Resolution | 1920×1080 @ 60fps |
| Zoom Focal Length | 4.5 ~ 135mm |
| Ranging Range | 30 ~ 3000m |
| Thermal Imaging Resolution | 640×512 @60fps |
| Thermal Imaging Field of View | 8.7° x 7° (50mm) |
| Maximum Angular Velocity | ≥100°/s |
| Power Consumption | Av≤16W, Max≤30W |
| Operating Temperature | -20°C ~ +50°C |
| Storage Temperature | -40°C ~ +60°C |
1. Features & applications

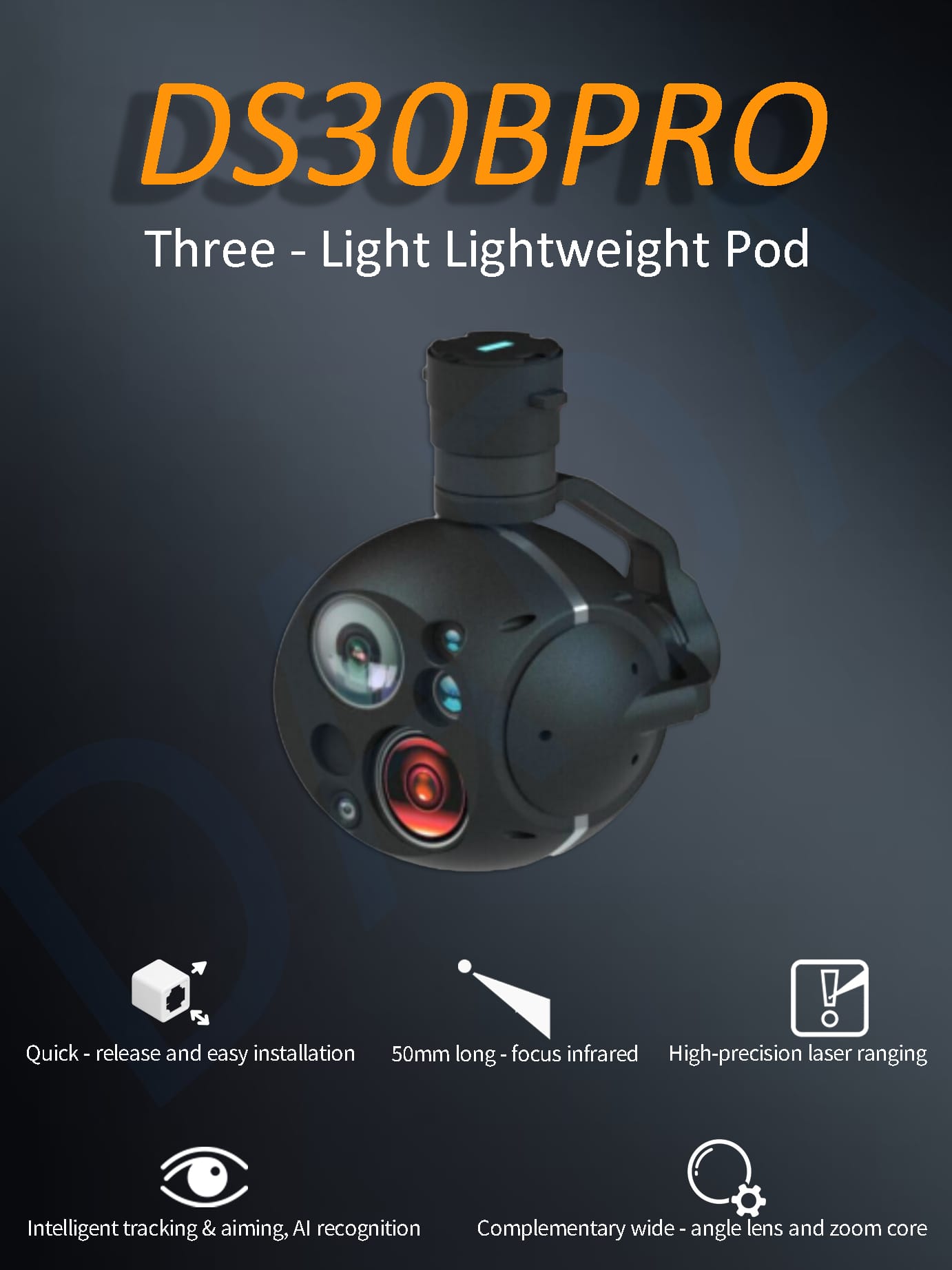

The DS30BPRO is an advanced three-light camera pod designed for intelligent tracking, AI recognition, and high-precision laser ranging. With its versatile three-axis system, it offers stability and high-quality imaging for both visible light and infrared applications. This pod is particularly suitable for surveillance, monitoring, and various industrial applications, ensuring accurate target detection and tracking in real time.
2. Product Features

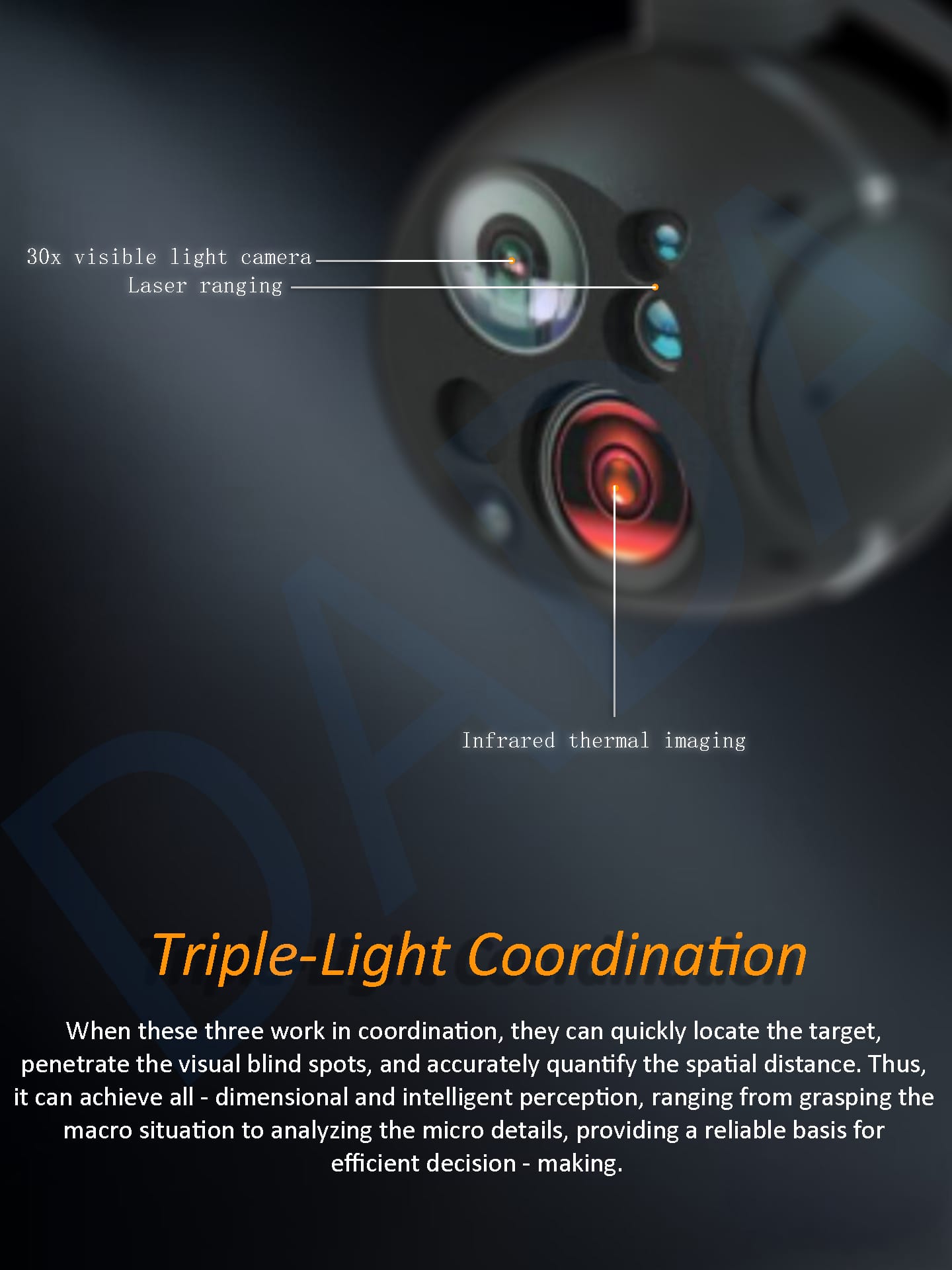

- Three-Light Coordination: Integrates a 30x visible light camera, laser ranging system, and high-resolution infrared thermal imaging for comprehensive, accurate tracking and targeting.

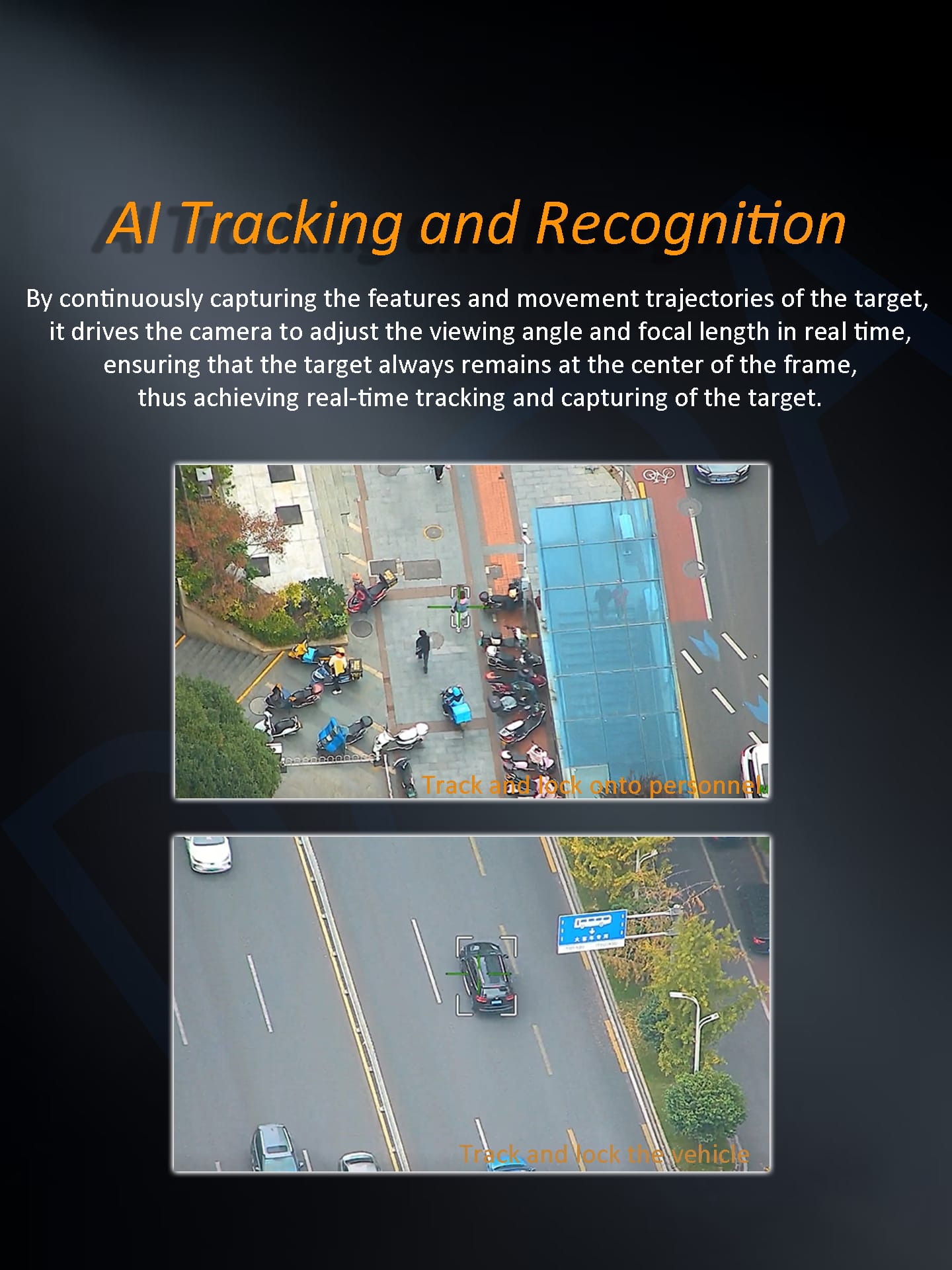

- AI Tracking and Recognition: Automatically adjusts the camera’s angle and focal length to track and capture moving targets with precision.

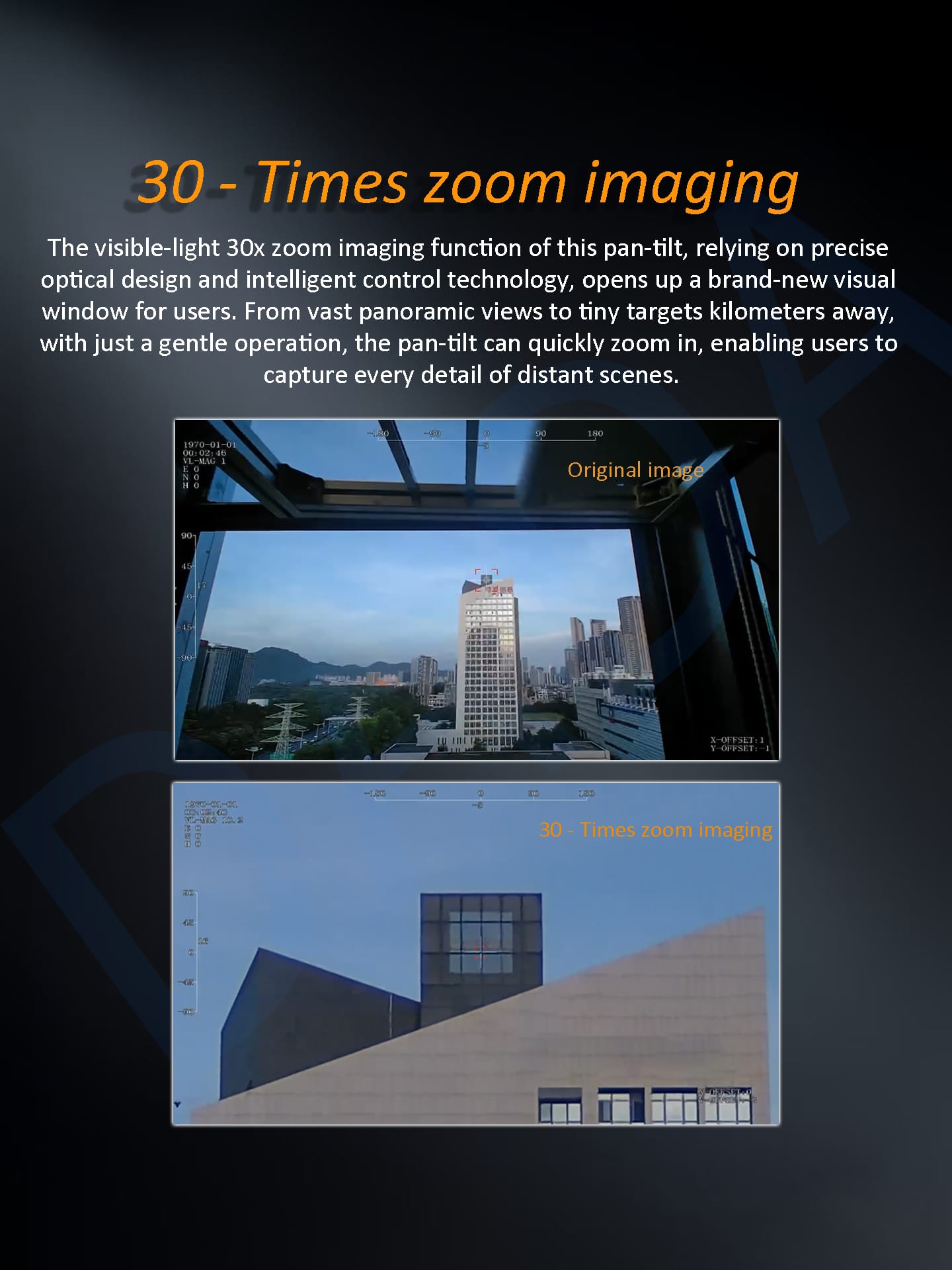

- 30x Zoom Imaging: The visible-light camera offers a powerful 30x zoom, enabling detailed viewing of distant objects with ease.
- Laser Precision: Emits precise laser beams to capture distance data with minimal error, ensuring high accuracy.

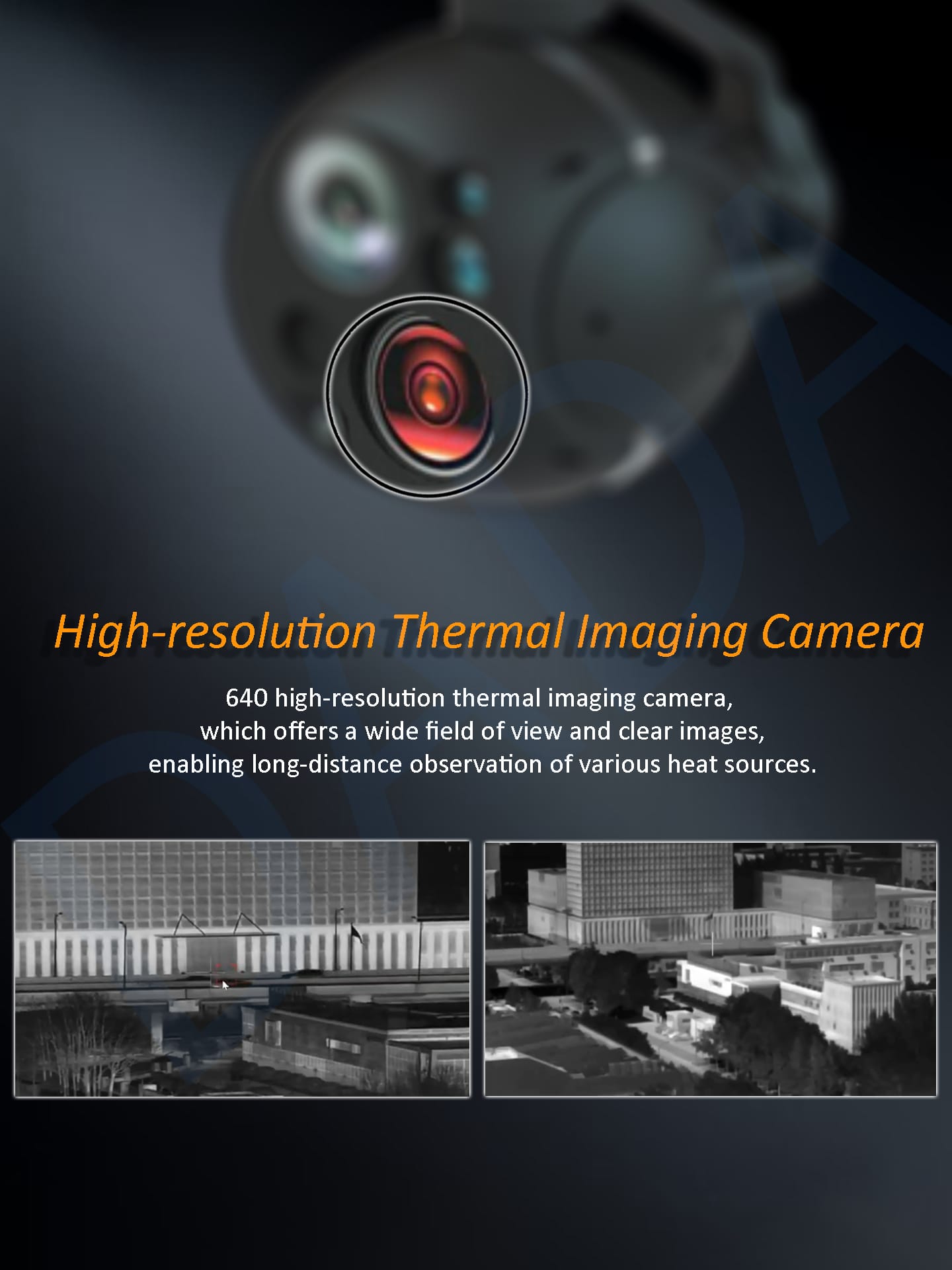

- High-Resolution Thermal Imaging: Captures thermal data with a 640 resolution, allowing for long-distance observation of heat sources.

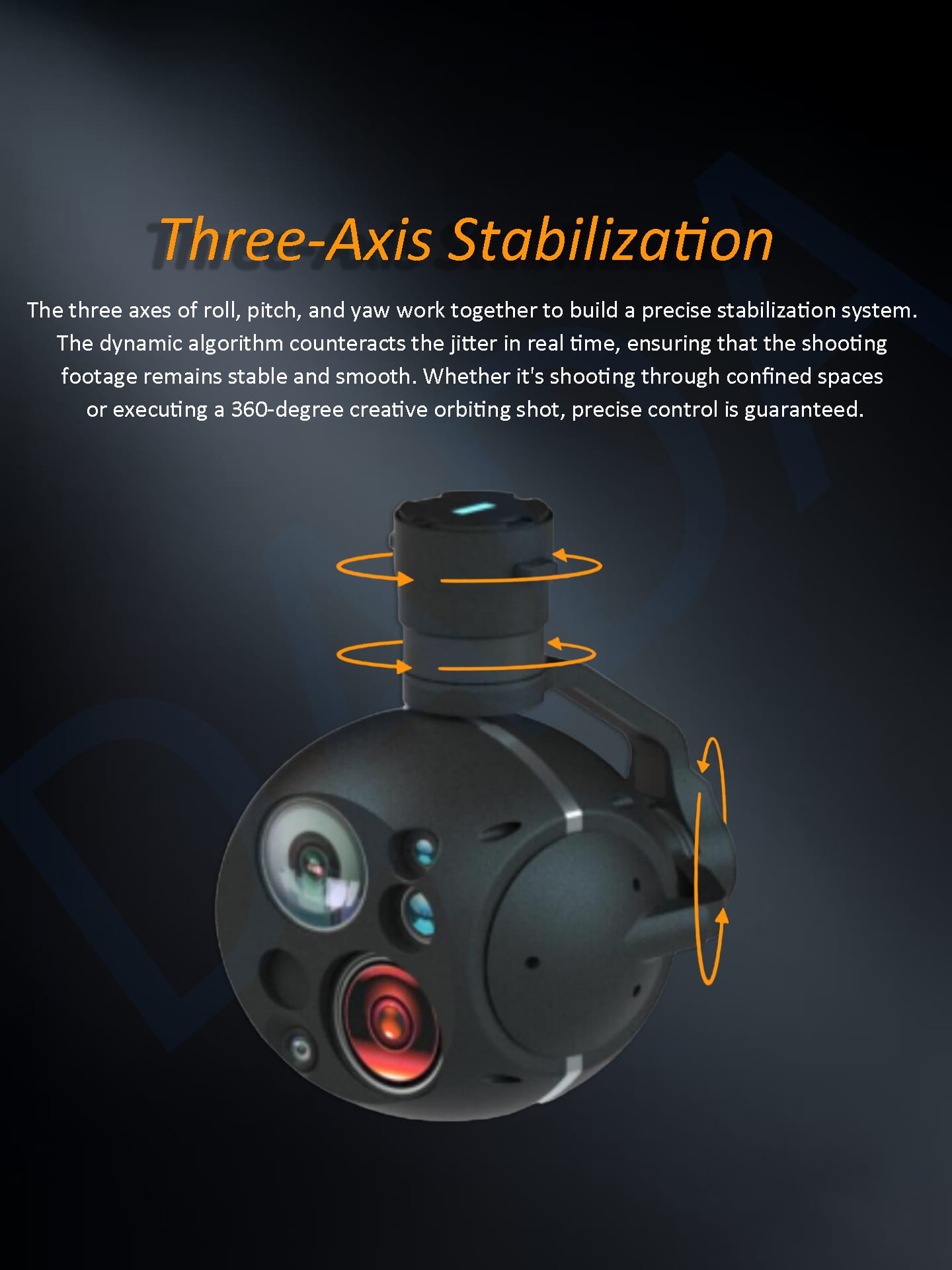

- Three-Axis Stabilization: Provides smooth and stable footage by counteracting any jitter during movement with its dynamic stabilization algorithm.
- Quick Installation: Features a quick-release structure that allows for easy installation and removal, improving deployment efficiency.
3. Application Scenarios
- Surveillance and Security: Ideal for monitoring large areas with high precision, ensuring efficient surveillance of both people and vehicles.
- Traffic Monitoring: Suitable for real-time traffic analysis, vehicle tracking, and ensuring accurate data on traffic flow.
- Search and Rescue: The infrared thermal imaging system is ideal for locating heat signatures during search and rescue operations, even in low visibility conditions.
- Autonomous Vehicles: Can be applied in autonomous vehicle systems to assist with navigation and environment perception through precise distance measurement and object tracking.
