DS30B CMOS EO-Laser Gimbal | 4.3–129 mm, 30× Zoom, ±1 m Ranging
DS30B pairs a 1/2.8-inch CMOS EO camera with a laser rangefinder in a three-axis UAV gimbal. The 4.3–129 mm lens supplies 30× optical zoom and 1920×1080/60 fps video; published ranging reaches at least 3 km at ±1 m precision. AI person and vehicle recognition, automatic tracking and continuous heading rotation support long-range observation and distance measurement. Average power is rated ≤15 W.
- 63.7° ~ 2.3°
- 1/2.8-inch CMOS
- F=4.3mm ~ 129mm
- ≥3 km (Precision ±1m)
- ≥5 km (Car 4.2*1.8)
- 1920×1080 @60 fps
- Av≤15W, Max≤30W
- ≥40°/s
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

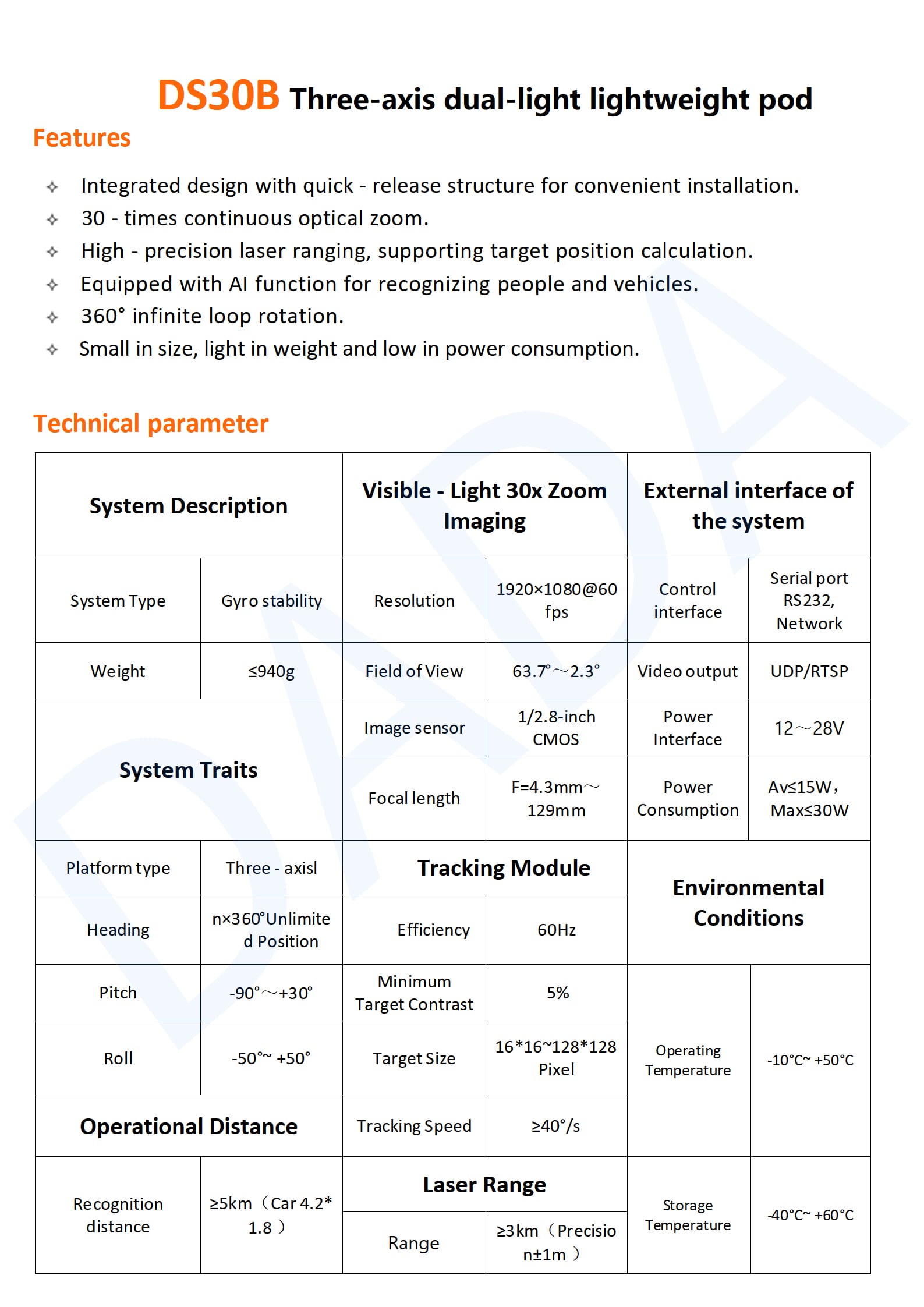

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro Stability |
| Resolution | 1920×1080 @60 fps |
| Field of View | 63.7° ~ 2.3° |
| Image Sensor | 1/2.8-inch CMOS |
| Focal Length | F=4.3mm ~ 129mm |
| Tracking Speed | ≥40°/s |
| Laser Range | ≥3 km (Precision ±1m) |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -40°C ~ +60°C |
| Power Consumption | Av≤15W, Max≤30W |
| Recognition Distance | ≥5 km (Car 4.2*1.8) |
1. Features & applications

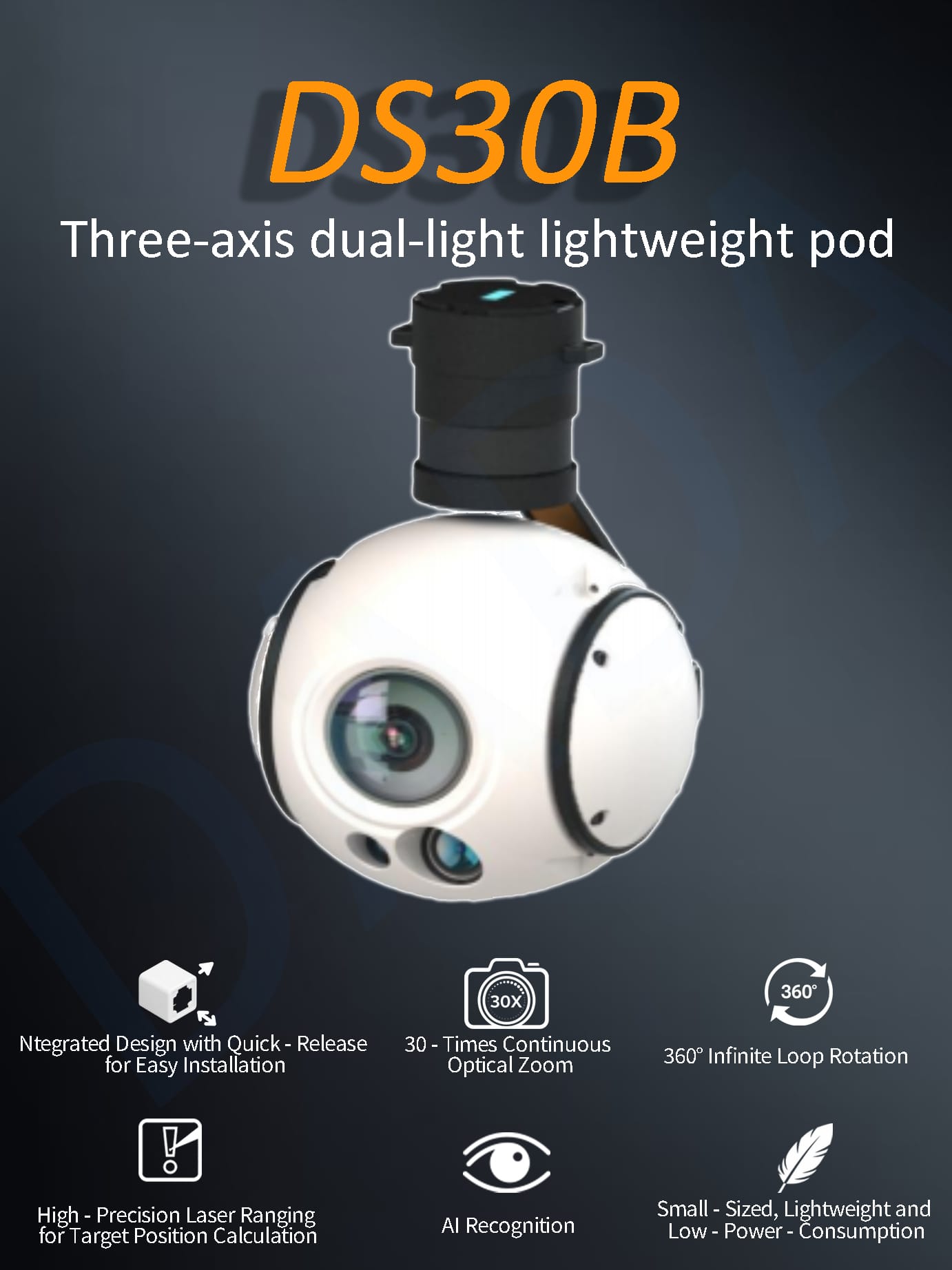

The DS30B is a high-performance camera pod designed for AI tracking and recognition, laser precision, and three-axis stabilization. Equipped with advanced technologies, this pod provides accurate tracking of both people and vehicles. It offers seamless 30x continuous optical zoom, real-time laser ranging, and reliable 360° infinite rotation, making it ideal for diverse applications such as surveillance and monitoring in complex environments.
2. Product Features
- AI Tracking and Recognition: Quickly identifies and tracks people and vehicles, maintaining them at the center of the frame with automatic pan-tilt adjustments.
- Laser Precision: Utilizes high-precision laser beams to quickly capture target distance information with extremely small errors.

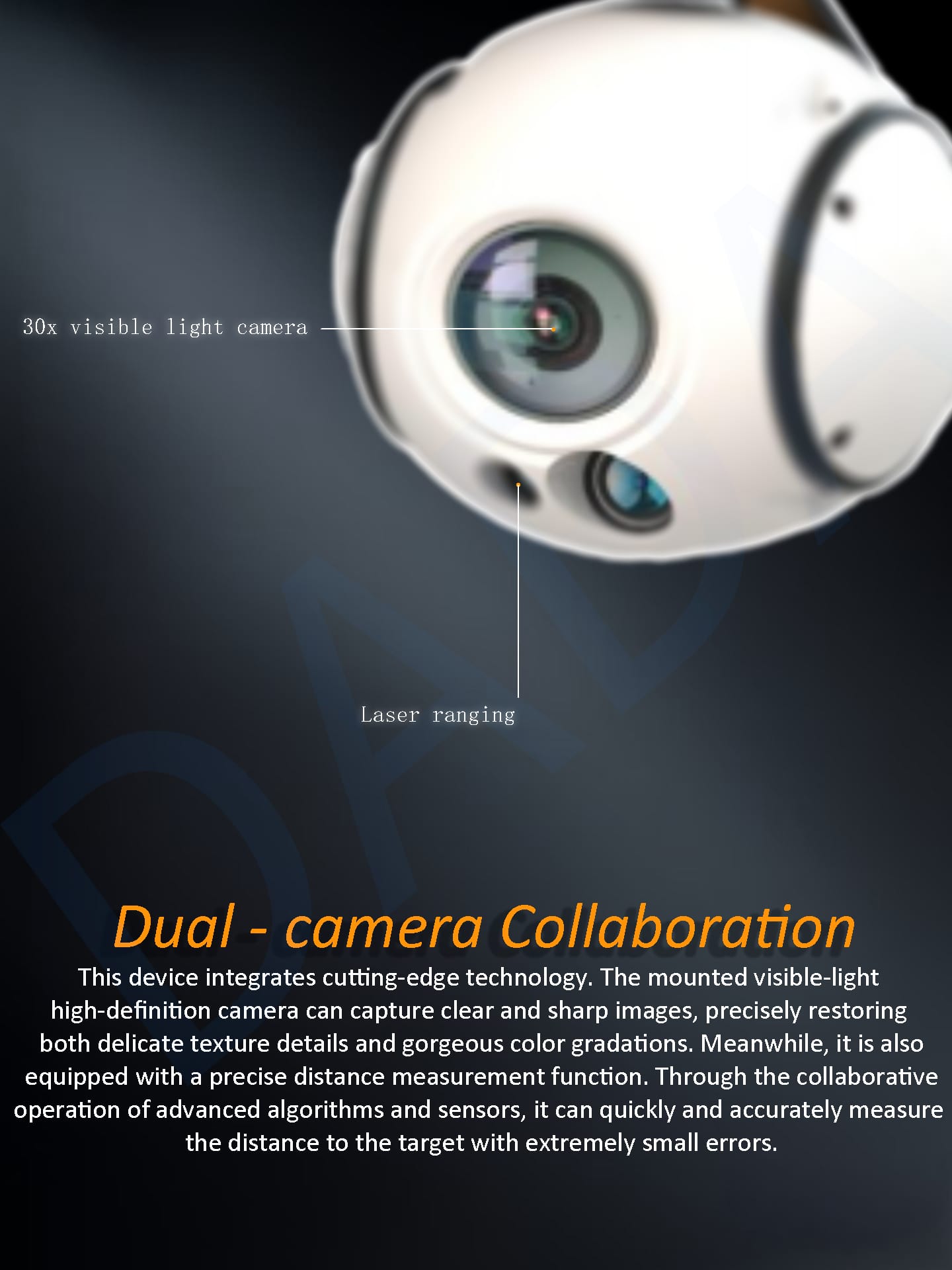

- Dual-Camera Collaboration: Combines a high-definition visible-light camera with a precise laser ranging system to ensure clear imaging and accurate distance measurement.
- Three-Axis Stabilization: Ensures stable tracking and shooting, even during movement or complex environmental conditions.
- 30x Zoom Imaging: Achieves 30x optical zoom, enabling clear visibility of distant objects with fine details.
- Compact and Lightweight: The pod is small in size, lightweight, and consumes low power, making it easy to deploy and use.
3. Application Scenarios
- Surveillance and Security: Ideal for large-scale surveillance systems to track people and vehicles with high precision and stability.
- Traffic Monitoring: Useful for monitoring traffic and ensuring accurate vehicle tracking in real-time.
- Autonomous Vehicles: Can be applied in autonomous vehicle systems to assist in vehicle positioning and navigation using laser precision.
- Industrial Use: Suitable for remote sensing and monitoring in complex environments, such as warehouses or construction sites.
