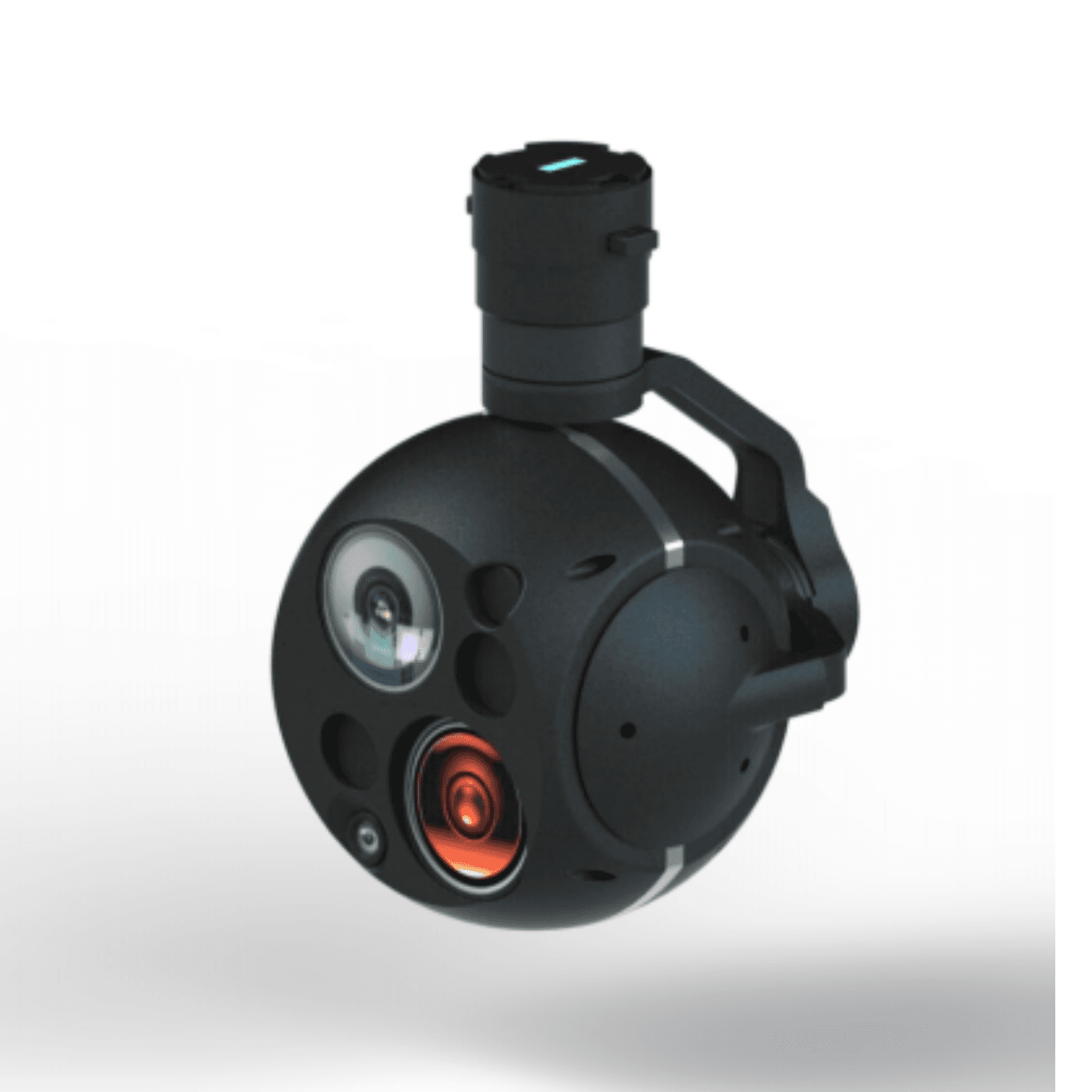

DS30APRO Wide/Tele EO and 50 mm IR Payload | 30× Optical Zoom
DS30Apro pairs a 4.5–135 mm zoom camera with a 2.8 mm fixed EO camera and a long-focus infrared channel. Published visible and thermal video are 1920×1080/60 fps and 640×512/60 fps, respectively; the product feature list identifies a 50 mm IR lens. AI recognition and tracking support switching between wide search and detailed observation. Quick-release mounting, RS232 control and UDP/RTSP output serve UAV installation on 12–28 V.
- 8.7° × 7° (Infrared, 50 mm)
- 4.5~135mm (Zoom), 2.8mm (Fixed)
- 12~28V
- ≥100°/s
- 0.1 mrad (1°/2 Hz) (1σ)
- ≥40°/s
- 1920x1080@60fps (Visible Light), 640x512@60fps (Infrared)
- Avg≤16W, Max≤30W
- RS232
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

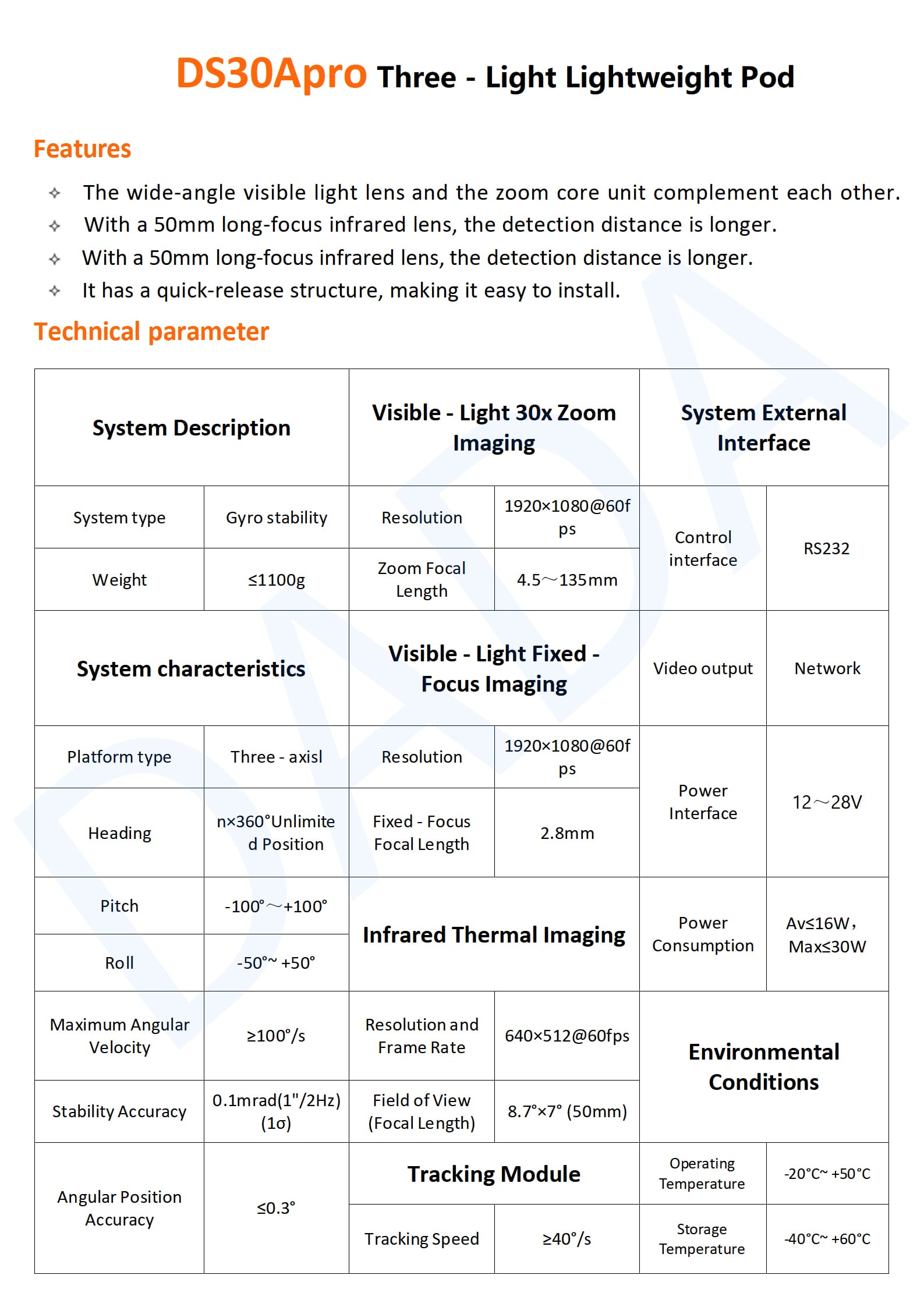

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro stability |
| Resolution | 1920x1080@60fps (Visible Light), 640x512@60fps (Infrared) |
| Field of View | 8.7° × 7° (Infrared, 50 mm) |
| Focal Length | 4.5~135mm (Zoom), 2.8mm (Fixed) |
| Control Interface | RS232 |
| Power Interface | 12~28V |
| Power Consumption | Avg≤16W, Max≤30W |
| Operating Temperature | -20°C~+50°C |
| Storage Temperature | -40°C~+60°C |
| Maximum Angular Velocity | ≥100°/s |
| Stability Accuracy | 0.1 mrad (1°/2 Hz) (1σ) |
| Tracking Speed | ≥40°/s |
1. Features & applications

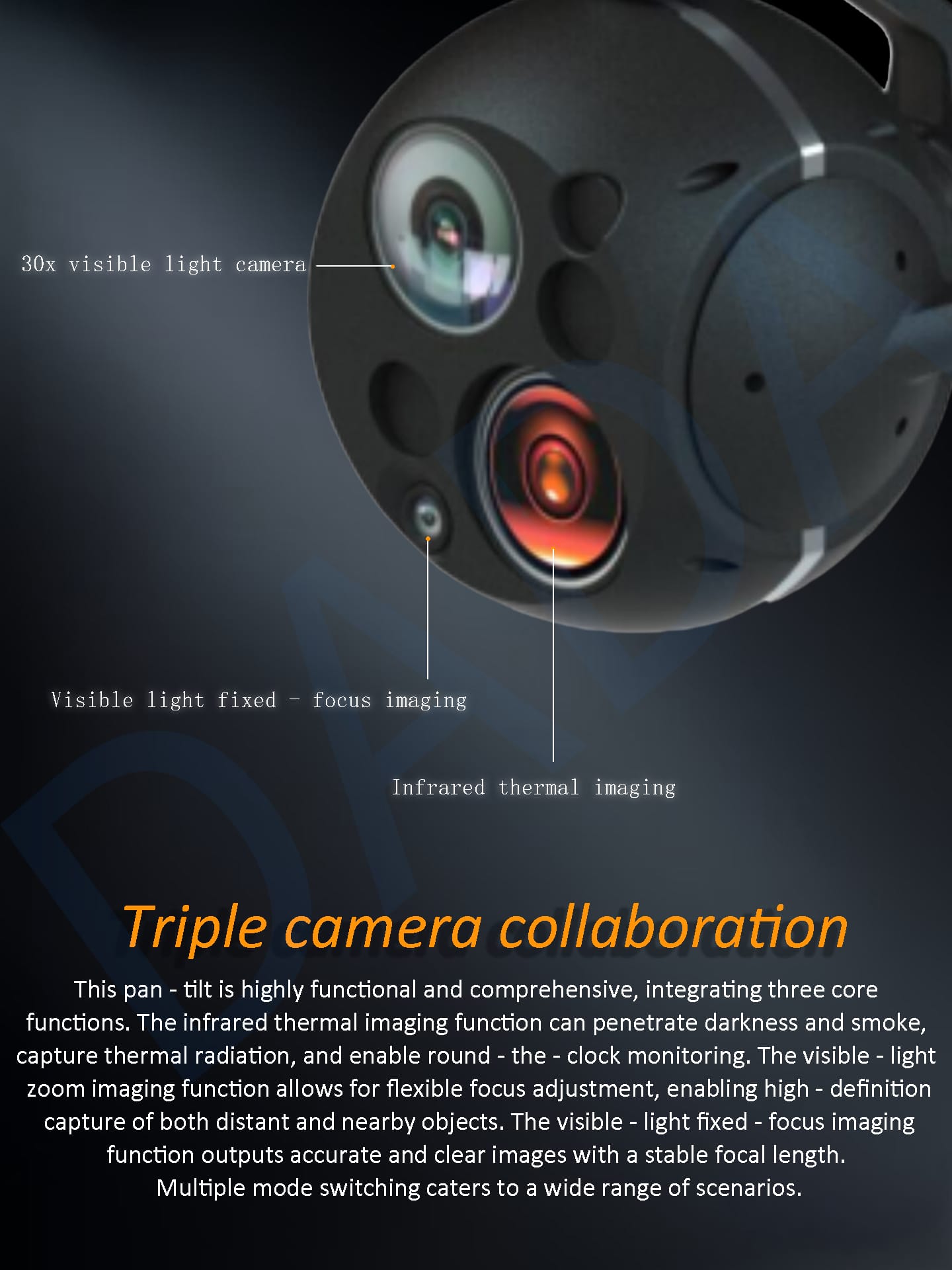

DS30Apro is a highly functional and comprehensive pan-tilt device that integrates three core functions: infrared thermal imaging, visible-light zoom imaging, and visible-light fixed-focus imaging. The infrared thermal imaging function can penetrate darkness and smoke, capturing thermal radiation and enabling round-the-clock monitoring. The visible-light zoom imaging function allows for flexible focus adjustment, enabling high-definition capture of both distant and nearby objects. The visible-light fixed-focus imaging function outputs accurate and clear images with a stable focal length. Multiple mode switching caters to a wide range of scenarios.
2. Product Features

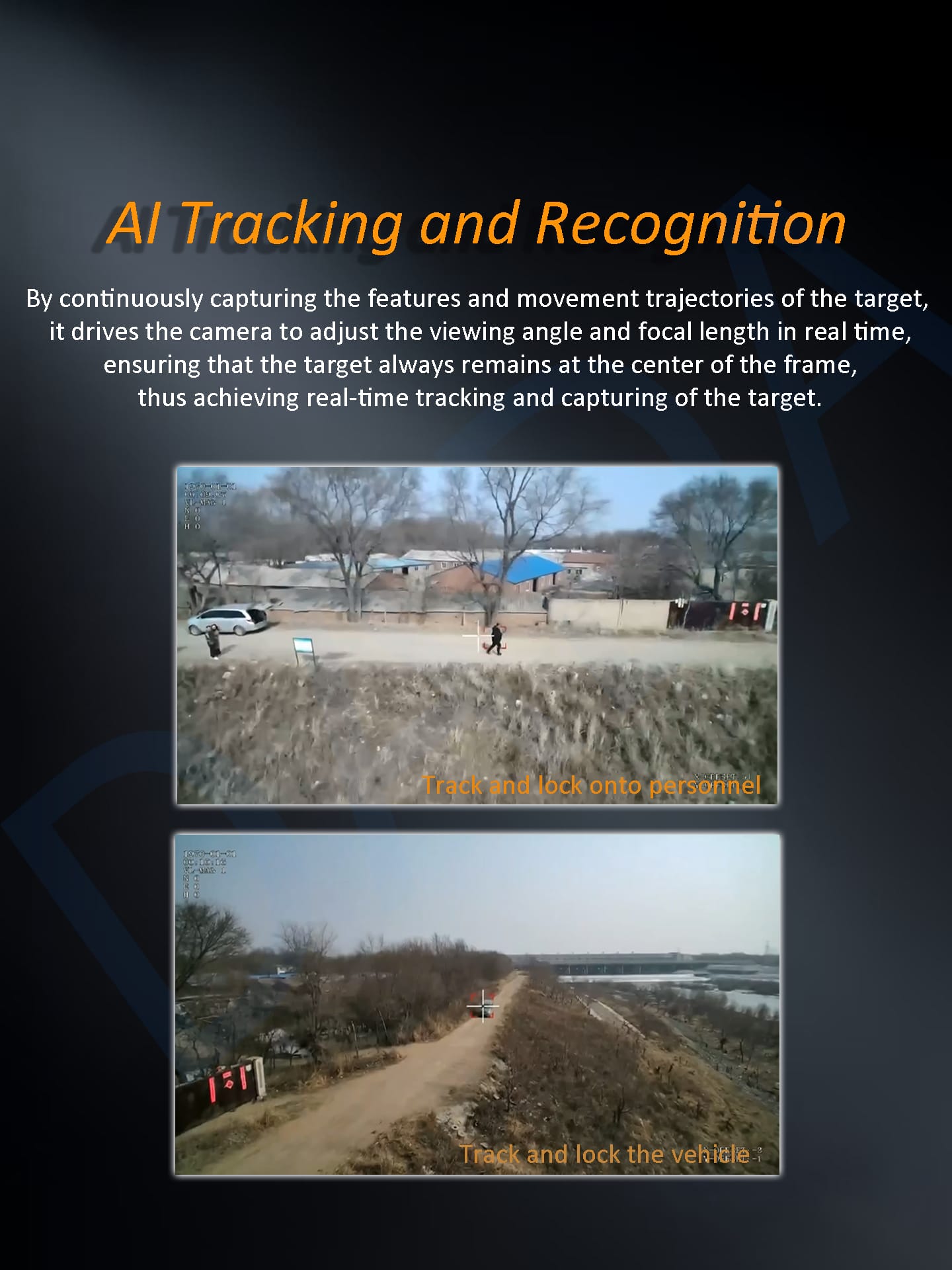

- Intelligent Tracking & Aiming: AI recognition for enhanced security and monitoring.
- Complementary Wide-Angle Lens and Zoom Core: Provides versatile imaging capabilities.

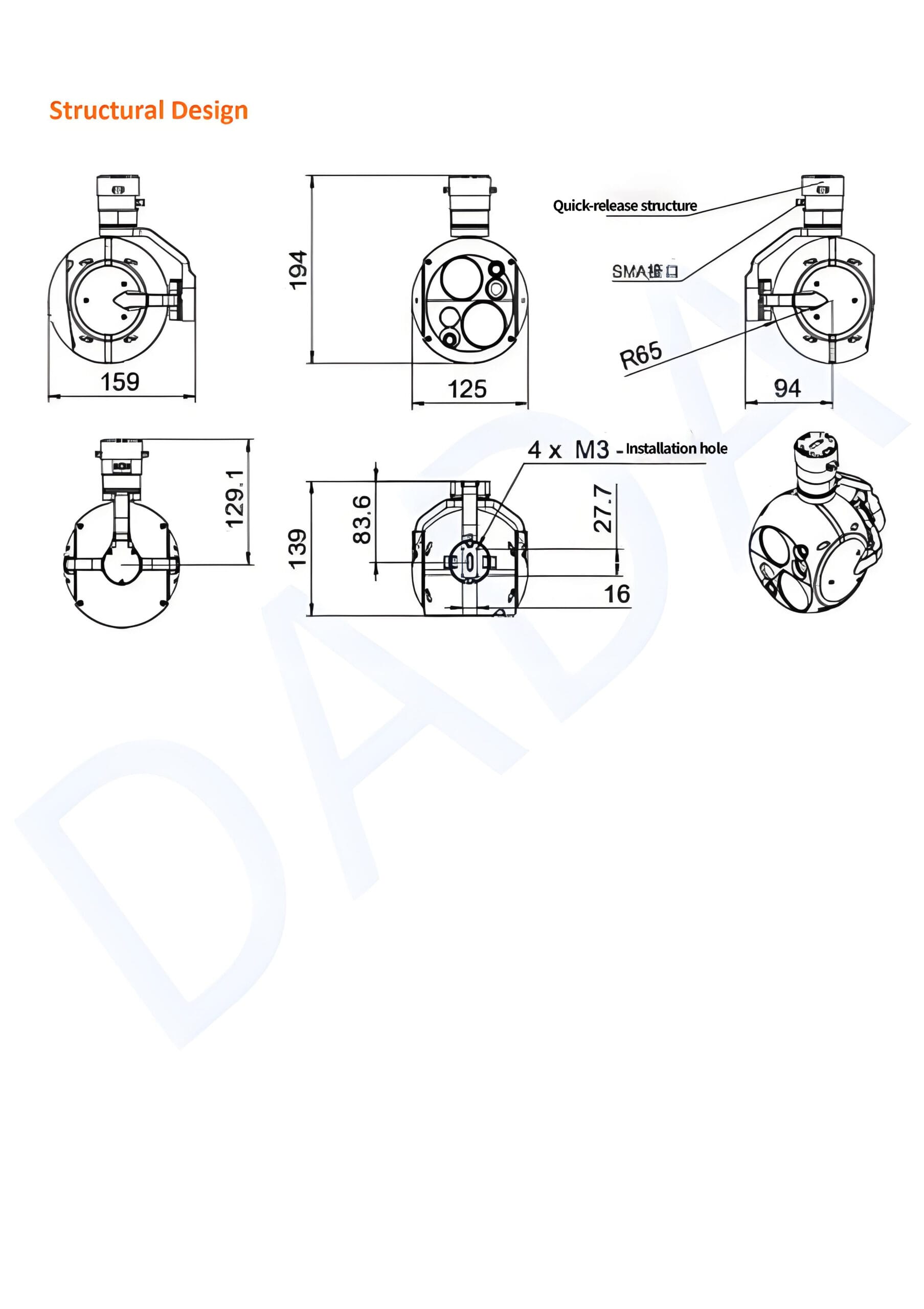

- Quick-Release and Easy Installation: Facilitates easy setup and deployment.

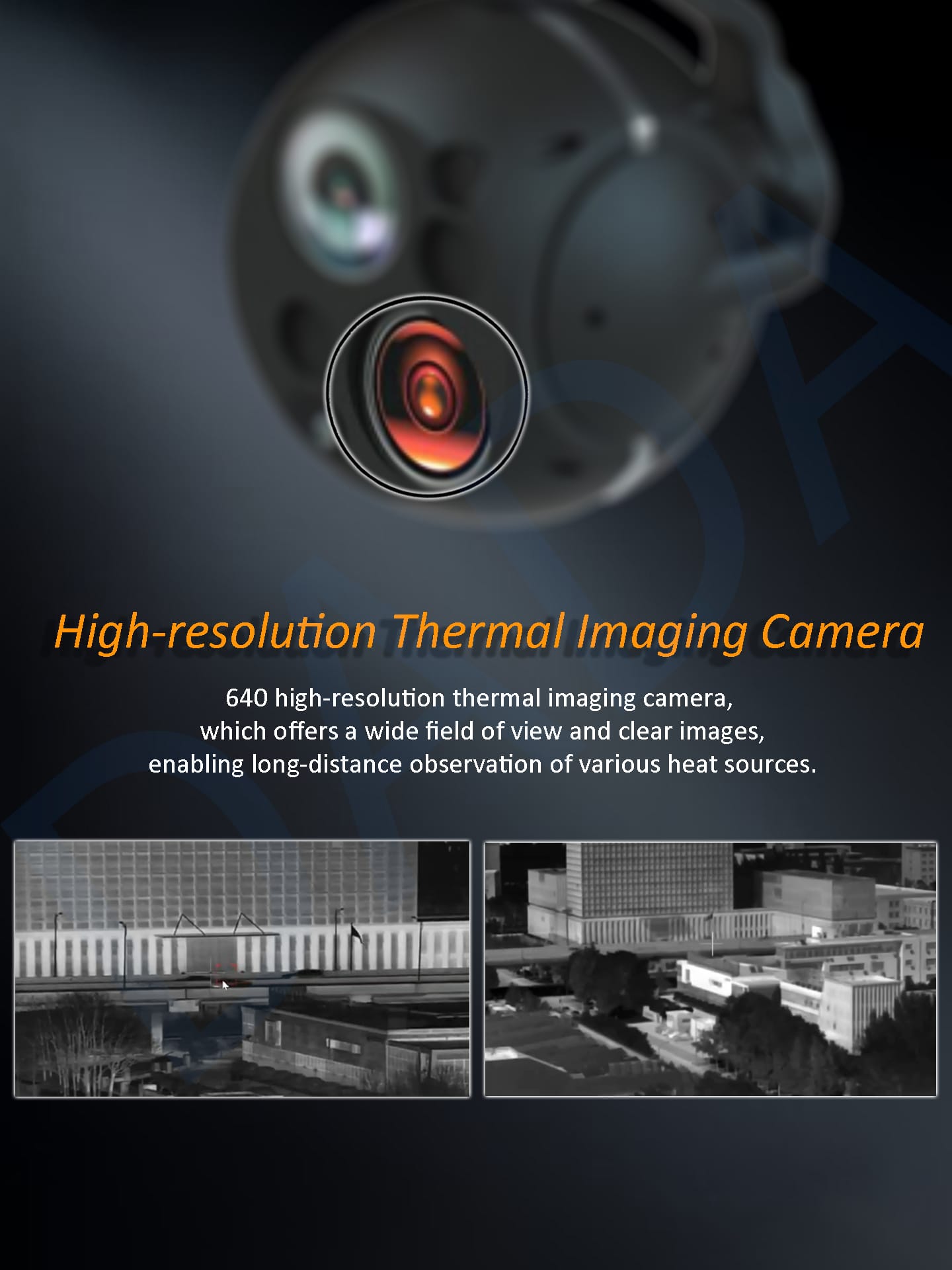

- 50mm Long-Focus Infrared: Enhances detection distance in various conditions.
3. Application Scenarios
- Security Surveillance: Utilize AI tracking and recognition for enhanced security.
- Search and Rescue: Use infrared thermal imaging to locate heat-emitting targets in dark or smoky environments.
- Industrial Monitoring: Monitor equipment and infrastructure for potential issues using high-resolution thermal imaging.
- Environmental Research: Study heat sources and environmental conditions over long distances.
