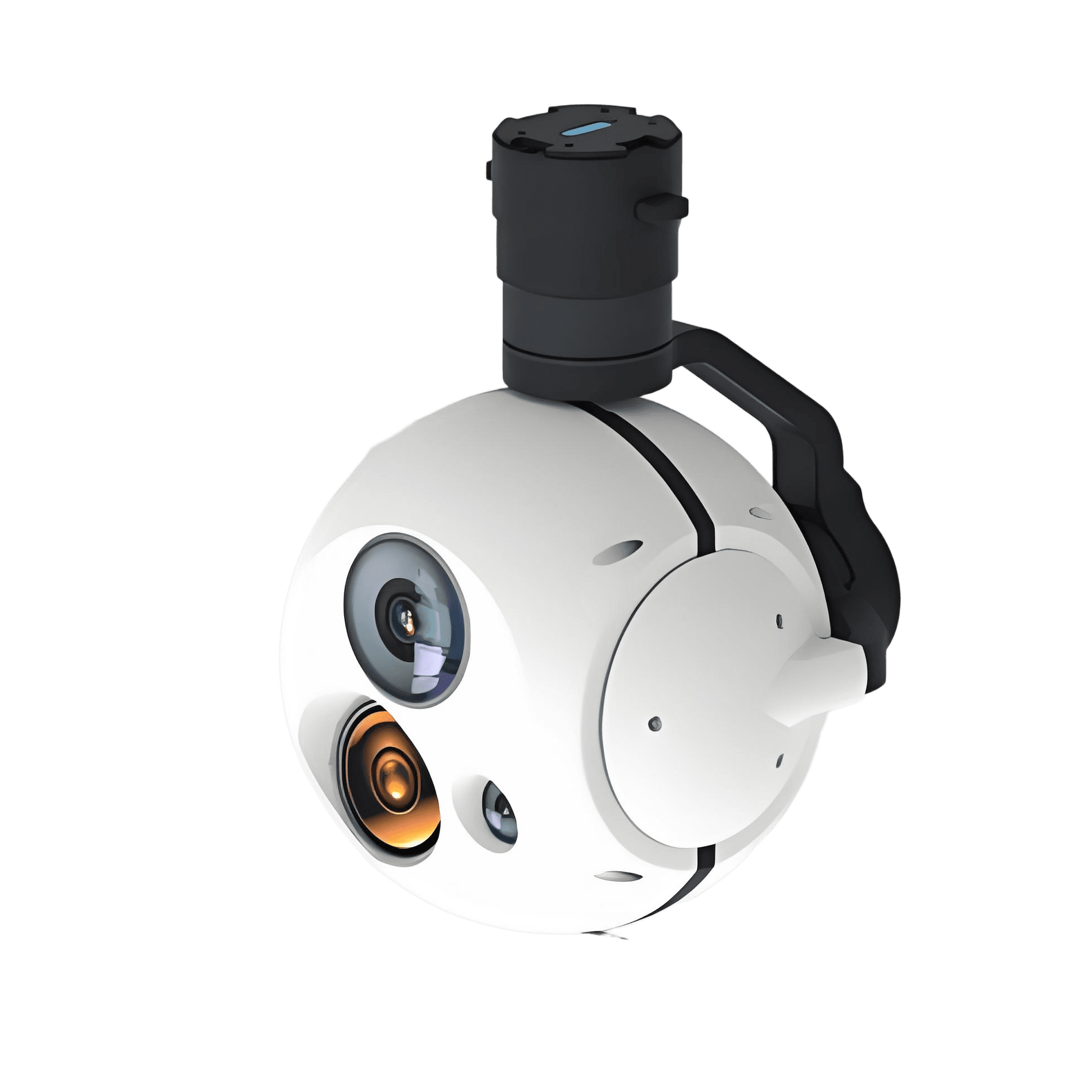

DS30A Three-Light Pod | Zoom + Fixed EO, 50 mm IR, AI Tracking
The DS30A three-light configuration combines 1920×1080/60 fps EO video, 30× zoom, infrared observation and AI target recognition in a three-axis stabilized payload. Its published visible field of view is 63°×35°, with a 12.5°×10° thermal view. Multi-sensor linkage supports wide-area search and tracking of moving objects. Rated weight is ≤970 g and supply input is 12–28 V for airborne observation platforms.
- 63° x 35° ~ 2.3° x 1.3°
- 12.5° x 10°
- ±48 pixels/frame @ 60 fps
- 1920x1080 @ 60 fps (Visible Light)
- ≤970g
- 12-28V
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications

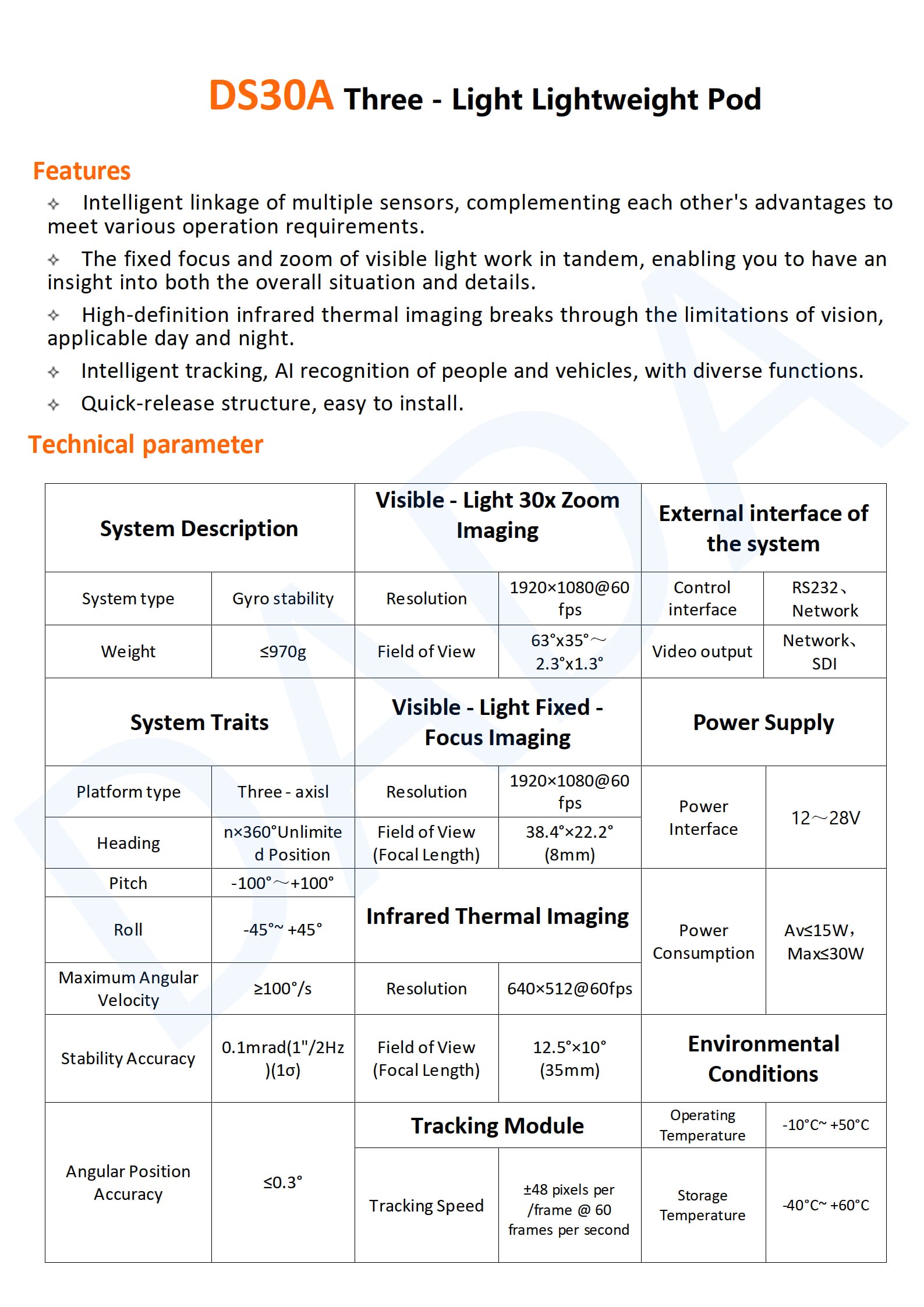

Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro Stability |
| Weight | ≤970g |
| Resolution | 1920x1080 @ 60 fps (Visible Light) |
| Field of View (Visible Light) | 63° x 35° ~ 2.3° x 1.3° |
| Field of View (Thermal Imaging) | 12.5° x 10° |
| Power Supply | 12-28V |
| Tracking Speed | ±48 pixels/frame @ 60 fps |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +60°C |
1. Features & applications

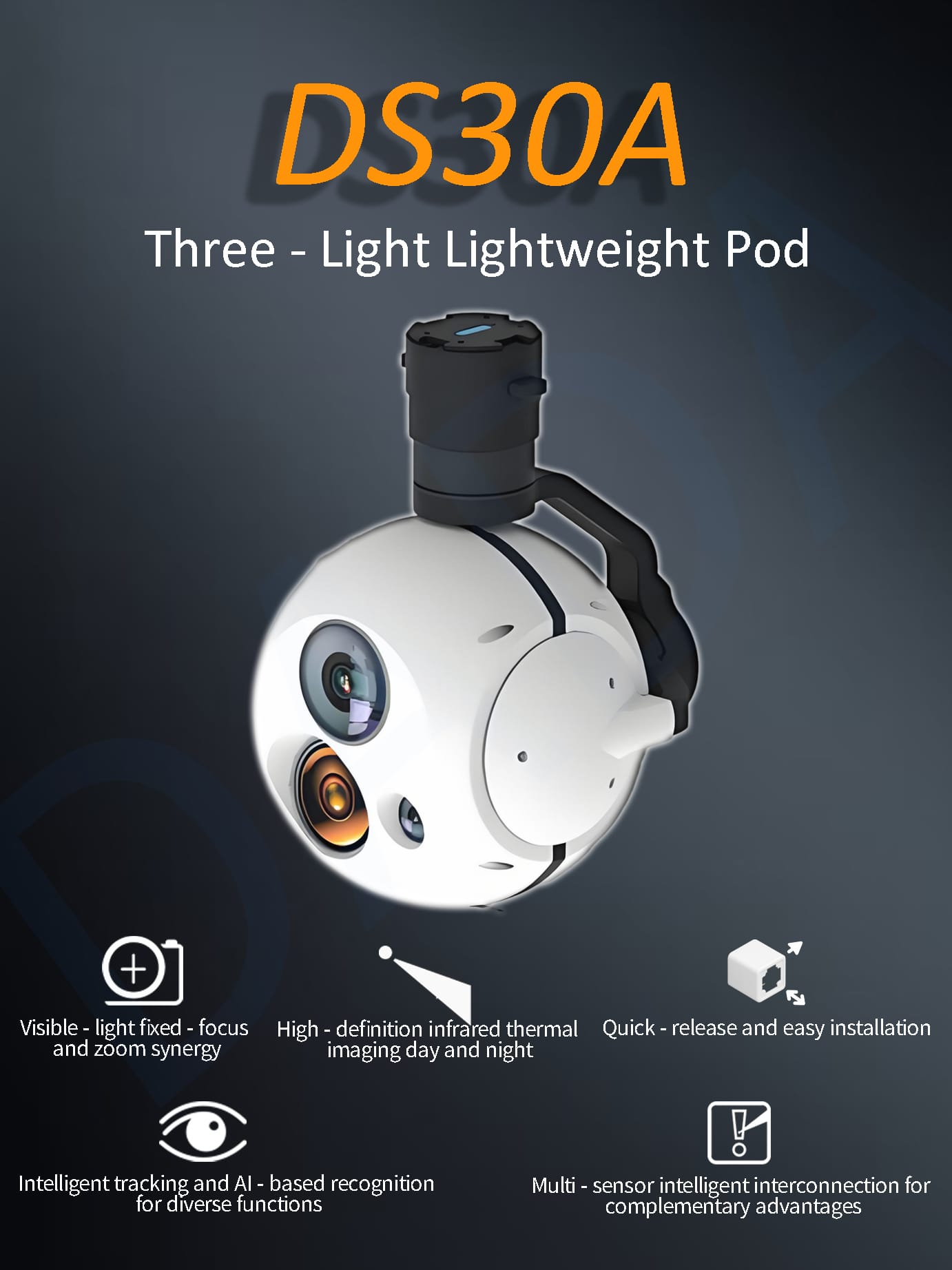

The DS30A is a lightweight and versatile three-sensor pod system designed for high-performance surveillance. It integrates visible light, infrared thermal imaging, and intelligent tracking to provide seamless 24/7 operation in various environments. This system is ideal for long-range observation, precise tracking, and real-time recognition of people and vehicles.
2. Product Features

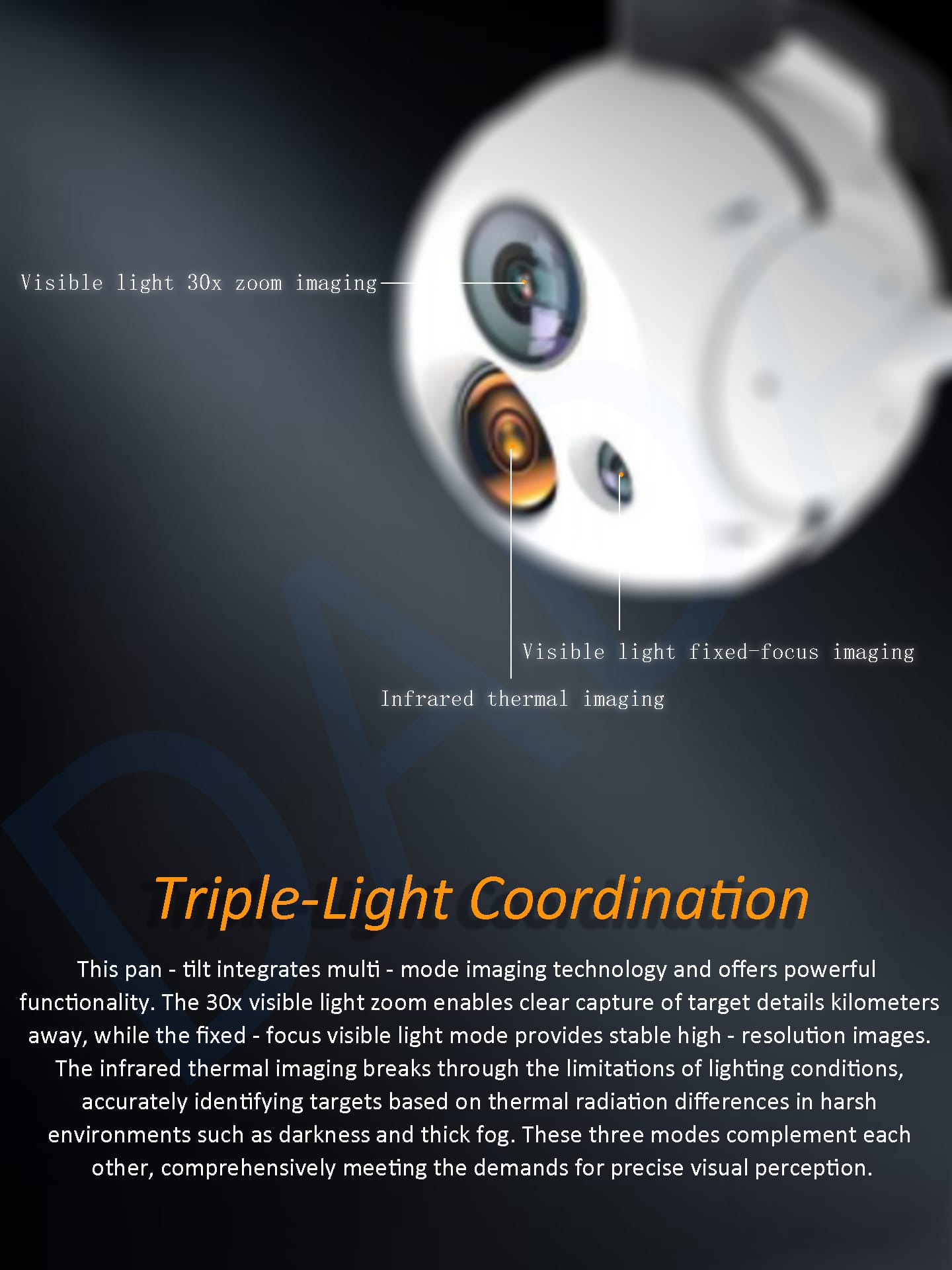

- Intelligent Multi-Sensor Linkage: Combines the advantages of visible light, thermal imaging, and AI-based recognition for optimal performance in all conditions.

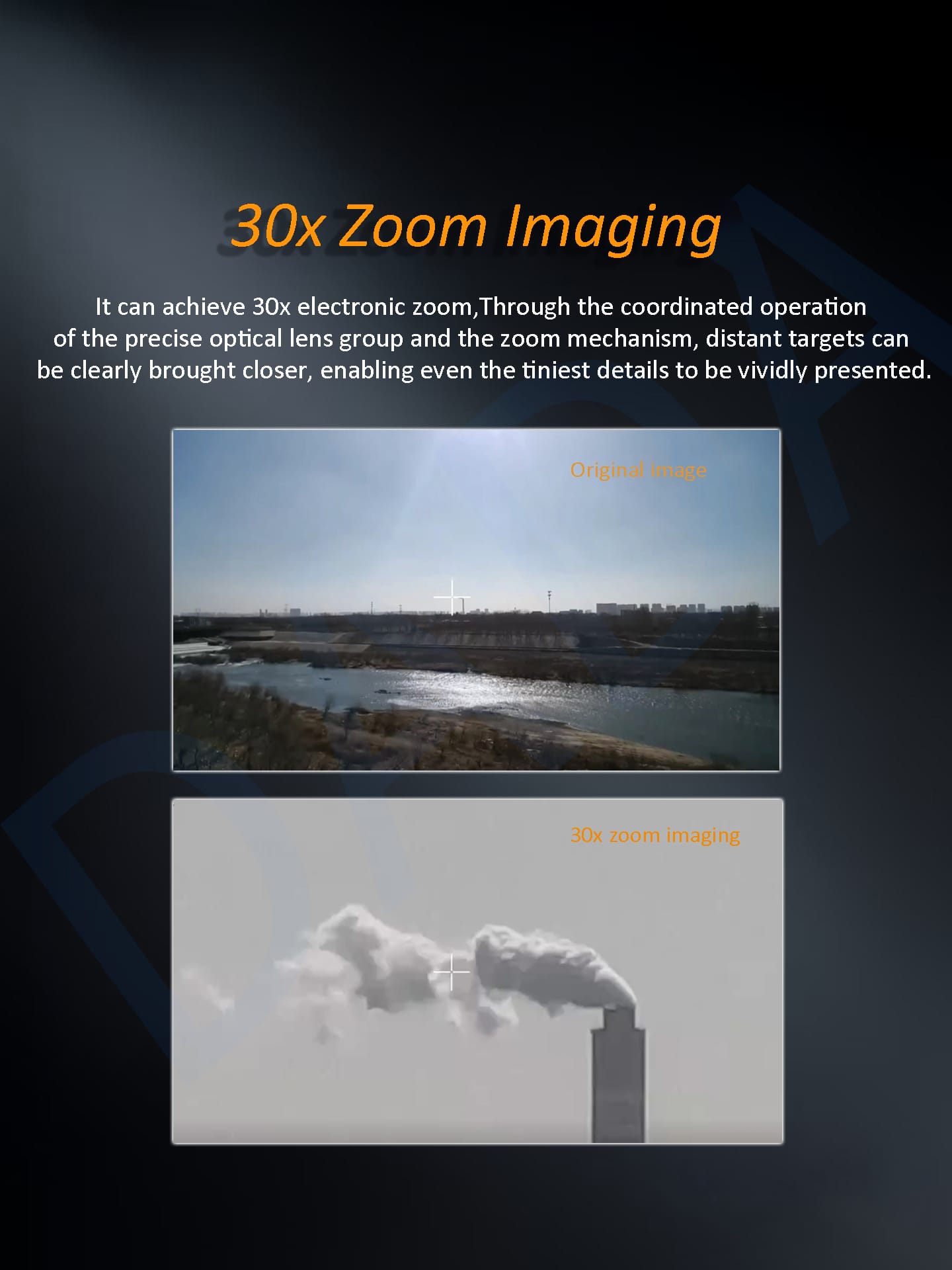

- 30x Zoom Imaging: Provides clear and detailed imaging even from great distances, enabling precise tracking and recognition of distant targets.

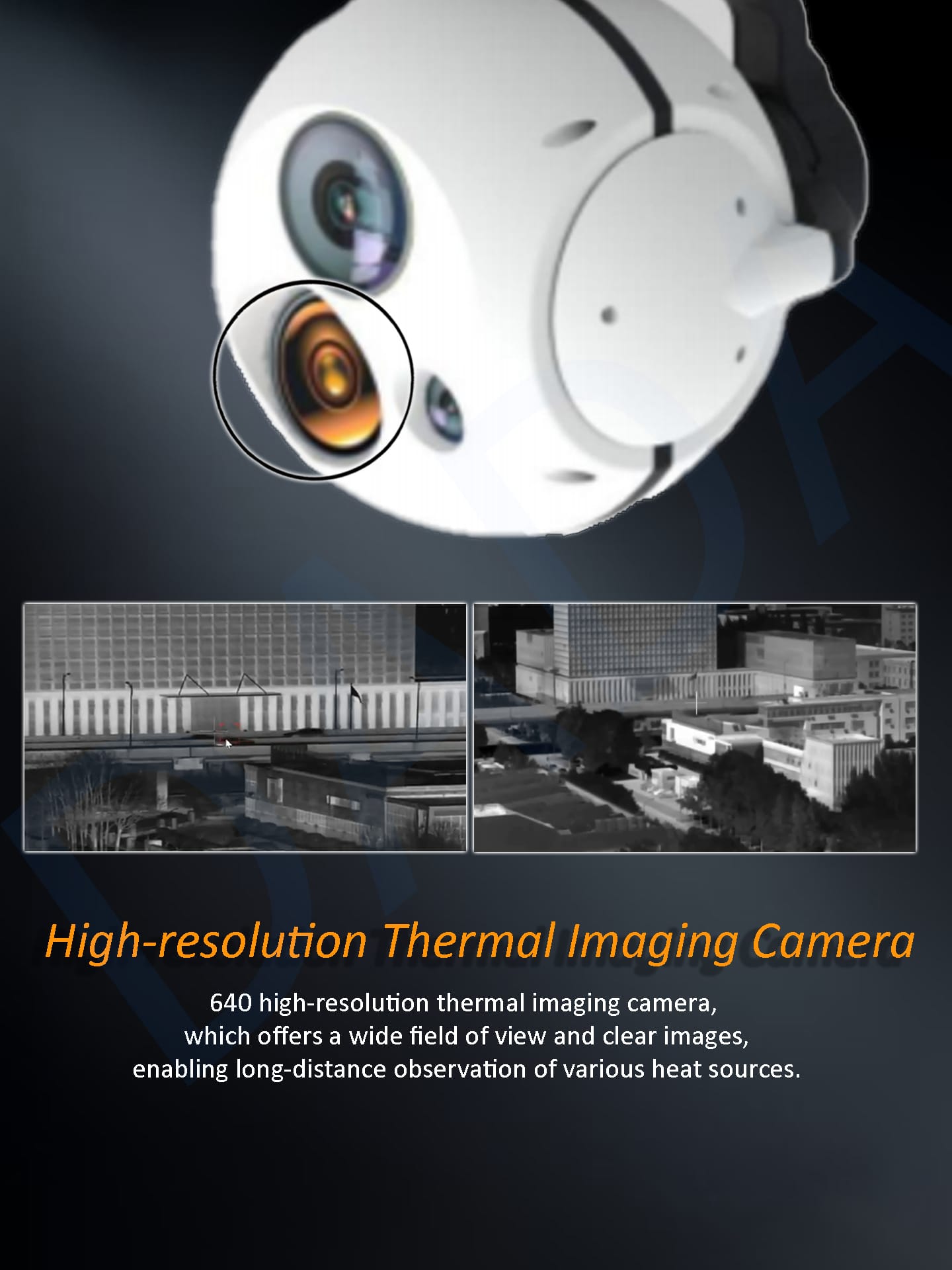

- High-Resolution Thermal Imaging: Offers superior detection capabilities in low-visibility conditions like darkness, fog, or smoke.

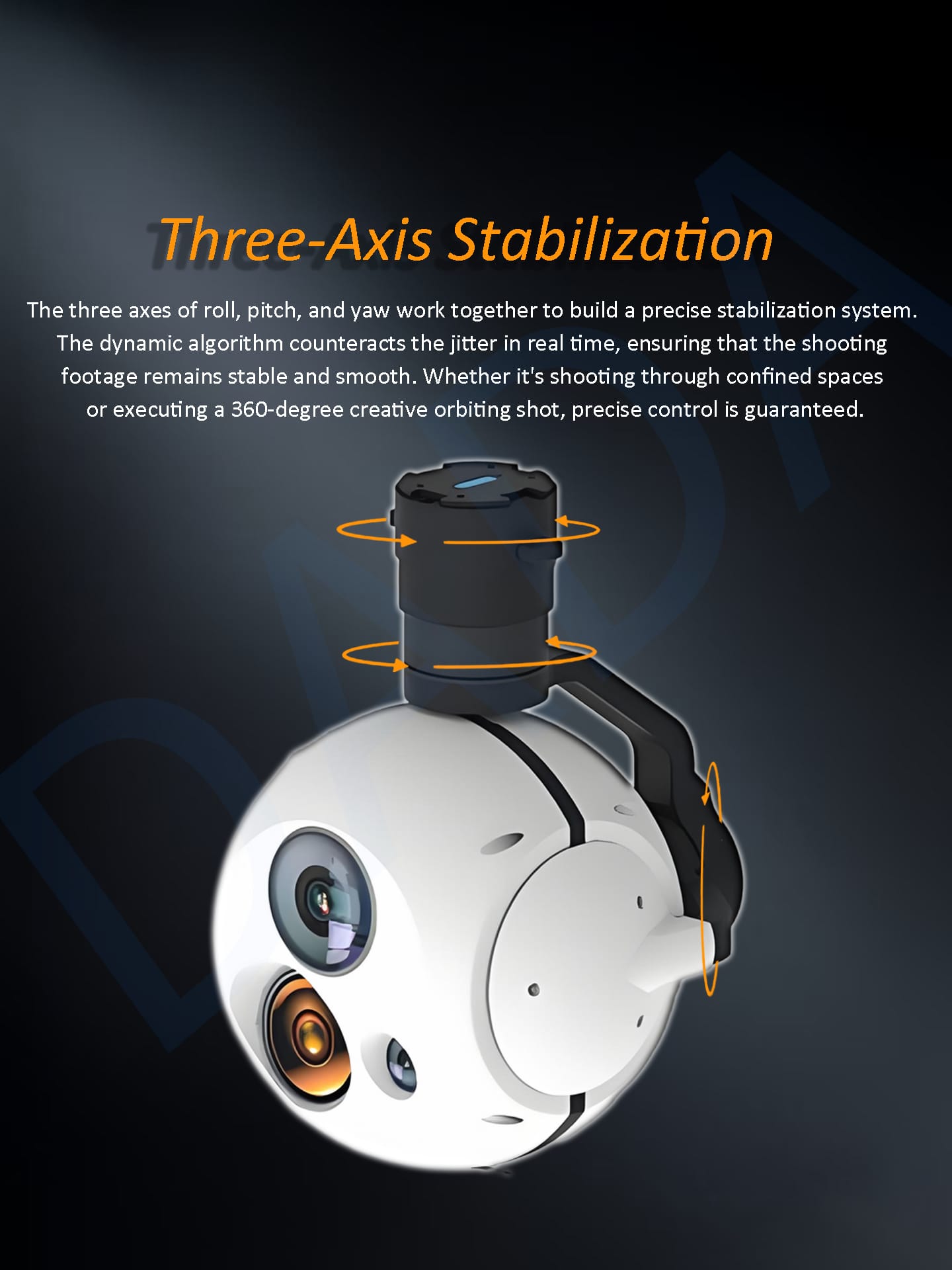

- Three-Axis Stabilization: Ensures stable footage even in dynamic conditions, with the ability to perform 360-degree creative shots.
- Quick-Release Structure: Makes installation and maintenance simple and fast, reducing downtime and improving operational efficiency.
3. Application Scenarios

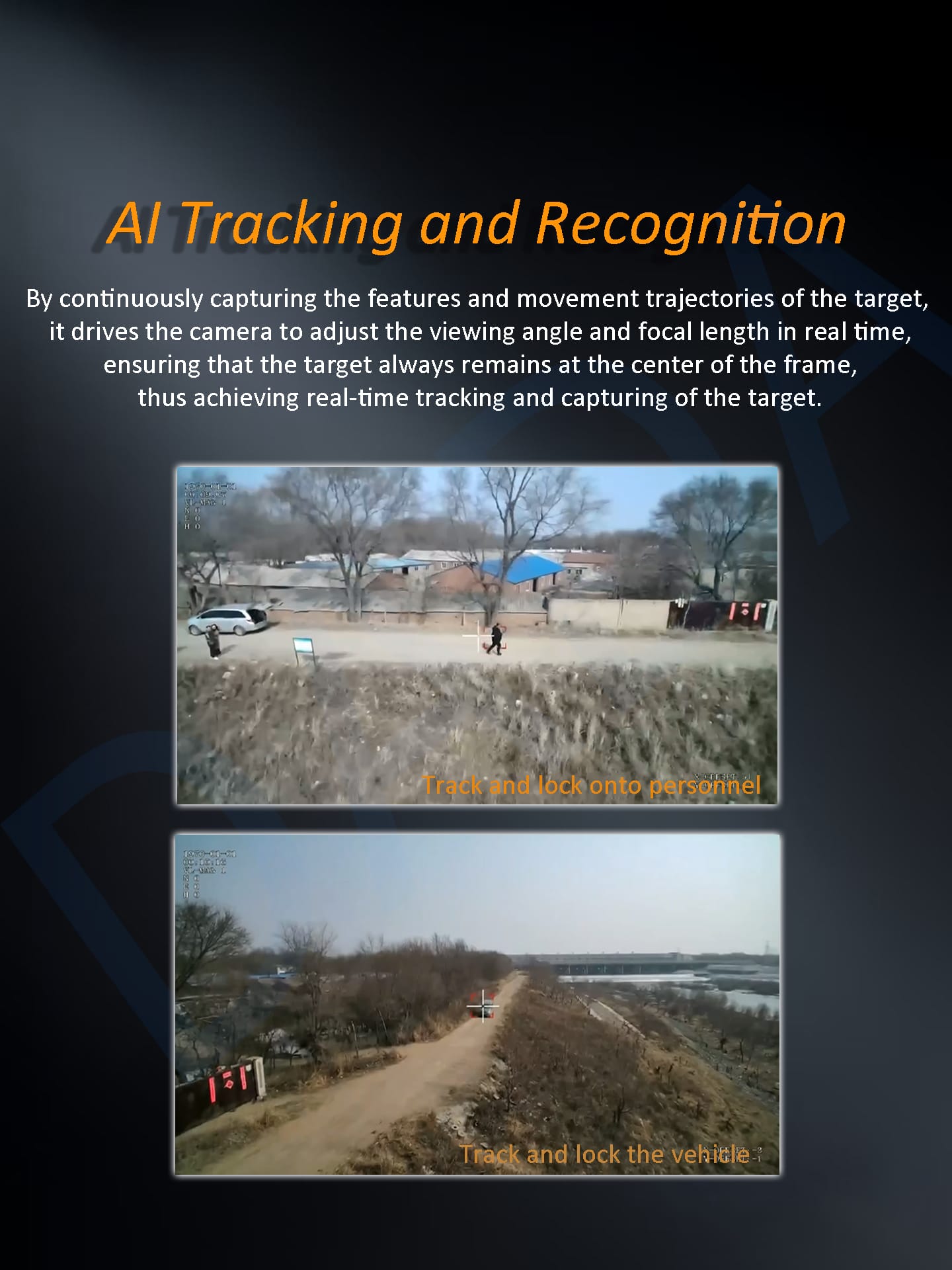

- Surveillance and Security: Ideal for monitoring large areas and tracking moving targets, such as personnel and vehicles, in both day and night conditions.
- Environmental Monitoring: Used in industrial applications to detect temperature variations and heat sources, useful for detecting machinery malfunctions or potential fire hazards.
- Search and Rescue Operations: The infrared thermal imaging and tracking features are crucial in rescue missions, especially in low-visibility environments like forests, deserts, or disaster areas.
