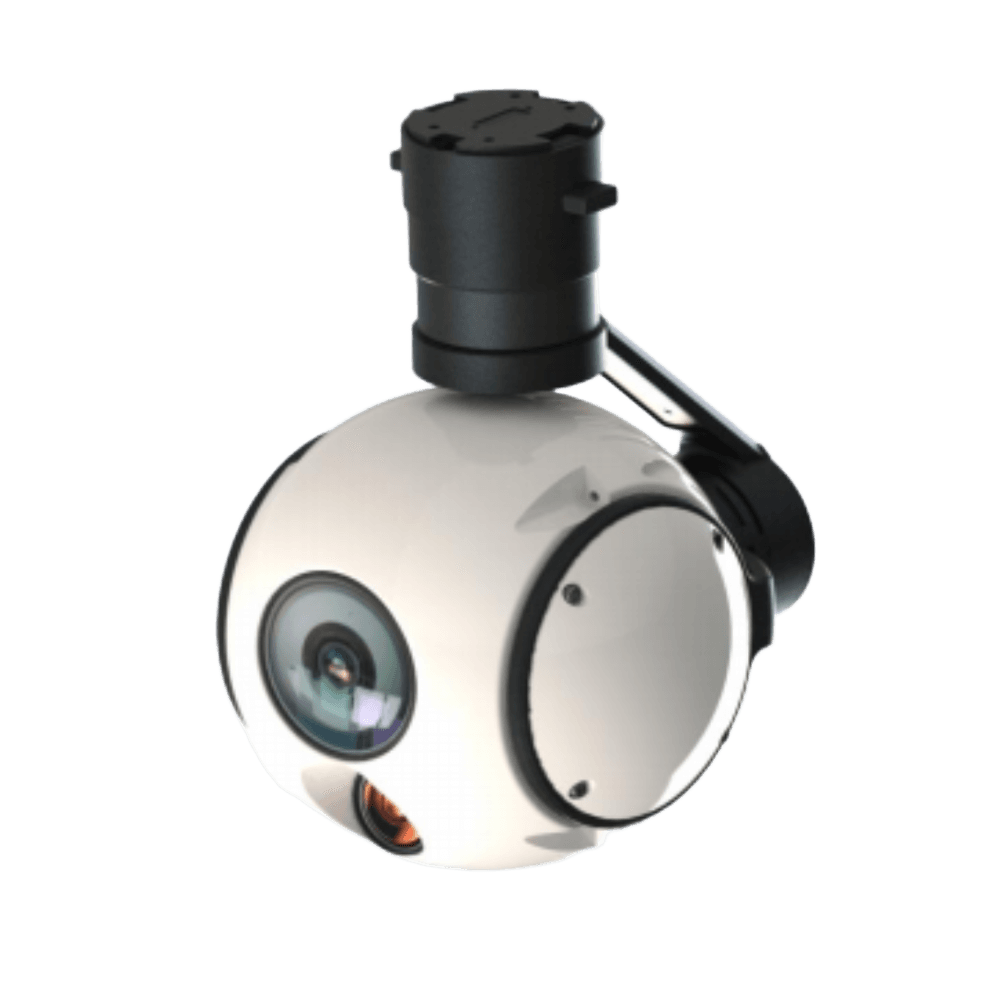

DS30A 30× Visible / 640×512 Thermal Gimbal | 360° Heading
The DS30A dual-light configuration joins 1920×1080/60 fps visible imaging with 640×512/60 fps thermal video on a three-axis gimbal. A 4.3–129 mm EO lens provides 30× continuous optical zoom. AI person and vehicle recognition, continuous heading rotation and quick-release mounting support moving-target observation. RS232/network control, UDP/RTSP video and 12–28 V input help integrate the visible and IR channels into UAV systems.
- 63.7°~2.3° (Visible Light), 24°×18.1° (Infrared)
- 1/2.8-inch CMOS
- F=4.3mm~129mm
- UDP/RTSP
- 12~28V
- ≥100°/s
- 0.1 mrad (1°/2 Hz) (1σ)
- ≥40°/s
- 1920x1080@60fps (Visible Light), 640x512@60fps (Infrared)
- Av≤15W, Max≤30W
- Serial port RS232, Network
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

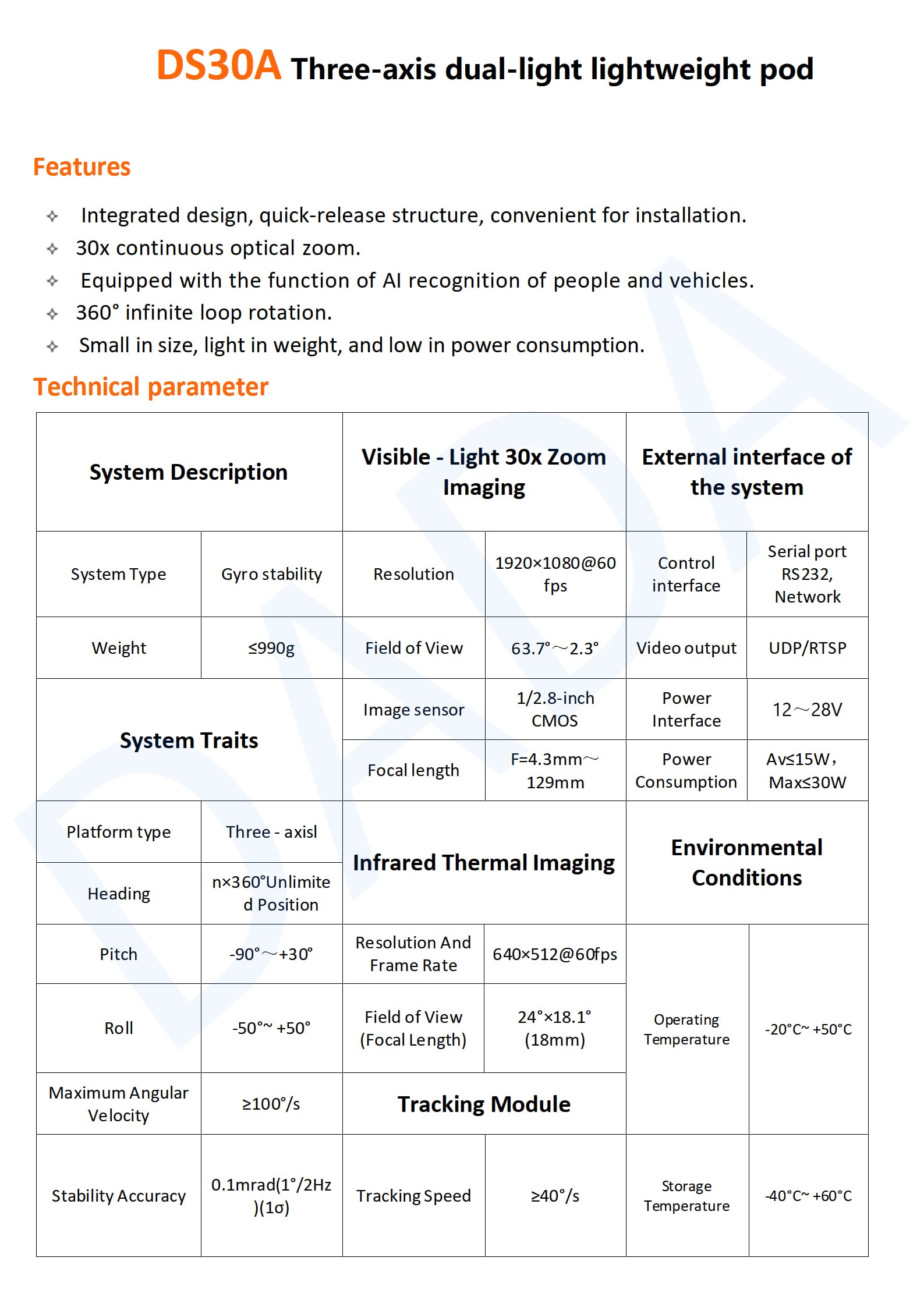

Core specifications
Technical data
| Parameter | Specification |
|---|---|

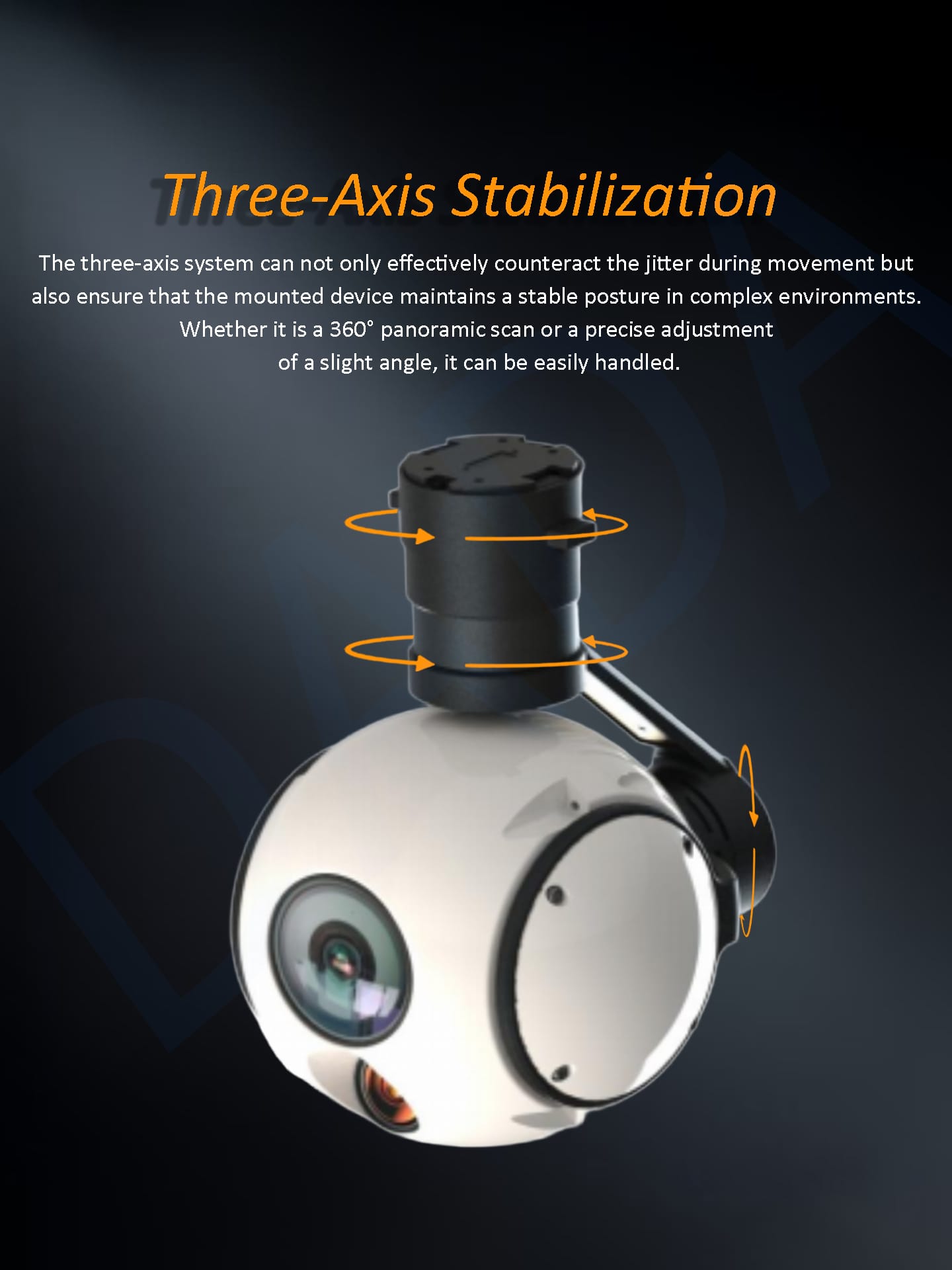

| System Type | Gyro stability |
| Resolution | 1920x1080@60fps (Visible Light), 640x512@60fps (Infrared) |
| Field of View | 63.7°~2.3° (Visible Light), 24°×18.1° (Infrared) |
| Image Sensor | 1/2.8-inch CMOS |
| Focal Length | F=4.3mm~129mm |
| Control Interface | Serial port RS232, Network |
| Video Output | UDP/RTSP |
| Power Interface | 12~28V |
| Power Consumption | Av≤15W, Max≤30W |
| Operating Temperature | -20°C~+50°C |
| Storage Temperature | -20°C to +50°C |
| Maximum Angular Velocity | ≥100°/s |
| Stability Accuracy | 0.1 mrad (1°/2 Hz) (1σ) |
| Tracking Speed | ≥40°/s |
1. Features & applications
DS30A is a cutting-edge three-axis dual-light lightweight pod designed for advanced imaging and tracking capabilities. It integrates high-definition visible-light and infrared thermal imaging technologies, offering superior performance in various environments. With features like AI recognition, 30x continuous optical zoom, and 360° infinite loop rotation, this device is perfect for a wide range of applications.
2. Product Features
- Integrated Design: Quick-release structure for easy installation.
- 30x Continuous Optical Zoom: Provides detailed imaging capabilities.
- AI Recognition: Equipped with AI recognition for people and vehicles.
- 360° Infinite Loop Rotation: Offers versatile movement options.
- Small and Lightweight: Compact size and low power consumption.
3. Application Scenarios
- Security Surveillance: Utilize AI tracking and recognition for enhanced security.
- Search and Rescue: Use infrared thermal imaging to locate heat-emitting targets in dark or smoky environments.
- Industrial Monitoring: Monitor equipment and infrastructure for potential issues using high-resolution thermal imaging.
- Environmental Research: Study heat sources and environmental conditions over long distances.
