DS30 Mini EO Pod | FHD 60 fps, AI Tracking, 3× Digital Magnification
DS30 is a ≤90 g single-axis pod delivering 1920×1080/60 fps visible video through a 5.8 mm lens with 51.3°×30.2° view. It provides 3× digital zoom, AI recognition, target tracking and 0.1 mrad published stabilization accuracy. Network video output supports integration, while a 12 V supply and compact construction suit small and catapult-launched UAV platforms.
- 51.3°×30.2° (5.8mm)
- Network
- 3 Times
- ≥40°/s
- ≥60°/s
- 0.1mrad(1°/2Hz) (1σ)
- ≤0.3°
- 1920×1080@60fps
- ≤90g
- Av≤10W, Max≤20W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications

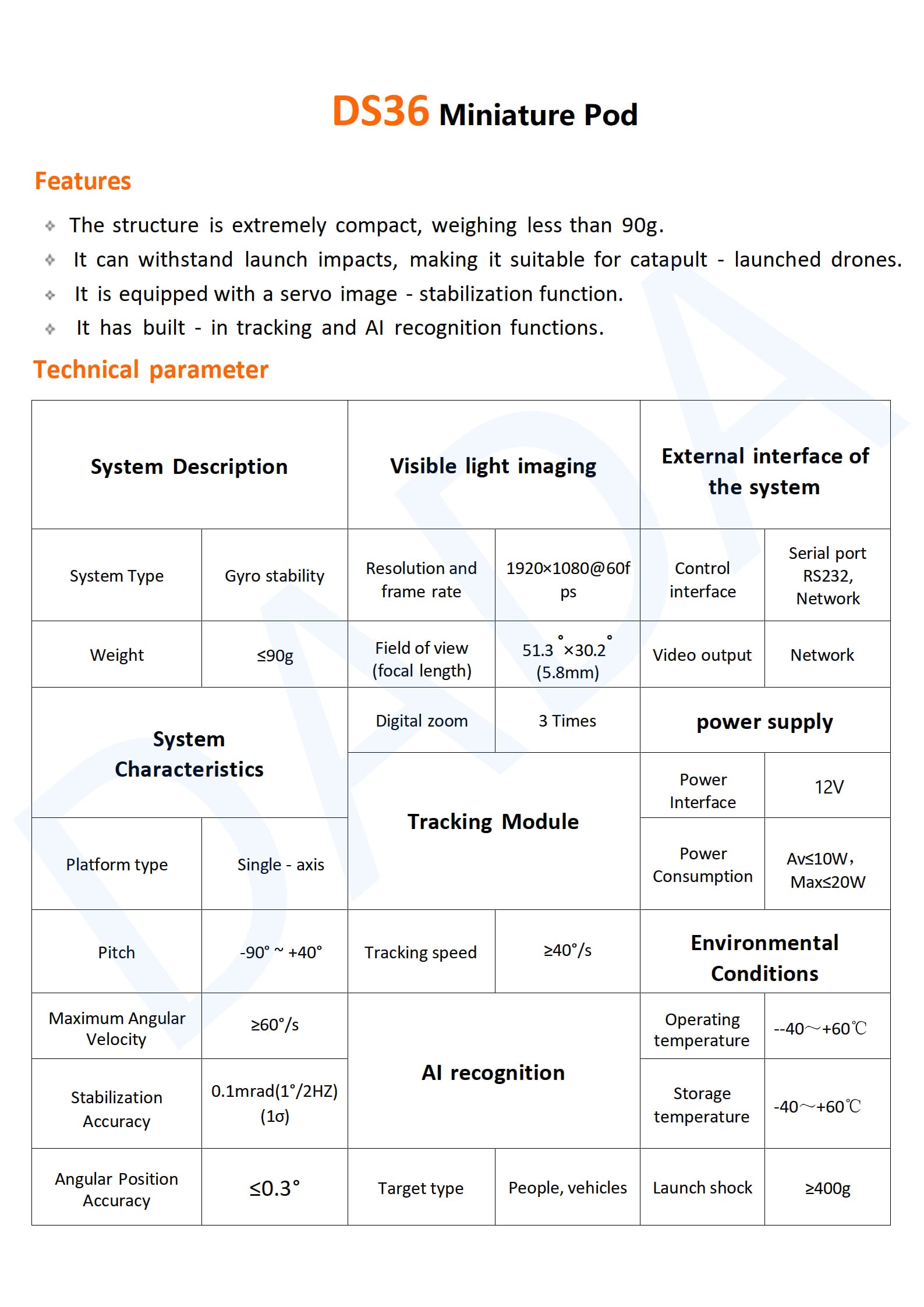

Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro stability |
| Weight | ≤90g |
| Resolution and Frame Rate | 1920×1080@60fps |
| Field of View (Focal Length) | 51.3°×30.2° (5.8mm) |
| Video Output | Network |
| Digital Zoom | 3 Times |
| Power Supply | 12V |
| Power Consumption | Av≤10W, Max≤20W |
| Tracking Speed | ≥40°/s |
| Maximum Angular Velocity | ≥60°/s |
| Stabilization Accuracy | 0.1mrad(1°/2Hz) (1σ) |
| Angular Position Accuracy | ≤0.3° |
| Target Type | People, vehicles |
| Launch Shock | ≥400g |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +60°C |
1. Features & applications

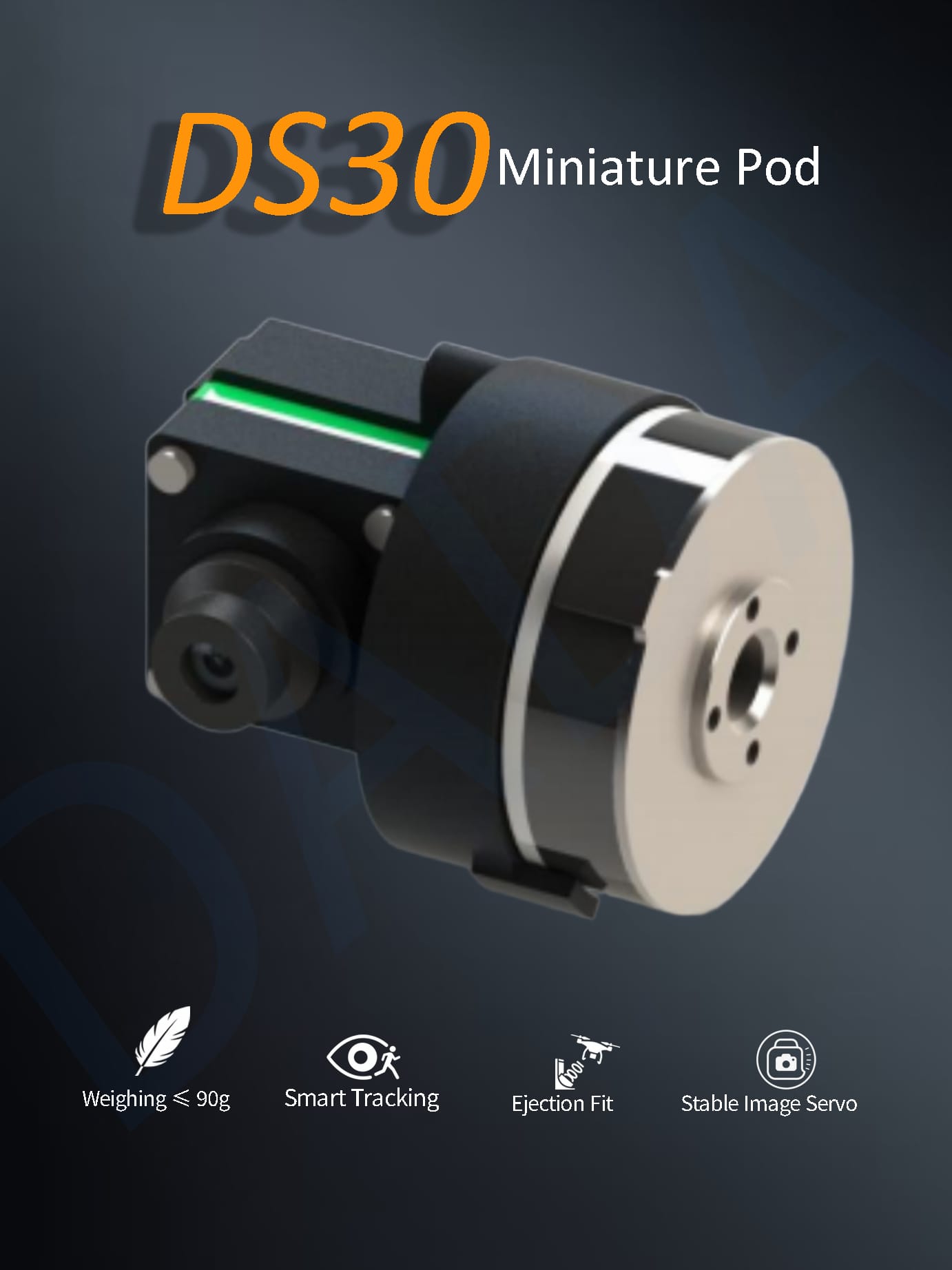

The DS30 Miniature Pod is a high-performance, lightweight gimbal system designed for precision tracking and imaging. With its advanced AI recognition, 3x electronic zoom, and servo image stabilization, it provides exceptional visual clarity and control. Weighing less than 90g, it's suitable for catapult-launched drones and can withstand significant launch impacts. Its single-axis design focuses on vertical perspective control, making it ideal for capturing detailed visuals in various environments.
2. Product Features
- Compact Structure: Weighing less than 90g, suitable for catapult-launched drones and various compact applications.
- Smart Tracking: AI-powered tracking and recognition keeps targets centered in the frame.
- 3x Electronic Zoom: Instantly close the gap to distant targets for detailed observation.
- Stable Image Servo: Servo image stabilization function ensures smooth and stable footage.

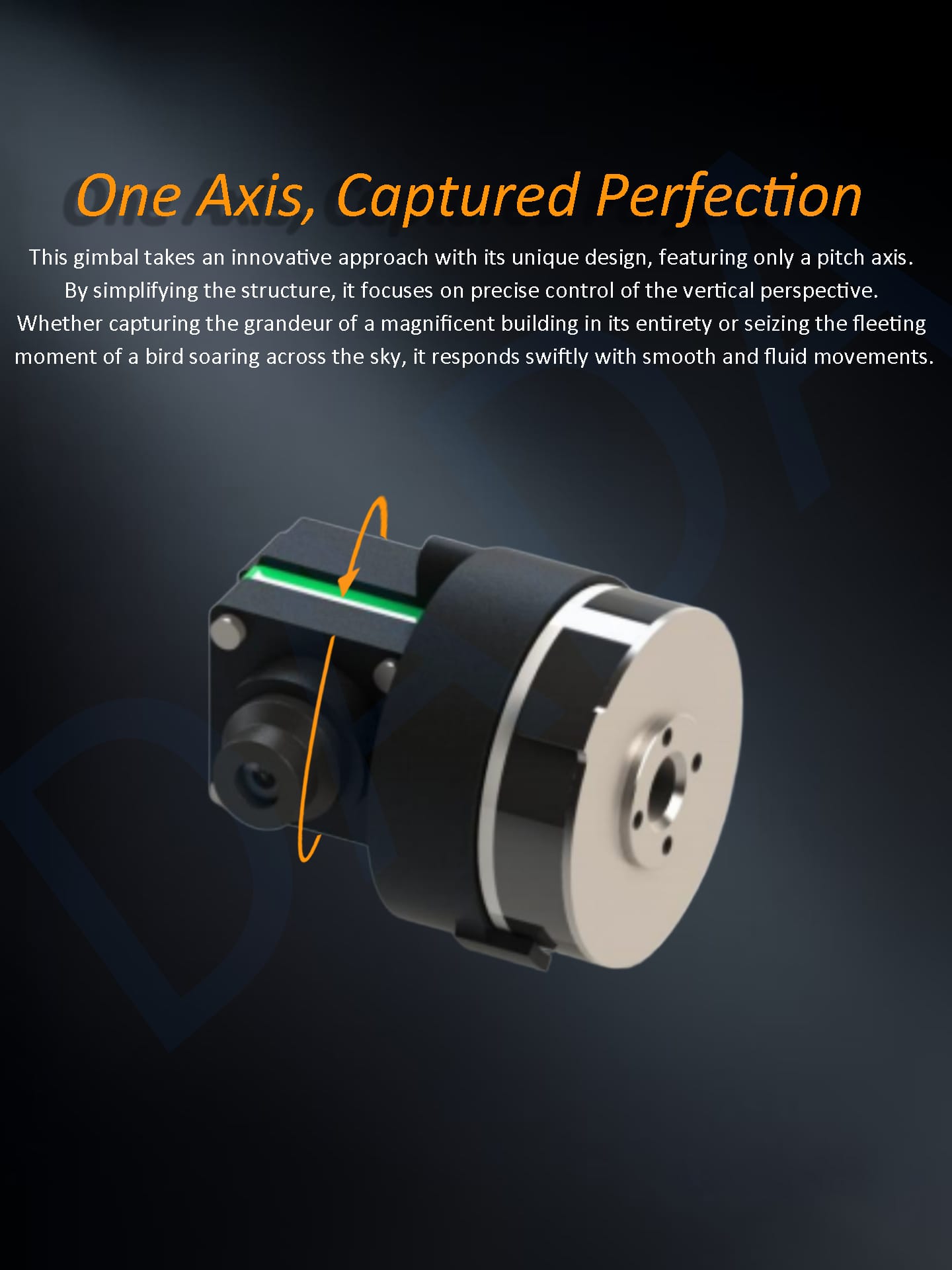

- Precision Control: Single-axis design with pitch control from -90° to +40°, tracking speed ≥40°/s.
- Environmental Adaptability: Operates in temperatures from -40°C to +60°C with launch shock resistance ≥400g.
3. Application Scenarios
- Surveillance and Security: Real-time tracking of personnel and vehicles for enhanced monitoring capabilities.
- Wildlife Observation: 3x electronic zoom allows for detailed observation of birds and animals without disturbing them.
- Infrastructure Inspection: Captures intricate details of buildings, bridges, and other structures for inspection purposes.

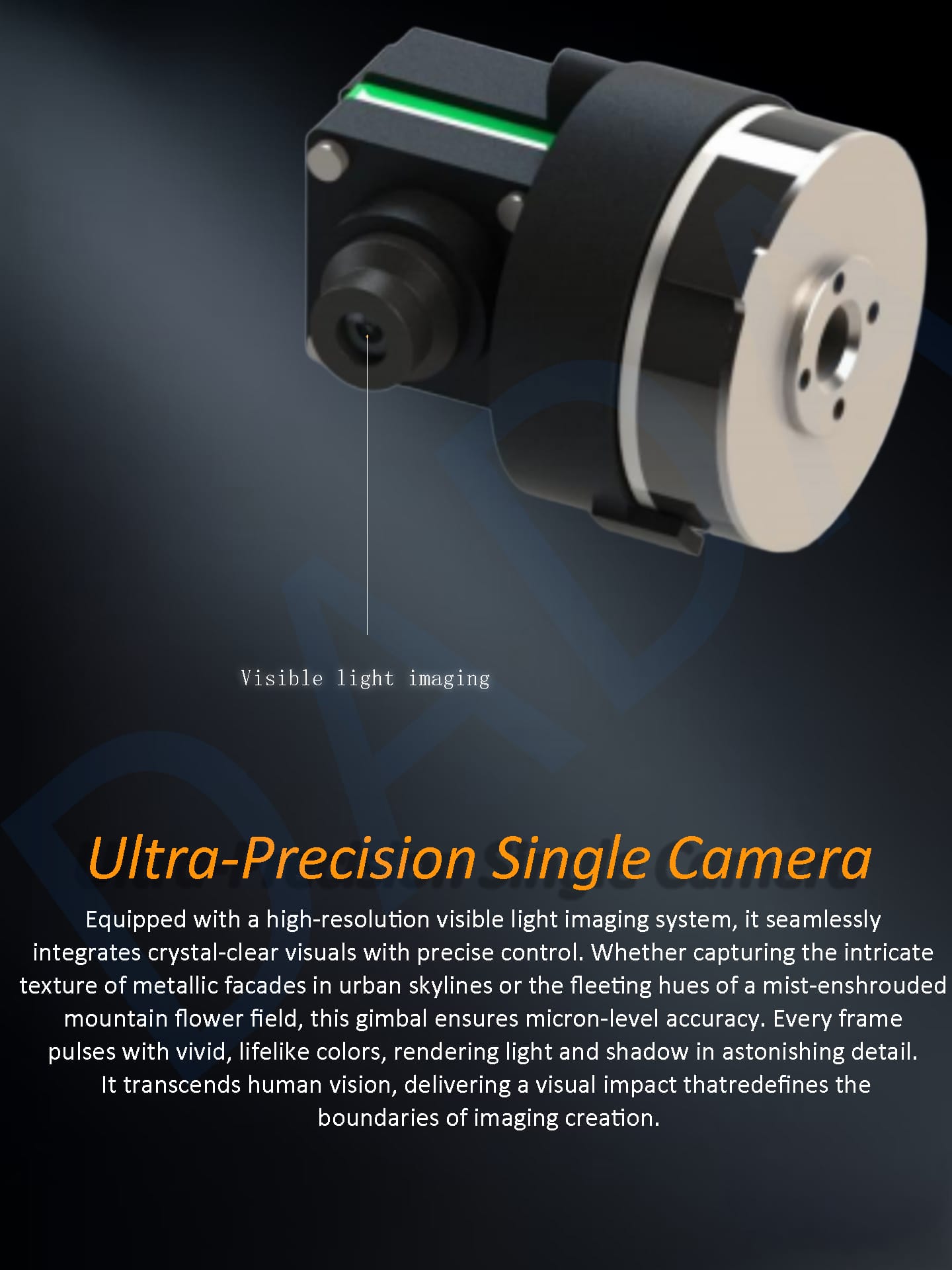

- Aerial Photography: Ultra-precision single camera delivers high-resolution images and videos from the air.
- Disaster Response: Quickly identifies and tracks targets in disaster areas for efficient rescue operations.
- Scientific Research: Provides clear and stable imagery for various scientific studies and documentation.
