DS110 Three-Axis EO/IR Pod | 42°×24.5° EO View, ≥3 km Laser
The three-axis DS110 pod brings 1920×1080/60 fps visible video, 640×512/60 fps thermal imaging and laser ranging to at least 3 km into a ≤510 g pod. The 7.2 mm EO lens provides a 42°×24.5° view; a 24 mm infrared lens supports thermal observation. AI recognition and real-time tracking coordinate the channels, while unrestricted heading rotation and quick-release mounting assist UAV installation on 12–28 V.
- 42°x24.5° (7.2mm)
- 640x512 @ 60fps
- 18°x13° (24mm)
- ≥3km
- ≥60°/s
- 1920x1080 @ 60fps
- ≤510g
- Average ≤15 W; maximum 30 W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

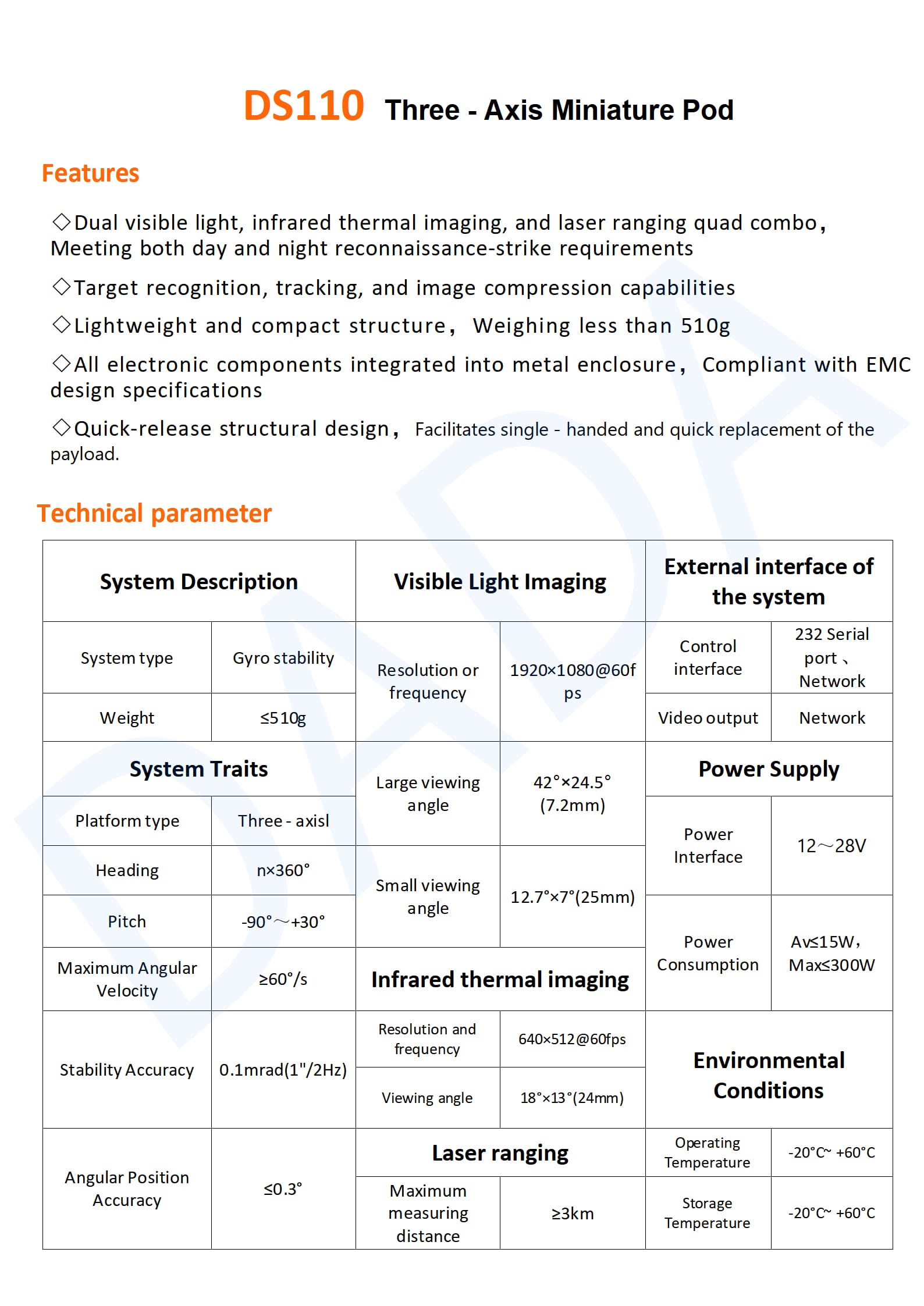

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| Weight | ≤510g |
| System Type | Gyro stability |
| Visible Light Resolution | 1920x1080 @ 60fps |
| Visible Light Field of View | 42°x24.5° (7.2mm) |

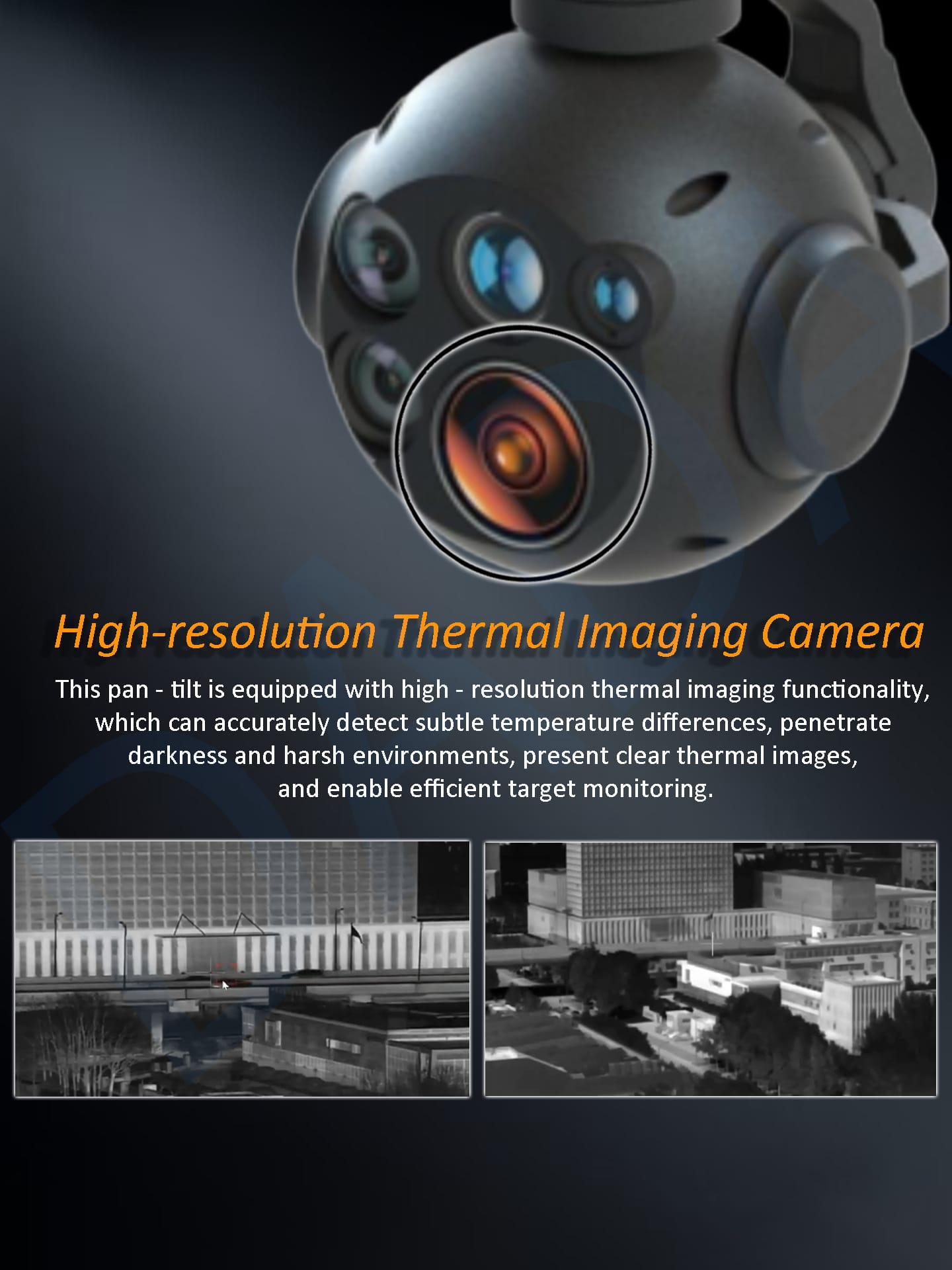

| Infrared Thermal Imaging Resolution | 640x512 @ 60fps |
| Infrared Field of View | 18°x13° (24mm) |
| Laser Ranging Maximum Distance | ≥3km |
| Heading | n×360° Unlimited |
| Pitch | -90° ~ +30° |
| Maximum Angular Velocity | ≥60°/s |
| Power Supply | 12~28V |
| Power Consumption | Average ≤15 W; maximum 30 W |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
1. Features & applications

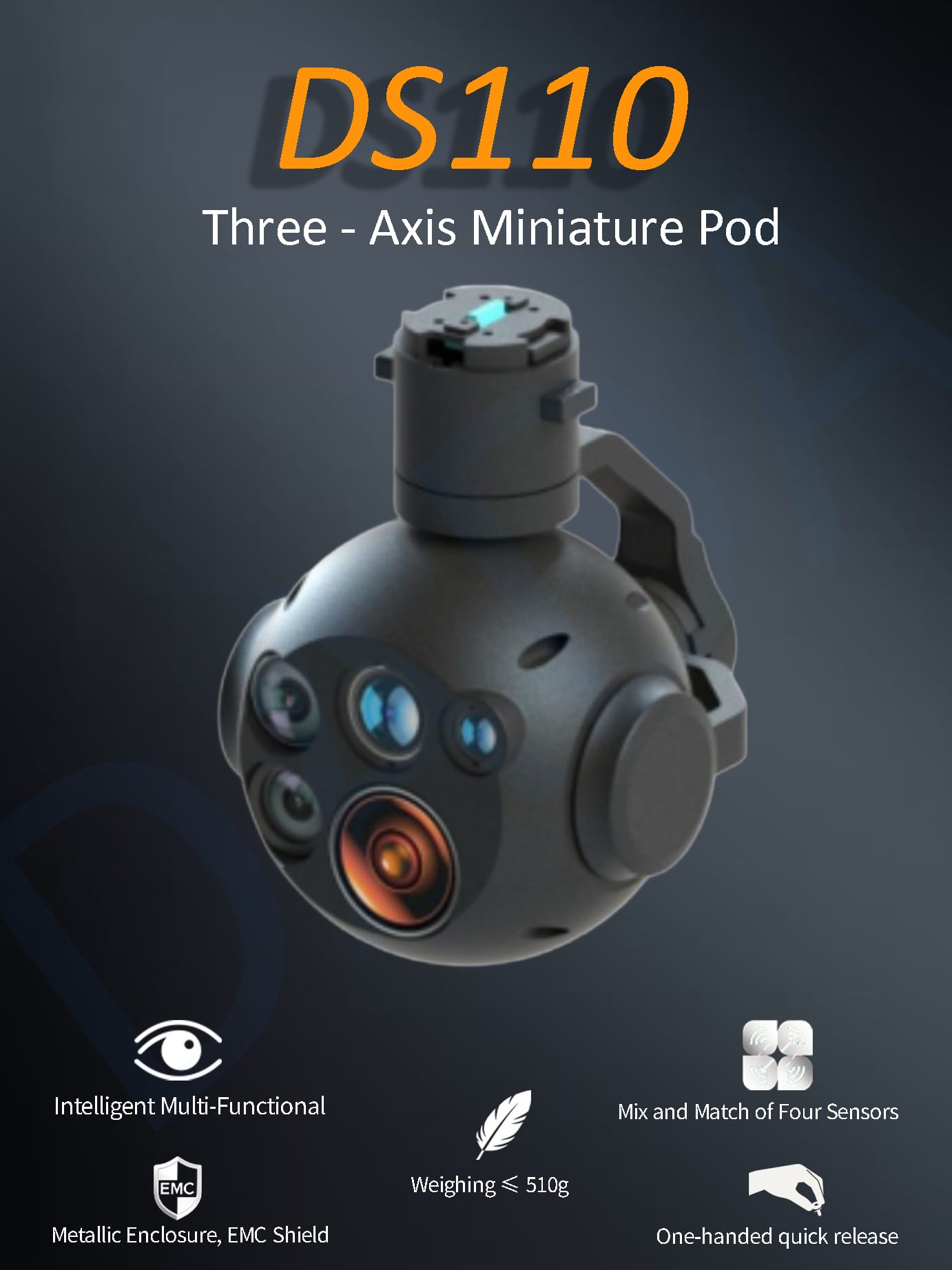

The DS110 Miniature Pod is a versatile, high-performance system designed for precise target tracking and recognition. Equipped with visible light, infrared thermal imaging, and laser ranging capabilities, this pod is ideal for both day and night reconnaissance missions. It features gyro-stabilization, a quick-release design, and a compact structure, all making it a highly effective tool for tactical and surveillance applications.
2. Product Features

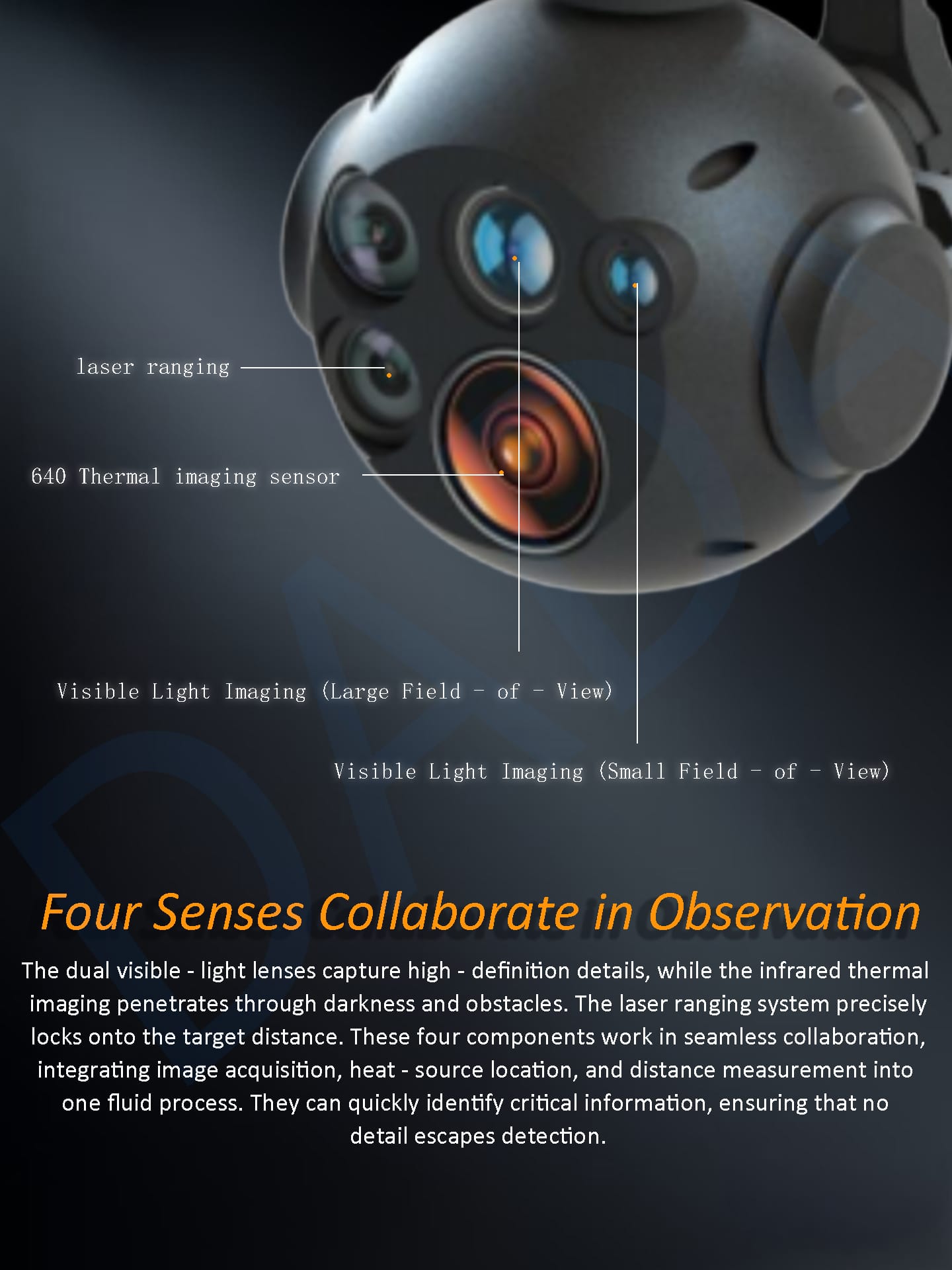

- Multi-functional Sensor Suite: Integrates dual visible light, infrared thermal imaging, and laser ranging for comprehensive observation and targeting.

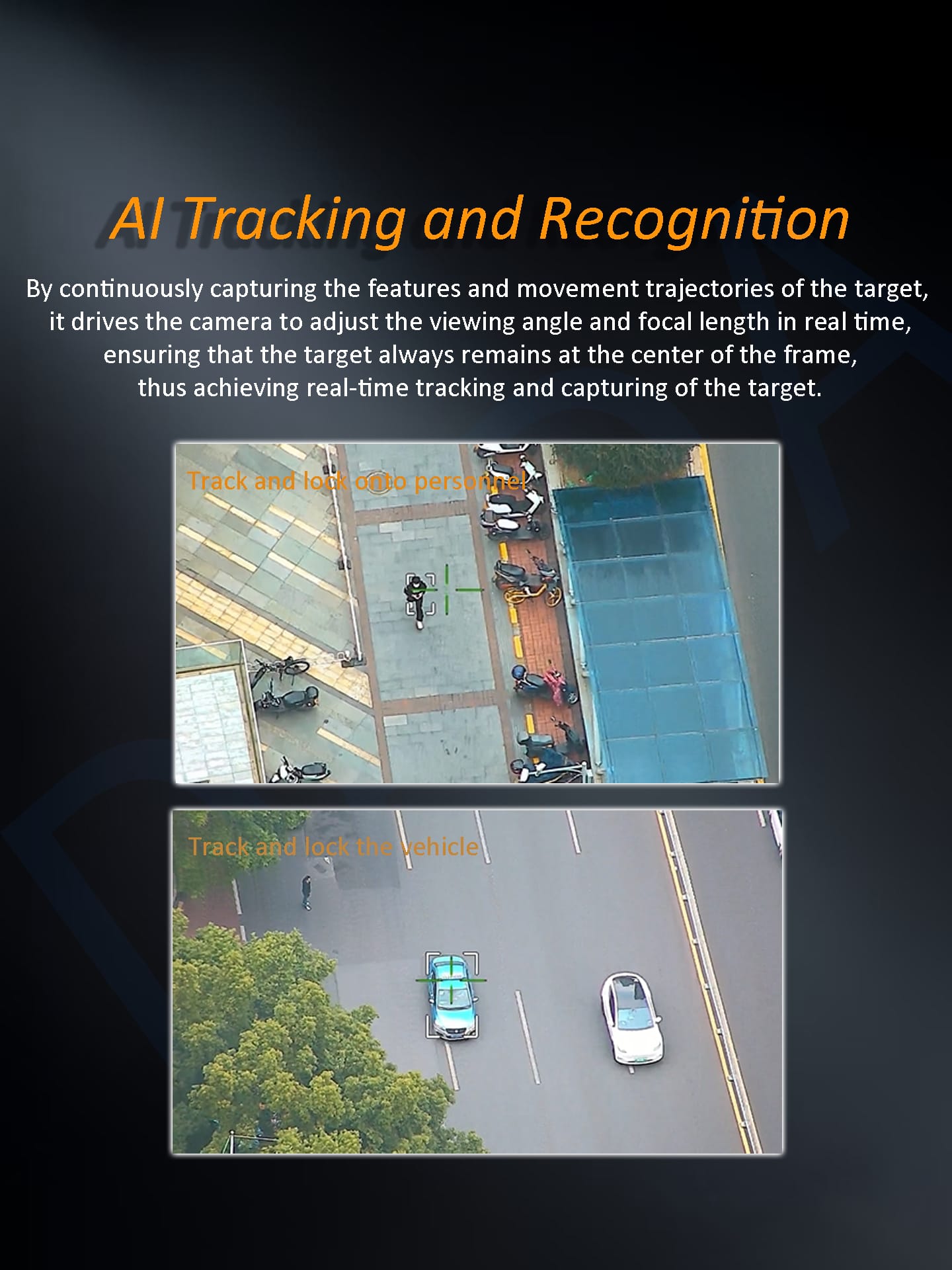

- AI Tracking and Recognition: Capable of real-time tracking and target recognition, ensuring optimal focus and lock-on accuracy during operations.
- Compact and Lightweight: Weighing less than 510g, it’s designed for easy portability and installation on various platforms.

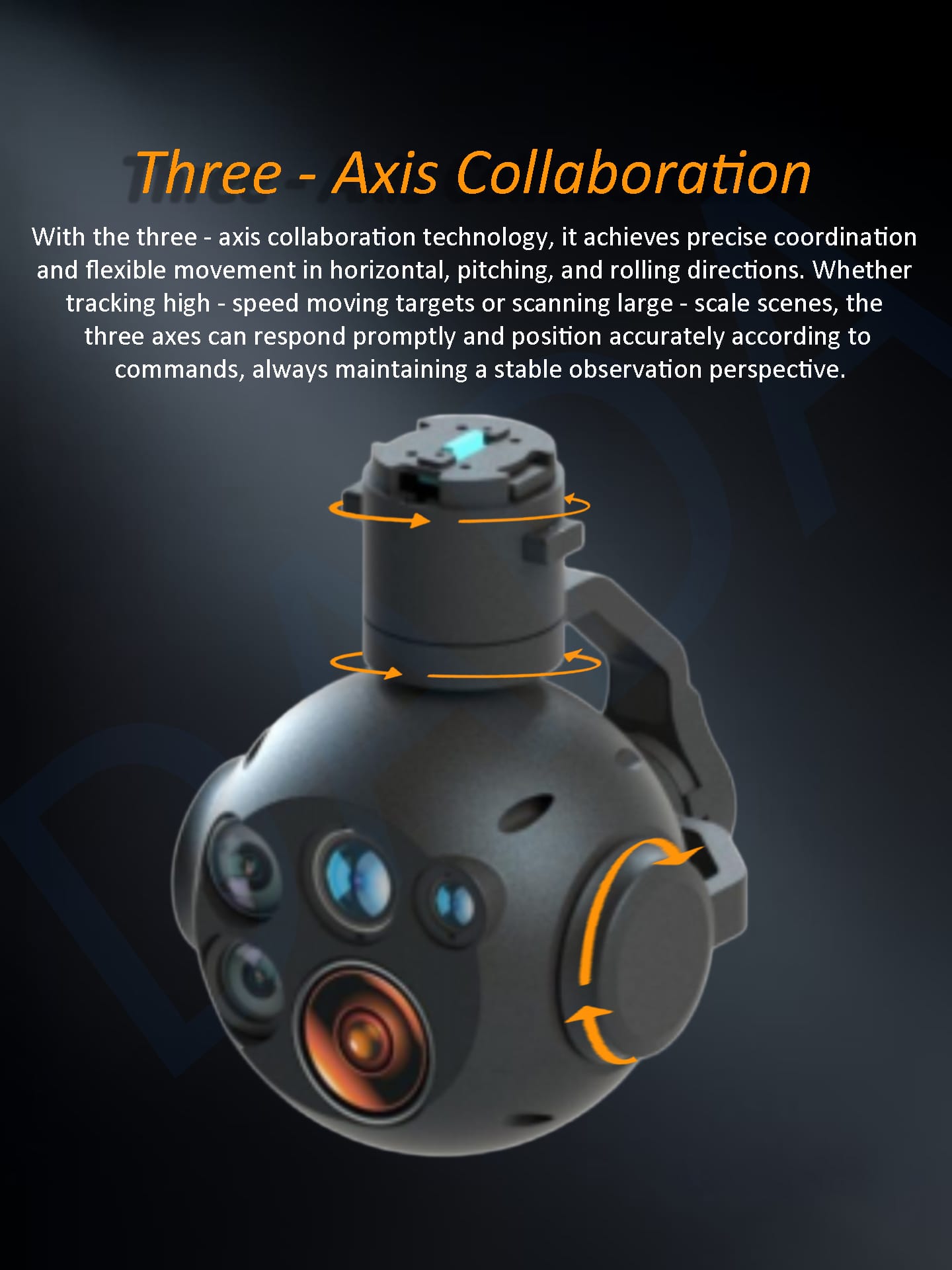

- Three-Axis Stabilization: Offers exceptional flexibility and precise control over horizontal, vertical, and roll movements, ideal for tracking high-speed targets.

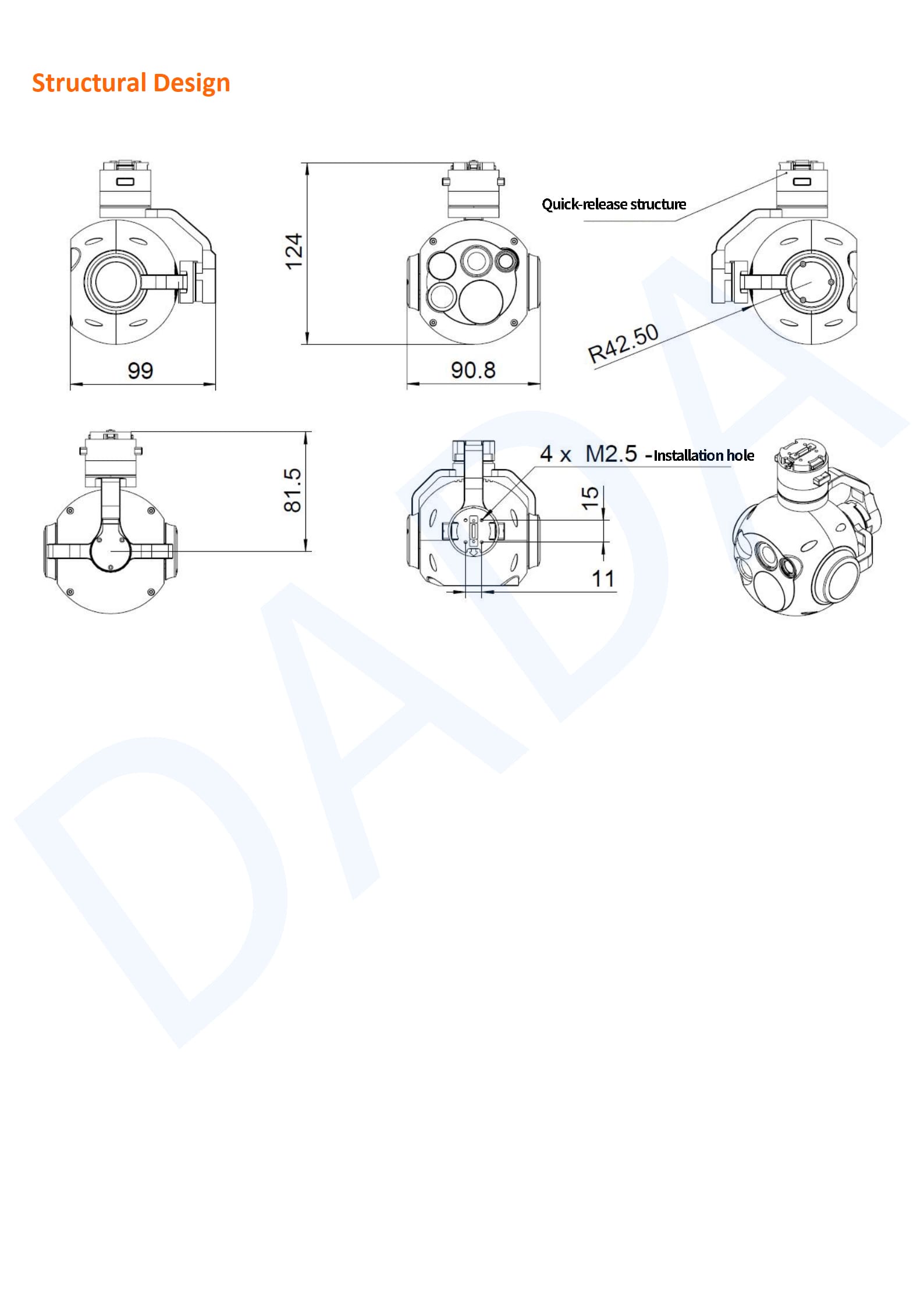

- Quick-Release Design: Features a quick-release structural design that facilitates fast and efficient setup and replacement of the pod.
3. Application Scenarios
- Surveillance and Reconnaissance: The DS110 pod is ideal for gathering intelligence in both urban and rural environments, with its ability to operate effectively during day and night.
- Tactical Operations: With its laser ranging and thermal imaging capabilities, this pod is an invaluable tool for military operations, law enforcement, and emergency response teams.
