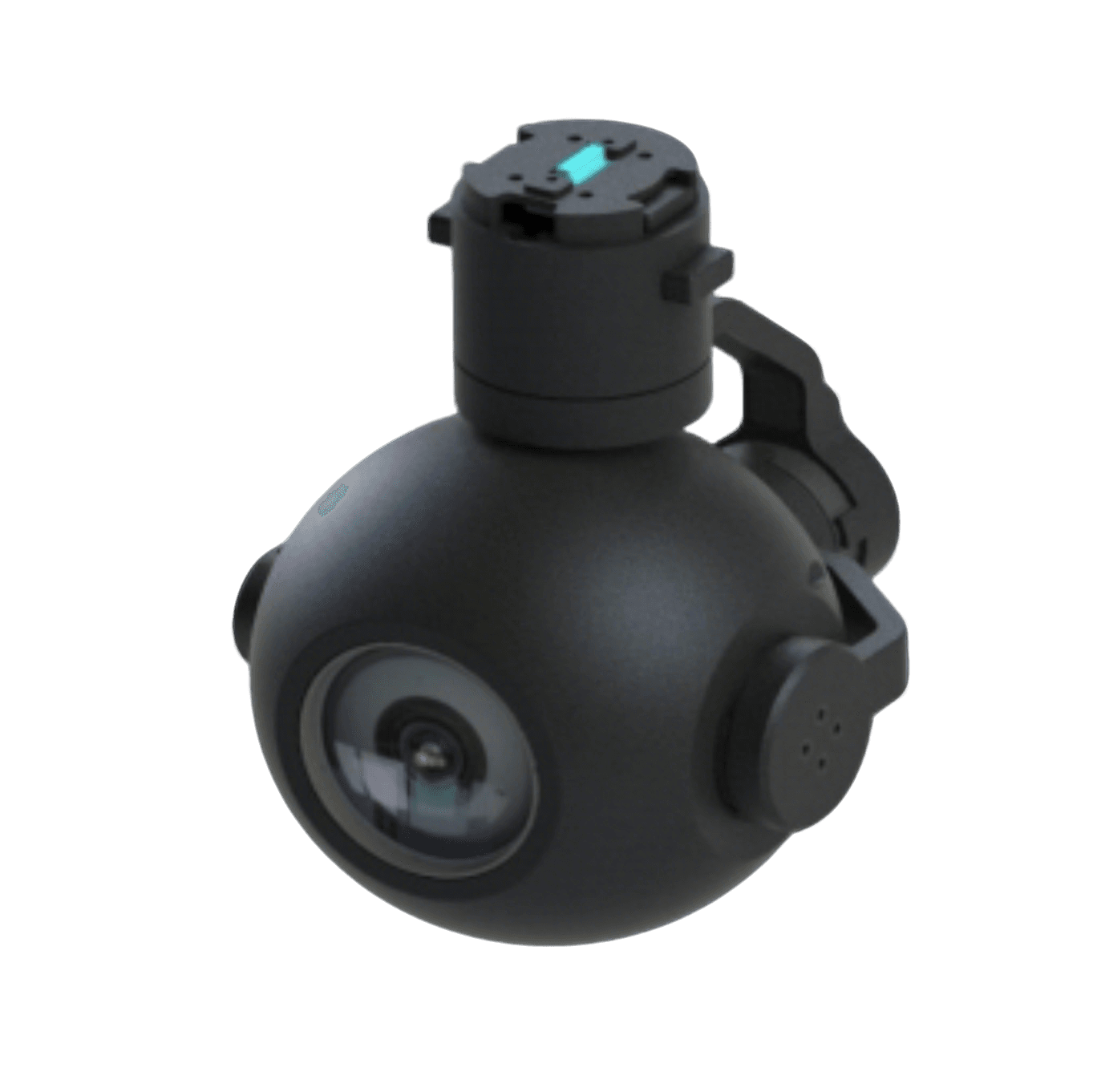

DS10PRO Quick-Swap FHD EO Gimbal | ≤340 g, 30× Hybrid Zoom
DS10PRO delivers 1920×1080/60 fps visible video with 30× hybrid zoom from a ≤340 g three-axis gimbal. AI recognition of people and vehicles, automatic tracking and unrestricted heading rotation support continuous target observation. The one-handed quick-release structure simplifies payload swaps, while gyro stabilization helps maintain a steady view. Published input is 12–28 V with average consumption ≤10 W and maximum ≤20 W.
- Three-axis
- ≥ 100°/s
- ≥ 40°/s
- 1920x1080@60fps
- ≤ 340g
- Avg ≤ 10W, Max ≤ 20W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications

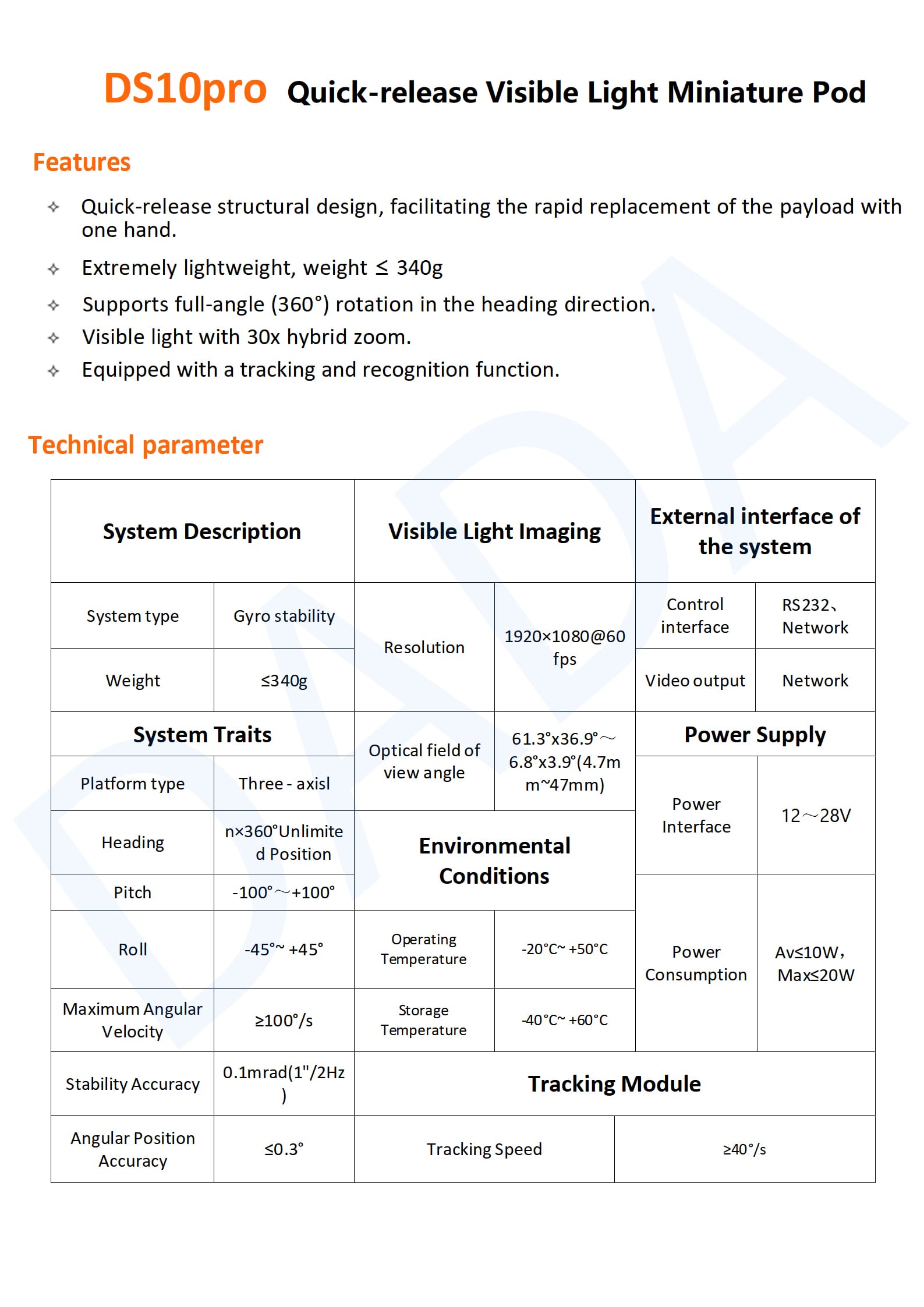

Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro Stability |

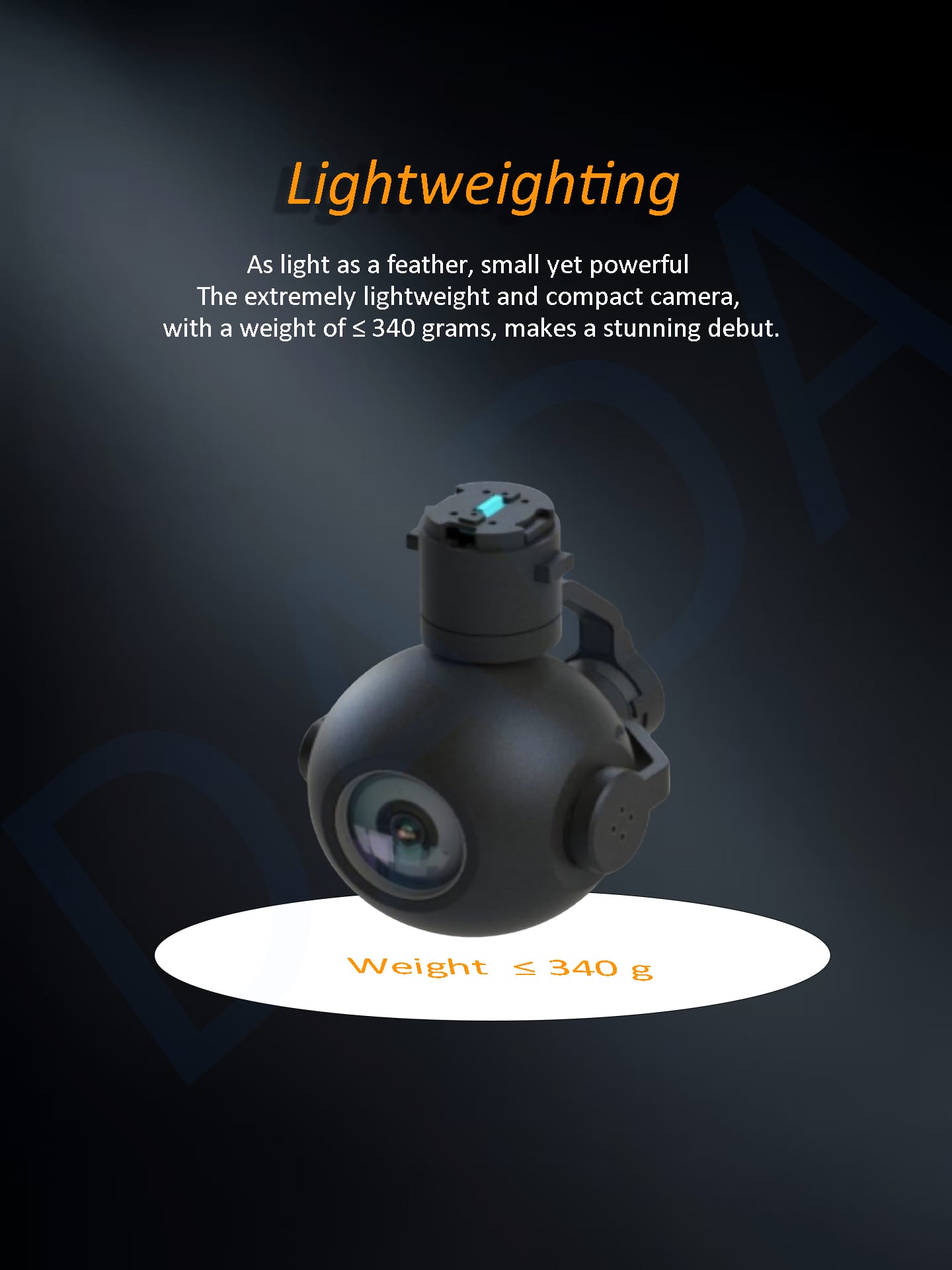

| Weight | ≤ 340g |
| Resolution | 1920x1080@60fps |
| Optical Field of View | 61.3° × 36.9° to 6.8° × 3.9° (focal length: 4.7–47 mm) |
| Platform Type | Three-axis |
| Heading | n×360° Unlimited Position |
| Pitch | -100° ~ +100° |
| Roll | -45° ~ +45° |
| Maximum Angular Velocity | ≥ 100°/s |
| Tracking Speed | ≥ 40°/s |
| Operating Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C to +50°C |
| Power Supply | 12 ~ 28V |
| Power Consumption | Avg ≤ 10W, Max ≤ 20W |
1. Features & applications

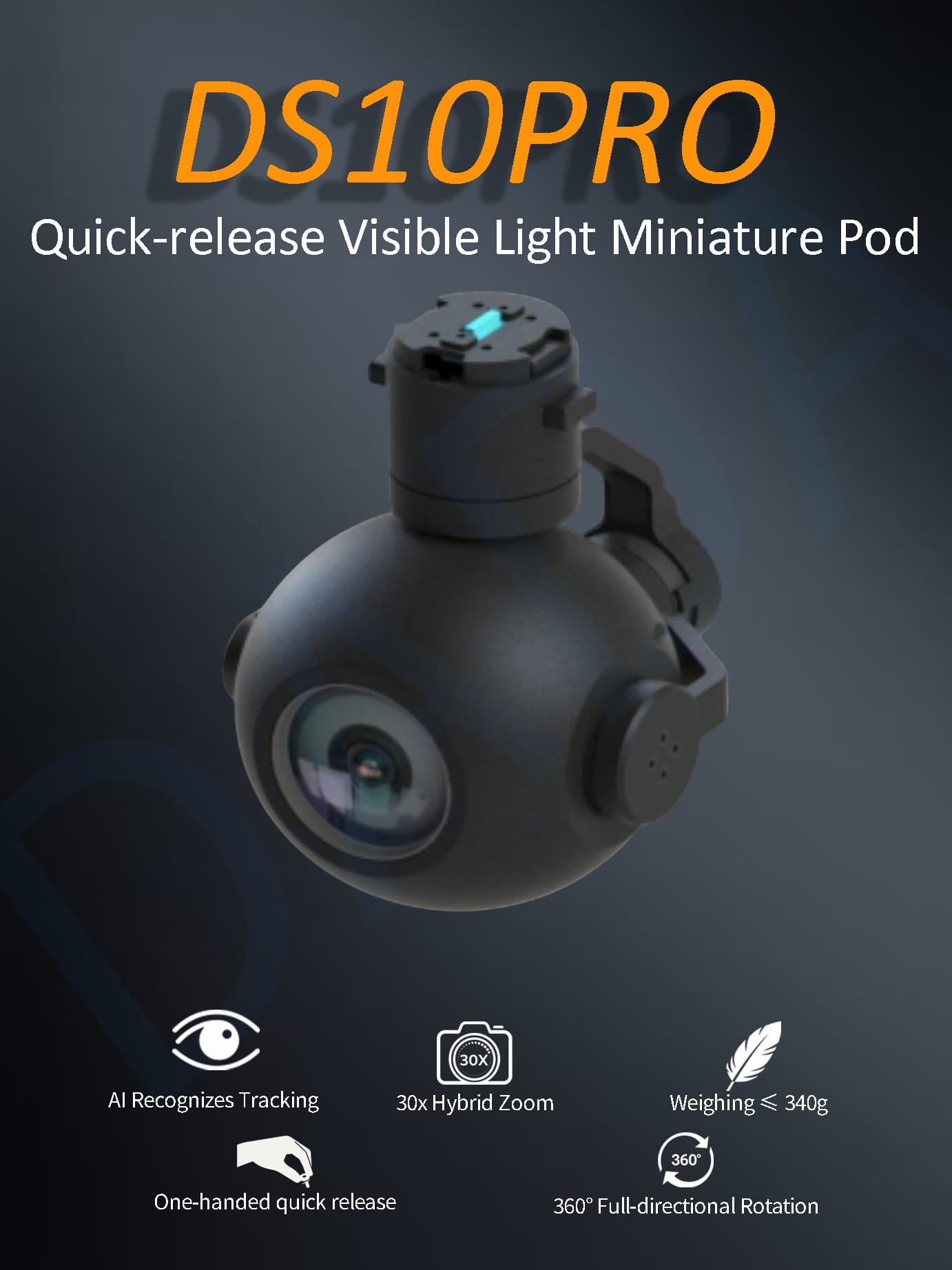

The DS10PRO is a compact and lightweight visible light miniature pod designed for high-performance tracking and recognition applications. It boasts advanced features like 30x hybrid zoom, 360° full-directional rotation, and a quick-release structure for ease of use in various complex environments. Weighing under 340 grams, the DS10PRO is designed to provide high-quality imaging and stability with its three-axis gyro-stabilization system.
2. Product Features

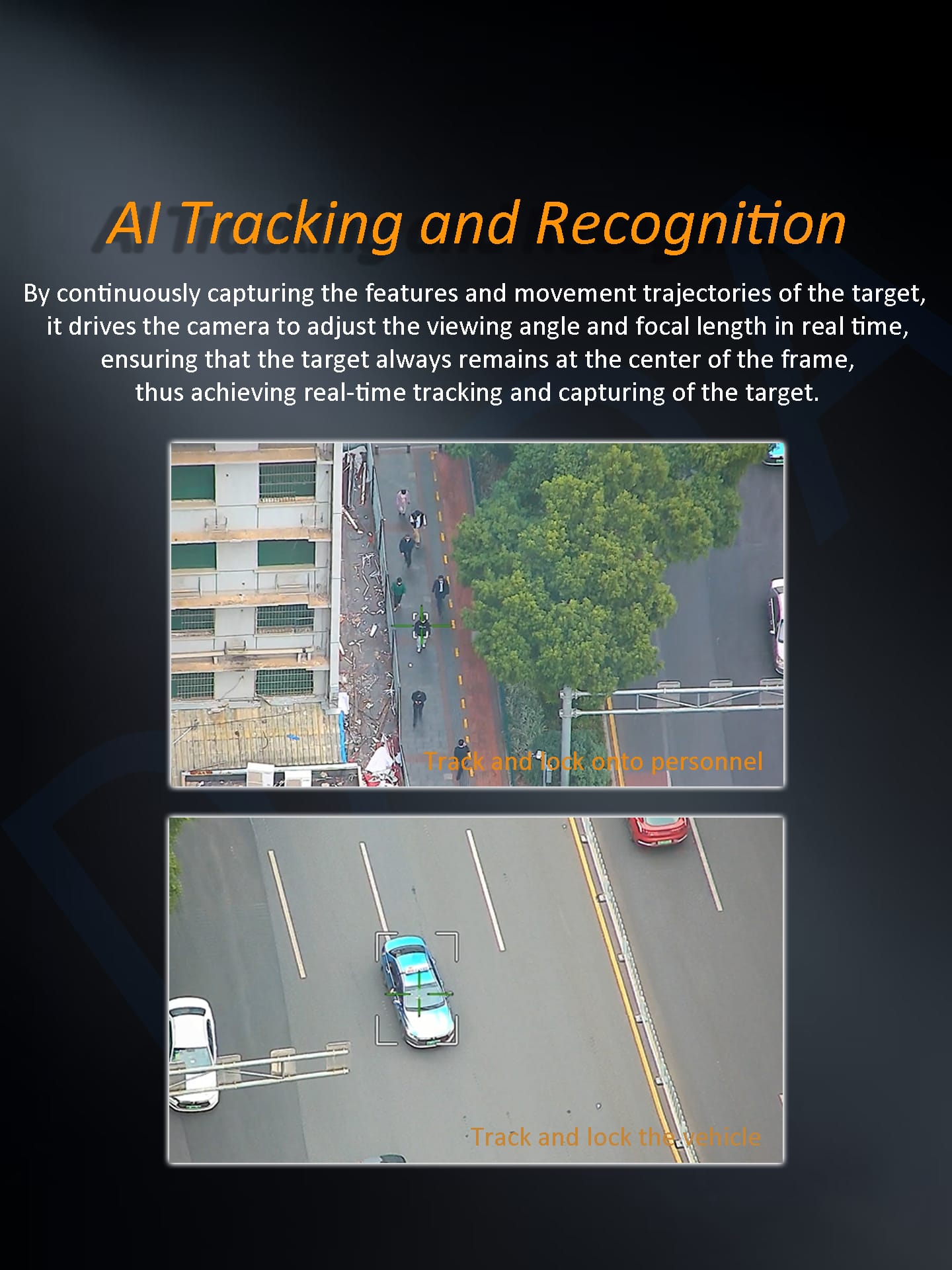

- AI Tracking and Recognition: Automatically tracks and locks onto personnel or vehicles using advanced AI algorithms, adjusting the camera's viewing angle and focal length in real-time.

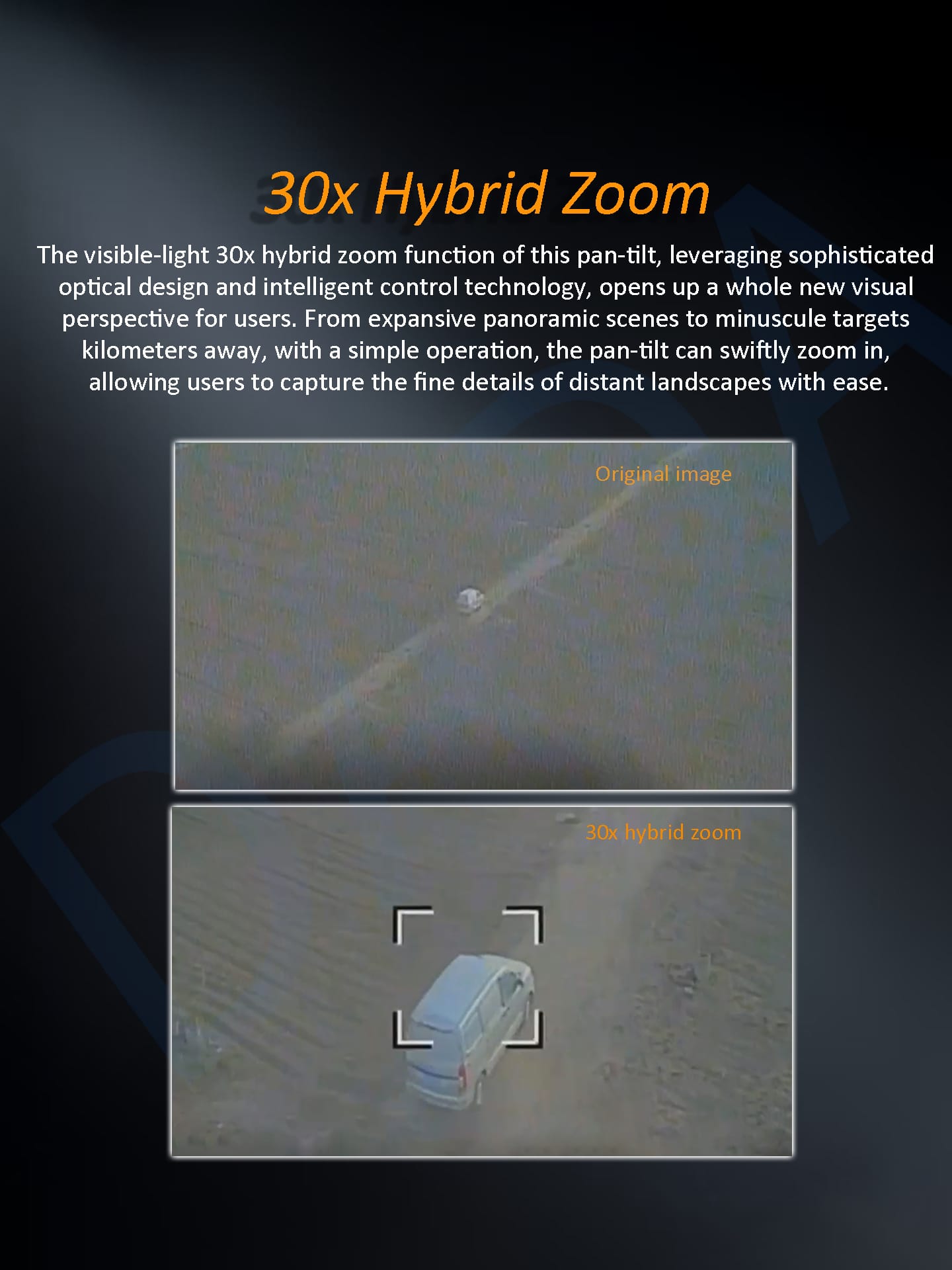

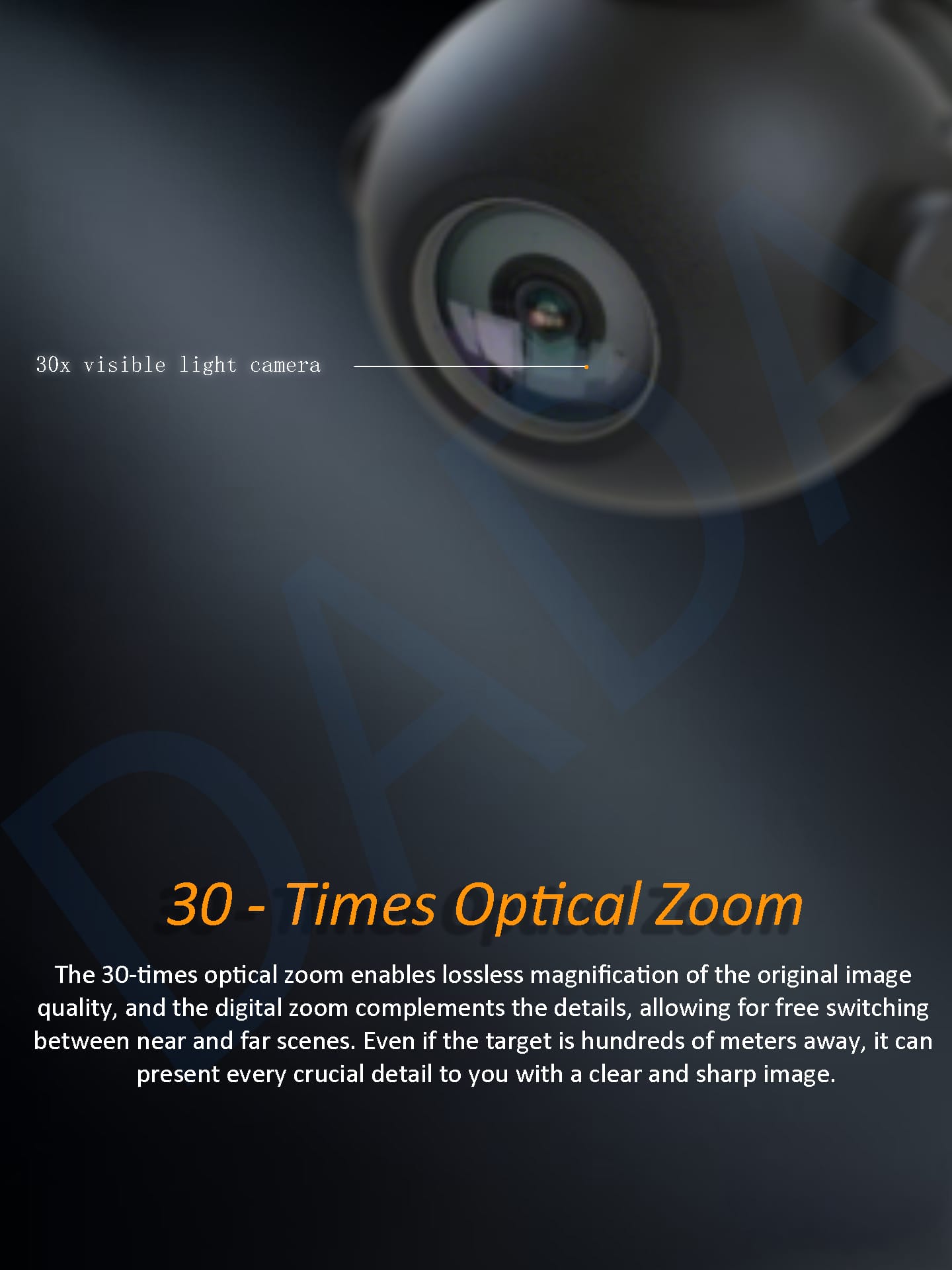

- 30x Hybrid Zoom: Combines optical and digital magnification for 30x hybrid zoom.
- Quick-release Structure: Facilitates rapid replacement of the pod's payload with a one-handed quick-release mechanism.

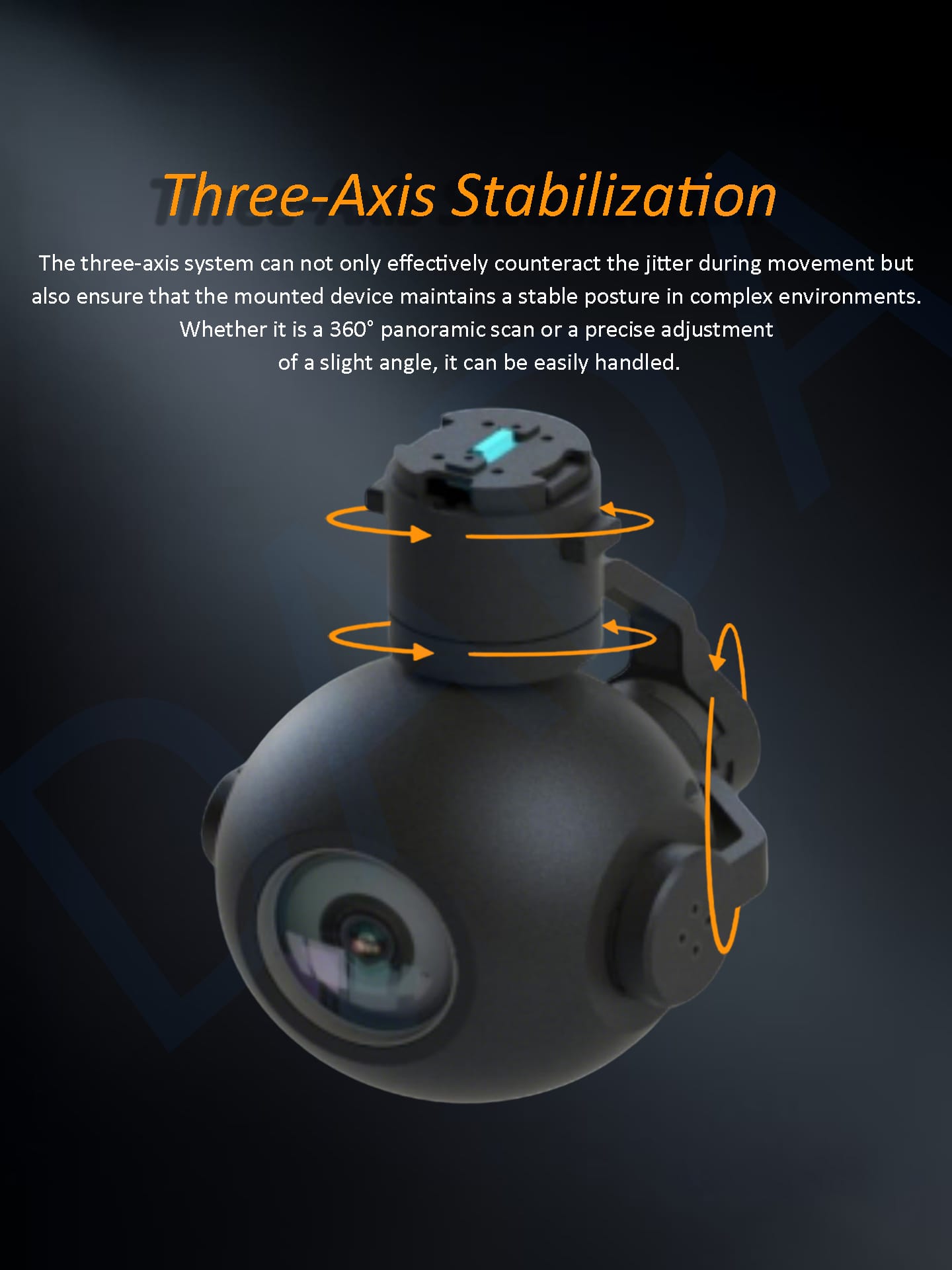

- Three-axis Stabilization: Ensures smooth operation with stable imagery, even during movement or when performing a 360° scan.
- 360° Full-directional Rotation: Supports full-angle (360°) rotation in the heading direction, allowing for comprehensive coverage in all directions.
3. Application Scenarios
- Surveillance: Ideal for use in security and surveillance applications, allowing for precise tracking of both personnel and vehicles in various environments.
- Law Enforcement: Can be used in law enforcement scenarios for monitoring public spaces or tracking suspect movements with high accuracy.
- Environmental Monitoring: Suitable for capturing long-range environmental data and monitoring remote areas, providing detailed imaging from afar.
