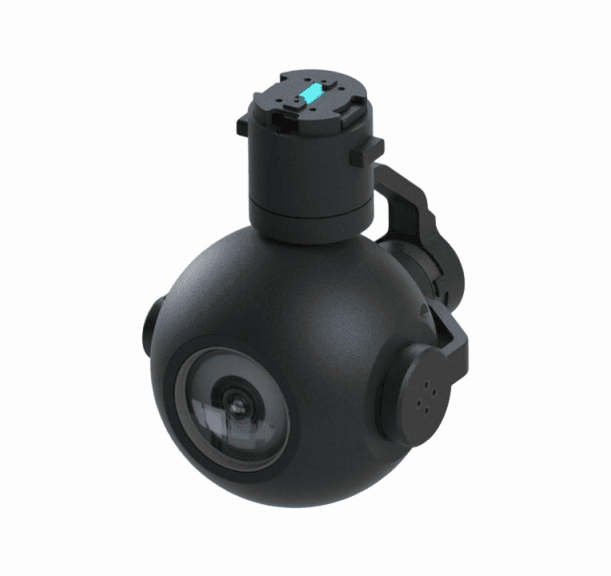

DS10Pro 3-Axis EO UAV Gimbal | FHD, 30× Hybrid Zoom
SKU:DS10Pro-1
Three-axis EO micro gimbal with 1920×1080/60 fps video, 30× hybrid zoom and a 4.7–47 mm lens. Provides 0.1 mrad stabilization accuracy at 1°/2 Hz, 1σ, built-in target tracking and continuous n×360° yaw rotation. Quick disassembly supports installation and replacement. Ethernet output supports H.264/H.265 and MP4 storage. Uses 12–28 V DC with average ≤10 W and maximum ≤20 W consumption.
- 61.3deg x 36.9deg
- 6.8deg x 3.9deg
- <=0.3deg
- 0.1 mrad (1deg/2Hz, 1sigma)
- ≥40°/s
- 4.7mm to 47mm
- 61.3deg x 36.9deg to 6.8deg x 3.9deg
- >=100deg/s
- Ethernet
- H264/H265
- MP4
- 1920 x 1080 @ 60fps
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
1920 x 1080 @ 60fpsEO - Resolution and frame rate
≤340 gProduct - Weight
Average <=10W, Max <=20WPower - Power consumption
Technical data
| Parameter | Specification |
|---|---|
| Product - Product name | DS10pro |
| Product - Type | Three-axis micro-pod |
| Product - Weight | ≤340 g |
| Product - Structure | Lightweight and compact, quick-disassembly structure |

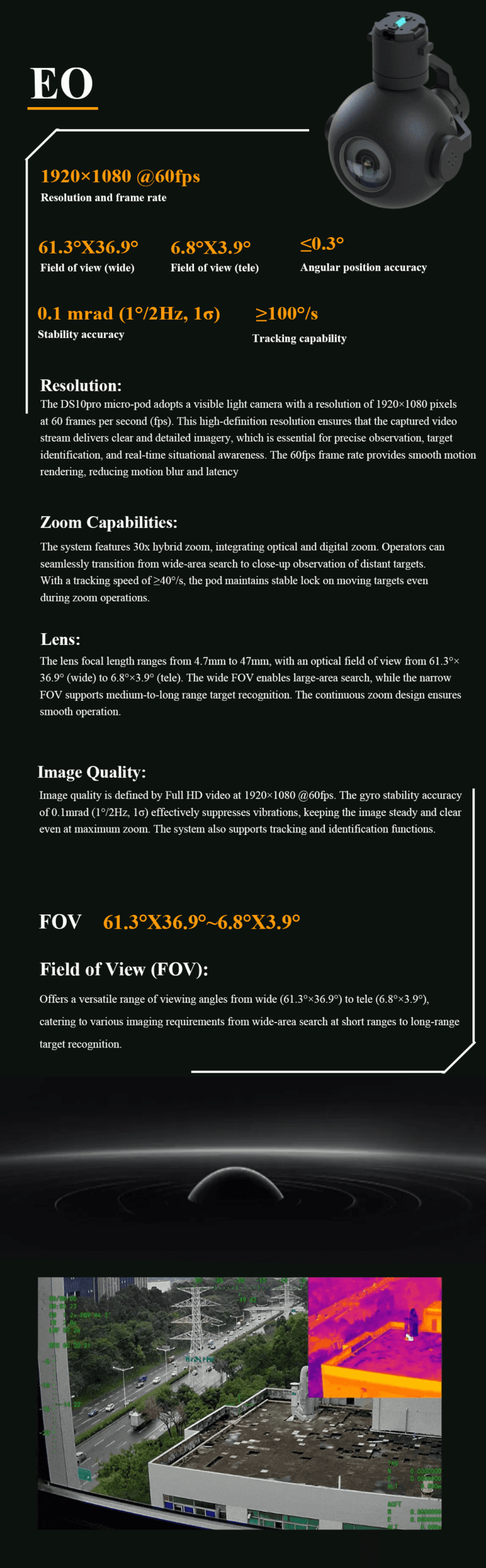

| EO - Camera | FHD EO camera |
| EO - Resolution and frame rate | 1920 x 1080 @ 60fps |
| EO - Field of view (wide) | 61.3deg x 36.9deg |
| EO - Field of view (tele) | 6.8deg x 3.9deg |
| EO - Angular position accuracy | <=0.3deg |
| EO - Stability accuracy | 0.1 mrad (1deg/2Hz, 1sigma) |
| EO - Tracking capability | ≥40°/s |
| EO - Zoom capabilities | 30x hybrid zoom, integrating optical and digital zoom |
| EO - Tracking speed | ≥40°/s |
| EO - Lens focal length | 4.7mm to 47mm |
| EO - FOV range | 61.3deg x 36.9deg to 6.8deg x 3.9deg |

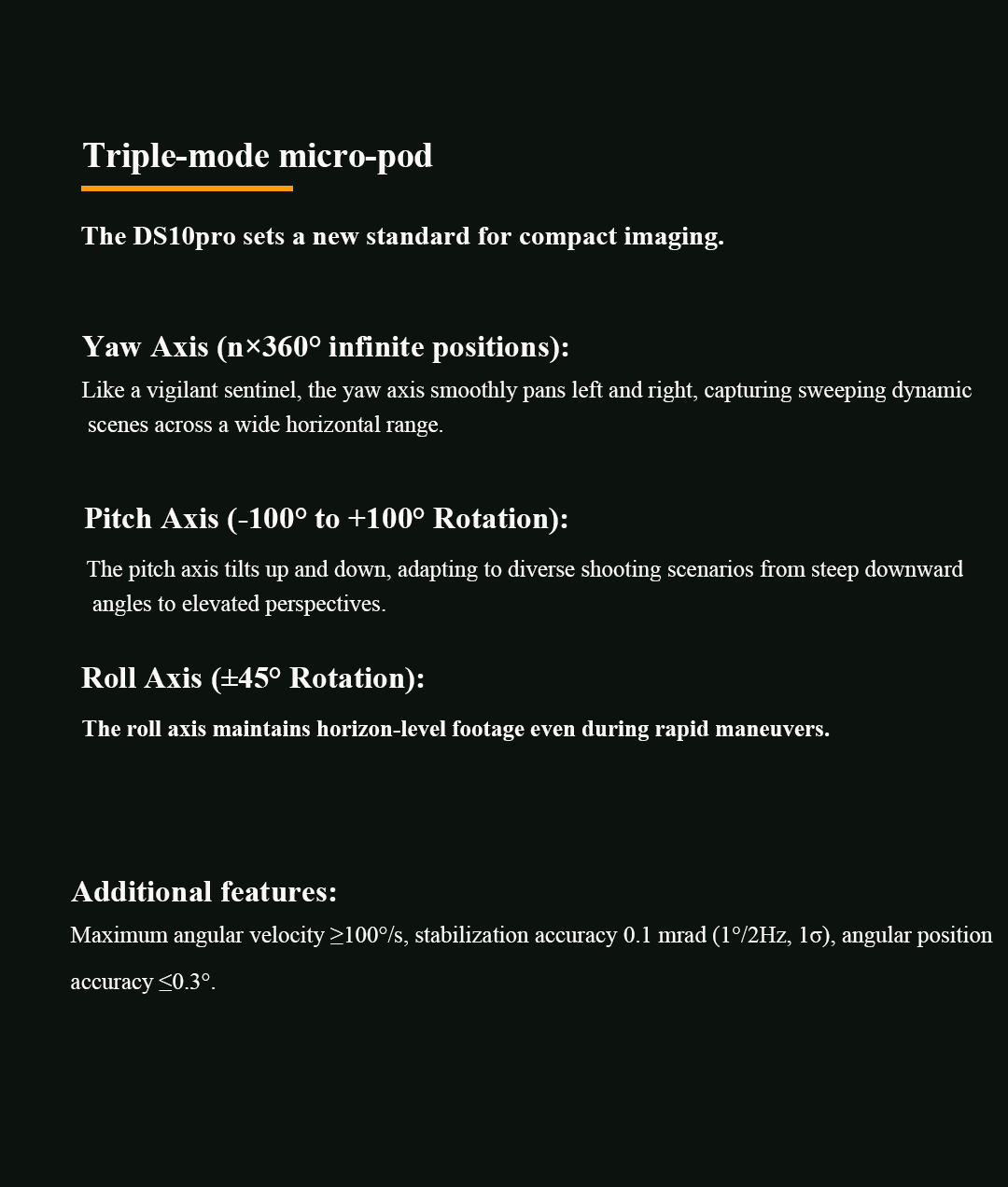

| Gimbal - Yaw axis | n x 360deg infinite positions |
| Gimbal - Pitch axis | -100deg to +100deg rotation |
| Gimbal - Roll axis | +/-45deg rotation |
| Gimbal - Maximum angular velocity | >=100deg/s |
| Gimbal - Stabilization accuracy | 0.1 mrad (1deg/2Hz, 1sigma) |
| Gimbal - Angular position accuracy | <=0.3deg |

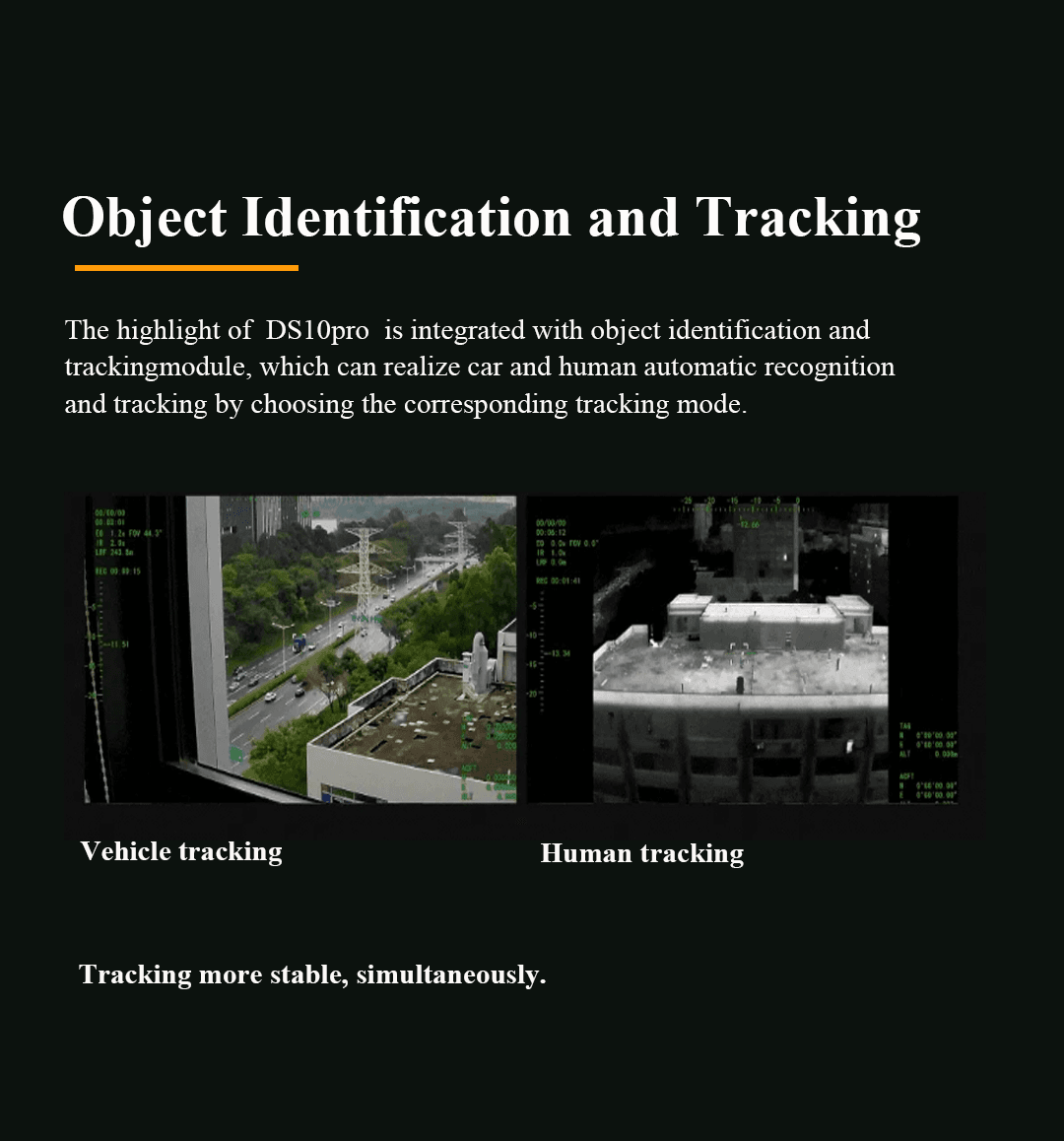

| Tracking - Object identification and tracking | Car and human automatic recognition and tracking by selecting tracking mode |

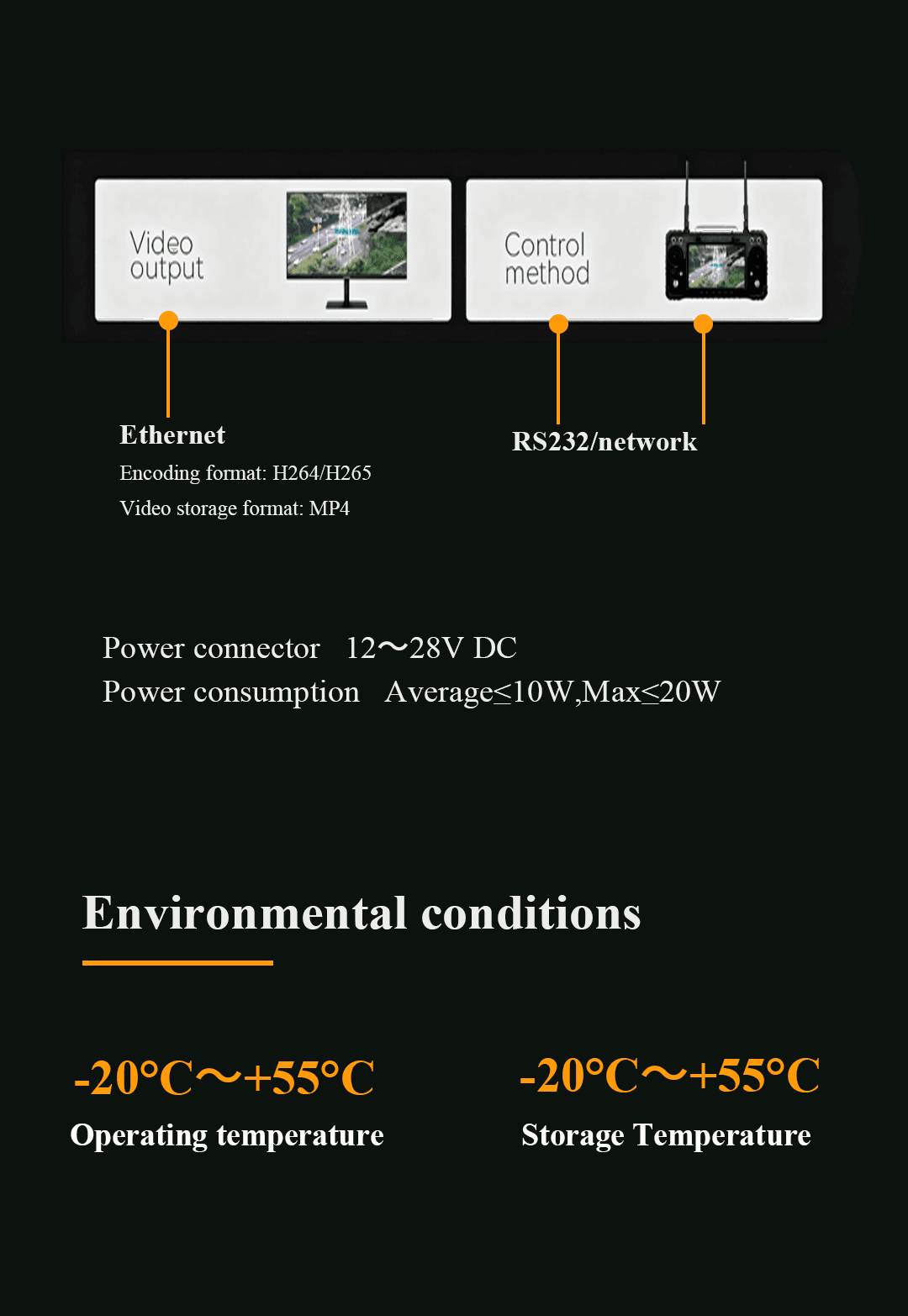

| Video output - Output interface | Ethernet |
| Video output - Encoding format | H264/H265 |
| Video output - Video storage format | MP4 |
| Control method - Control | RS232/network |
| Power - Power connector | 12-28V DC |
| Power - Power consumption | Average <=10W, Max <=20W |
| Environmental conditions - Operating temperature | -20°C to +50°C |
| Environmental conditions - Storage temperature | -20°C to +50°C |
| Dimension - Width/side values shown | 99.70mm, 87.10mm |
| Dimension - Height values shown | 119.6mm, 79.6mm, 57.1mm |
| Dimension - Radius | R40 |
| Dimension - Mounting hole | 4 x M2.5 mounting hole |
1. Features & applications
DS10Pro 3-Axis Micro UAV Gimbal with FHD EO Camera, 30x Hybrid Zoom and Target Tracking is built for compact visible-light EO camera imaging, UAV gimbal stabilization, target identification, and target tracking. It is described as a lightweight quick-disassembly pod with full heading-range yaw rotation, FHD 1920 x 1080 @ 60fps video, 30x hybrid zoom, picture-in-picture display, rich OSD, and vehicle/human tracking for surveillance and field operation scenarios.
2. Product Features
- Three-Axis Gimbal:Provides yaw, pitch, and roll control for stabilized visible-light imaging.
- Lightweight Pod:Uses a compact quick-disassembly structure, with weight ≤340 g.
- Full Yaw Rotation:Supports heading full angle range with n x 360deg yaw rotation.
- FHD EO Camera:Supports 1920 x 1080 @ 60fps visible-light video for detailed observation.
- 30x Hybrid Zoom:Integrates optical and digital zoom for wide-area search and close-up target observation.
- Object Tracking:Supports vehicle and human target identification and tracking by selecting the tracking mode.

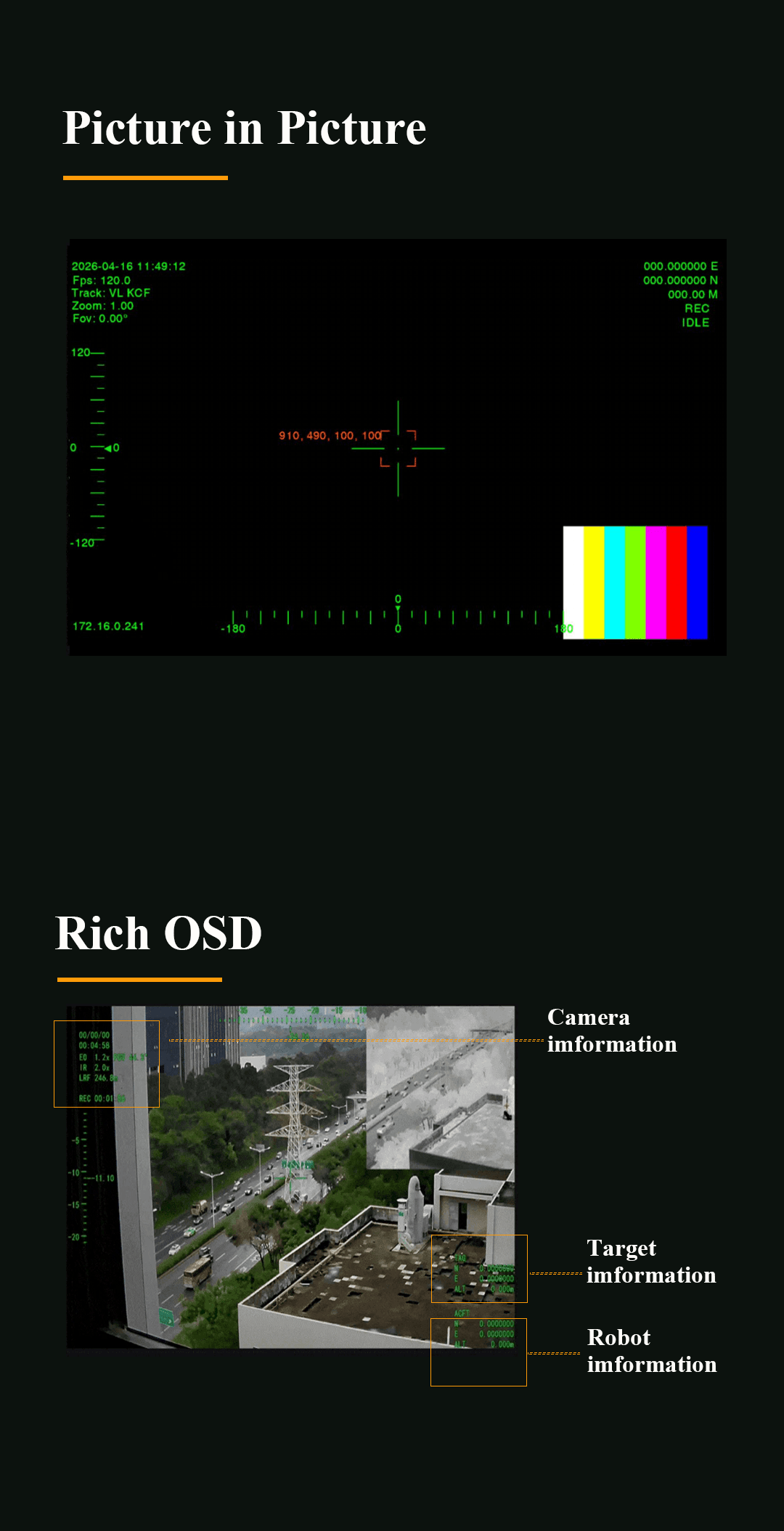

- OSD Display:Supports picture-in-picture and rich OSD display, including camera information, target information, and robot information.
- Network Video:Provides Ethernet video output with H264/H265 encoding and MP4 storage format.
3. Application Scenarios
- Public Security:Used for stabilized visible-light surveillance that requires FHD video, target identification, and tracking.
- Environmental Projects:Supports compact field observation platforms where a lightweight three-axis EO gimbal is required.
- Forest Fire Monitoring:Provides zoomable visible-light observation for monitoring smoke, terrain, and moving targets in forest areas.
- Law Enforcement:Supports mobile inspection, patrol, and evidence collection with OSD display, EO camera video, and target tracking.
- UAV Payloads:Fits UAV and robotic payloads that need quick-disassembly installation, 30x hybrid zoom, and stabilized target tracking.
