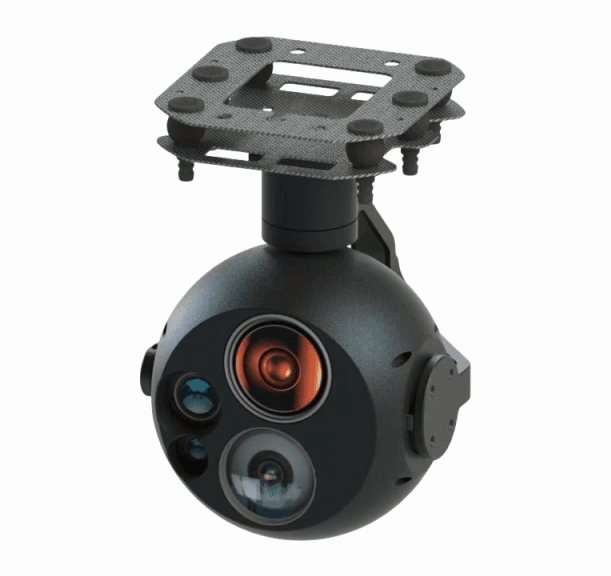

DD360plus+ FHD EO Camera IR Thermal Imaging 3km Laser Rangefinder 3-Axis UAV Gimbal

SKU:DD360plus+
DD360plus+ FHD EO Camera IR Thermal Imaging 3km Laser Rangefinder 3-Axis UAV Gimbal is a triple-mode micro-pod for compact airborne and robotic imaging, integrating an FHD EO camera, IR thermal imaging camera and laser rangefinder with a three-axis stabilized UAV gimbal platform. With weight shown as <=700g, 360-degree heading rotation, 10x optical zoom, picture-in-picture, rich OSD and object identification/tracking, it supports day and night surveillance, vehicle tracking and human target tracking.
Add To Quote

Share on:

1. DD360plus+ FHD EO Camera IR Thermal Imaging 3km Laser Rangefinder 3-Axis UAV Gimbal Overview

DD360plus+ FHD EO Camera IR Thermal Imaging 3km Laser Rangefinder 3-Axis UAV Gimbal is a triple-mode micro-pod for compact airborne and robotic imaging, integrating an FHD EO camera, IR thermal imaging camera and laser rangefinder with a three-axis stabilized UAV gimbal platform. With weight shown as <=700g, 360-degree heading rotation, 10x optical zoom, picture-in-picture, rich OSD and object identification/tracking, it supports day and night surveillance, vehicle tracking and human target tracking.

2. Product Features

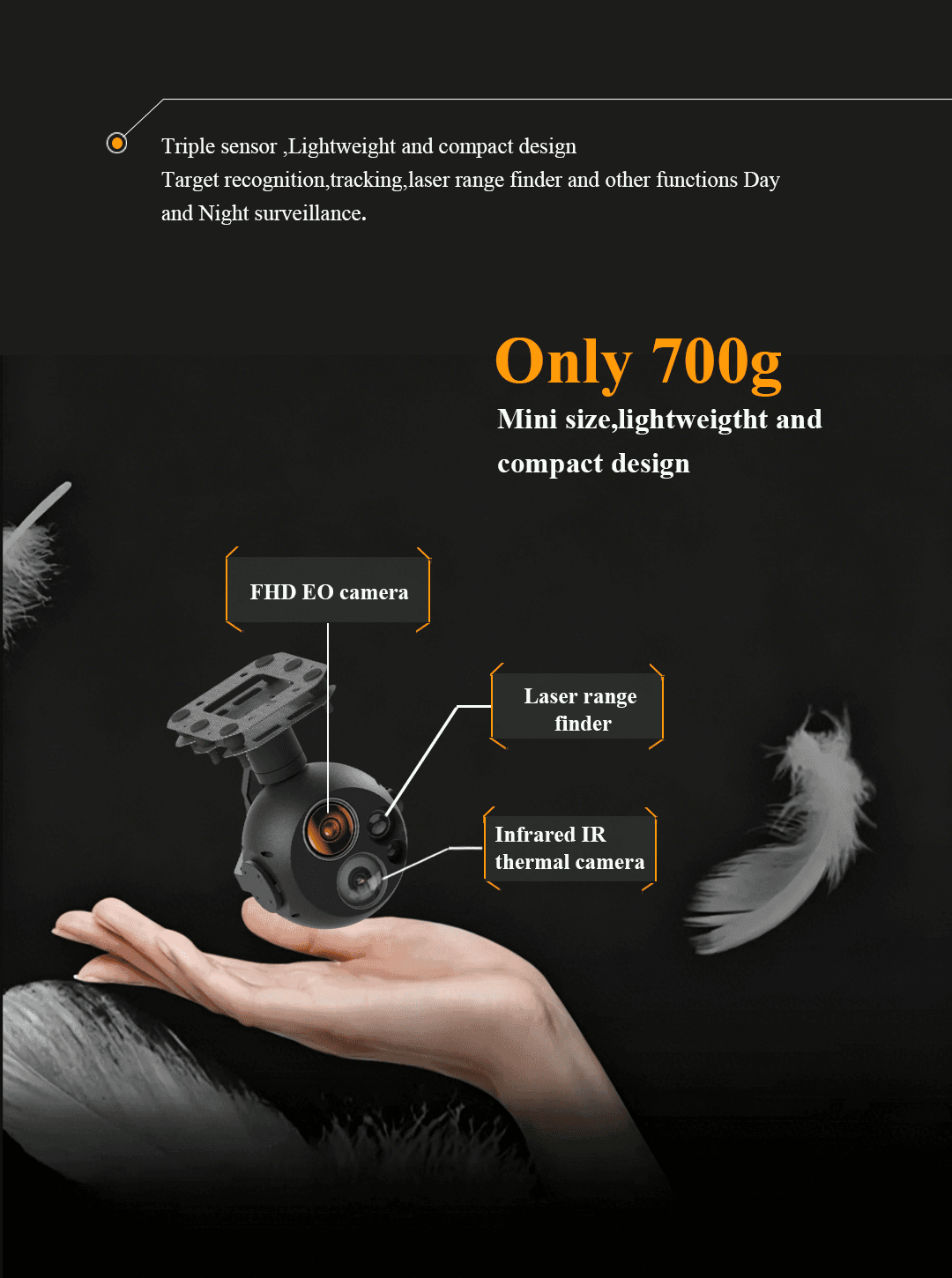

  • Triple Sensor Design:FHD EO camera, infrared IR thermal camera and laser range finder are integrated for multi-mode observation.
  • Compact Payload:Lightweight design is shown with product weight <=700g for compact UAV gimbal integration.
  • FHD Visible Imaging:Visible-light imaging supports 10x optical zoom and Full HD video output.
  • Thermal Palettes:IR thermal imaging supports White hot, Black hot, Iron red, Rainbow and Fusion color palettes.
  • Laser Measurement:Laser range finder supports long-distance measurement with listed distance accuracy.
  • Target Recognition:Object Identification and Tracking supports vehicle tracking and human tracking.
  • Stabilized Motion:Three-axis stabilized platform supports yaw, pitch and roll movement with high stabilization accuracy.
  • Video and Control:Network video output, RS232/TCP control, H264/H265 encoding and MP4 storage support system integration.

3. Detailed Technical Parameters

Parameter Specification
Product – Product type Triple-mode micro-pod; from cover page
Product – Weight <=700g; image text: “Only 700g” and “weight <=700g”
EO – Resolution and frame rate 1920 x 1080 @ 60fps; image text: “1920×1080@60fps”
EO – Field of view (wide) 61.3 deg x 36.9 deg
EO – Field of view (tele) 6.8 deg x 3.9 deg
EO – FOV 61.3 deg x 36.9 deg ~ 6.8 deg x 3.9 deg
EO – Visible light zoom 10x optical zoom; from feature and EO description
EO – Stability accuracy 0.1 mrad (1 deg/2Hz, 1 sigma)
EO / Tracking – Tracking capability >=100 deg/s; EO page shows this value; one paragraph appears to mention a different tracking speed, not clearly recognized
EO / Gimbal – Angular position accuracy <=0.3 deg
IR – Resolution frame rate 640 x 512 @ 60fps
IR – Field of view 12.5 deg x 10 deg; body paragraph appears as 12.1 deg x 10 deg; conflicting/未清晰识别

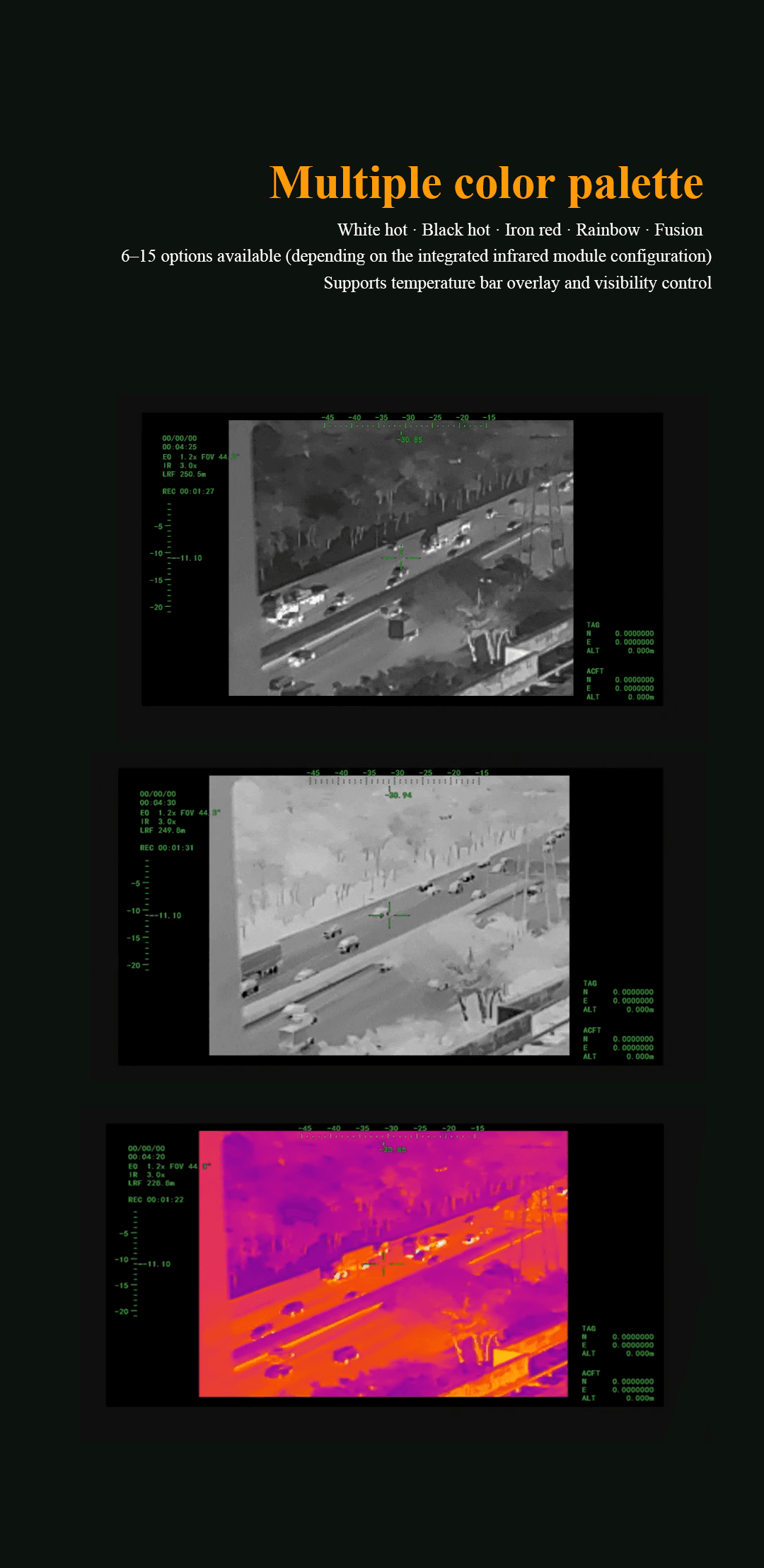

IR – Color palette White hot / Black hot / Iron red / Rainbow / Fusion; 6-15 options depending on integrated infrared module configuration
IR – Temperature display Supports temperature bar overlay and visibility control

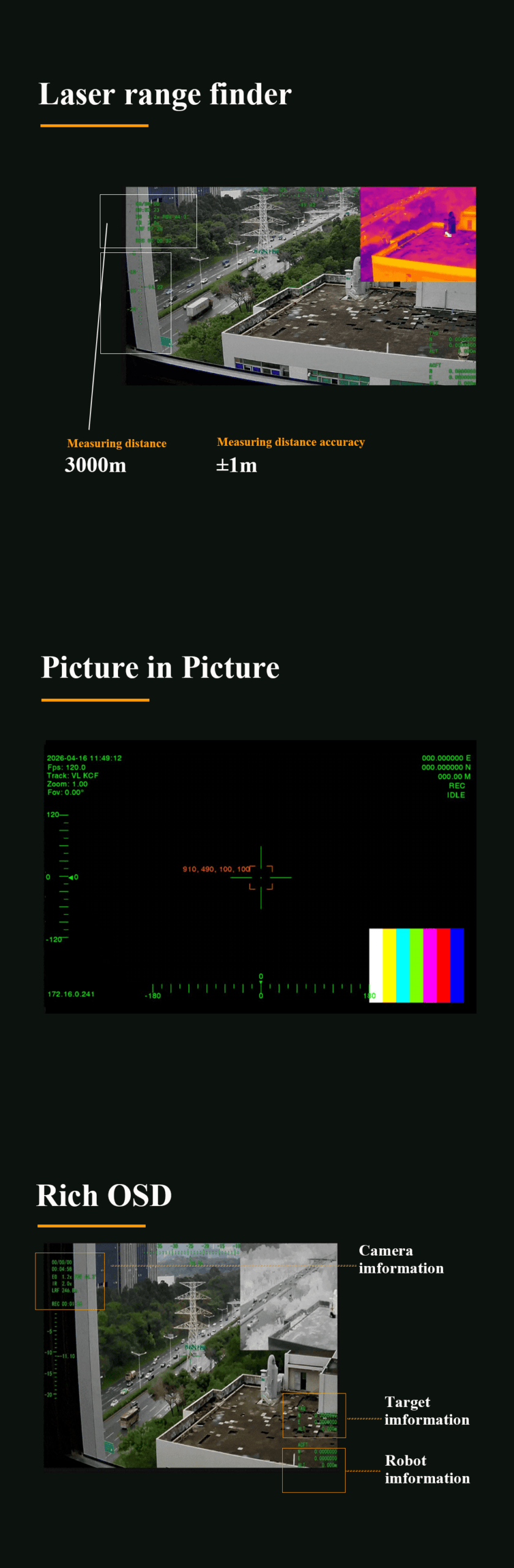

Laser range finder – Measuring distance 3000m
Laser range finder – Measuring distance accuracy +/-1m
Display – Picture in Picture Supported
Display – Rich OSD Camera information / Target information / Robot information

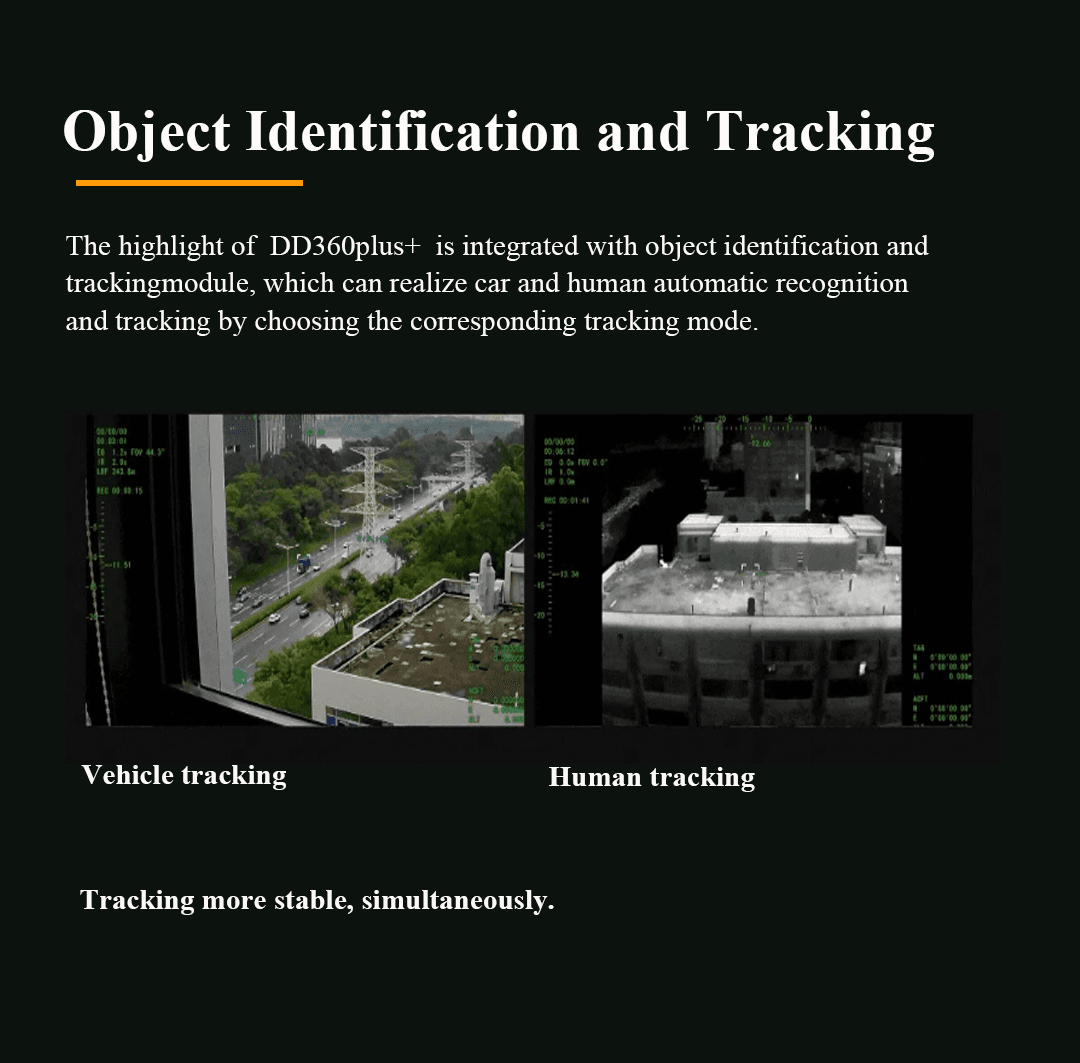

AI – Object Identification and Tracking Vehicle tracking / Human tracking; supports recognition and tracking mode selection

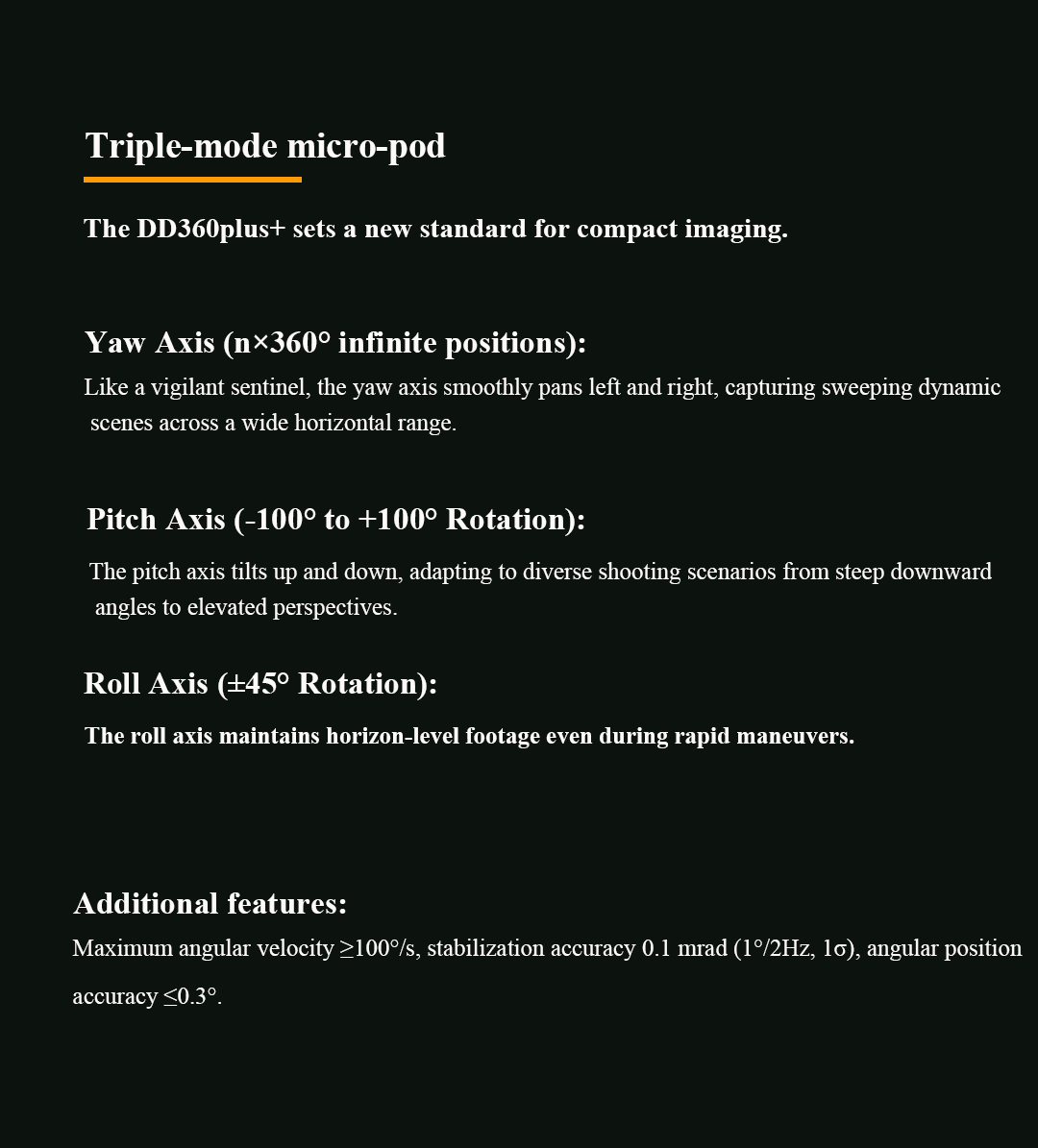

Gimbal – Yaw Axis n x 360 deg infinite positions
Gimbal – Pitch Axis -100 deg to +100 deg Rotation
Gimbal – Roll Axis +/-45 deg Rotation
Motion – Maximum angular velocity >=100 deg/s; from “Additional features”
Video output – Video output network
Video output – Encoding format H264/H265
Video output – Video storage format MP4
Control – Control method RS232/TCP
Power – Power connector 12~28V DC
Power – Power consumption Average <=10W, Max <=20W
Environmental conditions – Operating temperature -20 deg C ~ +50 deg C
Environmental conditions – Storage Temperature -20 deg C ~ +50 deg C

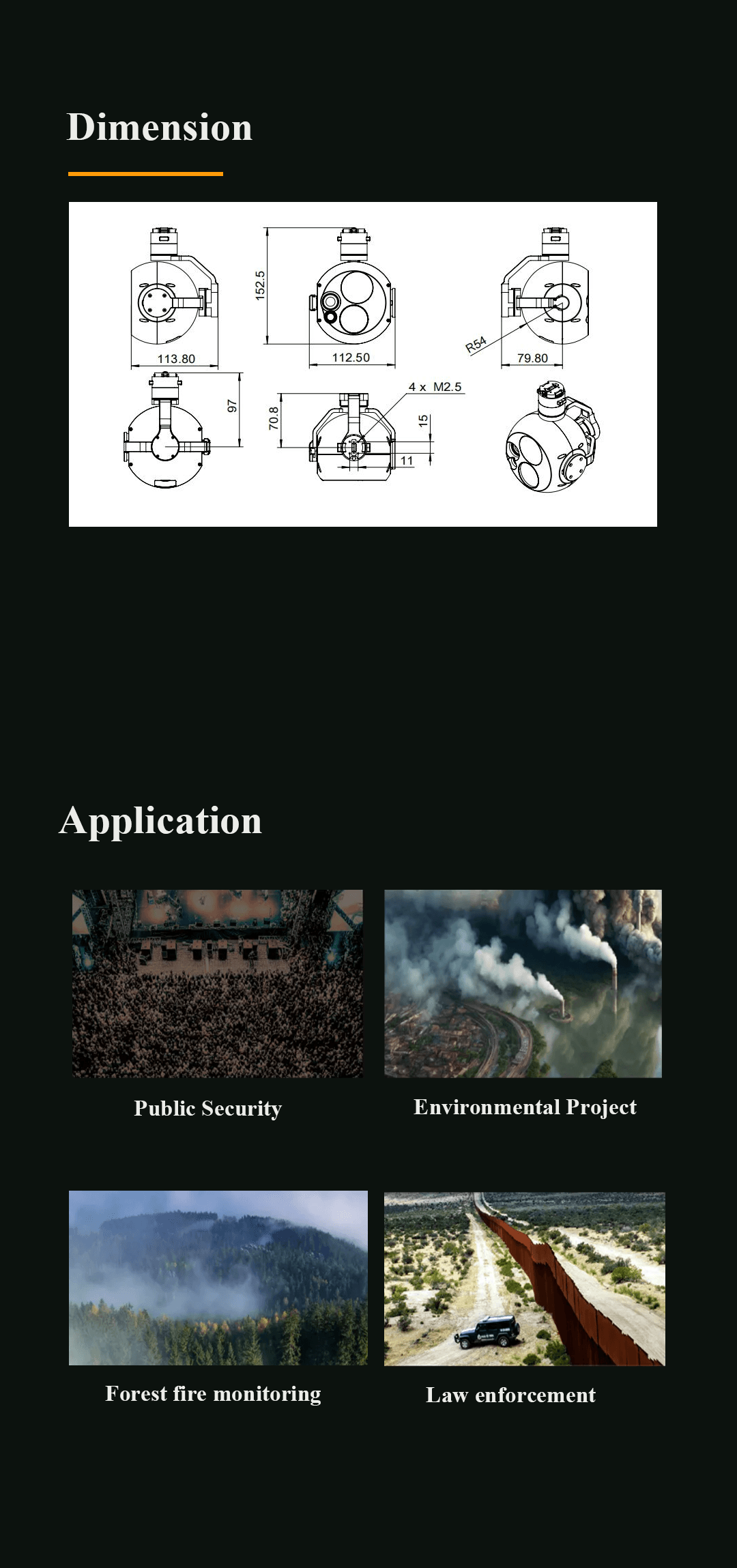

Dimension – Main drawing callouts 113.80mm, 112.50mm, 152.5mm, 79.80mm, 97mm, 70.8mm, R54, 4 x M2.5, 15mm, 11mm; some drawing callouts are small but mostly readable

4. Application Scenarios

  • Public Security:Supports day and night EO/IR surveillance, distance measurement and target tracking for public security operations.
  • Environmental Projects:Provides compact visible-light and infrared imaging for environmental monitoring and inspection platforms.
  • Forest Fire Monitoring:Uses IR thermal imaging and stabilized observation to help monitor forest fire risk areas.
  • Law Enforcement:Combines laser rangefinder data, EO imagery and target tracking for law enforcement monitoring missions.
  • Day and Night Surveillance:FHD EO and IR thermal channels support observation across different lighting conditions.
  • Vehicle and Human Tracking:Object Identification and Tracking supports vehicle tracking and human target recognition/tracking workflows.
