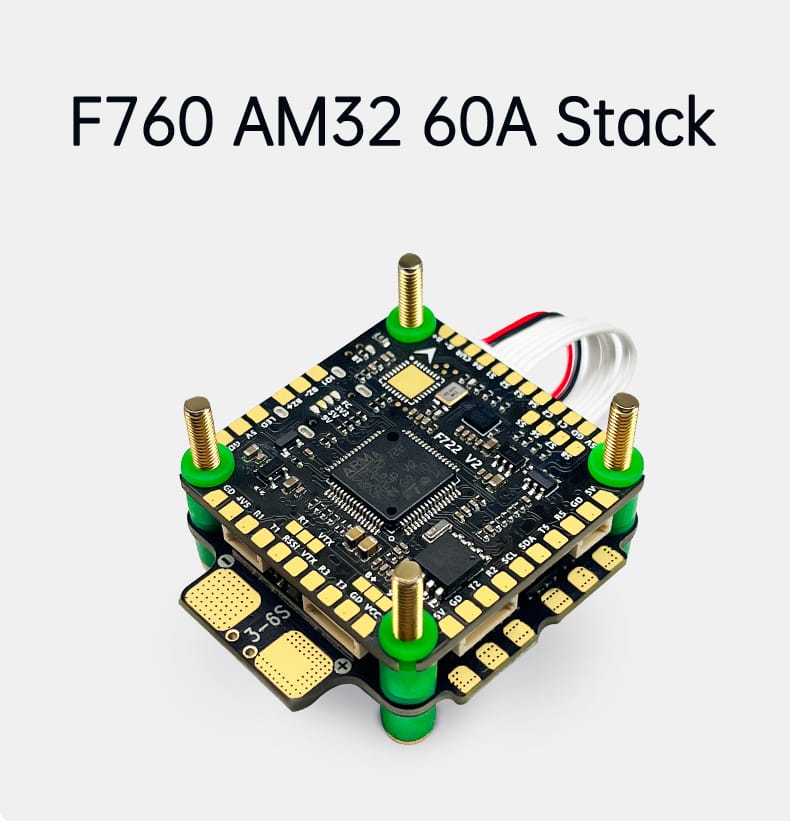

D-F760 Stack F722 V2 FC AM32 60A ESC 30X30mm for Racing Drone

Name: D-F760 Stack F722 V2 FC AM32 60A ESC 30X30mm for Racing Drone
Brand: UAVAUTO
SKU: D-F760-V2
Price: 69.99 USD
Availability: InStock

SKU:D-F760-V2

This is a high performance UAV fly tower with STM32F722RET6 processor, ICM42688P gyroscope, BMP280 barometer, 16MB black box, 8-channel motor outputs, 5-channel UARTs, multi-protocol support, compact size and lightweight design with 3060 ESC supporting 60A continuous current.

Share on:

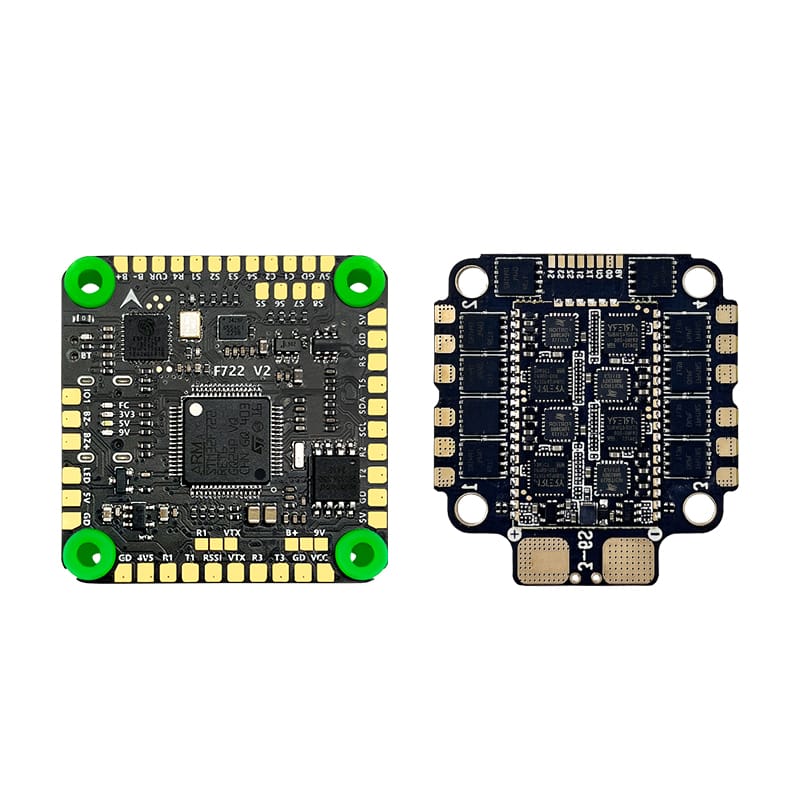

D-F760 Stack F722 V2 FC AM32 60A ESC 30X30mm for Racing Drone Device Specifications

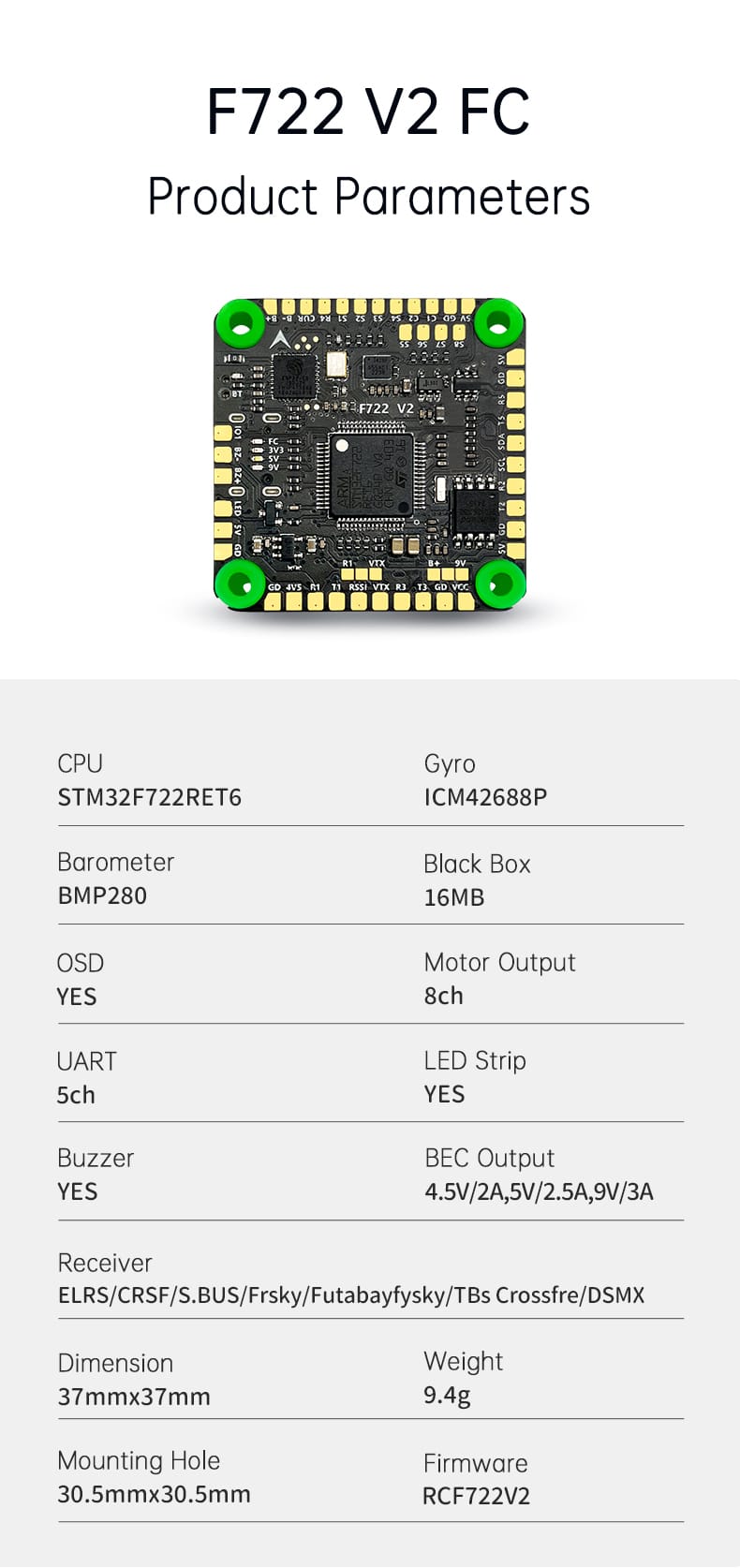

F722 V2 FC
CPU	STM32F722RET6
Gyro	ICM42688P
Barometer	BMP280
Black Box	16MB
OSD	YES
Motor Output	8ch
UART	5ch
LED Strip	YES
Buzzer	YES
BEC Output	4.5V/2A, 5V/2.5A, 9V/3A
Receiver	ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX

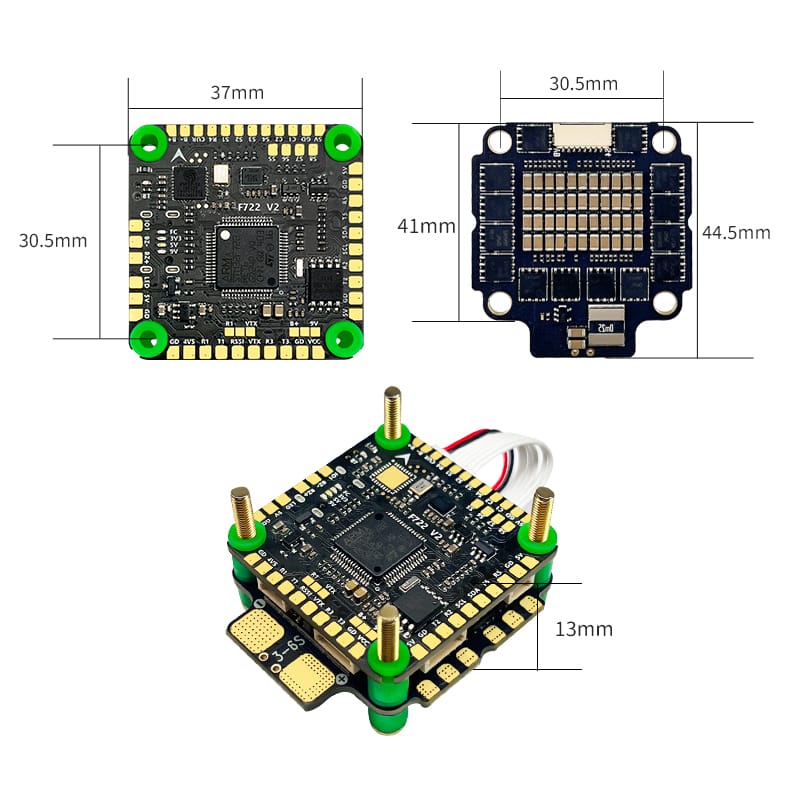

Dimension	37mm x 37mm
Weight	9.4g
Mounting Hole	30.5mm x 30.5mm
Firmware	RCF722V2

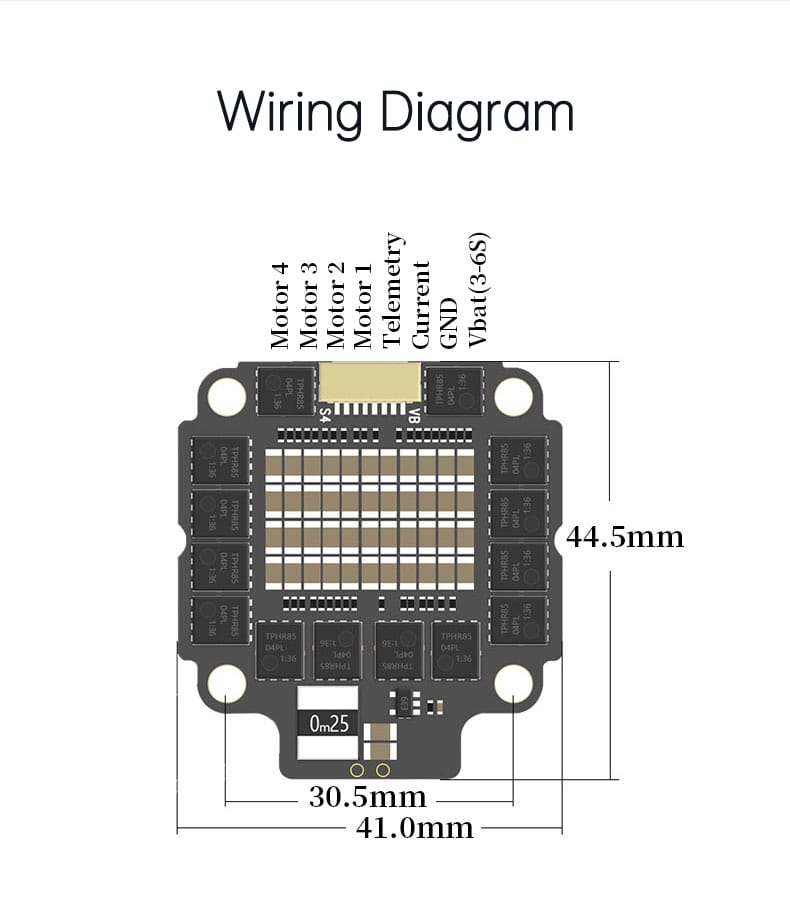

Bettle 3060 ESC
Continuous Current	60A X4
Burst Peak Current	70A X4
Input Signal	Dshot300/Dshot600/PWM/Bi-directional Dshot
Telemetry	Support
Current Meter	Support
Input Voltage	3-6S Lipo
Firmware Name	AM32_AT421A
Working Temperature	20℃~+85℃
Working Humidity	20~95%
Storage Temperature	20°CC~+70°CC
Weight	13.9g
Mounting Hole	M3 30.5mm x 30.5mm
Dimension	41X44.5mm
