DA057H SDI/CameraLink Tracking & Recording Board | 64 GB Storage
SKU:DA057H

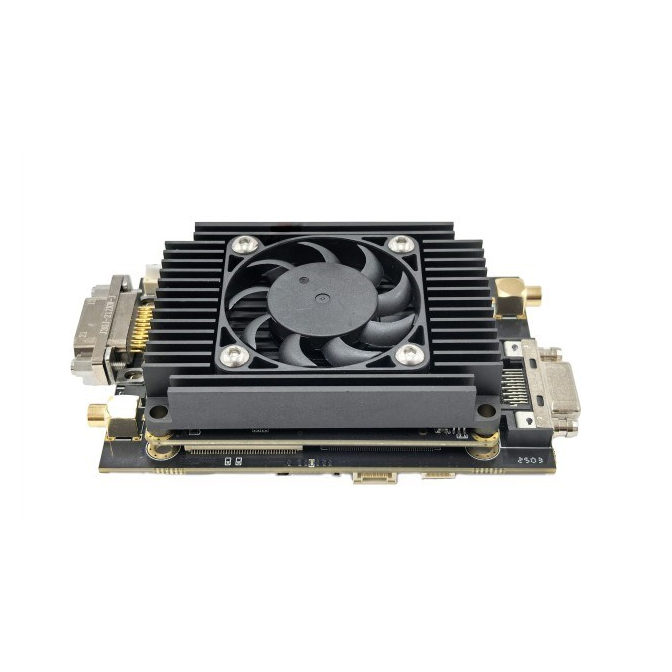

DA057H bridges CameraLink Base input (adaptation required) and SDI sensor input to SDI output and Gigabit Ethernet RTSP video. Multi-target tracking, target re-detection and dual RS422 control support surveillance payload integration. Its 64 GB memory records ≥3 hours at 6 Mbps. The 85×55 mm board uses 12 V DC ±2 V at typically <10 W and weighs 51.6 ±5 g bare or 109.3 ±5 g with radiator.
- 1 × SDI
- 2 × RS422
- 1 × Gigabit Ethernet (RTSP)
- 64GB
- 85 mm × 55 mm (L × W)
- 51.6 g ± 5 g (bare board) / 109.3 g ± 5 g (with radiator)
- < 10 W (typical)
- 12V DC ± 2V
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
51.6 g ± 5 g (bare board) / 109.3 g ± 5 g (with radiator)Weight
< 10 W (typical)Power consumption
12V DC ± 2VOperating voltage

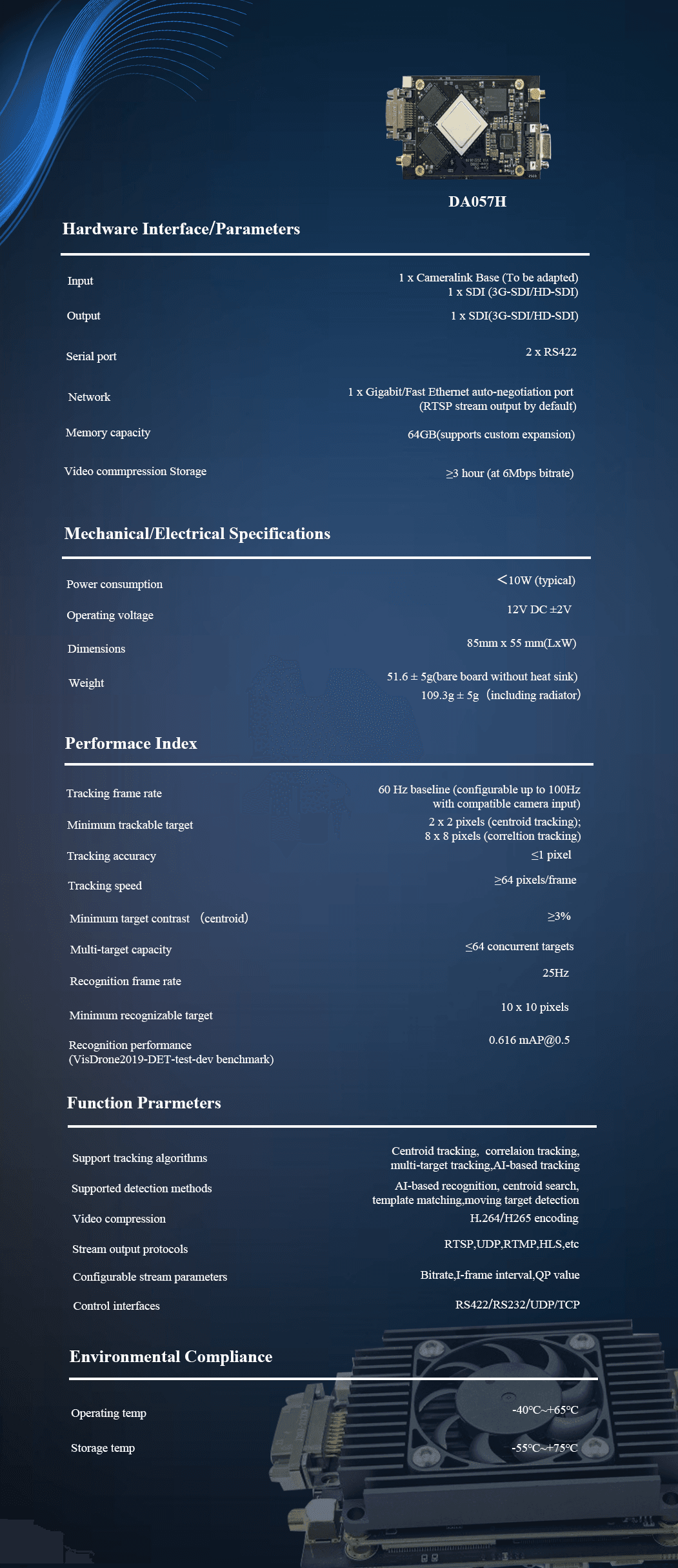

Technical data
| Parameter | Specification |
|---|---|
| Input | 1 × CameraLink Base (To be adapted), 1 × SDI (3G-SDI/HD-SDI) |
| Output | 1 × SDI |
| Serial ports | 2 × RS422 |
| Network | 1 × Gigabit Ethernet (RTSP) |
| Memory | 64GB |
| Video compression storage | ≥ 3 hours (at 6 Mbps) |
| Power consumption | < 10 W (typical) |
| Operating voltage | 12V DC ± 2V |

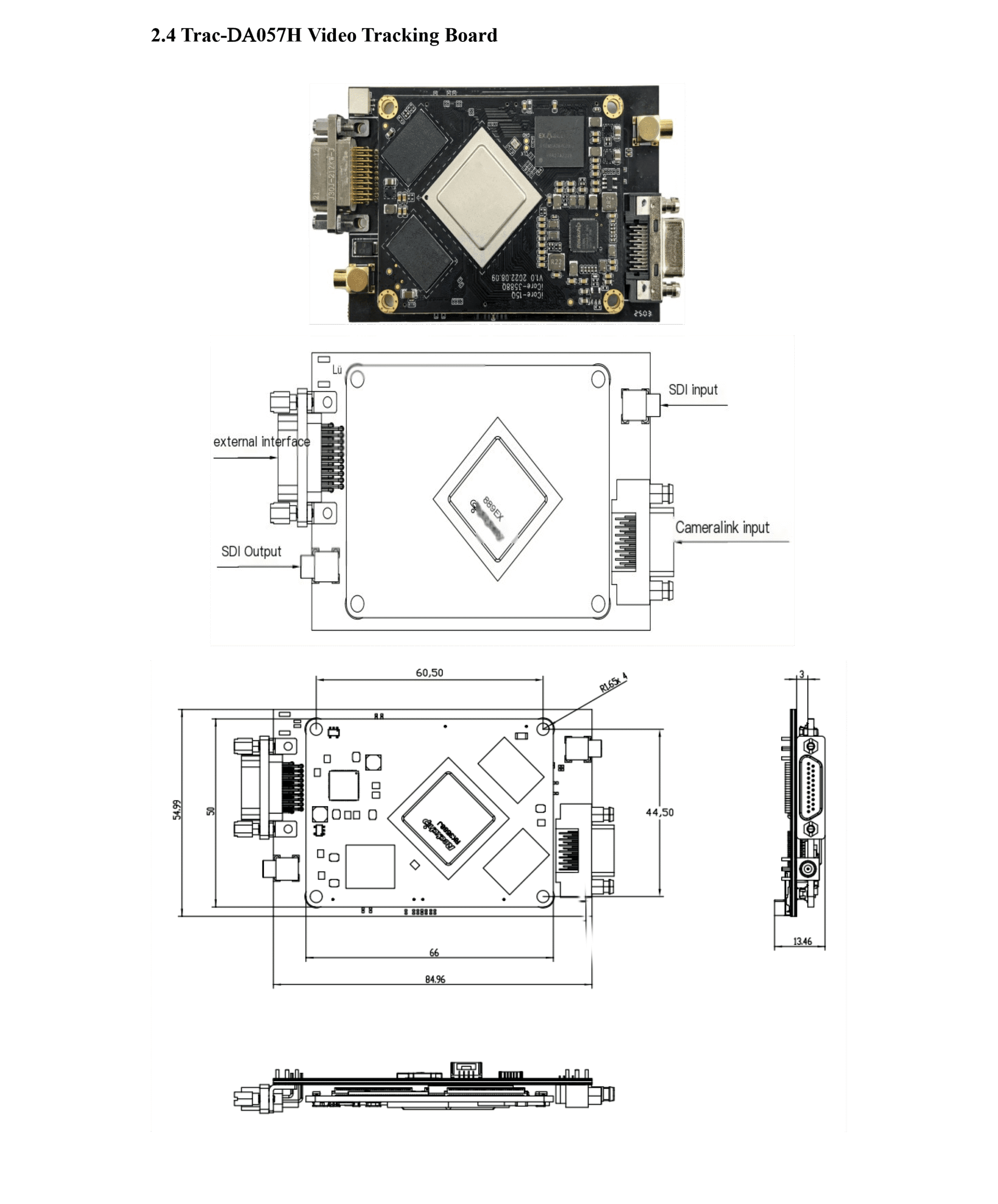

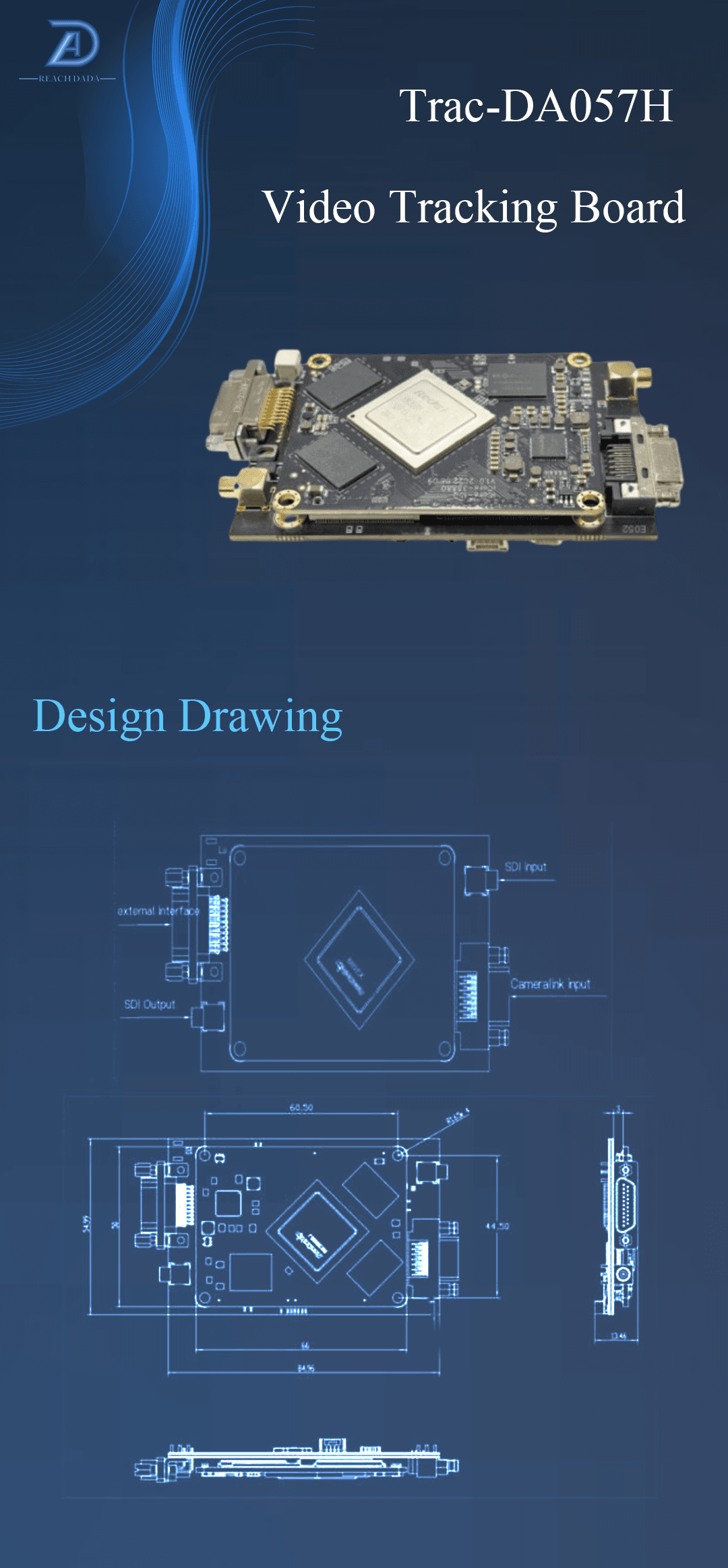

| Dimensions | 85 mm × 55 mm (L × W) |
| Weight | 51.6 g ± 5 g (bare board) / 109.3 g ± 5 g (with radiator) |

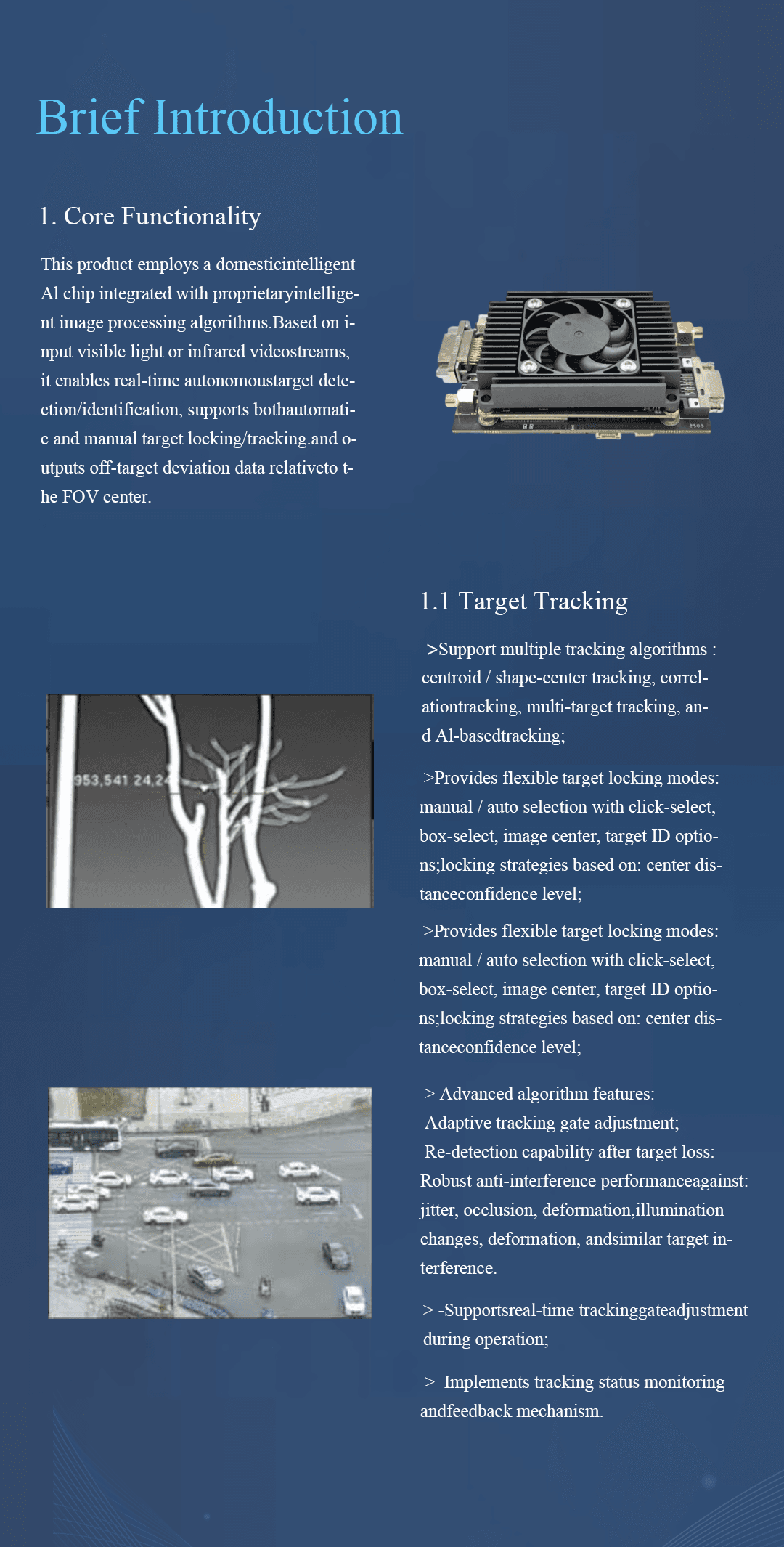

1. Features & applications
The Trac-DA057H combines CameraLink and SDI inputs with SDI output to serve demanding surveillance scenarios
that need both high bandwidth sensor support and SDI infrastructure compatibility.

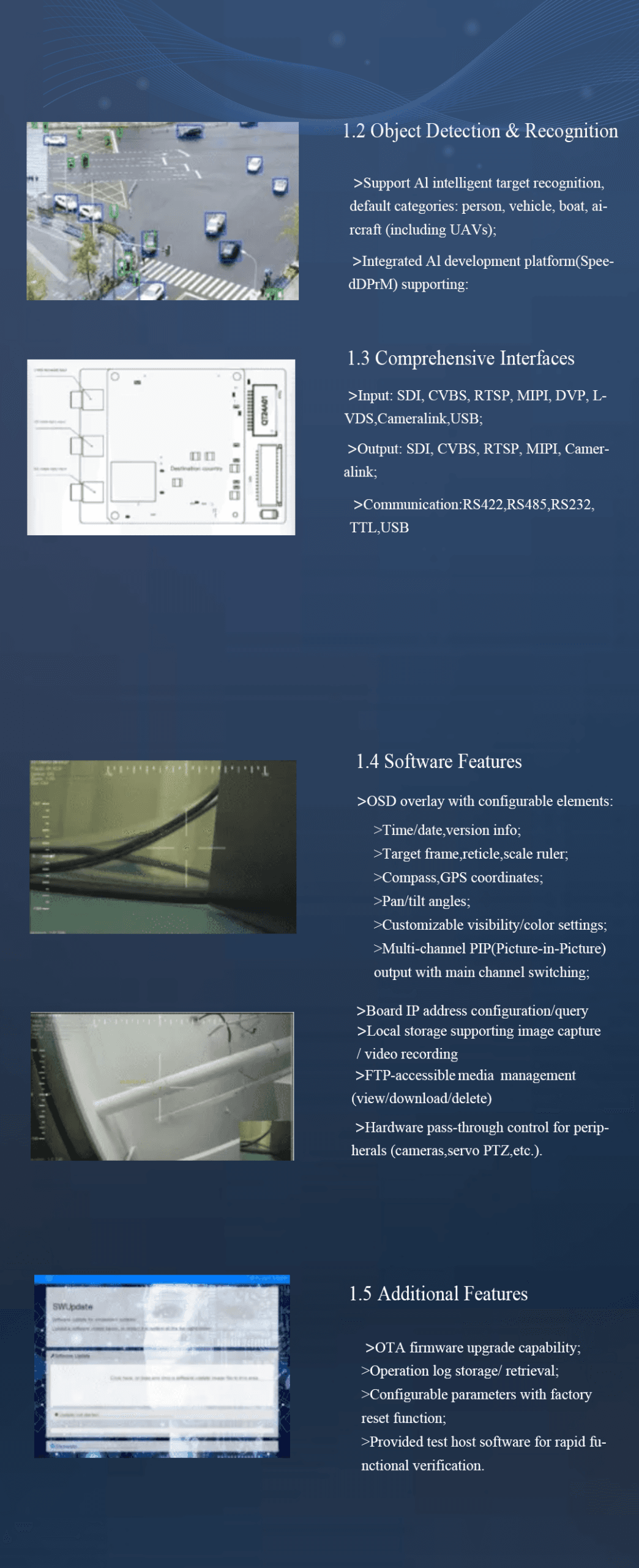

2. Product Features
- Hybrid Inputs: CameraLink Base and SDI input for flexible sensor options.
- High Throughput Output: SDI output plus Gigabit Ethernet (RTSP) for streaming and recording.
- Durable Design: 64GB storage, robust tracking algorithms, wide temperature range operation.
- High Accuracy: Multi-target support, fast re-detection and strong anti-interference.

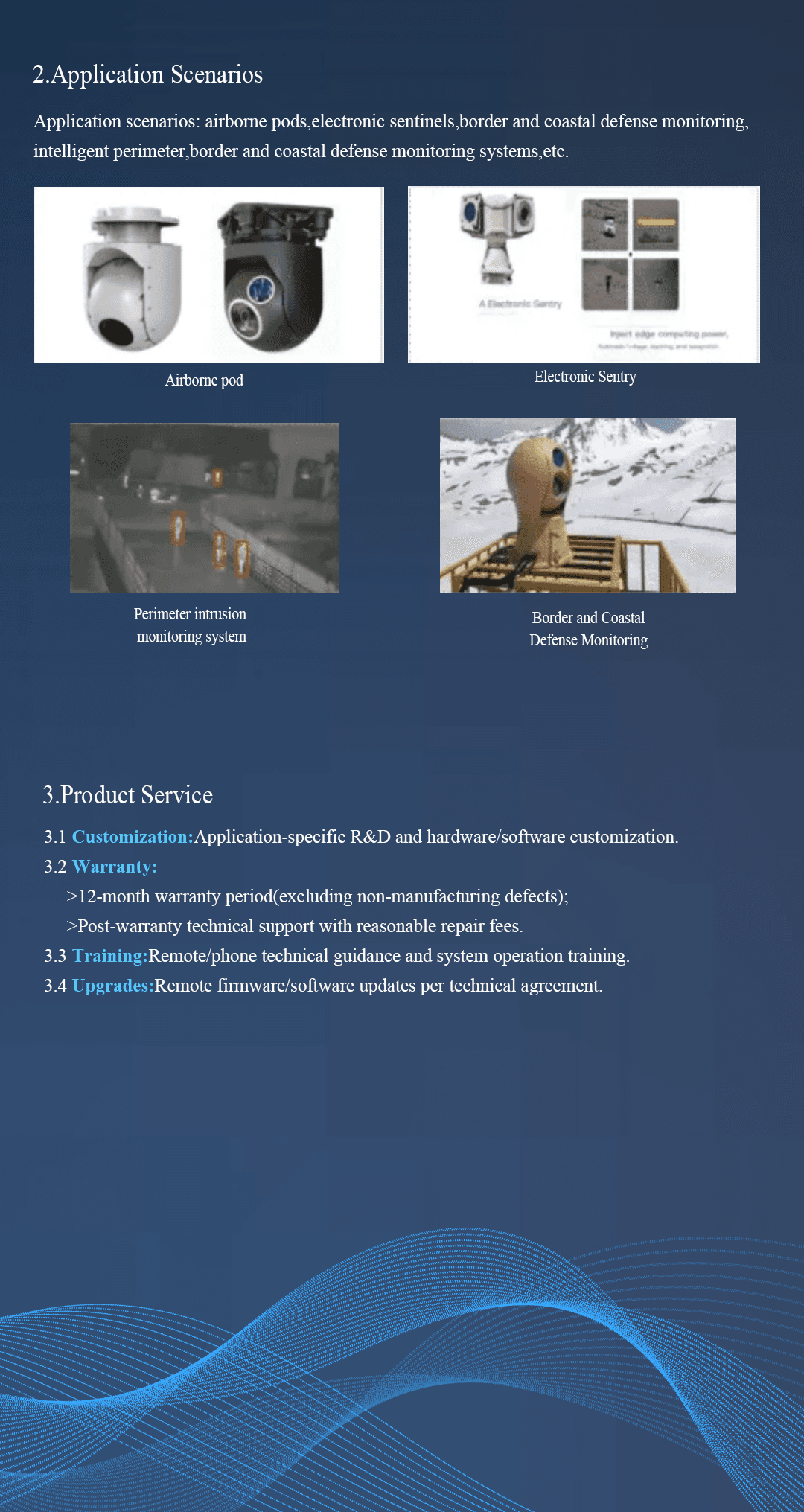

3. Application Scenarios
- Aerospace & Coastal Monitoring: Where both CameraLink sensor fidelity and SDI output compatibility are required.
- High-end Surveillance Systems: Command-and-control centers and advanced PTZ/EOIR integrations.
