DA052H CameraLink AI Tracker | Gigabit RTSP and 64 GB Capture

SKU:DA052H

DA052H provides a CameraLink Base input, subject to adaptation, and Gigabit Ethernet RTSP output for high-bandwidth sensor integration. Two RS422 ports handle control; 64 GB storage supports ≥3 hours of recording at 6 Mbps. The board measures 77×50 mm including its connector and weighs 42.8 ±5 g bare or 92.3 ±5 g with radiator. It operates on 12 V DC ±2 V with typical consumption below 10 W.

1 × CameraLink Base (to be adapted)
1 × RTSP network stream
2 × RS422
1 × Gigabit Ethernet (RTSP)
64GB

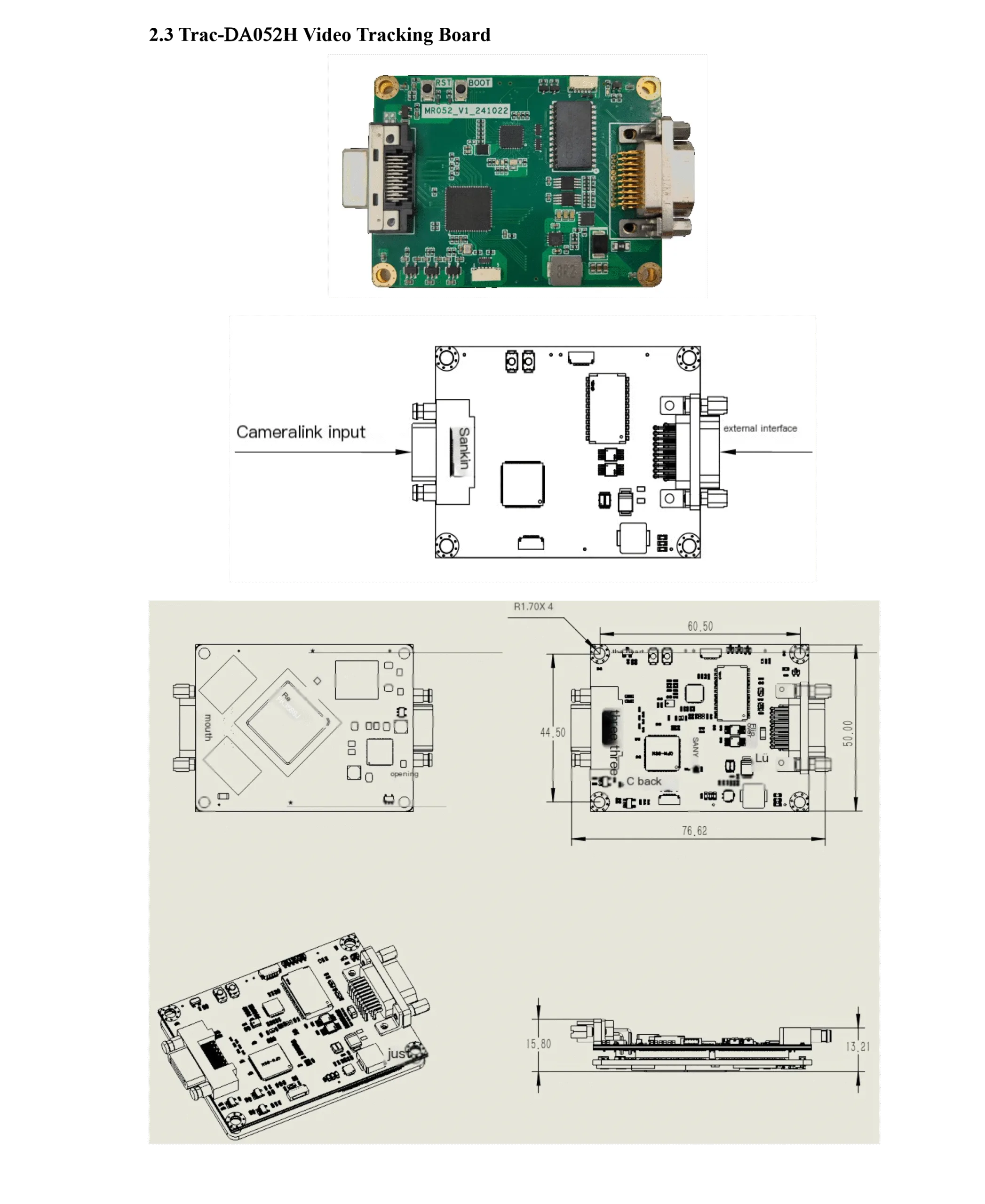

77 mm × 50 mm (L × W, including connector)

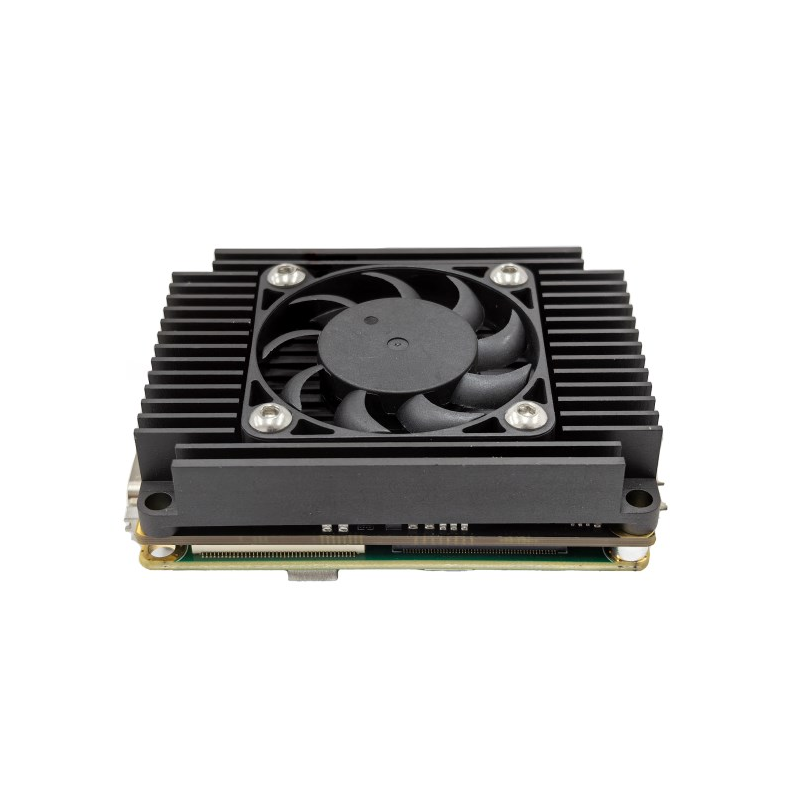

42.8 g ± 5 g (bare board) / 92.3 g ± 5 g (with radiator)
< 10 W (typical)
12V DC ± 2V

Plan your product inquiry.

Add this product to your quote list or contact our team to discuss product selection and integration.

Add To Quote

Model highlights

Core specifications

42.8 g ± 5 g (bare board) / 92.3 g ± 5 g (with radiator)Weight

< 10 W (typical)Power consumption

12V DC ± 2VOperating voltage

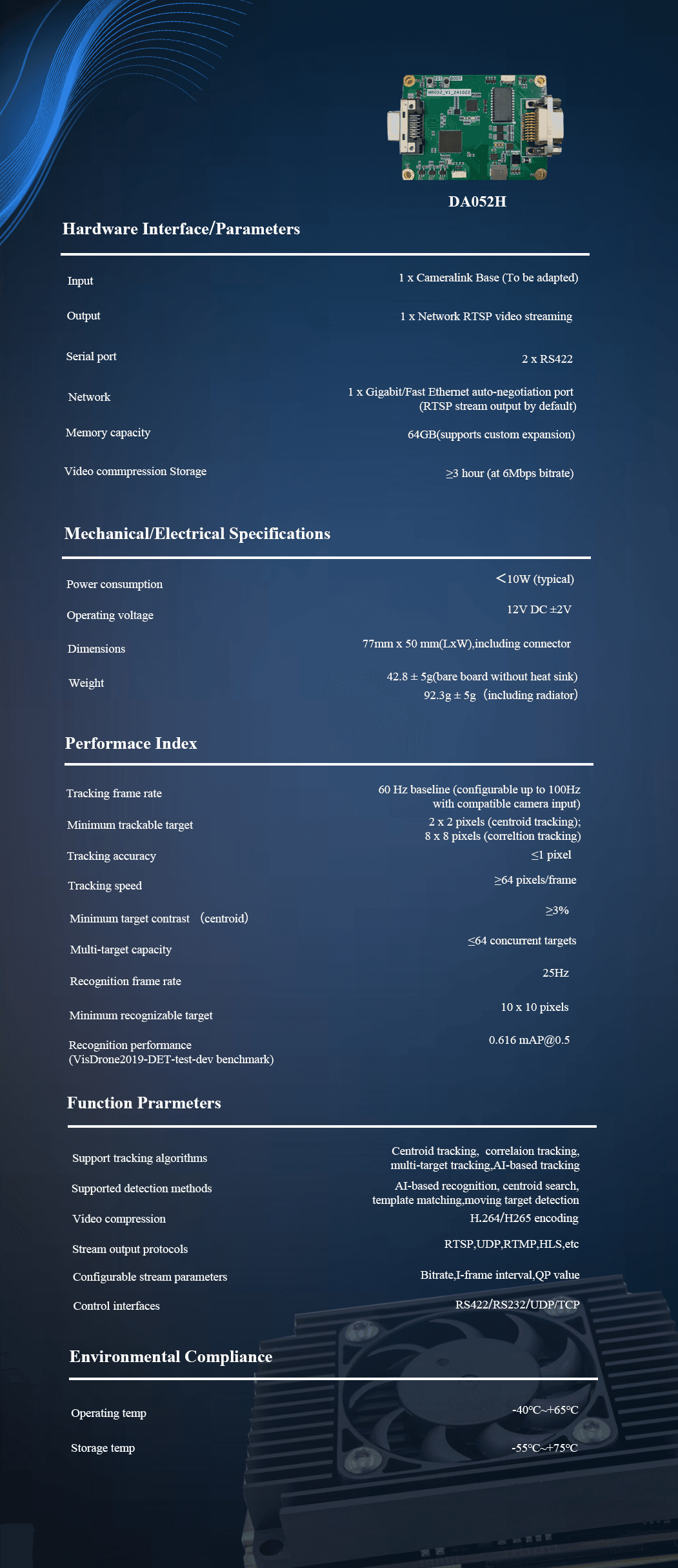

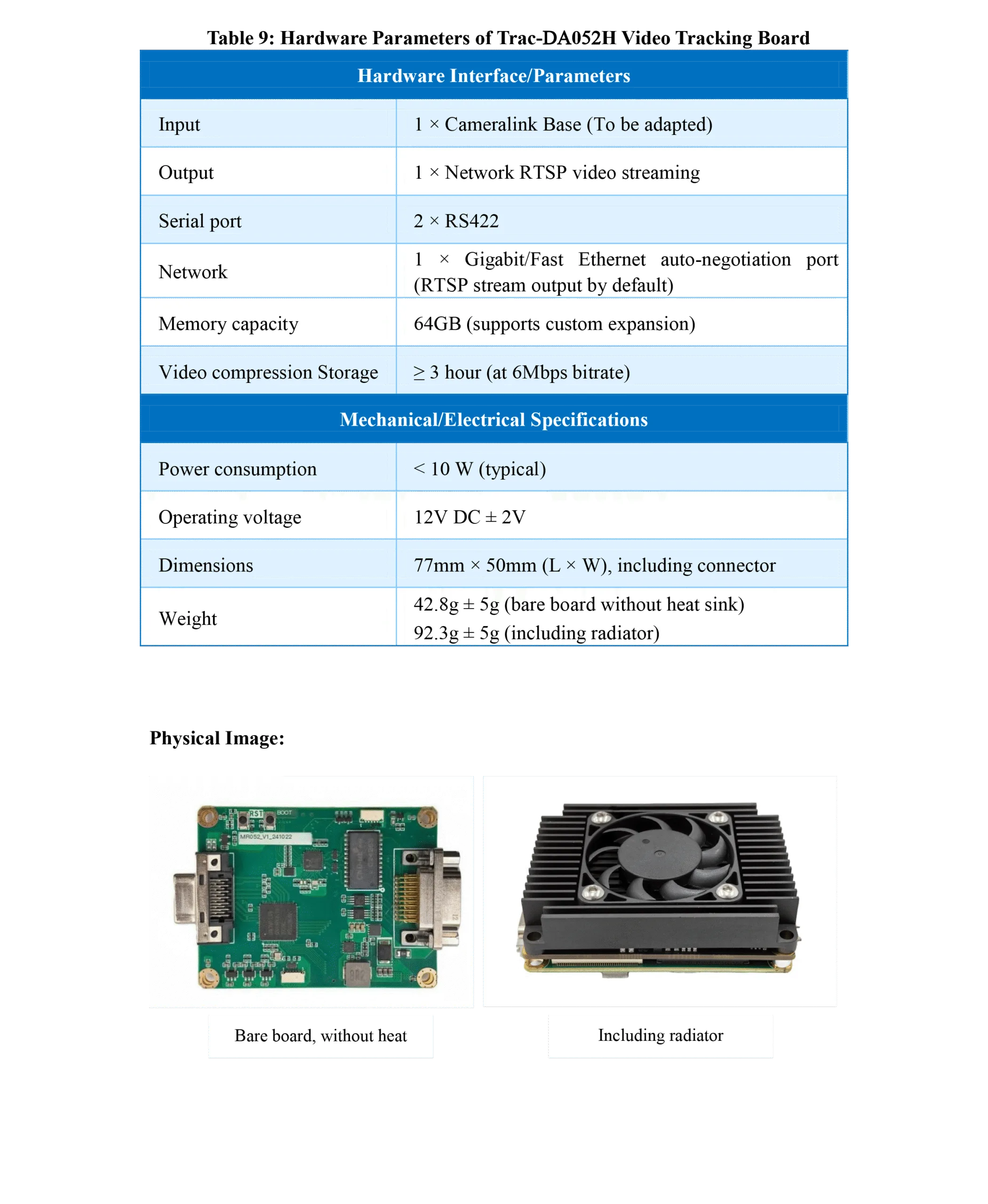

Technical data

Parameter	Specification
Input	1 × CameraLink Base (to be adapted)
Output	1 × RTSP network stream
Serial ports	2 × RS422
Network	1 × Gigabit Ethernet (RTSP)
Memory	64GB
Video compression storage	≥ 3 hours (at 6 Mbps)
Power consumption	< 10 W (typical)
Operating voltage	12V DC ± 2V
Dimensions	77 mm × 50 mm (L × W, including connector)
Weight	42.8 g ± 5 g (bare board) / 92.3 g ± 5 g (with radiator)
