The DS072 Ultra-Light AI Video Tracking Board is an embedded intelligent video processing module designed for real-time target detection, recognition, locking, and tracking. Built with a domestic AI chip and proprietary intelligent image algorithms, it works with high-frame-rate global shutter cameras to detect targets such as people, vehicles, boats, aircraft, and drones. The board supports visible-light and infrared single-channel or dual-channel input, manual and automatic target locking, miss-distance output relative to the image center, RTSP video streaming, OSD overlay, electronic zoom, photo and video recording, and compact single-board integration for UAV payloads, intelligent gimbal systems, and embedded AI vision applications

Share on:

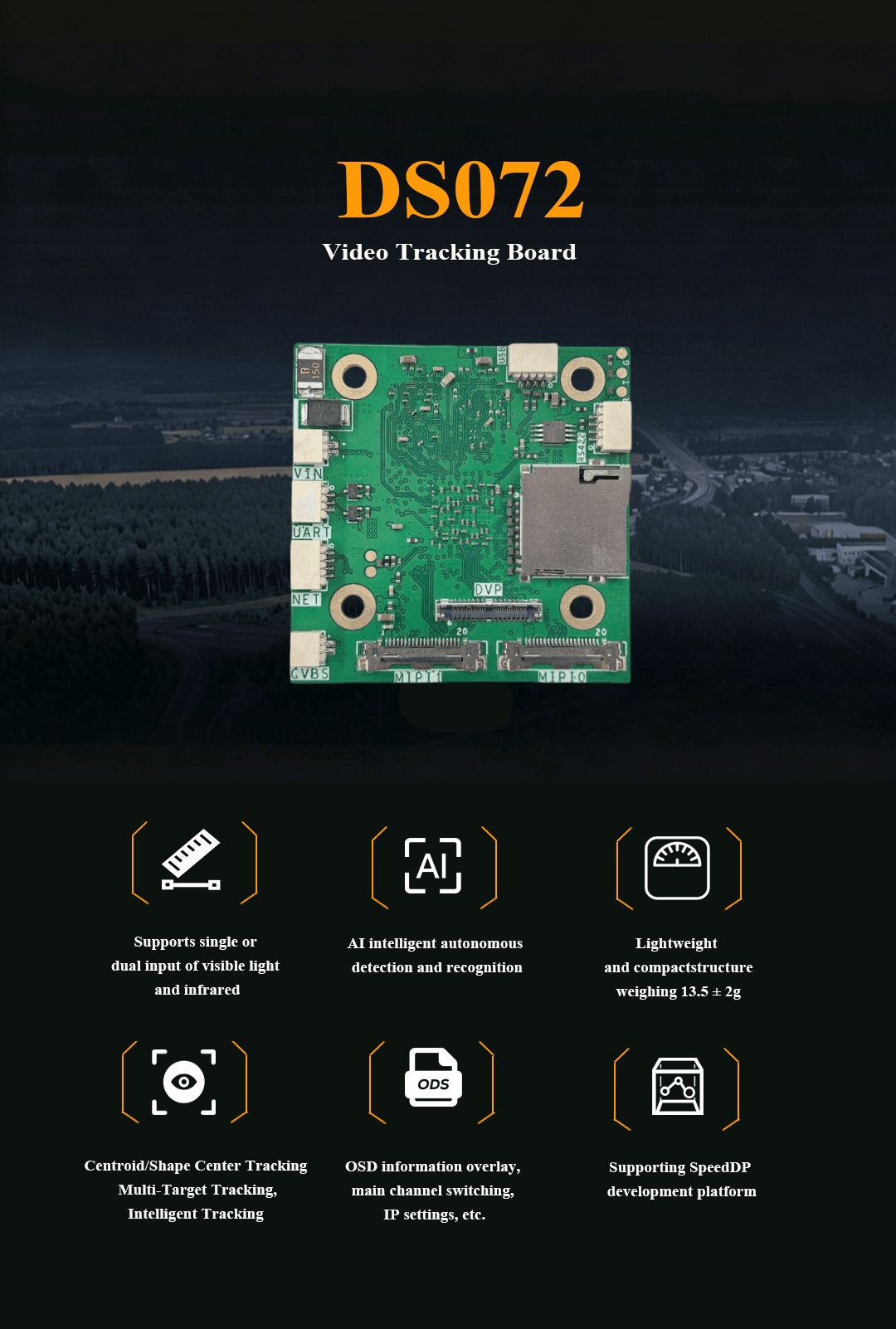

1. DS072 Ultra-Light AI Video Tracking Board Overview

2. Product Features

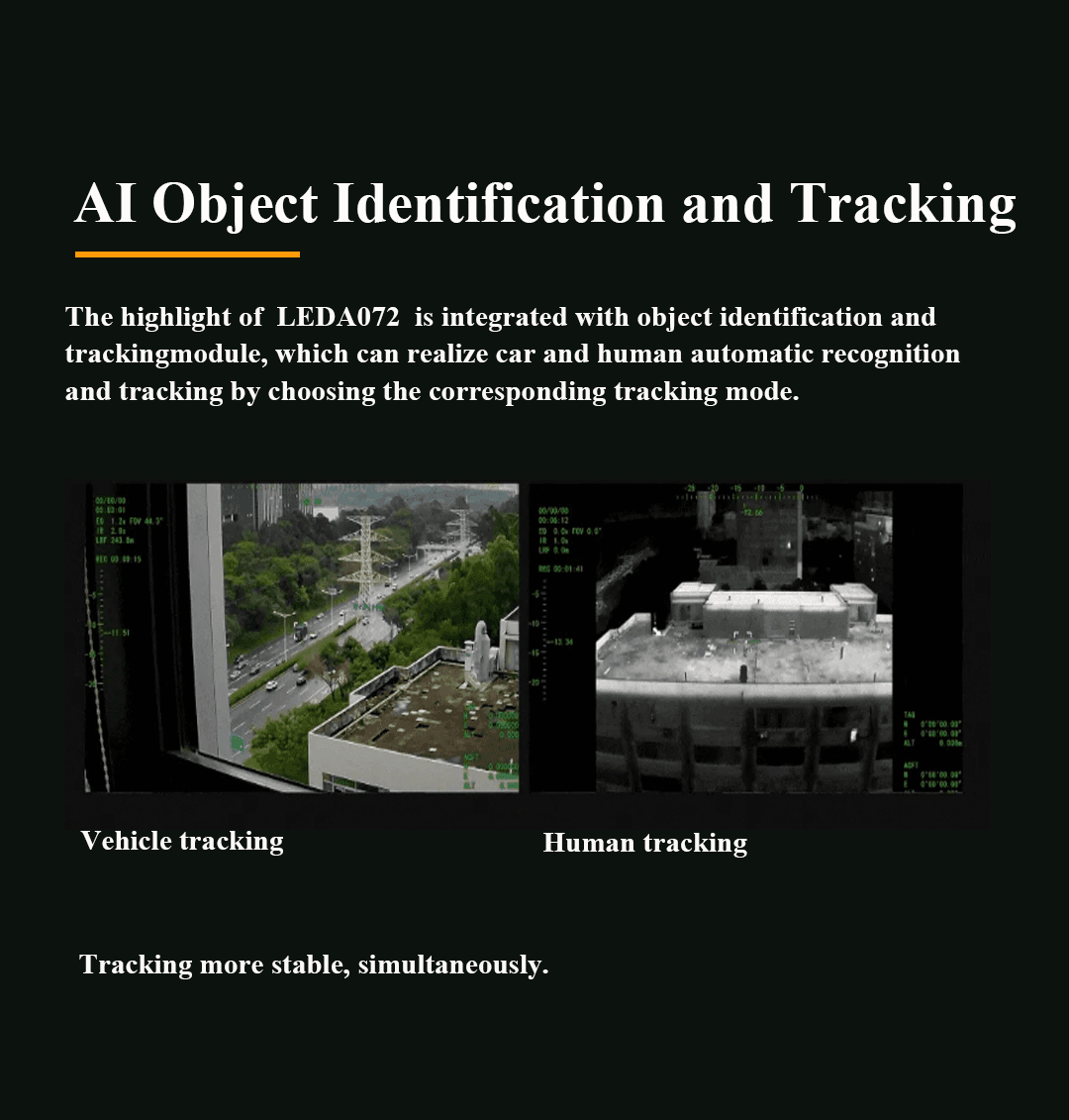

AI Target Detection and Recognition:Supports autonomous detection and recognition of people, vehicles, boats, aircraft, drones, and other specified targets based on intelligent AI algorithms.
120Hz Real-Time Tracking:Provides 120Hz tracking frame rate, ≤1 pixel tracking accuracy, and real-time target miss-distance output relative to the image center.

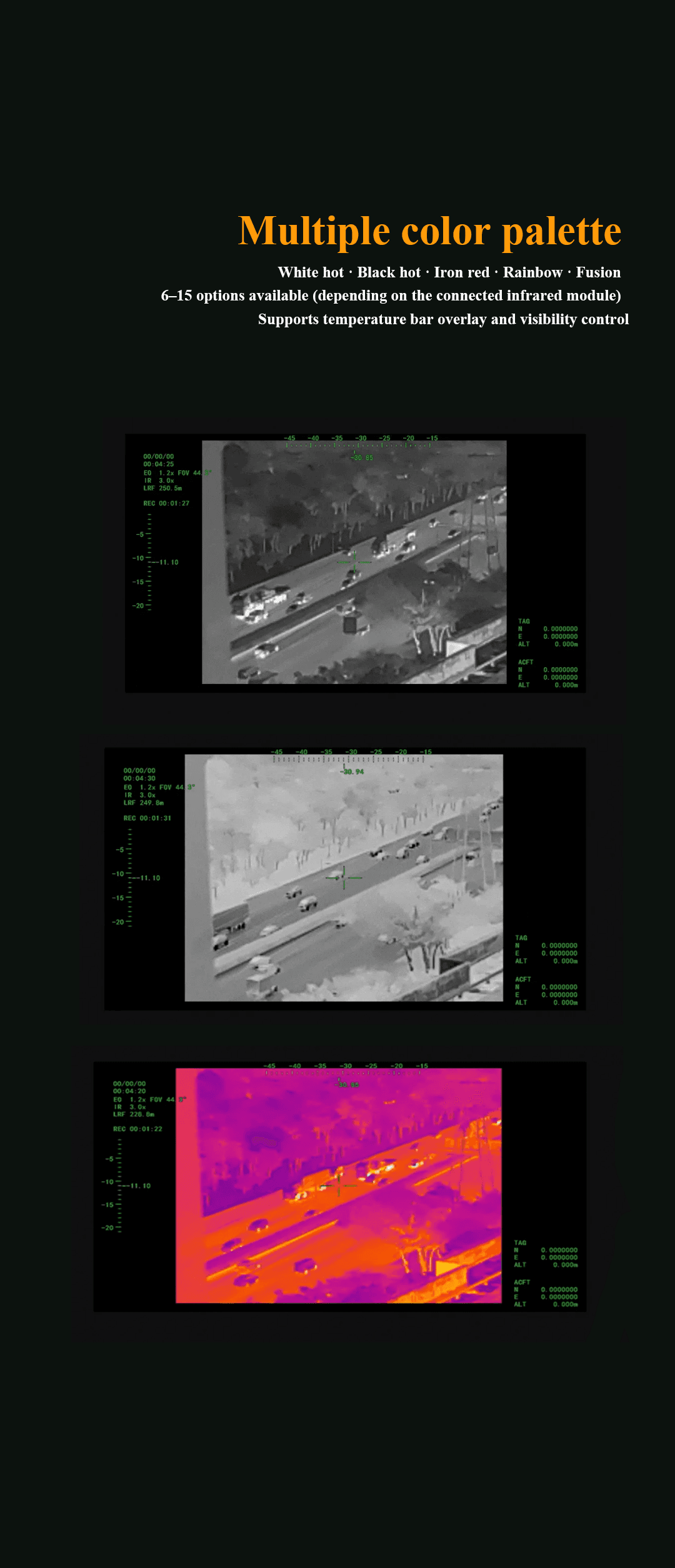

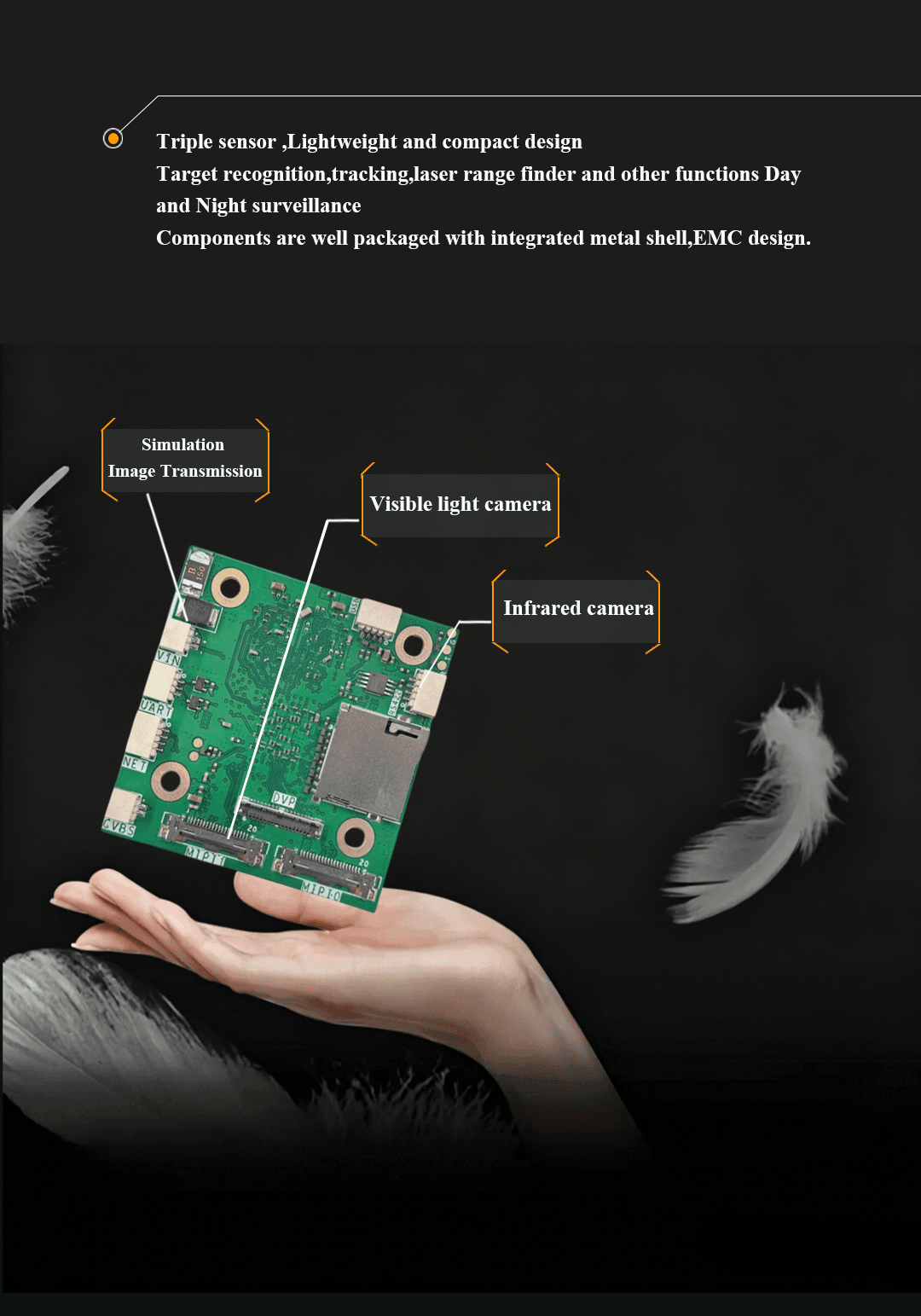

Visible and Infrared Input Support:Supports visible-light and infrared single-channel or dual-channel input, with command-based channel switching for flexible video processing.
Multiple Tracking Algorithms:Supports centroid tracking, form-center tracking, correlation filter tracking, multi-target tracking, and intelligent tracking for different target types and scenes.
Manual and Automatic Target Locking:Supports point selection, box selection, image-center locking, crosshair-center locking, target ID locking, automatic target search, and automatic lock-on.
Multi-Target Tracking:Supports tracking of up to 64 targets, helping improve target continuity and reduce false detection in complex scenes.
Custom AI Model Deployment:Works with the SpeedDP AI development platform for custom dataset training and one-click model deployment.

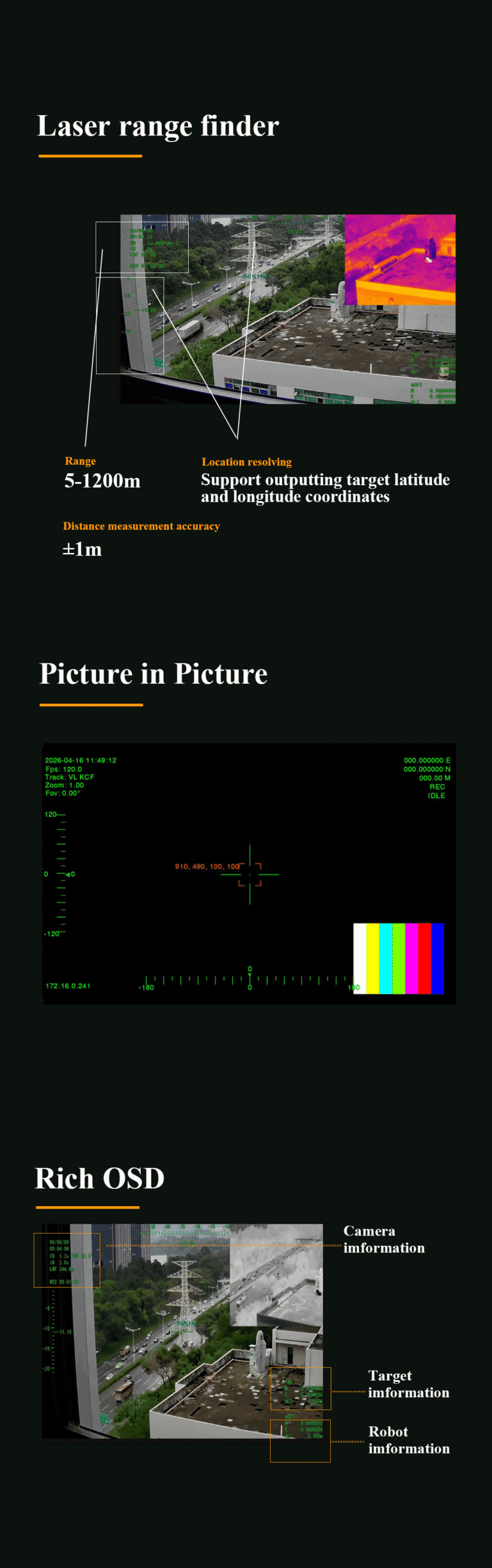

Rich OSD Overlay:Supports OSD overlay for time, date, version information, target box, crosshair, scale, compass, latitude and longitude, yaw angle, pitch angle, and other display information.
Electronic Zoom and Storage:Supports electronic zoom up to 16x with 0.1 minimum zoom precision, onboard photo and video recording, and FTP-based file access.
RTSP Network Video Output:Equipped with a 100M Ethernet port and default RTSP video stream output for remote monitoring and system integration.

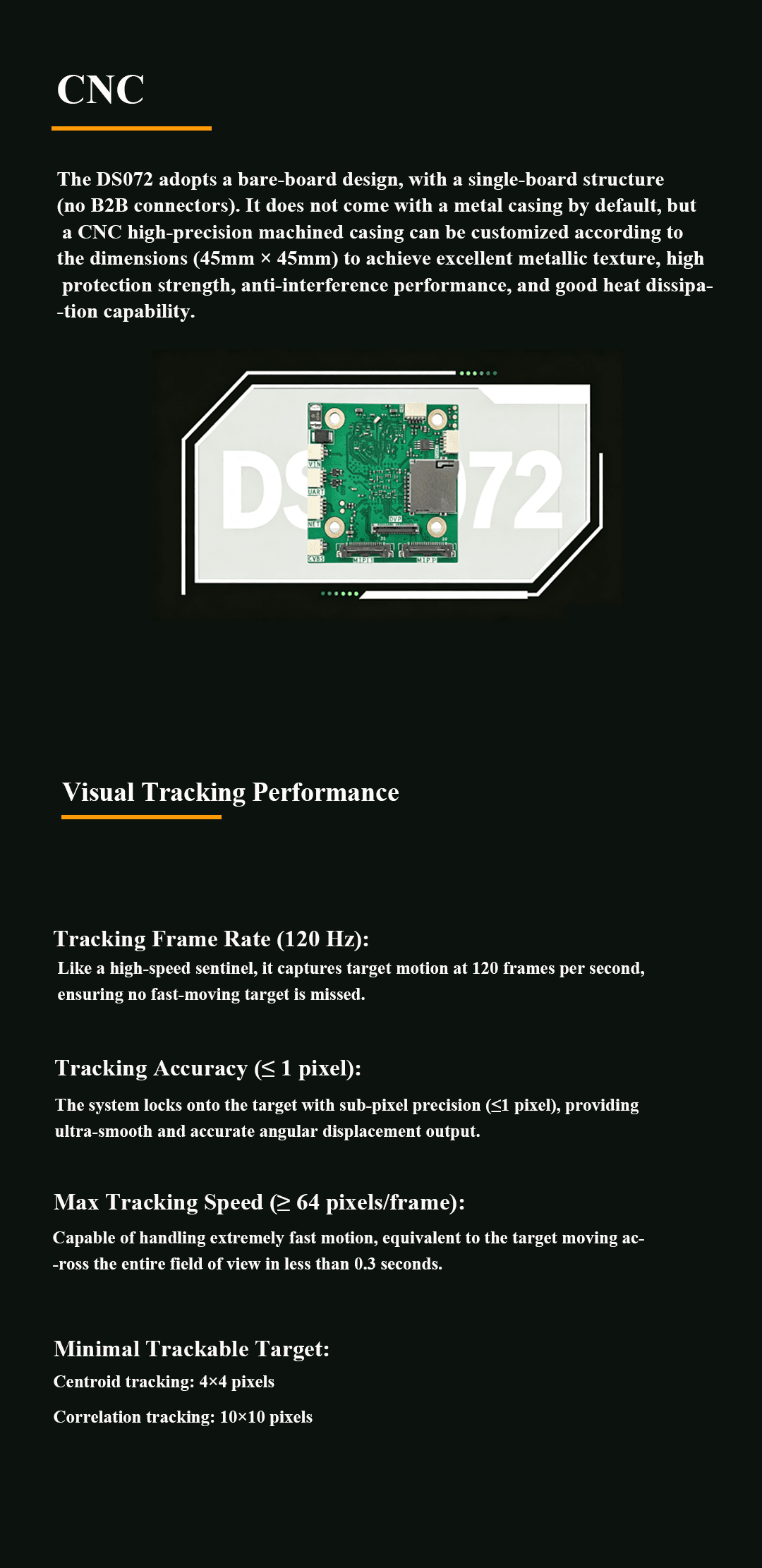

Ultra-Light Single-Board Design:Features a 45mm×45mm single-board form factor, 13.5 ± 2g bare board weight, and power consumption below 4W.
Configuration and Upgrade Support:Supports network-based firmware upgrade, model file upgrade, running log query, interface configuration, factory reset, and functional verification through test software.

3. Detailed Technical Parameters

Parameter	Specification
Product Model	DS072
Product Name	DS072 Ultra-Light AI Video Tracking Board
Product Type	Embedded AI Video Tracking Board
Tracking Frame Rate	120Hz
Minimum Tracking Target	4×4 pixels for centroid tracking; 10×10 pixels for correlation tracking
Tracking Accuracy	≤1 pixel
Tracking Speed	≥64 pixels/frame
Minimum Target Contrast	≥5% for centroid target
Maximum Number of Tracked Targets	≤64 targets
Recognition Frame Rate	25Hz
Minimum Recognition Target	20×20 pixels
Recognition Performance	0.569 mAP@0.5 based on VisDrone2019-DET-test-dev open-source dataset
Supported Tracking Algorithms	Centroid tracking, form-center tracking, correlation filter tracking, multi-target tracking, intelligent tracking
Target Locking Methods	Point selection, box selection, image-center locking, crosshair-center locking, target ID locking, automatic target search and lock-on
Video Input	2-channel MIPI custom adaptation; 1-channel DVP custom adaptation

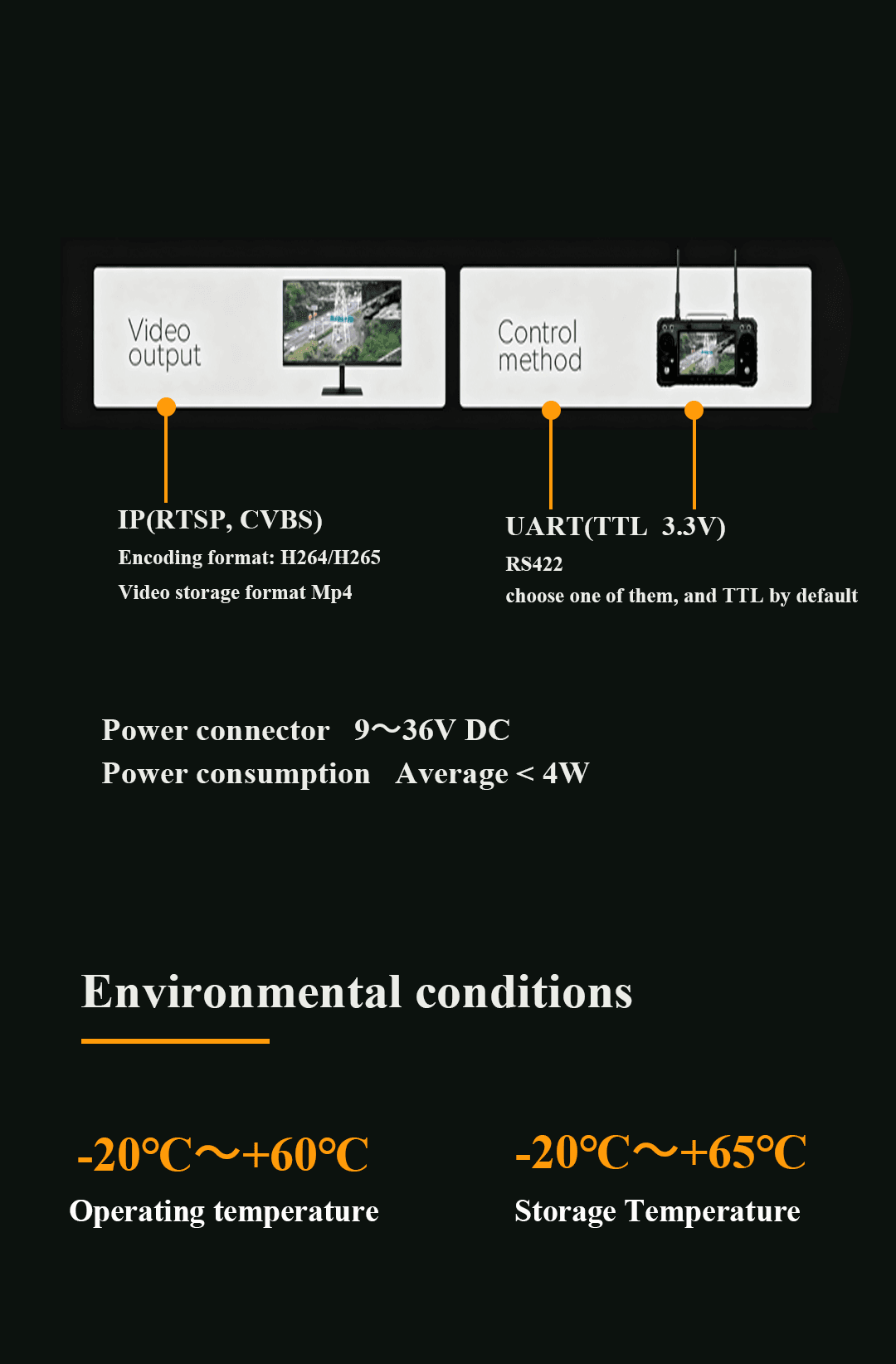

Video Output	1-channel CVBS
Serial Interface	1-channel RS422, 1-channel UART
USB Interface	1-channel USB 2.0
Network Interface	1-channel 100M Ethernet port, default RTSP video stream output
Power Consumption	<4W
Operating Voltage	9–36V

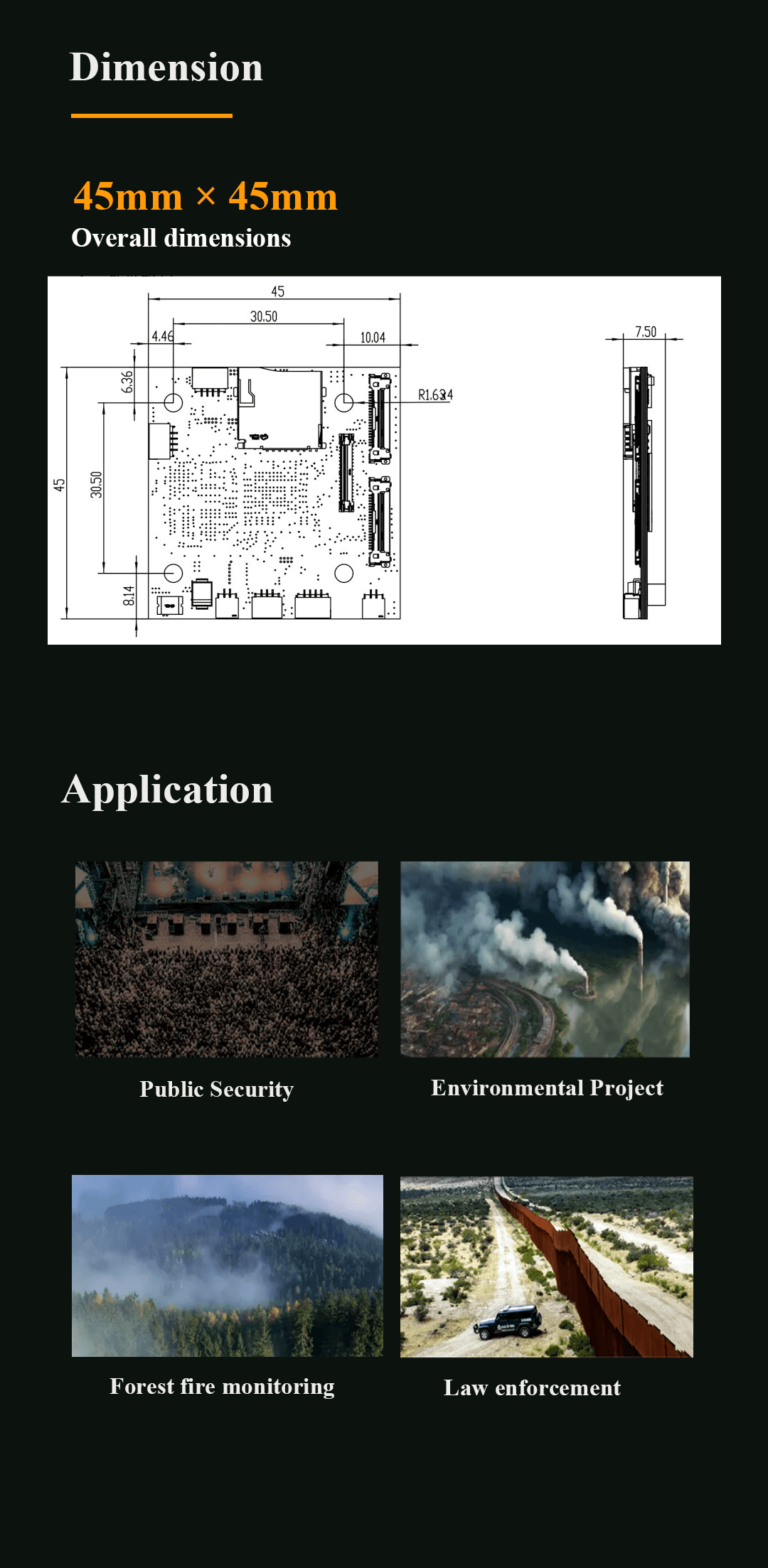

Dimensions	45mm×45mm including connectors
Weight	13.5 ± 2g, bare board without heatsink
Operating Temperature	-20℃ to +60℃
Storage Temperature	-20℃ to +65℃
Compatible Visible-Light Camera	Global shutter monochrome camera, MIPI interface, 1080P resolution, 120/60Hz frame rate, auto exposure support
Wide-Field Lens Reference	3.6mm low-distortion lens, 120Hz input, 300–500m operating distance for a 1m target, 90°×80°×55° field of view
Narrow-Field Lens Reference	8mm low-distortion lens, 60Hz input, 600–1000m operating distance for a 1m target, 45°×40°×23° field of view
Lens Interface	Standard M12 interface, replaceable according to project requirements

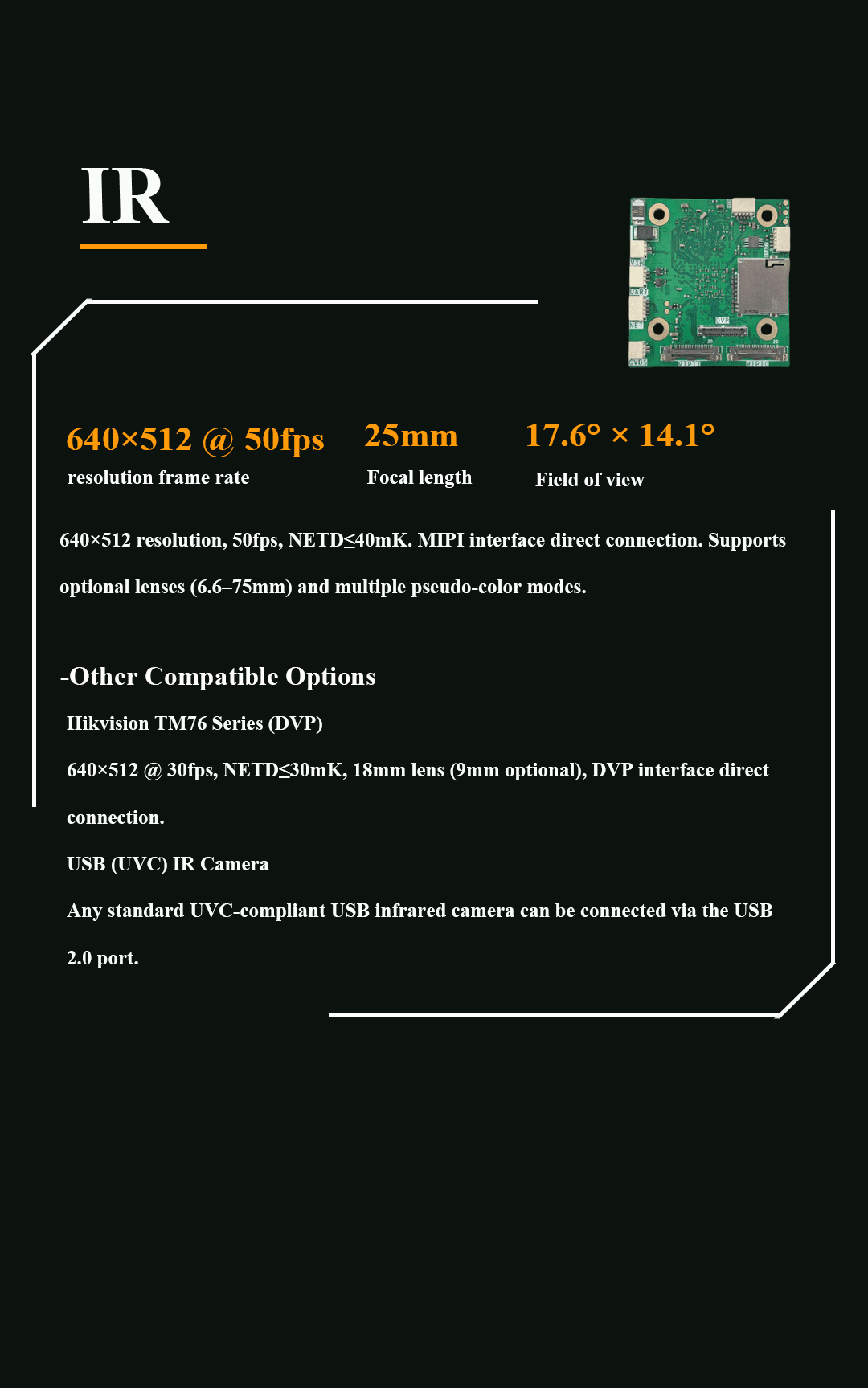

Recommended Infrared Module	640×512 thermal imaging module, 50Hz frame rate, MIPI or DVP interface depending on module type
USB Infrared Camera Support	Compatible with standard USB UVC infrared cameras
Board Form	Single-board design, suitable for direct flight controller connection

4. Application Scenarios

UAV Target Tracking:Suitable for UAV platforms requiring real-time target detection, locking, tracking, and miss-distance output.
Intelligent Gimbal Payloads:Can be integrated into EO/IR gimbal systems to enable automatic target recognition and tracking.
Drone Detection and Tracking:Supports detection and tracking of aircraft, drones, and other aerial targets in high-speed visual tracking scenarios.
Vehicle and Ship Tracking:Applicable to vehicle, boat, and moving-object recognition and tracking for patrol, surveillance, and monitoring tasks.
Visible and Infrared Vision Systems:Supports visible-light and infrared input for day-and-night image processing and tracking applications.
Embedded AI Surveillance Equipment:Suitable for compact low-power systems requiring AI detection, target tracking, OSD overlay, and RTSP streaming.
Flight Controller Integration:The single-board design and external wiring support make it suitable for direct UAV flight controller connection.
AI Vision Development:Supports custom AI model training and deployment for intelligent vision products and project-specific target recognition.
