The Trac-DA030H is a high-performance video tracking board designed for mission-critical surveillance.It supports dual SDI inputs, multi-channel outputs, AI-based multi-target tracking and large local storage for extended recording.

Share on:

1. Trac-DA030H Video Tracking Board Overview

The Trac-DA030H is a high-performance video tracking board designed for mission-critical surveillance.
It supports dual SDI inputs, multi-channel outputs, AI-based multi-target tracking and large local storage for extended recording.

2. Product Features

High Throughput Inputs: 2 × SDI (3G-SDI/HD-SDI) and 1 × CVBS input for flexible integration.
Comprehensive I/O: SDI output, RS422/RS232/TTL control, Gigabit Ethernet (RTSP), USB 2.0.
Large Storage: 64GB onboard memory (configurable), ≥3 hours recording at 6 Mbps.
High Performance: 60 Hz baseline tracking, robust multi-target AI tracking and long-duration operation.

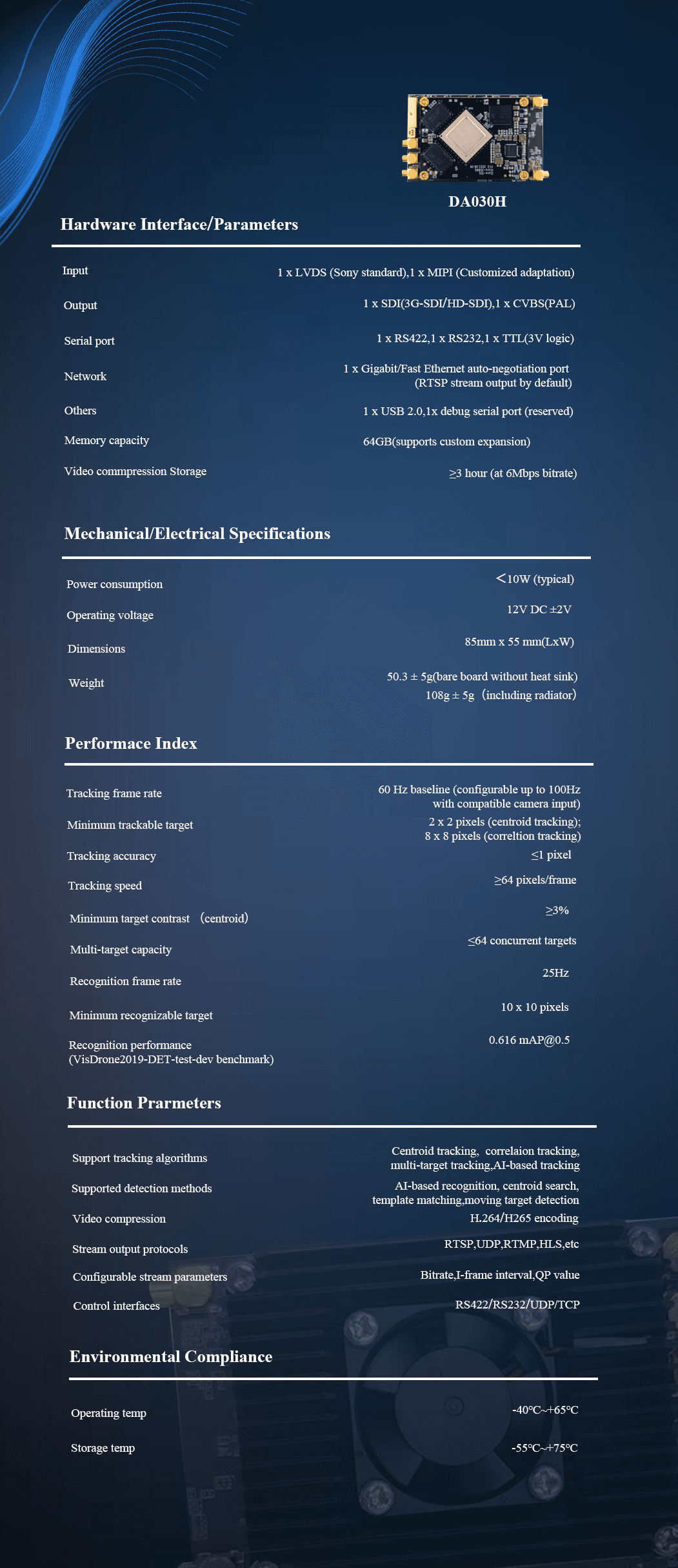

DAH Series — Baseline Technical Parameters

Parameter	Specification (DAH series baseline)
Tracking frame rate	60 Hz baseline (configurable up to 100 Hz with compatible camera input)
Minimum trackable target	2 × 2 pixels (centroid tracking); 8 × 8 pixels (correlation tracking)
Tracking accuracy	≤ 1 pixel
Tracking speed	≥ 64 pixels/frame
Minimum target contrast	≥ 3% (centroid)
Multi-target capacity	≤ 64 concurrent targets
Recognition frame rate	25 Hz
Minimum recognizable target	10 × 10 pixels
Recognition performance	0.616 mAP @ 0.5 (VisDrone2019 benchmark)
Video compression	H.264 / H.265 encoding
Stream output	RTSP, UDP, RTMP, HLS (configurable)
Control interfaces	RS422, RS232, UDP, TCP
Operating temperature	-40℃ to +65℃
Storage temperature	-55℃ to +75℃
Typical power consumption	< 10 W
Operating voltage	12V DC ± 2V

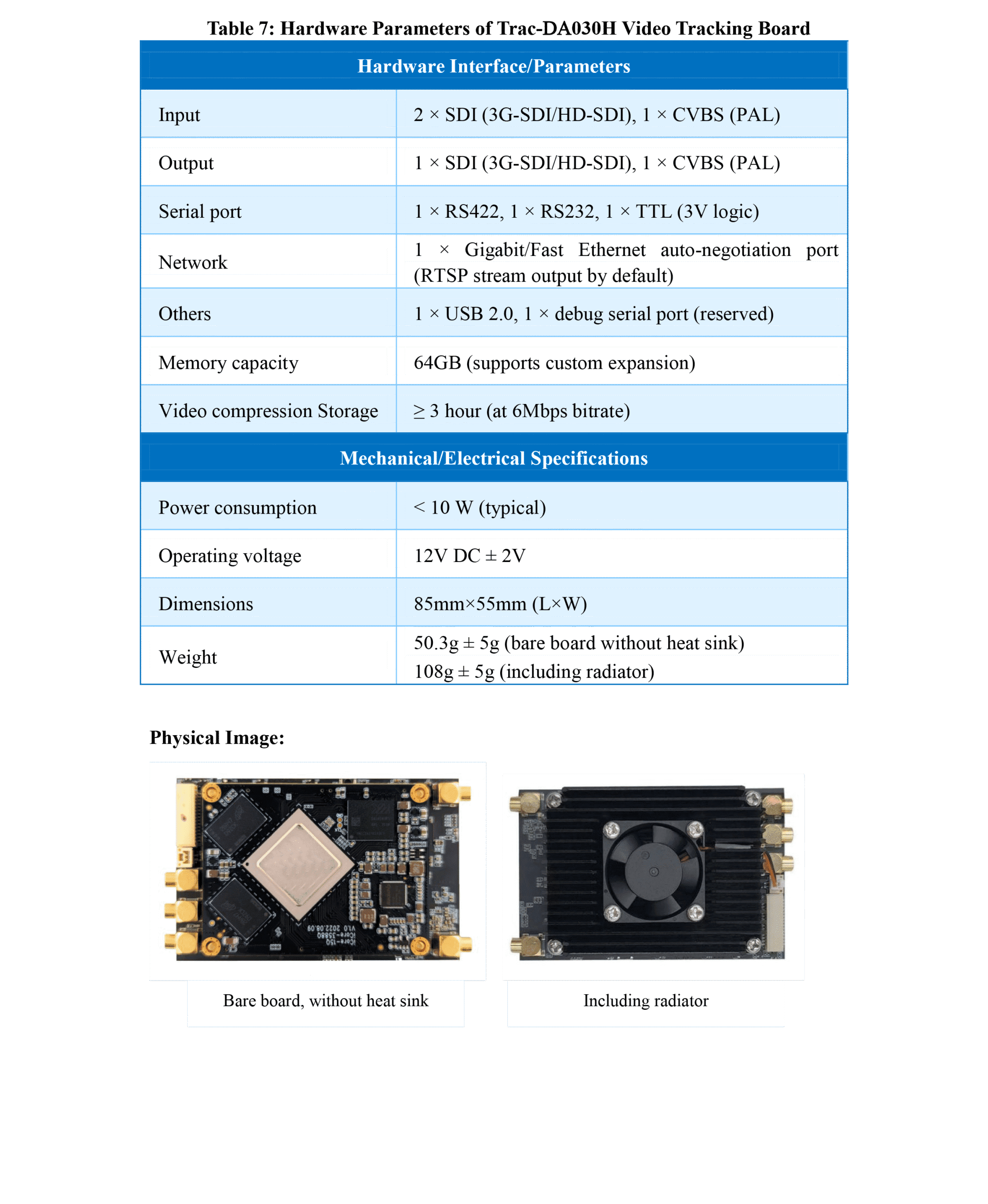

3. Detailed Technical Parameters

Parameter	Specification
Input	2 × SDI, 1 × CVBS
Output	1 × SDI, 1 × CVBS
Serial ports	RS422, RS232, TTL
Network	1 × Gigabit Ethernet (RTSP)
Memory	64GB (configurable)
Video compression storage	≥ 3 hours (at 6 Mbps)
Power consumption	< 10 W (typical)
Operating voltage	12V DC ± 2V

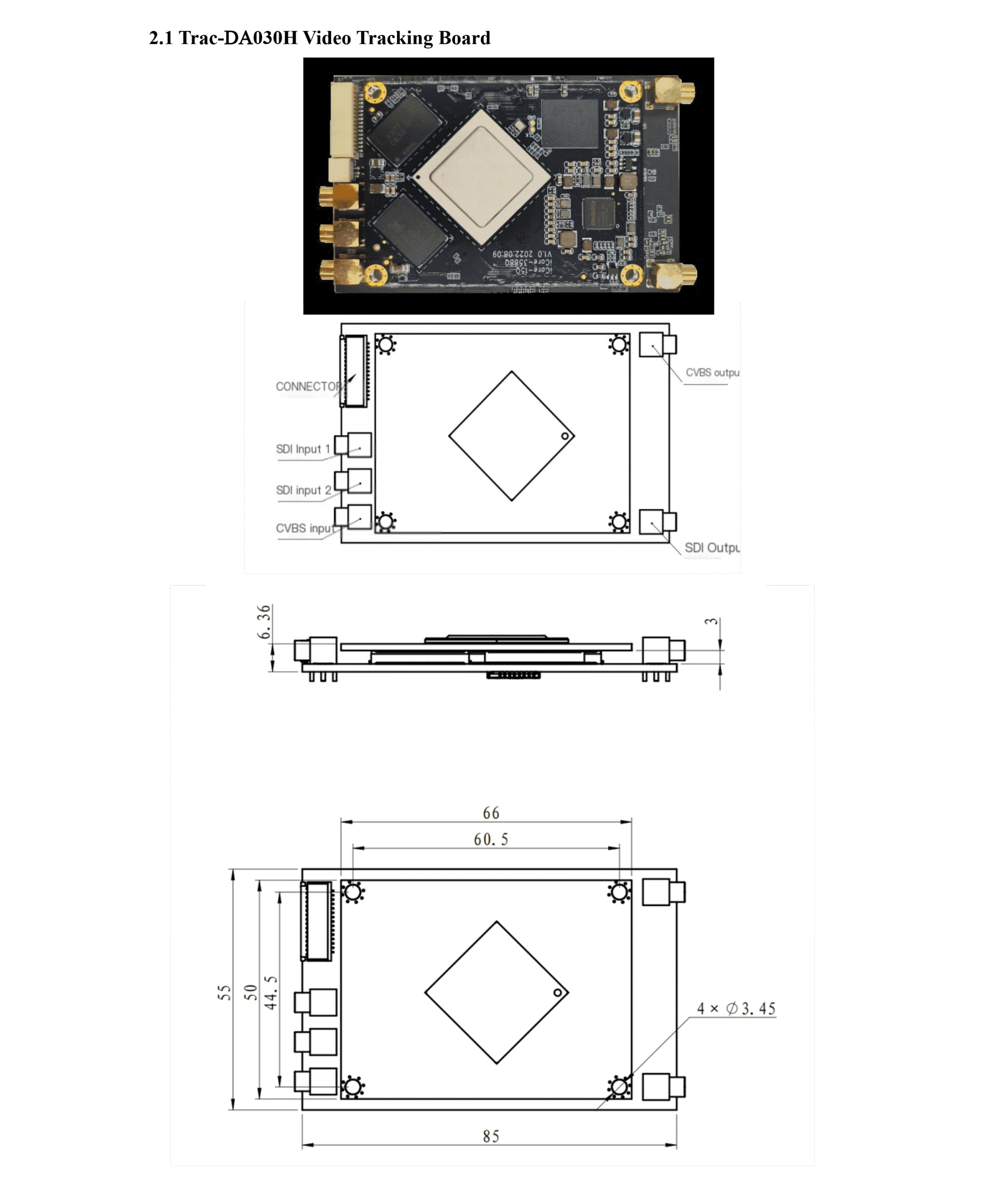

Dimensions	85 mm × 55 mm (L × W)

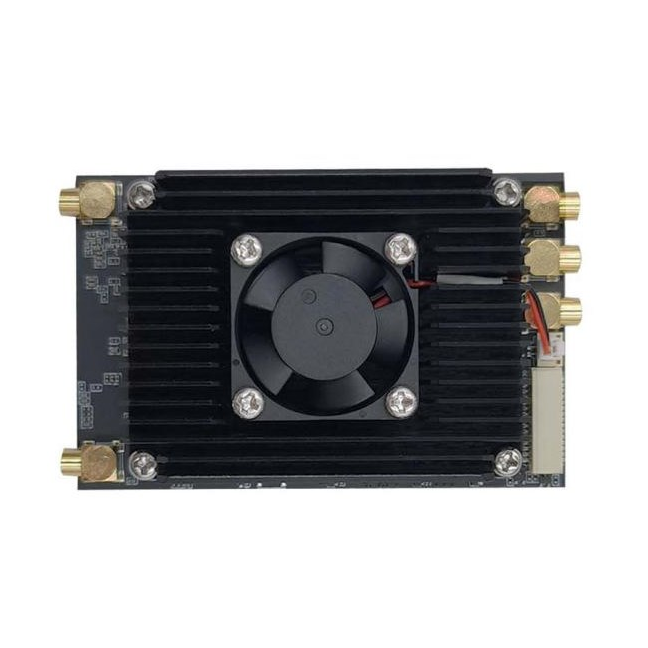

Weight	50.3 g ± 5 g (bare board) / 108 g ± 5 g (with radiator)

4. Application Scenarios

Border & Coastal Defense: Continuous monitoring in demanding environments.
Mobile Surveillance Platforms: Airborne pods, vehicle-mounted systems requiring high throughput and storage.
