FalconLock DS240 | DS120 Ultra-Low Latency UAV Visual Guidance System

1. FalconLock DS240 | DS120 Ultra-Low Latency UAV Visual Guidance System Overview

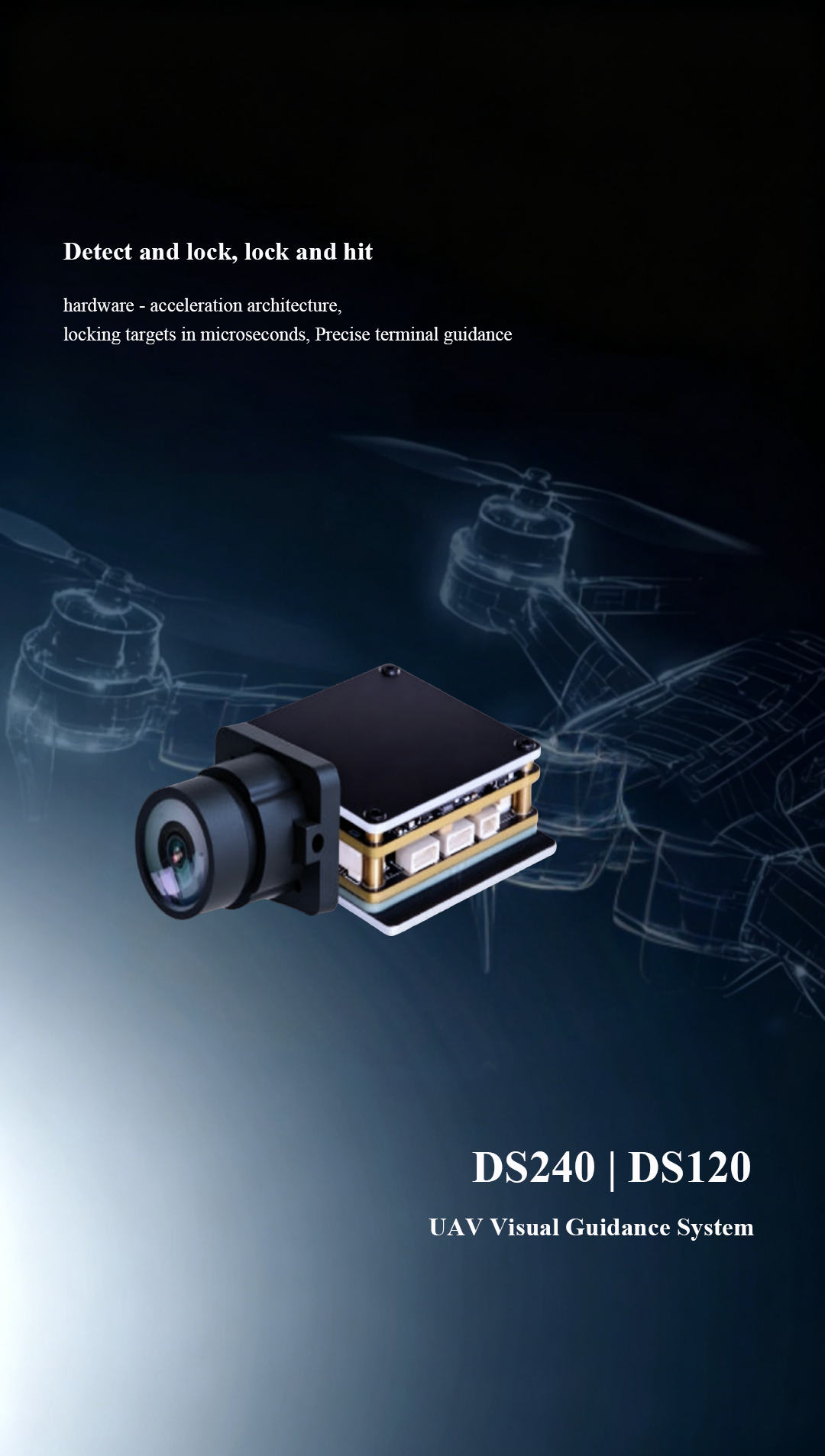

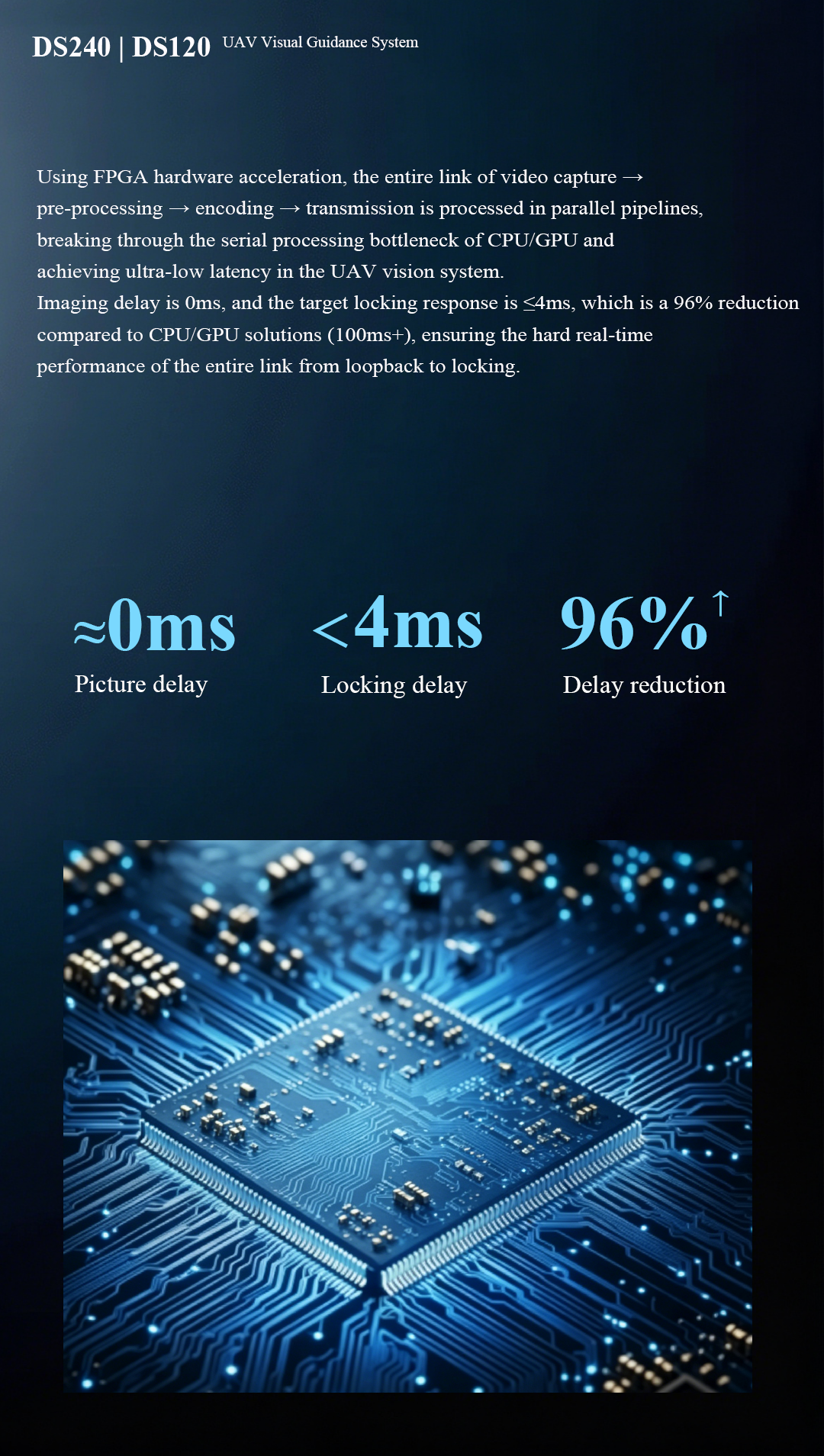

FalconLock DS240 | DS120 Ultra-Low Latency UAV Visual Guidance System is an FPGA-powered UAV visual guidance module designed for real-time target detection, target locking, high-speed tracking and terminal guidance applications. The system processes video capture, image pre-processing, encoding and transmission through parallel hardware pipelines, reducing the latency bottleneck commonly found in traditional CPU/GPU-based visual processing solutions. With approximately 0ms imaging delay, ≤4ms target locking response and support for high-speed target tracking up to 400km/h, FalconLock DS240 | DS120 is suitable for FPV drones, compound-wing UAVs, multi-category unmanned aircraft platforms and demanding UAV vision guidance scenarios.

2. Product Features

• FPGA Hardware Acceleration:Built on FPGA parallel pipeline architecture, the system accelerates video capture, image pre-processing, encoding and transmission for ultra-low-latency UAV visual guidance.
• Approximately 0ms Imaging Delay:Provides near-zero picture delay to reduce visual feedback lag and improve real-time response in UAV target tracking applications.
• ≤4ms Target Locking Response:Enables fast target detection and locking response, supporting real-time visual tracking from video loopback to target lock.
• Up to 96% Delay Reduction:Compared with conventional CPU/GPU solutions with 100ms+ latency, FalconLock DS240 | DS120 can reduce visual processing delay by up to 96%.
• High-Speed Target Tracking:Supports target tracking speeds up to 400km/h, making it suitable for high-speed UAV platforms and fast-moving aerial or ground target scenarios.

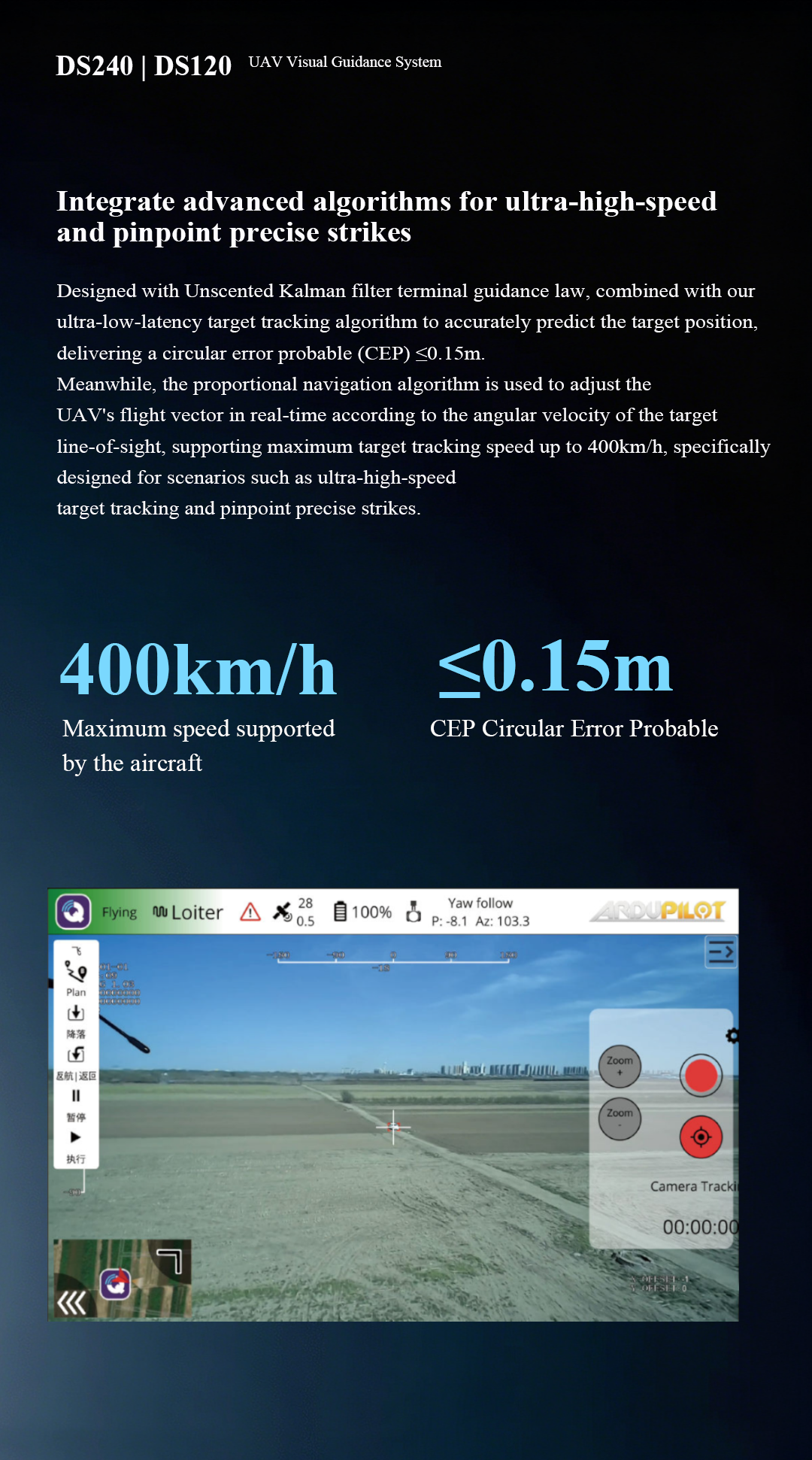

• Precision Guidance Algorithm:Integrates an Unscented Kalman Filter and proportional navigation algorithm to predict target movement and adjust the UAV flight vector in real time.
• High Guidance Accuracy:Delivers CEP circular error probable of ≤0.15m under supported operating conditions, improving precision in UAV visual guidance applications.
• Dual Model Configuration:DS240 provides 1280 × 1024 @ 240Hz high-frame-rate imaging, while DS120 provides 1920 × 1080 @ 120Hz high-resolution imaging for different mission requirements.
• Multi-Platform UAV Compatibility:Designed as a universal UAV visual guidance module for FPV drones, compound-wing UAVs and multiple unmanned aircraft platforms.
• Mainstream Flight-Control Ecosystem Support:Suitable for integration with MAVLink-based platforms and common UAV ecosystems such as ArduPilot, PX4, INAV, BetaFlight, QGroundControl and Mission Planner.

3. Detailed Technical Parameters

4. Application Scenarios

• Ground-to-Air UAV Visual Guidance:FalconLock DS240 is suitable for ground-to-air visual guidance scenarios that require high frame rate, fast target detection and real-time target locking.
• Surface-to-Air and Air-to-Air Tracking:FalconLock DS120 provides 1920 × 1080 high-resolution imaging at 120Hz, making it suitable for surface-to-air and air-to-air visual tracking applications.
• FPV Drone Platforms:The system supports high-speed imaging, ≤4ms target locking delay and real-time capture of ground or aerial targets for FPV drone platforms.
• Compound-Wing UAV Platforms:Designed for long-range UAV platforms requiring target search, target locking, trajectory prediction and real-time flight-vector correction.
• High-Speed Target Tracking:With support for target speeds up to 400km/h, FalconLock DS240 | DS120 is suitable for UAV vision tasks involving fast-moving targets.
• Autonomous Visual Guidance:The module can support UAV systems that combine manual first-person control with autonomous visual guidance algorithms.
• Multi-Platform UAV Integration:As a universal UAV visual guidance system, FalconLock DS240 | DS120 can be integrated into multiple UAV categories and mainstream flight-control ecosystems.
