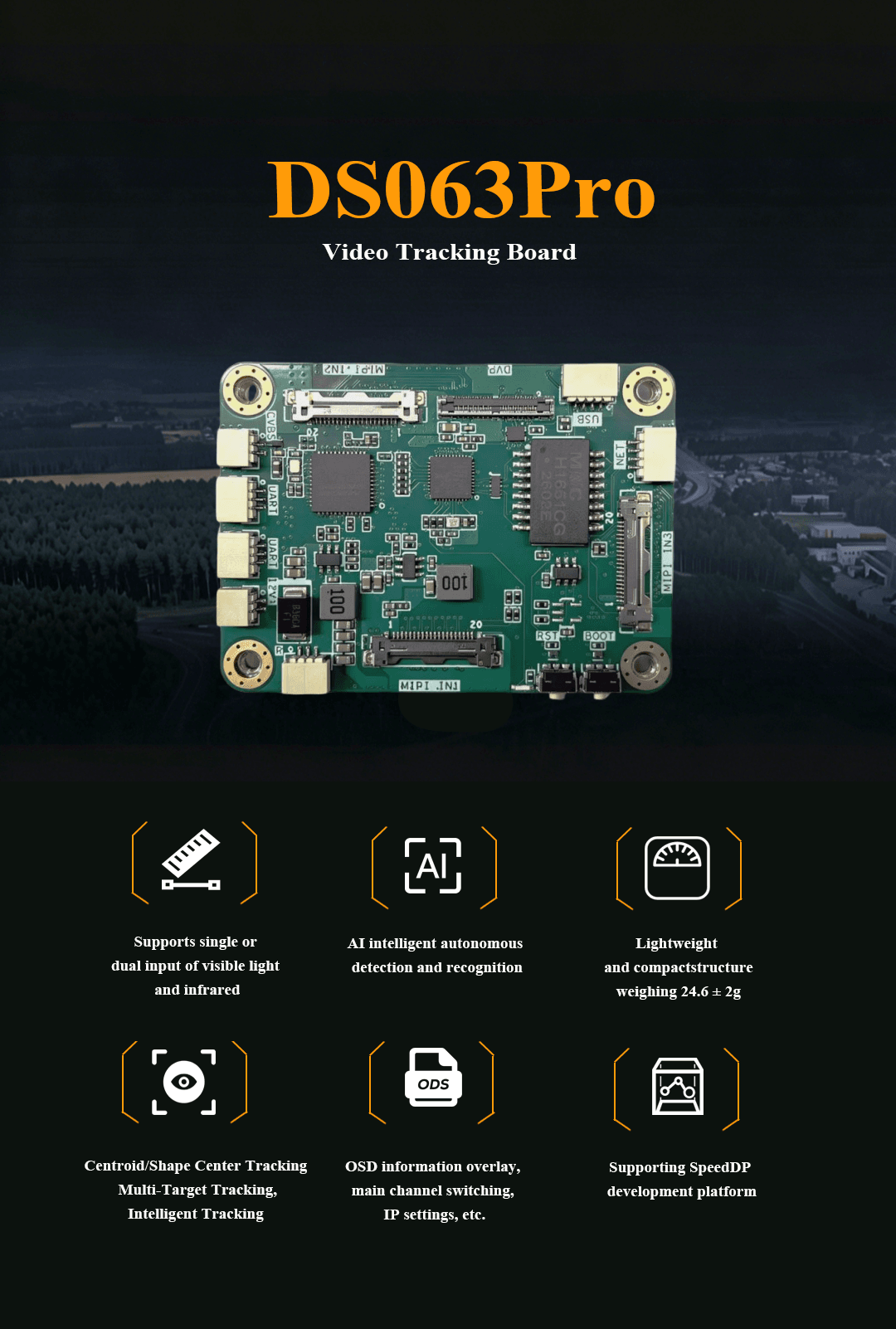

DS063pro High-Speed AI Video Tracking Board

Name: DS063pro High-Speed AI Video Tracking Board
Brand: UAVAUTO
SKU: DS063pro
Price: 999 USD
Availability: InStock

SKU:DS063pro

The DS063pro High-Speed AI Video Tracking Board is an embedded intelligent video processing module designed for real-time target detection, recognition, locking, and tracking. Built with a domestic AI chip and proprietary intelligent image algorithms, it works with high-frame-rate global shutter cameras to detect specific targets such as people, vehicles, boats, aircraft, and drones. The board outputs target type, position, size, and miss-distance information relative to the image center, making it suitable for high-speed tracking, UAV payload integration, intelligent gimbal systems, and secondary development applications

Share on:

1. DS063pro High-Speed AI Video Tracking Board Overview

2. Product Features

AI Target Detection and Recognition:Supports autonomous detection and recognition of people, vehicles, boats, aircraft, drones, and other specified targets.
High-Speed Real-Time Tracking:Provides 120Hz tracking frame rate, ≤1 pixel tracking accuracy, and real-time target miss-distance output.

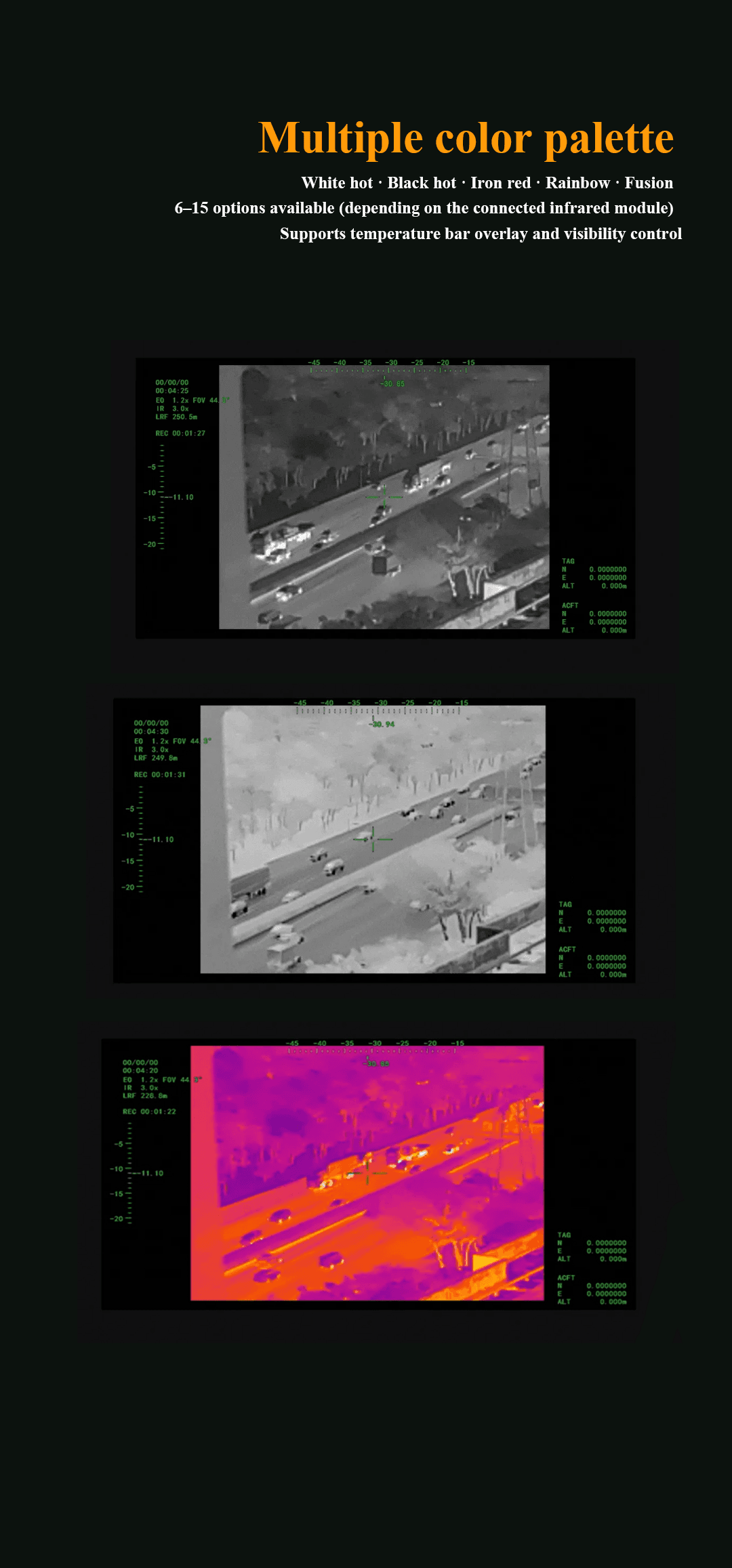

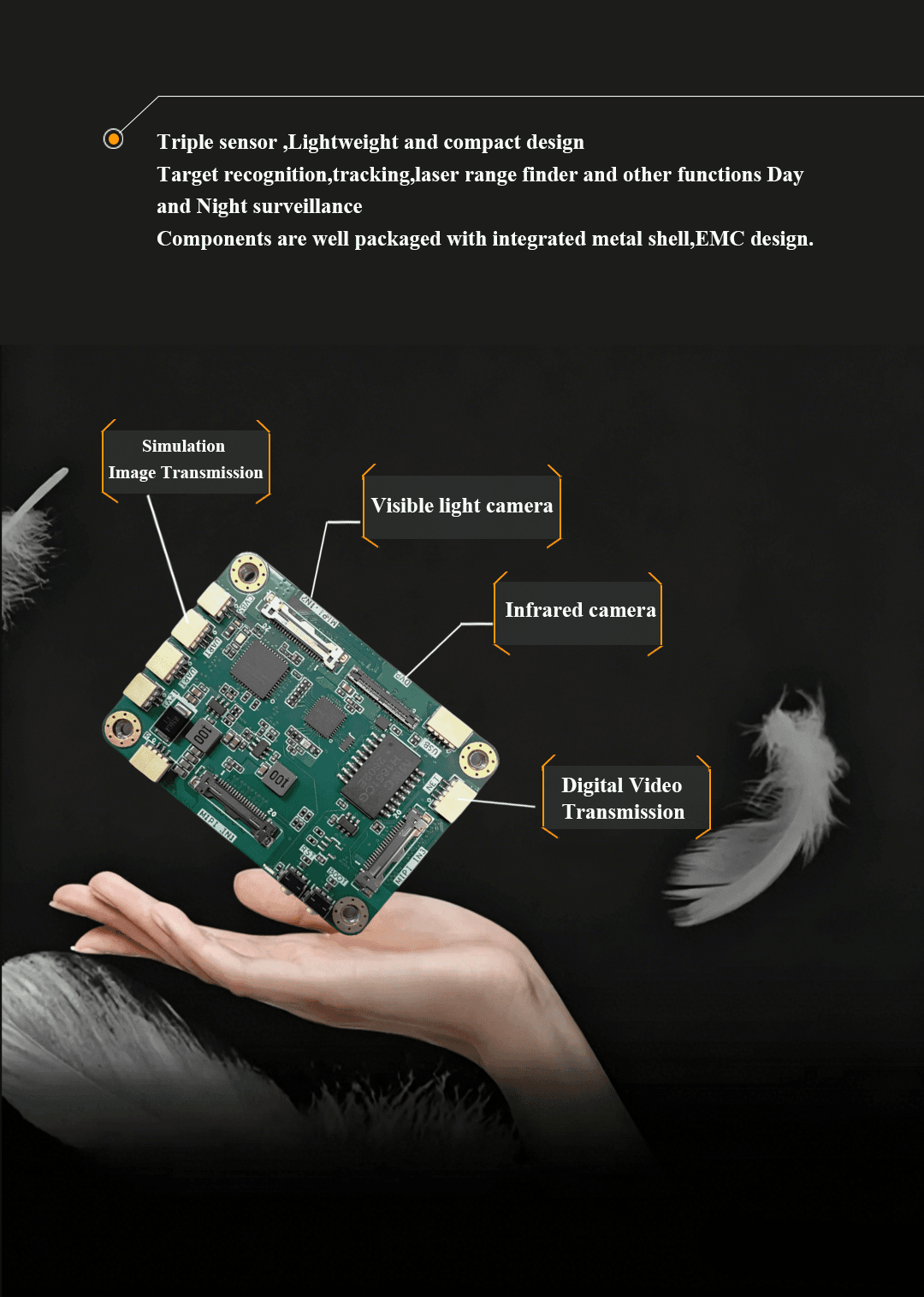

Visible and Infrared Input Support:Supports visible-light and infrared single-channel or dual-channel input, with command-based channel switching.
Multiple Tracking Algorithms:Supports centroid tracking, form-center tracking, correlation filter tracking, multi-target tracking, and intelligent tracking.
Manual and Automatic Target Locking:Supports point selection, box selection, image-center locking, crosshair-center locking, target ID locking, and automatic target lock-on.
Multi-Target Tracking:Supports tracking of up to 64 targets, helping improve target continuity in complex scenes.
Custom AI Model Deployment:Works with the SpeedDP AI development platform for custom dataset training and one-click model deployment.

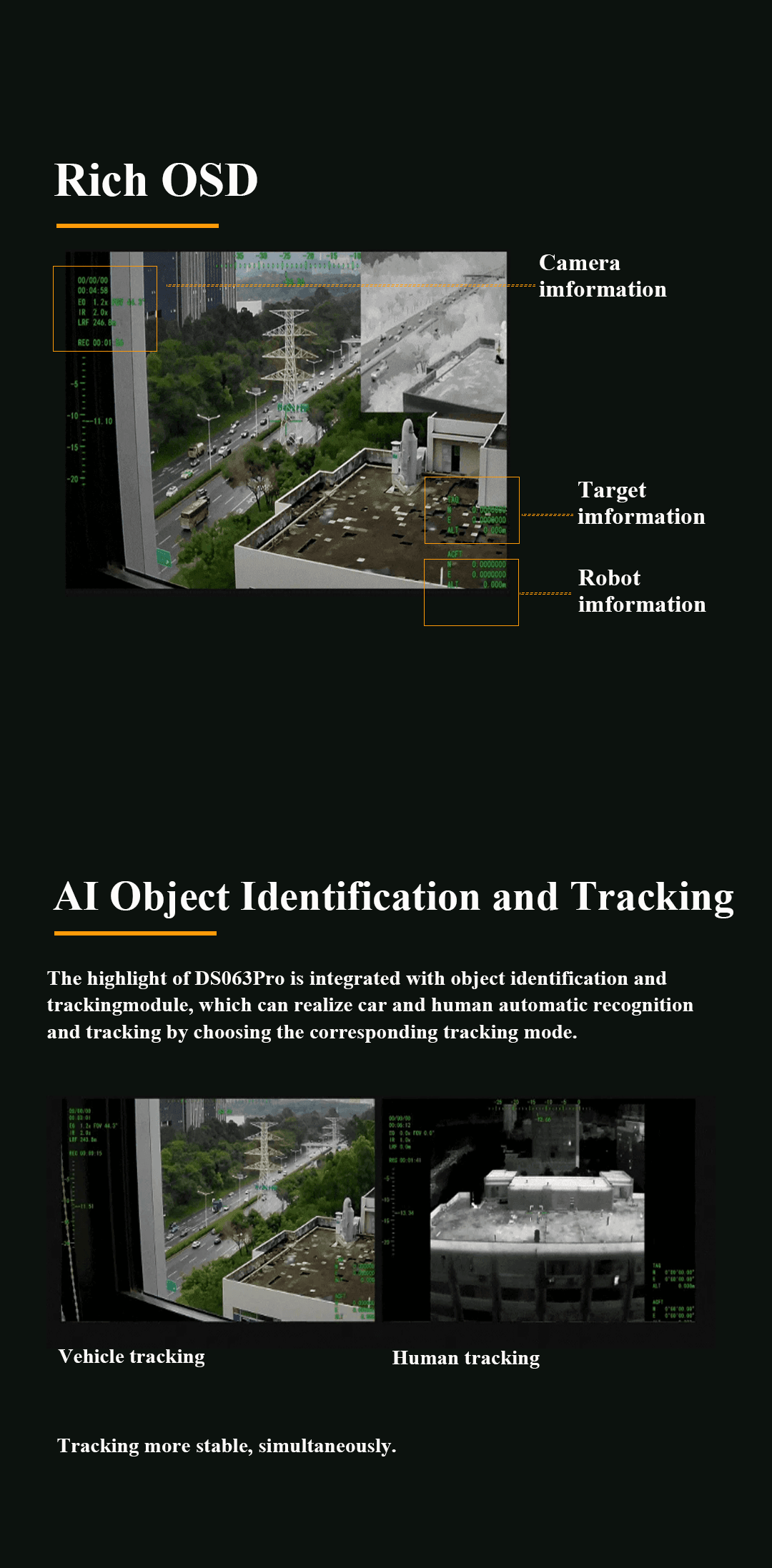

Rich OSD Overlay:Supports OSD overlay for time, date, version information, target box, crosshair, scale, compass, latitude and longitude, yaw angle, pitch angle, and other display information.
Electronic Zoom and Storage:Supports electronic zoom up to 16x with 0.1 minimum zoom precision, plus onboard photo and video recording with FTP file access.
Network Video Streaming:Equipped with a 100M Ethernet port and default RTSP video stream output for remote monitoring and system integration.
Configuration and Upgrade Support:Supports network-based firmware upgrade, model file upgrade, running log query, interface configuration, and factory reset.

3. Detailed Technical Parameters

Parameter	Specification
Product Model	DS063pro
Product Name	DS063pro High-Speed AI Video Tracking Board
Product Type	Embedded AI Video Tracking Board

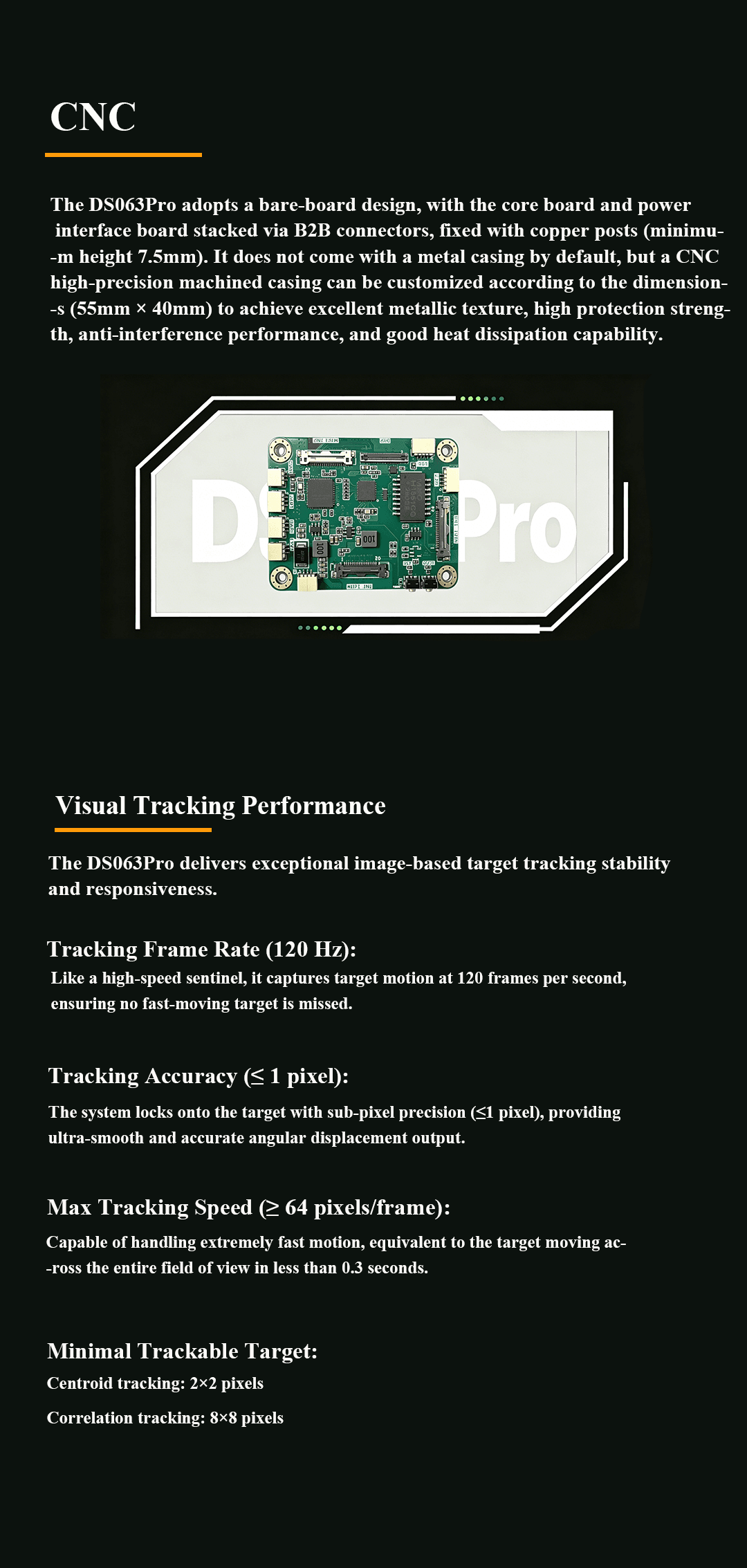

Tracking Frame Rate	120Hz
Minimum Tracking Target	2×2 pixels for centroid tracking; 8×8 pixels for correlation tracking
Tracking Accuracy	≤1 pixel
Tracking Speed	≥64 pixels/frame
Minimum Target Contrast	≥5% for centroid target
Maximum Number of Tracked Targets	≤64 targets
Recognition Frame Rate	25Hz
Minimum Recognition Target	10×10 pixels
Recognition Performance	0.616 mAP@0.5 based on VisDrone2019-DET-test-dev open-source dataset
Supported Tracking Algorithms	Centroid tracking, form-center tracking, correlation filter tracking, multi-target tracking, intelligent tracking
Target Locking Methods	Point selection, box selection, image-center locking, crosshair-center locking, target ID locking, automatic target search and lock-on
Video Input	3-channel MIPI custom adaptation; 1-channel DVP custom adaptation

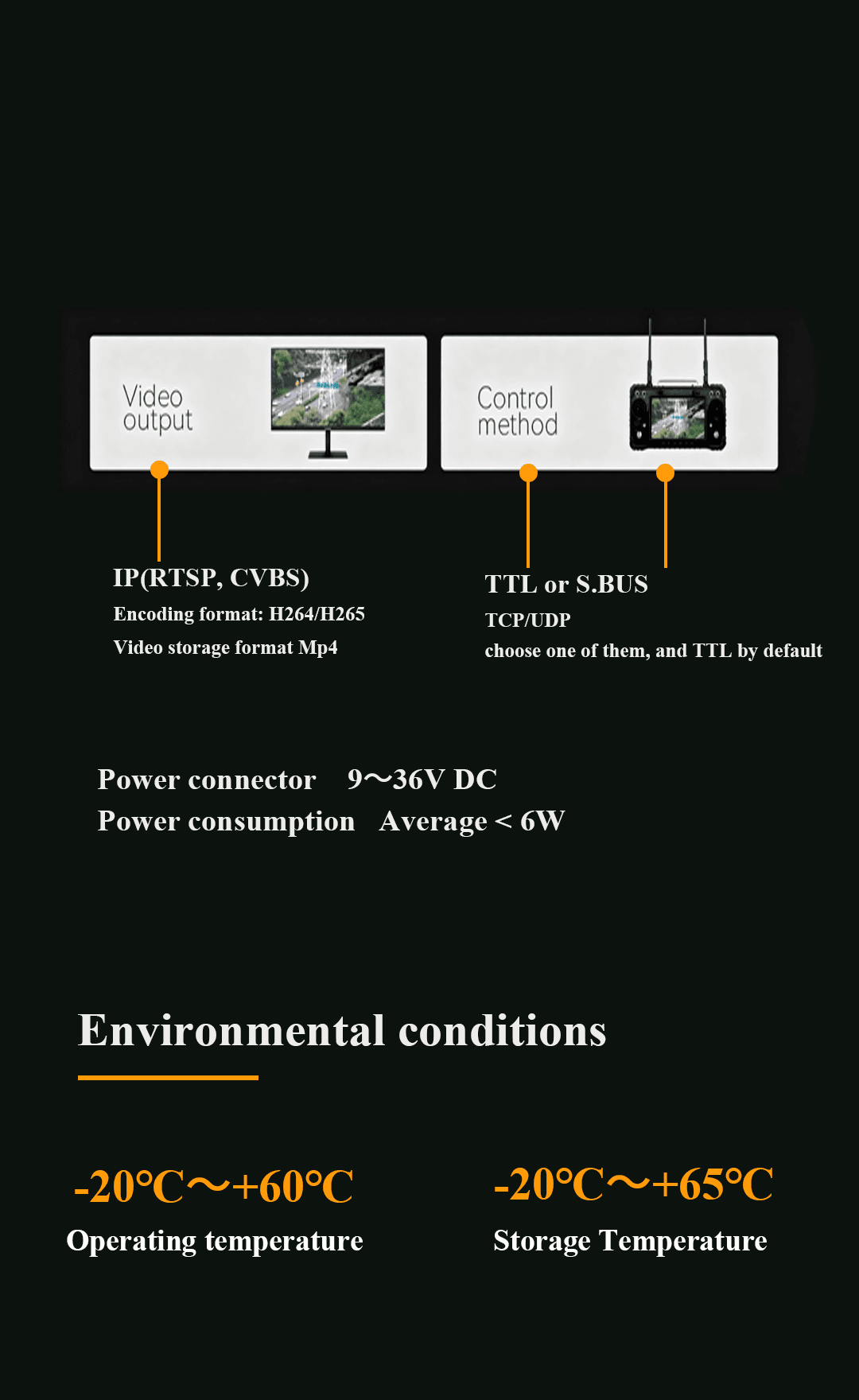

Video Output	1-channel CVBS
Serial Interface	2-channel UART, TTL 3.3V
USB Interface	1-channel USB 2.0
Network Interface	1-channel 100M Ethernet port, default RTSP video stream output
Power Consumption	<6W
Operating Voltage	9–36V

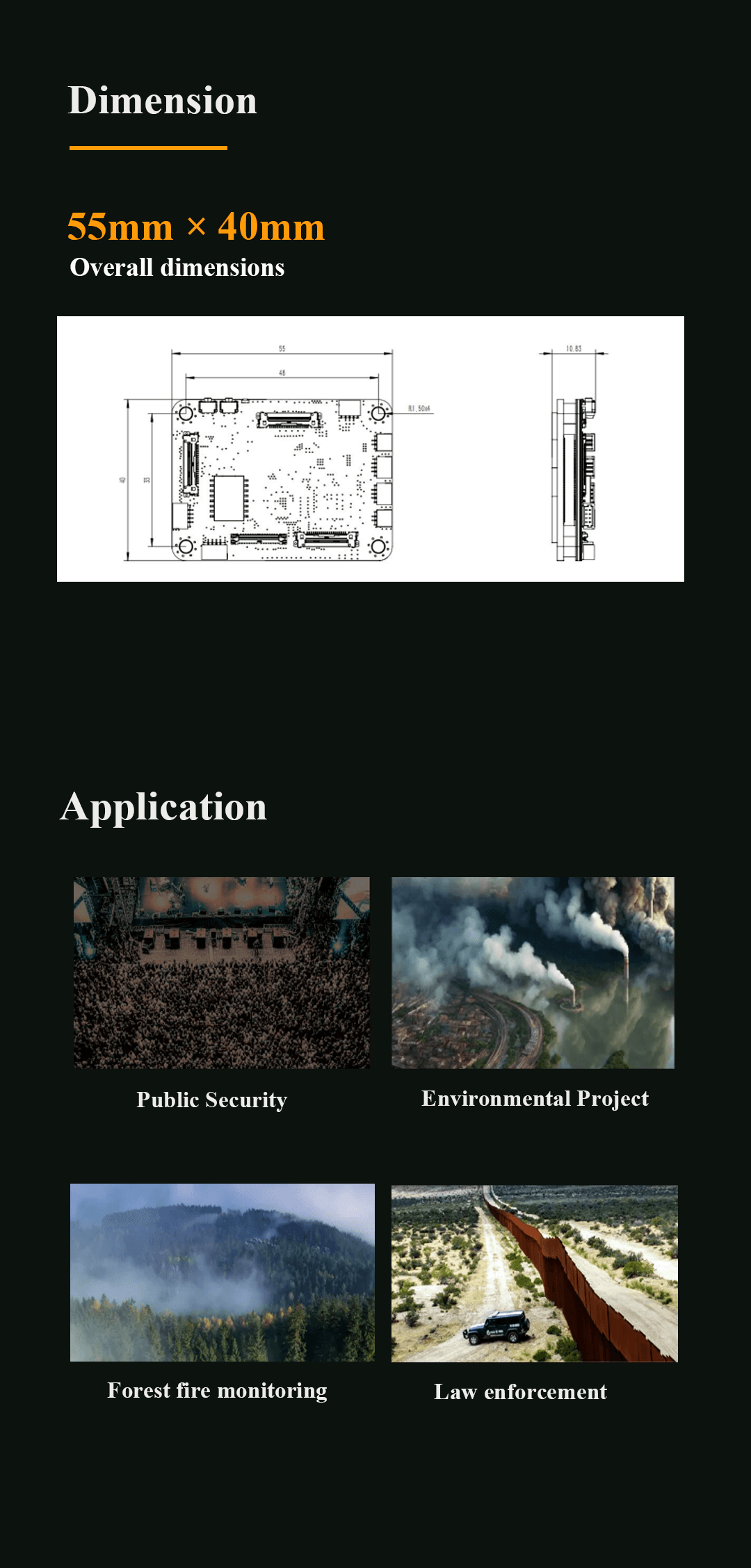

Dimensions	55mm×40mm including connectors
Weight	24.6 ± 2g, bare board without heatsink
Operating Temperature	-20℃ to +60℃
Storage Temperature	-20℃ to +65℃

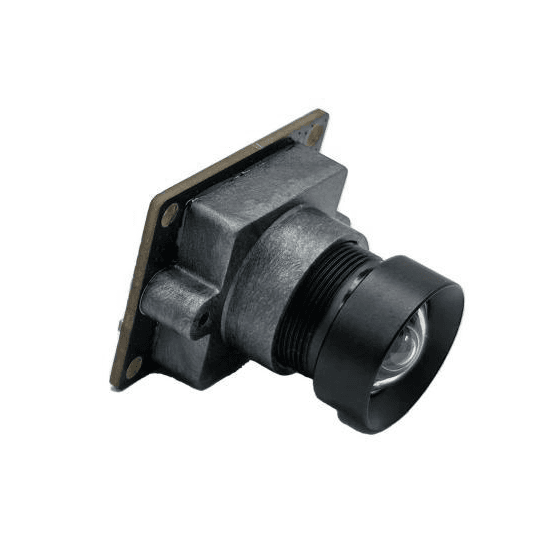

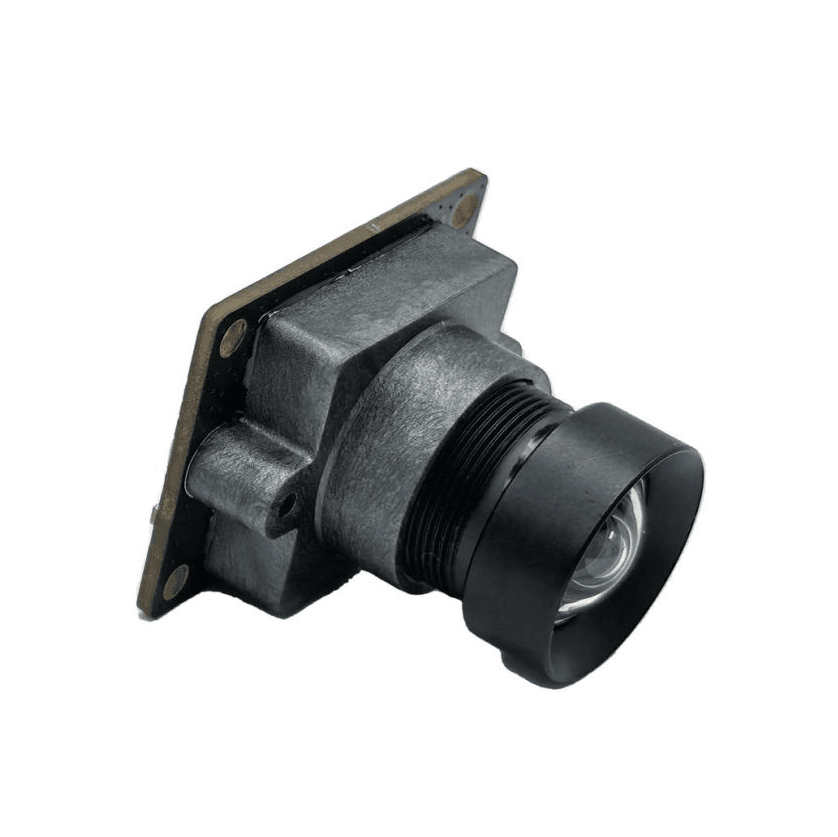

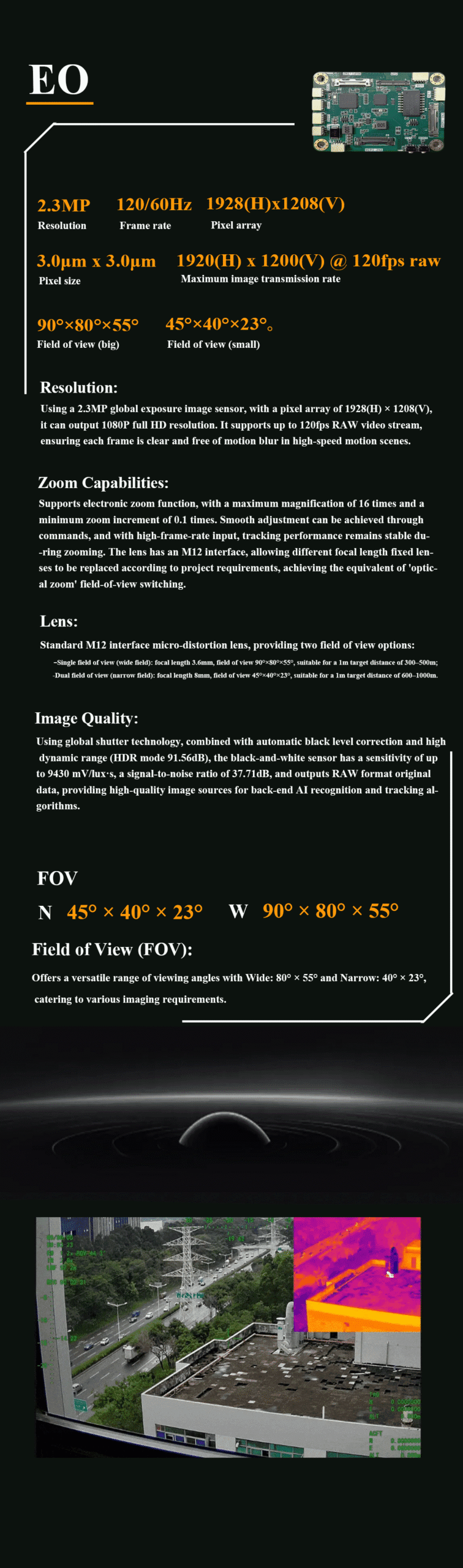

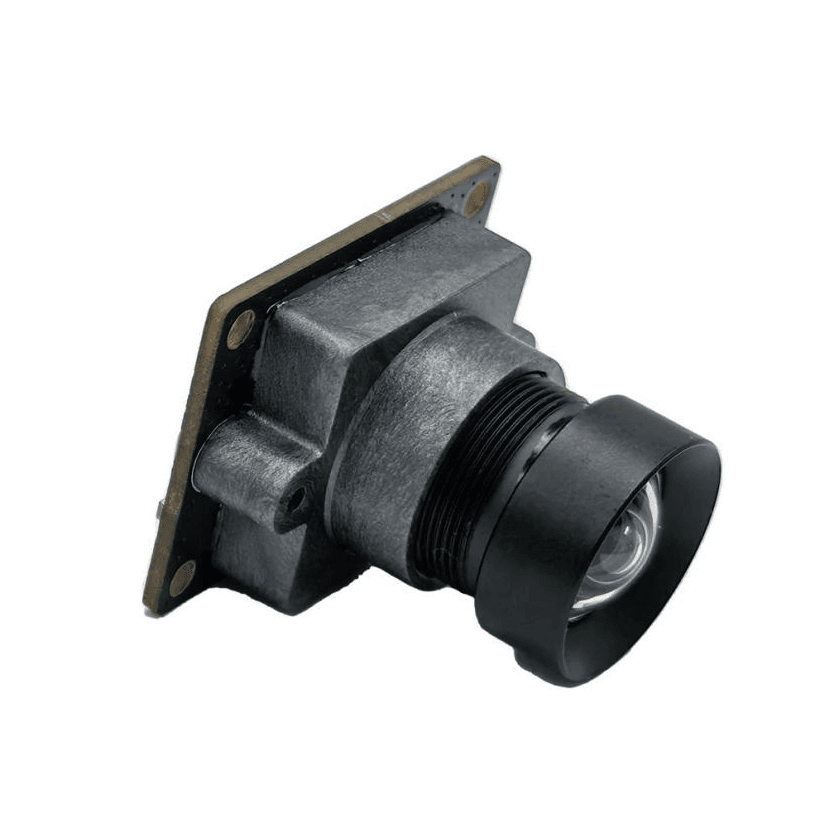

Compatible Visible-Light Camera	Global shutter monochrome camera, MIPI interface, 1080P resolution, 120/60Hz frame rate, auto exposure support
Wide-Field Lens Reference	3.6mm low-distortion lens, 120Hz input, 300–500m operating distance for a 1m target, 90°×80°×55° field of view
Narrow-Field Lens Reference	8mm low-distortion lens, 60Hz input, 600–1000m operating distance for a 1m target, 45°×40°×23° field of view
Lens Interface	Standard M12 interface, replaceable according to project requirements

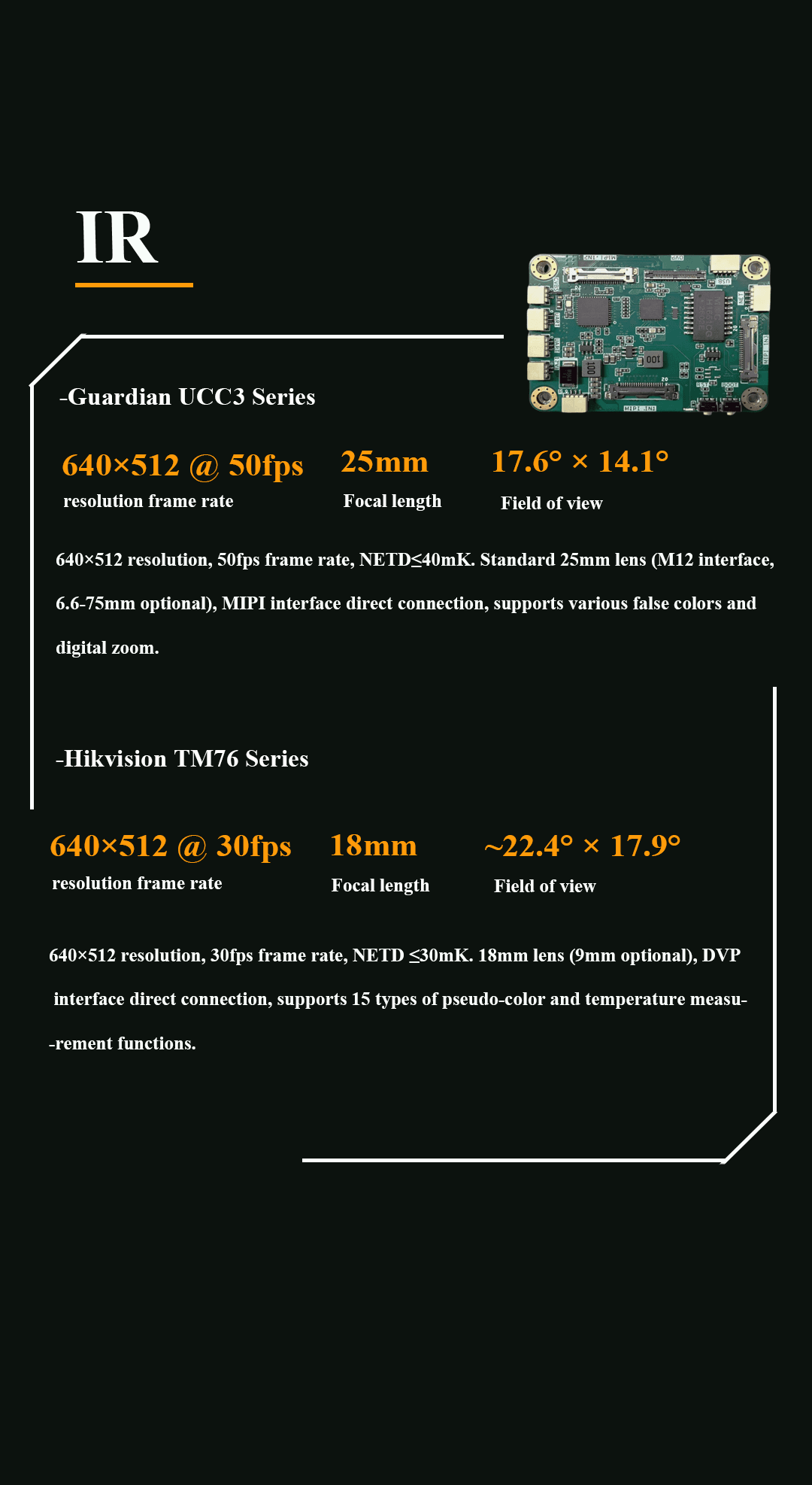

Compatible Infrared Module	640×512 thermal imaging module, 50Hz frame rate, MIPI/DVP/USB UVC adaptation depending on module type

4. Application Scenarios

UAV Target Tracking:Designed for UAV platforms requiring real-time target detection, locking, tracking, and miss-distance output.
Intelligent Gimbal Payloads:Suitable for integration into EO/IR gimbal systems to enable automatic target recognition and tracking.
High-Speed Small Target Tracking:Applicable to long-distance small target tracking scenarios such as drone detection and moving target lock-on.
Vehicle and Ship Tracking:Supports recognition and tracking of vehicles, boats, and other moving targets in patrol and monitoring applications.
Aircraft and Drone Tracking:Can be used for detecting and tracking aircraft, drones, and other aerial targets in visual surveillance systems.
Dual-Sensor Vision Systems:Supports visible-light and infrared imaging input for day-and-night target detection and tracking.
Embedded Surveillance Equipment:Suitable for compact systems requiring target tracking, OSD overlay, RTSP streaming, and control interface integration.
AI Vision Development:Supports custom AI model training and deployment for intelligent vision products and project-specific target recognition.
