DX3A Miniature 4K EO Gimbal Payload

1. DX3A Miniature 4K EO Gimbal Payload Overview

The DX3A is an ultra-lightweight three-axis EO gimbal payload designed for UAVs, drones and compact airborne surveillance platforms. Weighing only 240 g, it integrates multiple visible-light imaging channels, dual 4K image sensors and a laser rangefinder into a compact CNC-machined metal housing. The system delivers 3840 × 2160 video at 30 fps, 40× continuous optical zoom and up to 120× hybrid zoom, while supporting automatic target recognition, target tracking, image compression and laser ranging up to 1200 m. With high-precision gyro stabilization and a compact integrated design, the DX3A is suitable for public security, inspection, environmental monitoring and other missions requiring lightweight long-range electro-optical observation.

2. Product Features

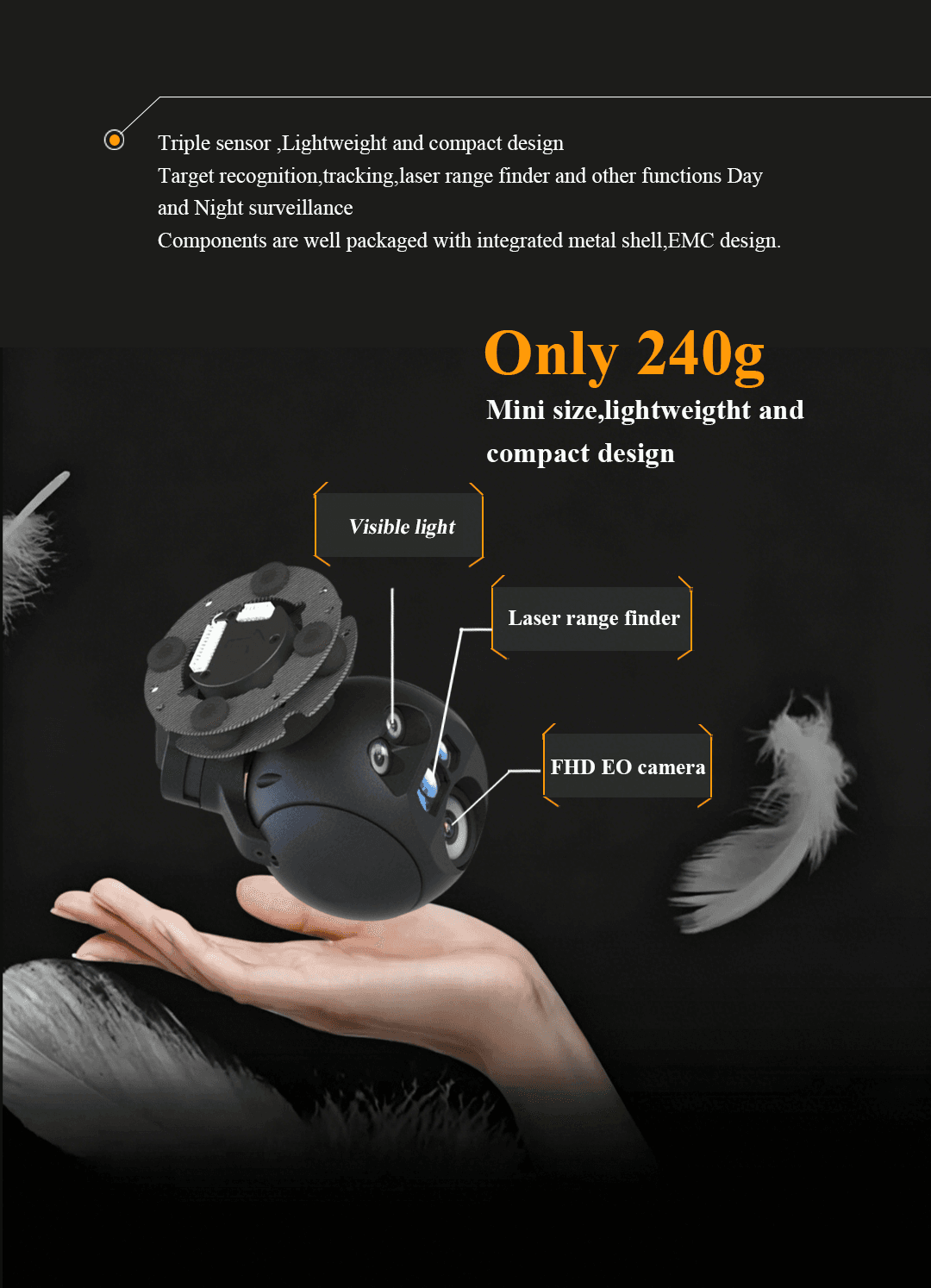

• Ultra-Lightweight 240 g Design:
  The compact gimbal payload weighs only 240 g, reducing the payload burden on small UAVs and helping preserve flight endurance.
• Dual 4K Image Sensors:
  Equipped with dual high-sensitivity 4K CMOS image sensors, providing 3840 × 2160 resolution at 30 fps for detailed aerial observation.
• 40× Continuous Optical Zoom:
  Provides smooth continuous optical zoom for rapid transition from wide-area search to long-distance target inspection.
• 120× Hybrid Zoom:
  Combines optical and electronic zoom to achieve up to 120× hybrid magnification for enhanced long-range observation.
• Wide-to-Telephoto Field of View:
  Provides a wide-angle field of view of 100° × 68° and a narrow telephoto field of view of 3.3° × 1.9°, enabling both broad-area scanning and detailed target observation.
• Laser Rangefinder:
  Supports laser distance measurement from 5 m to 1200 m with ±1 m measurement accuracy.
• Target Position Calculation:
  Supports target latitude and longitude coordinate output based on onboard inertial-navigation data.
• Automatic Target Recognition:
  Built-in recognition algorithms support automatic vehicle and human target identification.
• Automatic Target Tracking:
  Supports selectable tracking modes for stable tracking of vehicles and people during aerial surveillance missions.
• Three-Axis Gyro Stabilization:
  A high-precision three-axis stabilized platform reduces image shake and maintains clear imagery during UAV movement and vibration.
• High Stabilization Accuracy:
  Provides stabilization accuracy of 0.1 mrad and angular position accuracy of ≤0.3° for precise pointing and imaging.
• Picture-in-Picture Display:
  Supports picture-in-picture visualization for presenting multiple imaging channels and mission information within the same operating interface.
• Rich OSD Information:
  Supports on-screen display of camera information, target data, coordinates and platform information for enhanced situational awareness.
• Integrated CNC Metal Housing:
  Electronic components are enclosed within a CNC-machined integrated metal housing for improved structural strength, heat dissipation and electromagnetic compatibility.
• Integrated Image Compression:
  Built-in image compression functionality supports efficient video transmission and storage in bandwidth-constrained airborne systems.
• Compact Integrated Interface Design:
  The compact mechanical structure minimizes exposed external connectors and simplifies integration with lightweight UAV platforms.

3. Detailed Technical Parameters

4. Application Scenarios

• Public Security Surveillance:
  Provides lightweight 4K aerial imaging, long-range optical zoom, laser ranging and automatic target tracking for public-area surveillance and emergency response.
• Environmental Monitoring:
  Supports UAV-based observation of environmental projects, industrial facilities, remote areas and other locations requiring high-resolution aerial imaging.
• Forest Fire Monitoring:
  Enables wide-area aerial observation and long-distance visual inspection to support forest patrol, smoke observation and emergency coordination.
• Law Enforcement:
  Combines long-range zoom imaging, laser ranging, vehicle recognition and human recognition for aerial patrol, evidence collection and target monitoring.
• UAV Inspection:
  The 240 g compact payload is suitable for lightweight UAV inspection missions involving power lines, towers, buildings, roads and other infrastructure.
• Long-Range Target Observation:
  The 40× optical zoom, 120× hybrid zoom and 3.3° × 1.9° telephoto field of view support detailed observation of distant targets.
