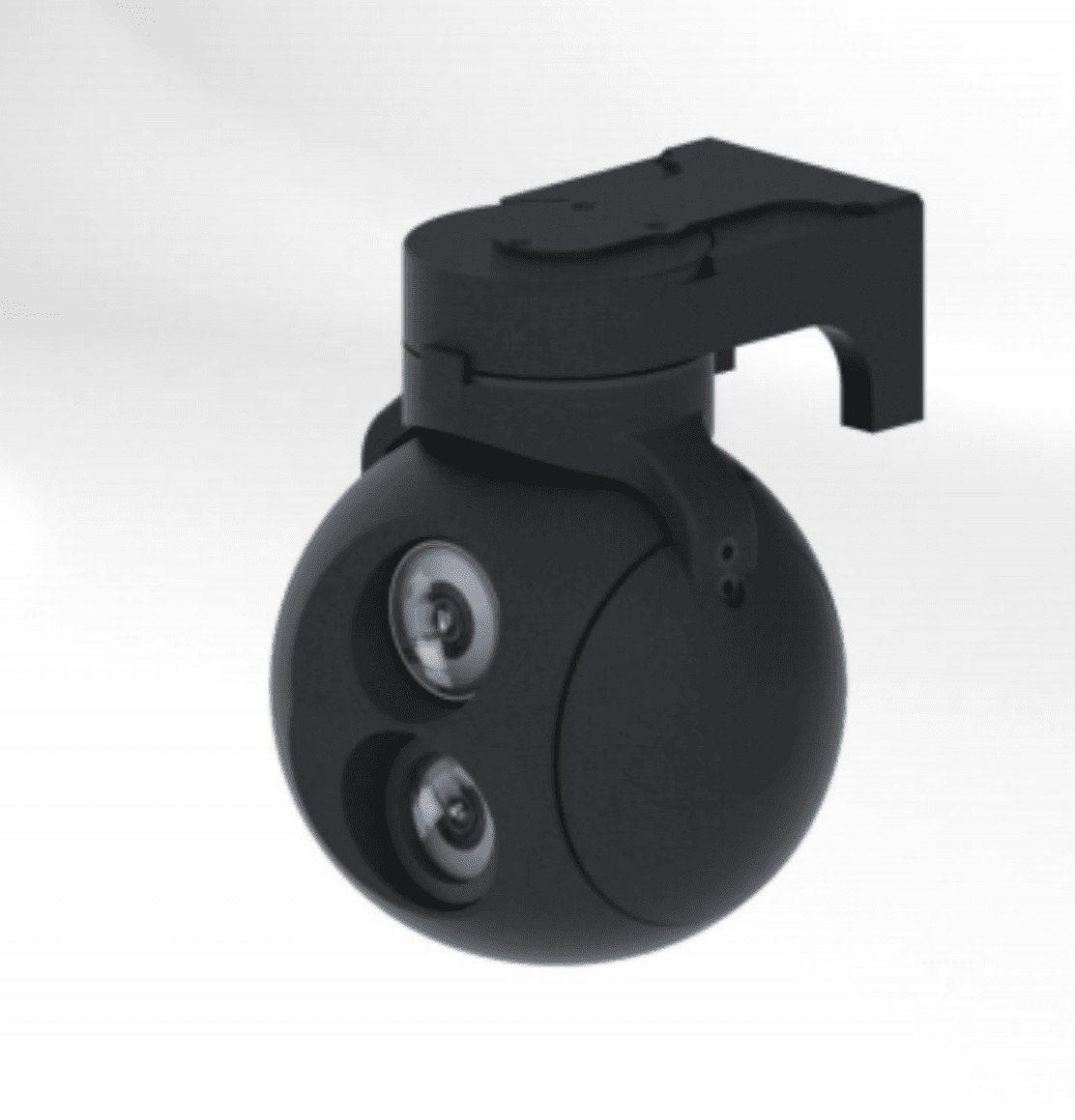

DS80A Dual-EO Camera Gimbal | Wide/Tele FHD Views, Quick Release

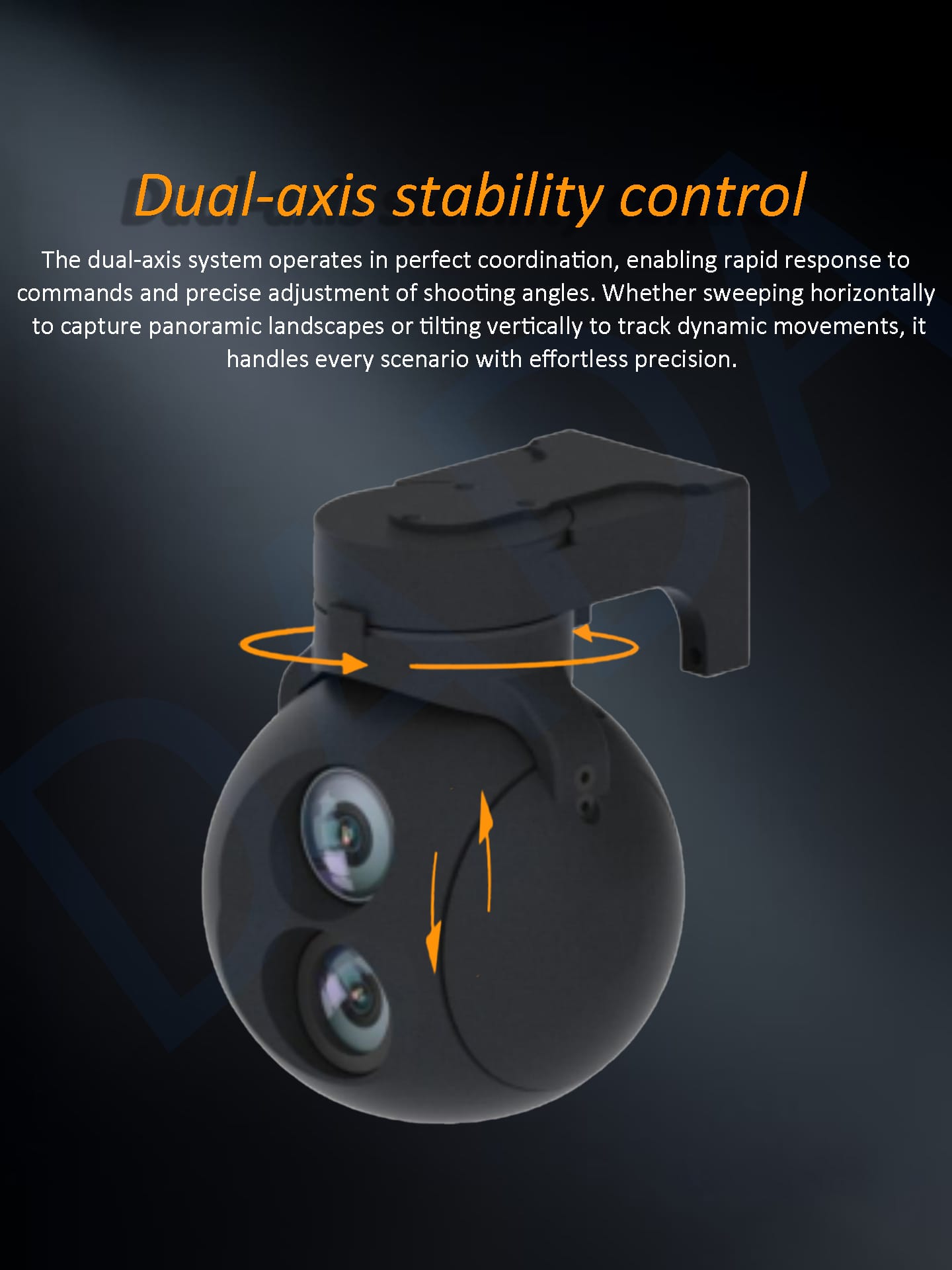

DS80A provides two 1920×1080/60 fps visible channels in a ≤240 g two-axis gimbal. Its 7.2 mm wide lens covers 42.2°×24.5°, while the 25 mm tele lens narrows the view to 12.7°×7.1° for detailed observation. Intelligent tracking and servo stabilization support moving subjects; yaw spans ±110° and pitch -100° to +40°. Published launch-shock resistance is ≥400 g, with -40 to +60°C operating range.
- -110° ~ +110°
- -100° ~ +40°
- ≥100°/s
- ≤240g
- Av≤10W, Max≤20W
- 12~28V
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data

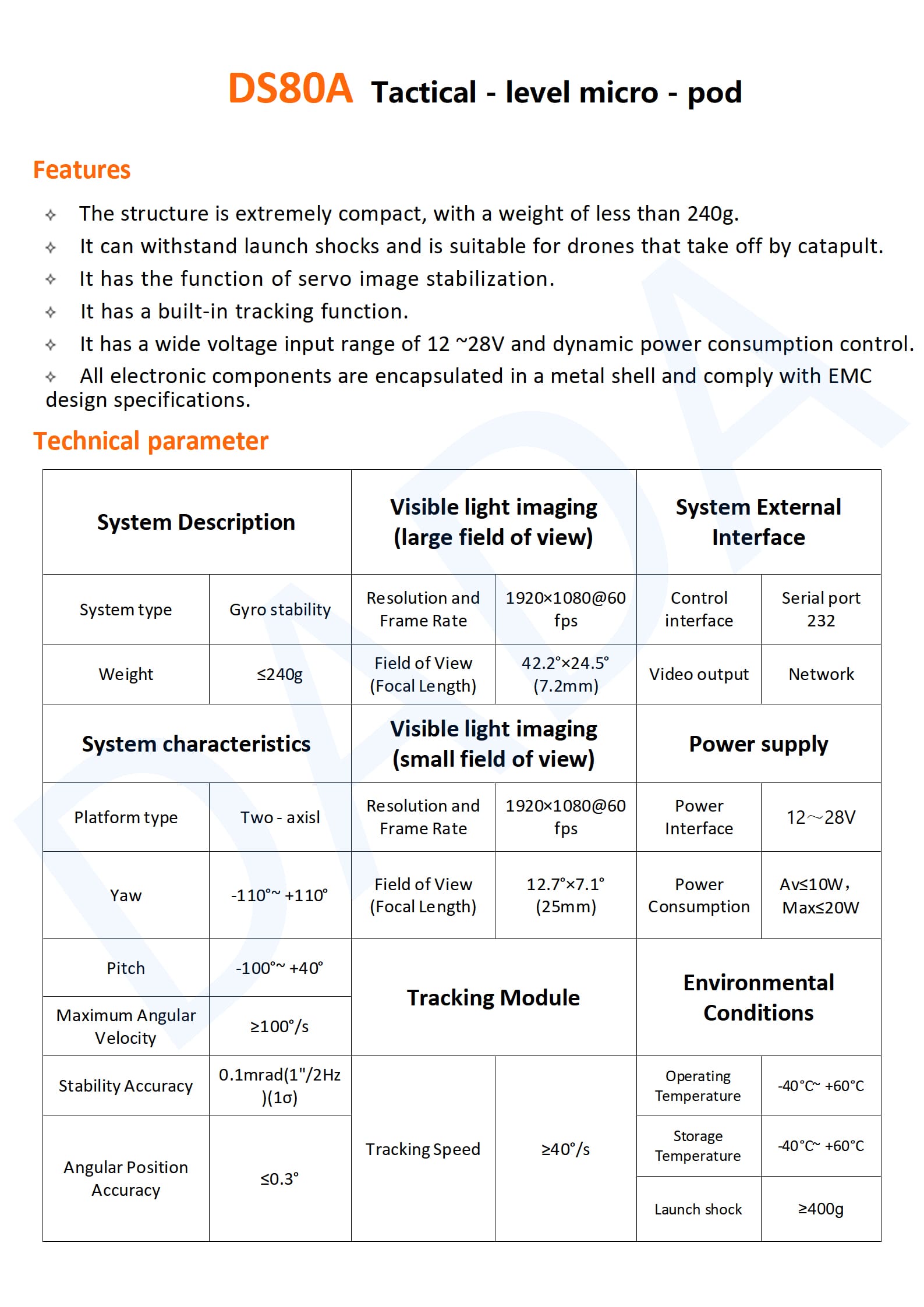

| Parameter | Specification |
|---|---|
| System Type | Gyro stability |
| Weight | ≤240g |

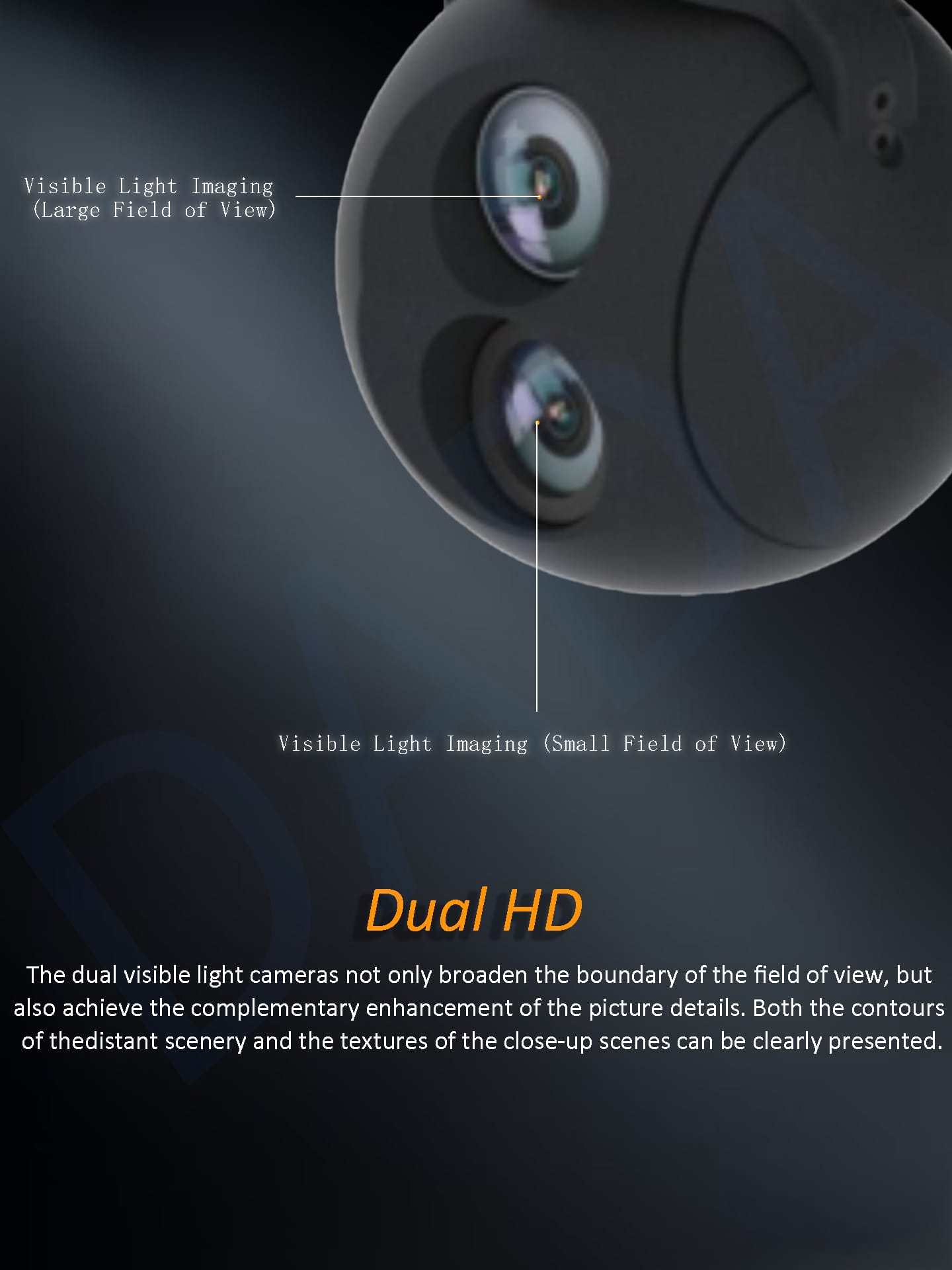

| Visible Light Imaging (Large Field of View) | 1920×1080@60fps, FOV: 42.2°×24.5° (7.2mm focal length) |
| Visible Light Imaging (Small Field of View) | 1920×1080@60fps, FOV: 12.7°×7.1° (25mm focal length) |
| Yaw Range | -110° ~ +110° |
| Pitch Range | -100° ~ +40° |
| Maximum Angular Velocity | ≥100°/s |
| Power Supply | 12~28V |
| Power Consumption | Av≤10W, Max≤20W |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +60°C |
| Launch Shock Resistance | ≥400g |
1. Features & applications

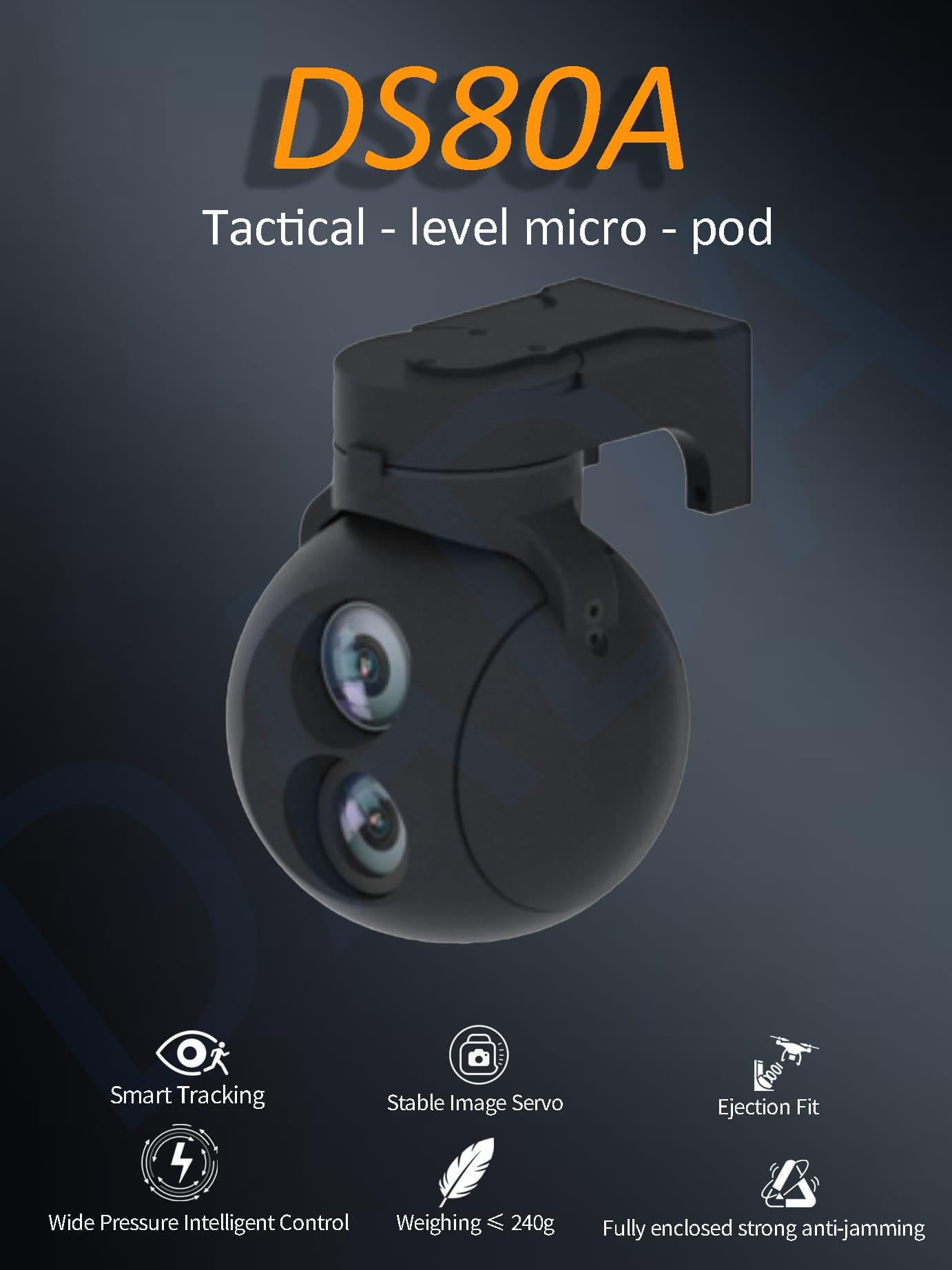

The DS80A Tactical-level Micro Pod is a lightweight and highly advanced surveillance solution designed for tactical and military-grade operations. With a compact structure, weighing less than 240 grams, it is optimized for drones that launch via catapults and other dynamic platforms. Featuring servo image stabilization and a built-in tracking function, this pod ensures smooth, real-time tracking in demanding environments. Its wide input voltage range (12~28V) and efficient power consumption control allow versatile deployment in various field conditions.
2. Product Features

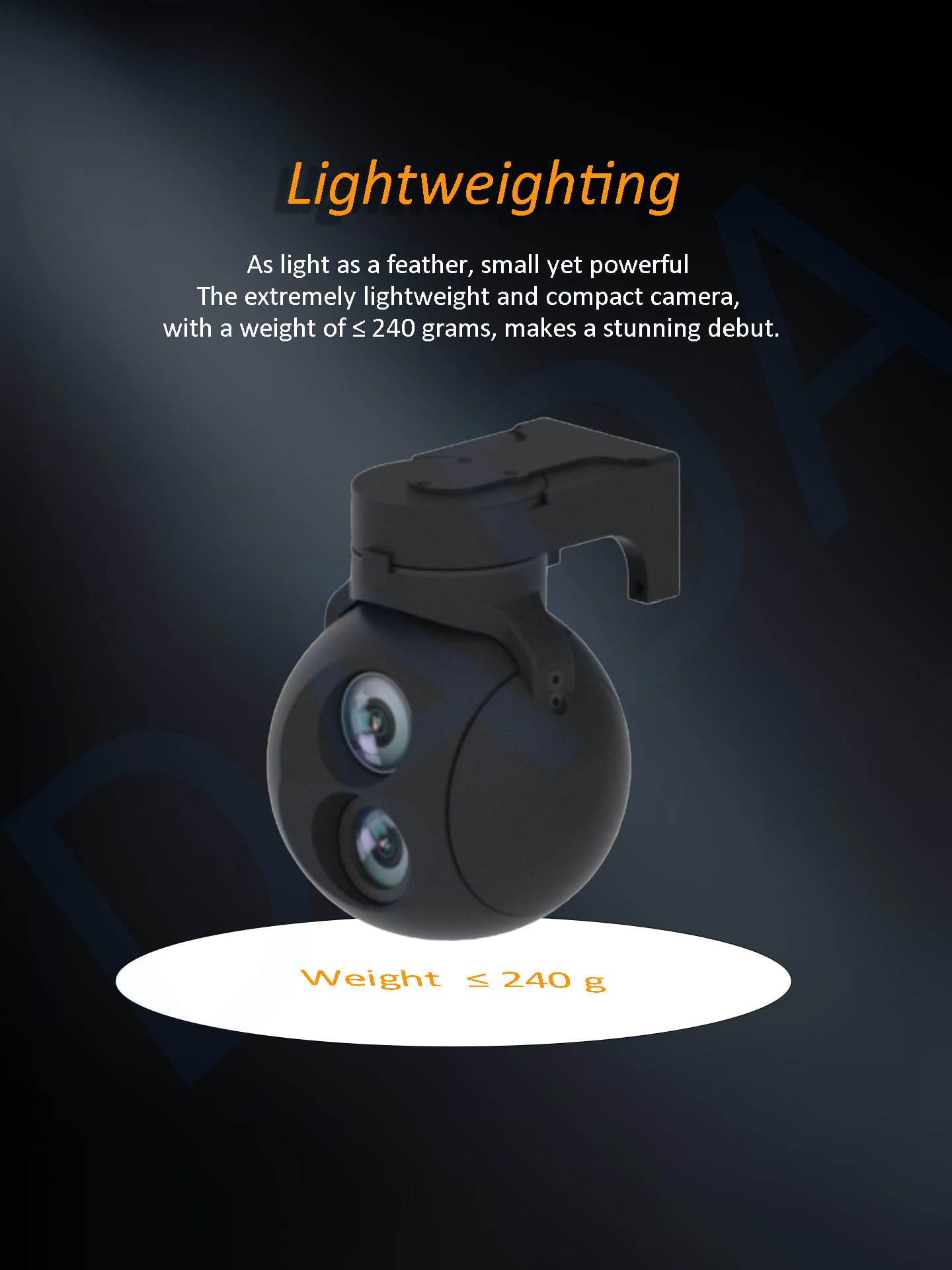

- Compact and Lightweight: Weighing less than 240g, making it ideal for drone and vehicle mounting applications.
- Shock Resistance: Capable of withstanding launch shocks, making it suitable for tactical deployments where ejection is required.
- Servo Image Stabilization: Ensures stable, high-quality imagery by dynamically adjusting the pod’s orientation for smooth footage.

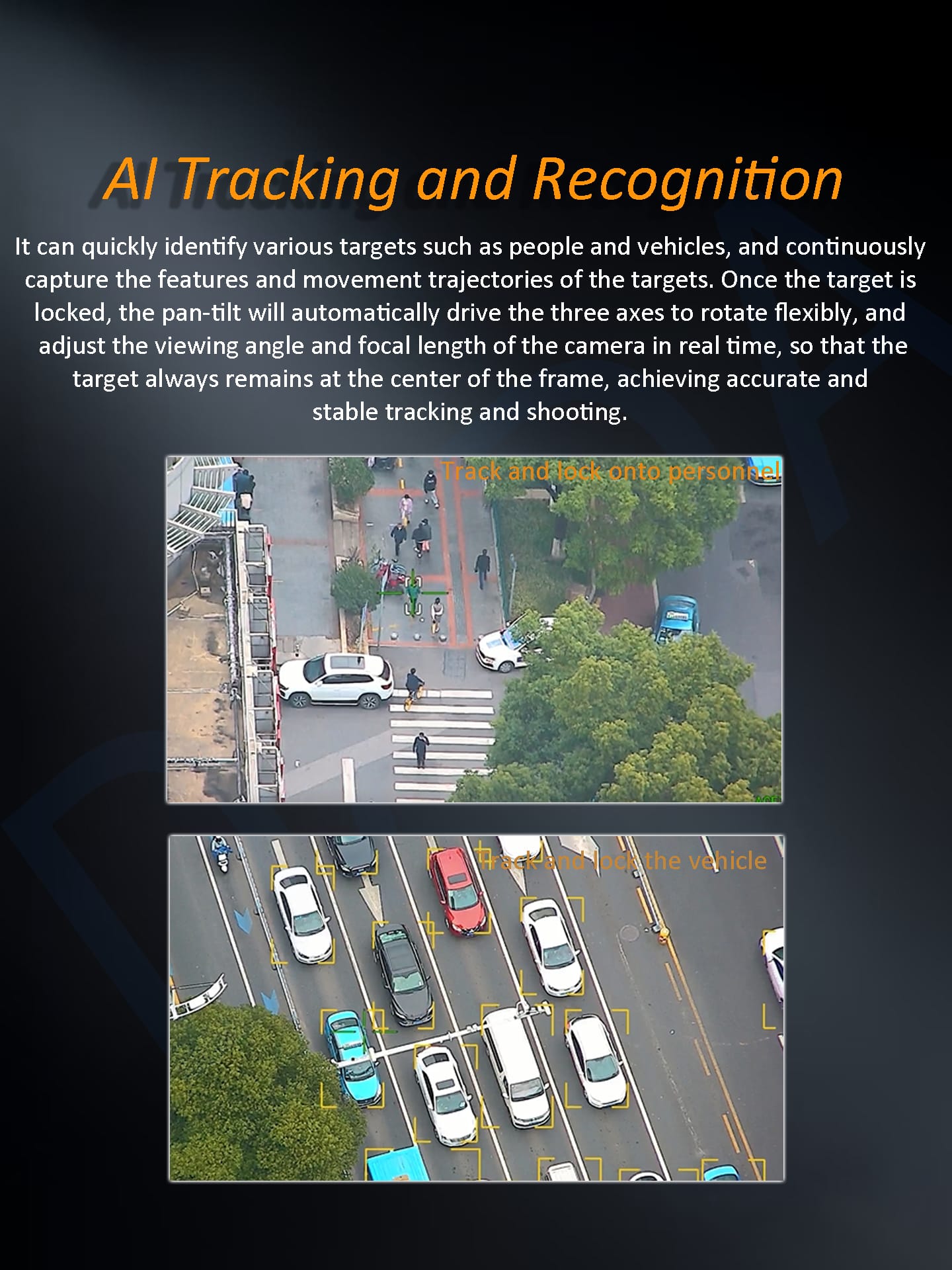

- Advanced Tracking Function: Built-in intelligent tracking system that locks onto moving targets like vehicles and personnel, maintaining a stable visual lock.
- Wide Input Voltage and Power Management: Operates with a wide input voltage range (12~28V) and intelligent power consumption control, enhancing operational efficiency.
- Metallic Enclosure with EMC Protection: Designed with all electronic components encapsulated in a robust metal shell, offering protection against electromagnetic interference (EMI) and ensuring stable operation in challenging environments.
3. Application Scenarios
- Military and Tactical Operations: Ideal for surveillance and reconnaissance missions where compact size and high reliability are critical, particularly in hostile or dynamic environments.
- Autonomous Vehicles and Drones: Suitable for integration with drones and unmanned vehicles, offering real-time tracking and surveillance capabilities during deployment in varying terrain and operational conditions.
- Search and Rescue: The tracking function and lightweight design make it ideal for search and rescue missions, where precise and stable tracking of targets is needed in both urban and wilderness areas.
- Urban Surveillance: Perfect for monitoring crowded urban environments, providing a clear and stable visual feed while tracking individuals and vehicles.
