DS60L 85g 2-Axis Gimbal | 1080p Visible + 1.2km Laser Ranging
The DS60L Lynx-H is an 85 g two-axis stabilized payload with 1920 × 1080 visible-light imaging at 60 fps, built-in target tracking, and 5–1,200 m laser ranging with ±1 m accuracy. It provides 0.1 mrad stabilization accuracy under the specified test condition, supports 12–28 V input and network video output, and is rated for launch shocks of ≥400 g.
- 19.7° × 11° (16mm lens)
- -110° ~ +110°
- -100° ~ +40°
- ≥ 100°/s
- 0.1 mrad (1°/2Hz, 1σ)
- ≤ 0.3°
- 5 ~ 1200 m
- ±1 m
- ≥ 40°/s
- Serial Port
- 12 ~ 28 V
- 1920×1080 @ 60 fps
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data

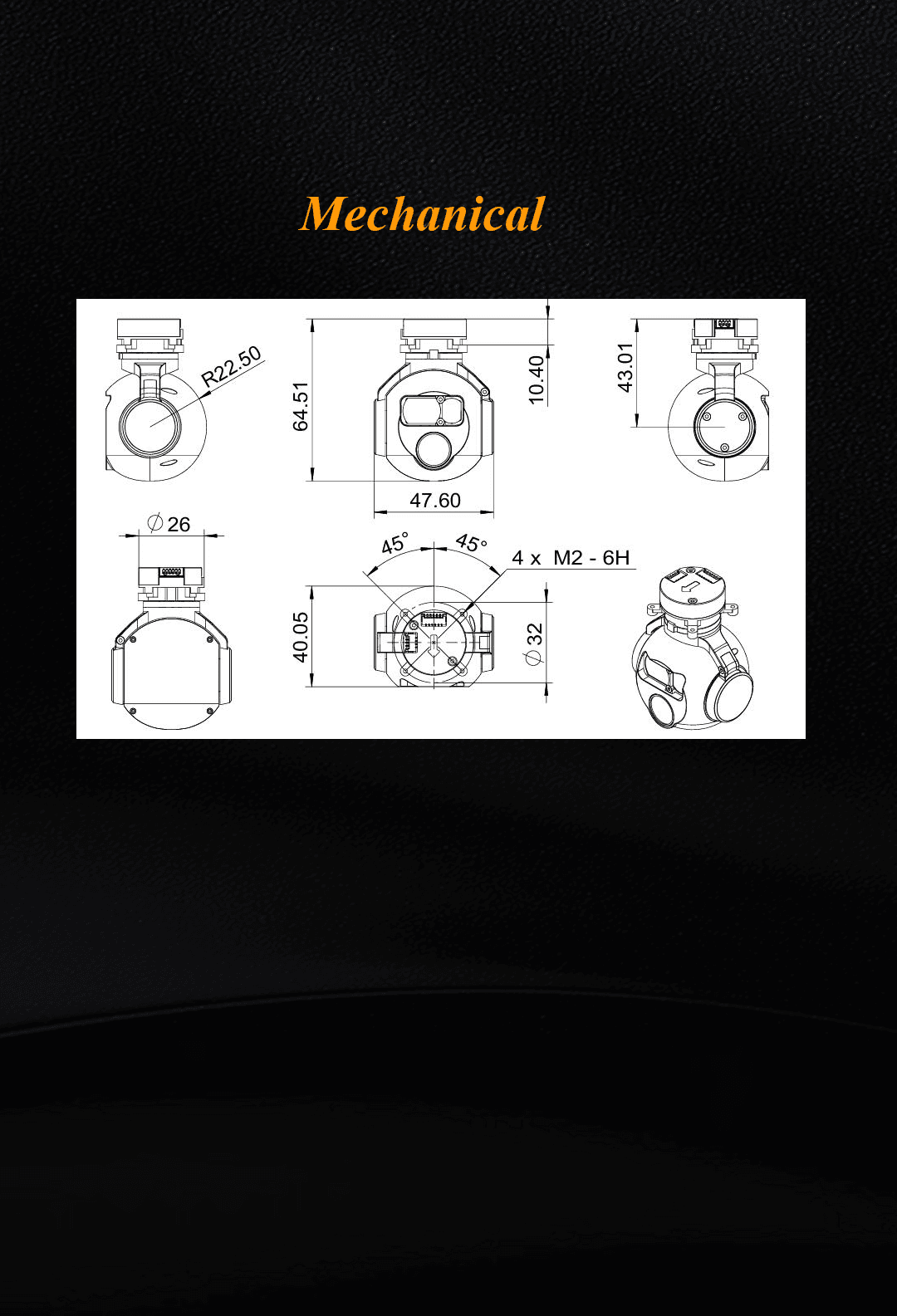

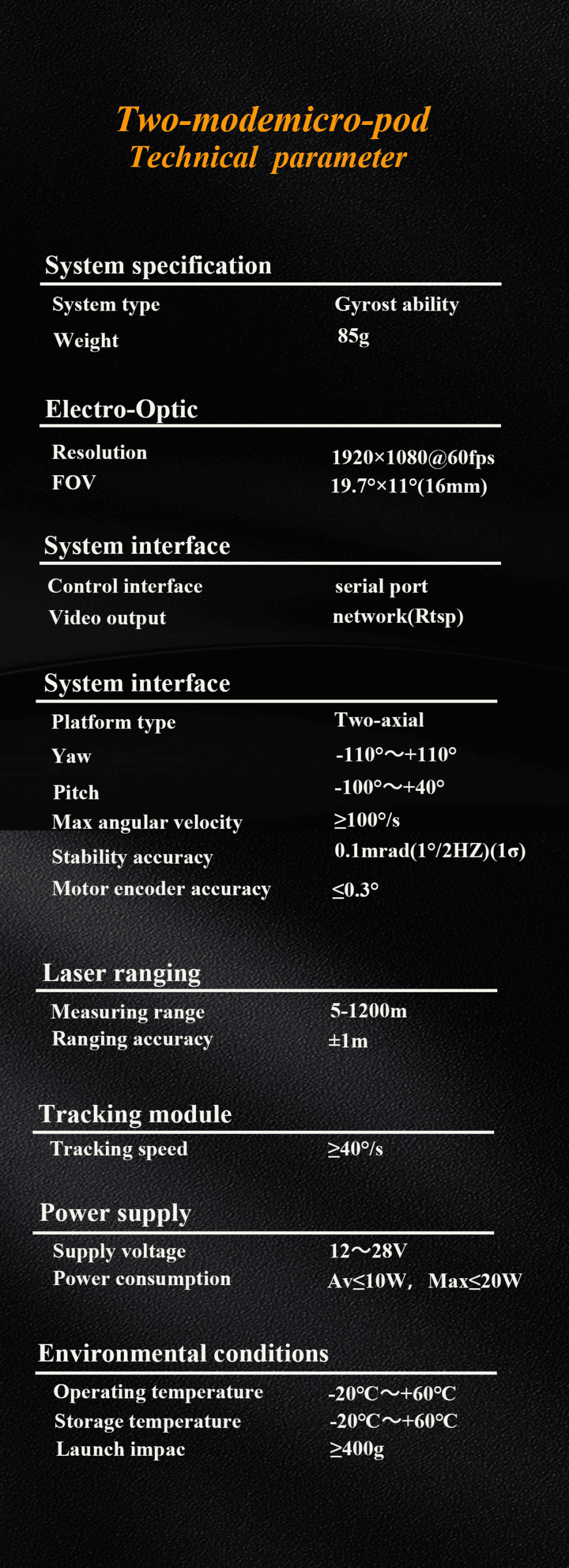

| Parameter | Specification |
|---|---|
| System Type | Gyro-stabilized |
| Weight | 85 g |
| Resolution | 1920×1080 @ 60 fps |
| Field of View (FOV) | 19.7° × 11° (16mm lens) |
| Gimbal Type | Two‑axis (Pitch & Yaw) |
| Yaw Range | -110° ~ +110° |
| Pitch Range | -100° ~ +40° |
| Max Angular Velocity | ≥ 100°/s |
| Stability Accuracy | 0.1 mrad (1°/2Hz, 1σ) |
| Angular Position Accuracy | ≤ 0.3° |
| Laser Ranging Range | 5 ~ 1200 m |
| Ranging Accuracy | ±1 m |
| Tracking Speed | ≥ 40°/s |
| Control Interface | Serial Port |
| Supply Voltage | 12 ~ 28 V |
| Power Consumption | Avg ≤ 10 W, Max ≤ 20 W |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
| Launch Impact | ≥ 400 g |
1. Features & applications

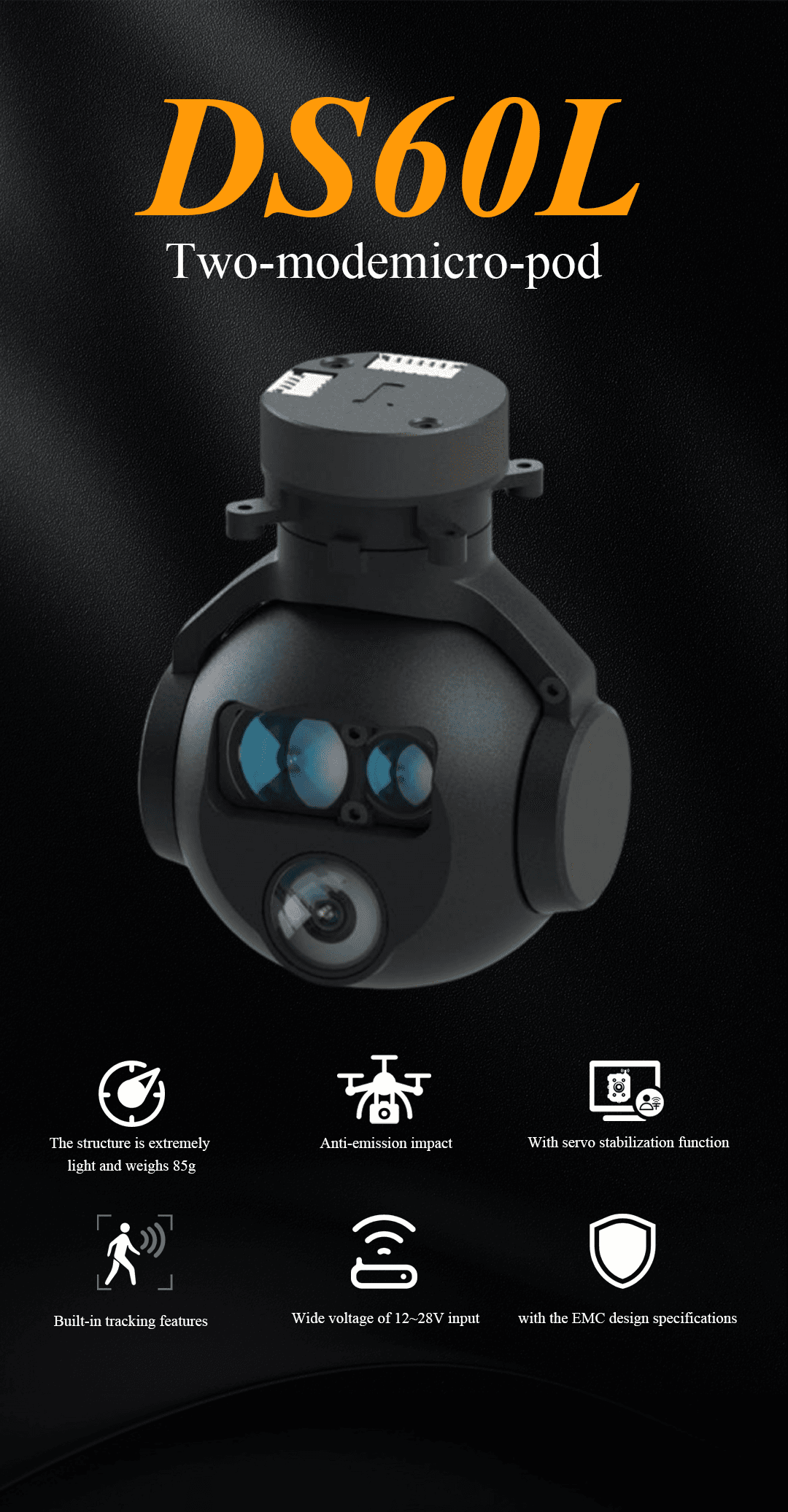

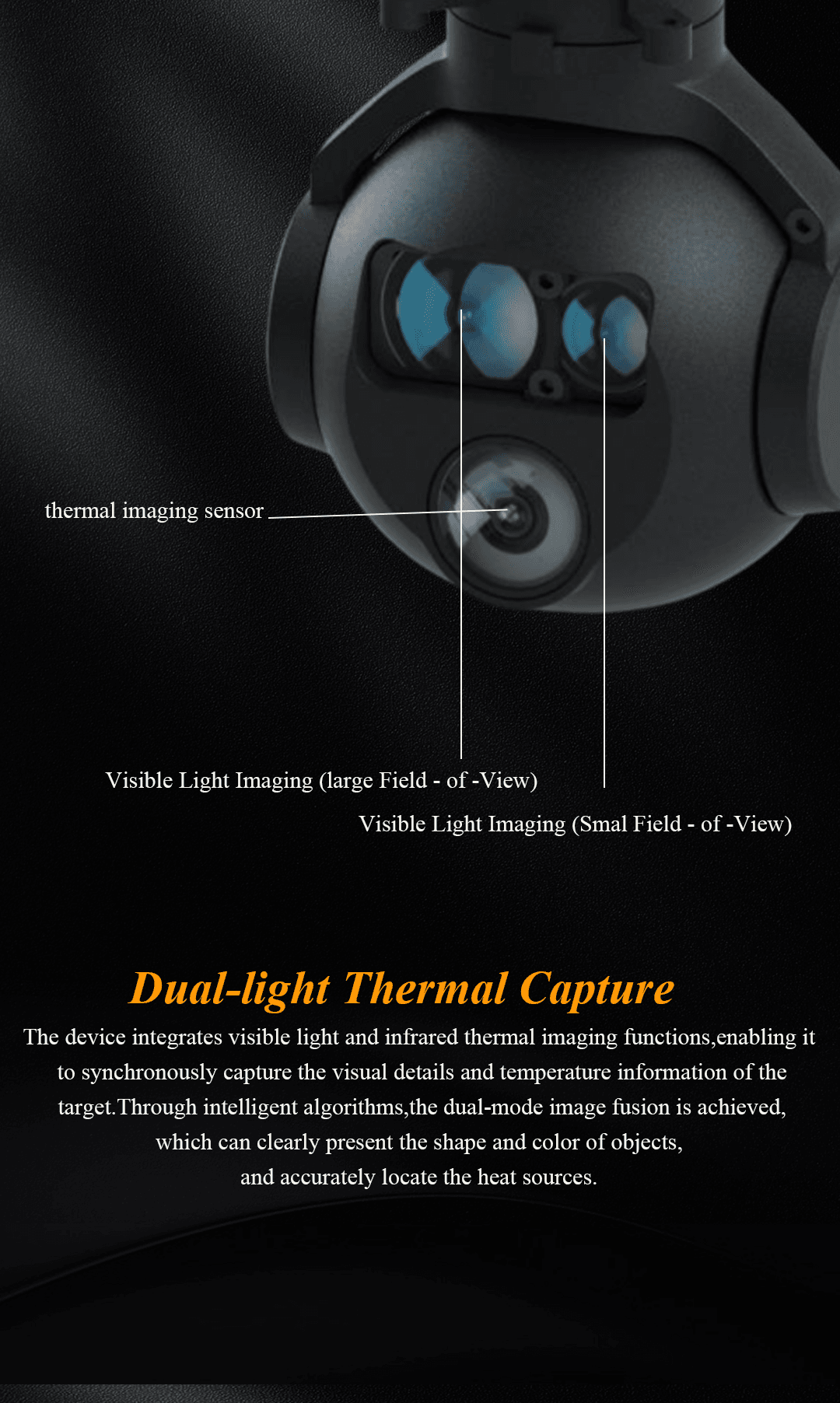

The DS60L Lynx-H is an ultra-lightweight electro-optical gimbal that integrates visible-light imaging, laser ranging, and two-axis stabilization. Weighing only 85g and supporting a wide voltage input of 12~28V, it features exceptional launch impact resistance (≥400g) and meets EMC design specifications. Ideal for UAV mounting, handheld observation, and vehicle-based reconnaissance, it delivers stable, high-clarity imagery along with precise target tracking and ranging even in complex environments.
2. Product Features

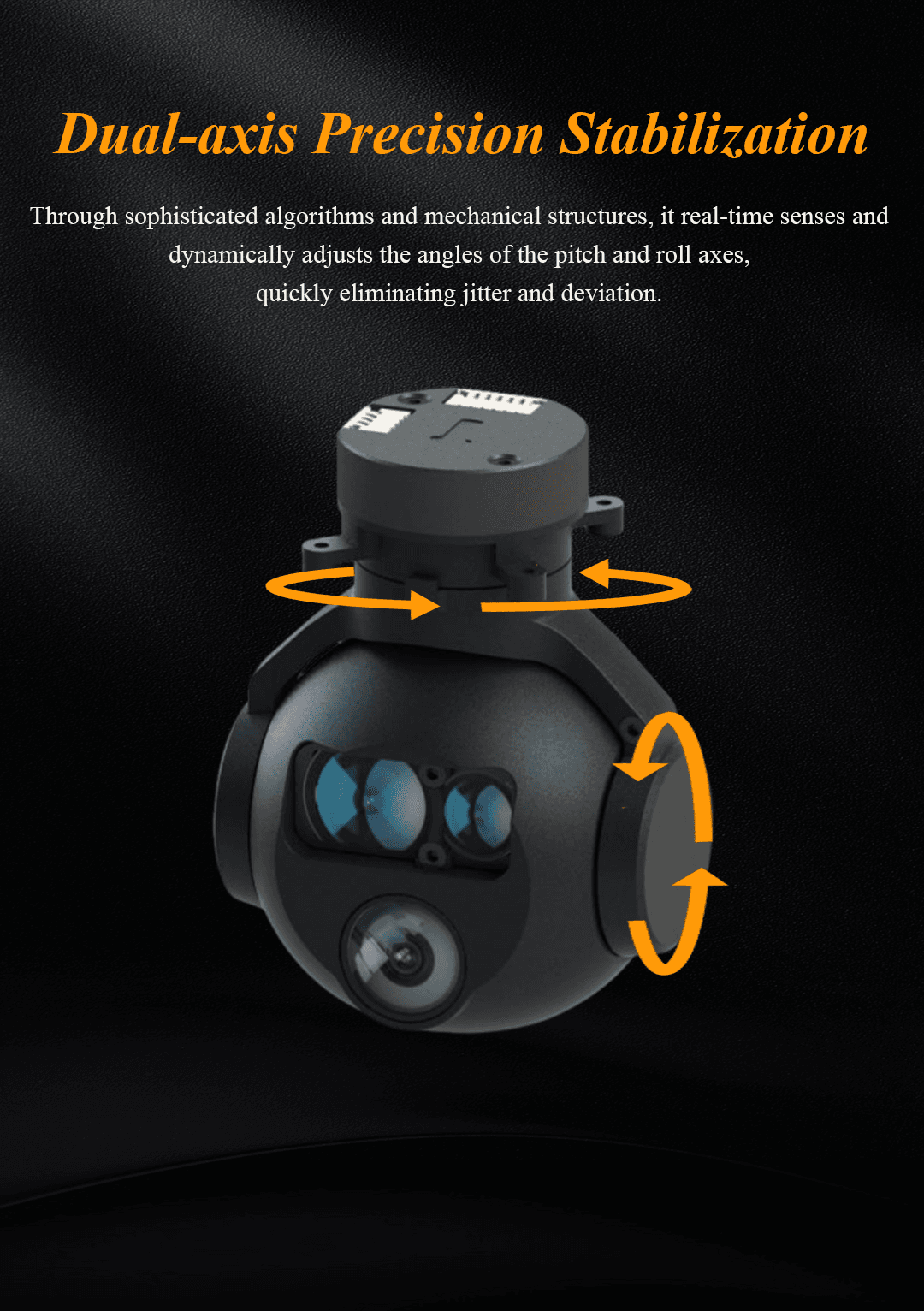

- Dual‑axis Precision Stabilization: Real‑time attitude sensing and servo control dynamically adjust pitch and yaw axes, eliminating jitter with a stabilization accuracy of 0.1 mrad.

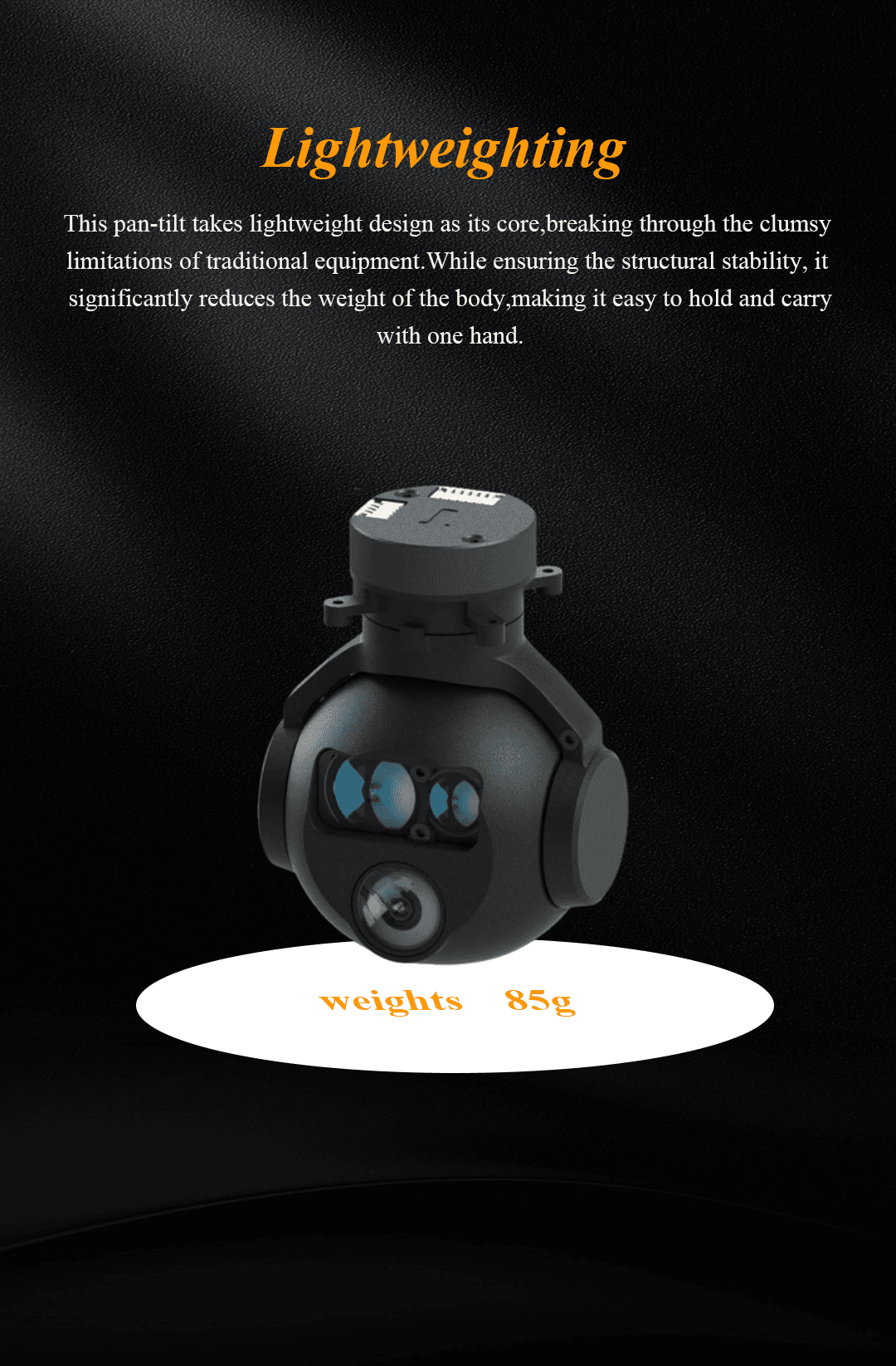

- Lightweight Design: Weighs only 85g while maintaining structural integrity, significantly improving portability and extending flight/operation time for small UAVs or handheld use.
- High‑precision Laser Ranging: Measures distances from 5 to 1200 meters with ±1m accuracy, providing real‑time range feedback for precise targeting.

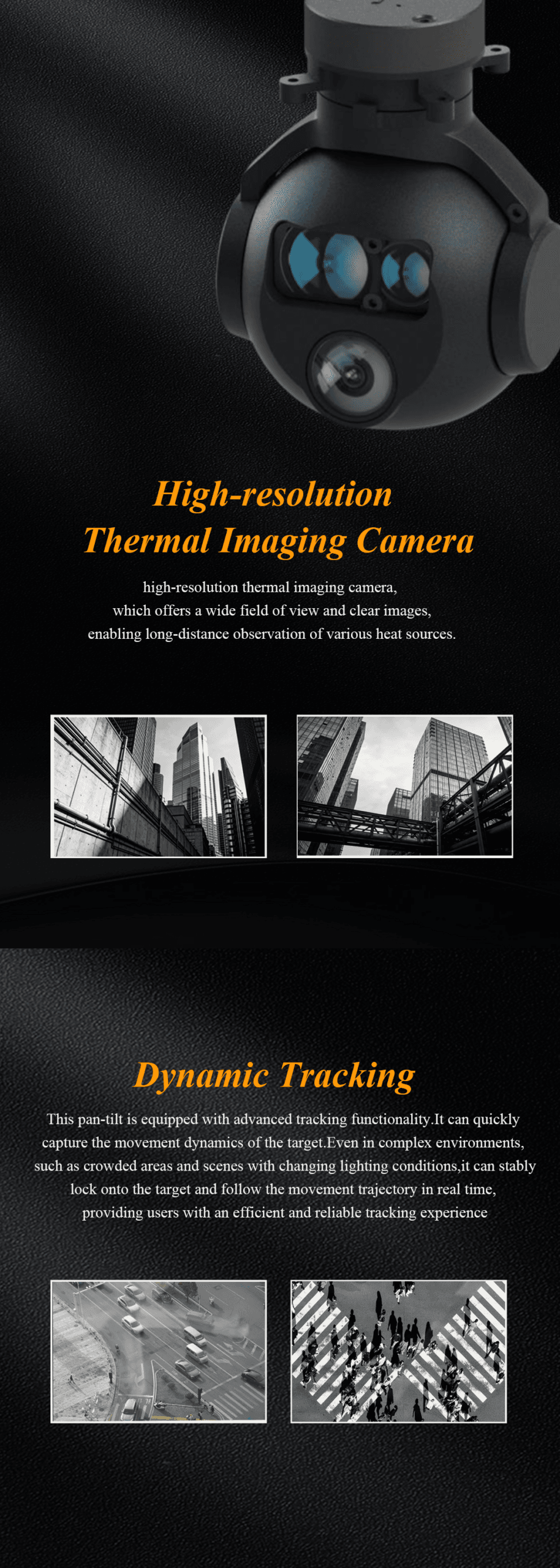

- Intelligent Dynamic Tracking: Built‑in tracking module with a tracking speed ≥40°/s locks onto and follows moving targets even in crowded scenes or variable lighting conditions.
- Wide Voltage & High Shock Resistance: Accepts 12–28V input for versatile platform integration and withstands launch shocks ≥400g, ensuring reliable operation in demanding environments.
3. Application Scenarios
- UAV‑mounted Reconnaissance: Ideal for border patrol, search and rescue, and power line inspection — delivers long‑distance dual‑band observation and real‑time tracking on compact drones.
- Handheld Portable Observation: At just 85g, easily integrates into handheld devices for dismounted soldiers or field operators to identify targets and obtain range data in challenging lighting.
- Vehicle / Robot Platform: Enhances security patrols, unmanned bomb disposal, and environmental monitoring with stable imaging and continuous target tracking on mobile ground platforms.
- Target Drone & Launch Platform: Withstands launch shocks ≥400g, ensuring reliable stabilization, imaging, and ranging during high‑speed maneuvers on target drones or projectile platforms.
