DS60 ≤100 g Two-Axis Dual-Sensor Pod | FHD EO + 640×512/50 fps IR
DS60 combines 1920×1080/60 fps visible video and 640×512/50 fps thermal imaging in a ≤100 g two-axis UAV pod. Its 32.9°×26.6° thermal view, dynamic target tracking and ≥100°/s maximum angular velocity support responsive day and night observation. Gyro stabilization, a metal enclosure and EMC shielding suit compact airborne integration. The payload accepts 12–28 V and operates from -20 to +60°C.
- Pitch: -110° ~ +110°; Roll: -100° ~ +40°
- ≥100°/s
- ≤100 g
- 640×512@50fps
- Av≤10W, Max≤20W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.

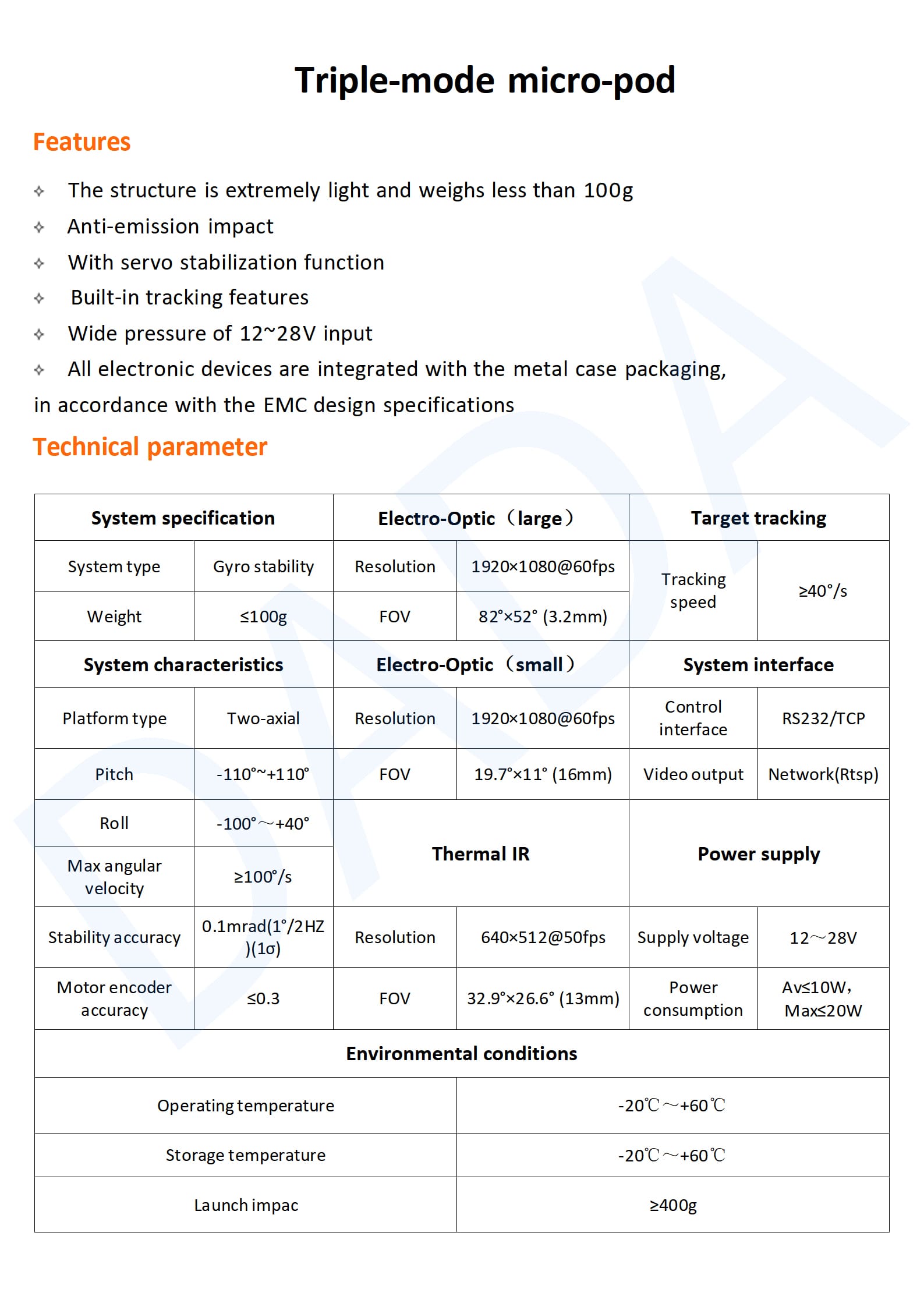

Core specifications
Technical data
| Parameter | Specification |
|---|---|
| System Type | Gyro Stability |
| Weight | ≤100g |
| Visible Light Imaging | 1920×1080@60fps |
| Infrared Thermal Resolution | 640×512@50fps |
| Thermal FOV | 32.9°×26.6° |
| Pan-Tilt Range | Pitch: -110° ~ +110°; Roll: -100° ~ +40° |
| Maximum Angular Velocity | ≥100°/s |
| Power Supply | 12~28V |
| Power Consumption | Av≤10W, Max≤20W |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
1. Features & applications

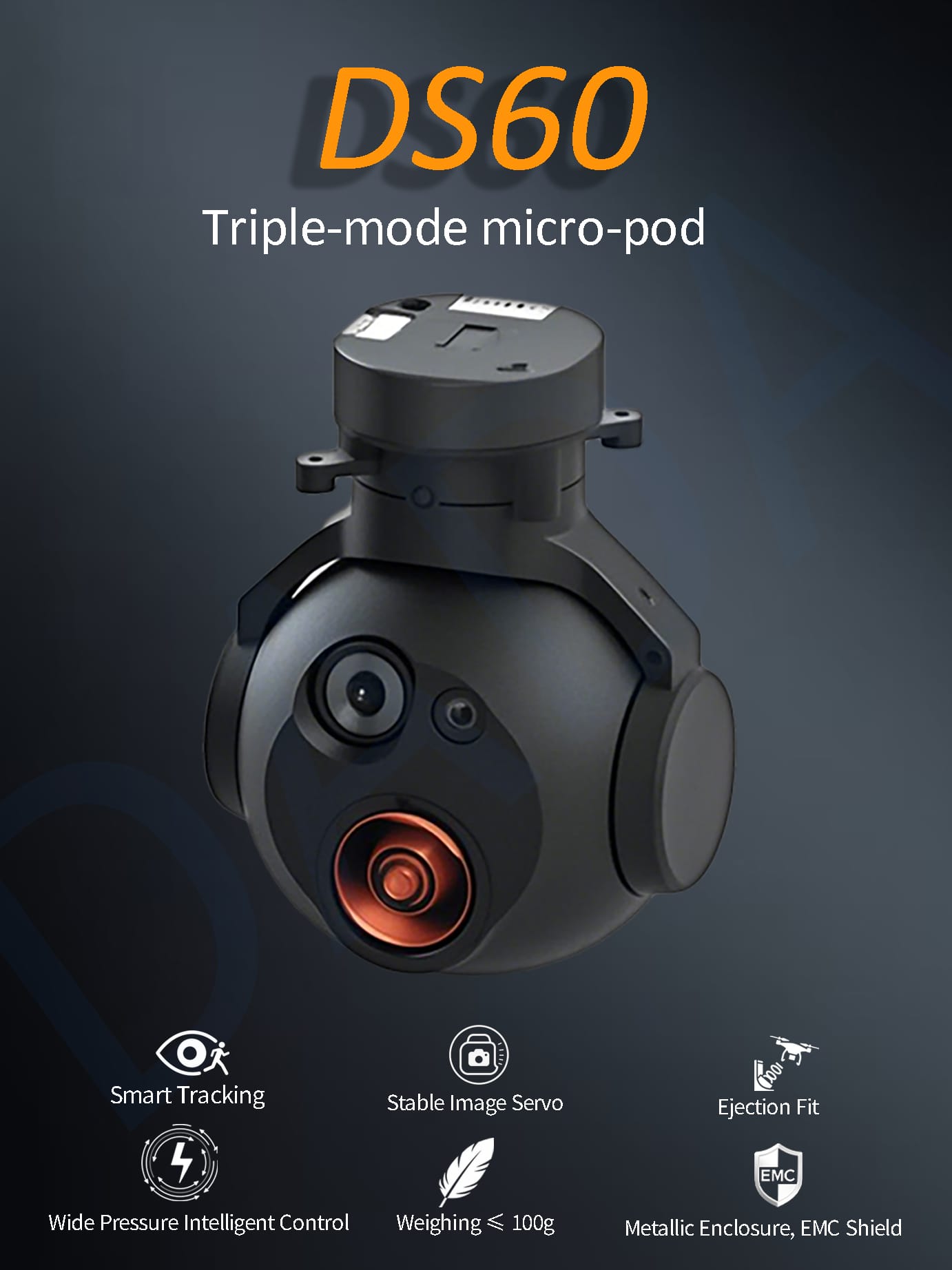

The DS60 is a compact and highly efficient triple-mode micro pod designed for versatile surveillance and monitoring. It integrates electro-optic, infrared thermal, and target tracking capabilities in one lightweight unit. With advanced dynamic tracking, dual-axis precision stabilization, and 640 thermal imaging, the DS60 is perfect for high-performance environments requiring real-time, high-definition visual data.
2. Product Features

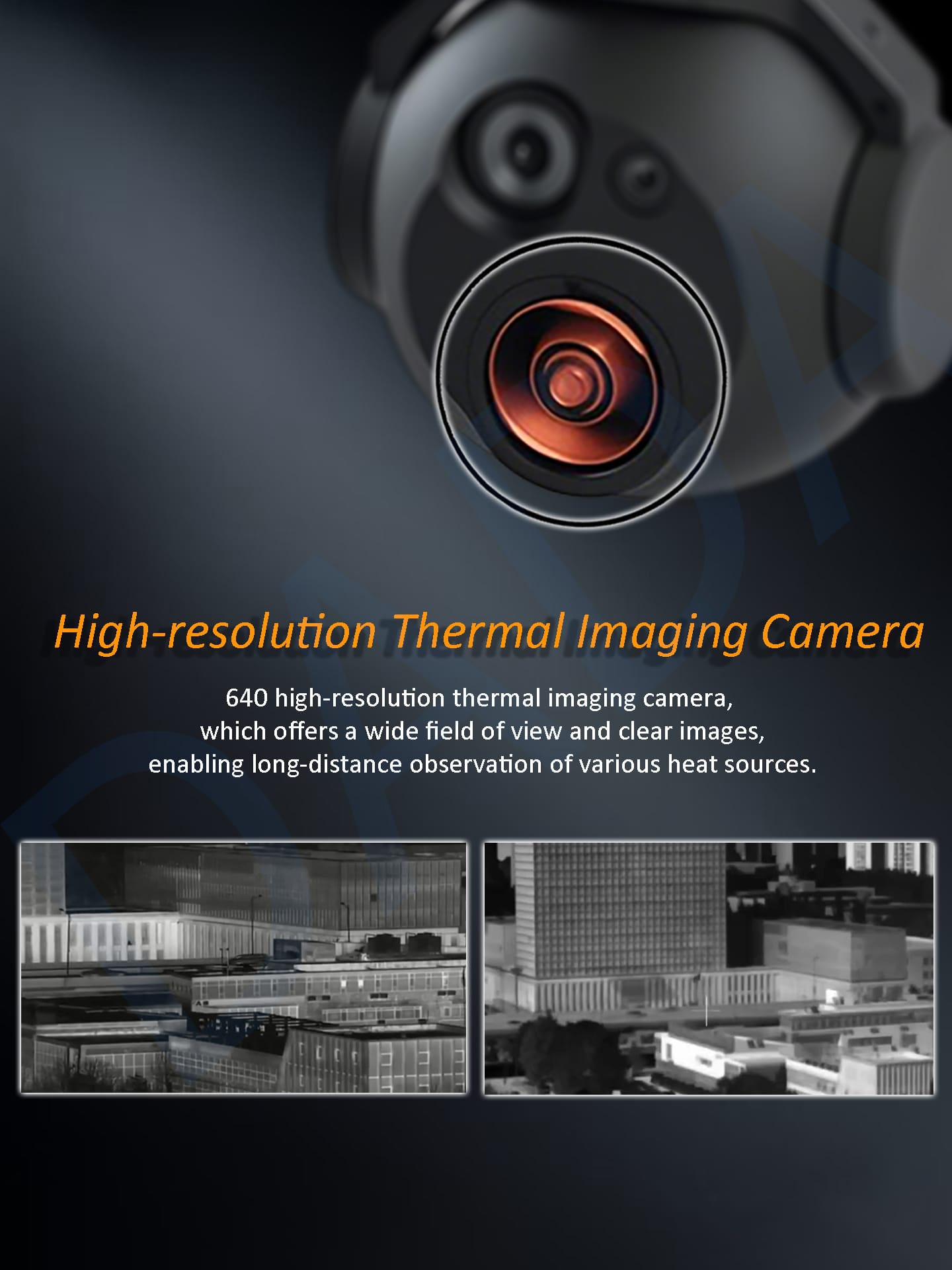

- High-resolution Thermal Imaging: Equipped with a 640x512 thermal imaging sensor that captures clear, long-distance heat source data, providing excellent all-weather performance.

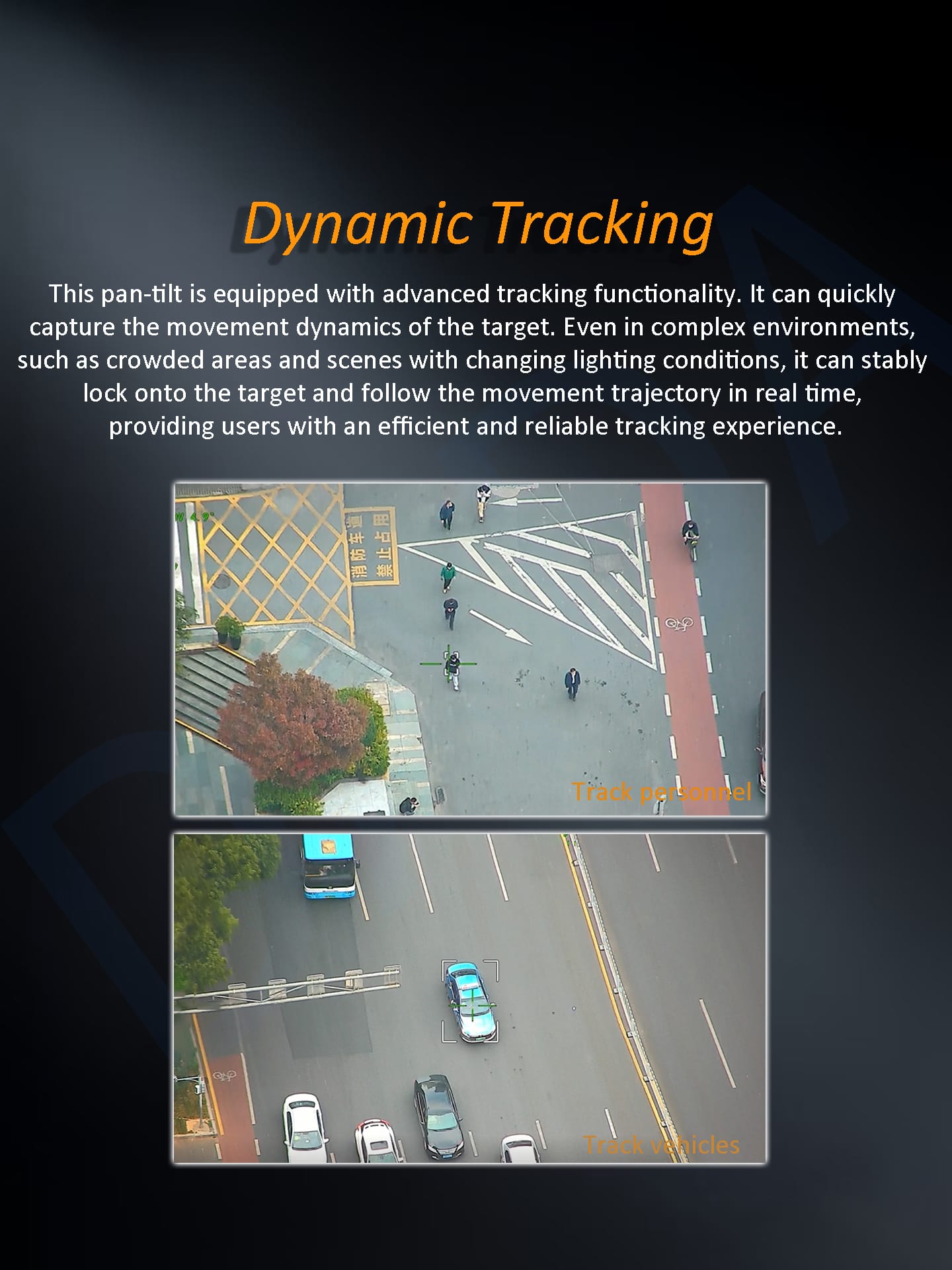

- Dynamic Tracking: Advanced tracking system that ensures the pod can lock onto and follow targets in real-time, even in complex, low-light environments.

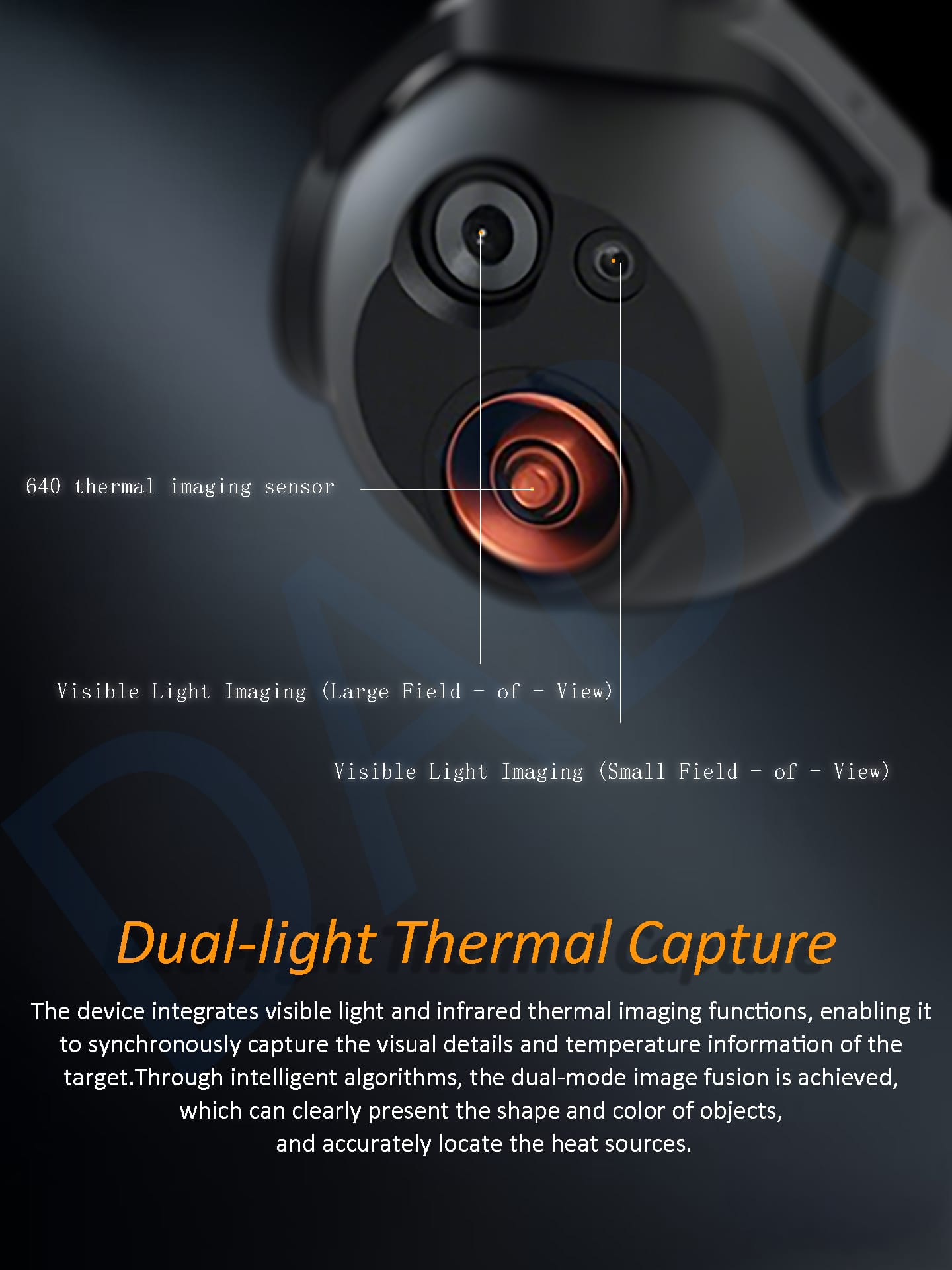

- Dual-light Thermal Capture: Integrates both visible light and infrared thermal imaging to present detailed visual and temperature information for accurate target identification and location.

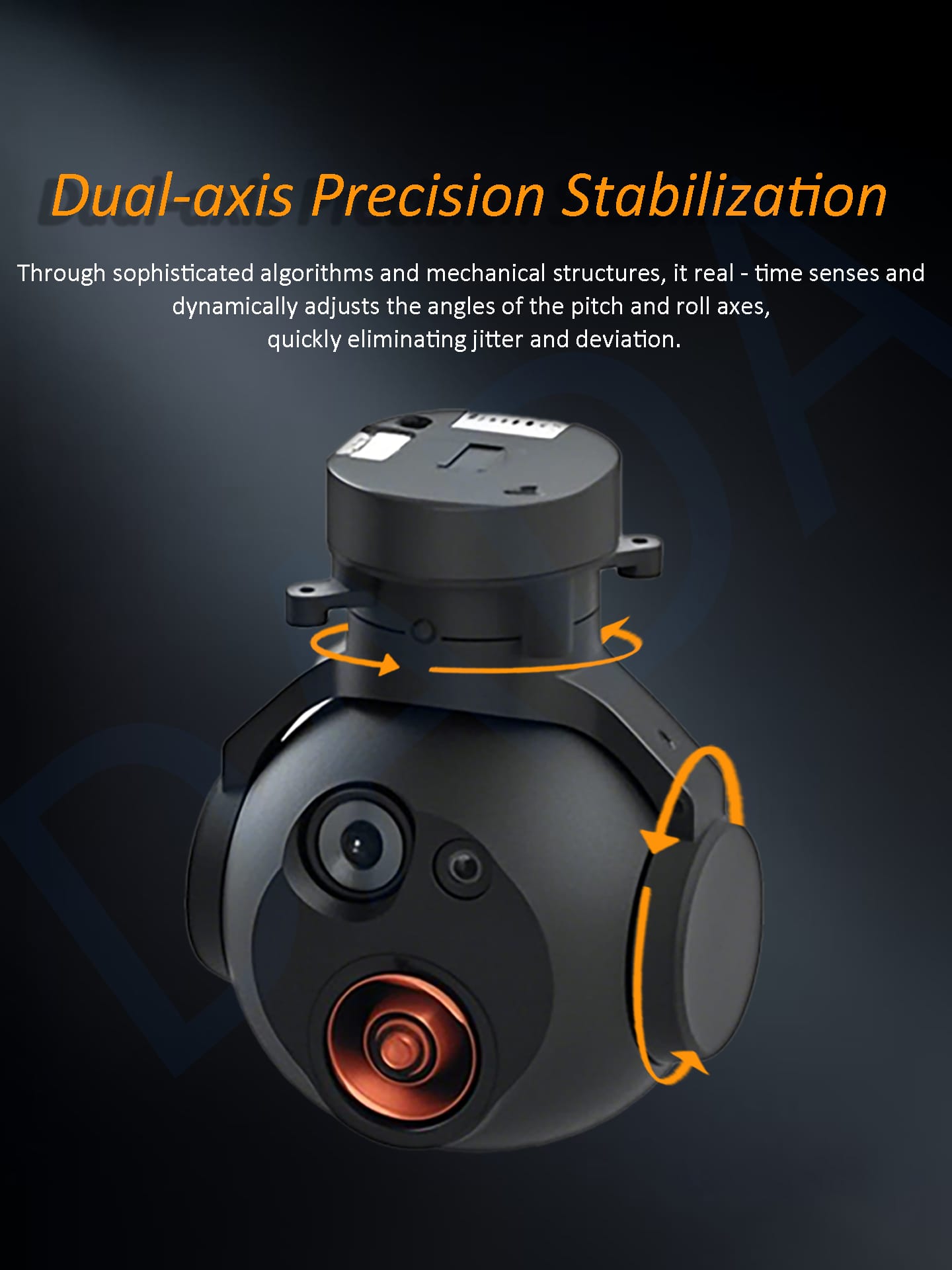

- Dual-axis Precision Stabilization: Real-time dynamic adjustments of the pitch and roll axes ensure stable footage, effectively eliminating jitter and maintaining high-quality imaging in movement-heavy scenarios.

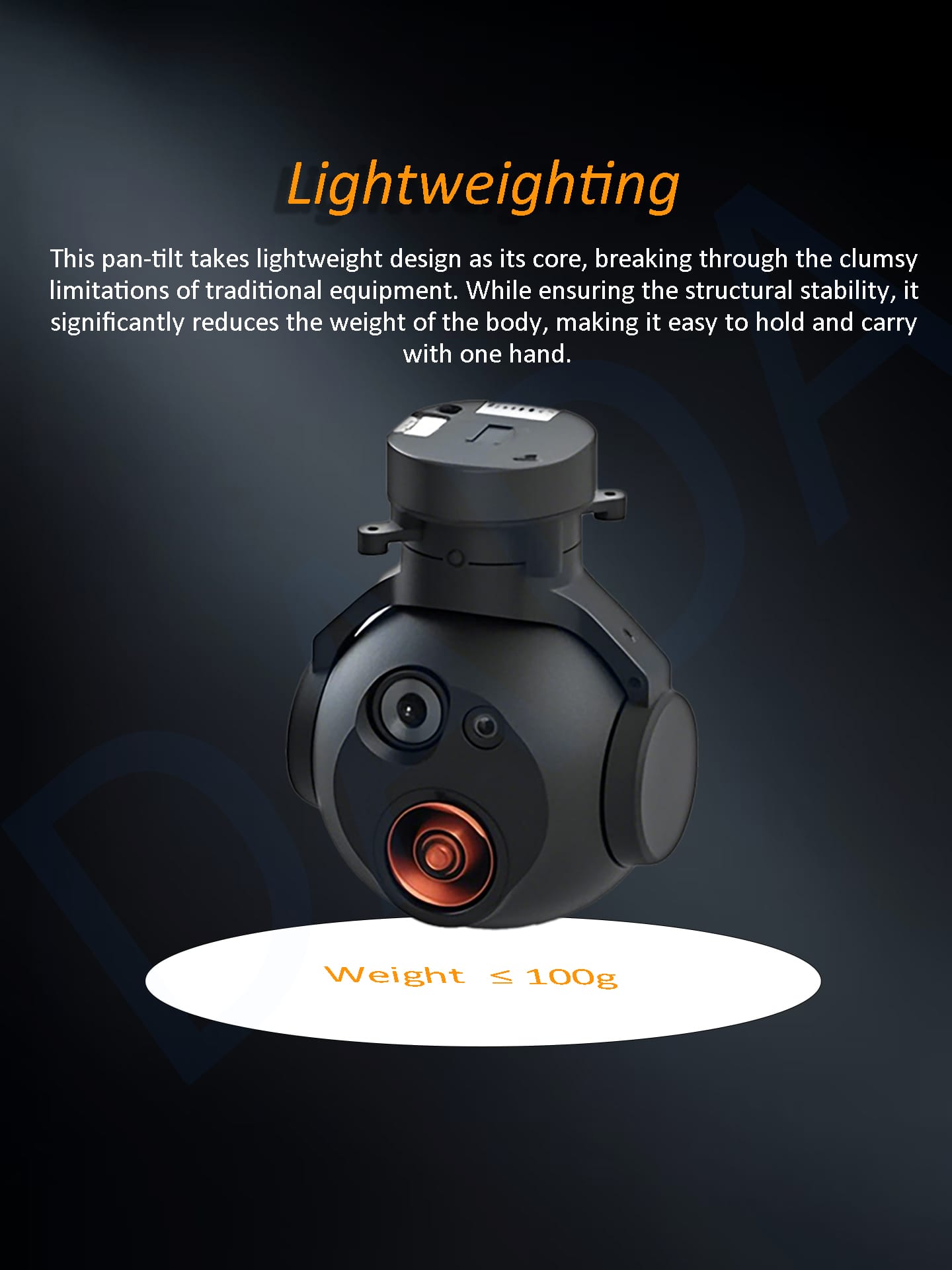

- Lightweight Design: With a weight of ≤100g, the DS60 is incredibly portable, making it easy to handle and deploy in diverse applications.
- EMC Shield and Metallic Enclosure: Provides durability and resilience against external interference, ensuring consistent performance in a wide range of environments.
3. Application Scenarios
- Surveillance and Security: The DS60 is ideal for monitoring critical infrastructure, high-traffic areas, or large outdoor zones, providing real-time data to security teams.
- Search and Rescue: With its thermal imaging and precise tracking, the DS60 is invaluable in locating individuals in search and rescue operations, even in low-visibility conditions.
- Autonomous Systems: The DS60 supports autonomous vehicles, drones, and robotic systems that require accurate environmental sensing and tracking for navigation and decision-making.
- Industrial Applications: The pod can be applied in various industrial sectors, including surveillance of warehouses, factories, or critical monitoring of equipment through its infrared thermal imaging capabilities.
