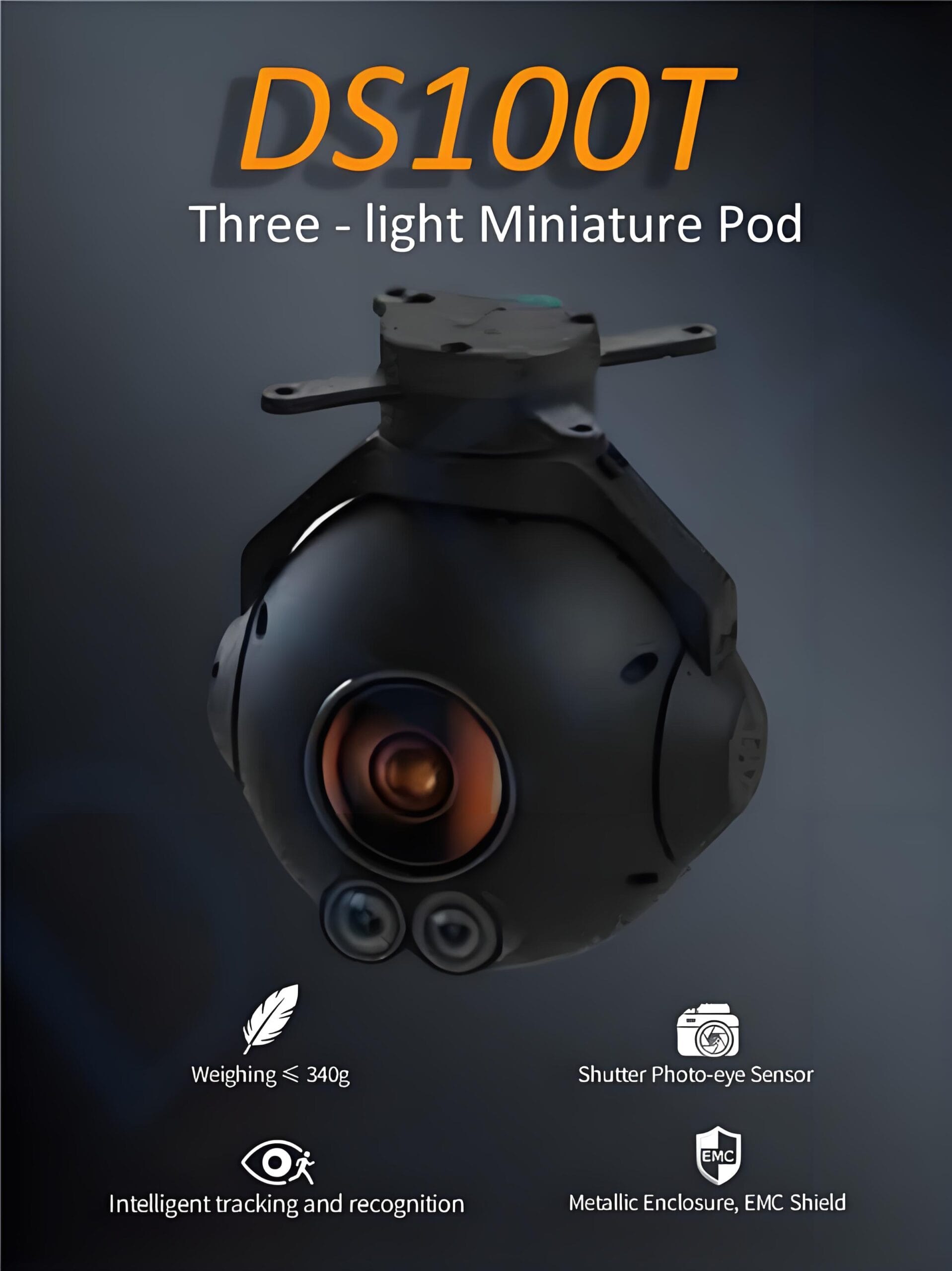

DS100T Three-light Miniature Pod

Name: DS100T Three-light Miniature Pod
Brand: UAVAUTO
SKU: DS100T
Price: 999 USD
Availability: InStock

SKU:DS100T

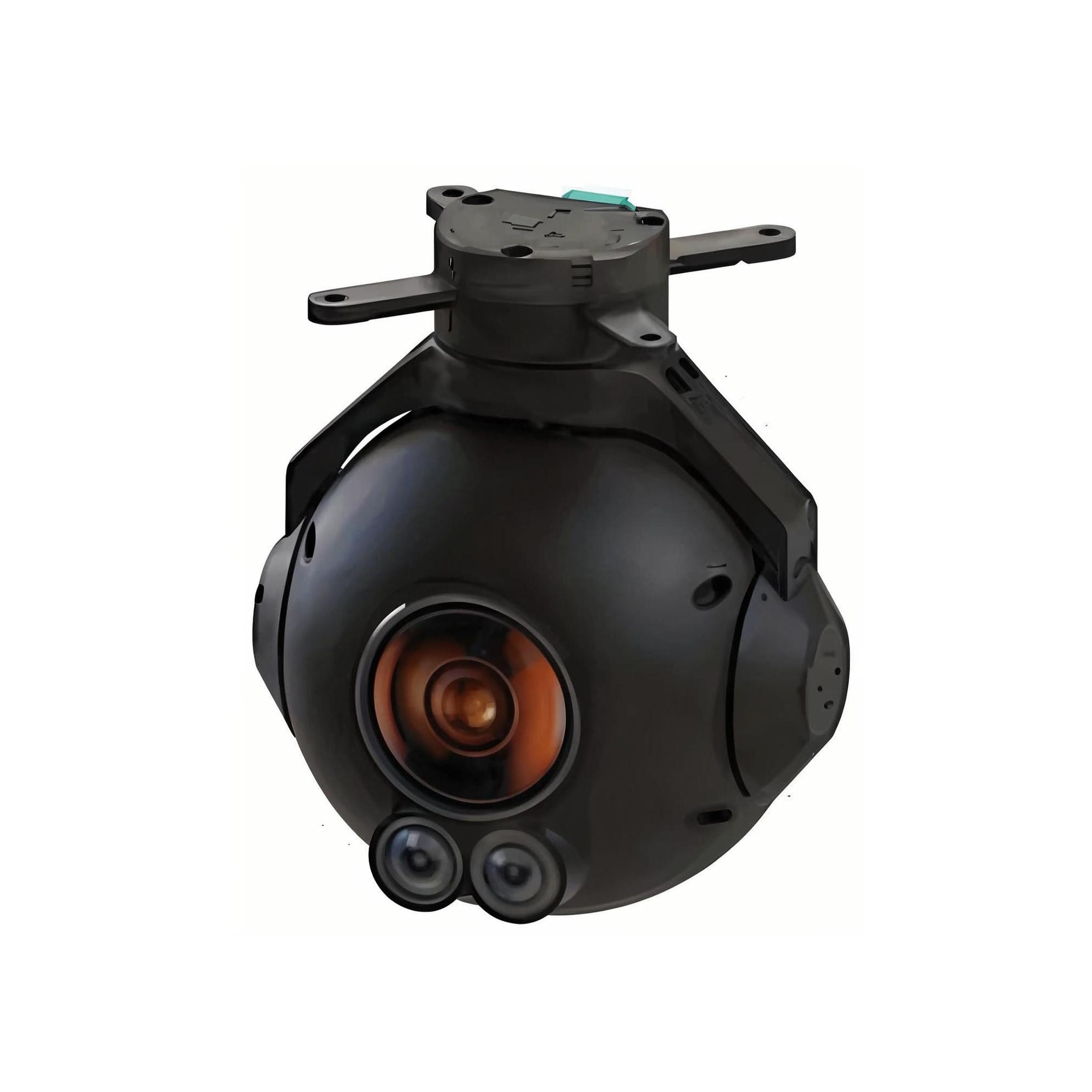

The DS100T Three-light Miniature Pod is a highly advanced integrated imaging system that combines visible light and infrared thermal imaging capabilities. Designed with lightweight construction (under 340g), this device offers dual-axis precision stabilization, AI-powered tracking and recognition, and high-resolution thermal imaging. It captures both visual details and temperature information simultaneously, making it suitable for various applications including target recognition, thermal source detection, and long-distance observation.

Share on:

1. Product Overview

2. Product Features

Global Shutter Visible Light Sensor: Equipped with functions like target recognition, tracking, and image compression.

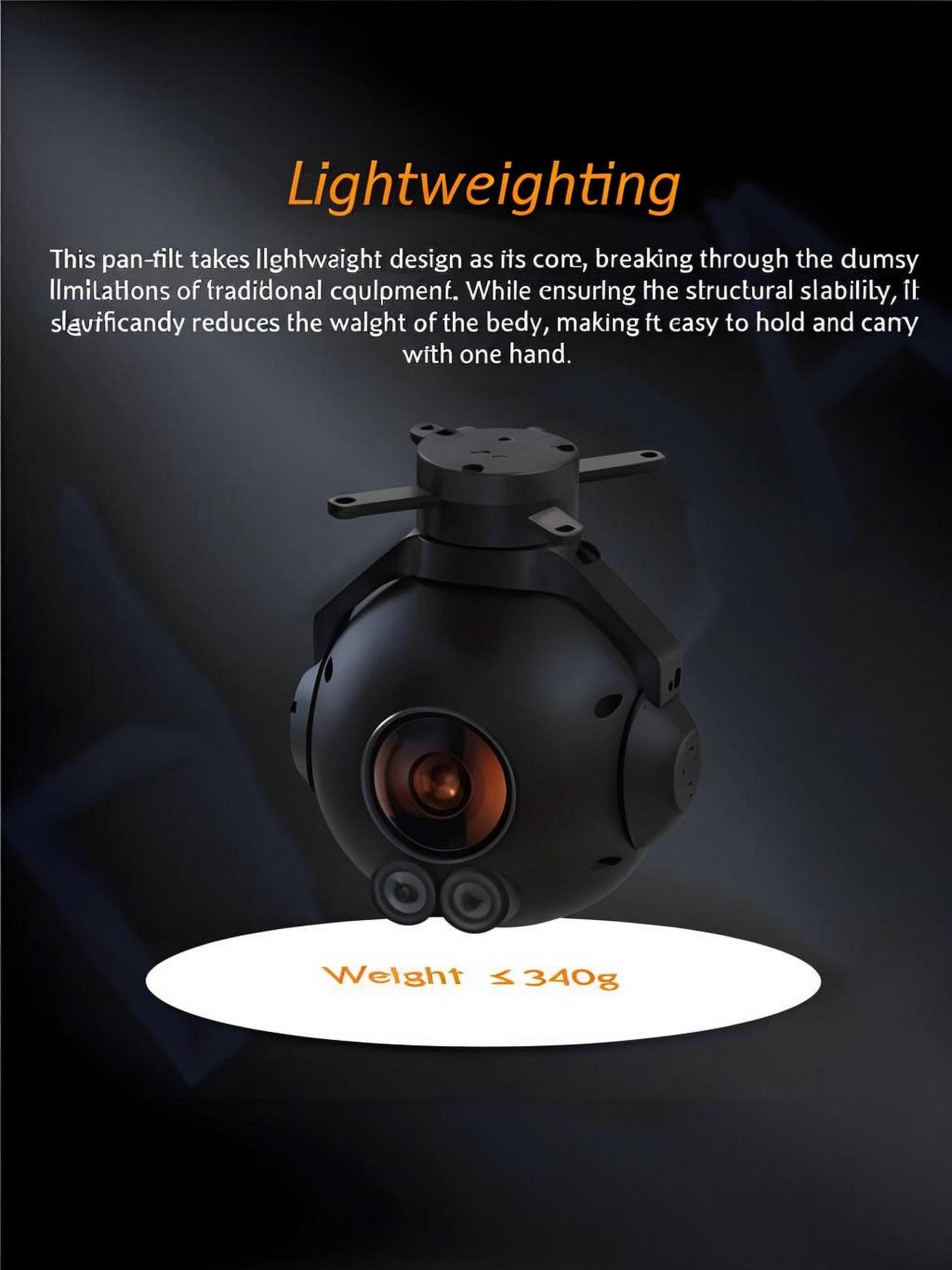

Ultra-lightweight Design: Weighs less than 340g, ensuring portability without compromising structural stability.
Metallic Enclosure with EMC Shielding: All electronic components are integrated into a metal casing that meets EMC design specifications.

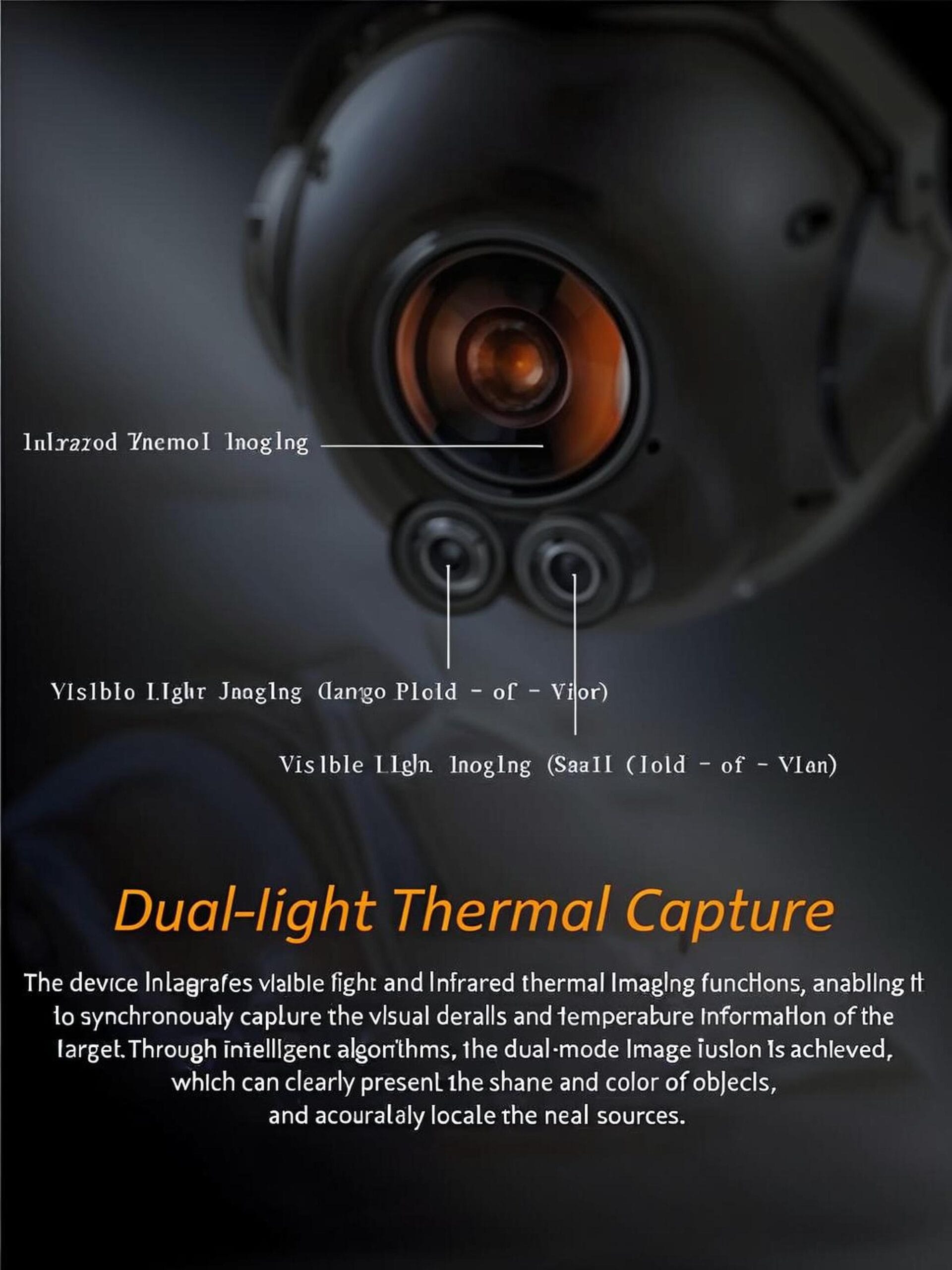

Dual-light Thermal Capture: Synchronizes visible light and infrared thermal imaging to capture both visual details and temperature data.

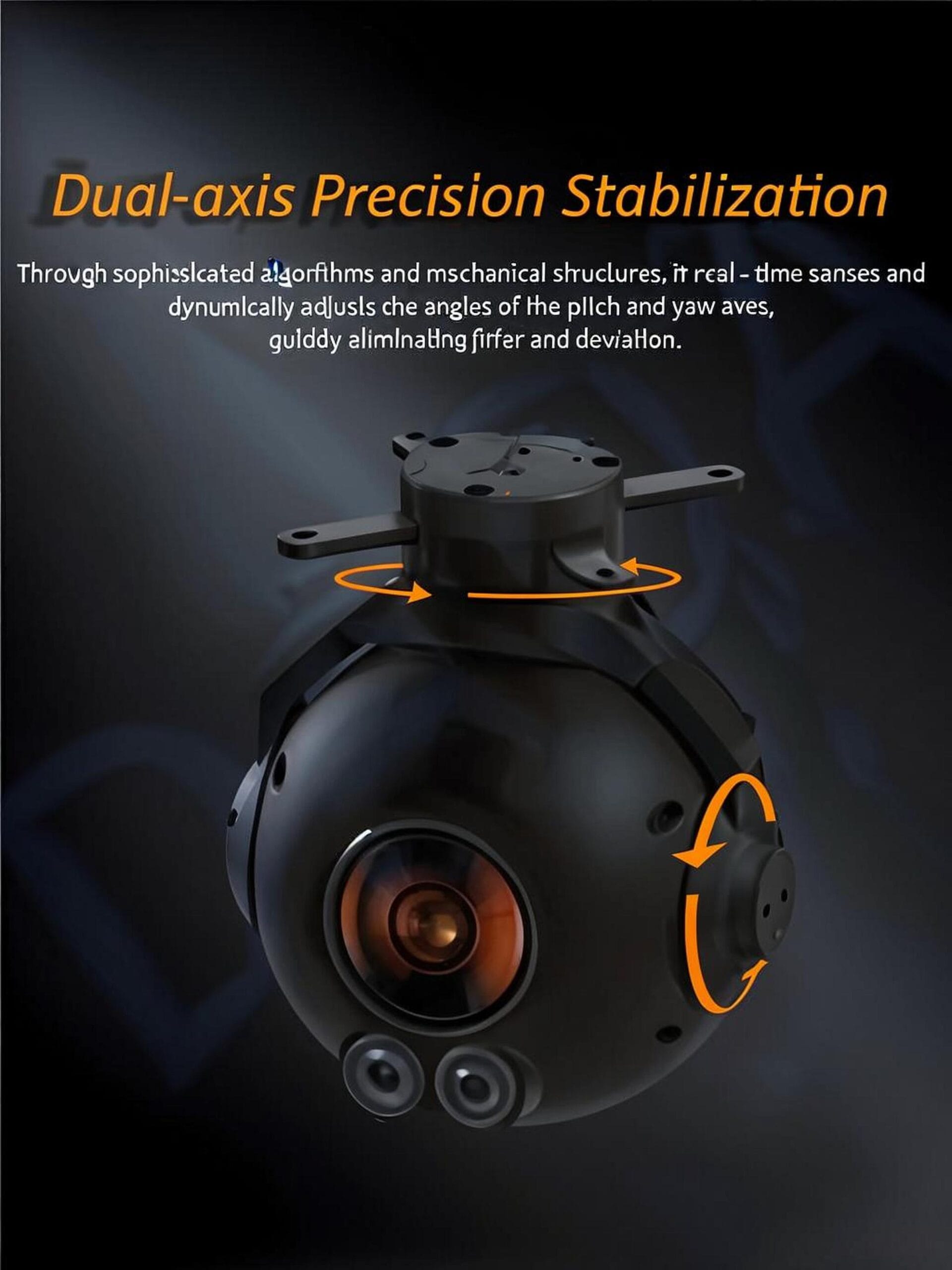

Dual-axis Stabilization: Real-time adjustment of pitch and yaw angles to eliminate shaking and deviation.

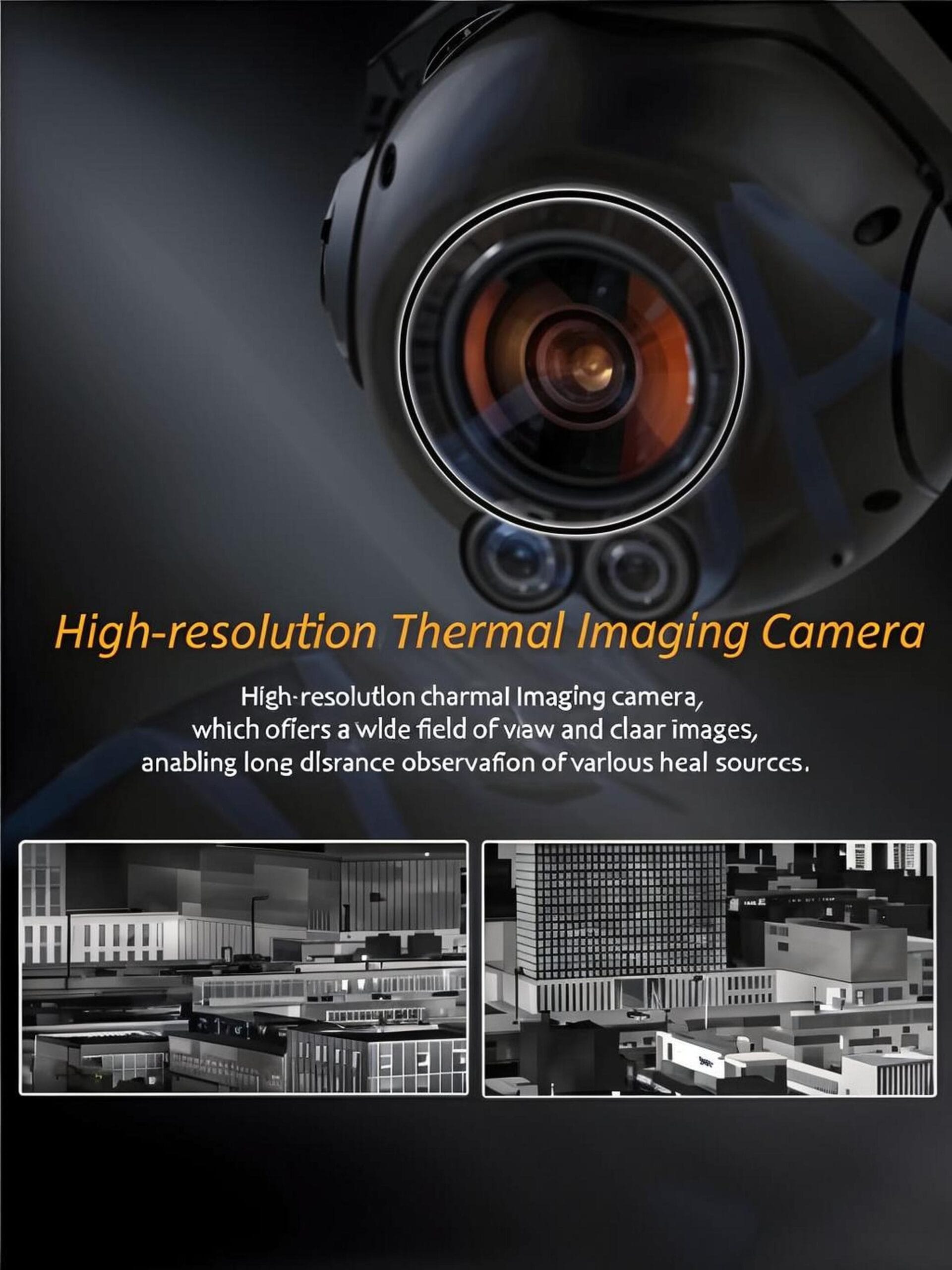

High-resolution Thermal Imaging: Provides wide field of view and clear images for long-distance heat source observation.

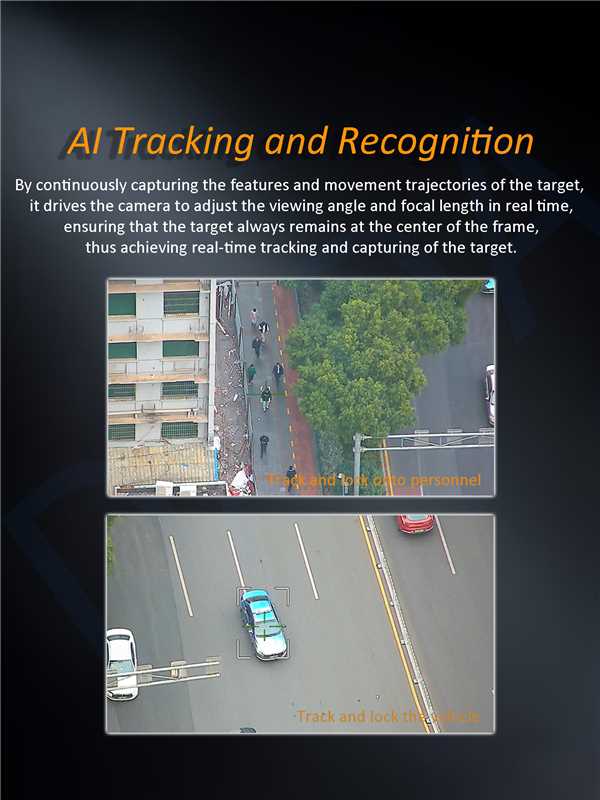

AI Tracking and Recognition: Automatically adjusts viewing angle and focal length to keep targets centered in real-time.

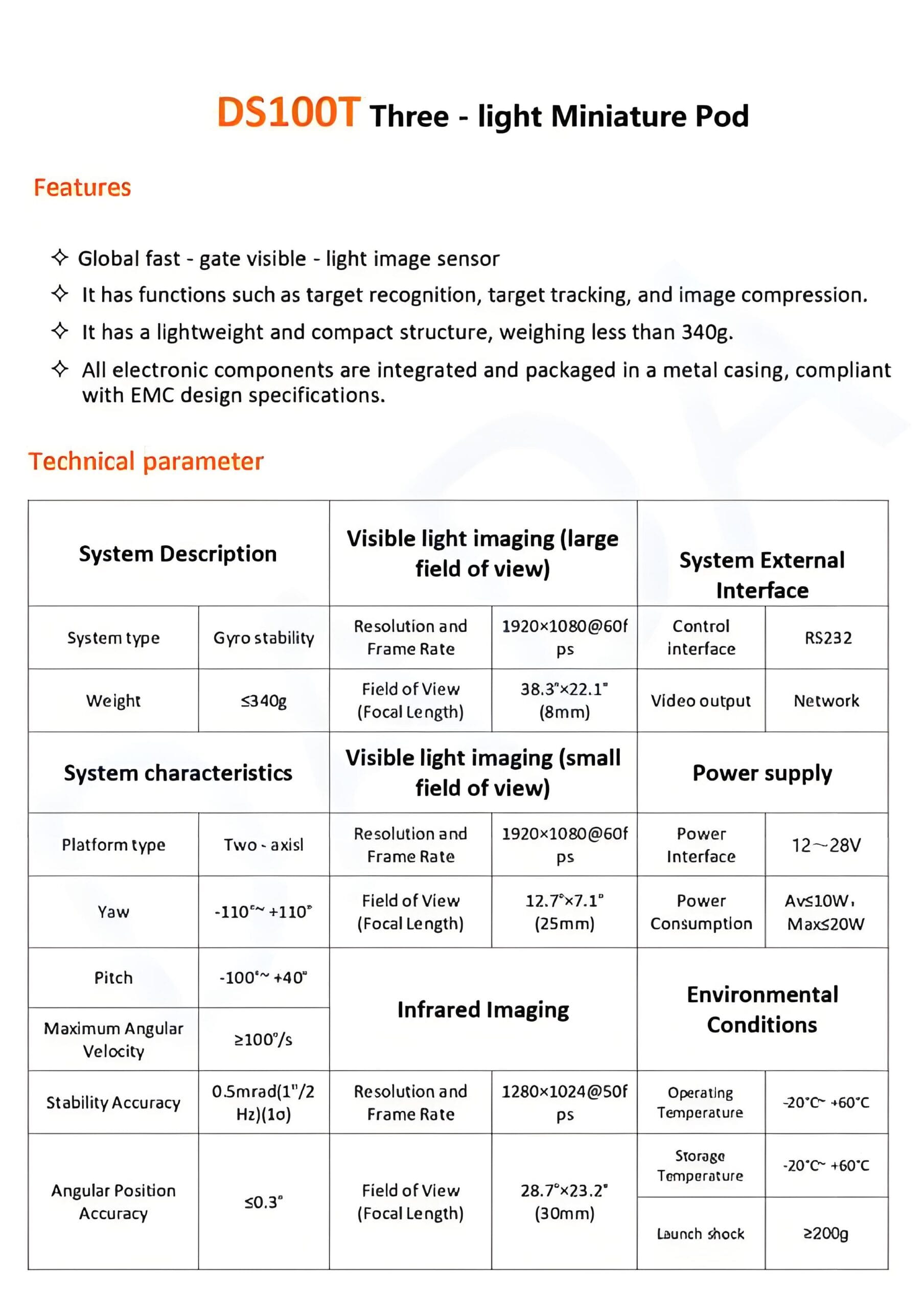

3. Detailed Technical Parameters

System Description	Visible Light Imaging (Large FOV)	Visible Light Imaging (Small FOV)	Infrared Imaging	System External Interface	Power Supply	Environmental Conditions
System Type	1920×1080@60fps	1920×1080@60fps	1280×1024@50fps	RS232	12~28V	Operating Temperature: -20℃~+60℃ Storage Temperature: -20℃~+60℃
Gyro Stability	Field of View: 38.3°×22.1° (8mm)	Field of View: 12.7°×7.1° (25mm)	Field of View: 28.7°×23.2° (30mm)	Network Video Output	Avg 10W, Max 20W	Launch Shock: ≥200g
Weight	≤340g
Platform Type	Two-axis
Yaw	-110°~+110°
Pitch	-100°~+40°
Maximum Angular Velocity	≥100°/s
Stability Accuracy	0.5mrad(1°/2Hz)(1σ)
Angular Position Accuracy	≤0.3°

4. Application Scenarios

Target Recognition and Tracking: Ideal for surveillance and security applications where real-time target identification and tracking are critical. The AI-powered system ensures targets remain centered in the frame.
Heat Source Detection: Perfect for firefighting, rescue operations, and industrial inspections. The thermal imaging capability allows for precise location of heat sources from a safe distance.
Long-distance Observation: Suitable for border patrol, wildlife monitoring, and other scenarios requiring observation of distant objects. The high-resolution imaging provides clear details even at extended ranges.
Thermal Analysis: Beneficial for building inspections, energy audits, and preventive maintenance. The device can detect temperature variations to identify potential issues before they become critical.
