D13 5 MP EO / 640×512 Thermal Pod | 1 km Laser Ranging

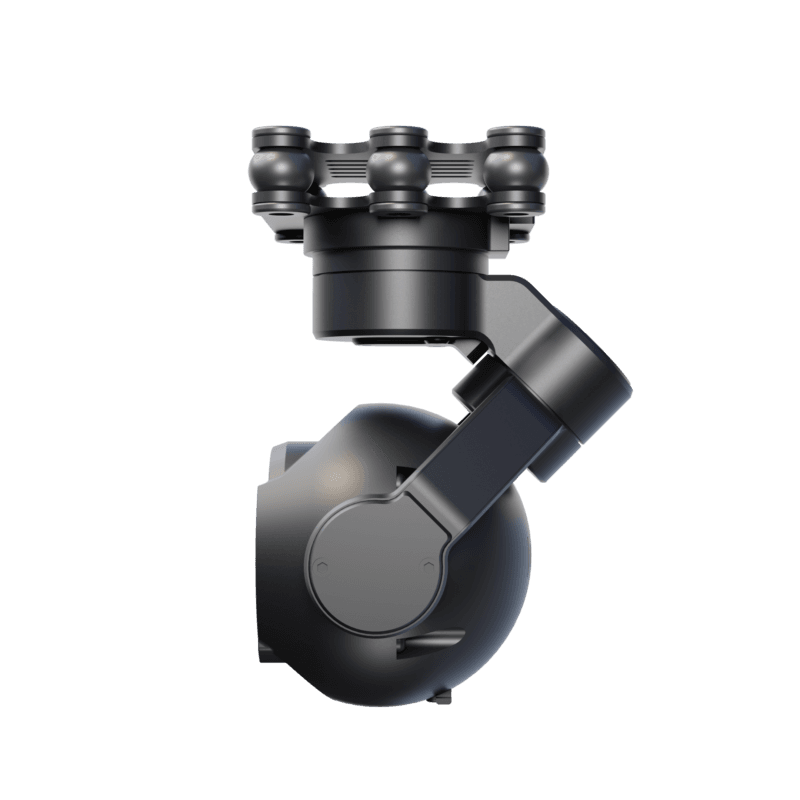

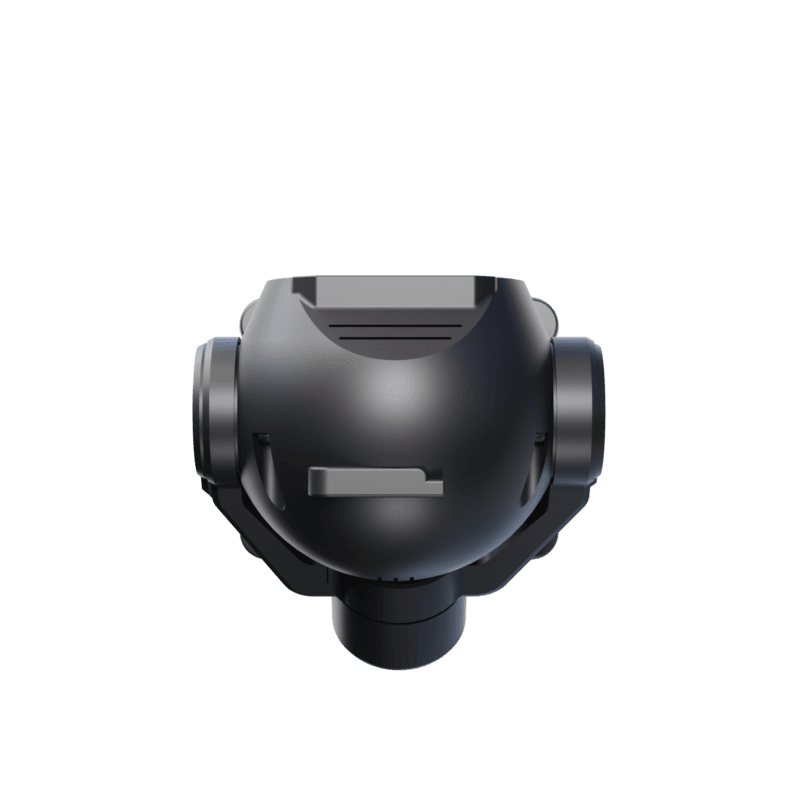

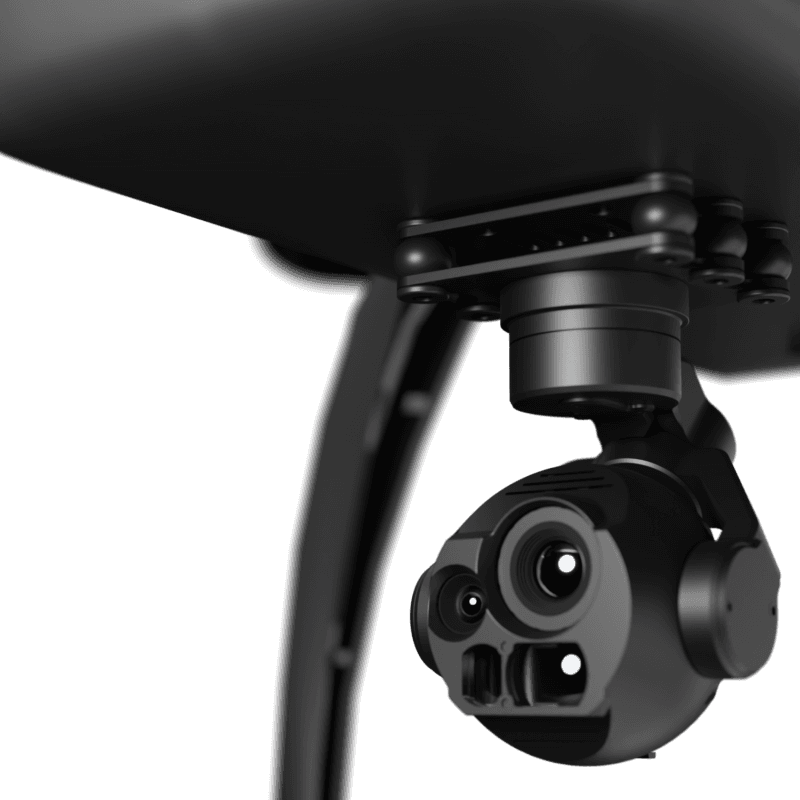

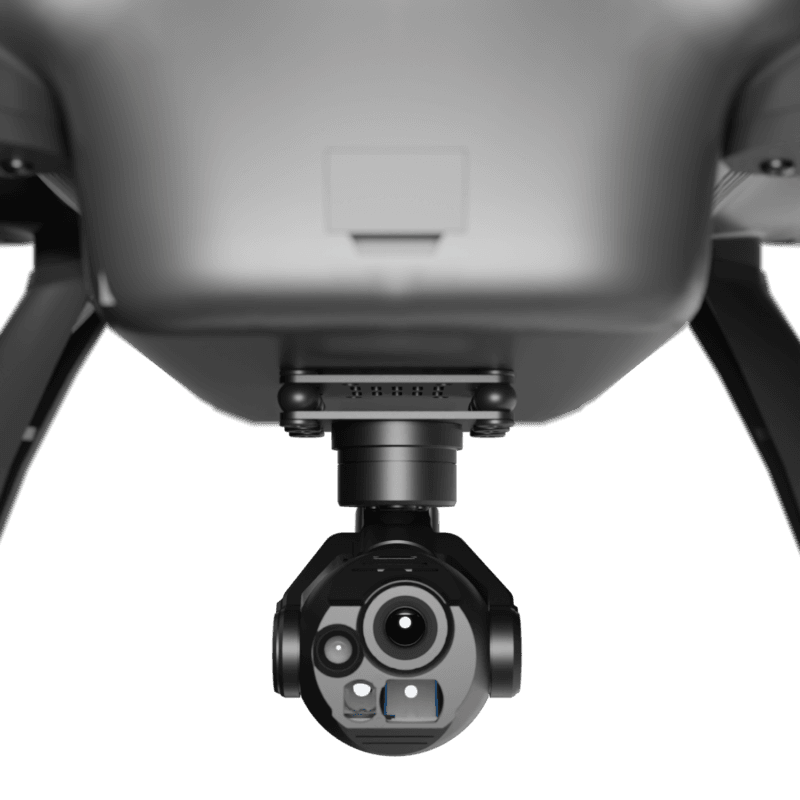

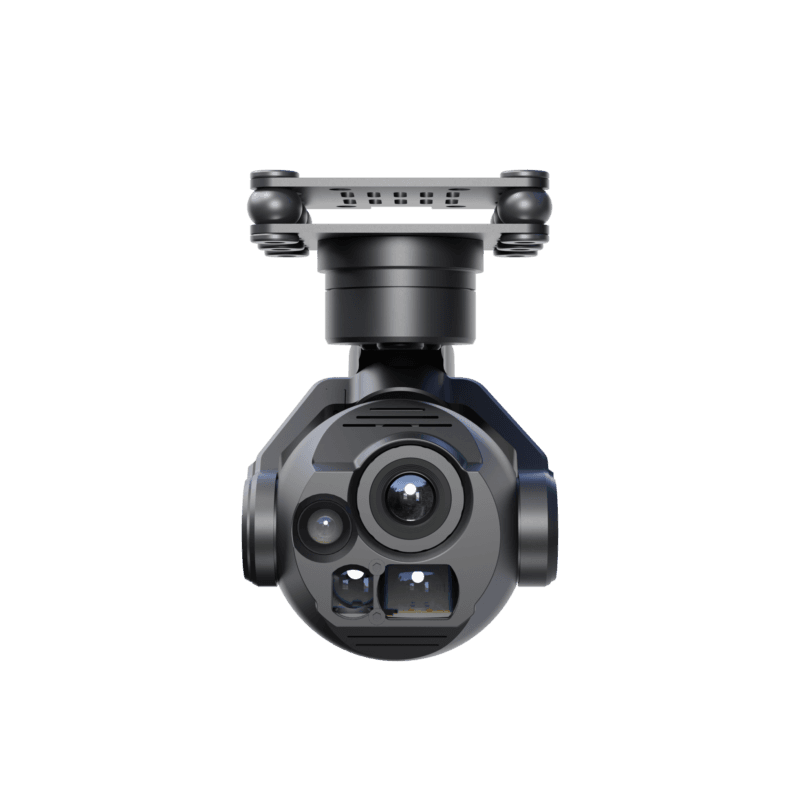

The DA13 is a high-definition multifunctional three-light gimbal system that integrates a 5 MP visible-light camera, a 640 thermal imaging camera, and a laser rangefinder. It provides exceptional versatility with its three different imaging technologies, allowing for a wide range of applications, including detailed aerial surveillance, search and rescue operations, and high-precision distance measurements. The DA13’s advanced three-axis stabilization system ensures clear, stable images in dynamic environments.

2. Product Features

• Three-Lighting System: Combines a visible light camera, thermal imaging camera, and laser rangefinder to cover a wide range of observation needs.
• 2K High-Definition Visible Light Camera: Provides sharp and detailed images, capable of 5MP resolution with a wide field of view and 30x electronic zoom for long-range observation.
• High-Resolution Thermal Imaging: A 640x512 thermal sensor allows for the detection of heat sources from a long distance, with 12 pseudo-color modes for enhanced image interpretation.
• Laser Distance Measurement: Equipped with a high-precision laser rangefinder that offers accurate distance measurements up to 1,000 meters, ideal for tactical operations and precise surveying.
• AI Target Locking: Integrates with Skydroid FPV to enable intelligent tracking, allowing the DA13 to lock and follow moving targets in real-time.
• AI Guidance: Using intelligent algorithms, the DA13 can autonomously track and guide the drone towards targets, offering enhanced navigation and flight capabilities.
• Three-Axis Stabilization: Ensures stability during dynamic motion, significantly reducing image jitter and keeping the footage smooth and clear.

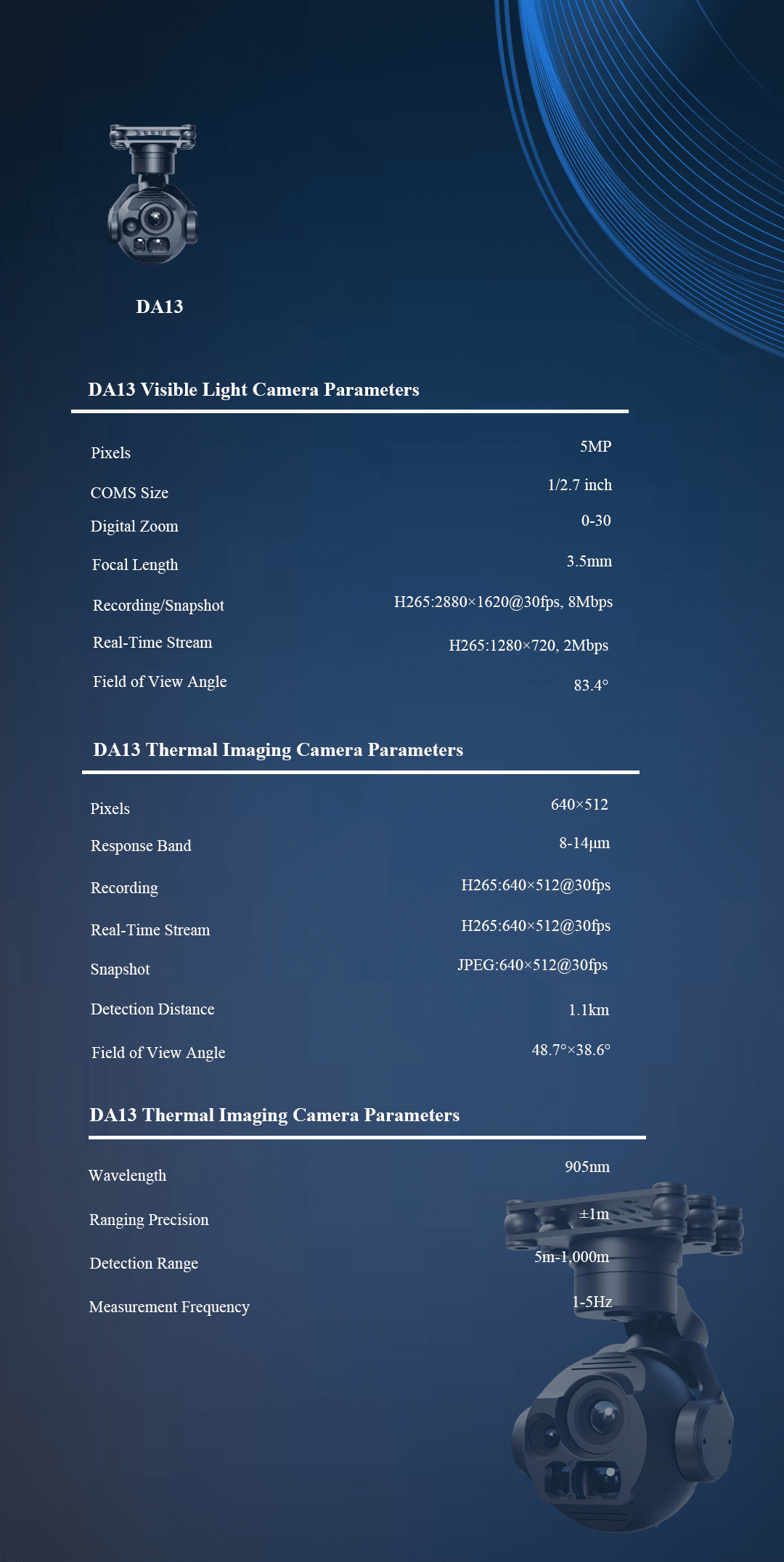

DA13 Visible Light Camera Parameters

DA13 Thermal Imaging Camera Parameters

DA13 Laser Rangefinder Parameters

3. Application Scenarios

• Search and Rescue: Perfect for rescue missions in hard-to-reach locations, with thermal imaging to detect people in need of help and visible light to provide clarity for visual identification.
• Security and Surveillance: Ideal for monitoring large areas or critical infrastructure, with real-time tracking and long-range observation capabilities using the visible light camera and thermal imaging.
• Precision Surveying: Equipped with a laser rangefinder, the DA13 is useful for land surveying and mapping, allowing for precise distance measurements in challenging environments.
