DC3 EO UAV Gimbal Camera | 70 g, FHD, 10× Optical Zoom
70 g three-axis EO micro gimbal with 1920×1080/50 fps video, 10× optical/40× hybrid zoom and 38.4°×22.2° field of view. Provides target-tracking capability ≥40°/s and 0.1 mrad stabilization accuracy at 1°/2 Hz, 1σ. Supports OSD, RS232/network control, UDP/RTSP video output, H.264/H.265 and MP4 recording. Uses 12–28 V DC, average ≤15 W and maximum ≤30 W; operates at -20 to +55°C.
- 38.4 deg x 22.2 deg
- 10x
- 40x
- 0.1 mrad (1 deg/2Hz, 1 sigma)
- UDP/RTSP
- 4-M2x7 Mechanical Interface
- 1920x1080@50fps
- 70 g
- Average<=15W, Max<=30W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data
| Parameter | Specification |
|---|---|
| Product model | DC3 |
| Product type | Micro Gimbal |
| Camera type | Single Visible Light Gimbal Imaging Camera / FHD EO camera |
| Weight | 70 g |
| Resolution and frame rate | 1920x1080@50fps |
| Field of view | 38.4 deg x 22.2 deg |
| Optical zoom | 10x |
| Hybrid zoom | 40x |
| Tracking capability | ≥40°/s |
| Stability accuracy | 0.1 mrad (1 deg/2Hz, 1 sigma) |
| Yaw Axis | +/-150 deg Rotation |
| Pitch Axis | -90 deg to +30 deg Rotation |
| Roll Axis | +/-45 deg Rotation |
| Video output | UDP/RTSP |
| Encoding format | H264/H265 |
| Video storage format | MP4 |
| Control method | RS232/net |
| Power connector | 12~28V DC |
| Power consumption | Average<=15W, Max<=30W |
| Operating temperature | -20 deg C~+55 deg C |
| Storage Temperature | -20 deg C~+50 deg C |

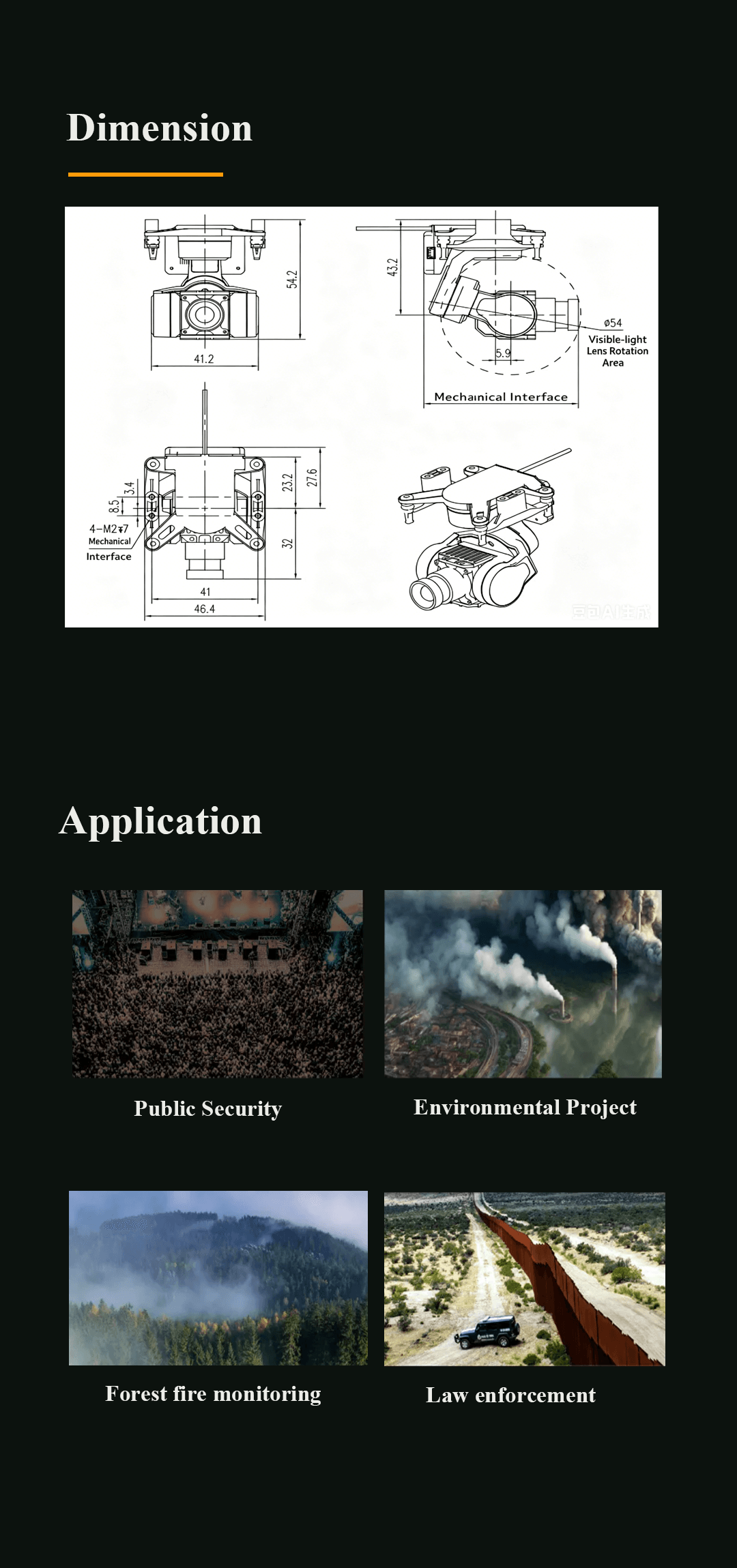

| Mechanical interface | 4-M2x7 Mechanical Interface |
| Rotation area | Visible-light Lens Rotation Area Dia 54 |
1. Features & applications

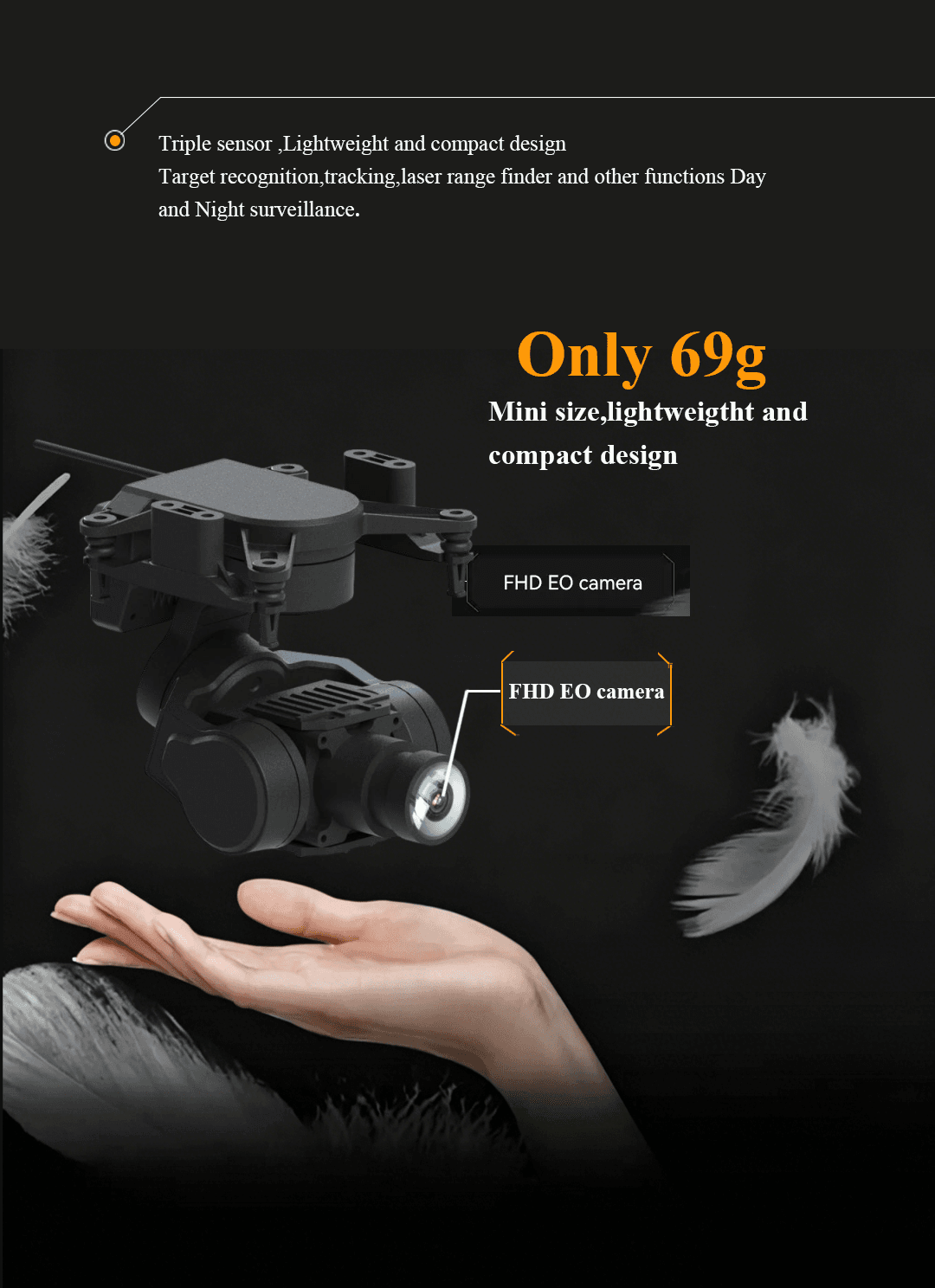

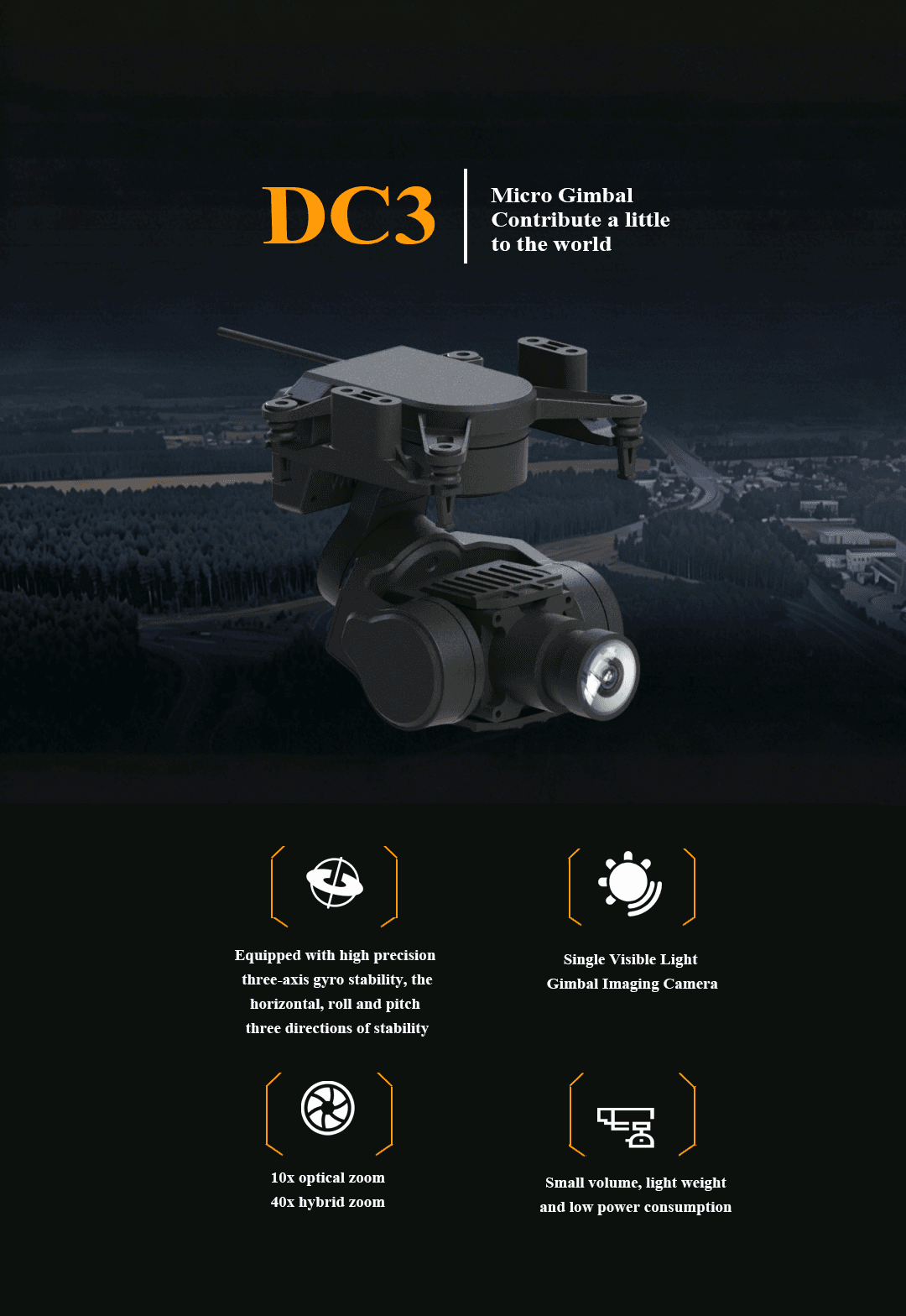

DC3 FHD EO Camera 3-Axis Micro UAV Gimbal for Target Tracking is a 70g micro gimbal with a single visible-light FHD EO camera, designed for compact UAV gimbal imaging, smooth Full HD video, target observation and target tracking. With 10x optical zoom, 40x hybrid zoom, three-axis gyro stability and UDP/RTSP video output, the DC3 supports lightweight aerial and robotic visible-light surveillance applications.
2. Product Features
- Three-Axis Stability:High precision gyro stabilization covers horizontal, roll and pitch stability for smoother visible-light imaging.
- FHD EO Camera:Single visible-light gimbal imaging camera provides 1920x1080 video at 50fps.
- Zoom Capability:10x optical zoom and 40x hybrid zoom help observe distant targets in compact UAV gimbal missions.
- Target Tracking:Tracking capability supports target observation and tracking with a listed capability of >=40 deg/s.

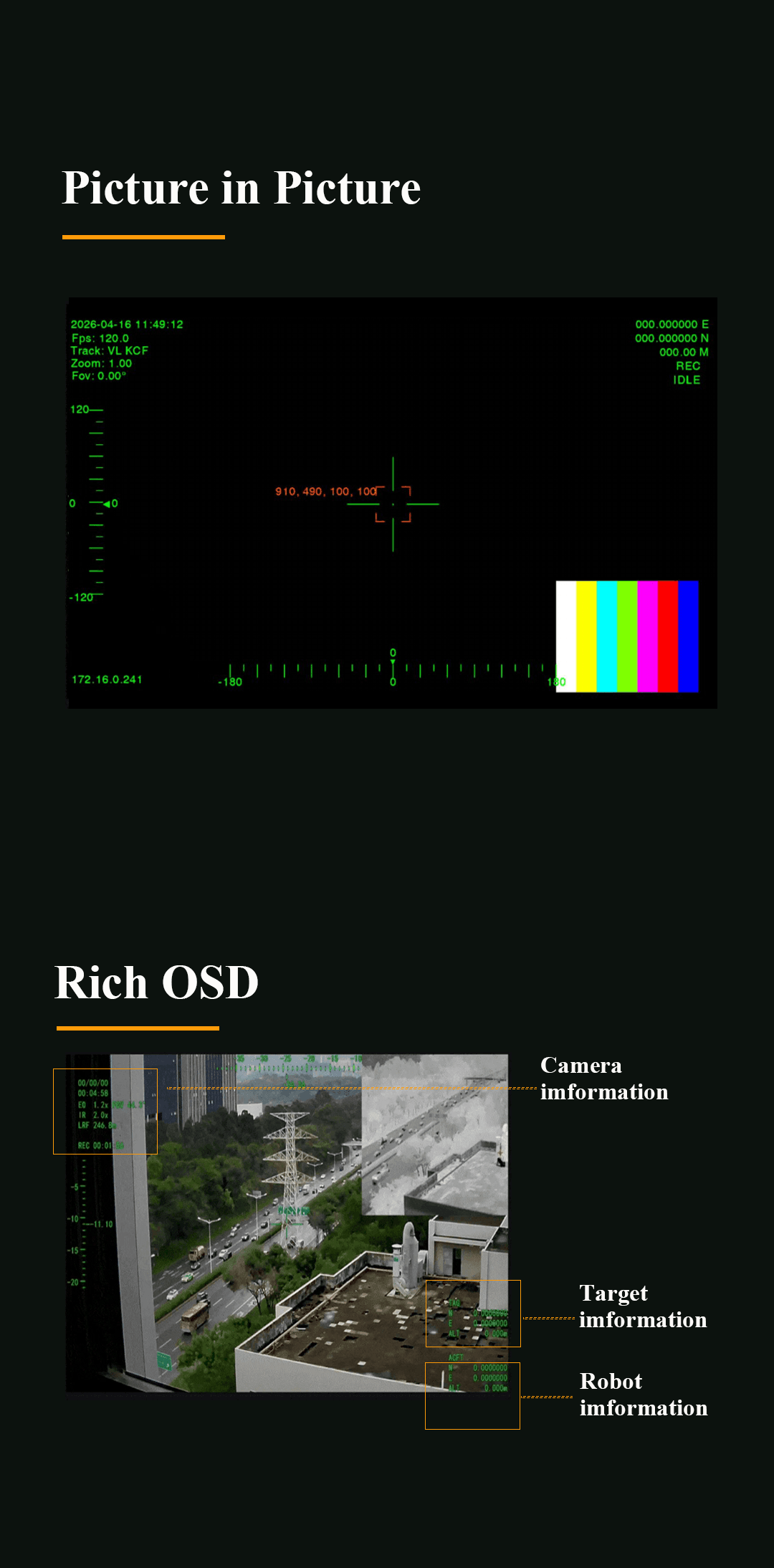

- Display Functions:Picture in Picture and rich OSD show camera information, target information and robot information.
- Video Integration:UDP/RTSP output, H264/H265 encoding and MP4 storage support practical system integration.
- Compact Design:Small volume, light weight and low power consumption make the DC3 suitable for weight-sensitive platforms.
3. Application Scenarios
- Public Security:Supports compact visible-light observation and target tracking for public security patrol and monitoring tasks.
- Environmental Projects:Provides lightweight FHD EO camera imaging for environmental inspection and observation missions.
- Forest Fire Monitoring:Helps operators use zoom video and stabilized imaging to observe fire prevention areas from UAV or robotic platforms.
- Law Enforcement:Enables portable aerial video collection, target observation and real-time OSD-assisted monitoring for enforcement scenarios.
