DC1 Dual-EO UAV Gimbal Camera | 71 g, FHD, 10× Optical Zoom
SKU:DC1
71 g three-axis UAV gimbal camera combining dual visible-light channels, 1920×1080/50 fps output and 10× optical/40× hybrid zoom. Wide-to-tele FOV spans 98.5°×66.3° to 26.2°×14.9°, with 0.1 mrad stabilization accuracy at 1°/2 Hz, 1σ. Picture-in-picture and OSD support viewing; RS232/network control, UDP/RTSP, H.264/H.265 and MP4 recording support integration. Uses 12–28 V DC, average ≤15 W, maximum ≤30 W.
- Dual visible-light imaging; 1920 × 1080 @ 50 fps
- 98.5°x66.3°
- 26.2°x14.9°
- 98.5°x66.3°~26.2°x14.9°
- 10x optical zoom; 40x hybrid / mixed zoom
- 0.1 mrad (1°/2Hz, 1 sigma)
- horizontal, roll and pitch
- ≥100°/s
- Supported
- H264/H265
- MP4
- 1920x1080@50fps
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
1920x1080@50fpsEO - Resolution and frame rate
71 gProduct - Weight
Average <=15W, Max <=30WPower - Power consumption
Technical data
| Parameter | Specification |
|---|---|
| Product - Model | DC1 |
| Product - Type | Micro Gimbal |
| Product - Weight | 71 g |
| Sensor / Imaging - Sensor description | Dual visible-light imaging; 1920 × 1080 @ 50 fps |
| EO - Resolution and frame rate | 1920x1080@50fps |
| EO - Field of view (wide) | 98.5°x66.3° |
| EO - Field of view (narrow / telephoto) | 26.2°x14.9° |
| EO - Field of View (FOV) | 98.5°x66.3°~26.2°x14.9° |
| EO - Zoom Capabilities | 10x optical zoom; 40x hybrid / mixed zoom |
| Tracking - Tracking capability | ≥40°/s |
| Stabilization - Stability accuracy | 0.1 mrad (1°/2Hz, 1 sigma) |
| Stabilization - Three-axis gyro stability | horizontal, roll and pitch |
| Display - Picture in Picture | Supported |
| Display - Rich OSD | Camera information; Target information; Robot information |

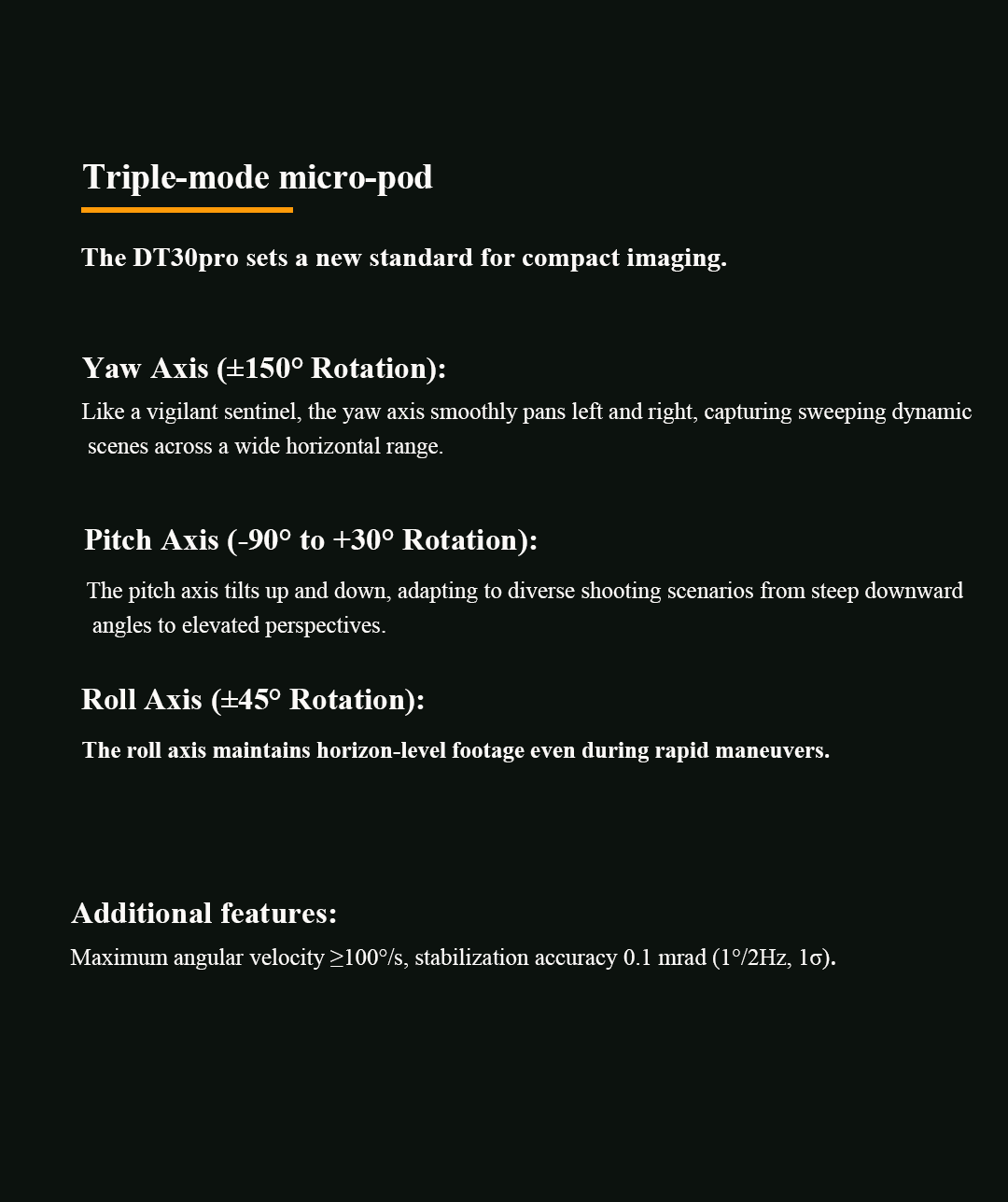

| Gimbal - Yaw Axis | +/-150° Rotation |
| Gimbal - Pitch Axis | -90° to +30° Rotation |
| Gimbal - Roll Axis | +/-45° Rotation |
| Gimbal - Maximum angular velocity | ≥100°/s |

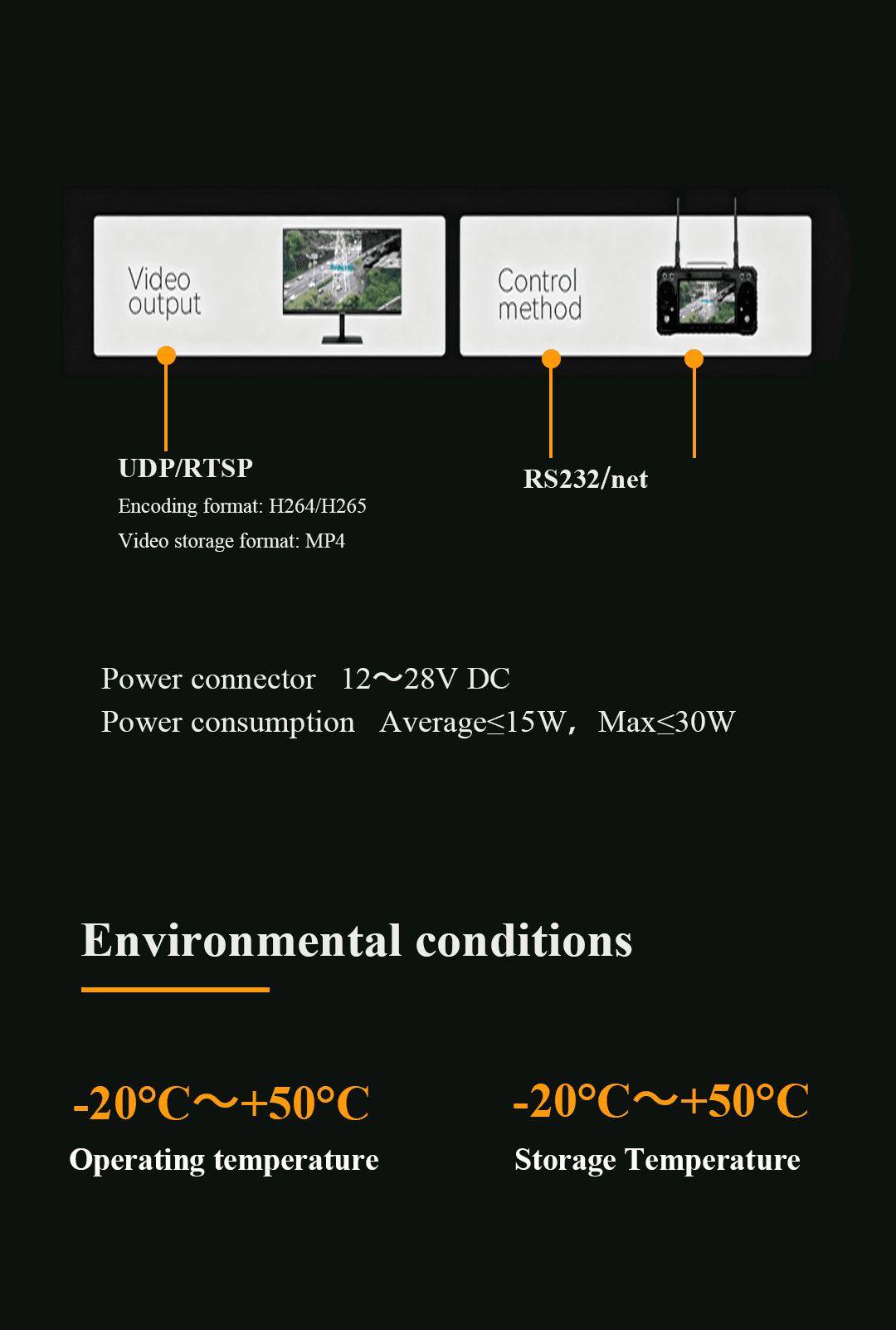

| Video Output - UDP/RTSP | Supported |
| Video Output - Encoding format | H264/H265 |
| Video Output - Video storage format | MP4 |
| Control - Control method | RS232/net |
| Power - Power connector | 12~28V DC |
| Power - Power consumption | Average <=15W, Max <=30W |
| Environmental - Operating temperature | -20°C to +55°C |
| Environmental - Storage Temperature | -20°C~+50°C |
1. Features & applications

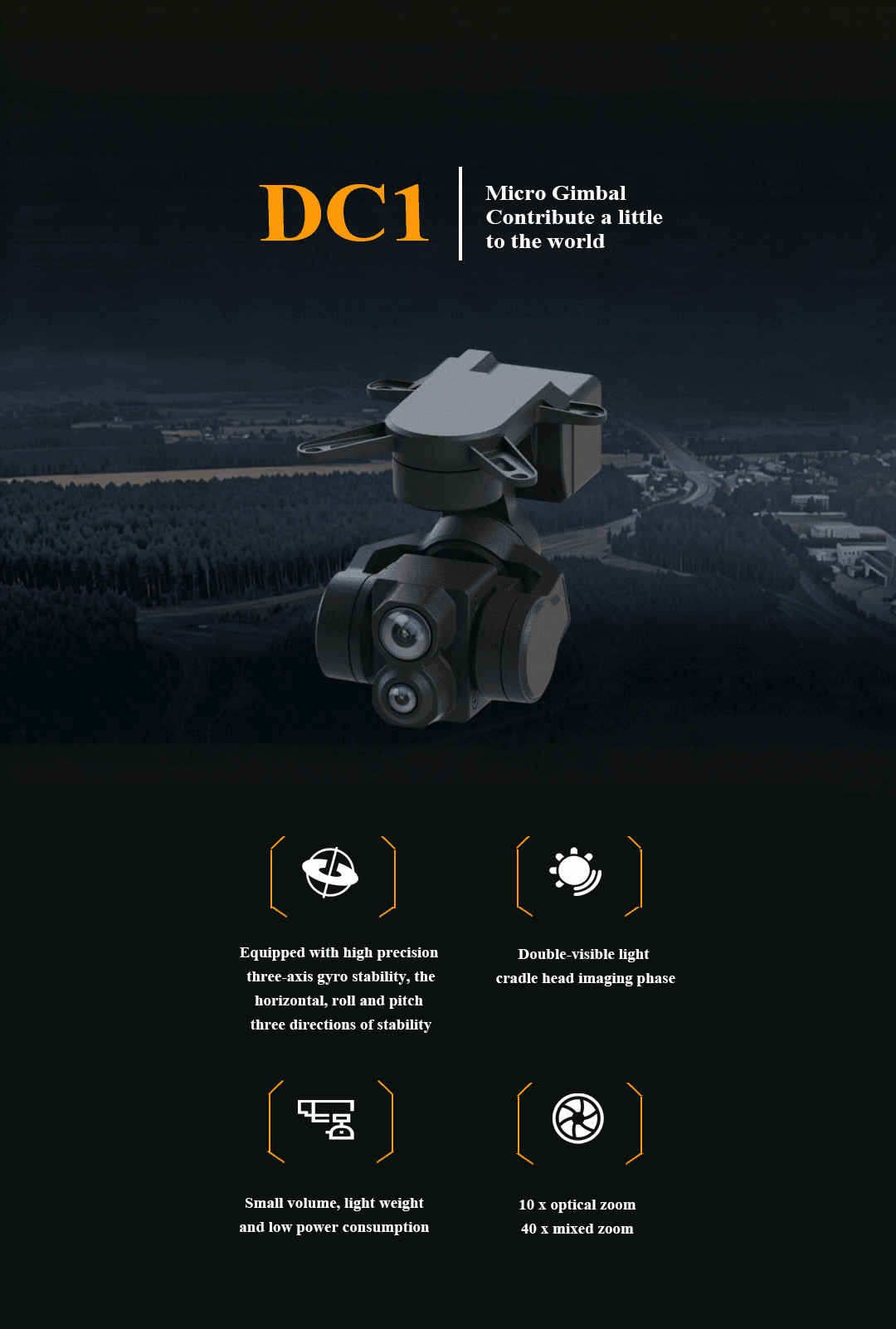

DC1 3-Axis Dual Visible FHD EO Optical Zoom Micro UAV Gimbal Camera is a lightweight micro UAV gimbal for compact visible-light imaging, combining FHD EO camera performance, double-visible-light imaging, high precision three-axis gyro stability, 10x optical zoom, 40x hybrid zoom, Picture in Picture, Rich OSD, and RS232/net control in a 71g payload.
2. Product Features

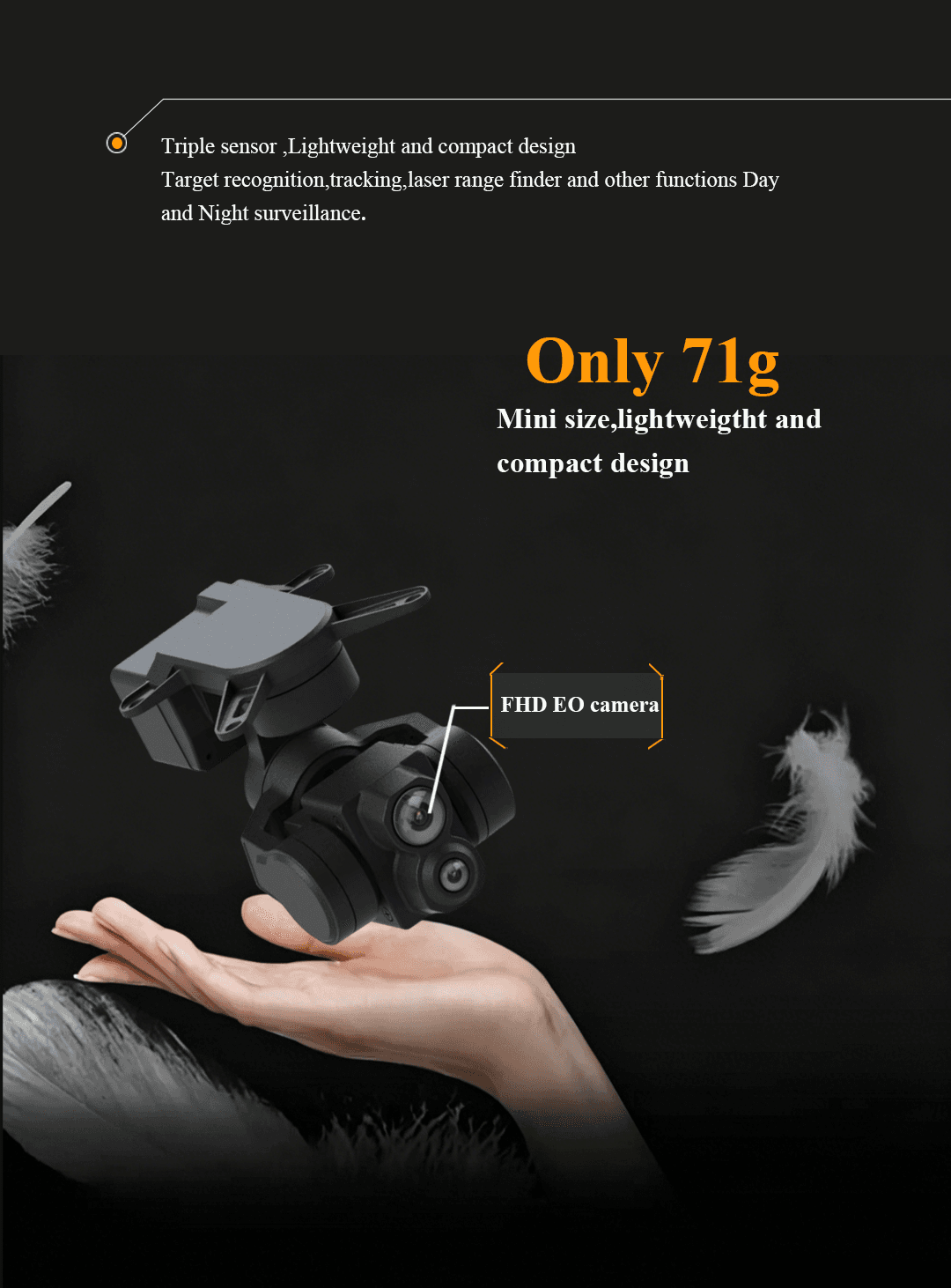

- Mini Gimbal Design:The micro gimbal uses a mini size, lightweight, compact structure for small UAV payloads and mobile platforms.
- Three-Axis Stability:High precision gyro stability covers horizontal, roll, and pitch directions to improve image steadiness.
- Visible-Light Imaging:The image set describes double-visible-light imaging and an FHD EO camera label.
- FHD EO Output:The EO camera supports 1920x1080@50fps imaging for smooth visible-light surveillance.
- Hybrid Zoom:10x optical zoom and 40x mixed/hybrid zoom support wide-to-telephoto observation.
- Flexible FOV Range:The FOV range from 98.5°x66.3° to 26.2°x14.9° supports both area surveillance and target recognition.

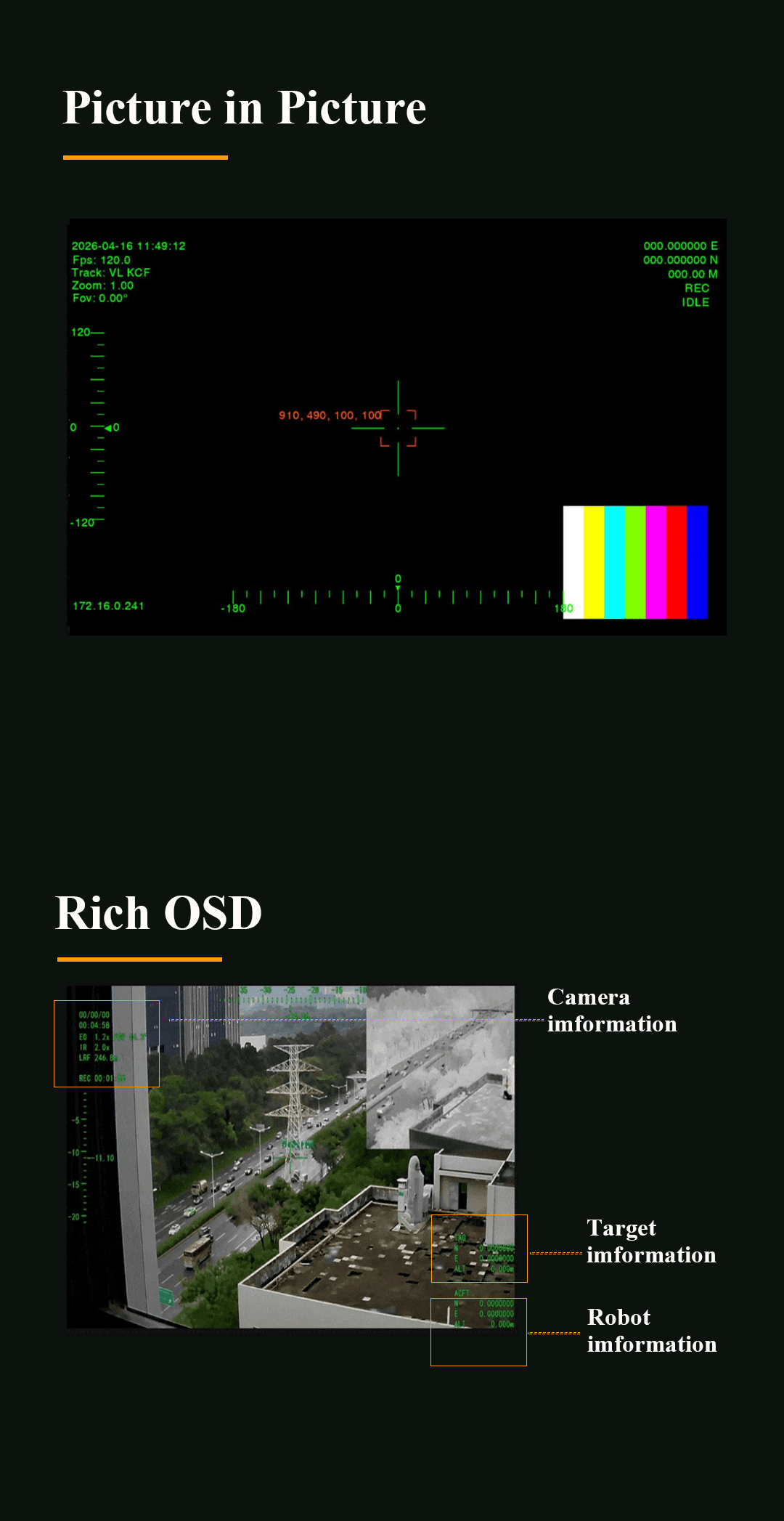

- OSD and PiP:Picture in Picture and rich OSD show camera information, target information, and robot information.
- Integration Interfaces:UDP/RTSP video output and RS232/net control method support network and serial integration.
3. Application Scenarios
- Public Security:Supports stable visible-light aerial observation with FHD EO imaging and compact UAV gimbal control.
- Environmental Projects:Provides lightweight monitoring capability for mobile or airborne environmental inspection workflows.
- Forest Fire Monitoring:Supports visible-light patrol and scene observation during forest fire prevention and monitoring tasks.
- Law Enforcement:Helps operators observe targets with hybrid zoom, Picture in Picture, and rich OSD information.
- Industrial Inspection:Uses compact stabilized imaging for inspection of facilities, structures, or mobile work areas.
- Security Surveillance:Provides wide-to-narrow FOV surveillance for fixed, mobile, or UAV-based security observation.
- UAV Payloads:The 71g body and RS232/net control method support integration into small unmanned platforms.
- Robotic Vision:Supports mobile platforms that need stabilized FHD EO camera output and network video streaming.
