Aurora Mini DSQ09 Infrared Core Module

1. Aurora Mini DSQ09 Infrared Core Module Overview

The Aurora Mini DSQ09 is a high-performance uncooled thermal imaging core module specifically engineered for SWaP (Size, Weight, and Power) constrained optoelectronic applications. Featuring an advanced vanadium oxide (VOx) uncooled microbolometer detector, this compact infrared camera module delivers exceptional thermal imaging capabilities in an ultra-miniature 21 mm × 21 mm footprint. By integrating the traditional user interface board and core processing board into a unified architecture, the DSQ09 achieves a near-modular state that significantly reduces development complexity and accelerates time-to-market for OEM customers. With support for multiple parallel video output interfaces including MIPI CSI-2, USB 2.0 UVC, and analog CVBS, alongside flexible UART and I²C control interfaces, the Aurora Mini DSQ09 provides a complete infrared imaging solution for next-generation portable thermal devices.

2. Aurora Mini DSQ09 Product Features

• Ultra-Compact Form Factor:Measures only 21 mm × 21 mm × 32.63 mm with a total weight of ≤ 41.9 g including the integrated 9.1 mm F1.0 fixed-focus lens, making it one of the smallest uncooled thermal core modules available for handheld and wearable applications.
• Low Power Consumption:Operates at ≤ 1.2 W typical power draw from a standard 5 V DC input, featuring comprehensive power protection including over-voltage, under-voltage, and reverse-polarity safeguards to ensure reliable battery-powered operation.
• High-Resolution Thermal Imaging:Delivers 640 × 512 pixel resolution with 12 μm pixel pitch and industry-leading NETD performance of ≤ 50 mK at F1.0 and 300 K background temperature, ensuring superior thermal sensitivity and image clarity.
• Multi-Interface Video Output:Supports simultaneous digital video output via 2-lane MIPI CSI-2 (YUV422 8-bit, 216 MHz continuous clock) and USB 2.0 UVC protocol, plus independent analog CVBS output in PAL or NTSC format with standard 75 Ω coaxial termination.
• Advanced Image Processing Pipeline:On-chip real-time non-uniformity correction (NUC), digital filtering noise reduction, and digital detail enhancement algorithms optimize image quality across varying thermal scenes and environmental conditions.
• Flexible Electronic Zoom:Provides 1× to 8× continuous electronic magnification with 1024-step resolution control via serial command interface, enabling digital zoom without optical mechanism complexity.
• Multiple Color Palettes:Six selectable pseudo-color modes including White Hot, Black Hot, Iron Red, Rainbow, Red Hot, and Bird Watching to enhance target recognition and user situational awareness.
• Rugged Environmental Design:Qualified for operation across -20 °C to +50 °C temperature range, with storage capability from -40 °C to +60 °C; survives 6.06 g random vibration and 200 g mechanical shock for demanding field deployments.
• Dual Control Interfaces:UART serial port (1.8 V TTL, 115200 bps) and I²C slave interface (3.3 V, address 0x67) provide flexible command and control options for system integration.

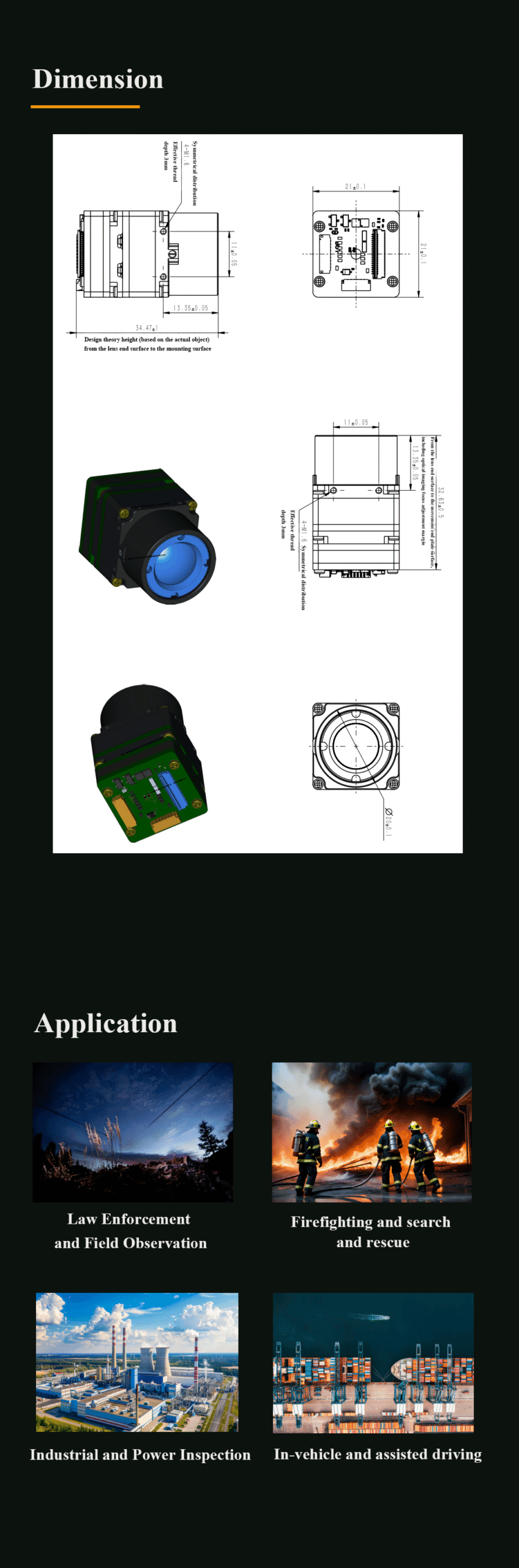

3. Aurora Mini DSQ09 Detailed Technical Parameters

4. Aurora Mini DSQ09 Application Scenarios

• Handheld Thermal Monoculars:Ideal for compact, battery-operated thermal imaging monoculars and pocket scopes used in outdoor recreation, wildlife observation, search and rescue operations, and personal security applications where minimal size and weight are critical.
• Helmet-Mounted Night Vision Systems:Perfectly suited for integration into helmet-mounted thermal and multi-spectral night vision devices, providing soldiers and tactical operators with hands-free thermal awareness in complete darkness or obscured battlefield conditions.
• Multi-Spectral Fusion Goggles:Enables advanced dual-band or multi-band fusion eyewear that combines thermal infrared imagery with visible-light or SWIR channels, enhancing target detection, recognition, and identification capabilities in complex environments.
• Small UAV and Drone Payloads:Excellent choice for lightweight thermal gimbals and stabilized camera payloads on small unmanned aerial vehicles, supporting aerial surveillance, infrastructure inspection, agricultural monitoring, and tactical reconnaissance missions.
• Portable Surveillance and Security:Supports covert thermal camera systems, perimeter security devices, and rapid-deployable surveillance nodes for law enforcement, border patrol, and critical infrastructure protection requiring discreet, low-power operation.
• Compact Thermal Weapon Sights:Suitable for clip-on thermal sights and standalone thermal weapon sights on small arms platforms, providing reliable target engagement capability in adverse weather and low-visibility conditions without adding significant bulk to the weapon system.
