DC2 3-Axis IR Thermal Imaging Target Tracking Micro UAV Gimbal Camera

Name: DC2 3-Axis IR Thermal Imaging Target Tracking Micro UAV Gimbal Camera
Brand: UAVAUTO
SKU: DC2
Price: 999 USD
Availability: InStock

SKU:DC2

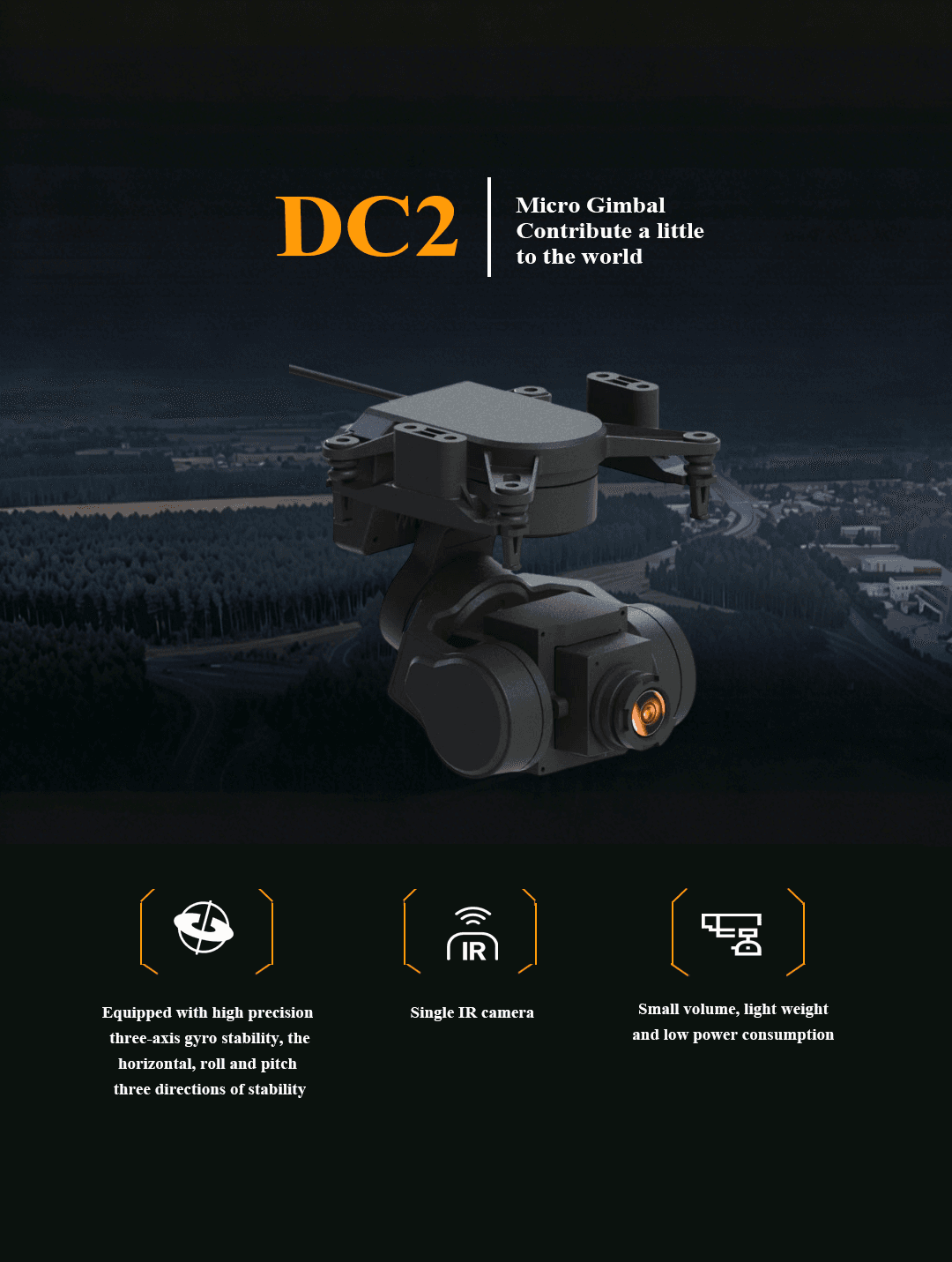

DC2 3-Axis IR Thermal Imaging Target Tracking Micro UAV Gimbal Camera is a compact micro UAV gimbal with a single Infrared IR thermal camera for day and night surveillance, target recognition, target tracking, thermal imaging, Rich OSD, UDP/RTSP video output, and RS232/net control in a lightweight 69g payload.

Share on:

1. DC2 3-Axis IR Thermal Imaging Target Tracking Micro UAV Gimbal Camera Overview

2. Product Features

Three-Axis Stability:High precision gyro stability covers horizontal, roll, and pitch directions for stable thermal observation.
IR Thermal Camera:The payload uses a single IR camera / Infrared IR thermal camera for thermal imaging workflows.

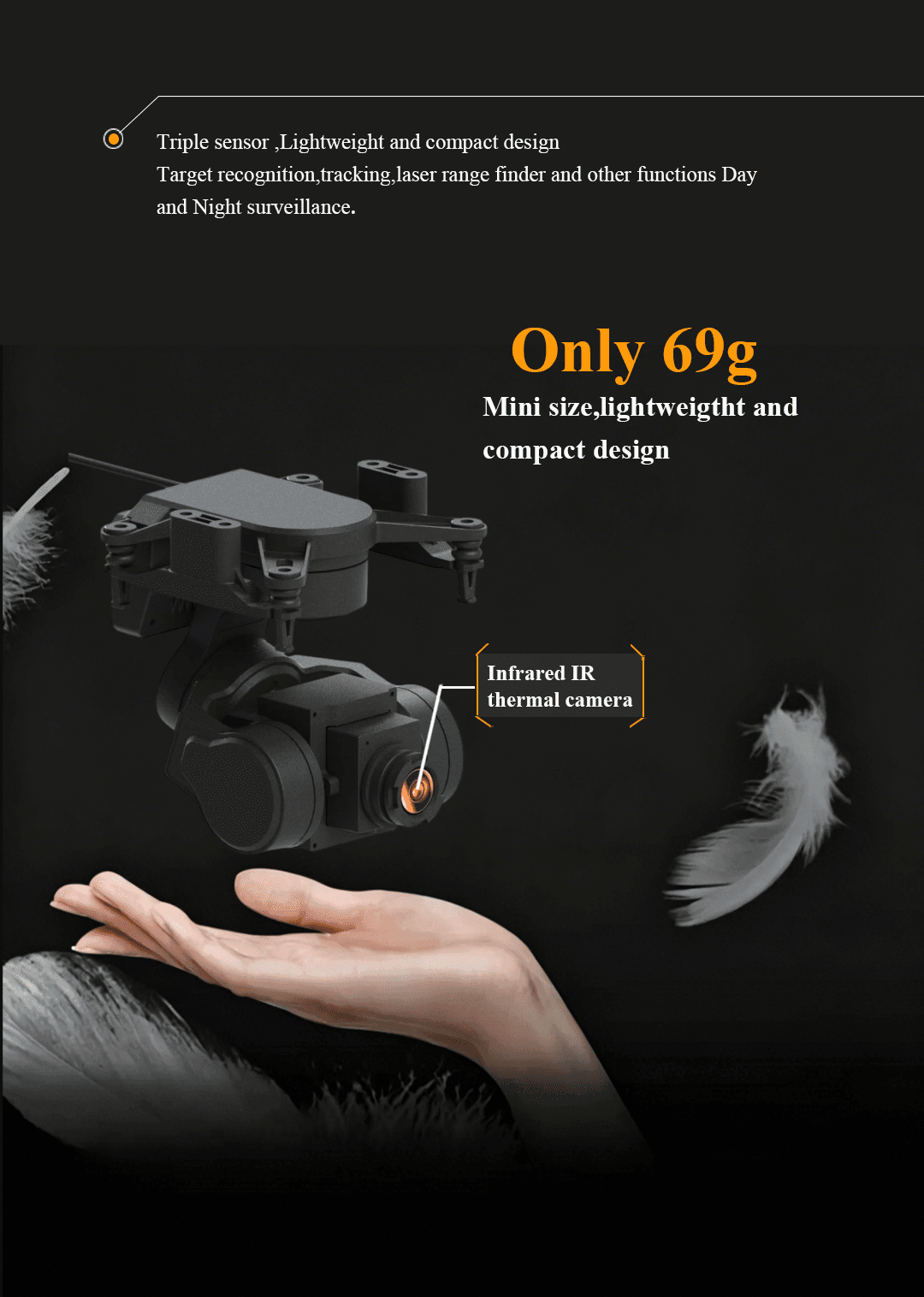

Lightweight Body:The mini size, lightweight, compact design is shown with only 69g weight.

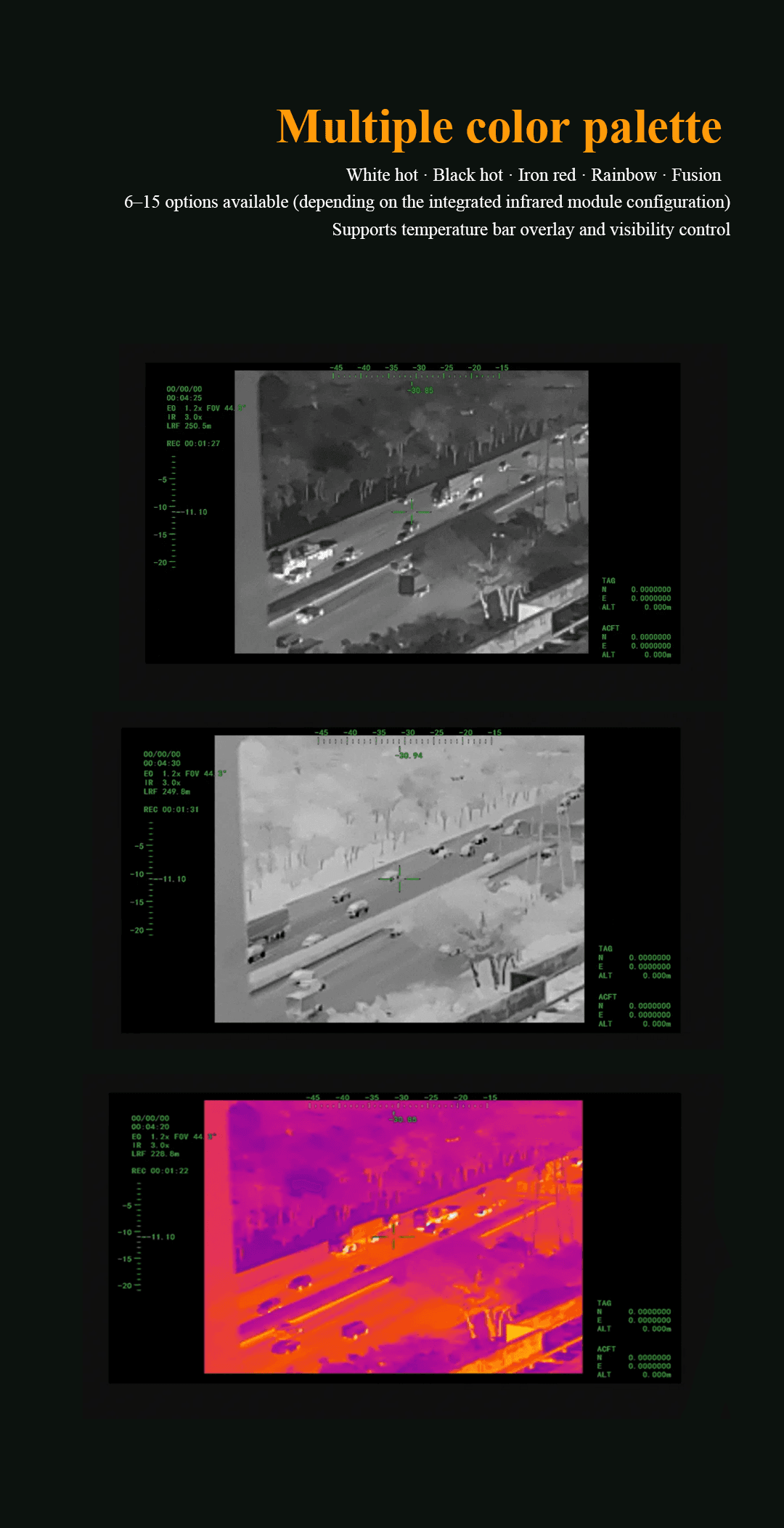

Thermal Palettes:Multiple color palettes include White hot, Black hot, Iron red, Rainbow, and Fusion, with 6-15 options depending on the infrared module configuration.
Temperature Overlay:Temperature bar overlay and visibility control are supported for thermal display needs.

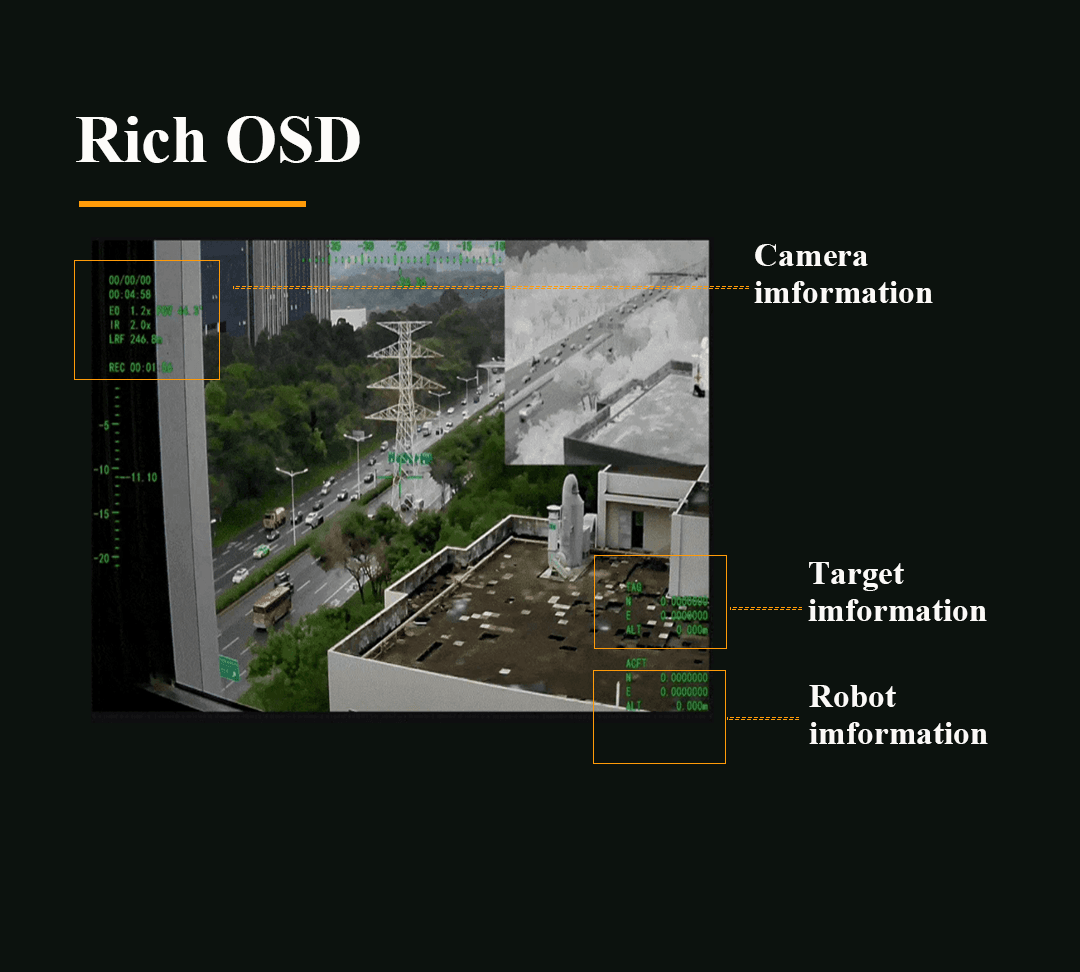

Rich OSD:Camera information, target information, and robot information can be displayed through rich OSD.
Video Encoding:UDP/RTSP video output, H264/H265 encoding, and MP4 video storage format are supported.
Control Method:RS232/net control supports integration with UAV, robot, and mobile platform systems.

3. Detailed Technical Parameters

Parameter	Specification
Product model	DC2
Product type	Micro Gimbal
Camera type	Single IR camera / Infrared IR thermal camera
Weight	Only 69g

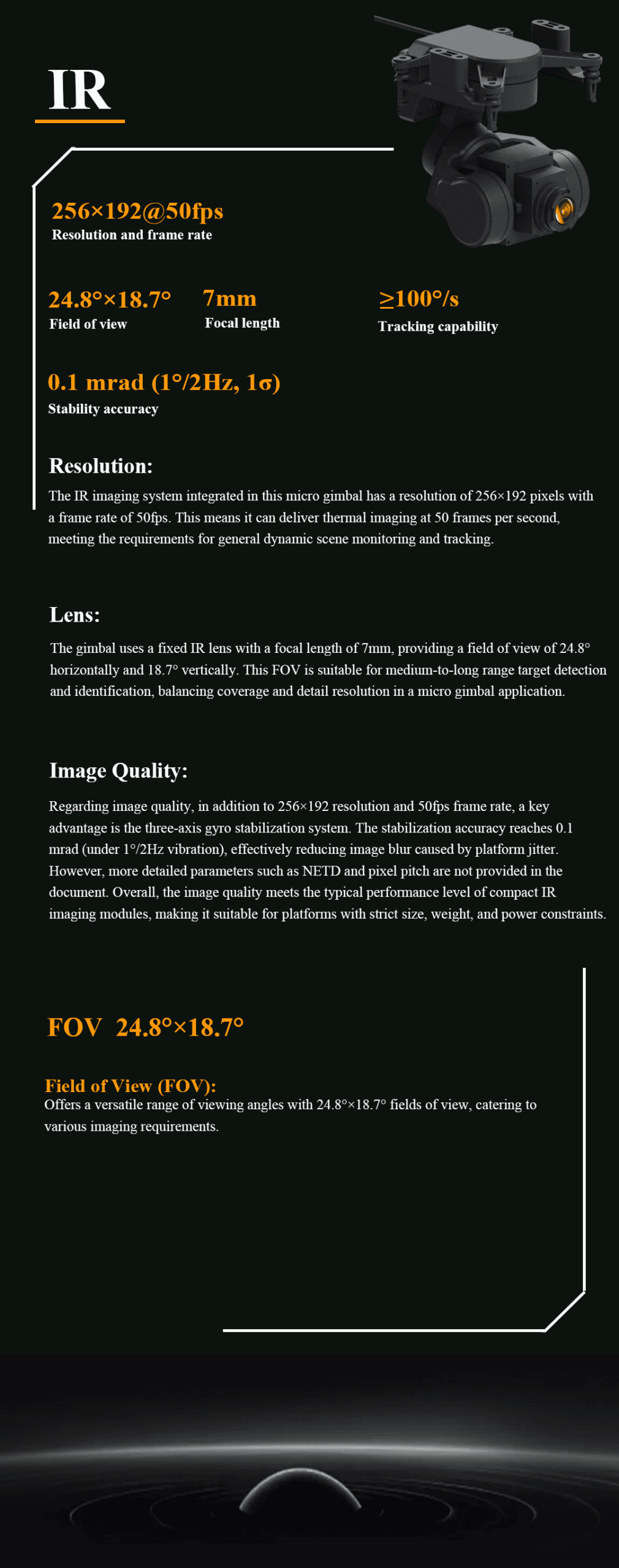

Resolution and frame rate	256×192@50fps
Field of view	24.8 deg x 18.7 deg
Focal length	7mm
Tracking capability	>=100 deg/s
Stability accuracy	0.1 mrad (1 deg/2Hz, 1 sigma)

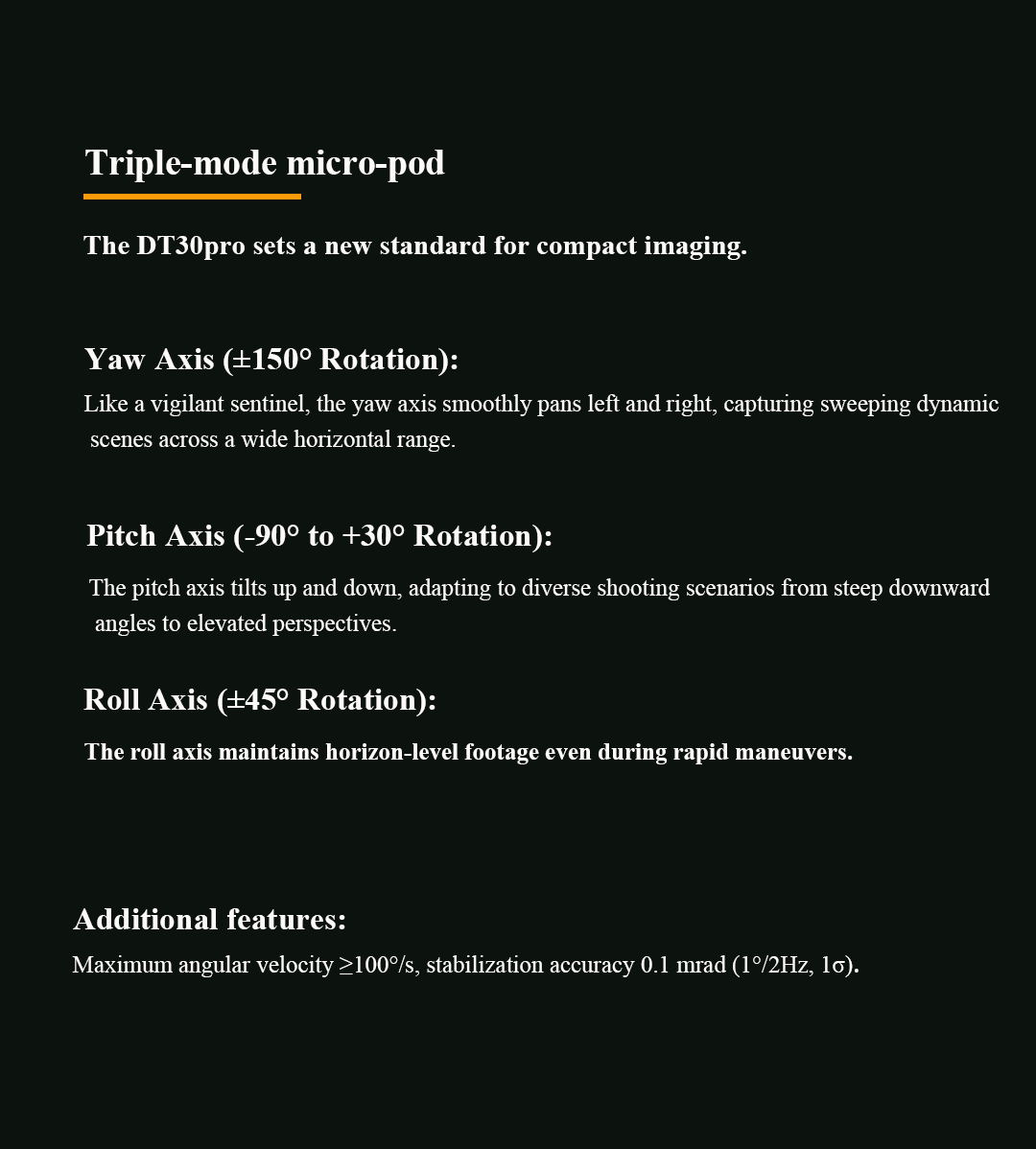

Yaw Axis	+/-150 deg Rotation
Pitch Axis	-90 deg to +30 deg Rotation
Roll Axis	+45 deg Rotation

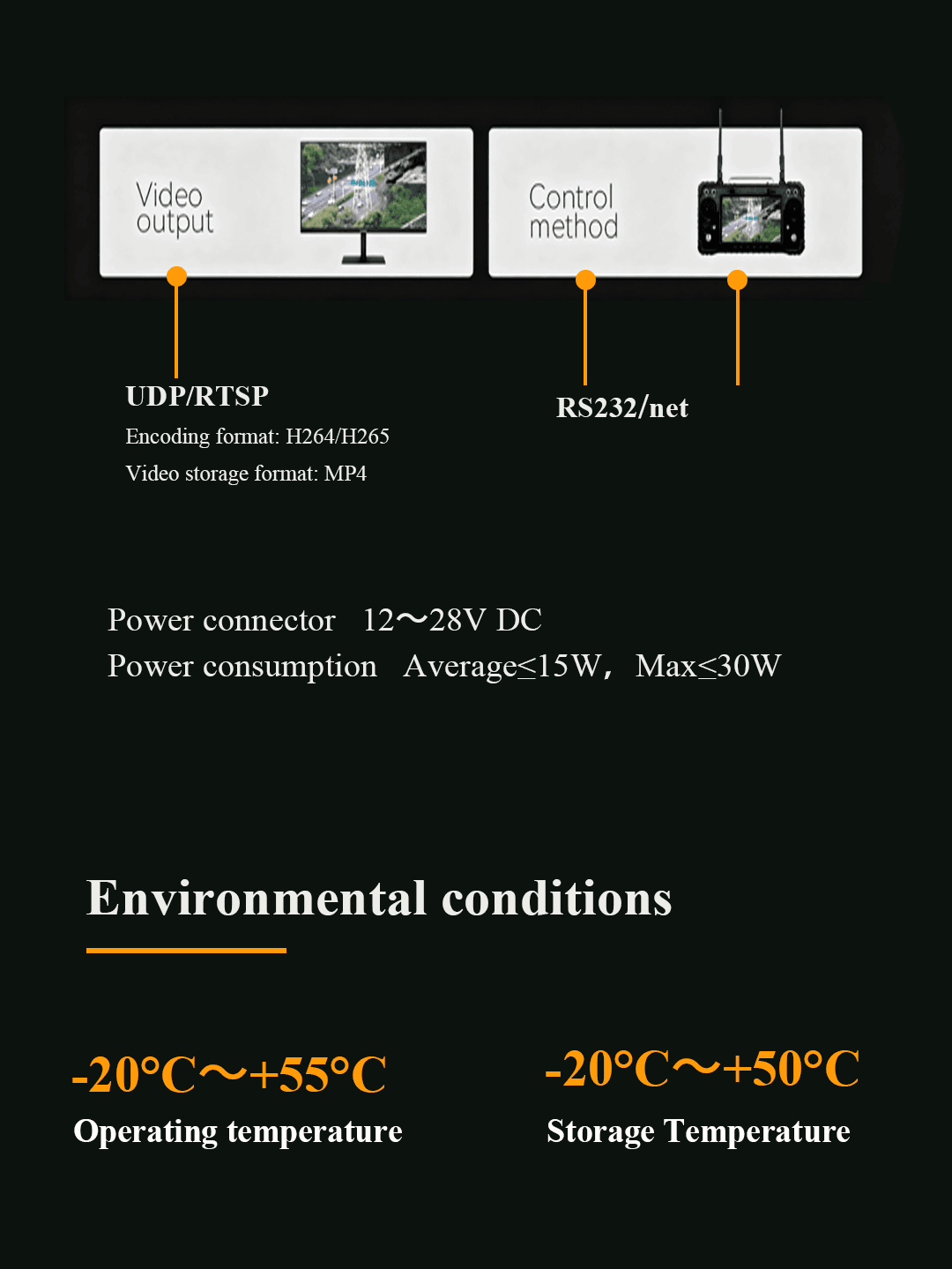

Video output	UDP/RTSP
Encoding format	H264/H265
Video storage format	MP4
Control method	RS232/net
Power connector	12~28V DC
Power consumption	Average<=15W, Max<=30W
Operating temperature	-20 deg C~+55 deg C
Storage Temperature	-20 deg C~+50 deg C

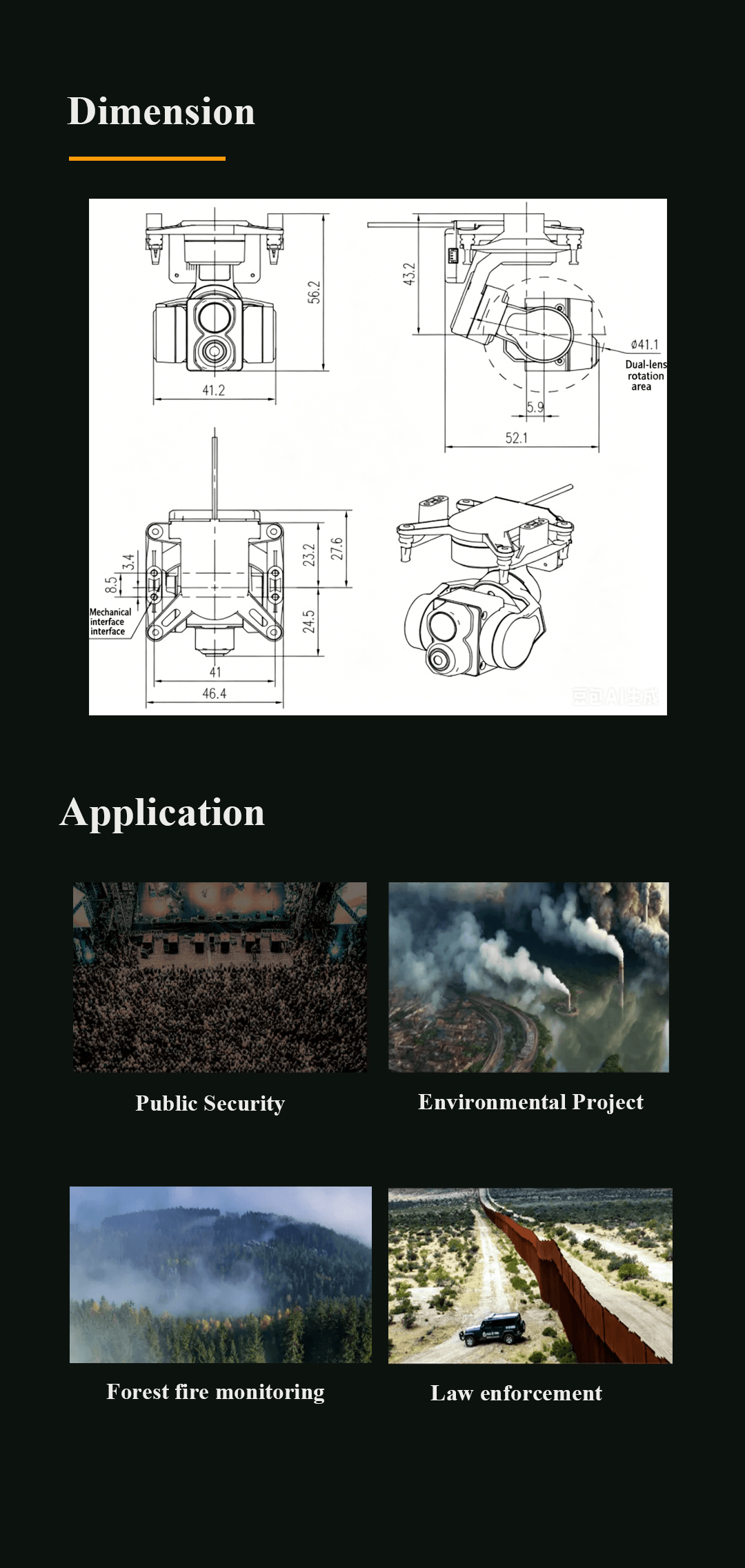

Dimension drawing values	41.2, 56.2, 43.2, 52.1, 5.9, Dia 41.1, 46.4, 41, 27.6, 24.5, 23.2, 8.5, 3.4; drawing unit not shown
Mechanical interface	Mechanical interface; exact specification 未清晰识别
Rotation area	Dual-lens rotation area Dia 41.1

4. Application Scenarios

Public Security:Supports compact thermal surveillance with IR imaging, target recognition, and target tracking.
Environmental Projects:Helps monitor outdoor areas using stabilized IR thermal imaging from UAV or mobile platforms.
Forest Fire Monitoring:Uses thermal imaging and color palette options to observe heat signatures during fire monitoring tasks.
Law Enforcement:Provides day and night thermal observation, rich OSD, and network video output for patrol and response workflows.
