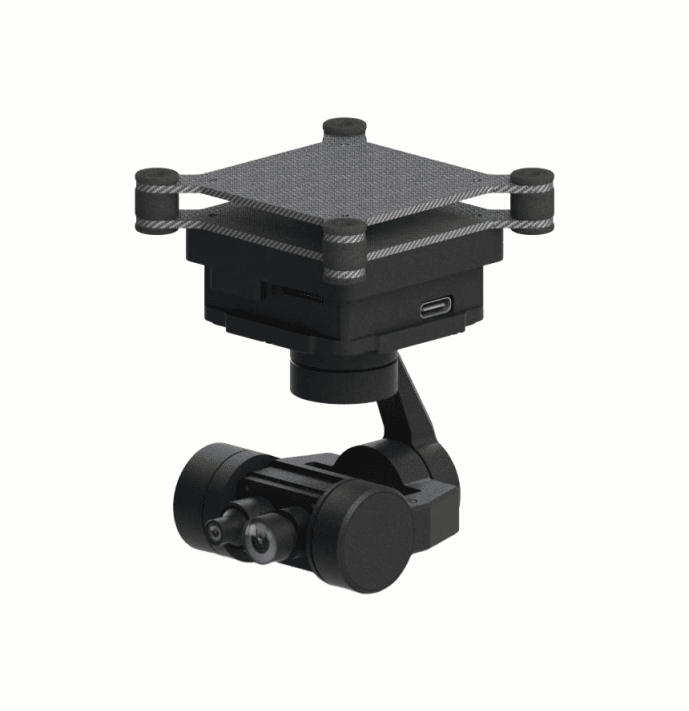

DC0 Dual-4K EO UAV Gimbal Camera | 120 g, 10× Optical Zoom
SKU:DC0
120 g three-axis UAV gimbal camera pairing dual 4K visible sensors with wide/narrow 83°×53° and 20°×11° fields of view. Supports 3840×2160 imaging, 10× optical/40× hybrid zoom, 0.1 mrad stabilization accuracy, picture-in-picture and OSD. RS232/network control, UDP/RTSP video, H.264/H.265 and MP4 recording support integration. Uses 12–28 V DC with average consumption ≤15 W and maximum ≤30 W.
- 83°x53°
- 20°x11°
- 10x optical zoom; 40x hybrid / mixed zoom
- 0.1 mrad (1°/2Hz, 1 sigma)
- horizontal, roll and pitch
- ≥100°/s
- Supported
- H264/H265
- MP4
- 3840 × 2160 (wide and narrow fields of view)
- ≤120 g
- Average <=15W, Max <=30W
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
3840 × 2160 (wide and narrow fields of view)EO - Resolution
≤120 gProduct - Weight
Average <=15W, Max <=30WPower - Power consumption
Technical data
| Parameter | Specification |
|---|---|
| Product - Model | DC0 |
| Product - Type | Dual-light micro gimbal |
| Product - Weight | ≤120 g |

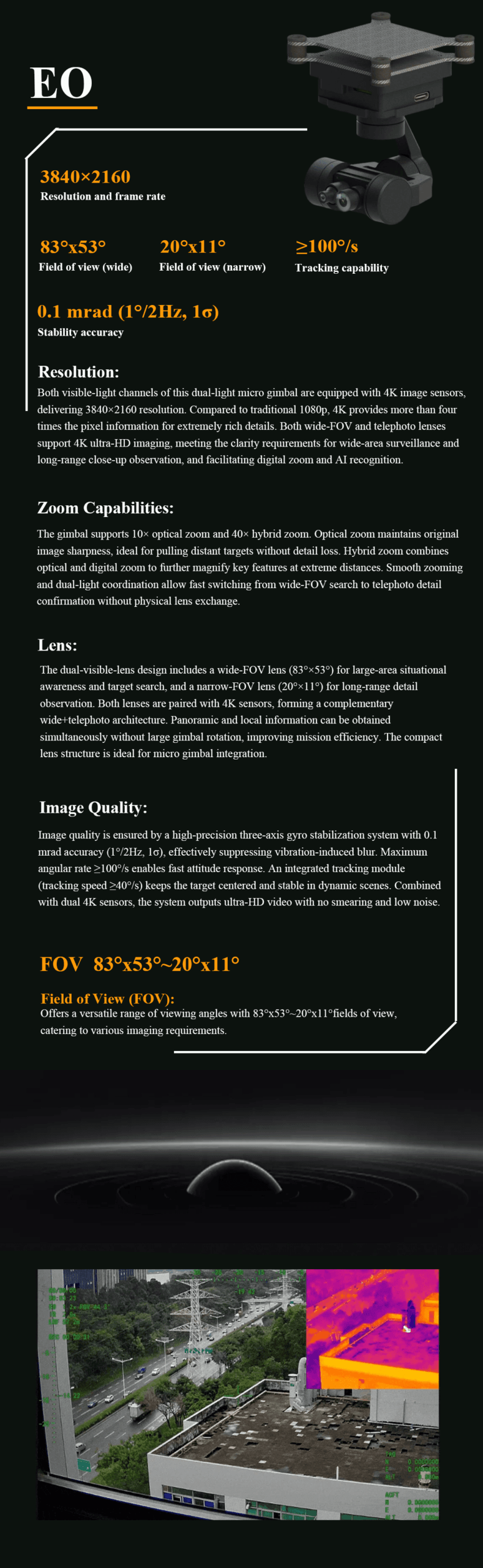

| Sensor / Imaging - Sensor description | Dual visible-light imaging; dual 4K image sensors |
| EO - Resolution | 3840 × 2160 (wide and narrow fields of view) |
| EO - Field of view (wide) | 83°x53° |
| EO - Field of view (narrow) | 20°x11° |
| EO - Zoom Capabilities | 10x optical zoom; 40x hybrid / mixed zoom |
| EO - Lens | Wide-FOV lens 83°x53°; narrow-FOV lens 20°x11°; both lenses are described as paired with 4K sensors |
| Tracking - Tracking capability | ≥40°/s |
| Tracking - Tracking module speed | ≥40°/s |
| Stabilization - Stability accuracy | 0.1 mrad (1°/2Hz, 1 sigma) |
| Stabilization - Three-axis gyro stability | horizontal, roll and pitch |

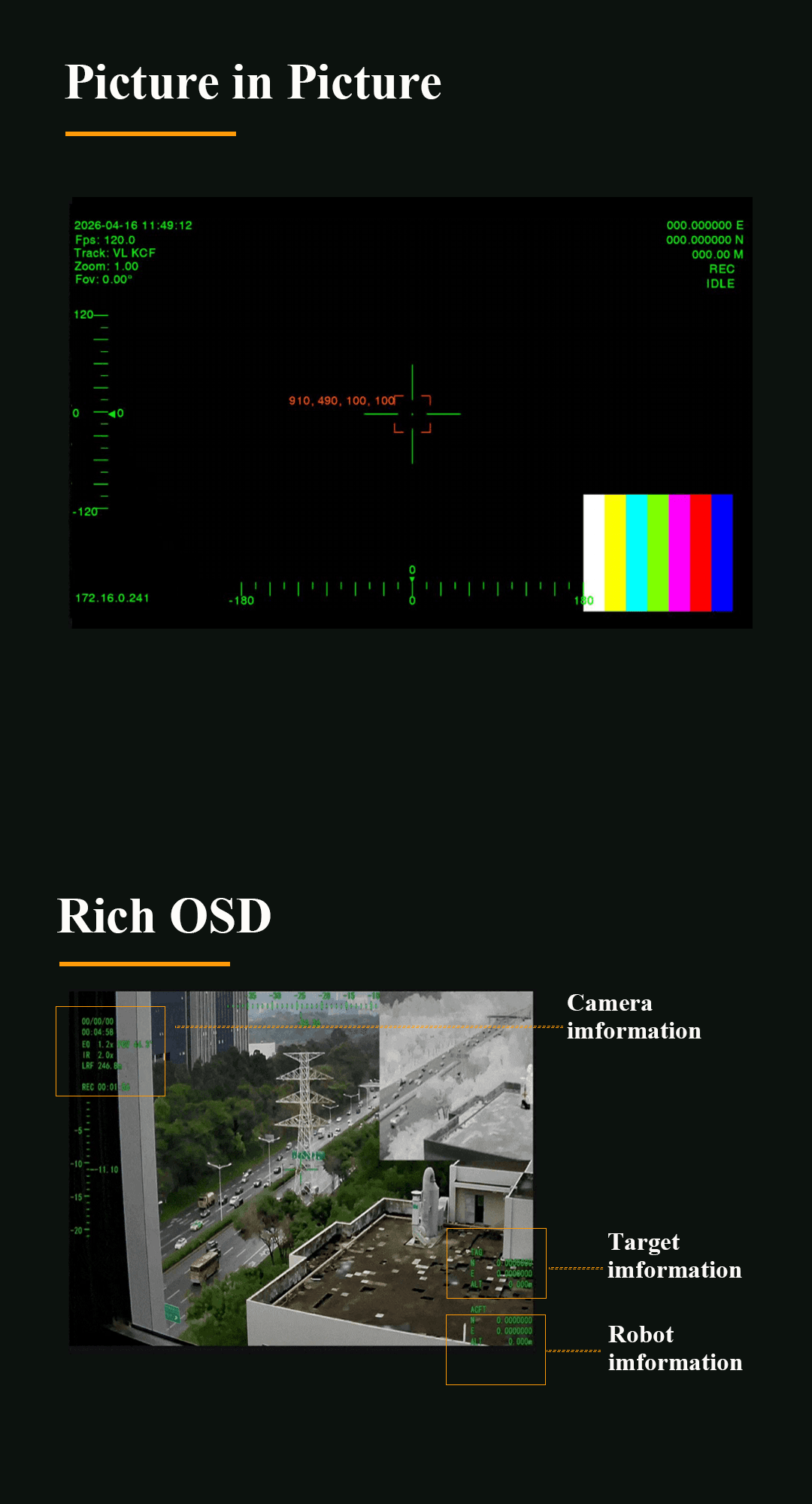

| Display - Picture in Picture | Supported |
| Display - Rich OSD | Camera information; Target information; Robot information |

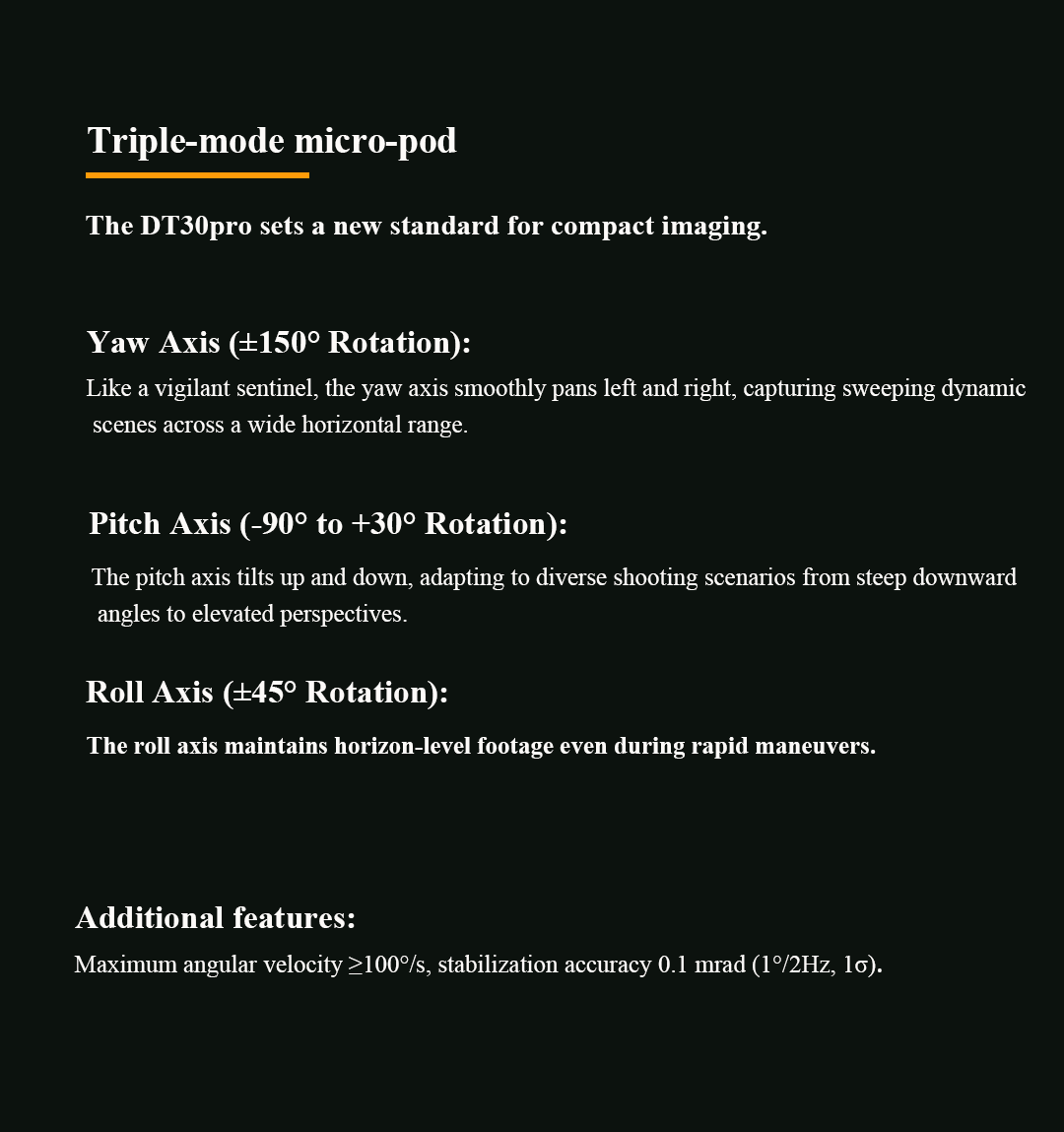

| Gimbal - Yaw Axis | +/-150° Rotation |
| Gimbal - Pitch Axis | -90° to +30° Rotation |
| Gimbal - Roll Axis | +/-45° Rotation |
| Gimbal - Maximum angular velocity | ≥100°/s |
| Video Output - UDP/RTSP | Supported |
| Video Output - Encoding format | H264/H265 |
| Video Output - Video storage format | MP4 |
| Control - Control method | RS232/net |
| Power - Power connector | 12~28V DC |
| Power - Power consumption | Average <=15W, Max <=30W |
| Environmental - Operating temperature | -20°C~+50°C |
| Environmental - Storage Temperature | -20°C~+50°C |
1. Features & applications

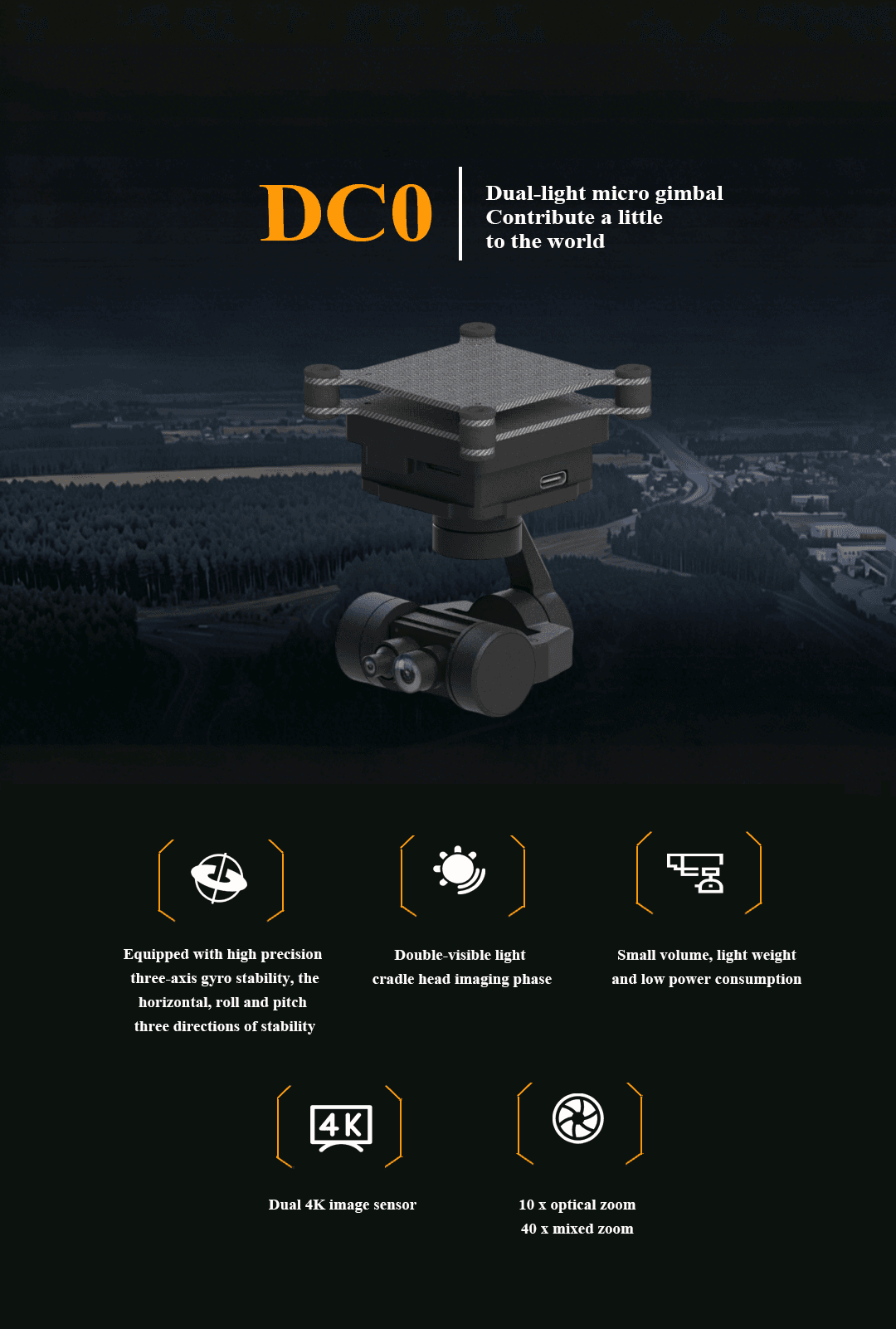

DC0 3-Axis Dual 4K EO Optical Zoom Micro UAV Gimbal Camera is a dual-light micro UAV gimbal with double-visible-light imaging, dual 4K image sensors, high precision three-axis gyro stability, 10x optical zoom, 40x hybrid zoom, Picture in Picture, Rich OSD, and network/serial control in a compact 120g body.
2. Product Features
- Dual-Light Imaging:The micro gimbal uses double-visible-light imaging for wide-area awareness and detailed observation.
- Three-Axis Stability:High precision gyro stability covers horizontal, roll, and pitch directions for steadier imaging.

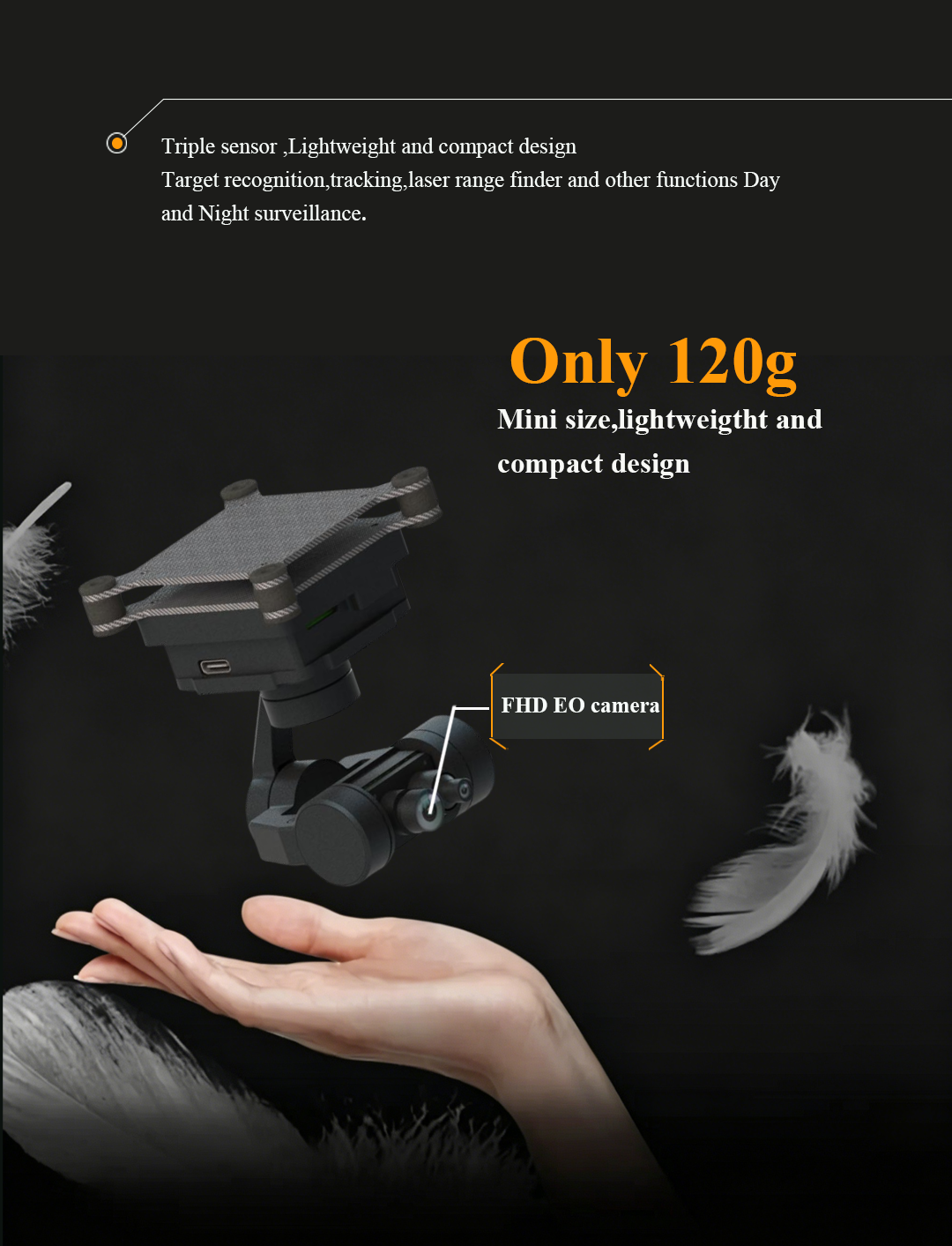

- Compact Payload:The small volume, light weight, low power consumption, and mini size design make DC0 suitable for compact UAV payload integration.
- 4K EO Camera:Dual 4K image sensors are described, with 3840x2160 resolution shown for EO imaging.
- Hybrid Zoom:10x optical zoom and 40x mixed/hybrid zoom support flexible surveillance and target detail capture.
- Wide/Narrow FOV:Wide-FOV and narrow-FOV lenses provide both scene coverage and long-range detail observation.
- Display Functions:Picture in Picture and rich OSD show camera information, target information, and robot information.
- Control Interfaces:UDP/RTSP video output and RS232/net control method support common integration workflows.

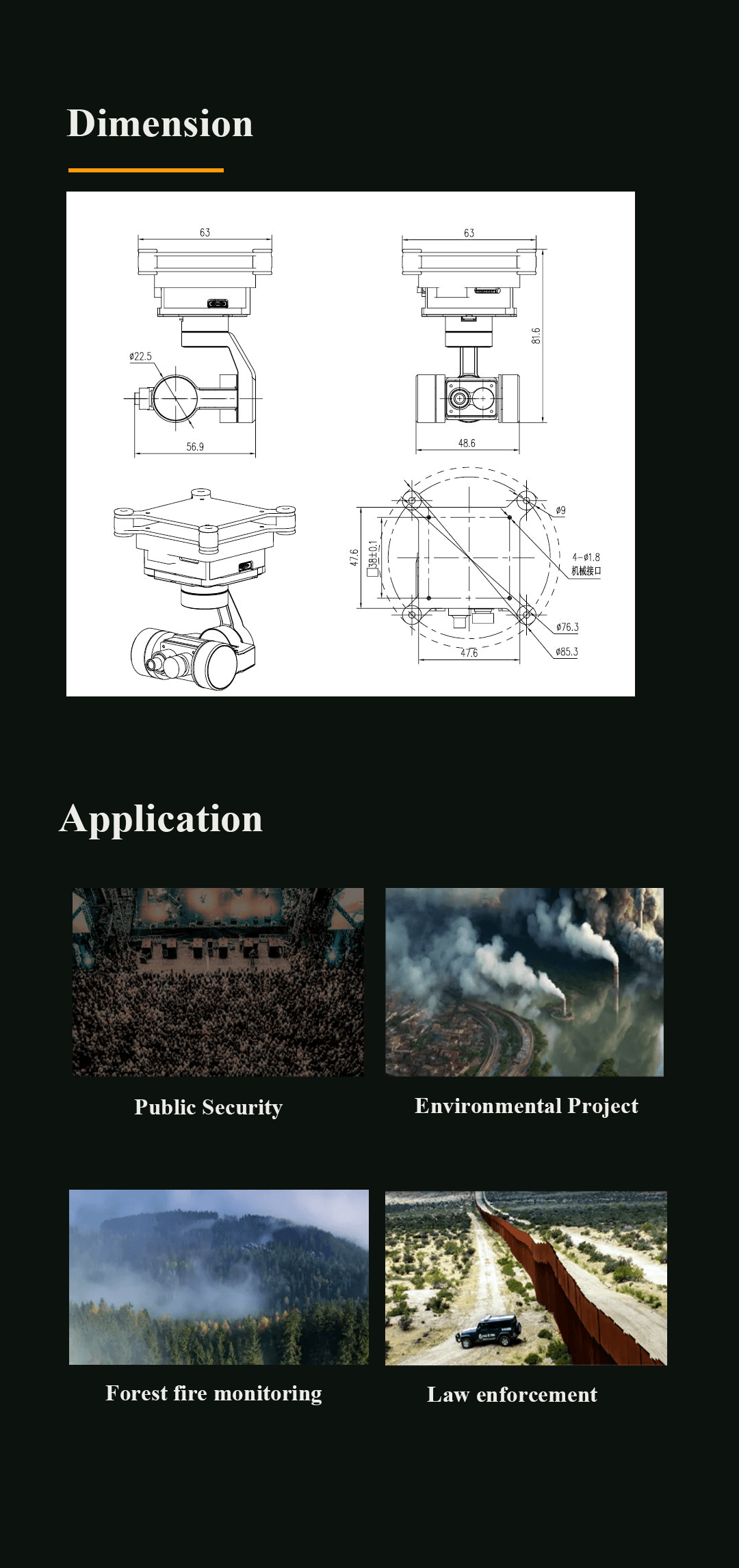

3. Application Scenarios
- Public Security:Supports compact UAV surveillance with dual visible-light imaging, gyro stabilization, and real-time video output.
- Environmental Projects:Provides wide-FOV observation and zoom detail capture for aerial environmental monitoring.
- Forest Fire Monitoring:Supports aerial patrol workflows where stable visible-light imaging and zoom observation are required.
- Law Enforcement:Helps patrol teams observe scenes and targets with 4K EO imaging, hybrid zoom, and rich OSD.
- Wide-Area Surveillance:The wide-FOV lens supports broad scene awareness from compact airborne or mobile platforms.
- Long-Range Detail Observation:The narrow-FOV lens and 10x optical zoom support closer inspection of distant objects.
Related Products
-
DA531DA531 Three-Axis EO/IR Gimbal Overview
Cameras -
DSQ09Aurora Mini DSQ09 Infrared Core Module
Cameras -

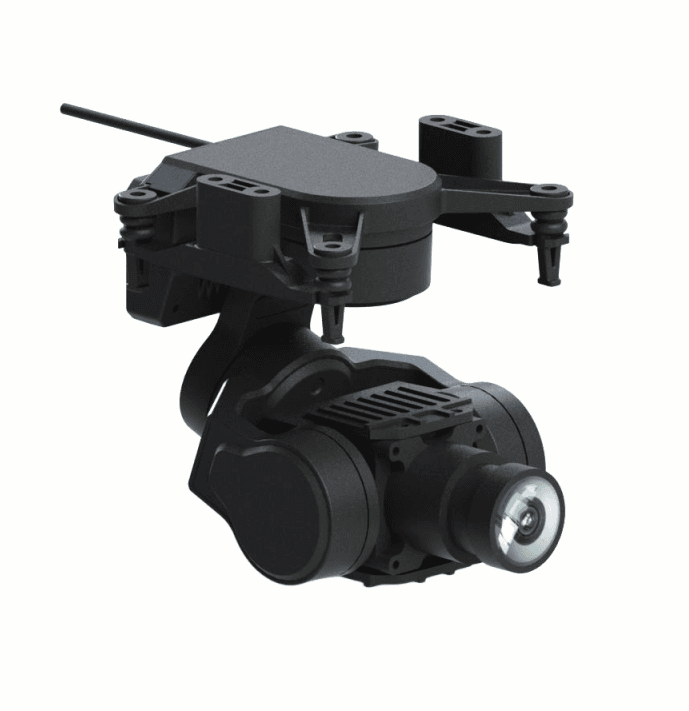

DC3DC3 FHD EO Camera 3-Axis Micro UAV Gimbal for Target Tracking
Cameras -
DC2DC2 3-Axis IR Thermal Imaging Target Tracking Micro UAV Gimbal Camera
Cameras -

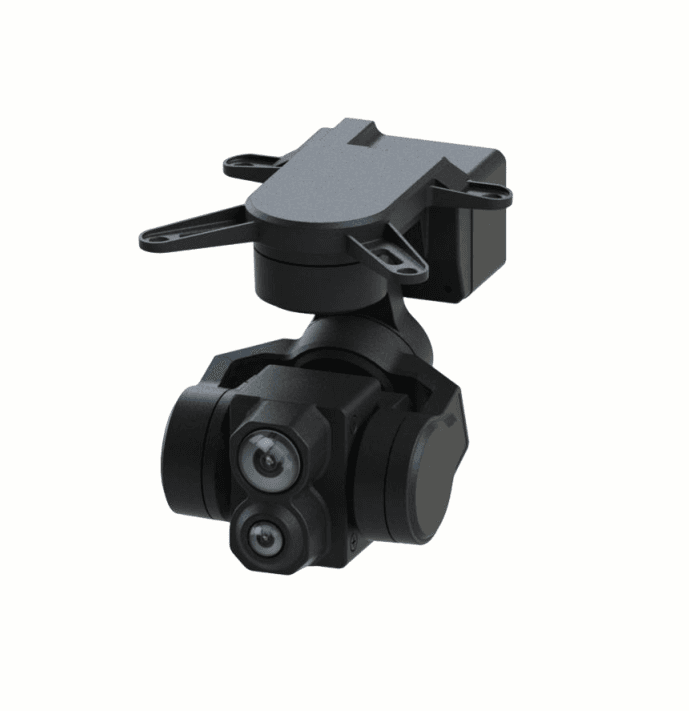

DC1DC1 3-Axis Dual Visible FHD EO Optical Zoom Micro UAV Gimbal Camera
