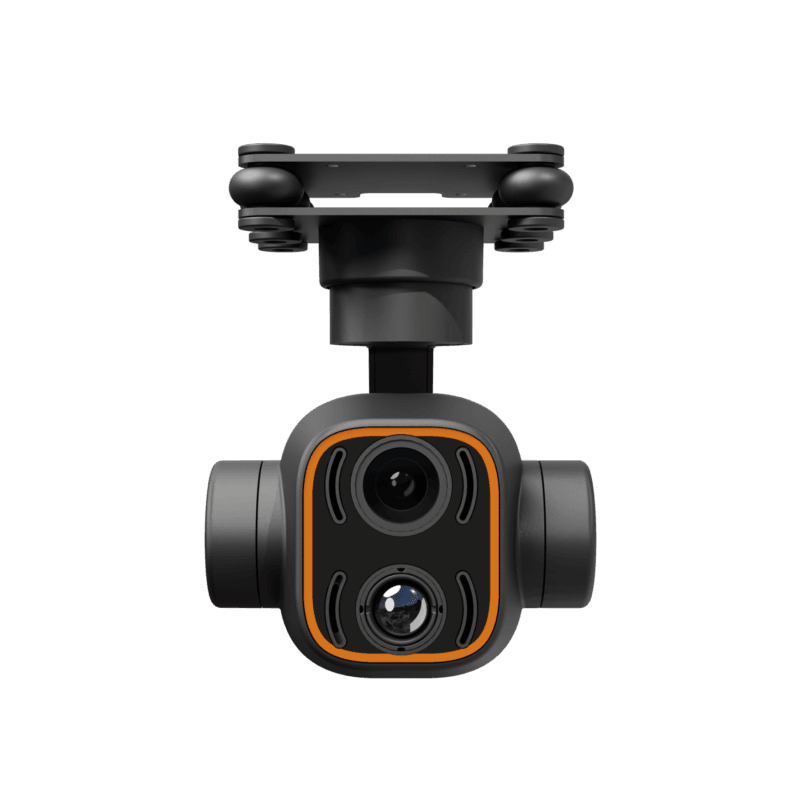

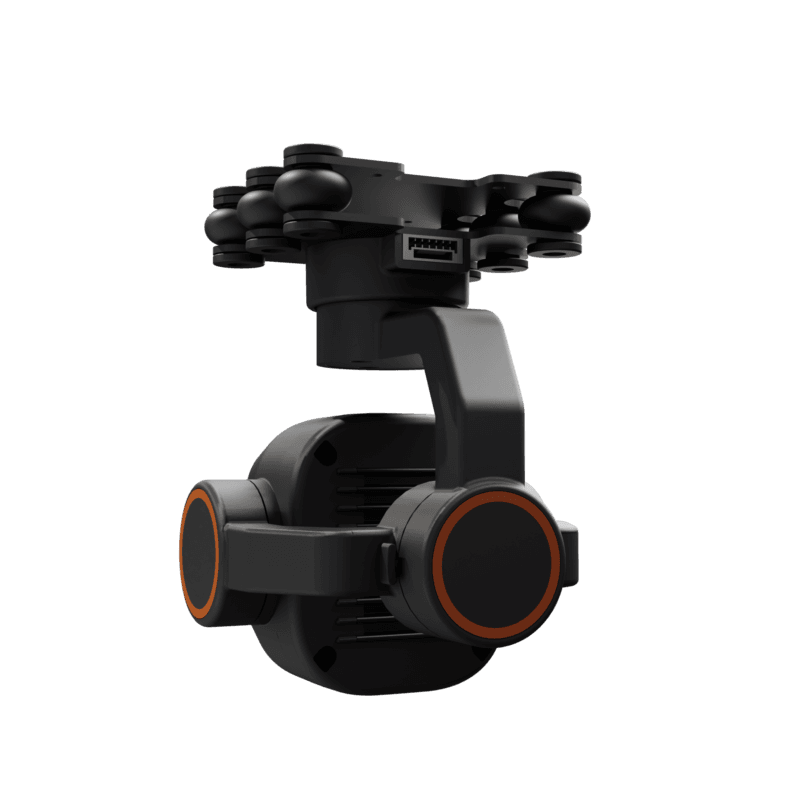

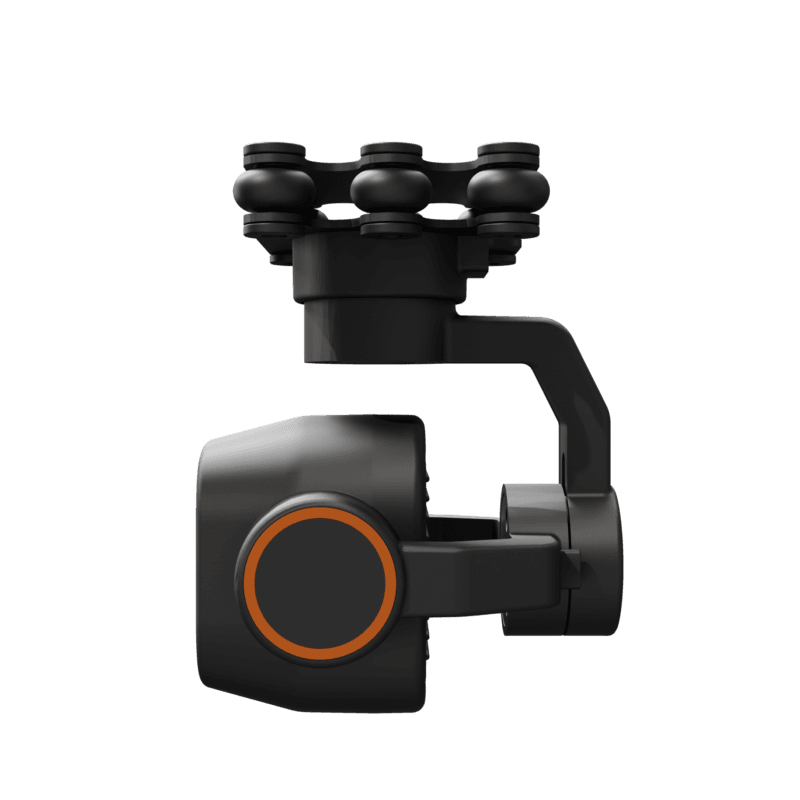

DA12 three-axis stable control dual light gimbal: intelligent dynamic tracking, integrated 2K visible light and thermal imaging
DA12 three-axis stable control dual light gimbal: intelligent dynamic tracking, integrated 2K visible light and thermal imaging
The DA12 is a high-definition three-axis stabilized dual light gimbal, integrating visible light cameras and thermal imaging sensors. It provides clear visuals through 2K photography and recording, while also offering the capability to detect heat sources using its advanced thermal imaging camera. This gimbal is ideal for applications that require both high-quality visible and infrared images, making it suitable for a variety of industries such as security, surveillance, and environmental monitoring.
The DA12 is a high-definition three-axis stabilized dual light gimbal, integrating visible light cameras and thermal imaging sensors. It provides clear visuals through 2K photography and recording, while also offering the capability to detect heat sources using its advanced thermal imaging camera. This gimbal is ideal for applications that require both high-quality visible and infrared images, making it suitable for a variety of industries such as security, surveillance, and environmental monitoring.
Description
1. Overview
The DA12 is a high-definition three-axis stabilized dual light gimbal, integrating visible light cameras and thermal imaging sensors. It provides clear visuals through 2K photography and recording, while also offering the capability to detect heat sources using its advanced thermal imaging camera. This gimbal is ideal for applications that require both high-quality visible and infrared images, making it suitable for a variety of industries such as security, surveillance, and environmental monitoring.
2. Product Features
- 2K High-Definition Visible Light Camera: Achieves clear and detailed imagery with a 2K camera, perfect for both photography and video recording. The camera also supports 30x electron magnification for distant views.
- Thermal Imaging Camera: Equipped with a high-resolution thermal imaging camera to detect heat sources and monitor areas with low visibility, supporting a wide field of view and detailed analysis.

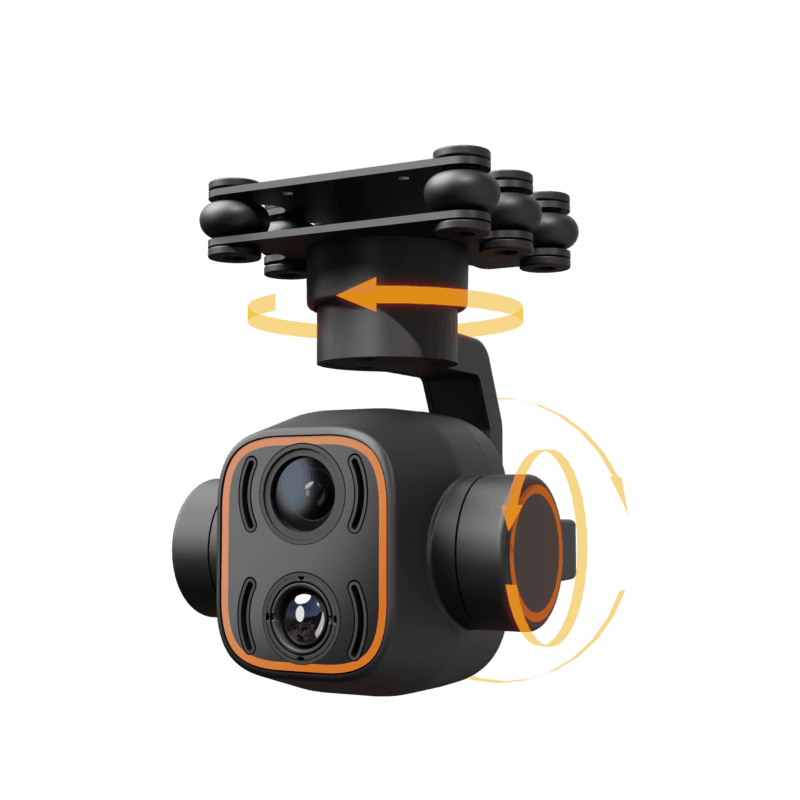

- Three-Axis Stabilization: The industrial-grade three-axis stabilization structure reduces image shake, ensuring the captured footage remains stable during movement.

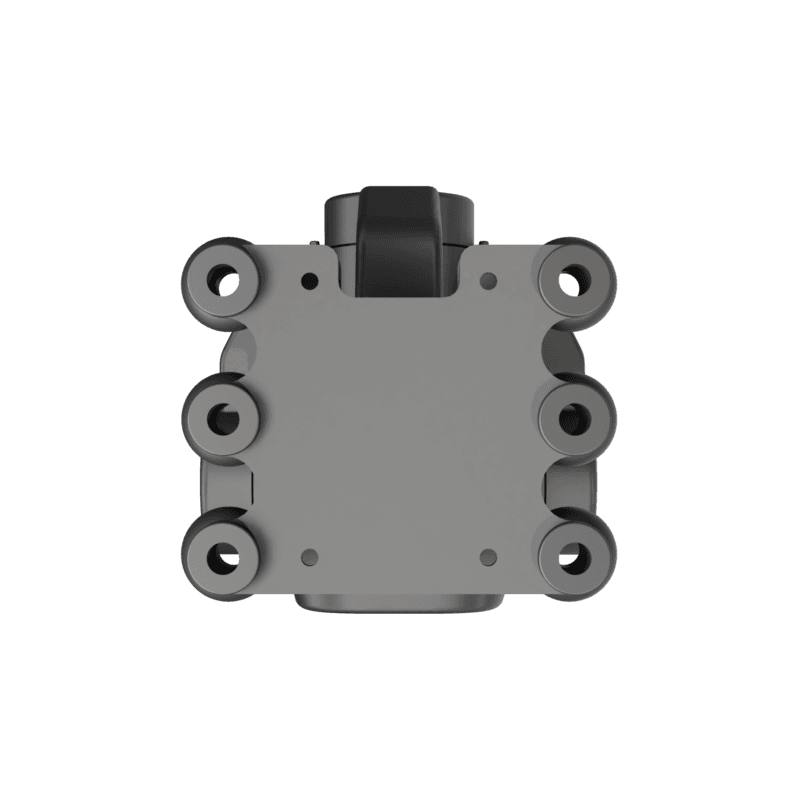

- Up-Down Installed Mode: Flexible mounting options allow the DA12 to be installed on various intelligent devices such as vehicles and ships, providing versatility in deployment.
- Dynamic Tracking: Combines with Skydroid FPV to achieve dynamic tracking and real-time capture of moving targets using intelligent algorithms.
- LAN Port and RTSP Output: The DA12 supports network connections through a LAN port for seamless integration and RTSP output for live streaming and data transmission.

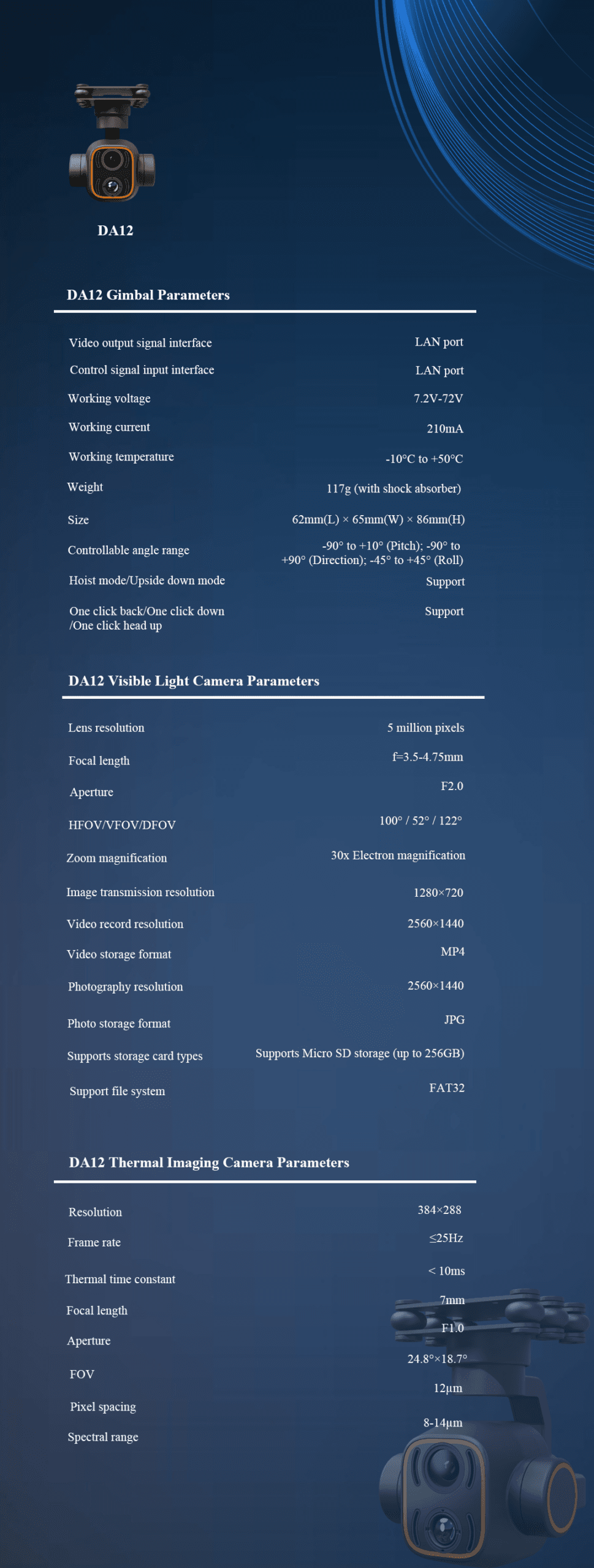

3. Detailed Technical Parameters
DA12 Gimbal Parameters
| Video output signal interface | LAN port |
| Control signal input interface | LAN port |
| Working voltage | 7.2V-72V |
| Working current | 210mA |
| Working temperature | -10°C to +50°C |
| Weight | 117g (with shock absorber) |
| Size | 62mm(L) × 65mm(W) × 86mm(H) |
| Controllable angle range | -90° to +10° (Pitch); -90° to +90° (Direction); -45° to +45° (Roll) |
| Hoist mode/Upside down mode | Support |
| One click back/One click down/One click head up | Support |
DA12 Visible Light Camera Parameters
| Lens resolution | 5 million pixels |
| Focal length | f=3.5-4.75mm |
| Aperture | F2.0 |
| HFOV/VFOV/DFOV | 100° / 52° / 122° |
| Zoom magnification | 30x Electron magnification |
| Image transmission resolution | 1280×720 |
| Video record resolution | 2560×1440 |
| Video storage format | MP4 |
| Photography resolution | 2560×1440 |
| Photo storage format | JPG |
| Supports storage card types | Supports Micro SD storage (up to 256GB) |
| Support file system | FAT32 |
DA12 Thermal Imaging Camera Parameters
| Resolution | 384×288 |
| Frame rate | ≤25Hz |
| Thermal time constant | < 10ms |
| Focal length | 7mm |
| Aperture | F1.0 |
| FOV | 24.8°×18.7° |
| Pixel spacing | 12µm |
| Spectral range | 8-14µm |
4. Application Scenarios
- Surveillance: Perfect for high-resolution surveillance, the dual camera system allows simultaneous visual and thermal imaging, aiding in detecting hidden threats or individuals in low-light conditions.
- Search and Rescue: The thermal imaging camera can help locate missing persons in low visibility conditions, while the high-definition camera provides precise visual identification.
- Inspection and Monitoring: Ideal for infrastructure monitoring such as pipelines, power lines, and equipment maintenance where both thermal and visible imaging is required to detect faults or abnormalities.
Additional information
| Performance parameters | D12 |
|---|
